About this item

 ◆ Principle :NF Type Eddy Current / F Magnetic Induction; Range: 0~1250µm/0~50mil; Metric/Imperial Convertible; Resolution: 0.1µm/1µm; Accuracy: ±1~3%n or ±2.5µm; Low Battery Indicator; Automatic Power Off

◆ F Type Magnetic Induction (Iron Base): Measure the thickness of non-magnetic materials on magnetic materials, like Galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc

◆ NF Type Eddy Current (Aluminium Base): Measure the thickness of non-conductive coatings on non-magnetic metals, Anodizing, varnish, paint, enamel, plastic coatings, powder, etc. Applied to aluminum, brass, non-magnetic stainless steel, etc

◆ Two measurement mode: Single and Continuous（Notice: Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.）

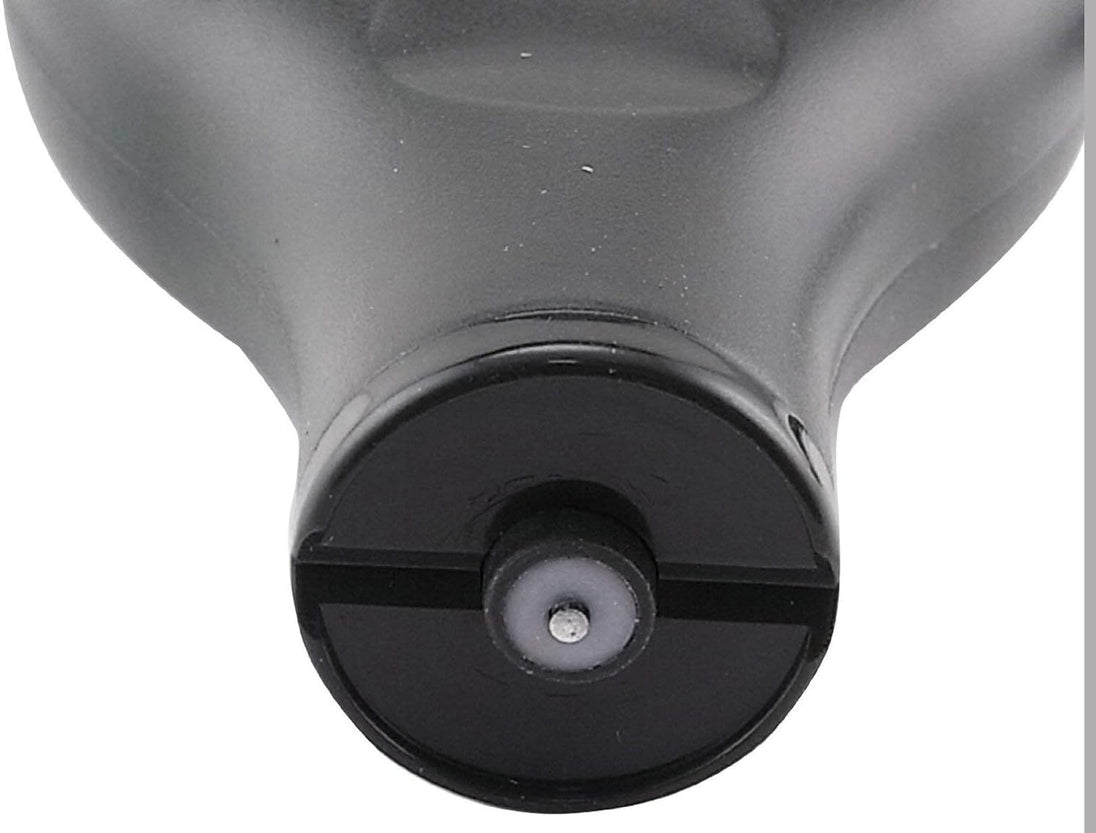

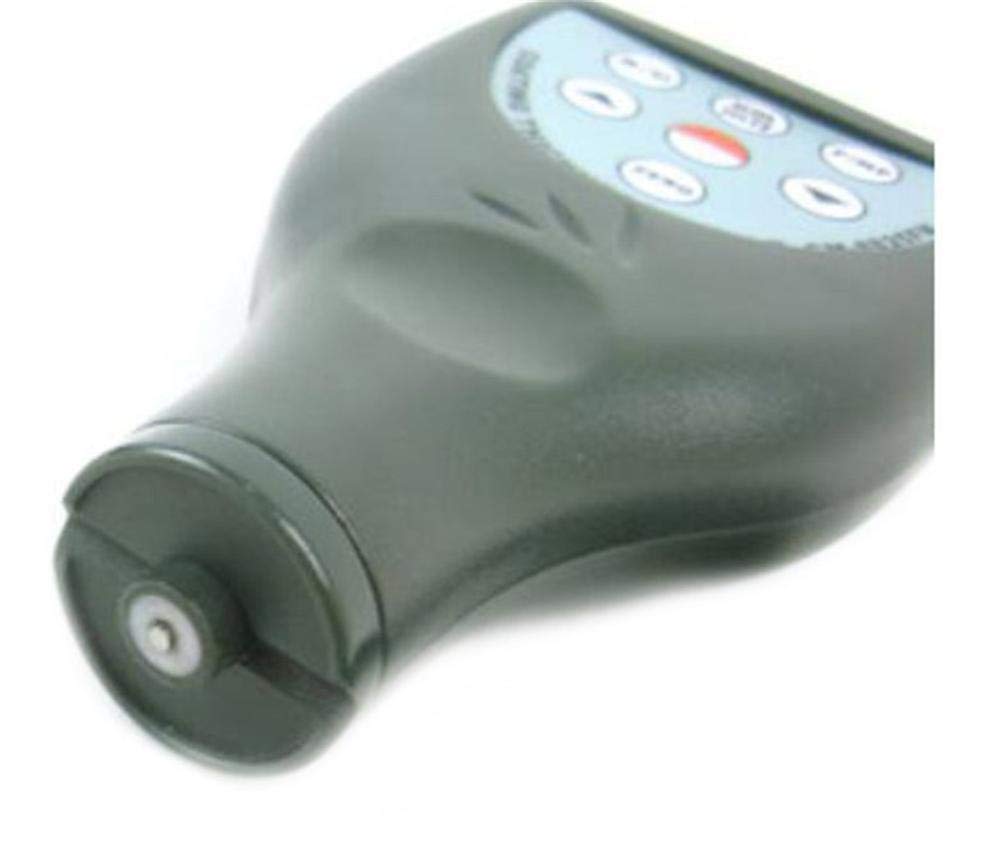

◆ Integral Type suitable for single-hand operation, large probe with large contact surface have better stability, users can get continuous, good repetitive and precise measurements.

Shipping Policy : Battery Not Included During the Shipping
Measuring Materials
F Type Magnetic Induction (Iron Base): Measure the thickness of non-magnetic materials on magnetic materials, like Galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc
NF Type Eddy Current (Aluminium Base): Measure the thickness of non-conductive coatings on non-magnetic metals, Anodizing, varnish, paint, enamel, plastic coatings, powder, etc. Applied to aluminum, brass, non-magnetic stainless steel, etc
Features:
* Two measuring methods: magnetic induction (F) and eddy current (N)
* Two measurement mode: Single and Continuous（Notice: Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.）
* Automatic memory of calibration value,and automatic recognize the substrate.
* Operation process have buzzing reminder,while no buzzing in continuous mode.
Specification:
* Principle :NF Type Eddy Current / F Magnetic Induction
* Range: 0~1250µm/0~50mil
* Resolution: 0.1µm/1µm
* Accuracy: ±1~3%n or ±2.5µm
* Min.Radius Workpiece: F Type:convex 1.5mm/concave 25mm; NF Type:convex 3mm/concave 50mm
* Min.Measuring Area: 6mm
* Min.Sample Thickness: 0.3mm
* Metric/Imperial :Convertible
* Battery Indicator: Low Battery Indicator
* Automatic Power Off: √
* Operating Conditions :
Temperature:0~50ºC
Humidity:<80%RH

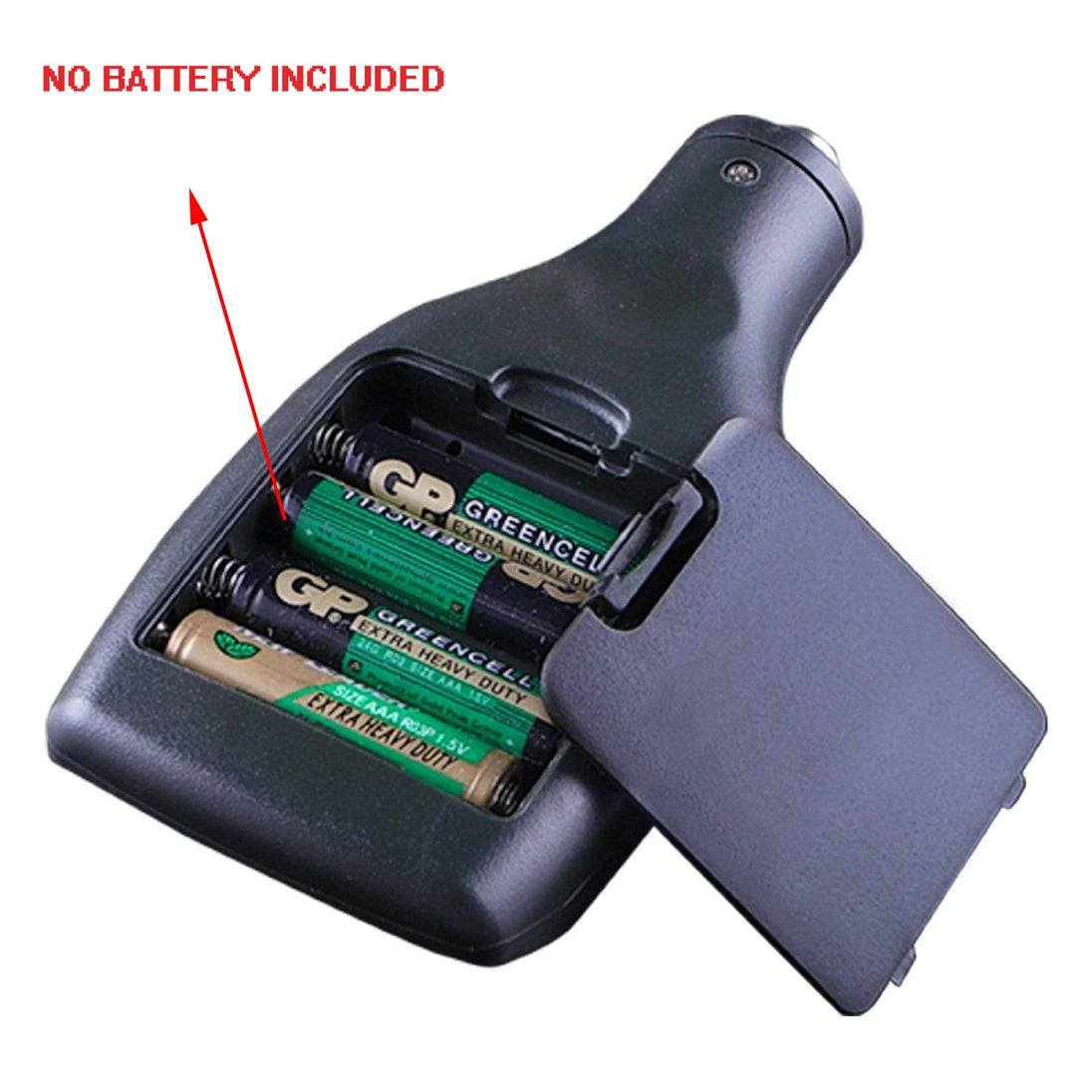

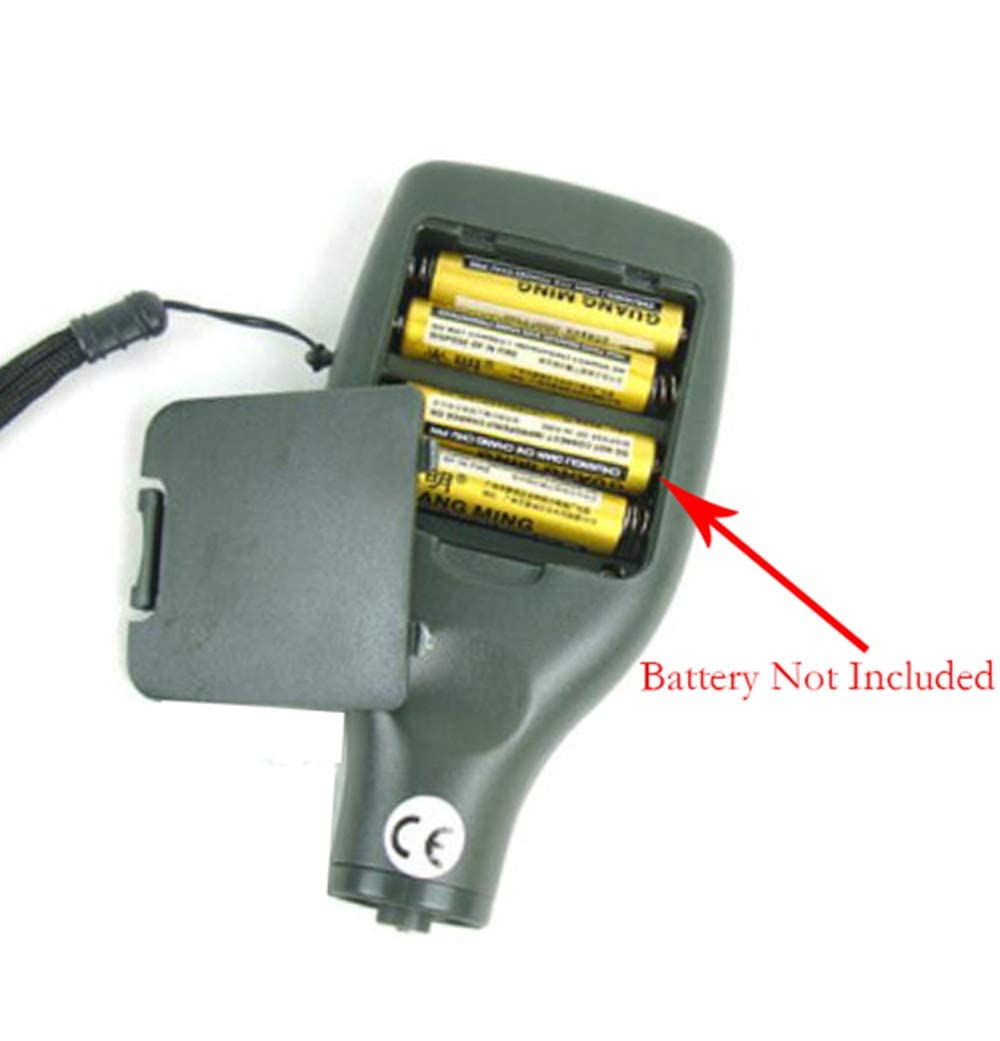

*Power Supply: 4x1.5V AAA (UM-4)Battery(Not Including Batteries )
* Dimensions :126x65x27mm
* Weight: 81g(Not Including Batteries)

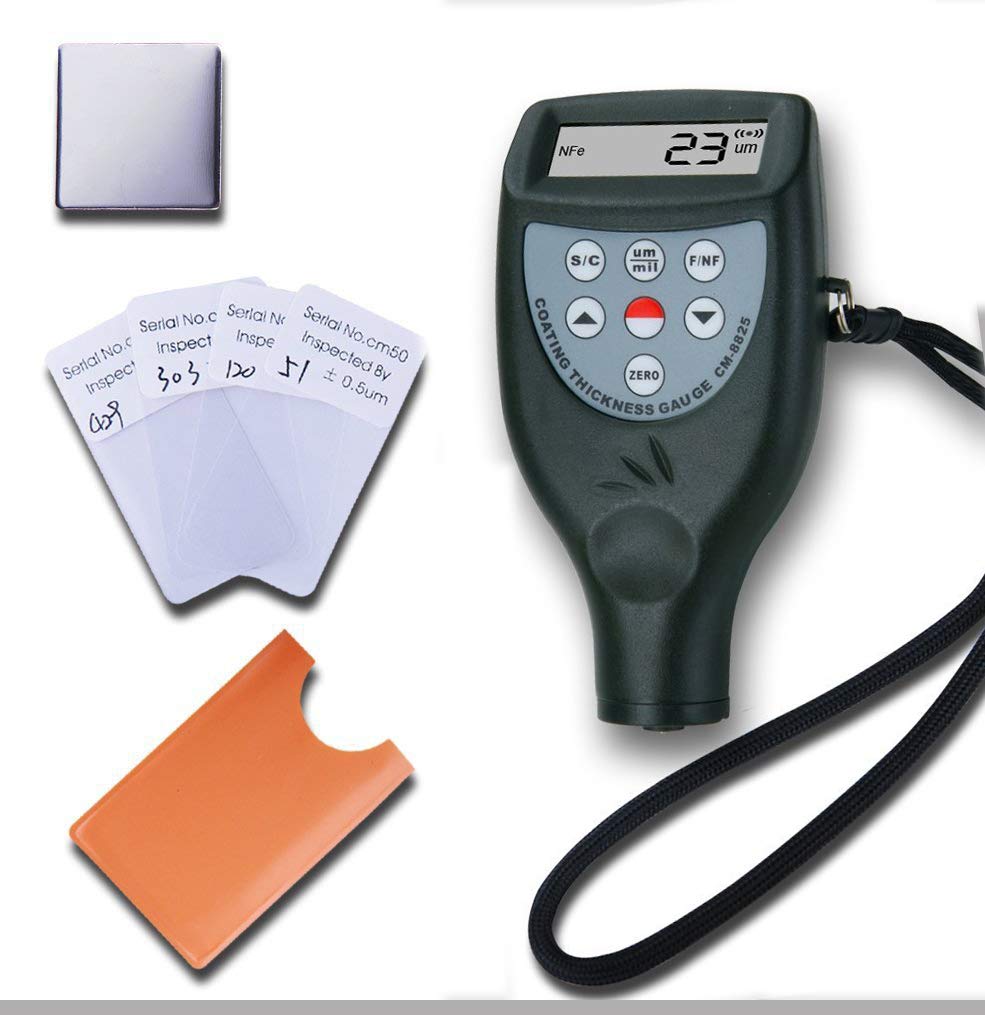

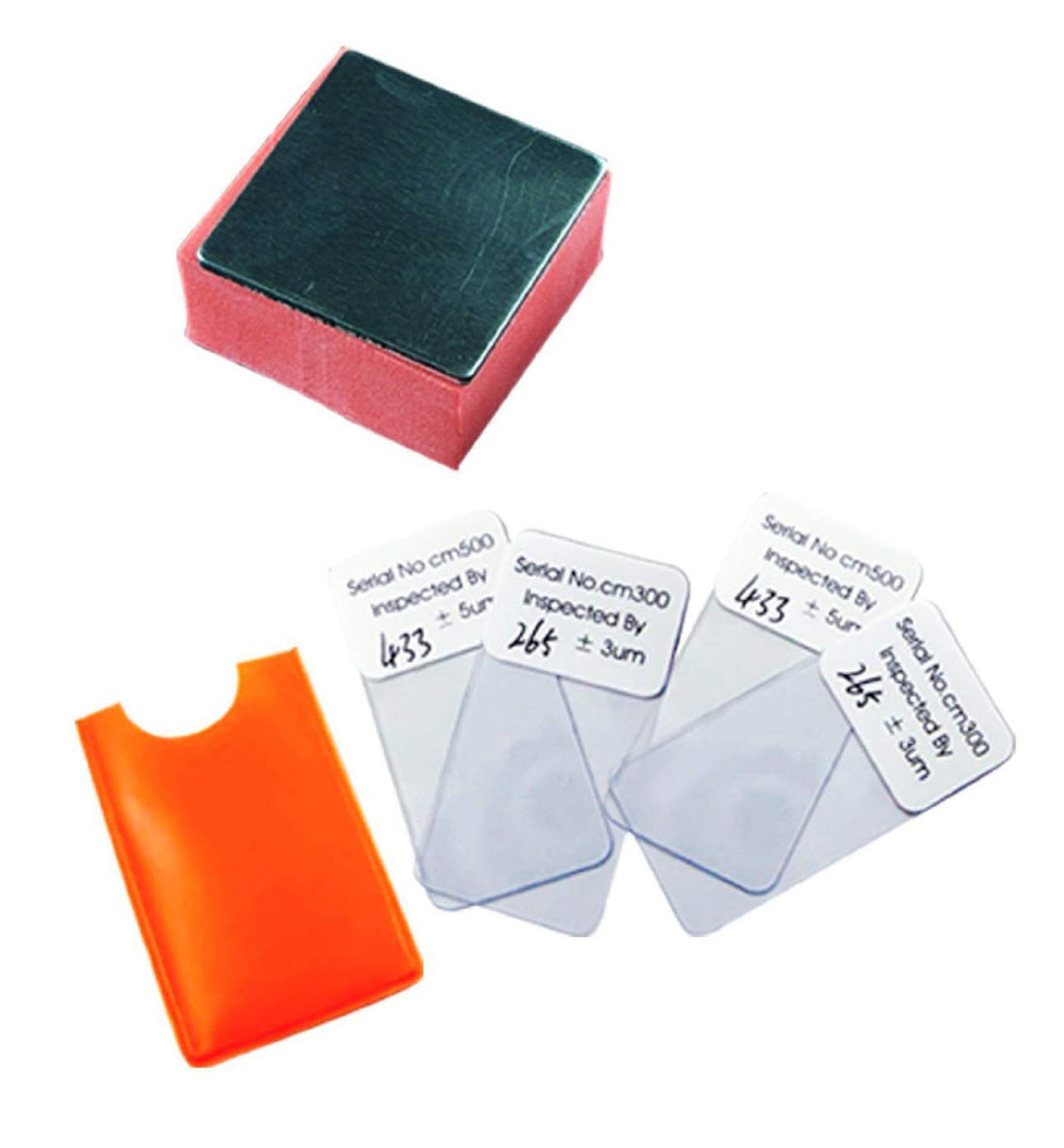

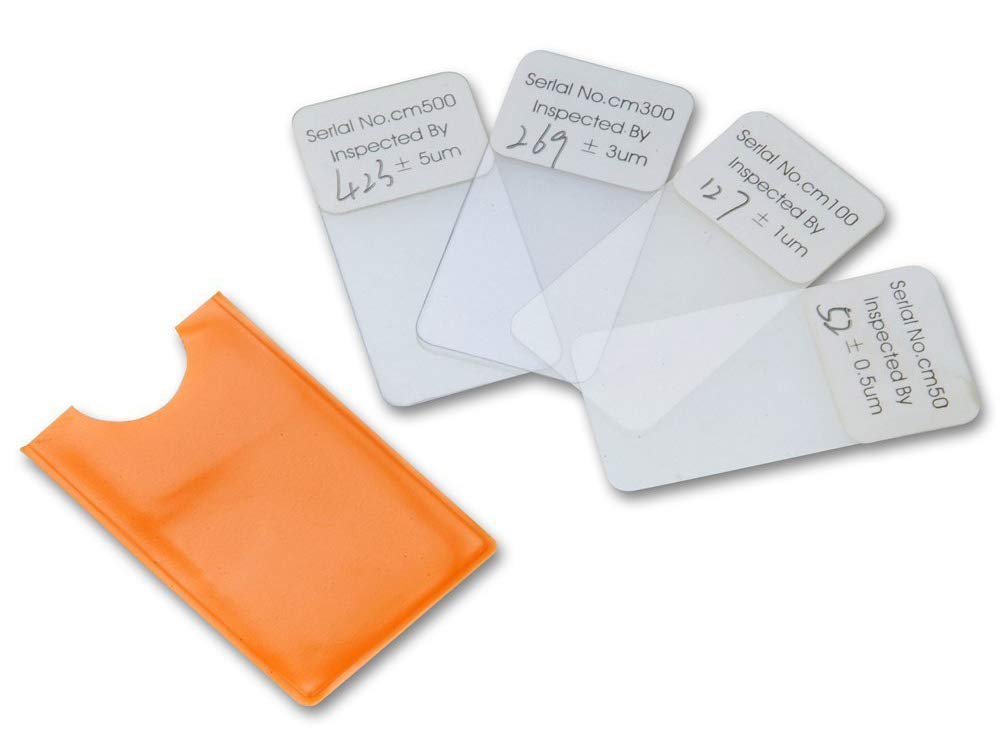

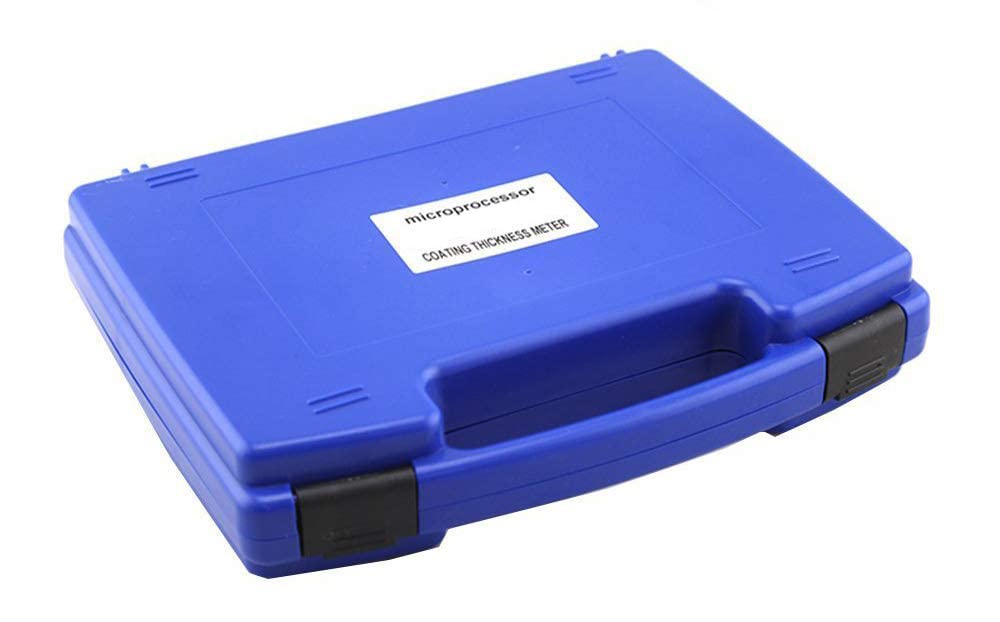

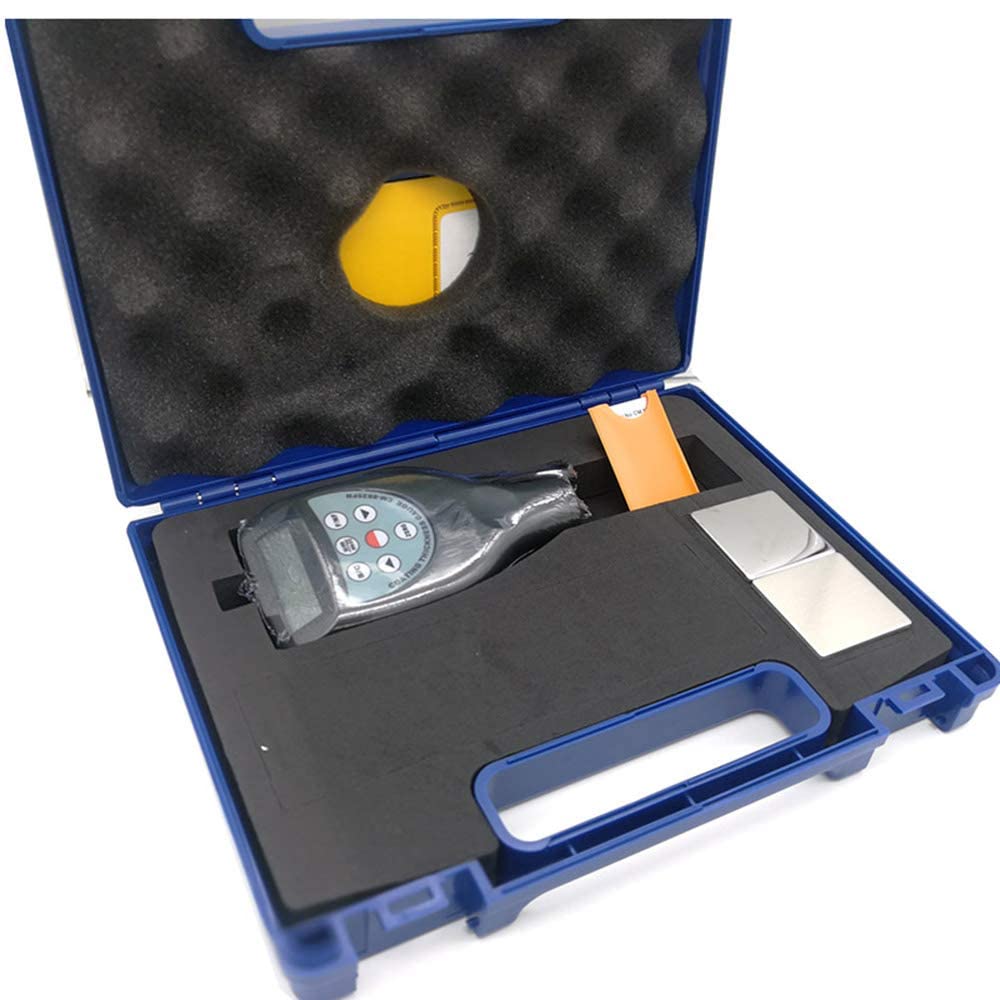

*Standard Accessories: Main unit, F iron base sensor, NF aluminum base sensor, F iron base sheet, NF aluminum substrate, standard film, portable carrying case, instruction manual
