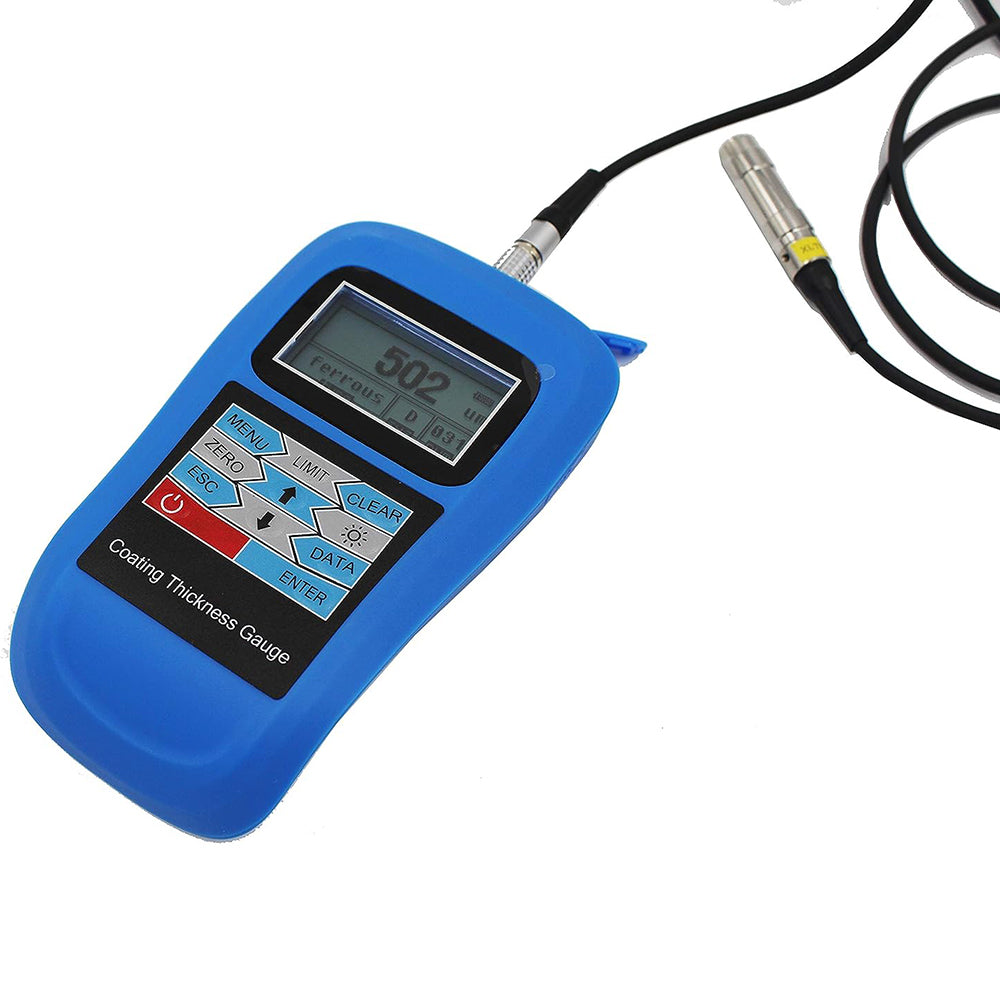

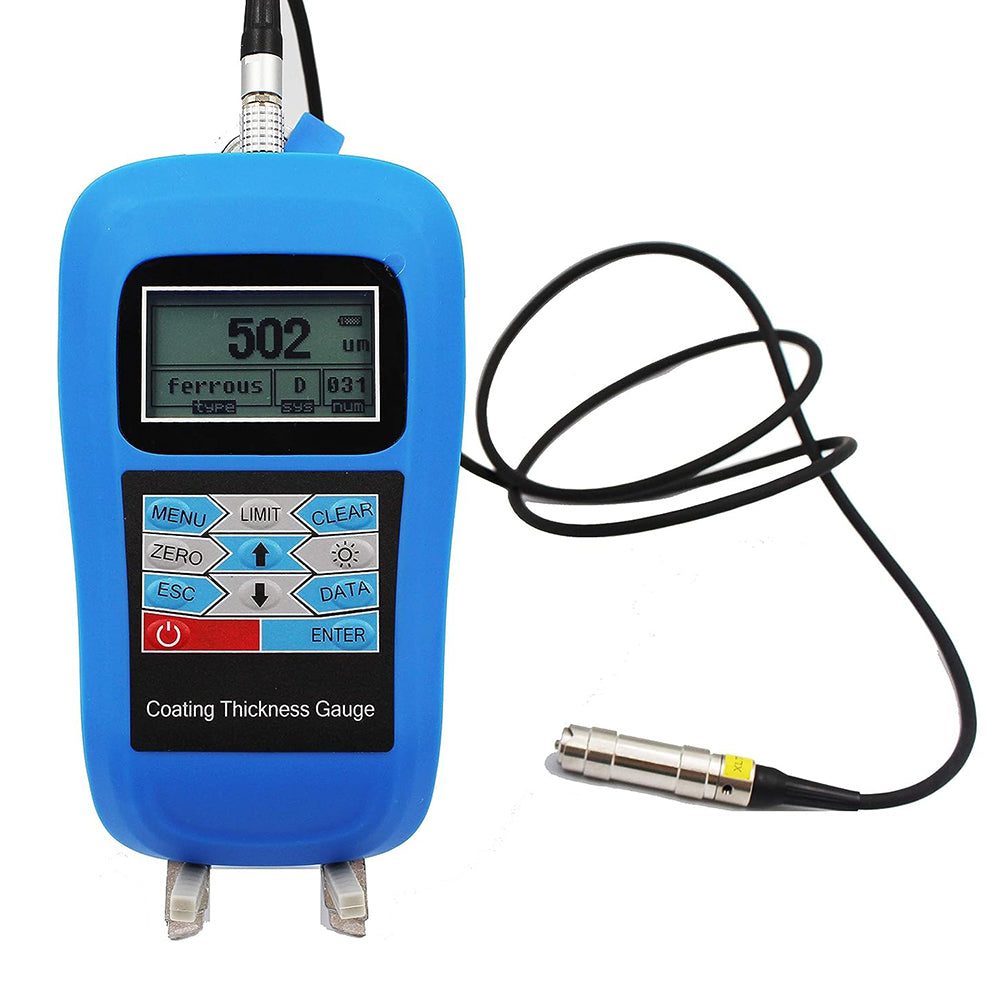

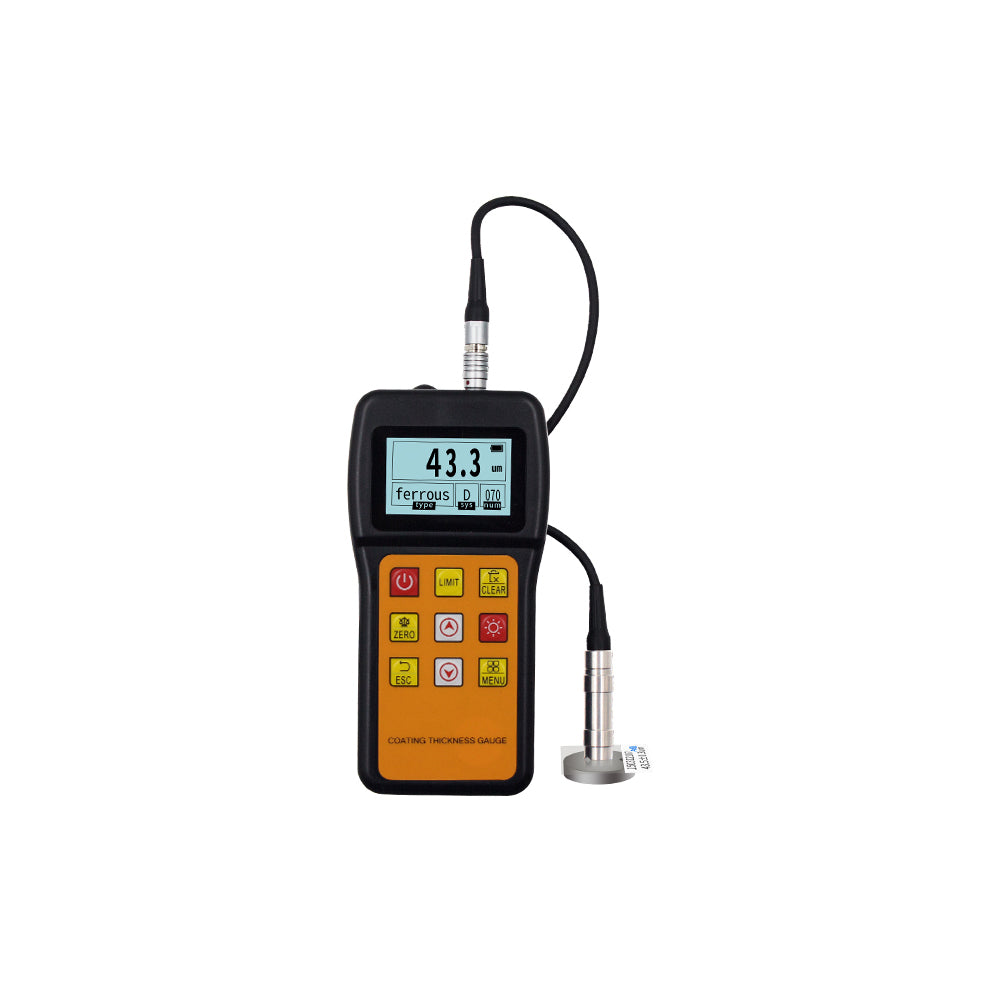

VTSYIQI Professional Digital Coating Paint Thickness Meter for Steel and Aluminum Nicety with FE Probes 0 to 1250um 0 to 50mil

$24100
In stock
$24100

Customer Service

Post your customer service details here.

Return Policy

Post your policy conditions details here.

About this item:

◆ Full shell design, sturdy, portable, high reliability.

◆ Measuring range: 0-1250μm; Unit switch: Metric (μm) Imperial (mil)

◆ Substrate: Fe Base; Working principle: Magnetic ;

◆ Display: 128x64 LCD with backlight;

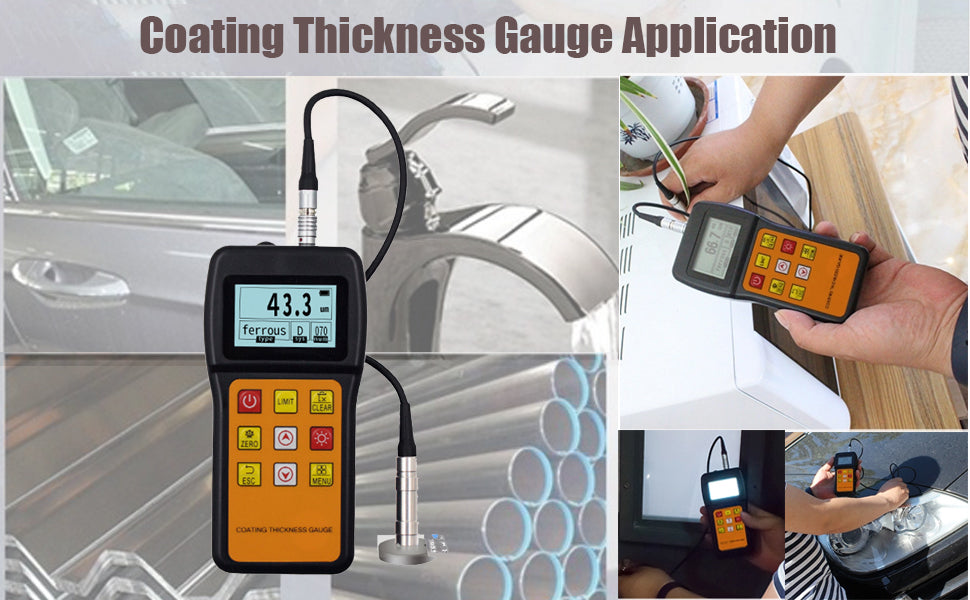

◆ Can measure the thickness of non-magnetic coating layers covered on magnetic substrate. Such as: non-magnetic (aluminum, chrome, copper, enamel, rubber, paint) covered on magnetic substrate (steel, alloy and magnetic stainless steel)

Coating Thickness Gauge Introduction

Working principle: Magnetic

Main feature:

*Durable probe, more wear and precise.

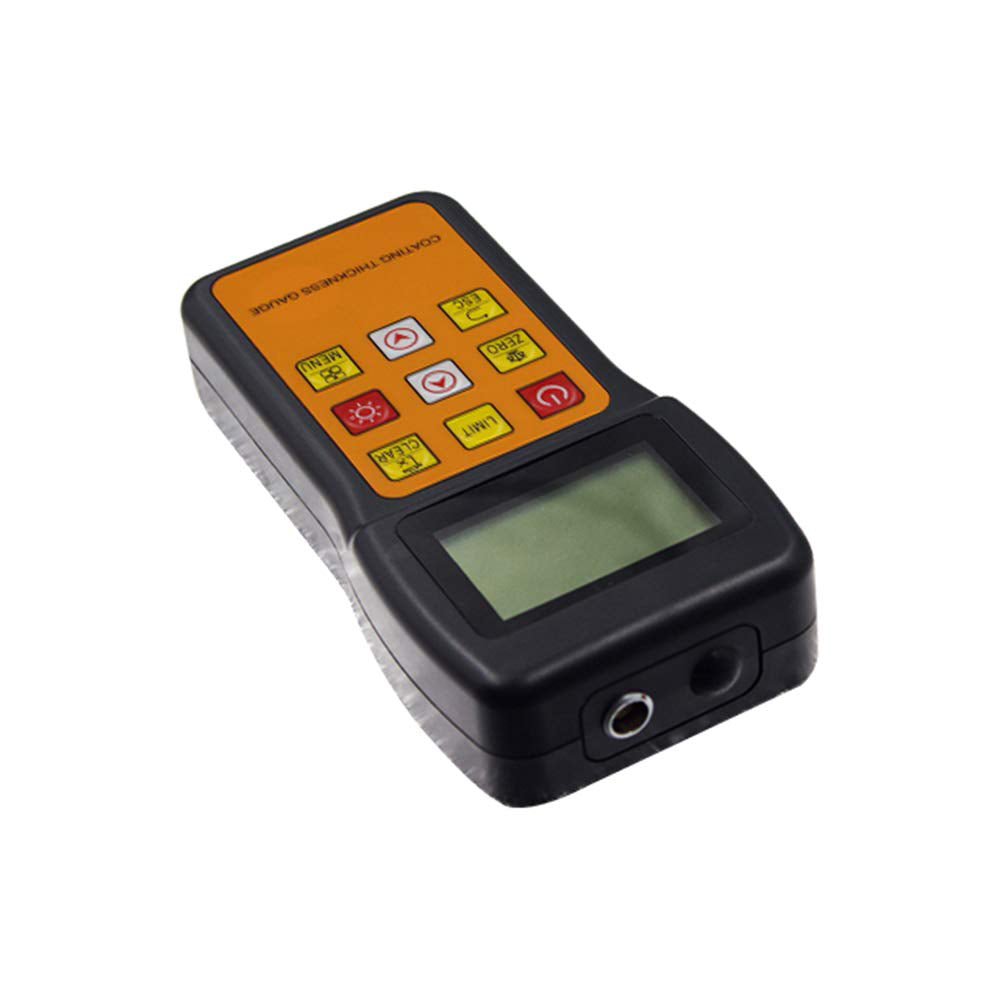

*Full shell design, sturdy, portable, high reliability.

*Alarm function when overrun the settable limiting range.

*Five statistics values [MEAN, MAX, MIN, NO., S.DEV] higher measurement accuracy.

*Large storage, easy to delete single or multiple saved values..

Technical Specifications

* Measuring range: 0-1250μm

* Working principle: Magnetic

* Substrate: Fe Base

* Resolution: 0.1μm

* Display: 128x64 LCD with backlight

* Accuracy: ±2%H+1um Note: H is thickness reading

* Memory: 5 files x 100 values

* Unit switch: Metric (μm) Imperial (mil)

* Working temperature: Operation Temp : -10~50°C

* Storage Temp: -30~70°C

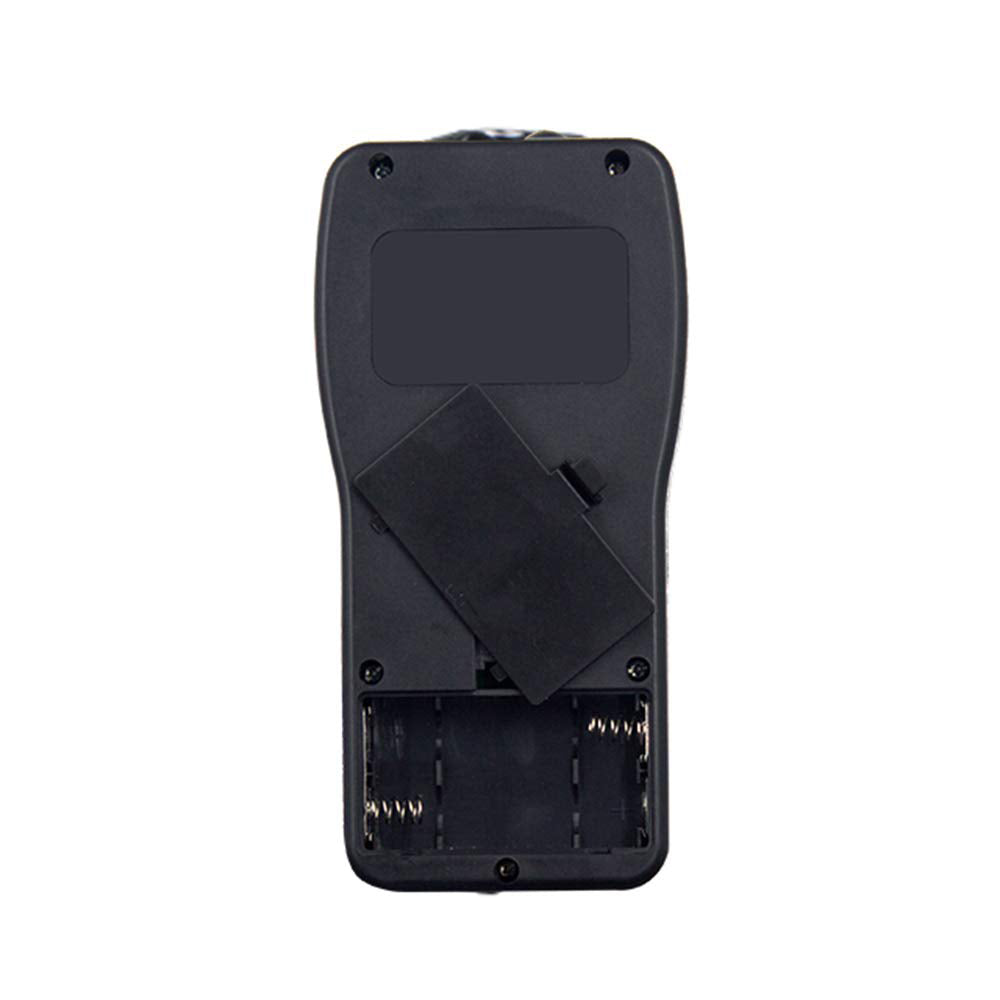

* Power: AA battery 2pcs（Battery Not Included In the Package）

* Weight: 340g

* Size: 115*67*31mm

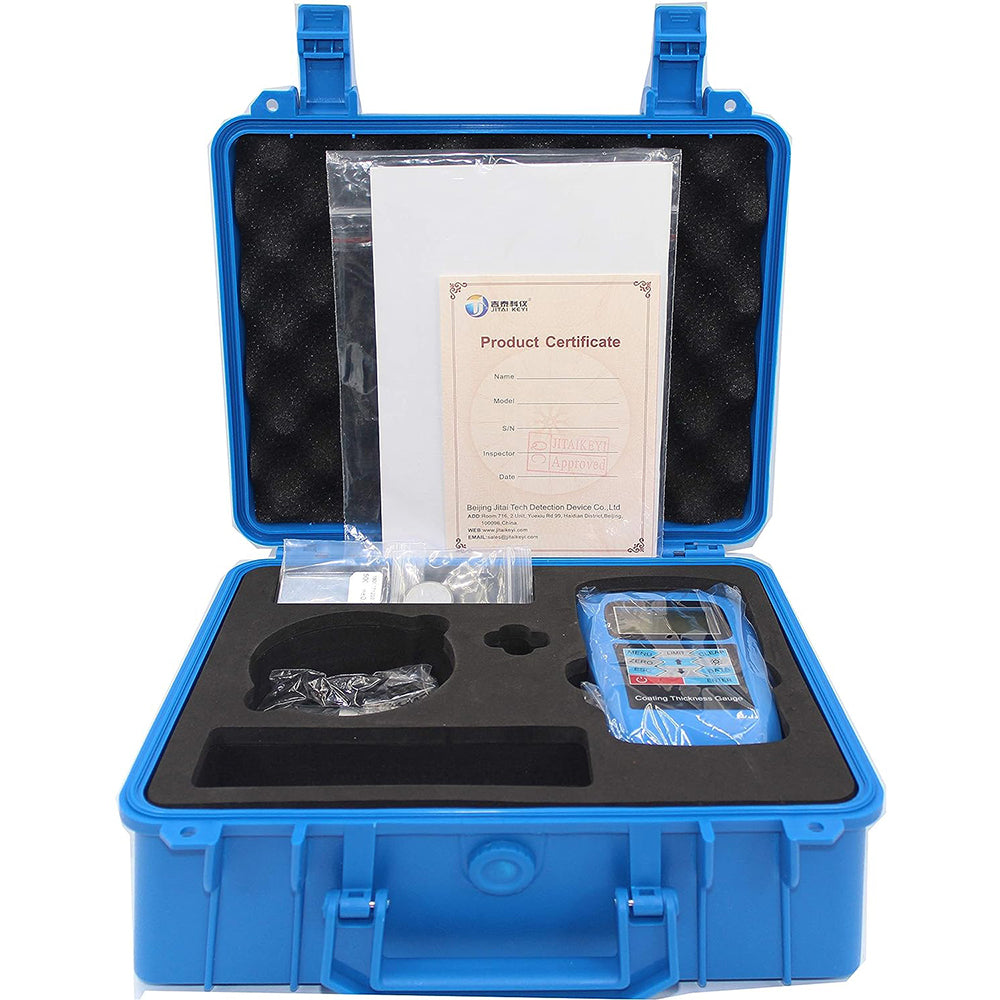

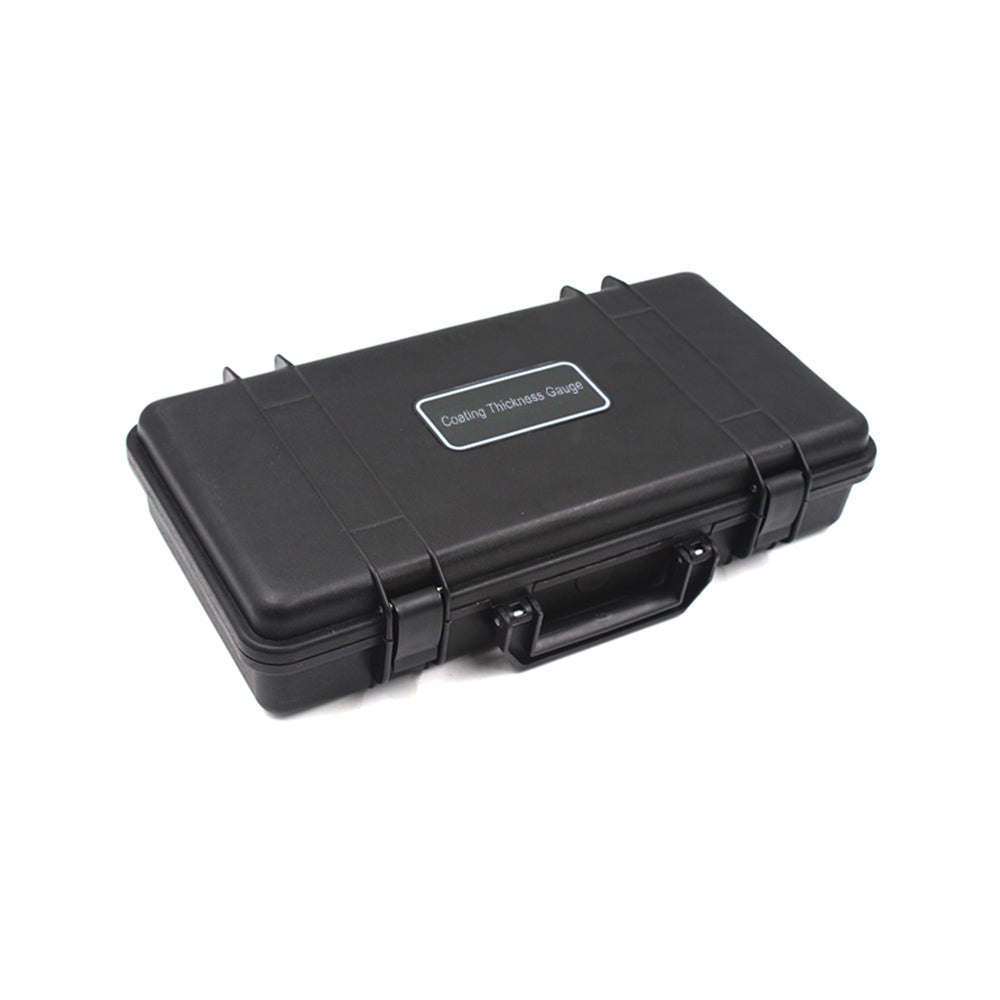

* Standard Accessories: Main unit, Probe (Fe ),Calibration piece + Zeroing plate,Operating manual, Instrument case
