VTSYIQI Through Coating Ultrasonic Thickness Gauge Multi-Mode Ultrasonic Thickness Gauge Tester Meter with 1000 Values Data Storage Measuring Range PE Model 0.75 to 400 mm EE Model 0.75 to 25mm Resolution 0.1mm/0.01mm
- Regular price
- $360.00

About this item
Measuring RangePE model(0.75~400)mm (in steel) EE model(0.75-25mm)
Sound Velocity:(1000~9999) m/s
Resolution:0.1mm/0.01mm
Accuracy:±(0.5%H+0.01)mm; H is thickness
Storage ability:memory 1000 group (1000 values)
Overview:

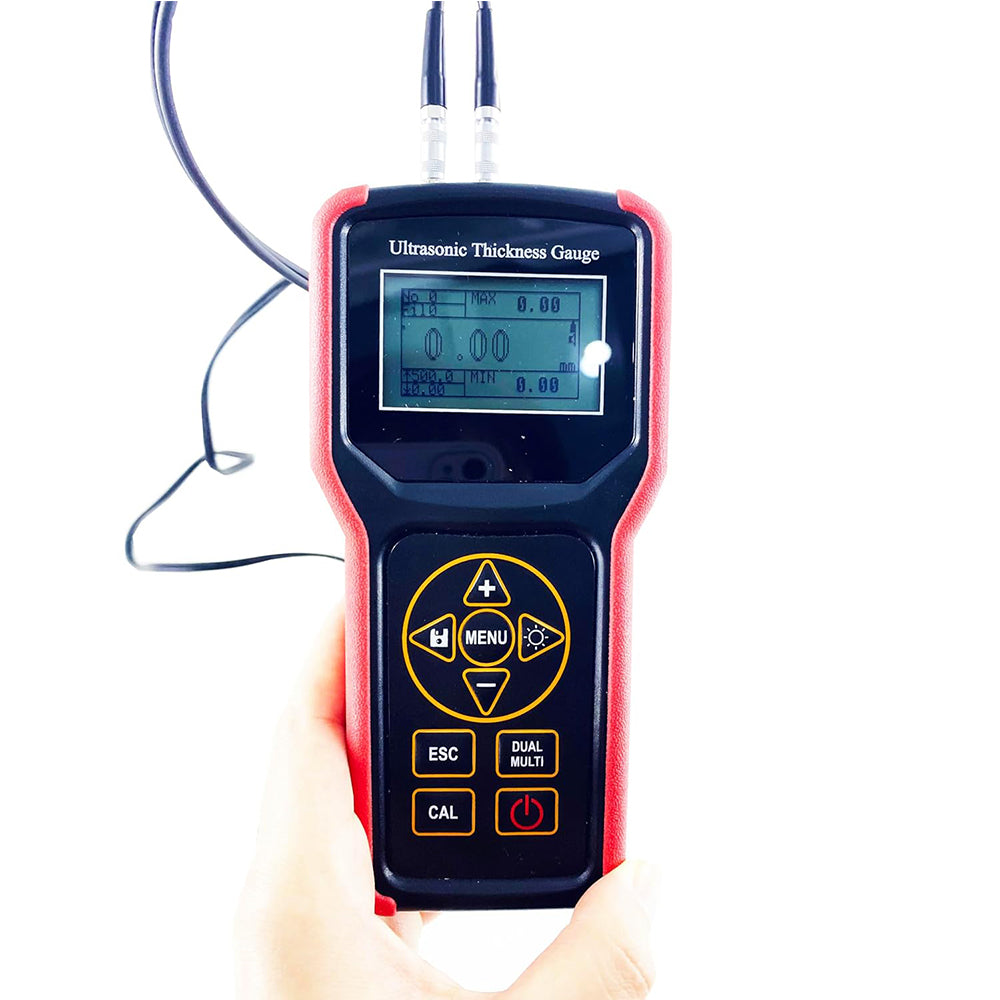

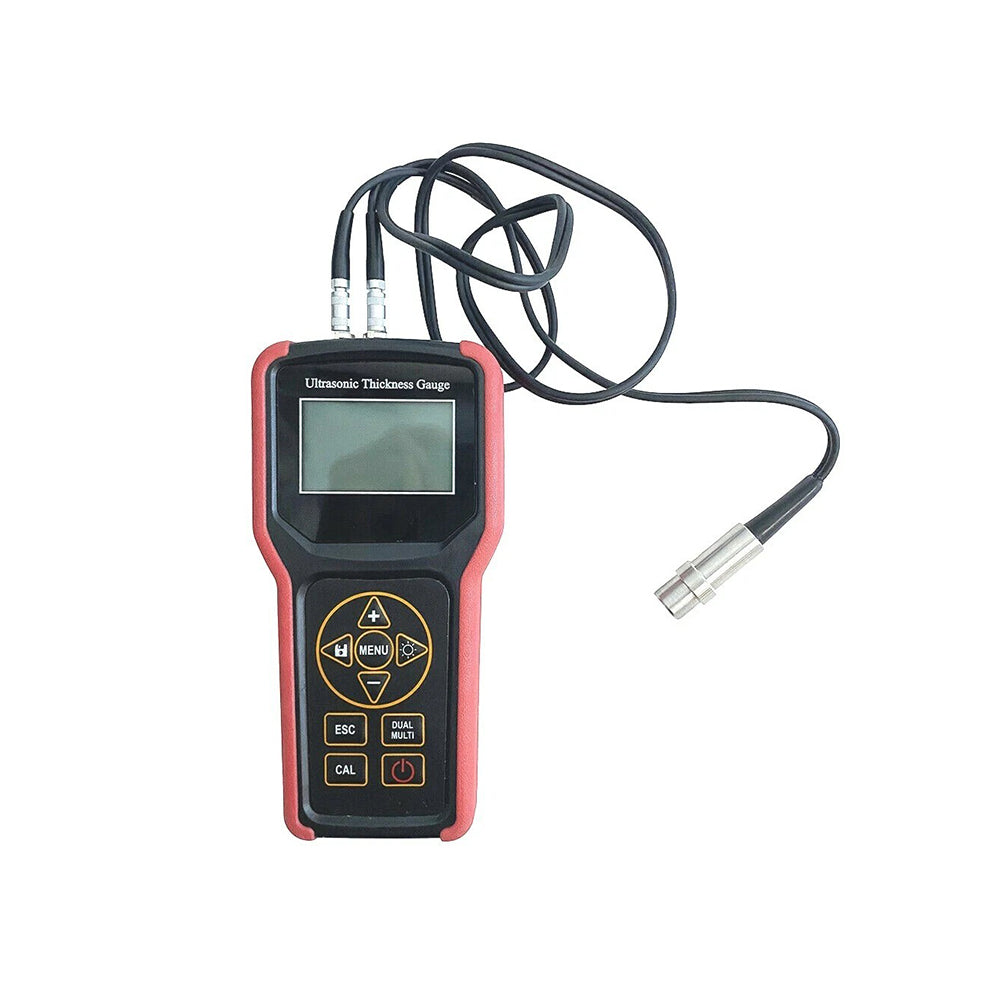

The model X series are digital ultrasonic thickness gauge. Based on the same operating principles , the instrument is capable of measuring the thickness of various materials with accuracy as high as 0.1/0.01 millimeters. It is suitable for a variety of metallic and non-metallic materials.
Product Specifications:

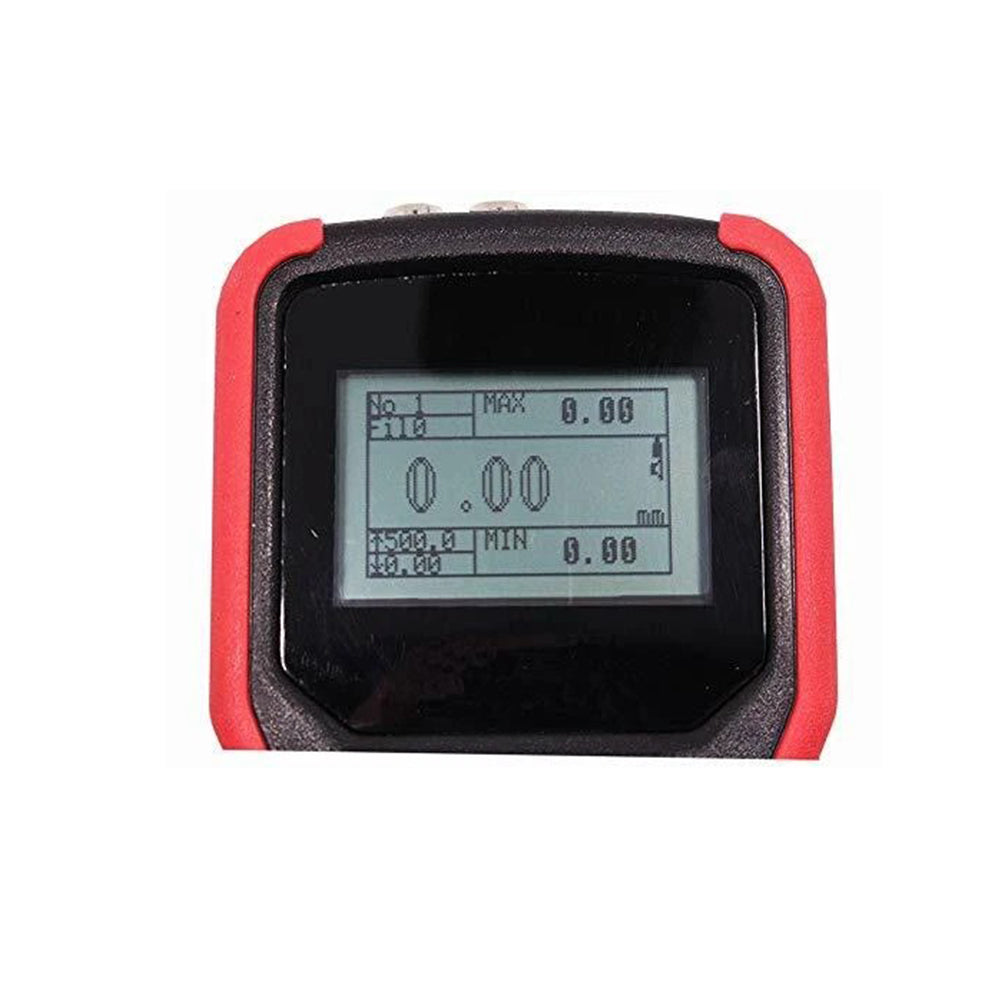

Display:4.5 digits LCD with EL backlight
Measuring Range:PE model(0.75~400)mm (in steel) EE model(0.75-25mm)
Sound Velocity:(1000~9999) m/s
Resolution:0.1mm/0.01mm
Accuracy:±(0.5%H+0.01)mm; H is thickness
Measuring cycle:5 measurements readings per second for single point measurement, and 25 per second for Scan Mode.
Storage ability:memory 1000 group (1000 values)
Operating type:Pulse-echo and echo-echo
Units:mm/inch

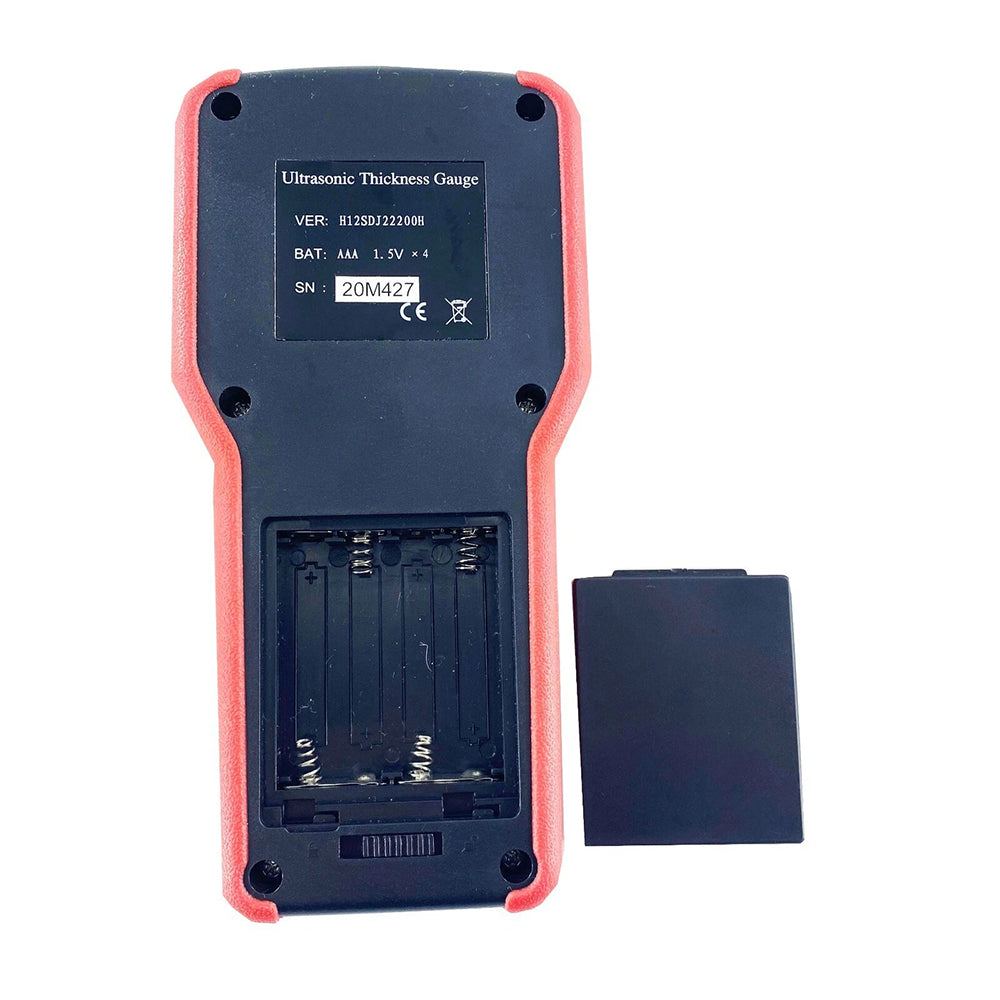

working voltage:3V 4 AA size, 1.5 Volt alkaline batteries.(Batteries not included in the shipment)
work duration :≧100h

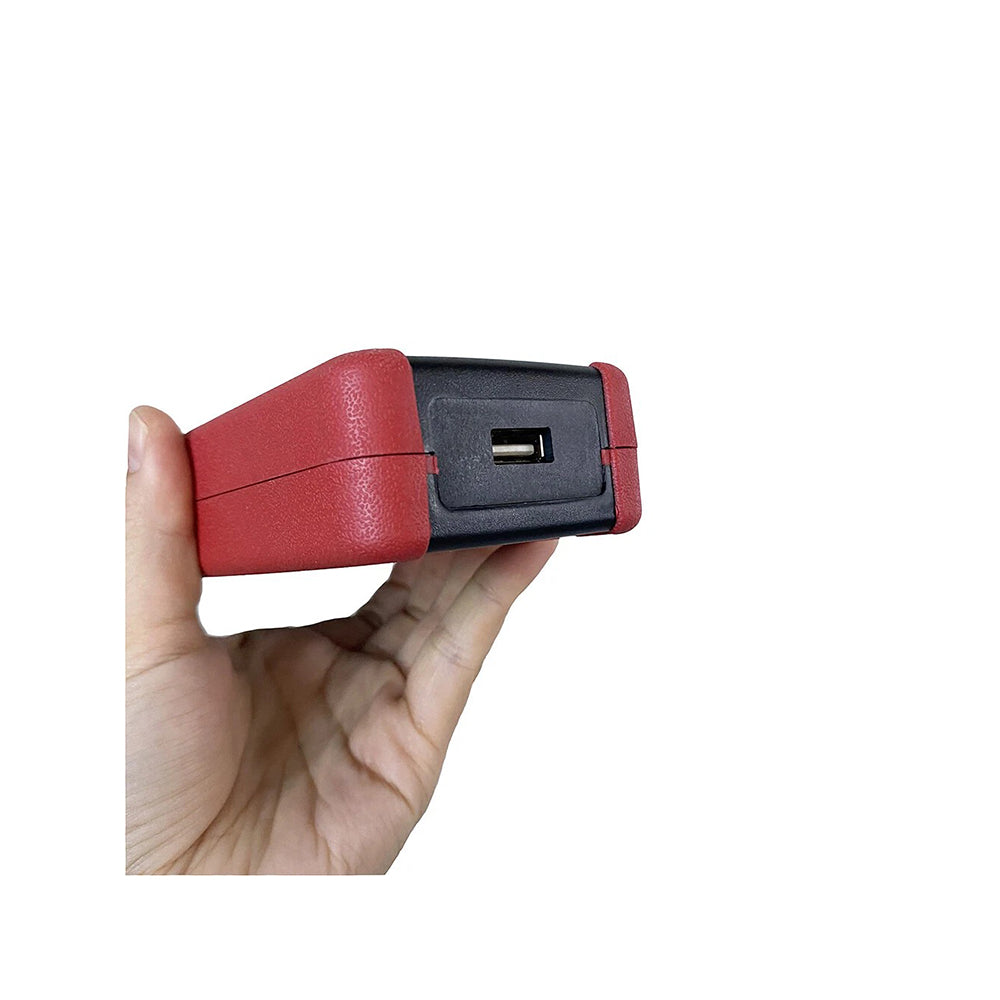

outside storage connection:USB connection. Can connect U plate
size:150mm×74mm×32 mm
weight:245g
Function:
- Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials.
- Transducer models are available for special application,including for coarse grain material and high temperature applications.
- Probe-Zero function, Sound-Velocity-Calibration function
- Two-Point Calibration function.

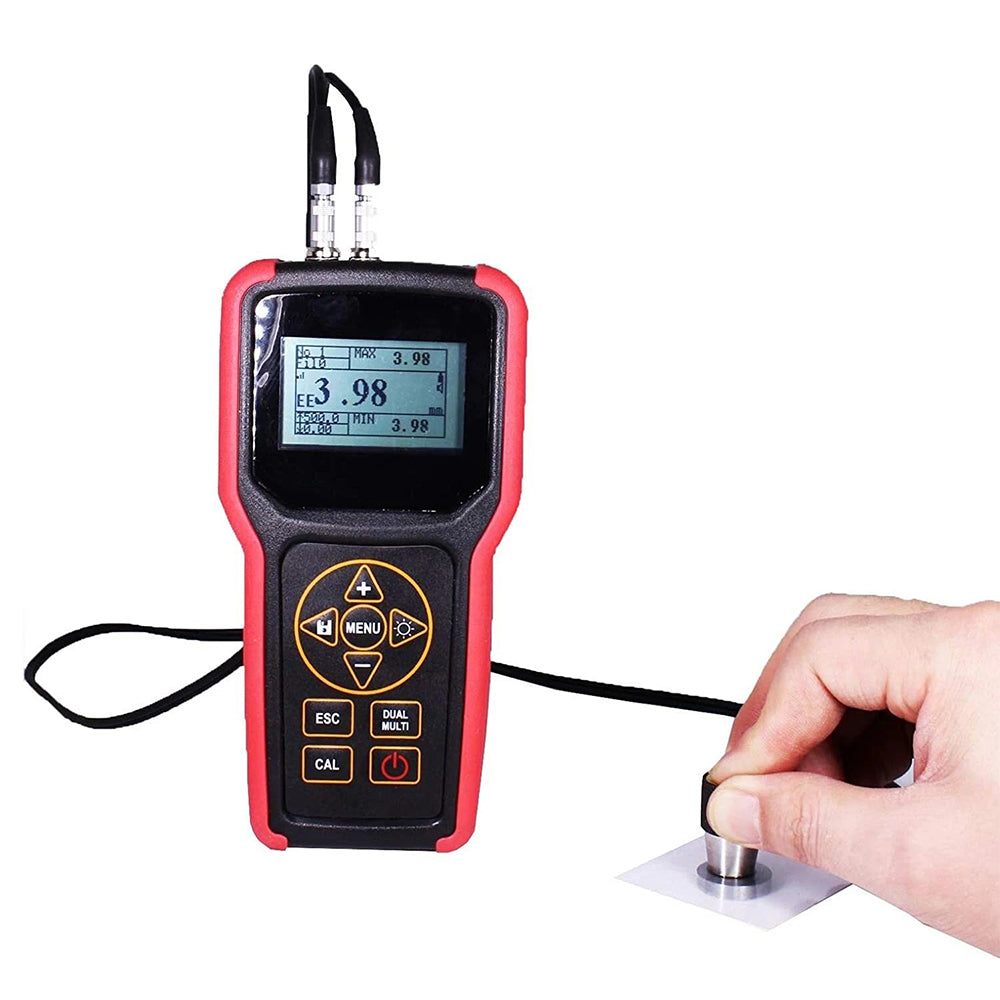

- Two work modes: Single point mode and Scan mode.
- Coupling status indicator showing the coupling status.
- Battery information indicates the rest capacity of the battery
- Auto sleep and auto power off function to conserve battery life.
- Optional software to process the memory data on the PC And U disk

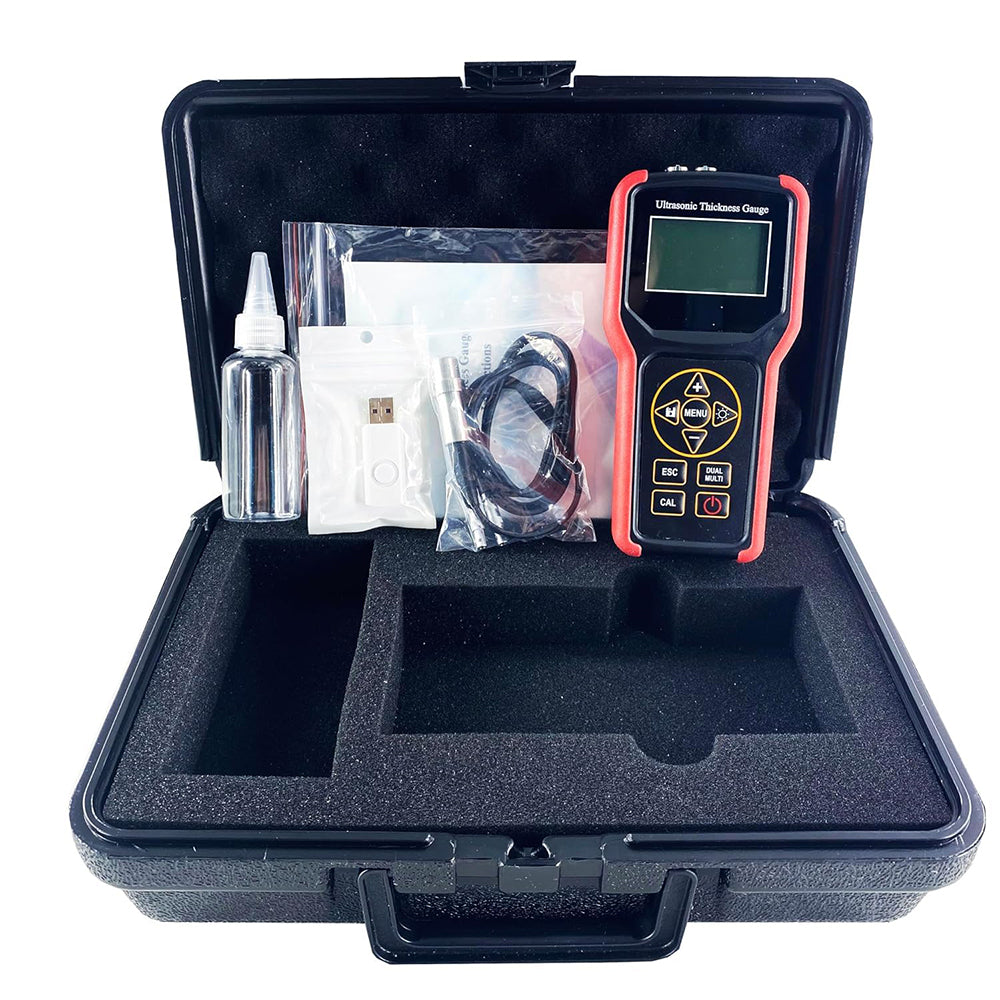

Configuration:
Standard Configuration
- Main engine-1

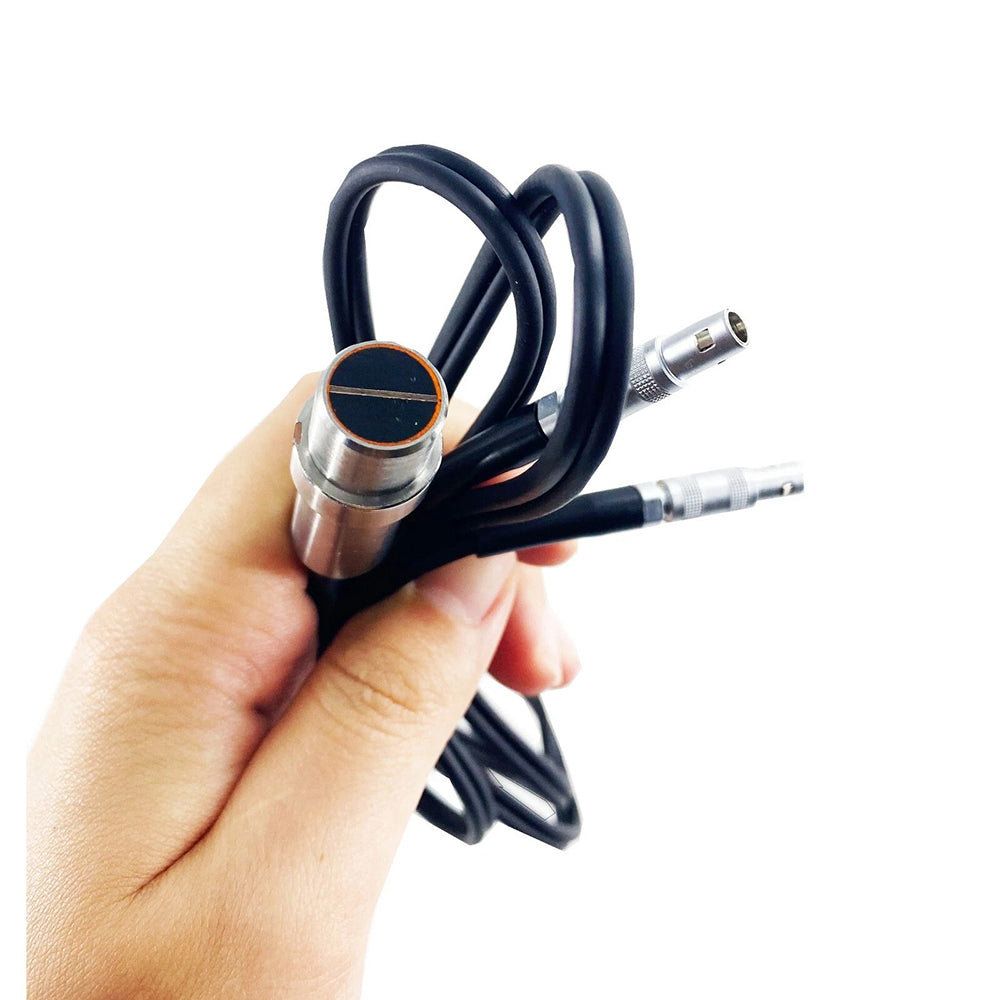

- Standard probe(5MHz)-1

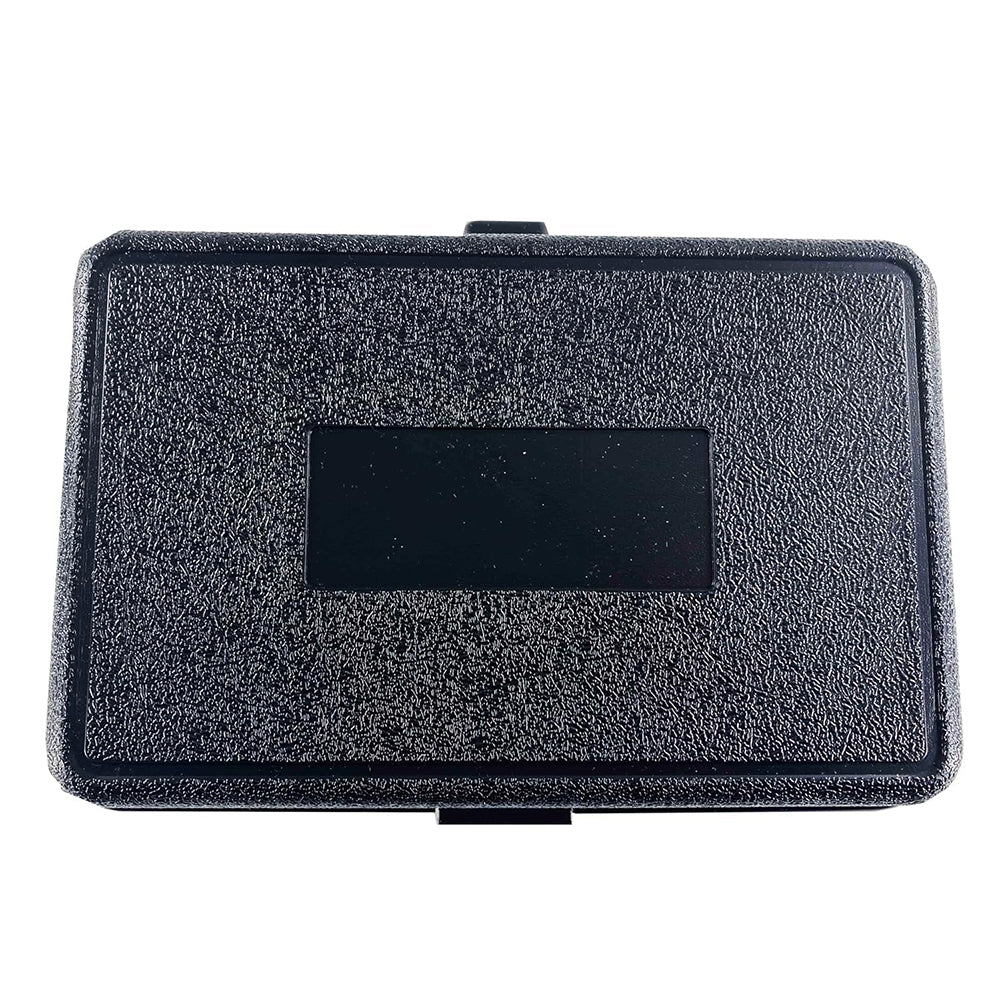

- Instrument case-1
- Random data-1
- U disk
Optional Configuration
- Coarse grain probe(2MHz)
- Standard90 °probe(5MHz)
- Micro-diameter probe(7MHz)
- Temperature probe(5MHz)
- U Plate
- Micro Printer-1
- Print Cable-1
- Data management software-1
- Communication cables-1
