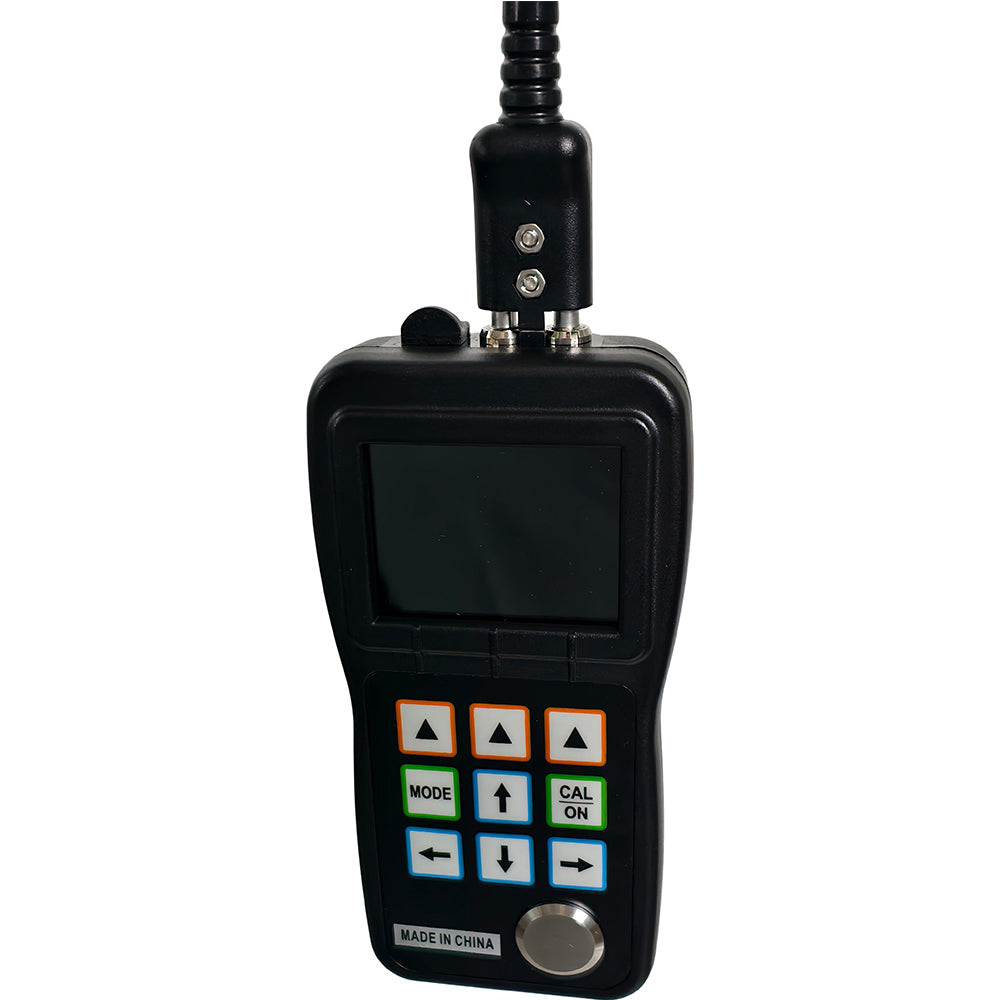

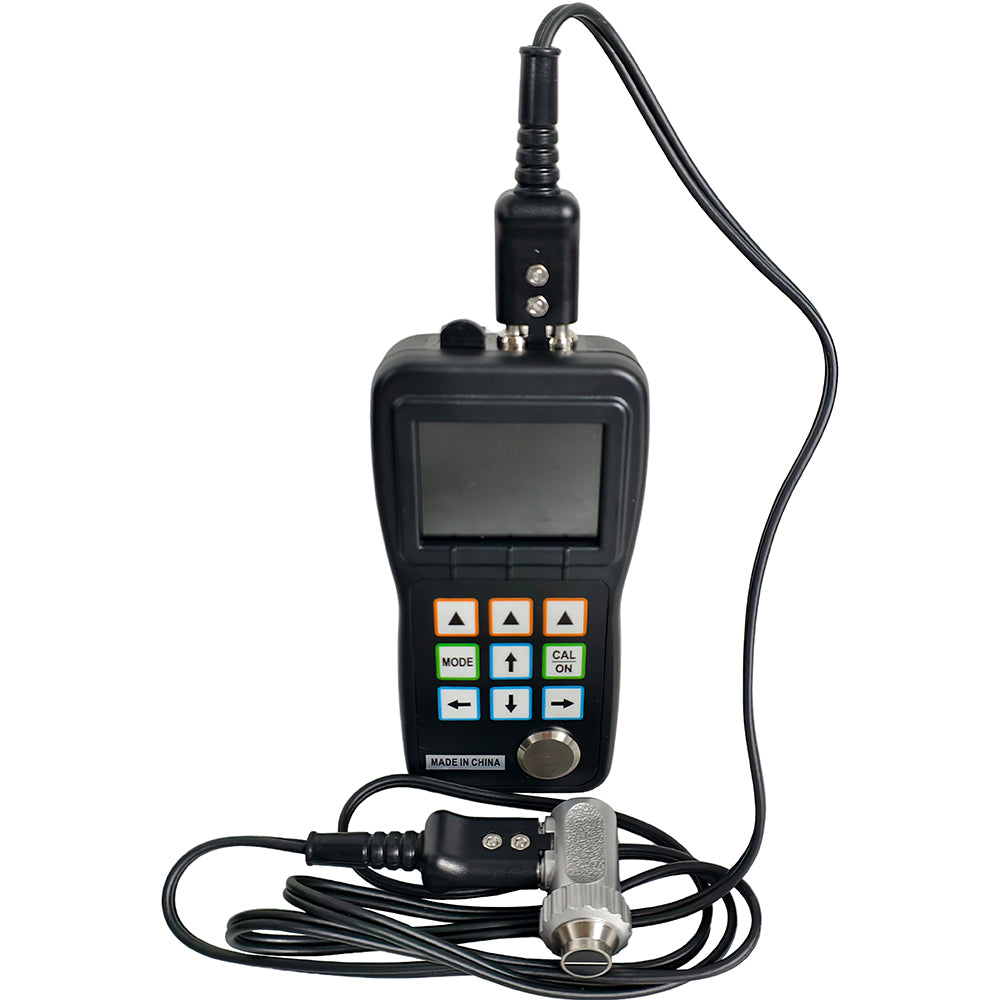

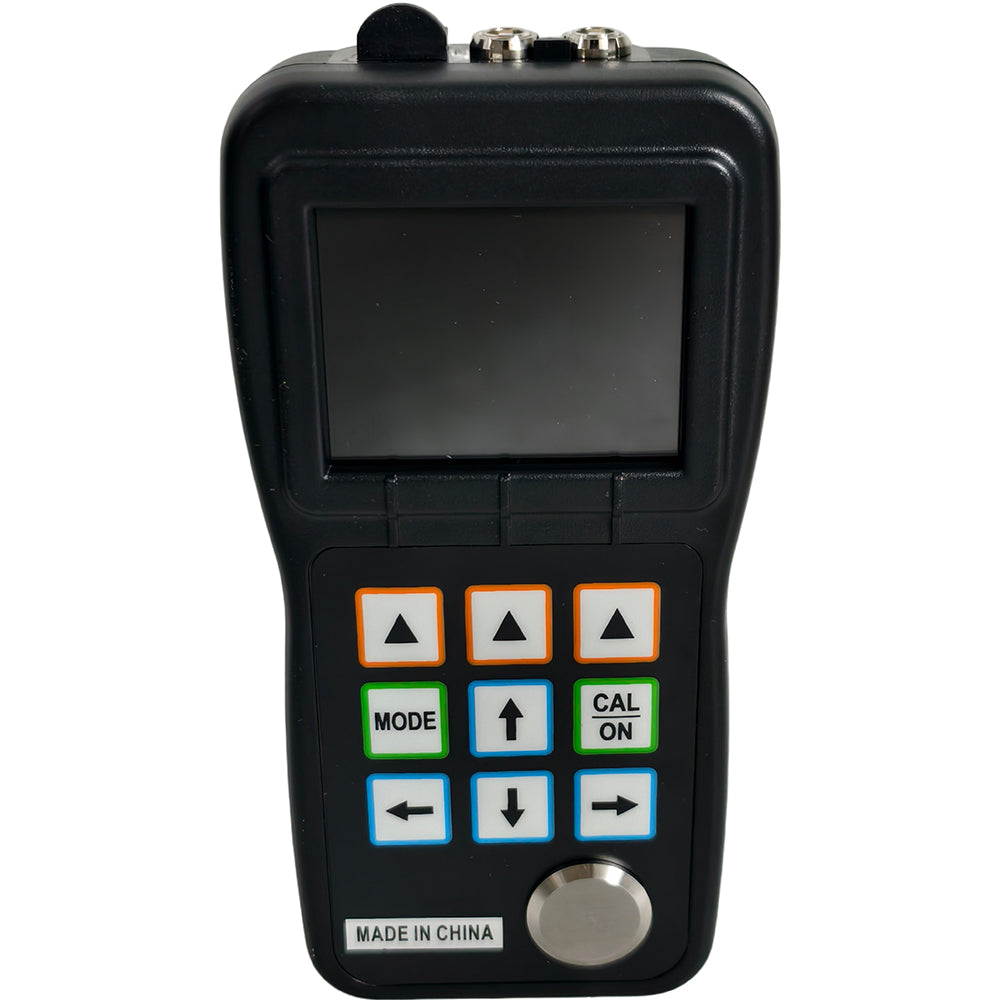

VTSYIQI Through Paint Coatings Ultrasonic Thickness Gauge Meter Tester with TC510 Probe Measuring Range 0.025'' to 20'' 0.60~508mm Free DataView Software 100000 Data Hold and A Scan Snapshot Function

About this item

❤❤(1)Ultrasonic thickness gauges has through paint/coating function.so removing paint/coatings is not required.

❤❤(2)Snapshot A-Scan. Gain:Low, Medium and High Gain.

❤❤(3)Max/Min Capture:The tester value,max & min thickness value can be shown on same display.

❤❤(4)Clear & bright OLED display with contrast of 10000:1 which is 40 times of ordinary TFT display.The numbers can be viewed clearly in dim orstong light from any direction.

❤❤(5)Dynamic Thickness Color Change on Alarm,Zero-crossing measurement.Various Languages:Selectable Chinese, English, Germany, Japanese,French etc.

❤❤Ultrasonic thickness gauges has through paint/coating function.so removing paint/coatings is not required.
❤❤Large capacity data logger & easier storage,which can store 100000 thickness value.
Technical Specifications
❤❤Display Type: 2.4" color OLED, 320 X 240 pixels, contrast 10,000:1
❤❤Operating Principle:Pulse echo with dual element transducers(
❤❤Measuring Range: 0.60 - 508mm (0.025" - 20.00"inch ),(depending on material, probe and surface condition)
❤❤Measuring Resolution: Selectable 0.01mm, 0.1mm (selectable 0.001", 0.01"in)
❤❤Units: Inch or Millimeter
❤❤Indication error: ±0.05mm (below 10mm ) ; ±(0.5% H+0.01 ) (over 10mm), H is the thickness of the tested object
❤❤Material Velocity Range: 500-9999m/s，0.0179-0.3937in/us
❤❤Display Mode: Normal, Minimum / Maximum capture, DIFF/RR%
❤❤V-Path Correction: Automatic
❤❤Update Rate: Selectable 4Hz, 8Hz, 16Hz
❤❤Alarm Settings: Minimum and Maximum alarms. Range of 0.25 mm to 508 mm (0.010" to 20.00").Dynamic waveform color change on alarm
❤❤Languages: Selectable Chinese, English, Japanese
❤❤Power Requirements: 2 AA size batteries（Battery not included in the package）
❤❤Operating Time: Approximately 40 hours
❤❤Instrument Shut-off: Selectable ALWAYS ON or AUTO OFF after 5, 10, 20 minutes of inactivity
❤❤Size: 153mm X 76mm X 37mm(H X W X D)
❤❤Weight: 280g

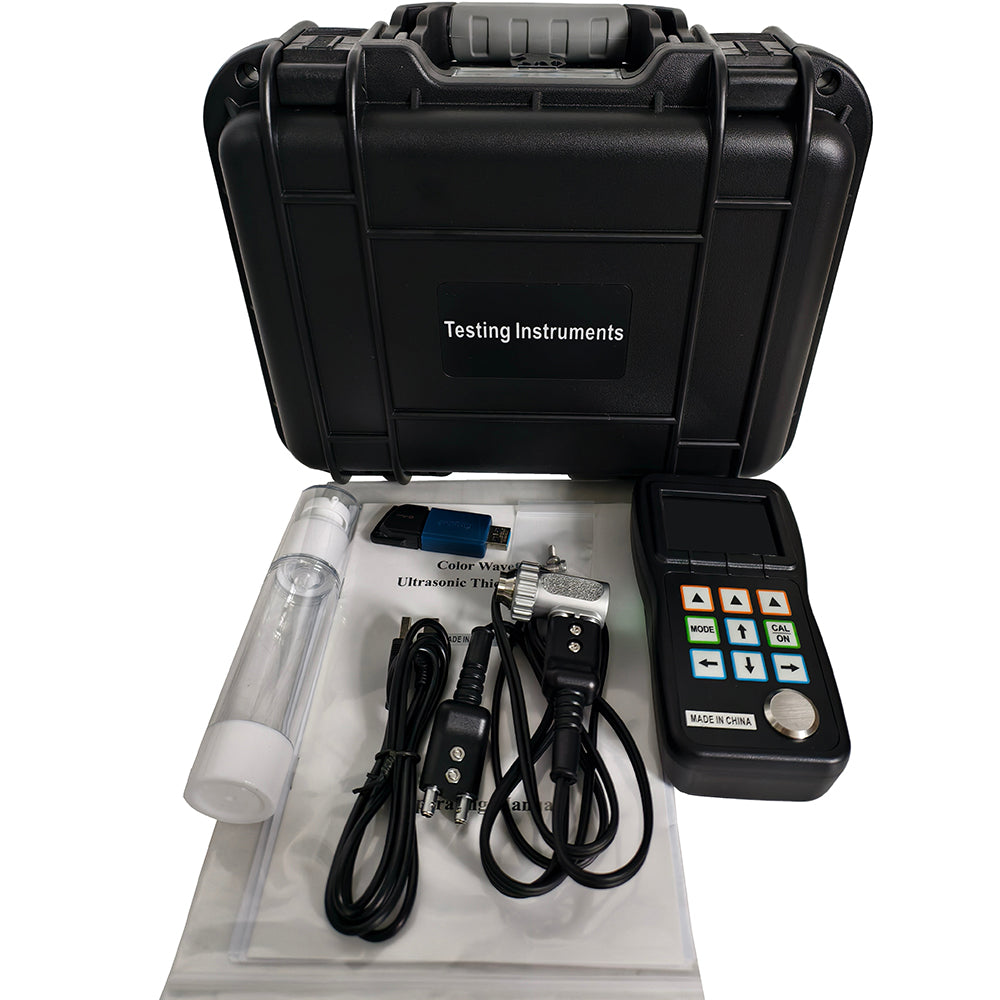

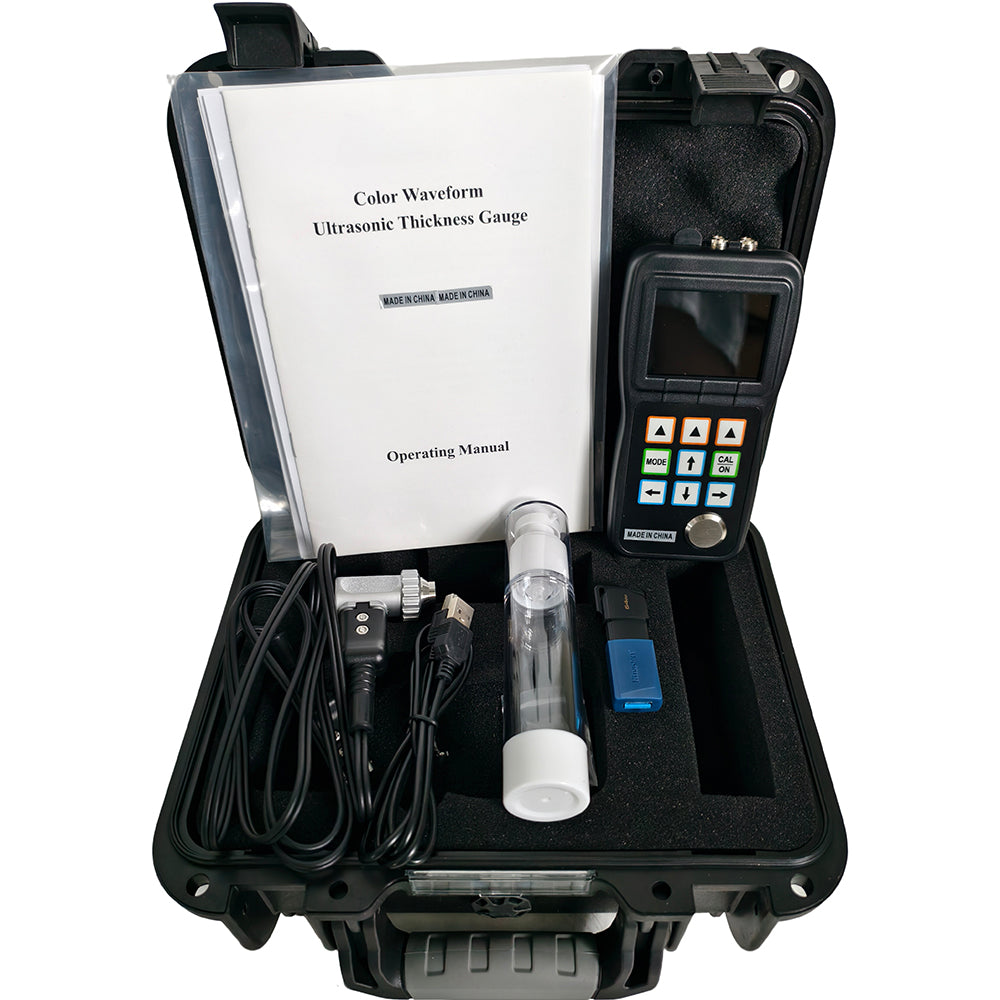

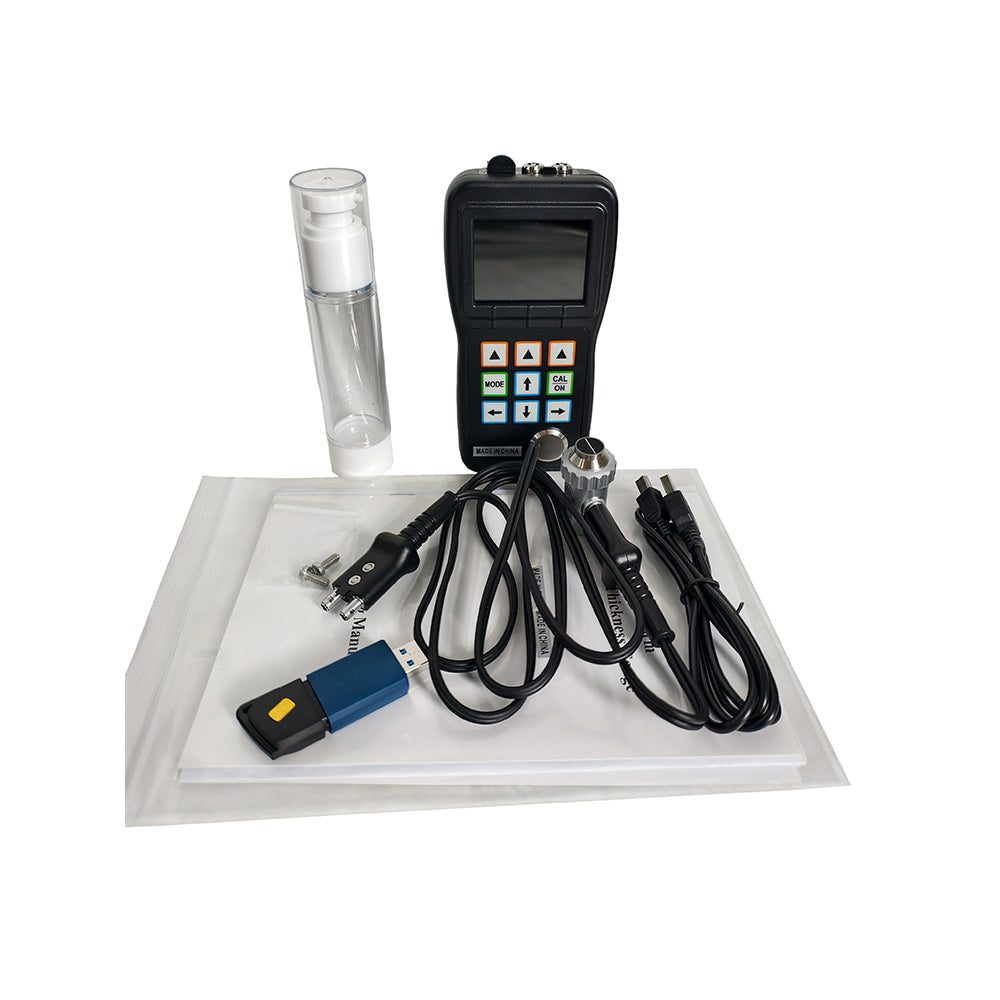

Standard configuration:
1xUltrasonic Thickness Gauge

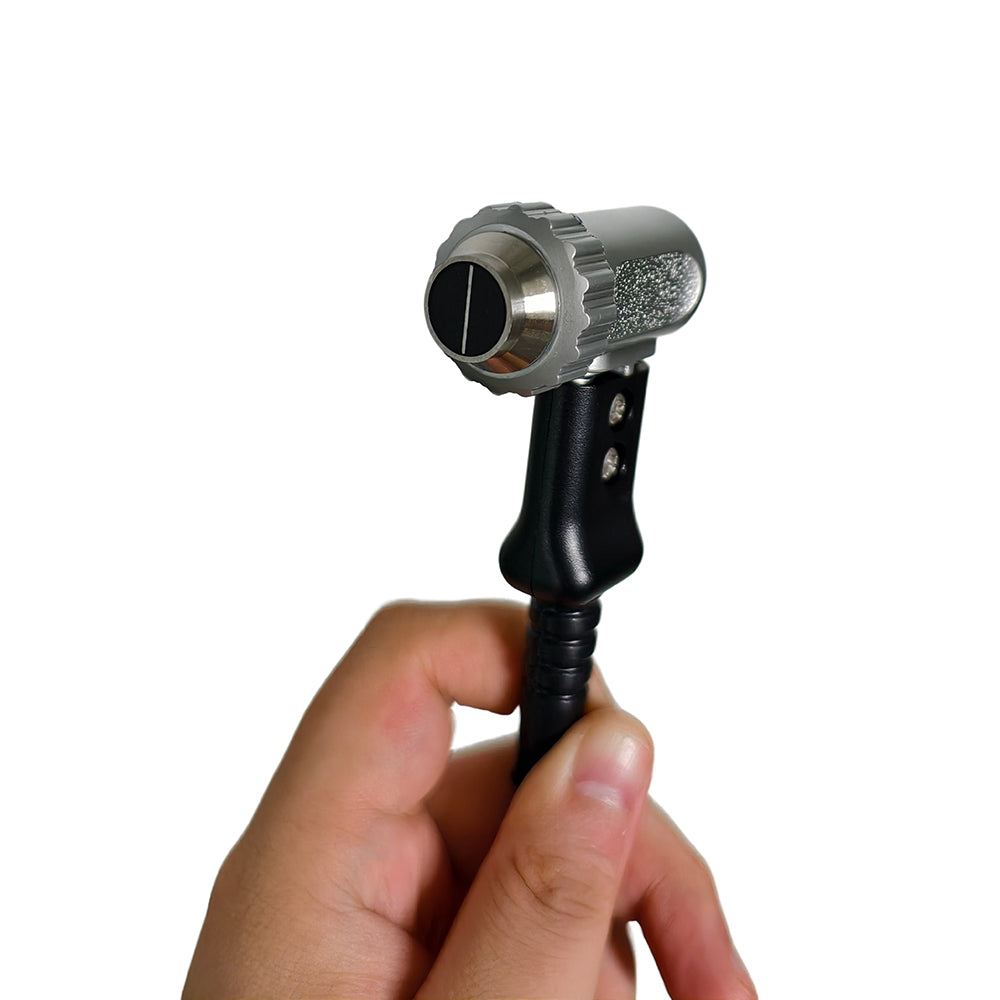

1xTC510Probe
1xCarrying Case
1xUser Manual
1xCertification
1xApplication software with Data transmission cable
Optional accessories:
1.Various Probes
2.Probe Cables
3.Step Calibration Blocks
4.Communication Software and Rubber Bumpers
