This link contains PT100 Temperature Sensor

About this item:

Digital viscometer Measurement range up to 1 ~ 6000000 mPa.s

Digital viscosity meter Measurement accuracy ±1% full scale, repeatability ±0.3% full scale

Digital rotary viscometer 304 stainless steel L1~L4 rotors are standard.

Digital rotational viscometer Measurement data can be graphically displayed on the LCD monitor.

Laboratory viscometer Built-in memory chip, can save, print and export the measurement data.

Benchtop viscometer High torque, low noise stepping motor drive system.

Automatic viscometer High sensitivity front level meter for easy observation.

Viscometer laboratory Rich display content: dynamic viscosity, temperature, torque, shear rate, shear stress, end conditions, full scale range.

Viscosity testing device Large-size touch screen LCD, displaying more information and more intuitive operation.

Viscosity meter Timing measurement function: most of the non-Newtonian liquid viscosity and measurement time has a relationship, set the measurement time for data comparison.

Features:

ONE---Readable data without poiseiscosity of the brush and roll.

TWO---5 inch full colorful touch screen Enhanced control Real-time trend display CH/EN operating interface

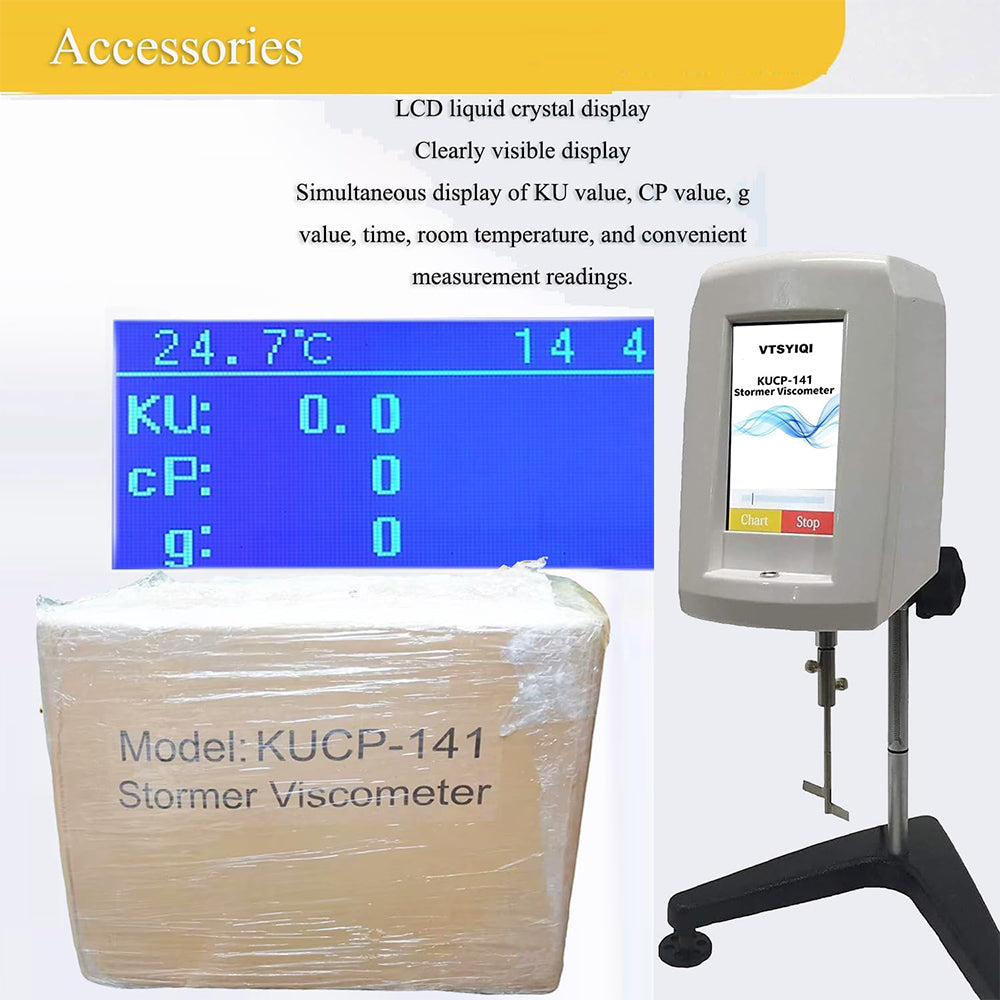

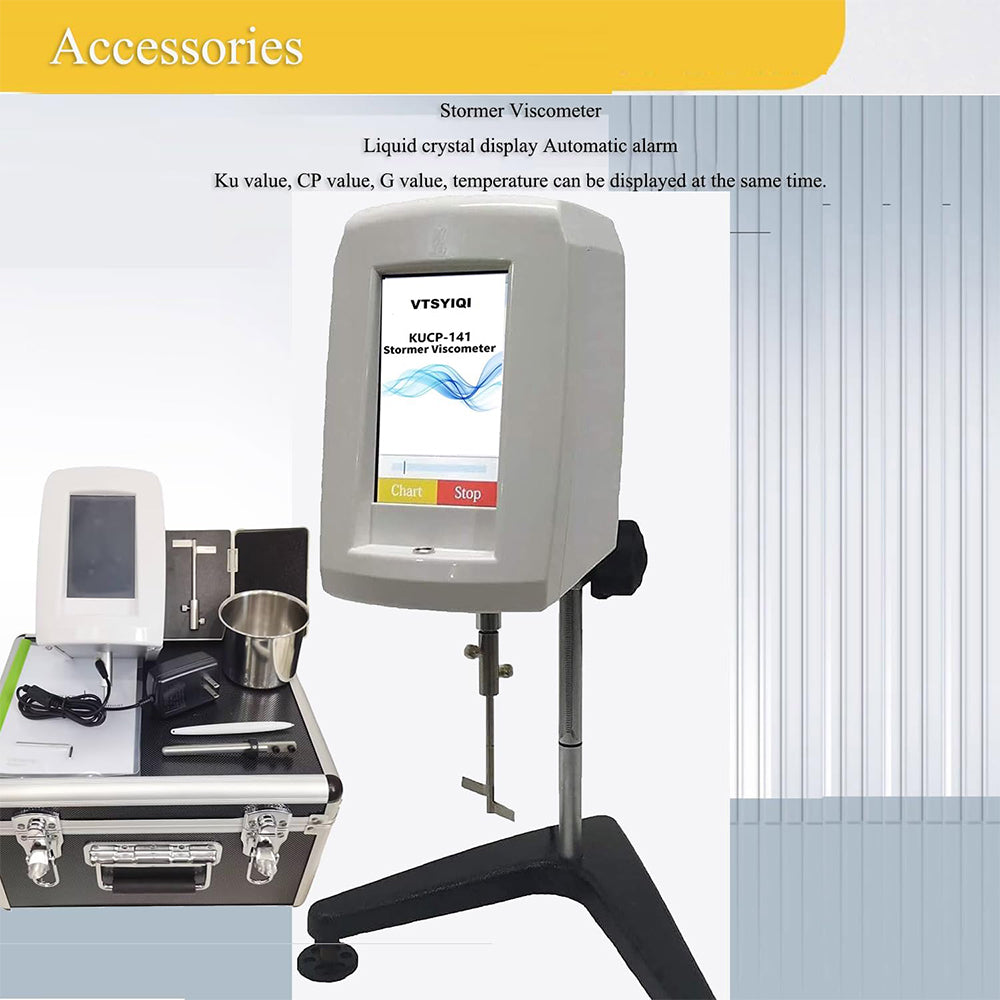

THREE---Display information(KU, CP, G, Temperature℃,Torque%)

FOUR---Interface options Timed measuring ,Automatic warning beyond the measuring range

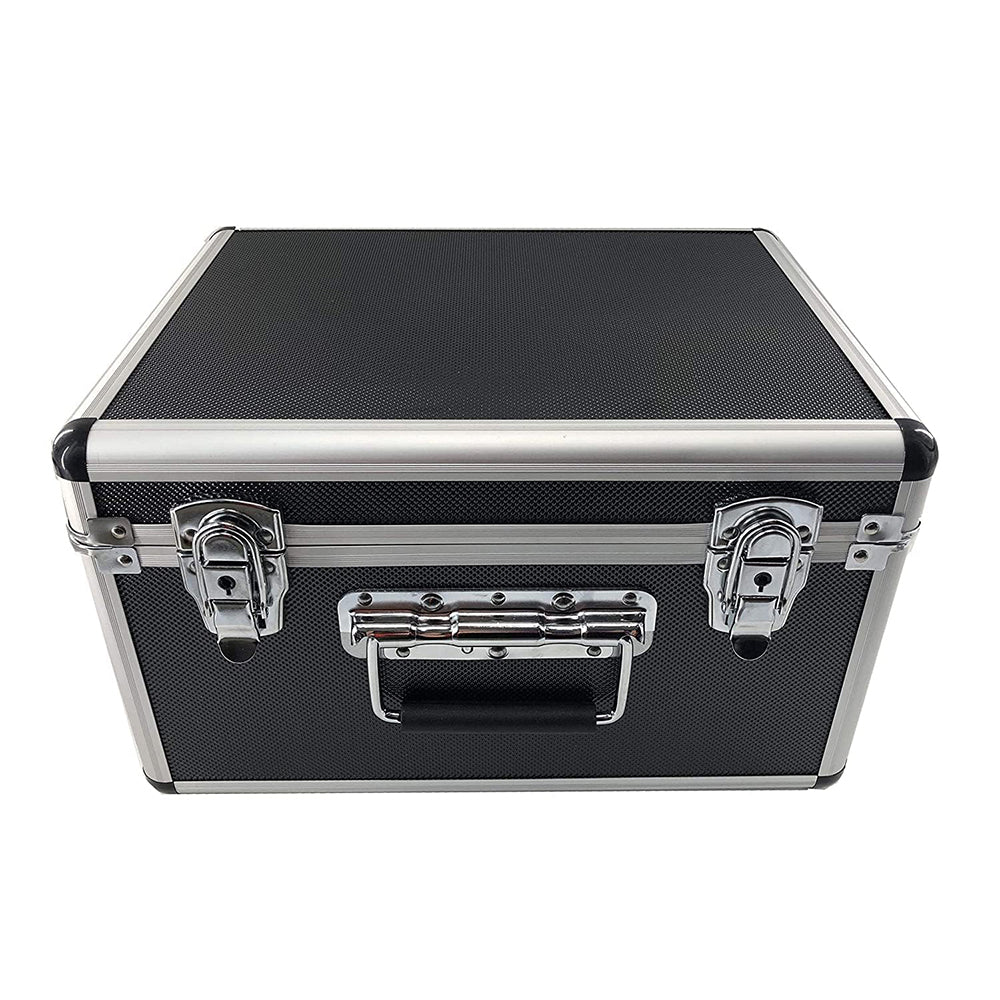

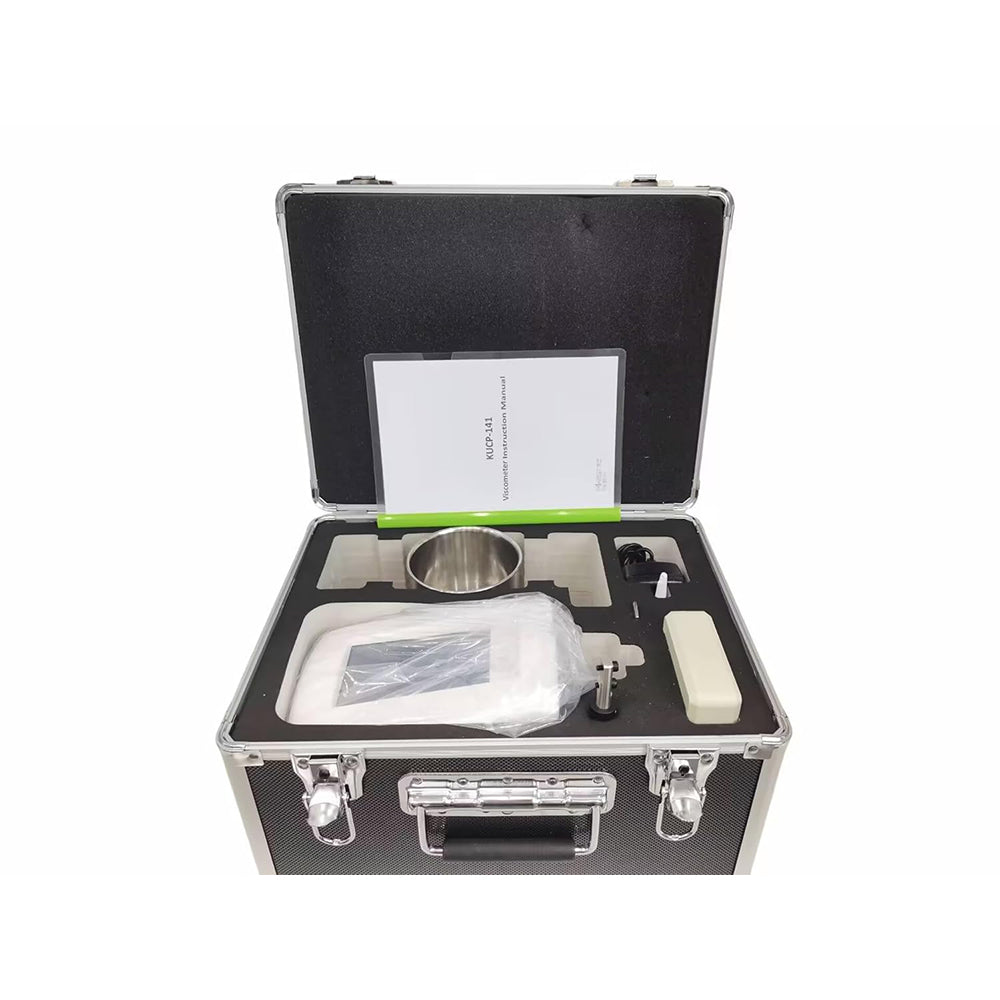

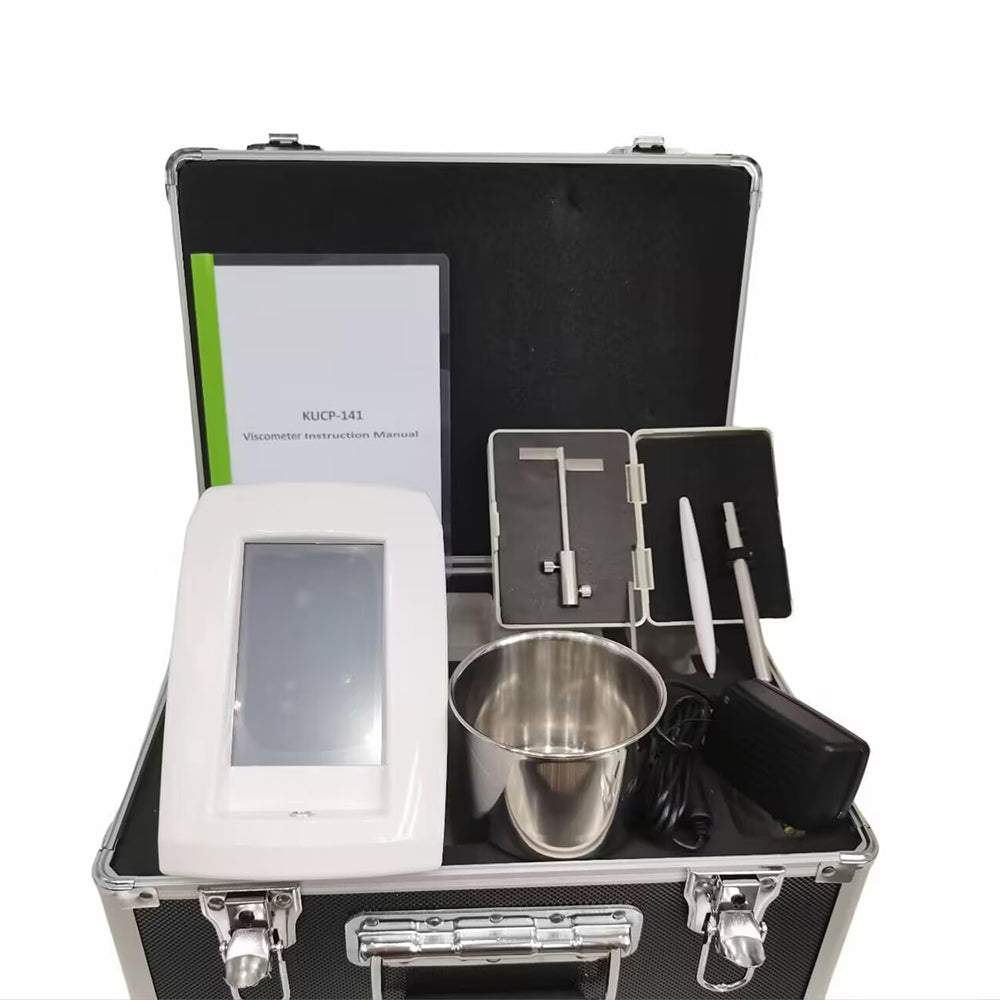

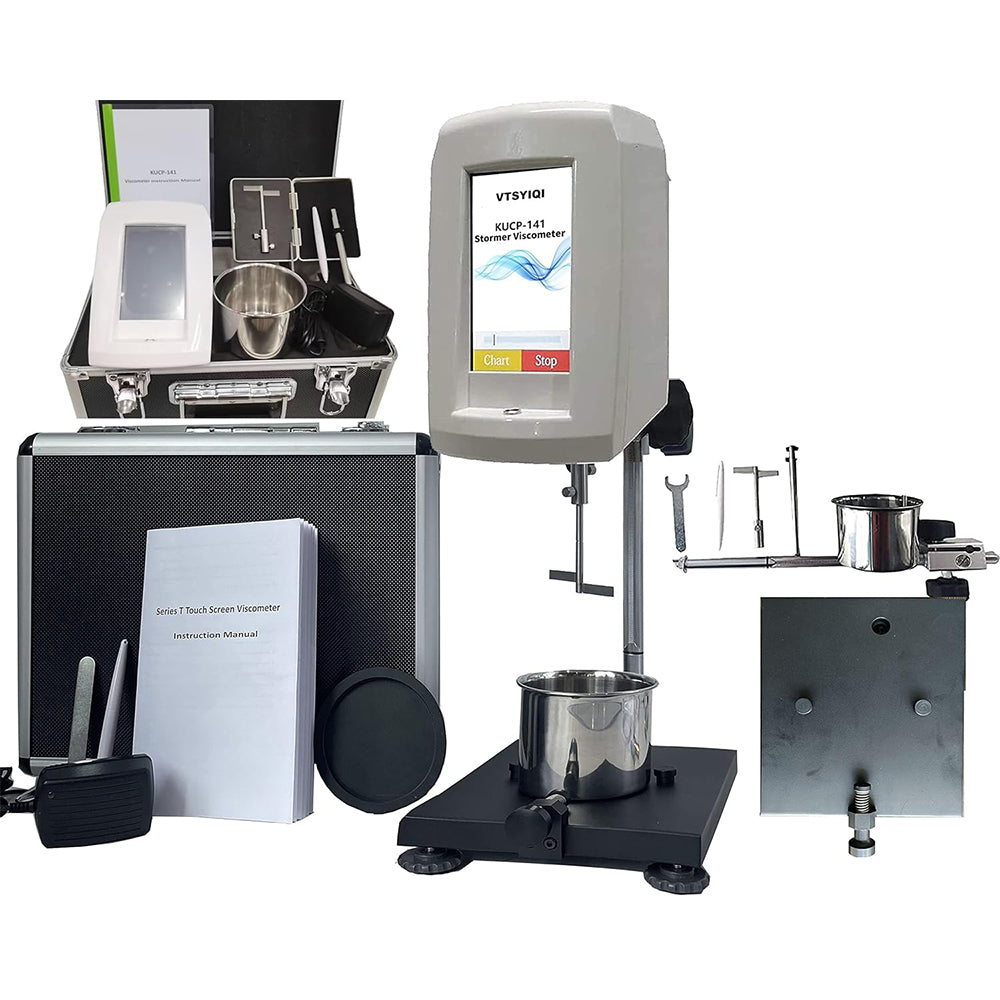

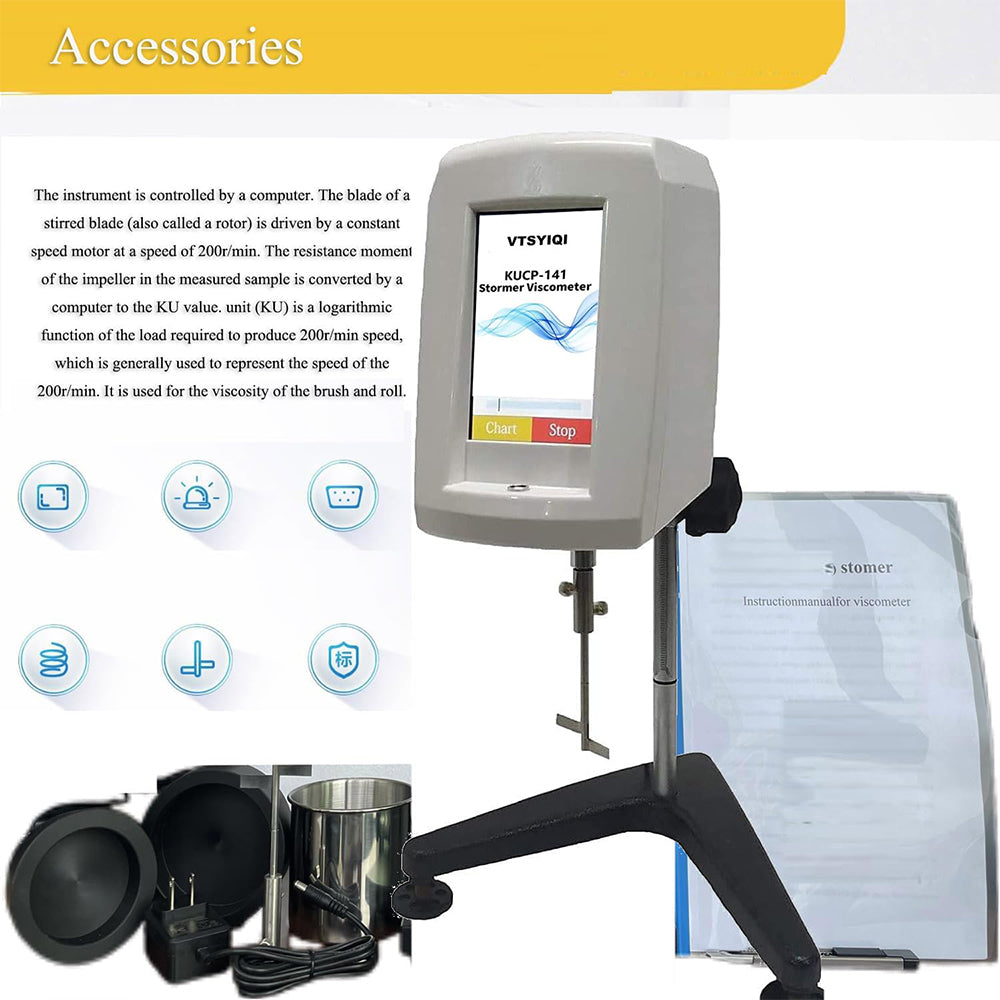

Instrument main components---Viscometer host, KU rotor, Triangular base and column, sample cup, Power adaptor, Aluminum alloy case

Technical parameters:

Control/Display mode:5 inch colorful touch screen;

Rotating speed:200±0.1RPM/min;

Measuring range:40.2KU -141.0KU 32g-1099g 27-5250CP;

Measurement accuracy:±1%(full range);

Measurement repeatability:±0.5%;

Measuring container:400ml;

Timing function:Flexibly set according to the sample;

Temperature measuring:Standard temperature probe interface(the optional temperature probe is necessary);

Self-built measuring program:30 groups can be saved (including sample name、measuring time and date,etc);

Measurement result saving:30 groups of data can be saved (including KU, g, cP, time and curve, etc);

Viscosity curve:Viscosity curve real-time display;

Printing:Data and curve printable (optional printer);

Constant temperature part:Optional(Including various viscometer constant temperature bath and constant temperature cup);

Power supply:110V~220V,60Hz/50Hz;

External dimensions:300*300*450mm;

Net weight:12kg ;
