Product Applications:

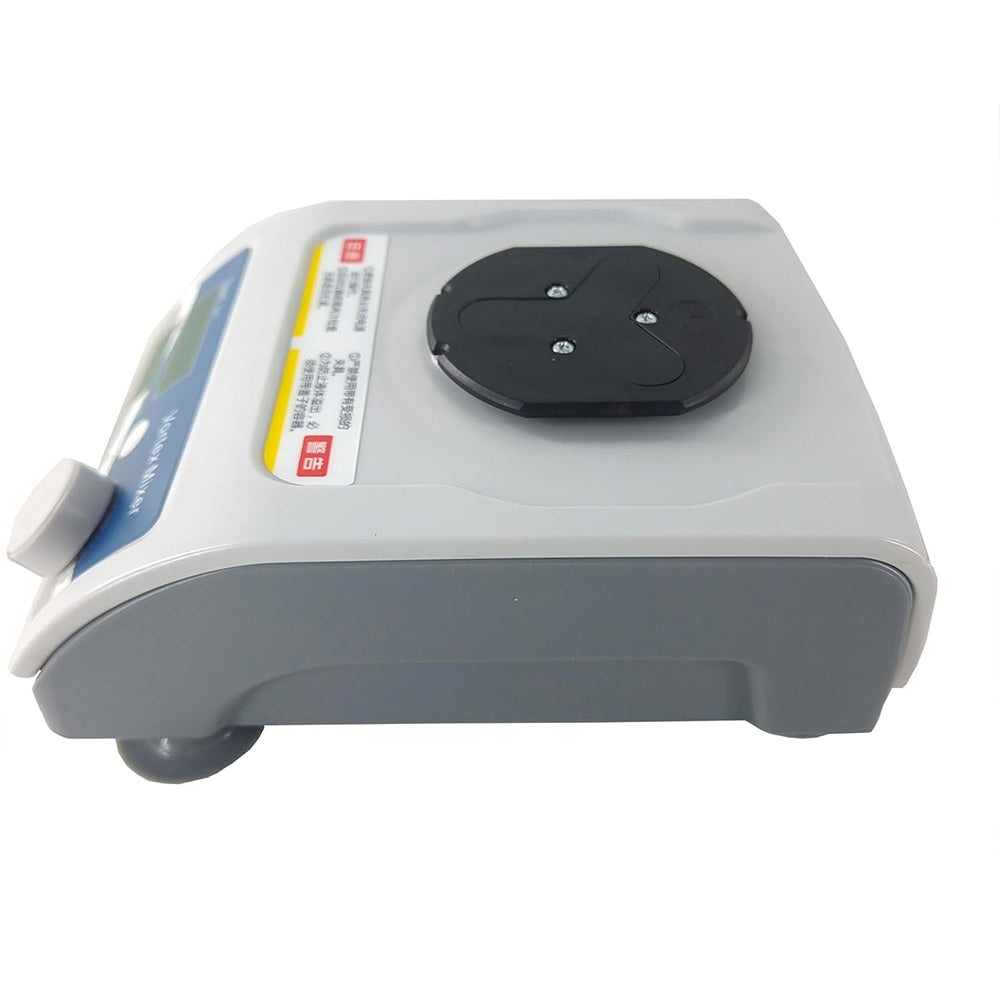

Multi-purpose vortex mixer adopts advanced design concept and manufacturing technology with simple,smooth and beautiful appearance and compact and solid structure, which makes this model with the advantages of high versatility and easy operation, ensuring it can quickly handle microplate type and small test tube type of oscillatory mixing experiments.

Main features:

IST intelligent analysis and processing platform can respond to various modes of working requirements sensitively, fully equipped with fast processing chipset and electronic sensing technology, easily realizing intelligent control of speed, time and working mode;

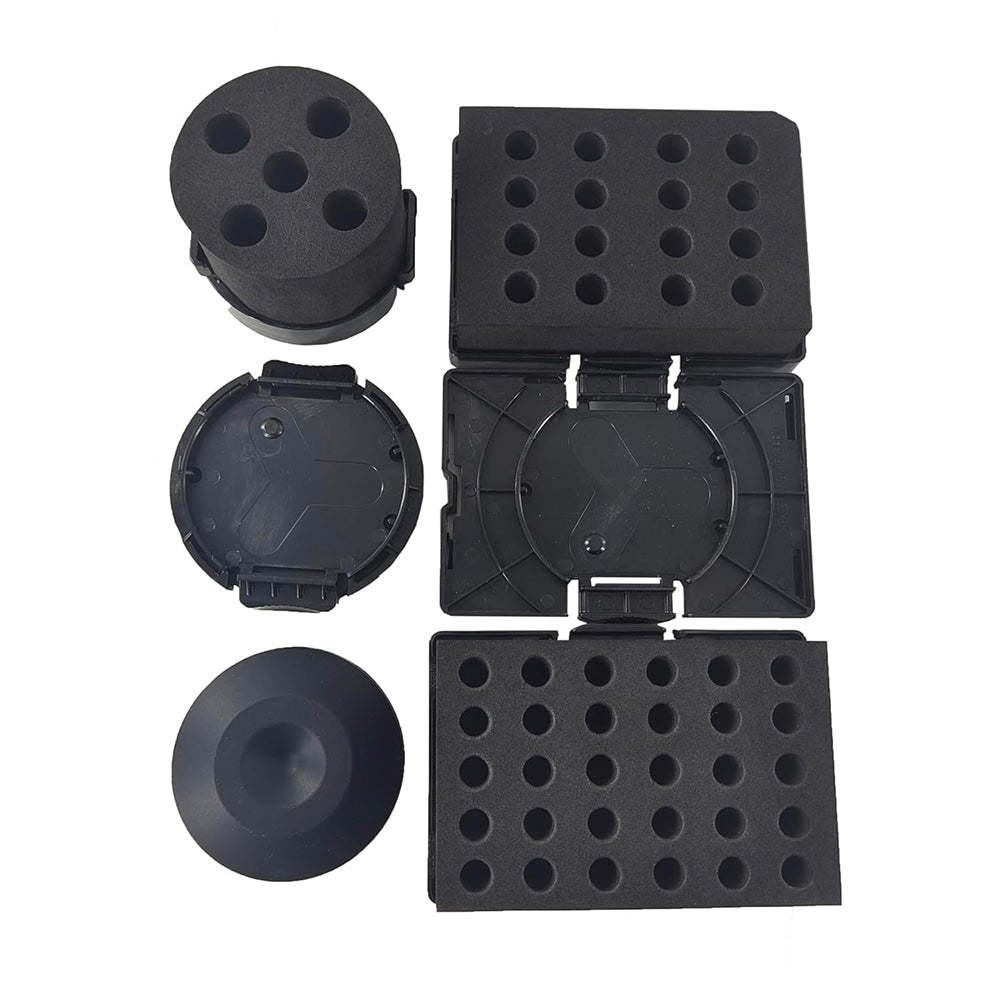

Richer fixture accessories to meet the needs of different volumes of test tubes and plates, and efficient expansion to ensure their experiments are carried out quickly;

Perfect structural optimization design of the body, so that it has enough counterweight weight and eccentric balance operation, providing a stable and quiet working platform for various oscillatory mixing;

Efficient permanent magnet rotor makes the motor not easy to heat up, with over-temperature protection characteristics, to ensure that high-speed mixing can still be a long time trouble-free work, no carbon brush design, simple integration, no extra accessories, reduce running resistance, more powerful, reduce noise, to avoid interference;

Two safe operation modes "point" and "continuous", easy and simple to switch, can quickly identify the highest speed of various fixtures to ensure its safe use, time function with positive timing and countdown time to make the experiment more convenient and accurate.

Product Parameters：

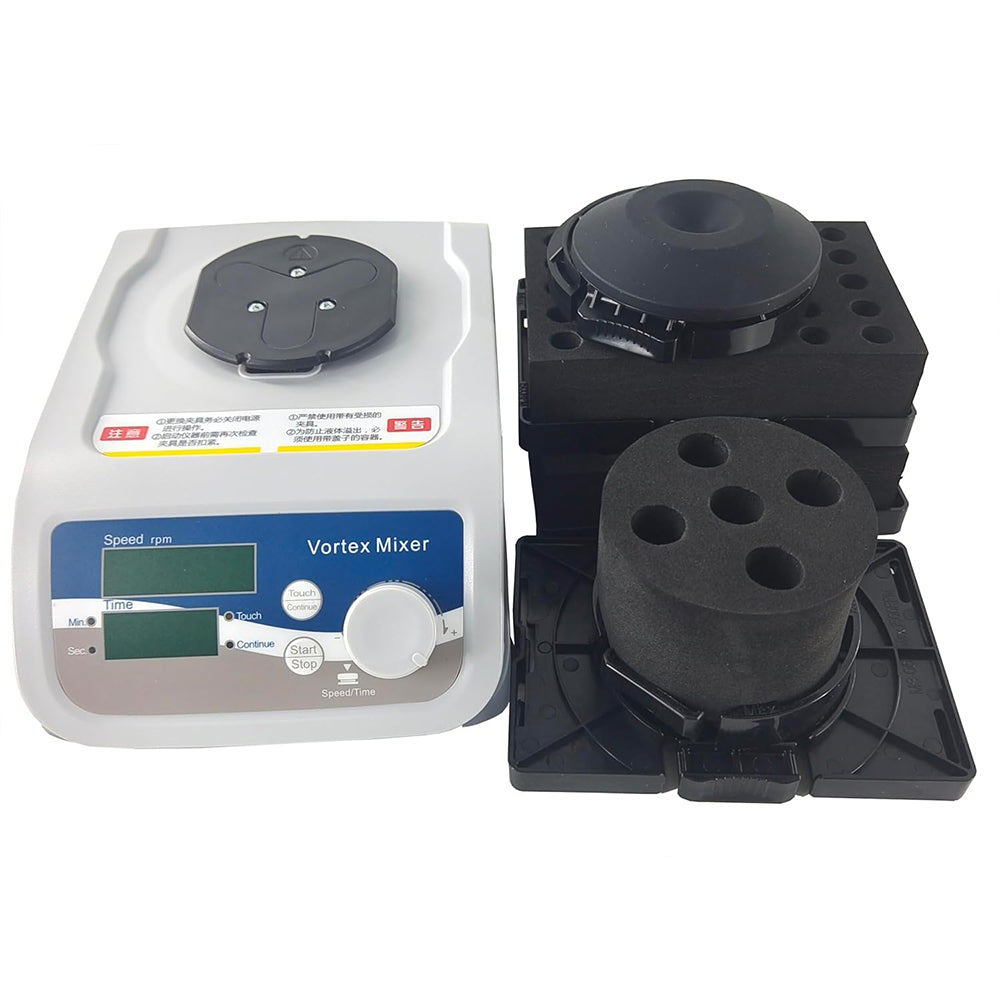

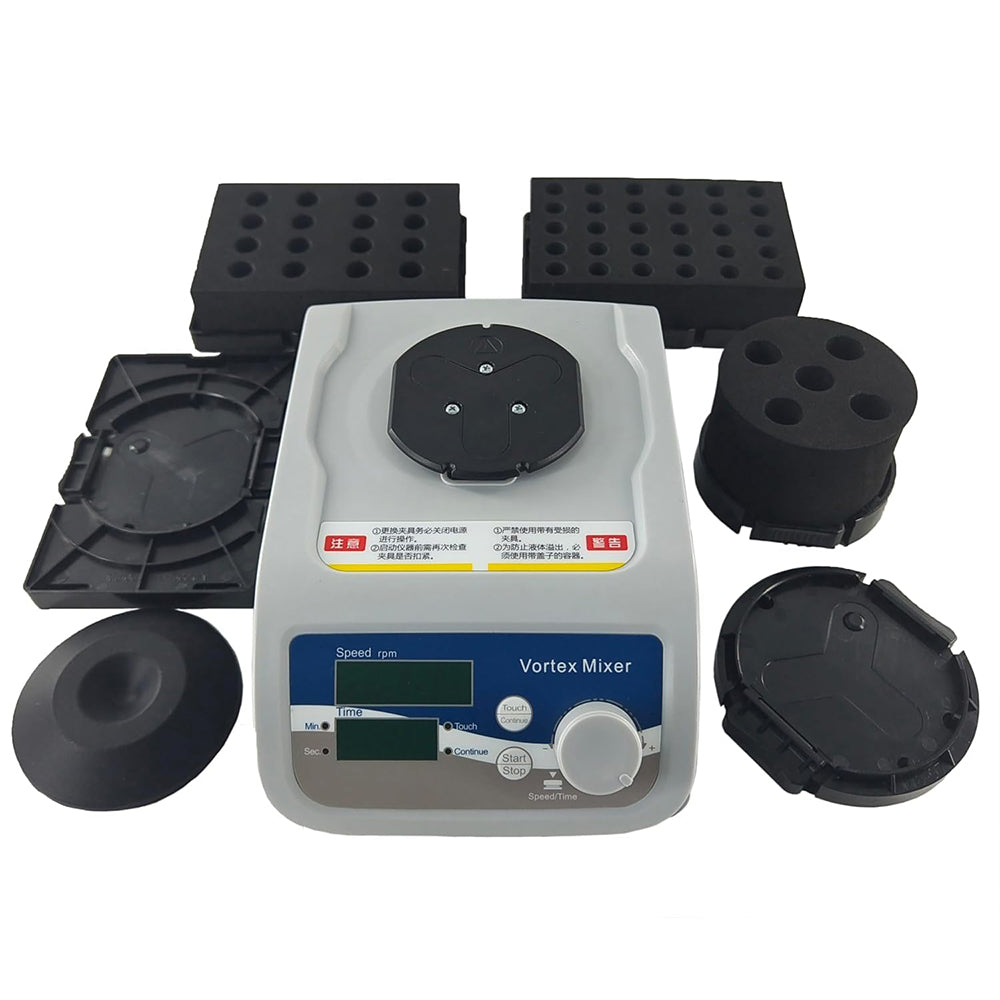

6 Standard Modules

Motor/Drive Mode: DC24V permanent magnet brushless motor/direct drive

Control method: PWM stepless speed regulation

Operation mode: Touch/continuous mode

Power fuse: PPTC/self-recovery fuse/no need to replace

Large load: 1.5KG

Speed range: 200-3000r/min ±15rpm

Shaking mode: Orbital Shaking

Circumference diameter: 4.6mm

Moodule recognition function: Automatic recognition/safe and efficient

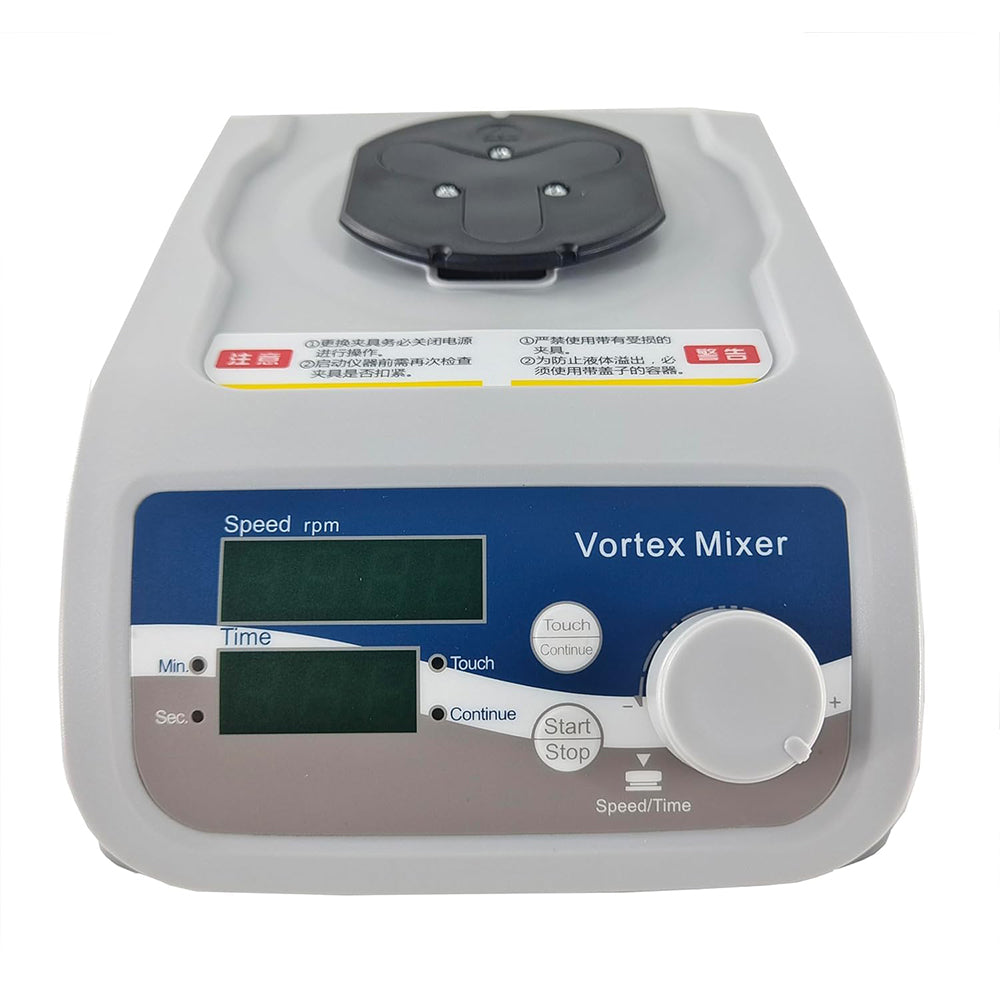

Speed function/display: full segment/high-brightness LED digital tube

Time function: Digital timing 1s-999min countdown

Noise up to at rotating speed: ≤45DB(A)

Acceleration time: ≤3s

Deceleration time: ≤3s

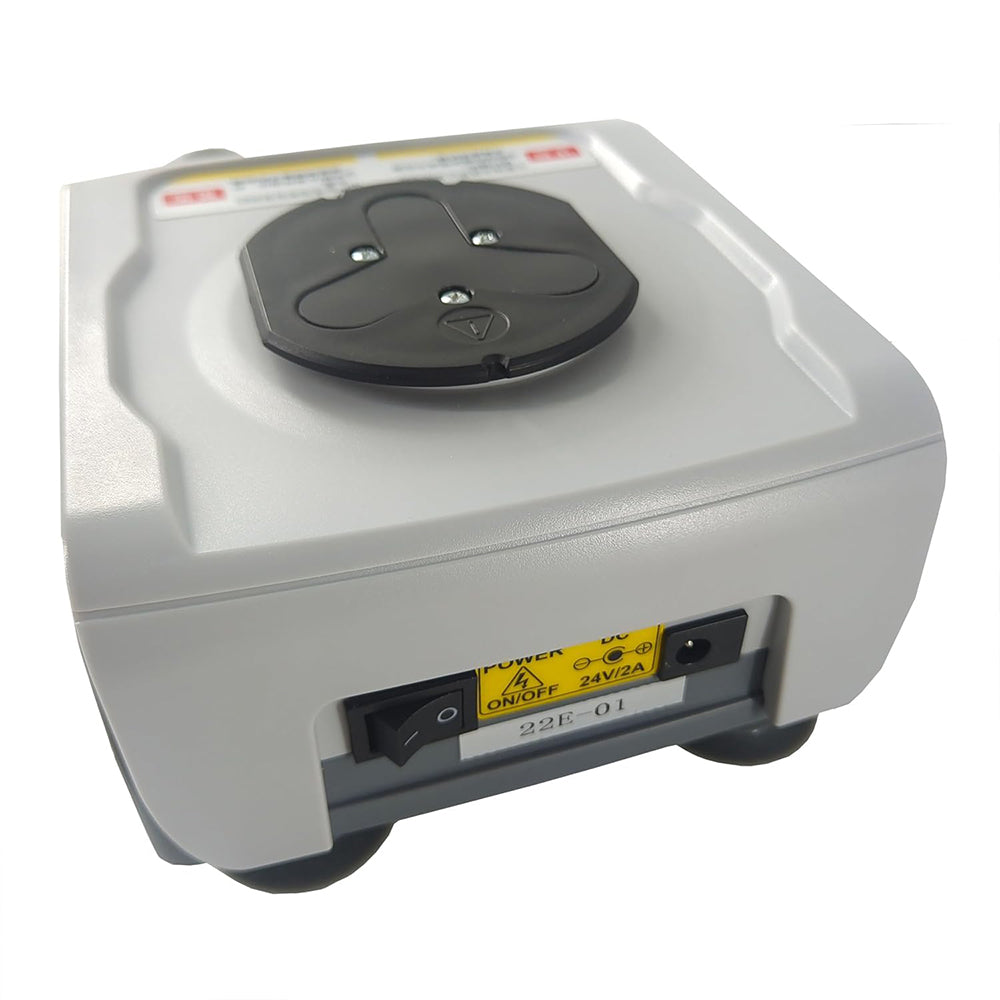

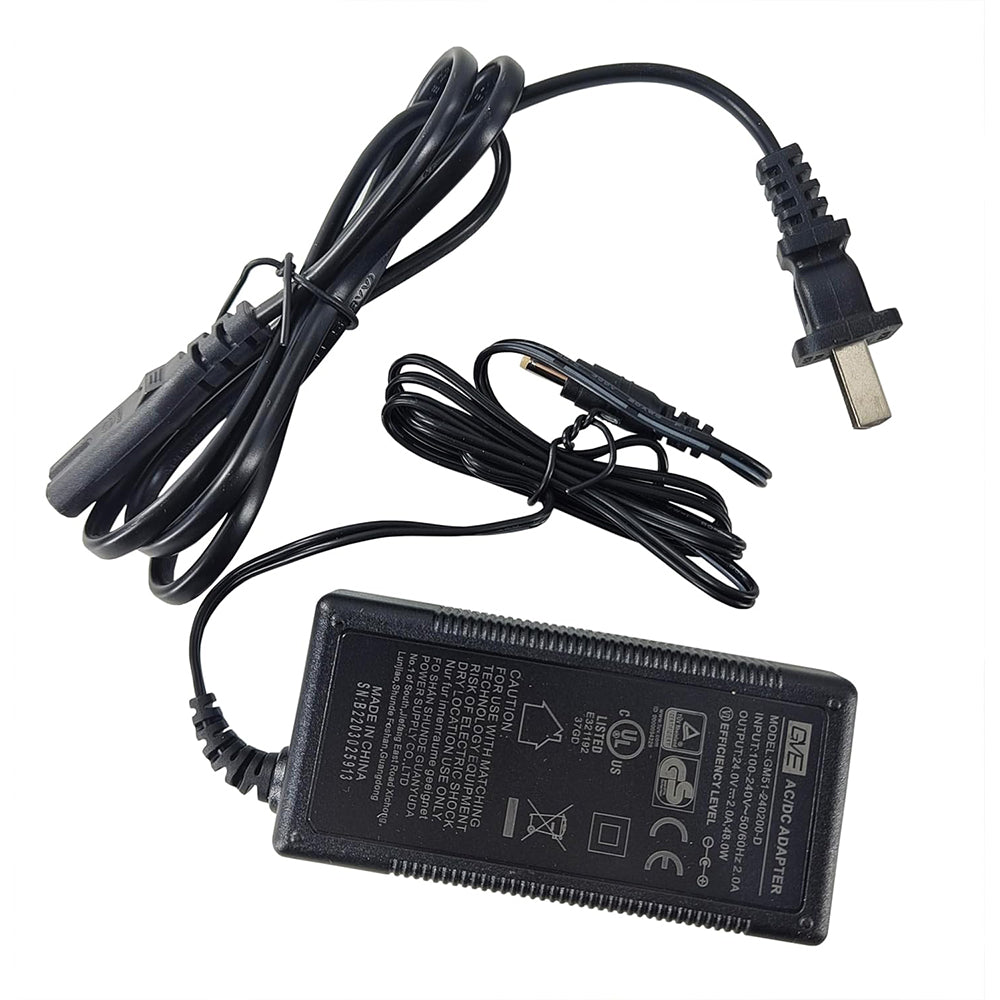

Input voltage: DC24V

Input power: 18w

Allowable ambient temperature: +5~40℃

Relative humidity: 80%

Protection class: IP20

Size(LxWxH): 198*138*67mm

Weight: 4.1KG

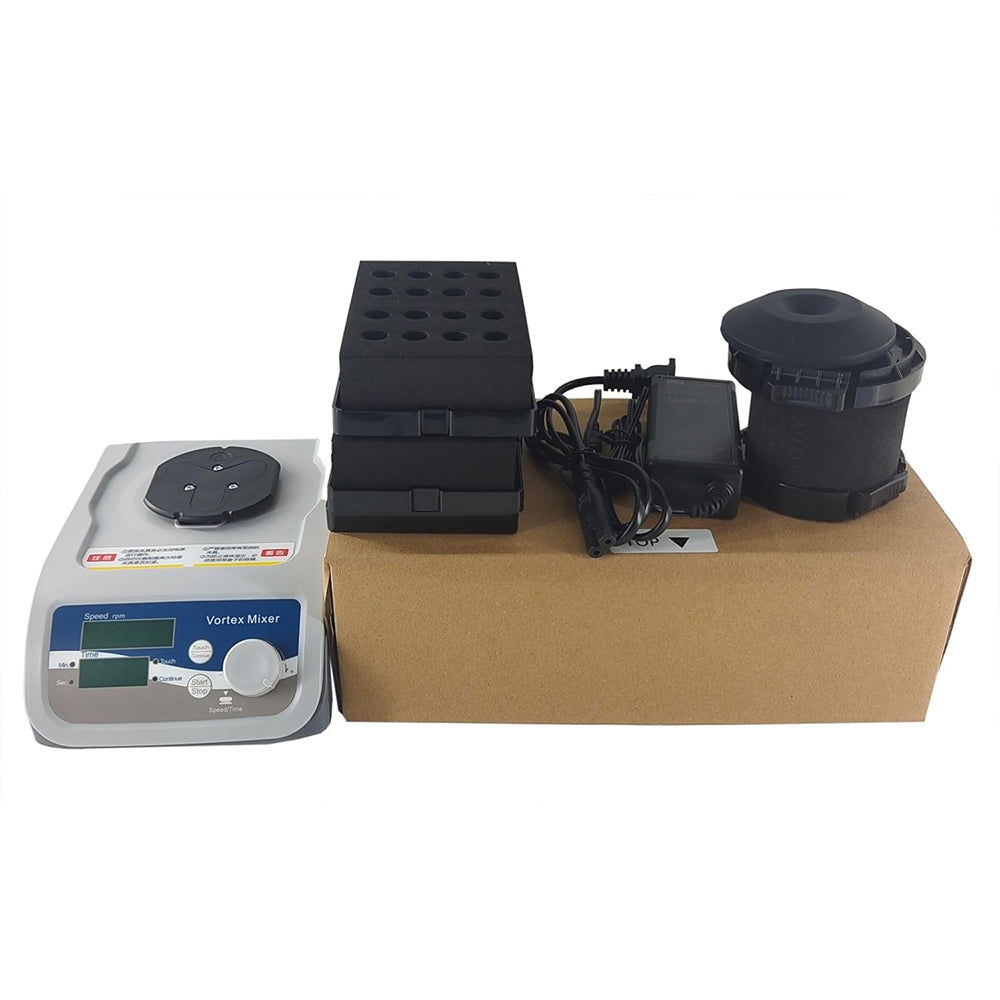

uter packaging size(LxWxH): 315*190*220mm

Gross weight: 5.5KG
