VTSYIQI Multiparameter Water Quality Meter Water Quality Analyzer with Conductivity Standard Solutions Range -2.000 to 20.000 pH 1 to 5 Points Calibration Manual/Auto-Read Measurement Endpoint USB Communication Interface for Measuring pH ORP DO

About this item

High-performance multiparameter water quality meter contains 3 measurement modes, suitable for measuring pH, ORP and dissolved oxygen.

Automatic temperature compensation ensures accurate readings over the entire range.

Calibration due alarm reminds the user to calibrate the meter regularly.

Auto-read function senses and locks the measurement endpoint.

Setup menu allows setting the number of calibration points, stability criteria, temperature unit, date and time, etc.

pH Mode:

Portable multiparameter water quality meter is equipped with a backlit LCD display.

1 to 5 points calibration with automatic recognition for USA, NIST and DIN buffers.

Automatic electrode diagnosis shows the pH slope and zero offset.

ORP Mode:

1 point offset calibration allows adjusting the displayed value to a known standard.

Relative and absolute millivolt modes ensure the reliable ORP measurements.

Dissolved Oxygen Mode:

1 or 2 points calibration using the air-saturated water or zero oxygen solution.

Salinity and barometric pressure compensations eliminate the measurement errors.

Other Features:

Automatic temperature compensation ensures accurate readings over the entire range.

Auto-read function senses and locks the measurement endpoint.

Auto-power off effectively conserves battery life.

Reset function automatically resumes all settings back to the factory defaults.

Expanded memory stores or recalls up to 500 data sets.

USB communication interface is easy to transfer data to a PC.

Multi-mode power scheme (batteries, power adapter, USB port) ensures the smooth operation of the meter.

pH

Range:-2.000 to 20.000 pH

Resolution:0.001 / 0.01 / 0.1 pH, selectable

Accuracy:±0.002 pH

Calibration:1 to 5 points

pH Buffer Options:USA / NIST / DIN / 2 custom buffers

ORP

Range:-1999.9 to 1999.9 mV

Resolution:0.1 / 1 mV, selectable

Accuracy:±0.2 mV

Calibration:1 point

Measurement Modes:Relative / Absolute mV

Dissolved Oxygen

Range:0.00 to 20.00 mg/L / 0.0 to 200.0 % saturation

Resolution:0.01 / 0.1, selectable

Accuracy:±0.2 mg/L / ±2.0 %

Calibration:1 or 2 points

Pressure Correction:60.0 to 112.5 kPa / 450 to 850 mmHg, manual

Salinity Correction:0.0 to 50.0 g/L, manual

Temperature

Range:0 to 105°C / 32 to 221°F

Resolution:0.1°C/°F

Accuracy:±0.5°C / ±0.9°F

Calibration:1 point

Calibration Range:Reading ±10°C/°F

Other Specifications

Temperature Compensation:0 to 100°C / 32 to 212°F, manual or automatic

Hold Function:Manual / Auto-read measurement endpoint

Stability Criteria:Low / High

Calibration Due Alarm:1 to 31 days or off

Auto-Power Off:10 / 20 / 30 minutes after last key pressed

Memory:Stores up to 500 data sets

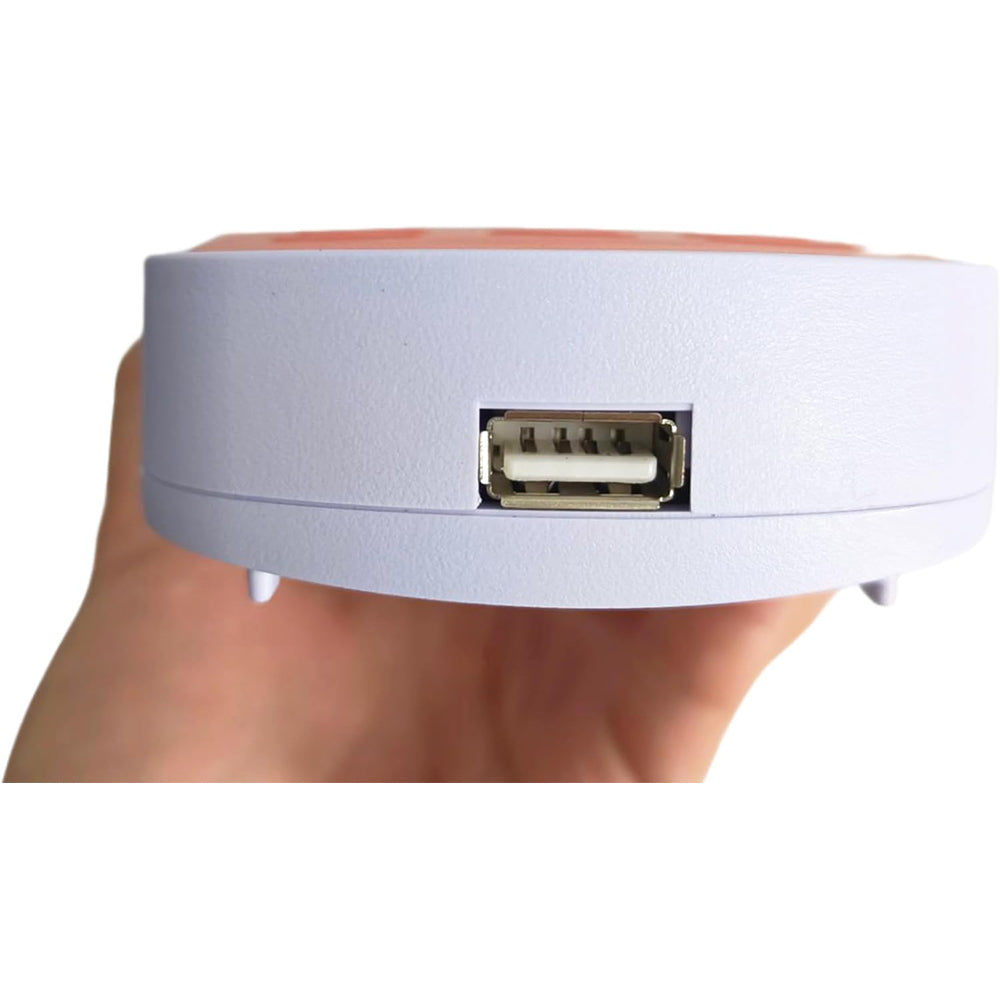

Output:USB communication interface

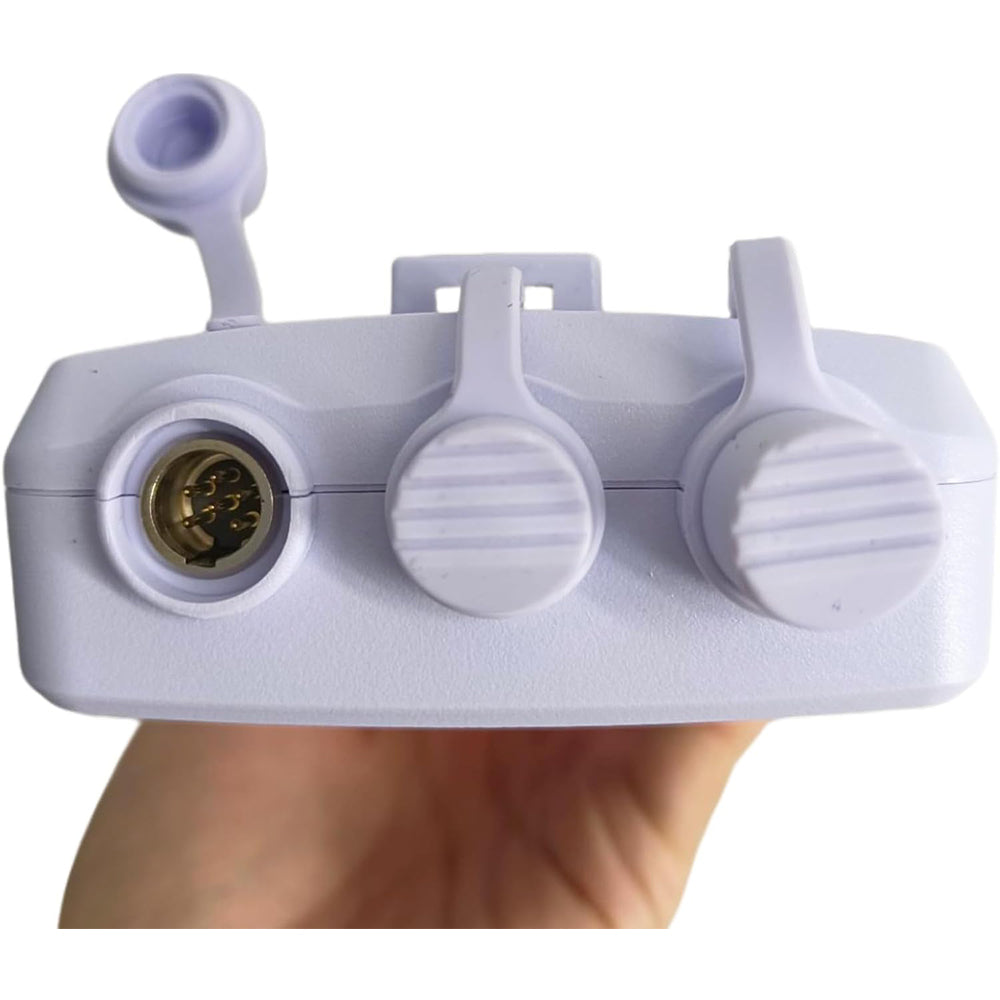

Connector:BNC, 6-pin mini-DIN, 3.5 mm jack socket

Display Custom:LCD (80 × 60 mm)

Power Supply:3 × 1.5V AA batteries or 5V DC power adapter(not included)

Battery Life Approximately:150 hours without backlight

Environmental Conditions:0 to 50°C / 32 to 122°F, relative humidity < 80%

Dimensions:170 × 85 × 30 mm

Weight:300 g

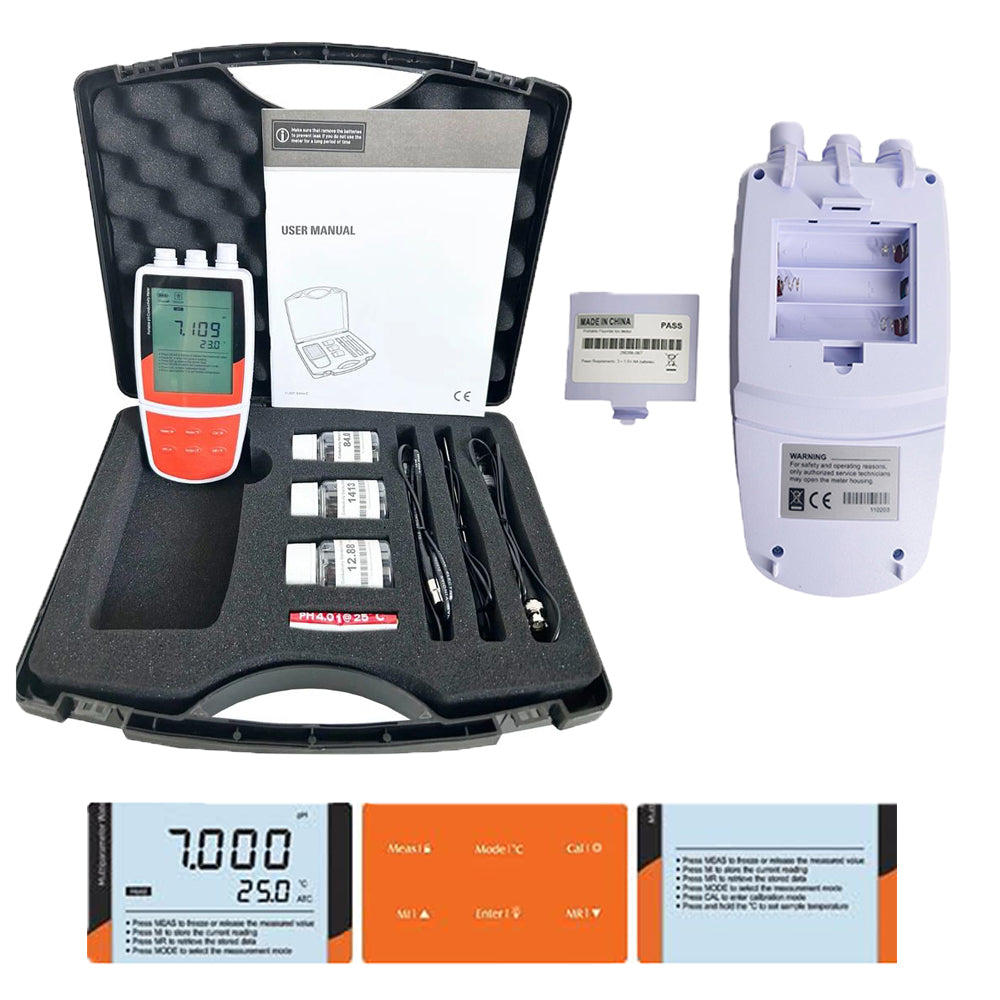

Meter Includes

E201-BNC pH electrode

CON-1 conductivity electrode

TP-10K temperature probe

pH 4.01, 7.00, 10.01 buffer reagents

Conductivity standard solutions 84 µS/cm, 1413 µS/cm, 12.88 mS/cm

Electrode clip

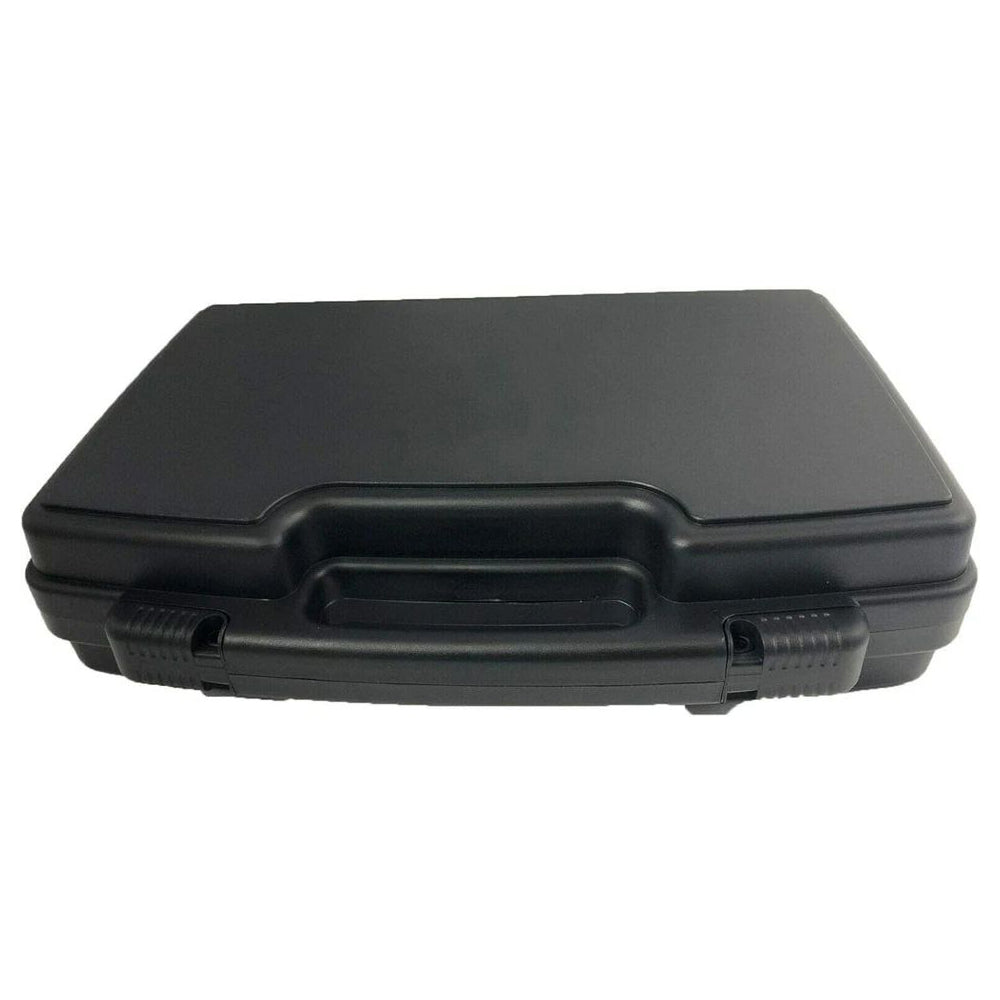

Carrying case
