VTSYIQI

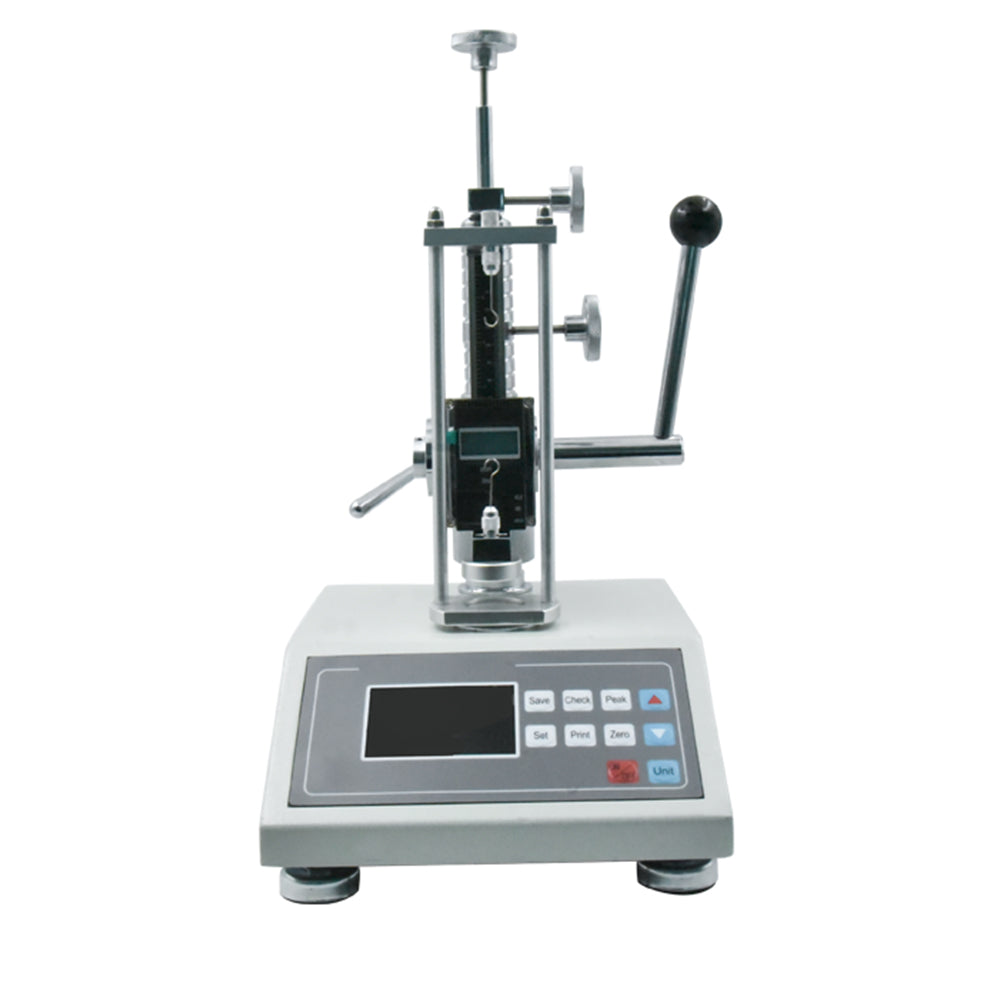

Digital Spring Pressure Tester Spring Tension Testing Machine with Maximum Test Machine Load 30N Minimum Resolution 0.001N Store 99 Sets of Test Data Three Measurement Units(N/KG/Lb) Measurable Maximum Free Length of Spring 80mm
- Regular price
- $1,600.00
Digital Spring Pressure Tester Spring Tension Testing Machine with Maximum Test Machine Load 30N Minimum Resolution 0.001N Store 99 Sets of Test Data Three Measurement Units(N/KG/Lb) Measurable Maximum Free Length of Spring 80mm
About this item:
Maximum testing load ：30N
Minimum resolution ：0.001N
Diameter of the platen ：34mm Indication error : +/-1%
Maximum free length of measurable spring ：80mm
Length of travel of the displacement scale ：60mm
Features:
1. Liquid crystal display (English); better Human Machine Interface (HMI)
2. High precision and resolution
3. Three kinds of measurement units can be selected(N, Lb and Kg); inter-conversion is available
4. The user can independently set up acceleration of gravity of the place of usage. In this way, the testing and unit conversion would be more accurate
5. 99 sets of test data can be stored; the user can directly look over, store and delete data in the machine
6. The user can freely shift among the following three patterns: Real-time and peak-value patterns and the pattern of automatic peak value
7. It has the function of client setup and free setup of upper and lower limits (corresponding to audible and visual alarms), storage value, holding value, automatic storage time of peak value, automatic shutdown time (non-operation), etc
8. Judgment of acceptance or rejection of test data to be printed and stored, maximum value, minimum value and mean value (only for tape printing machine)
9. MODBUS-RTU standard agreement is adopted for communication; USB interface is adopted for better connection with configuration and PLC connection
Specification:
Maximum testing load ：30N
Minimum resolution ：0.001N
Diameter of the platen ：34mm
Maximum free length of measurable spring ：80mm
Length of travel of the displacement scale ：60mm
Division value of the displacement scale 0.01mm
Indication error +/-1%
Power Supply AC 110-220V, 50HZ-60HZ
Power capability (without printer) 13W
Power capability (with printer) 20W
Working temperature 20+/-10C
Temperature of storage and transportation -27C~+70C
Relative temperature 15%~80%RH
