  • VTSYIQI AC DC Hipot Tester Meter with AC Withstand Voltage Test 0.050kV-5.000KV 0.001mA-10.00mA DC Withstand Voltage Test 0.050kV-6.000kV 0.1μA-5.000mA Touch Screen RS232/Handler Interface Arc Detection 9 Levels (AC/DC)

VTSYIQI

VTSYIQI AC DC Hipot Tester Meter with AC Withstand Voltage Test 0.050kV-5.000KV 0.001mA-10.00mA DC Withstand Voltage Test 0.050kV-6.000kV 0.1μA-5.000mA Touch Screen RS232/Handler Interface Arc Detection 9 Levels (AC/DC)

$1,35900
In stock
$1,35900

Customer Service

Post your customer service details here.

Return Policy

Post your policy conditions details here.

About this item

Can provide 5kVAC/10mA withstand voltage, 6kVDC/5mA withstand voltage test.

Controllable sine generator: It can be set to work at 50 or 60Hz when AC output, no longer limited by line voltage;

Linear power amplifier: the distortion of the voltage waveform is small, the control is simple and the reliability is high.

Output voltage closed loop control

Single-machine AC withstand voltage test, DC withstand voltage test, and project settings that can pass the test plan, perform multi-item sequential testing.

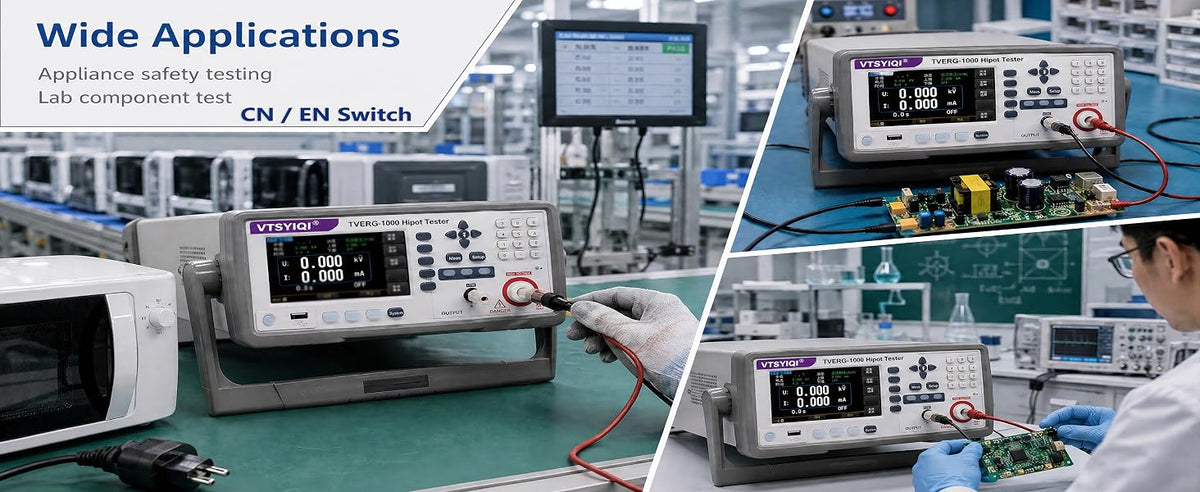

APPLICATIONS---Safety performance inspection of household appliances, transformers, electrical equipment, and components.

OVERVIEW

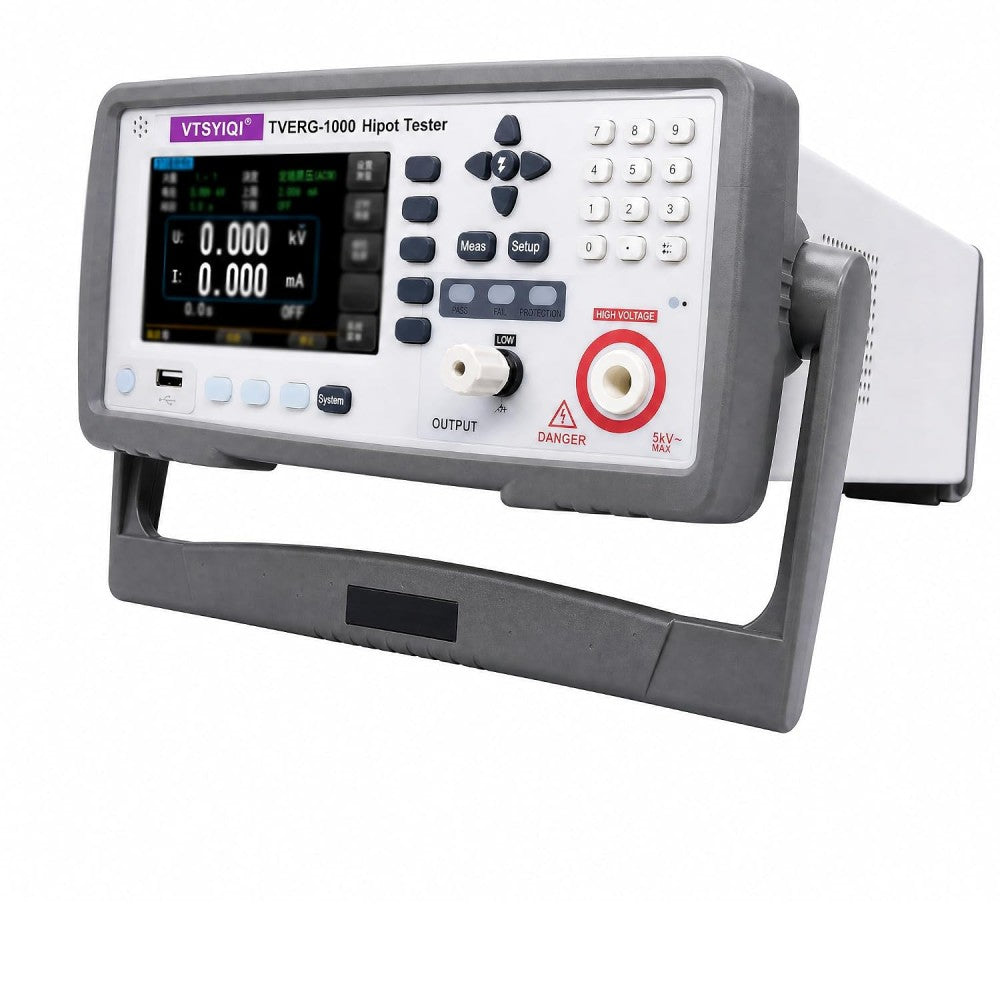

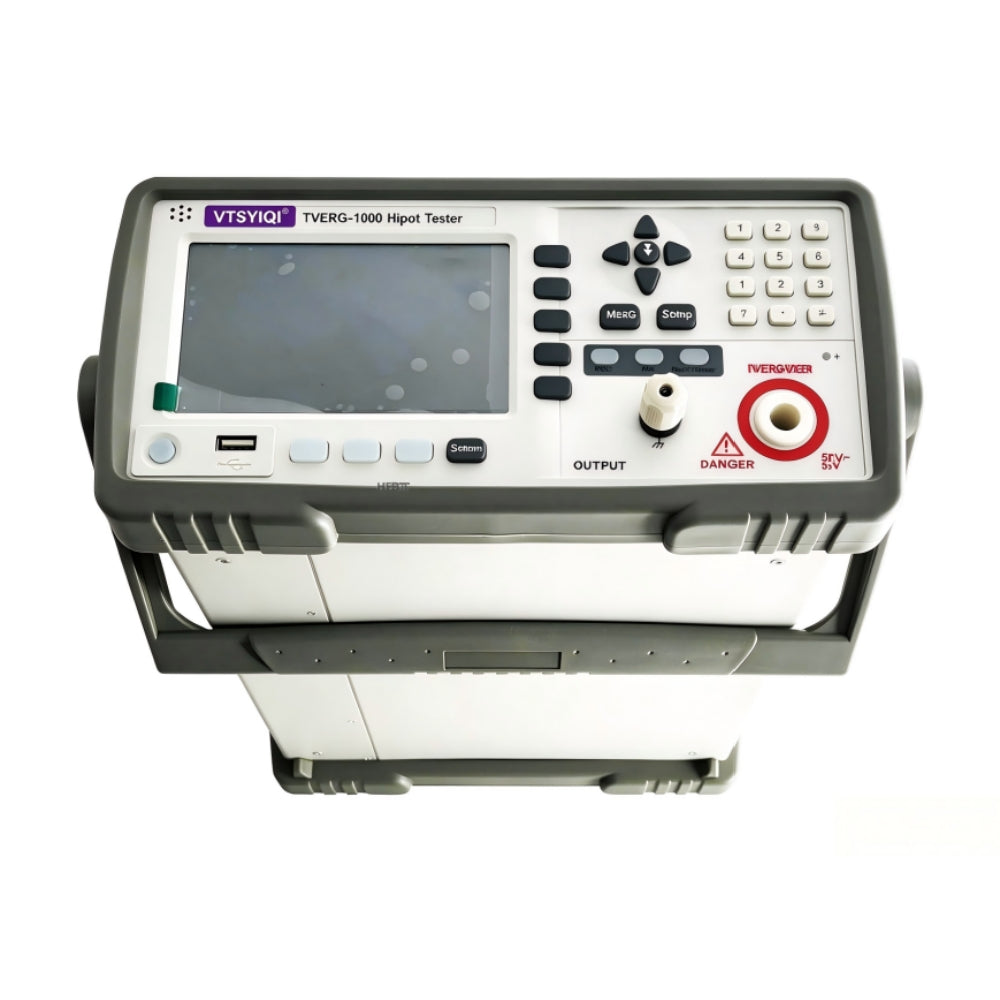

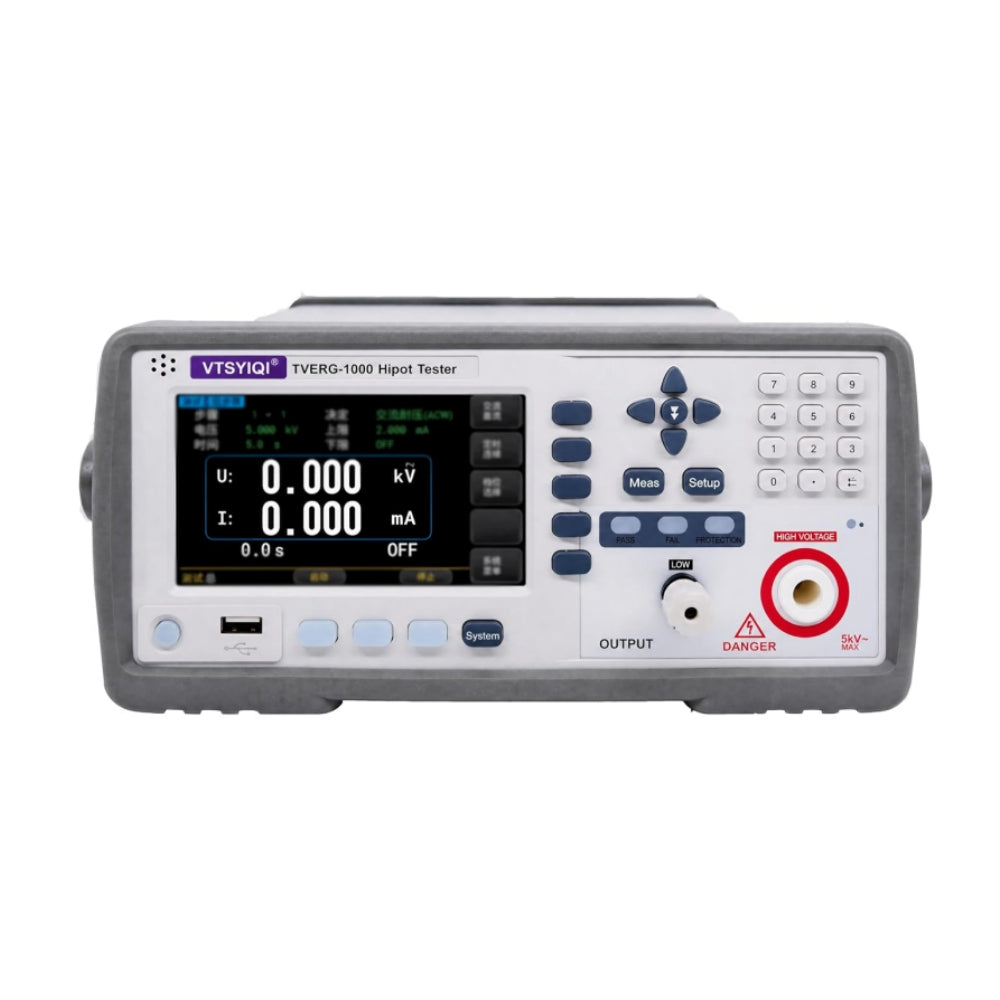

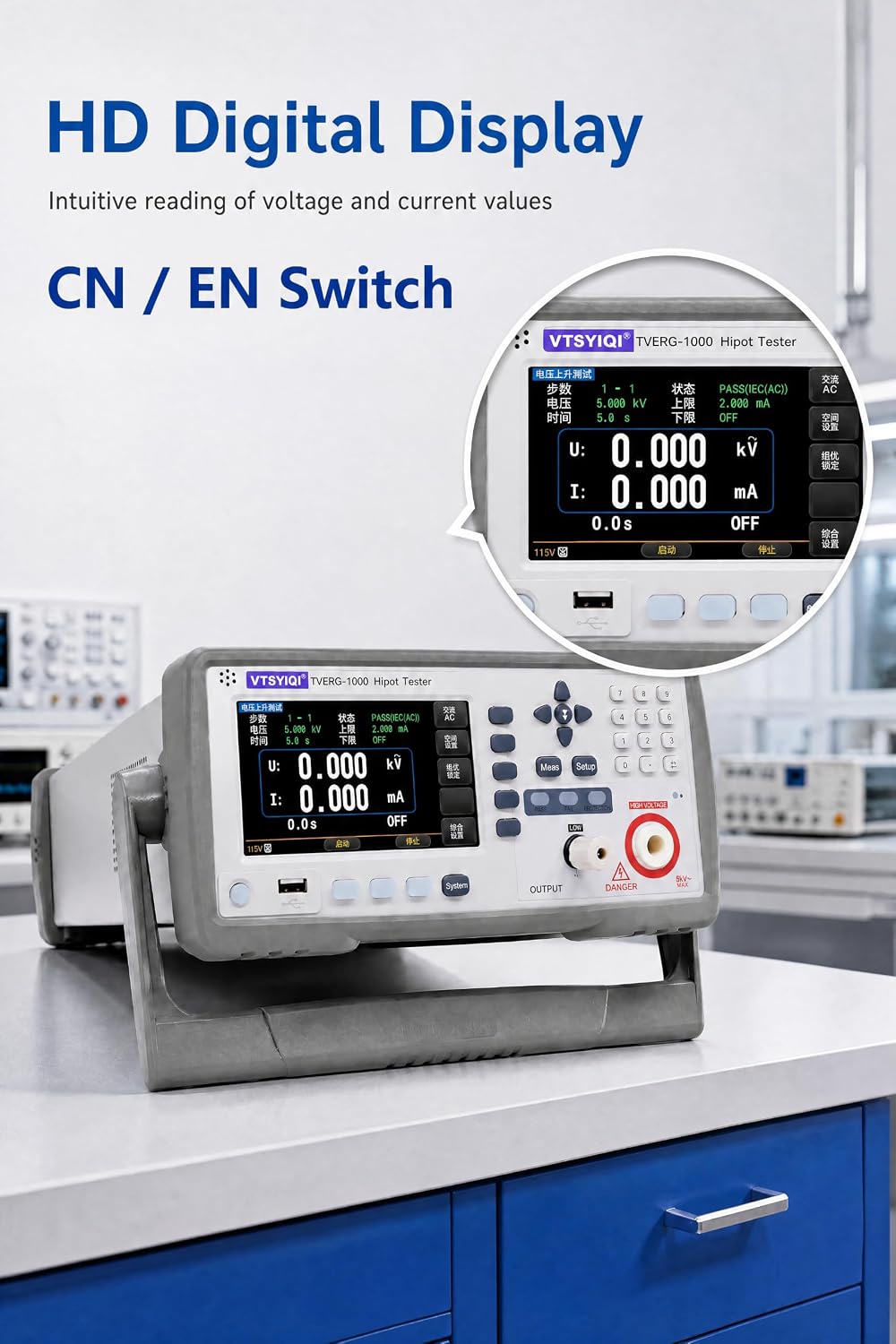

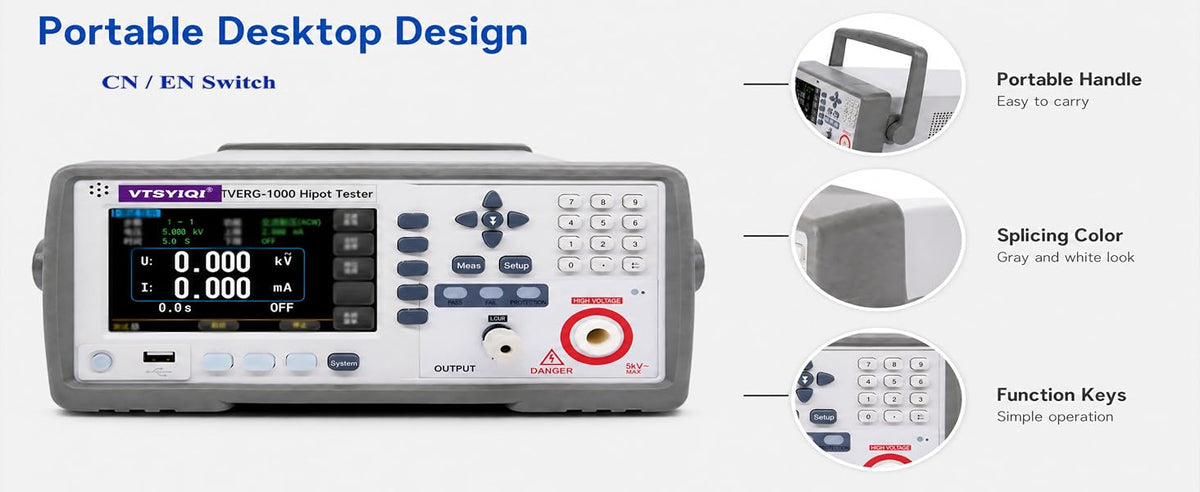

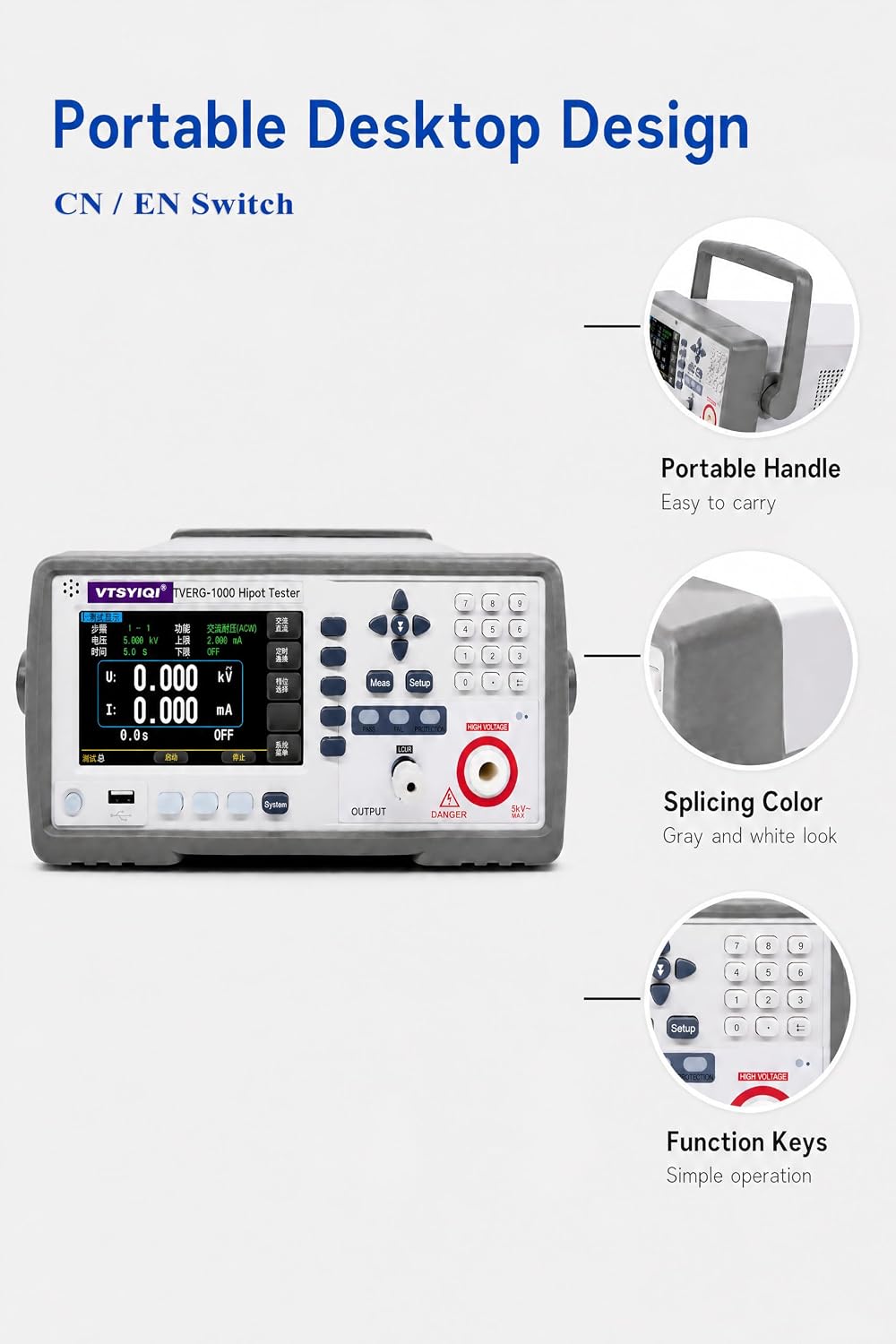

TVERG-1000 AC/DC hipot tester adopts 5 inches TFT true color LCD display ( touch screen) and with high performance 32 bits processor. It is small sizes, light weight 8kg ,super cost-effective, easy to operate. The high-voltage module of the instrument uses a DA as base, a controllable sine generator, a class AB power amplifier, a 40-600Hz high-voltage transformer for boosting, and the output voltage is closed-loop controlled.

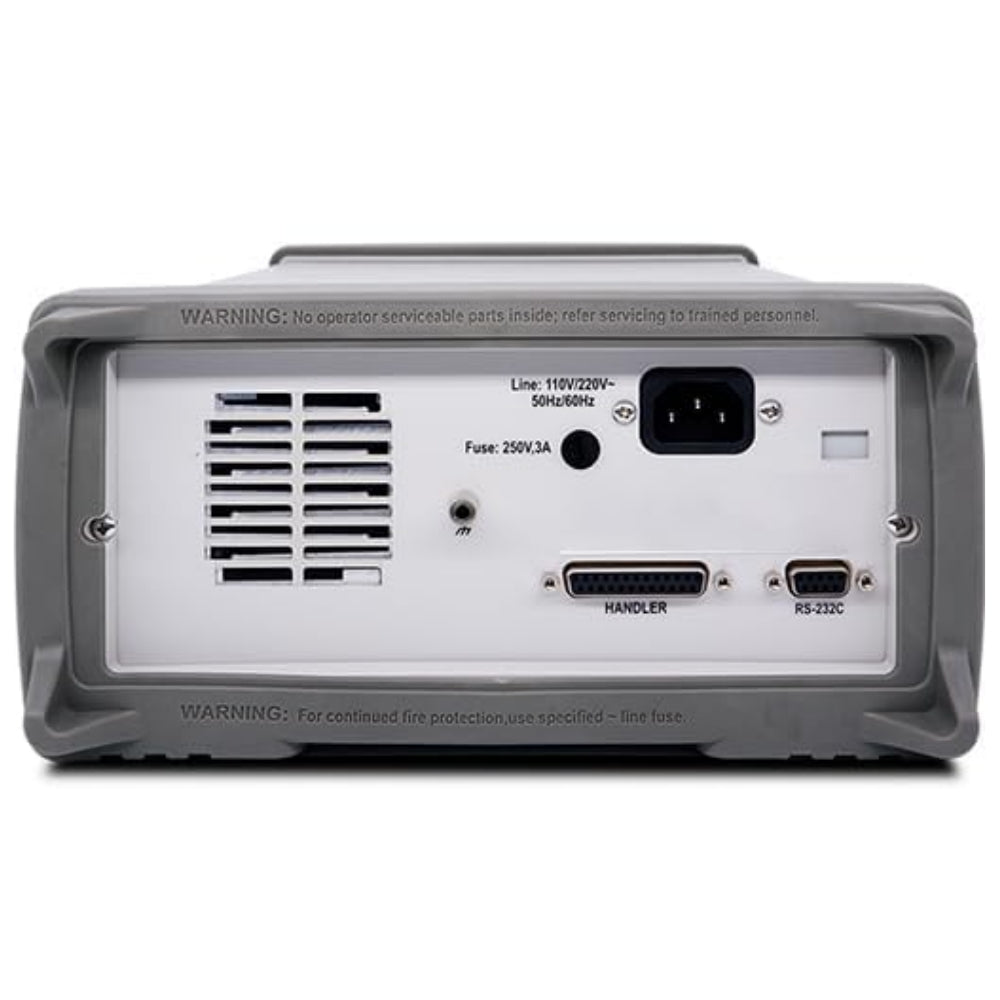

TVERG series equiped with Handler (PLC), The RS232C interface can easily carry out data communication and remote control with the PC, which can meet the requirements of automated testing and improve production efficiency.

FEATURES

TVERG-1000 can provide 5kVAC/10mA withstand voltage, 6kVDC/5mA withstand voltage test.

Controllable sine generator: It can be set to work at 50 or 60Hz when AC output, no longer limited by line voltage;

Linear power amplifier: the distortion of the voltage waveform is small, the control is simple and the reliability is high.

Output voltage closed loop control

Single-machine AC withstand voltage test, DC withstand voltage test, and project settings that can pass the test plan, perform multi-item sequential testing.

SPECIFICATIONS

Measurement Functions:AC/DC Withstanding Voltage

Interface: RS232/Handler

Arc Detection: 9 Levels (AC/DC)

Other Functions: LIST Edit;Discharge Function;5“ LCD + Touch panel

AC Withstand Voltage:

Rate Ouput: AC 5.000kV/10mA

Output Voltage: 0.050kV-5.000KV AC;Resolution: 1V

Voltage Accuracy: 2% of reading + 5 digits

Output Regulation: 2% of reading +5V

Output Frequency: 50Hz/60Hz

Measurement Current: 0.001mA-10.00mA;Resolution: 0.001 / 0.01

Current Accuracy: 2% of reading + 5 digits

Rising Time: 0.1s-999.9s

Testing Time: 0.2s-999.9s

Falling Time: 0.1s-999.9s

DC Withstand Voltage :

Rate Output: DC 6kV/5mA

Output Voltage: 0.050kV-6.000kV DC;Resolution: 1V

Voltage Accuracy: 2% of reading + 5 digits

Output Regulation: 2% of reading +5V

Current Measurement: 0.1μA-5.000mA

Current Accuracy: 2% of reading +5 digits

Rising Time: 0.1s-999.9s

Testing Time: 0.2s-999.9s

Falling Time: 0.1s-999.9s

Power Supply 110V ~ 220V 47~63Hz;300VA

Dimension & Weight: 270mm( W )x130mm( H )x450mm ( D );8kg

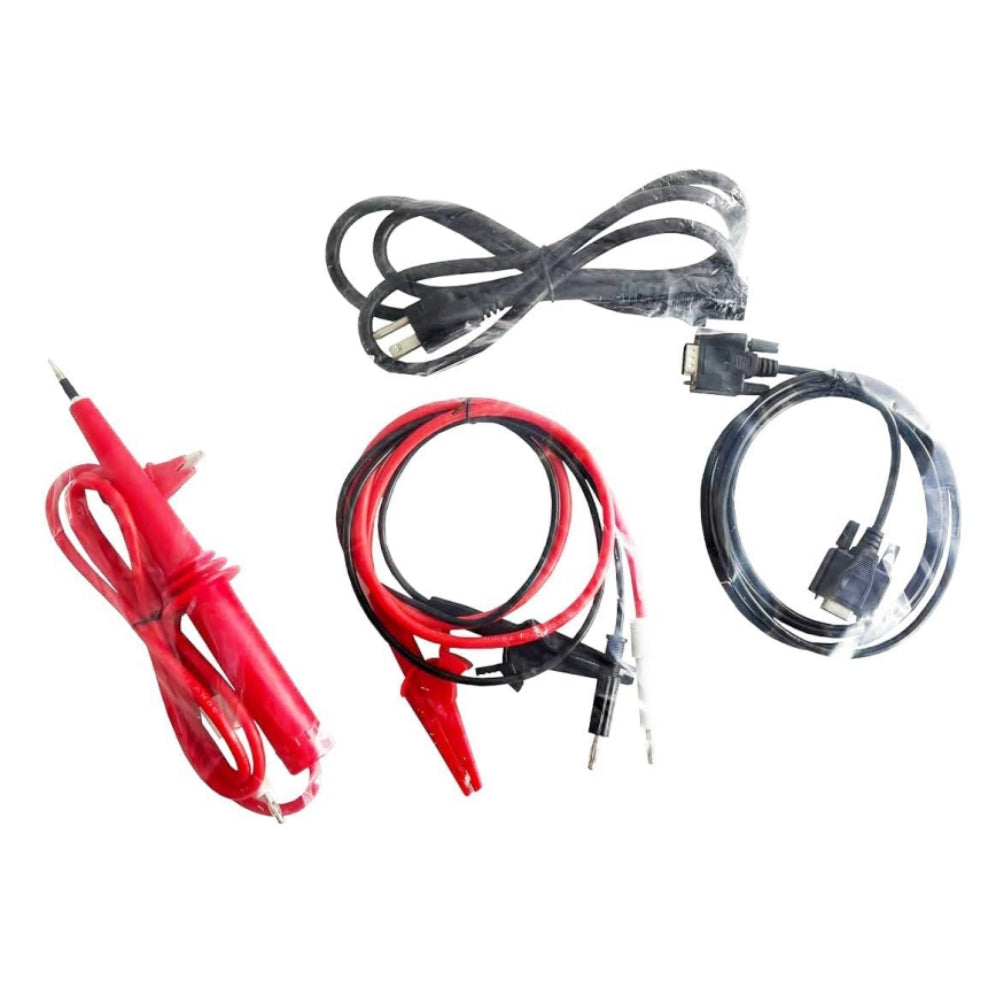

Accessories:High voltage test rod;Withstand voltage test line; RS232 Communication
