About this item

Rated output AC：0.050kV-5.000KV

Rated output DC:0.050kV-6.000kV

touch button controls display in both Chinese and English operation standard RS232 interface, the Handler interface

Measurement Functions: AC/DC Withstanding Voltage

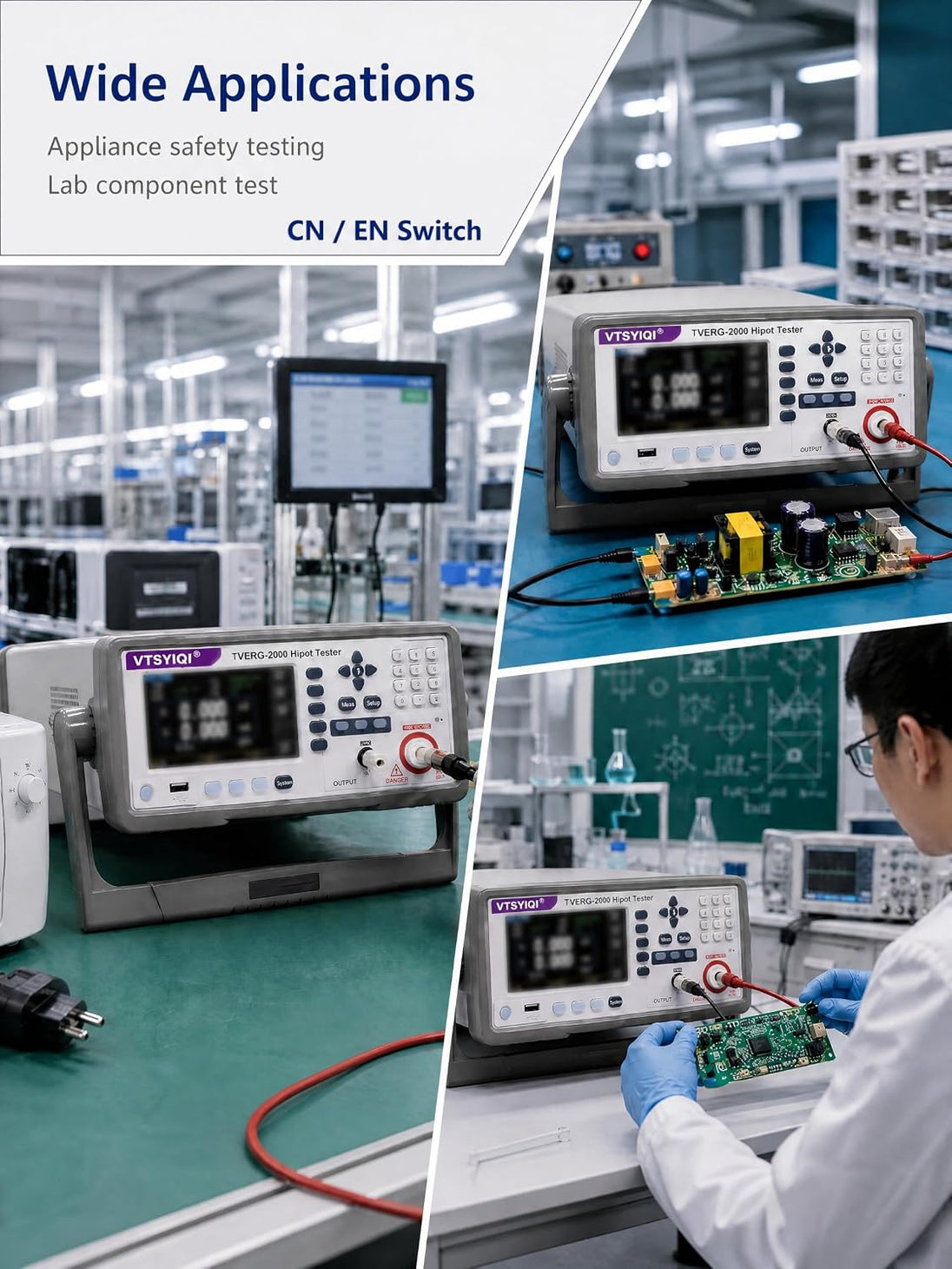

APPLICATIONS---Electric vehicles, Power grids, Photovoltaics, Home appliances, information equipment, medical equipment industry

OVERVIEW

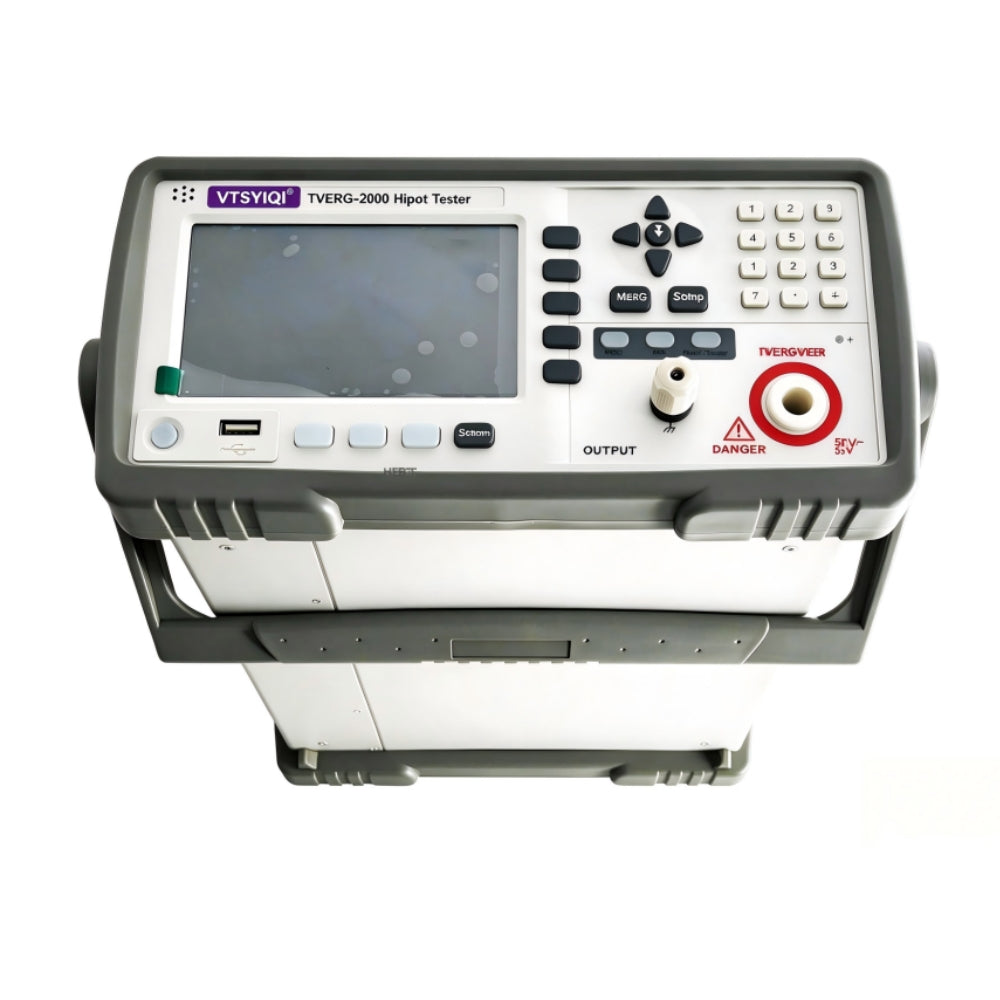

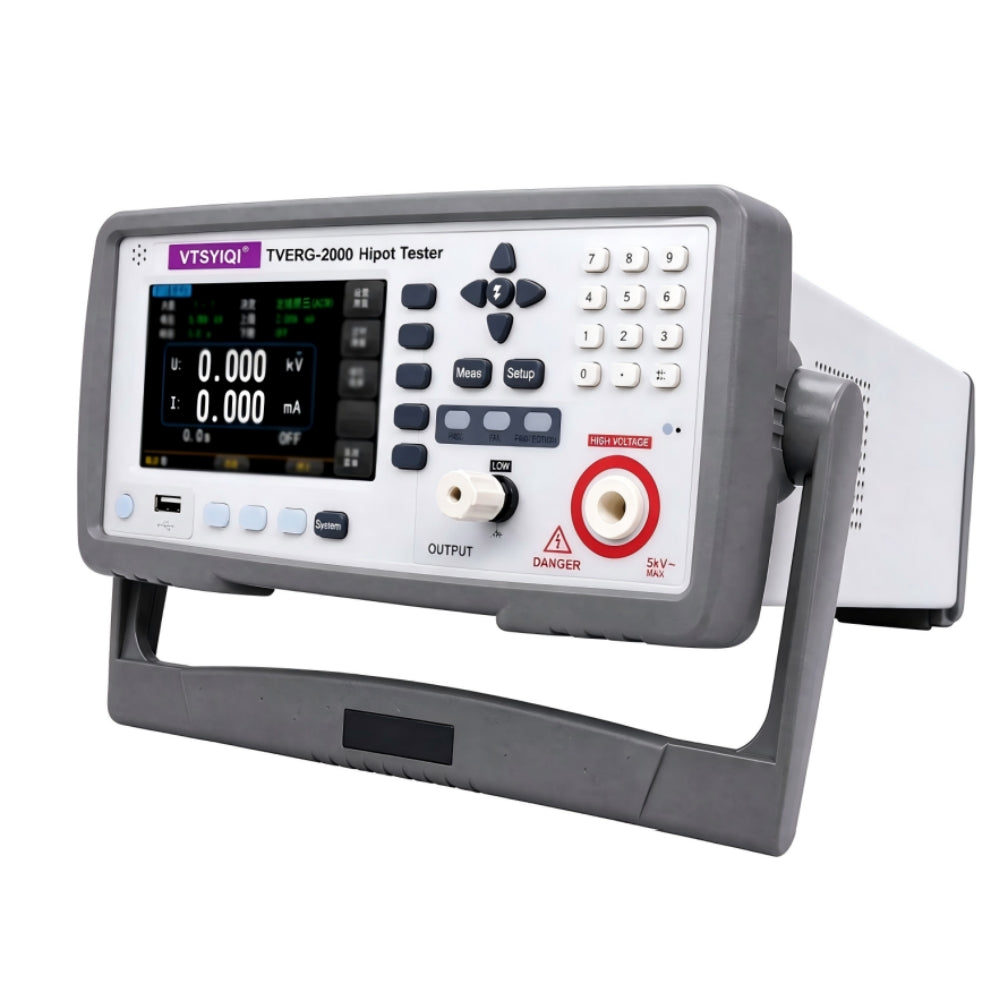

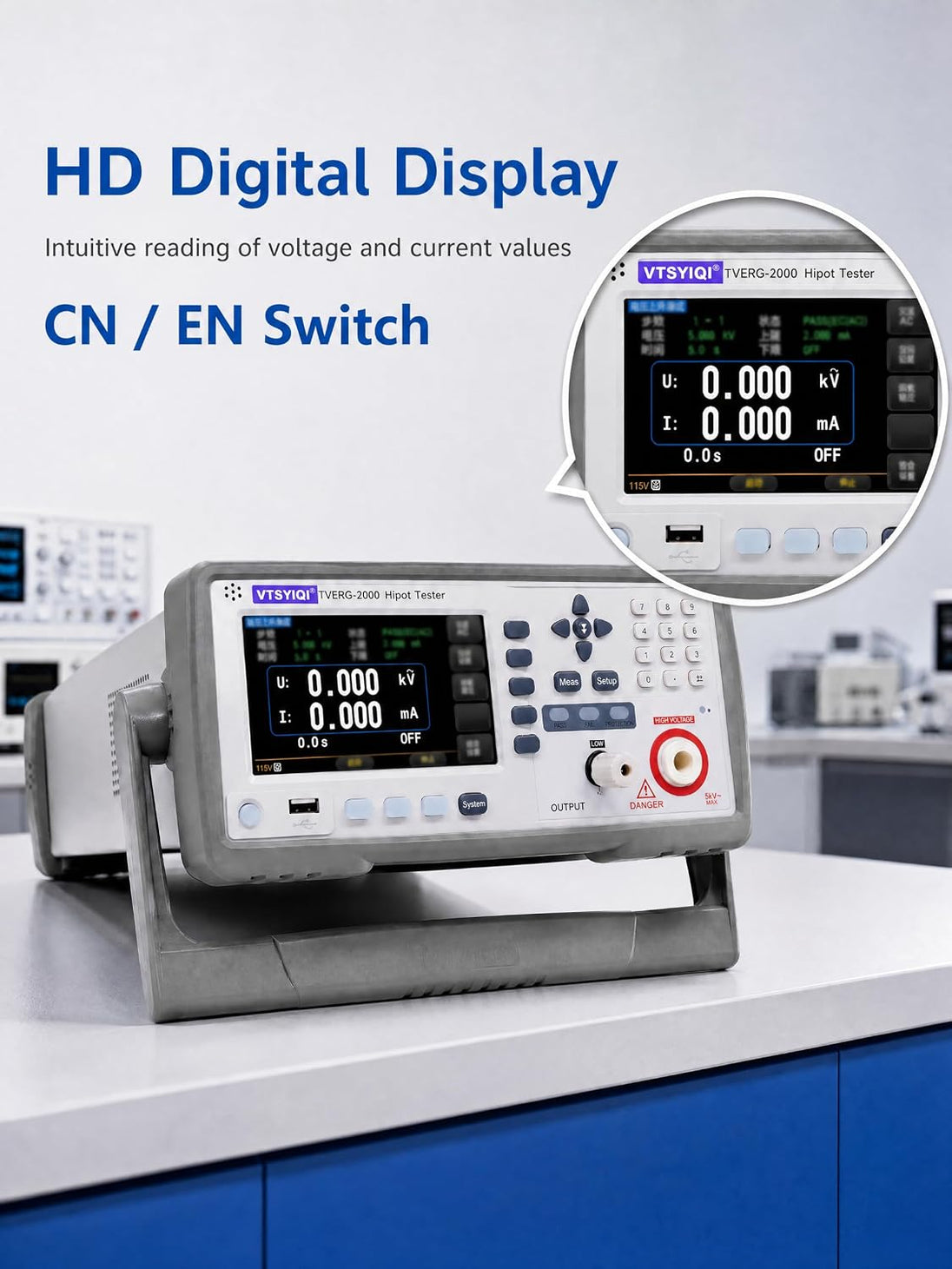

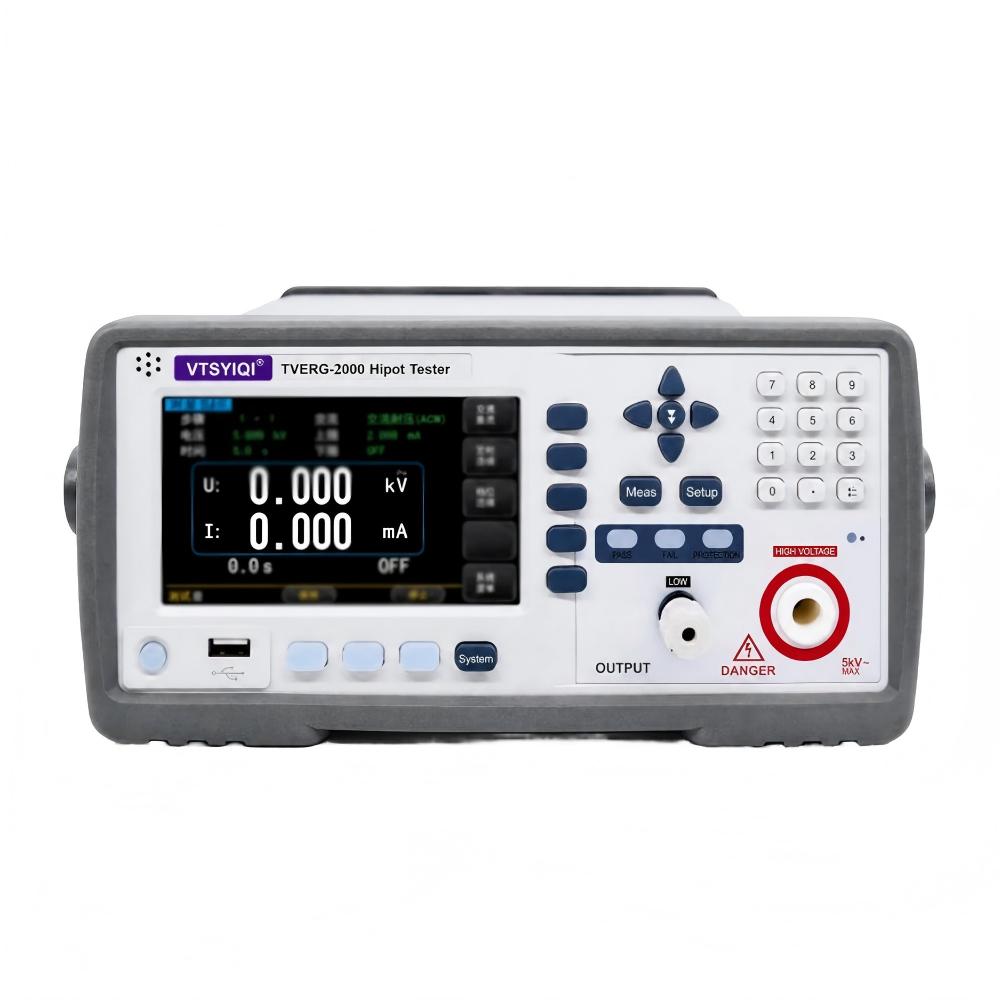

TVERG-2000 AC/DC hipot tester adopts 5 inches TFT true color LCD display ( touch screen) and with high performance 32 bits processor. It is small sizes, light weight 8kg ,super cost-effective, easy to operate. The high-voltage module of the instrument uses a DA as base, a controllable sine generator, a class AB power amplifier, 40-600Hz high-voltage transformer for boosting, and the output voltage is closed-loop controlled.

TVERG series equiped with Handler (PLC), The RS232C interface can easily carry out data communication and remote control with the PC, which can meet the requirements of automated testing and improve production efficiency.

FEATURES

AC：0.050kV-5.000KV

DC: 0.050kV-6.000kV

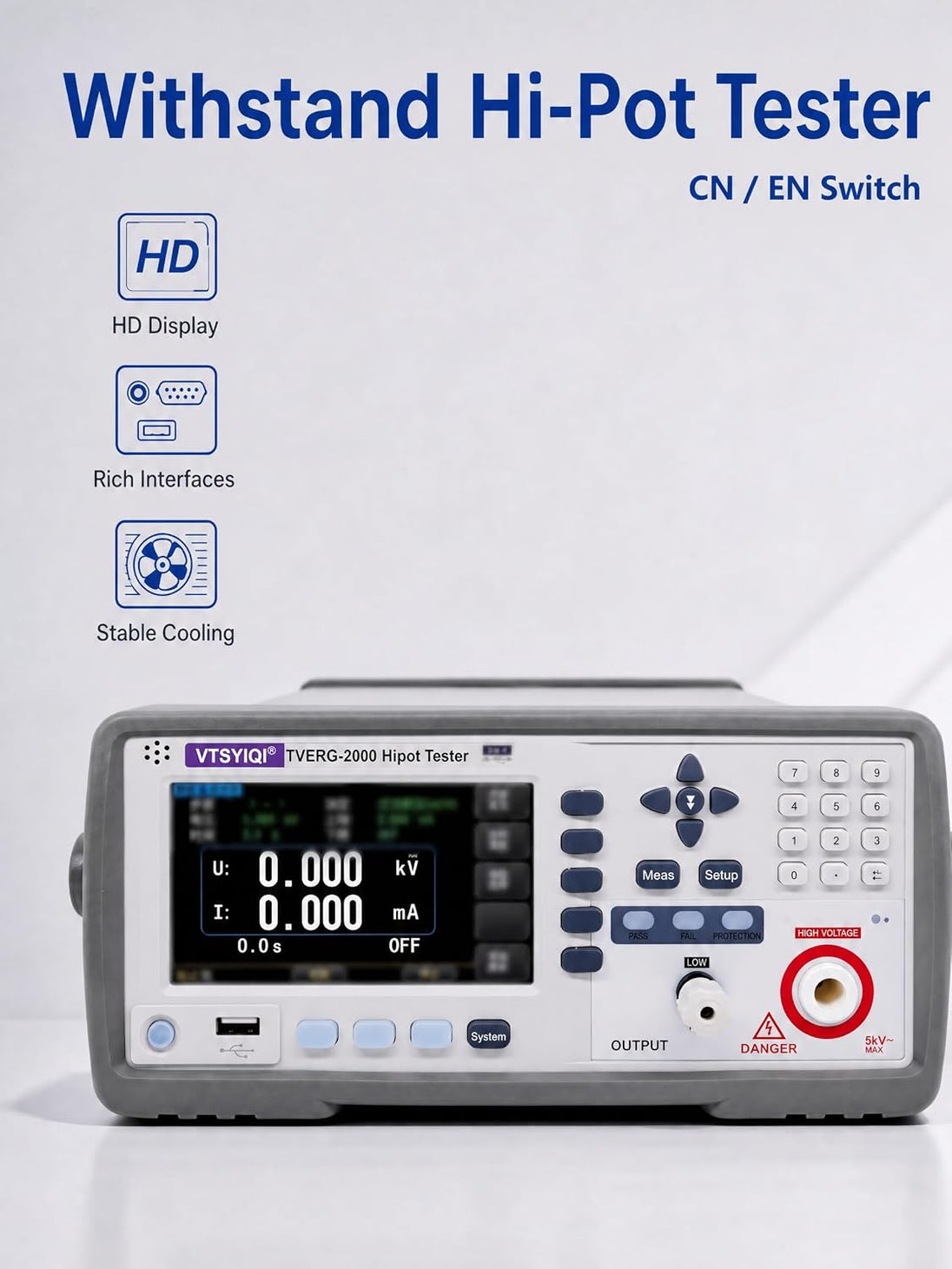

Touch screen +Button control

Large screen display

Chinese and English operation interface

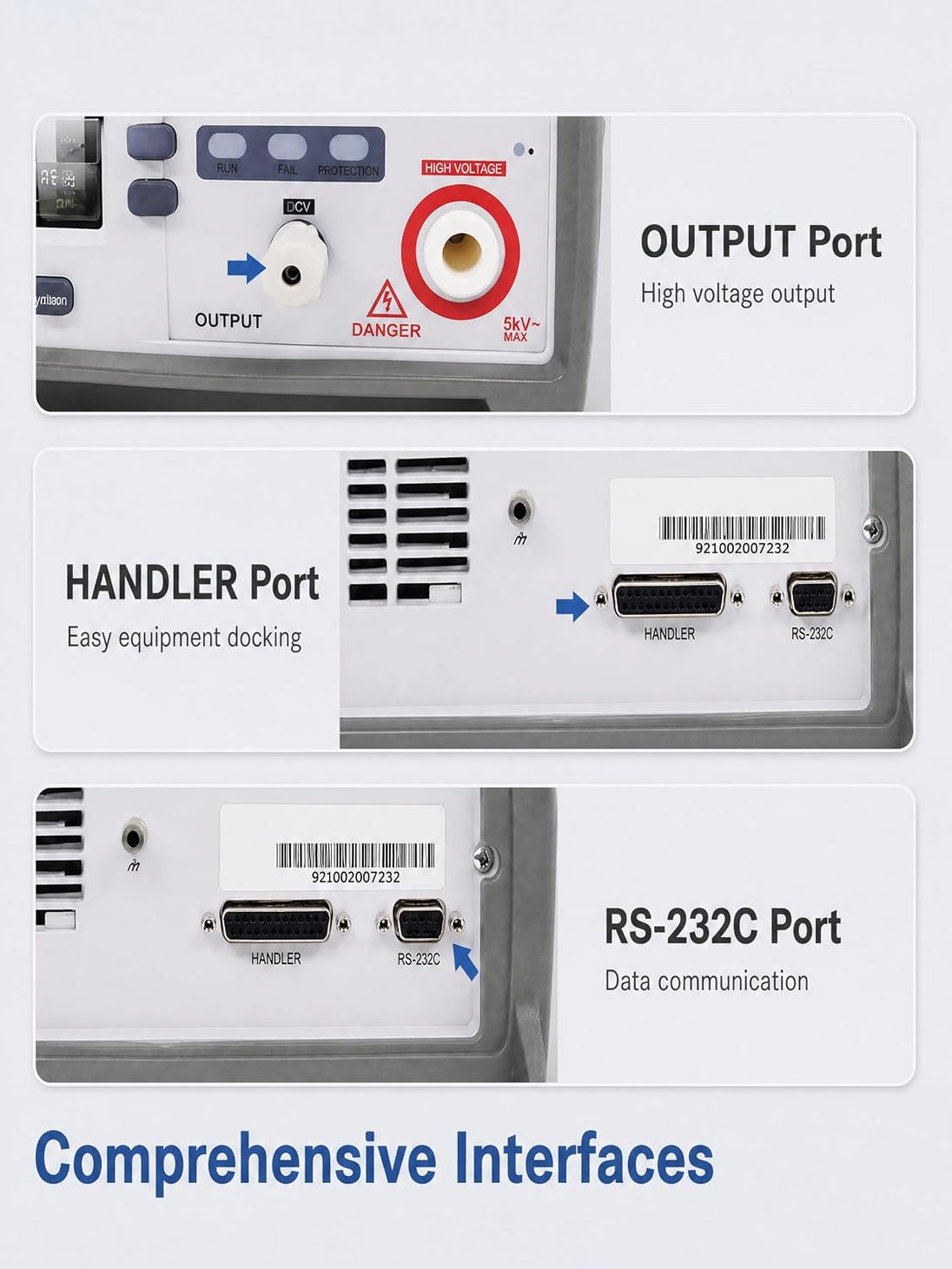

Standard RS232, Handler interface

SPECIFICATIONS

Measurement Functions:AC/DC Withstanding Voltage

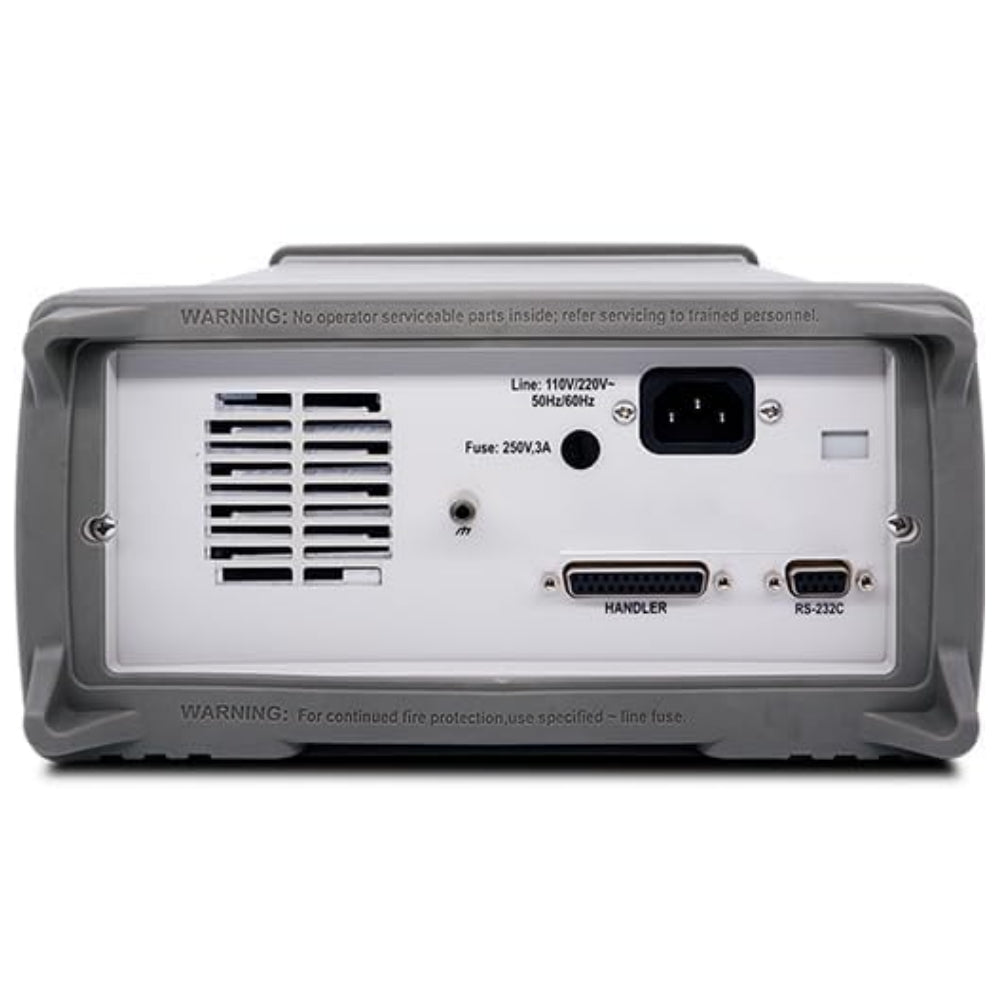

Interface: RS232/Handler

Standard Configuration:AC 5V/20mA；DC 6kV/10mA

Arc Detection: 9 Levels (AC/DC)

Other Functions: LIST Edit;Discharge Function;5“ LCD + Touch panel

AC Withstand Voltage:

Rate Ouput: AC 5.000kV/20mA

Output Voltage: 0.050kV-5.000KV AC;Resolution: 1V

Voltage Accuracy: 2% of reading + 5 digits

Output Regulation: 2% of reading +5V

Output Frequency: 50Hz/60Hz

Measurement Current: 0.001mA-20.00mA;Resolution: 0.001 / 0.01

Current Accuracy: 2% of reading + 5 digits

Rising Time: 0.1s-999.9s

Testing Time: 0.2s-999.9s

Falling Time: 0.1s-999.9s

DC Withstand Voltage :

Rate Output: DC 6kV/5mA

Output Voltage: 0.050kV-6.000kV DC;Resolution: 1V

Voltage Accuracy: 2% of reading + 5 digits

Output Regulation: 2% of reading +5V

Current Measurement: 0.1μA-10.000mA

Current Accuracy: 2% of reading +5 digits

Rising Time: 0.1s-999.9s

Testing Time: 0.2s-999.9s

Falling Time: 0.1s-999.9s

Power Supply 110V ~ 220V 47~63Hz;300VA

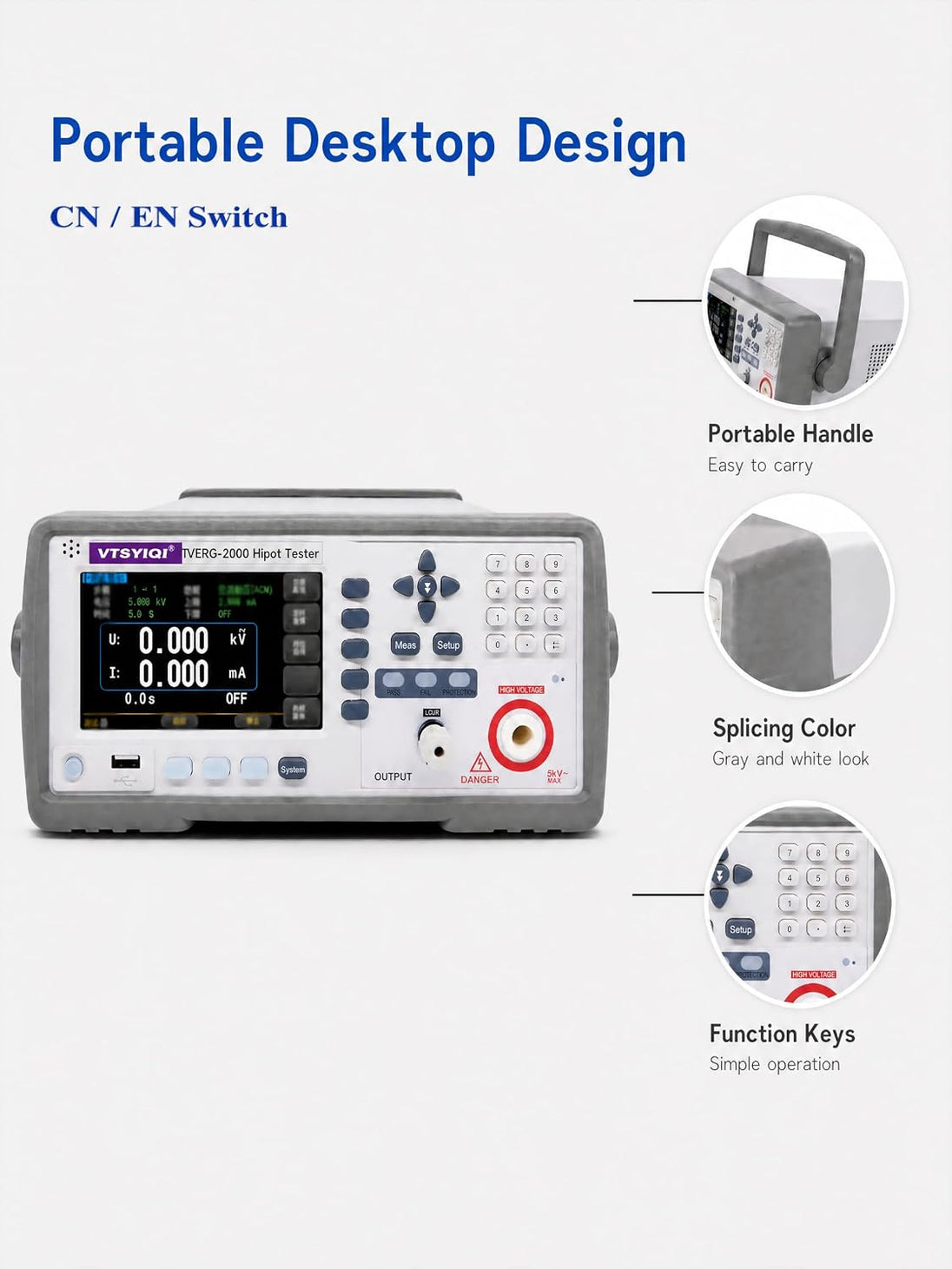

Dimension & Weight: 270mm( W )x130mm( H )x450mm ( D );8kg

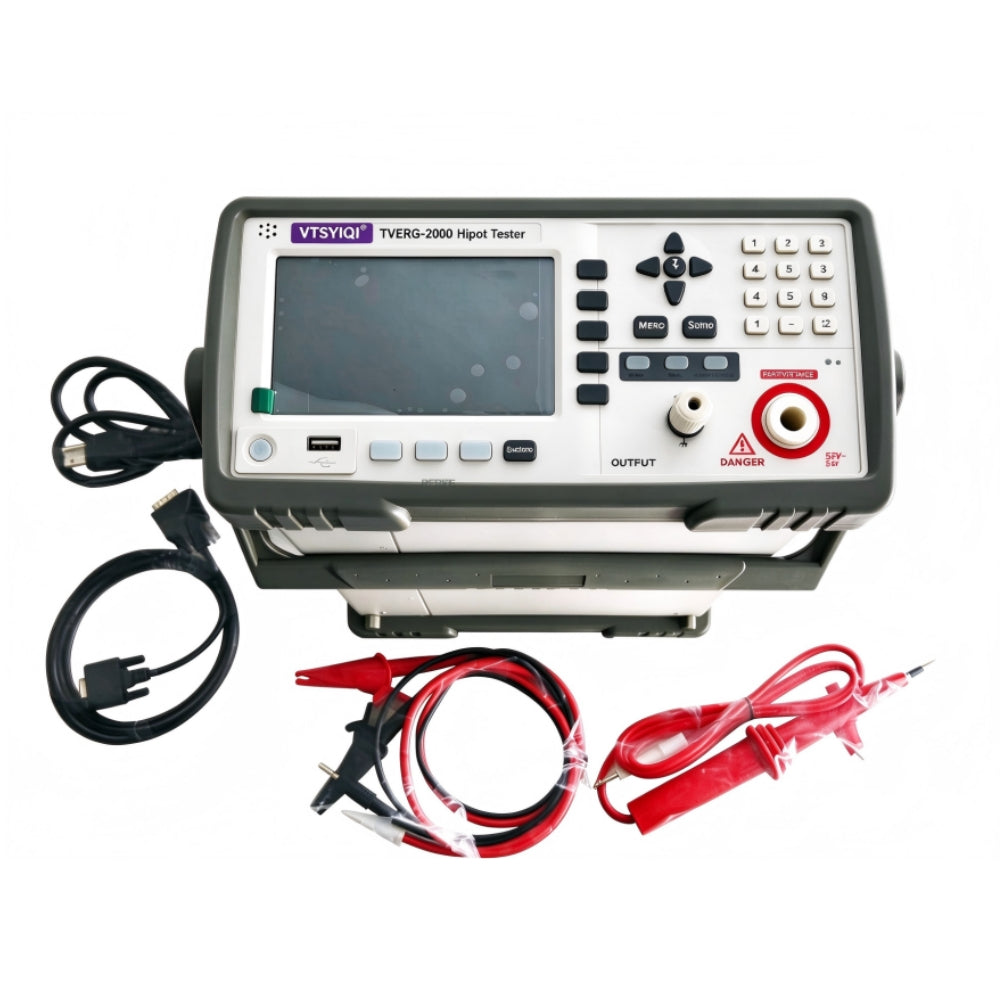

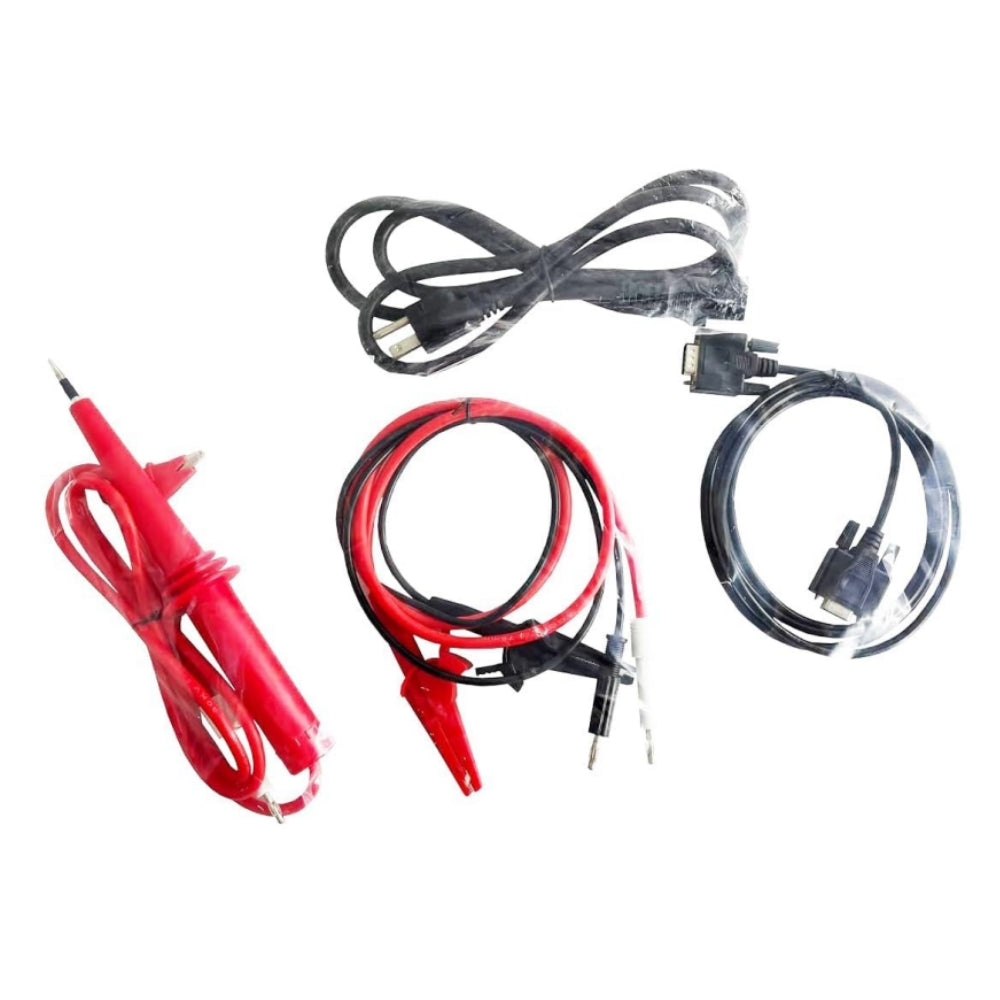

Accessories:High voltage test rod;Withstand voltage test line; RS232 Communication
