VTSYIQI Black And White Densitometer Black And White Transmission Density Meter with Density Range D=0.00 To 4.00 Aperture Diameter 2mm Repeatability ±0.02 for Measuring The Blackness Of Films

Product Introduction

black-white densitometer is used for measuring the blackness of films;it has advantages of accurate reading, high stability, strong anti-interference capacity, attractive appearance and easy operation. It can be widely applied to the fields such as nondestructive testing, sensitive materials, printing industry and medical industry etc. each unit is equipped with density tablet and calibration software for testing its accuracy.

Main Features:
◆Optical transmission theory
◆Injected ABS housing
◆Compact lightweight
◆LED lighting source
◆Anti-shock

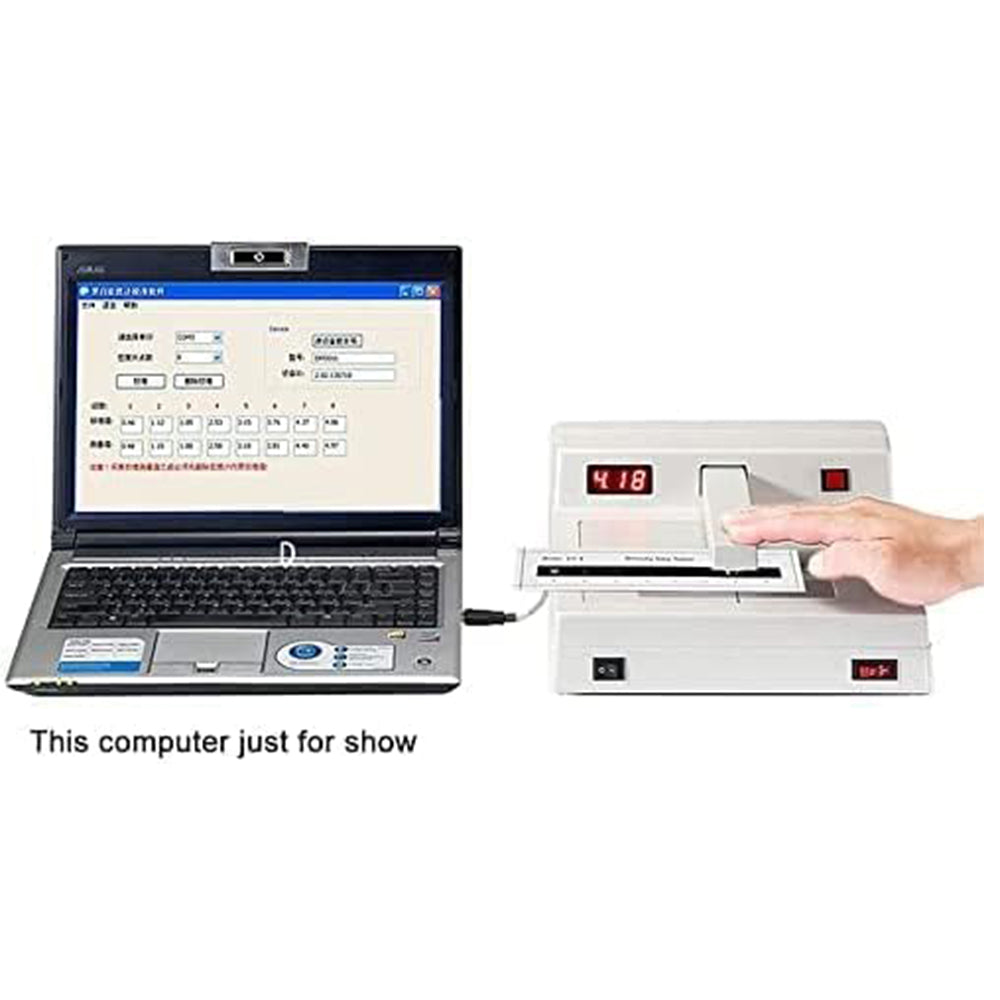

◆Calibration software is provided
◆Suitable for various density film
◆Display error can be calibrated by yourself
Specifications:
◆Range of density: D=0.00~4.00
◆Measuring Error:

±0.02 （0.0＜D≤2.0）

±1% （2.0＜D≤4.0）

±0.05 （4.0＜D≤5.0）

◆Reading Stability: ±0.02
◆Measurement Area: 2mm (Diameter of the Aperture Hole)
◆Sampling time: 0.8s
◆Light Source :27pcs LED
◆Communication Port : RS232 Port, optional USB connection（Optional is not included.）
◆Displaying Mode: Three digital displaying
◆Power consumption: About 25W
◆Operation Environment：Temperature 0℃～40℃；Relative humidity ≤85%
◆Power: 50~60Hz, 100V-120V or 200V-240V
◆Dimension: 260×265×110 (length ×width ×height)
◆Weight: 2.1kg

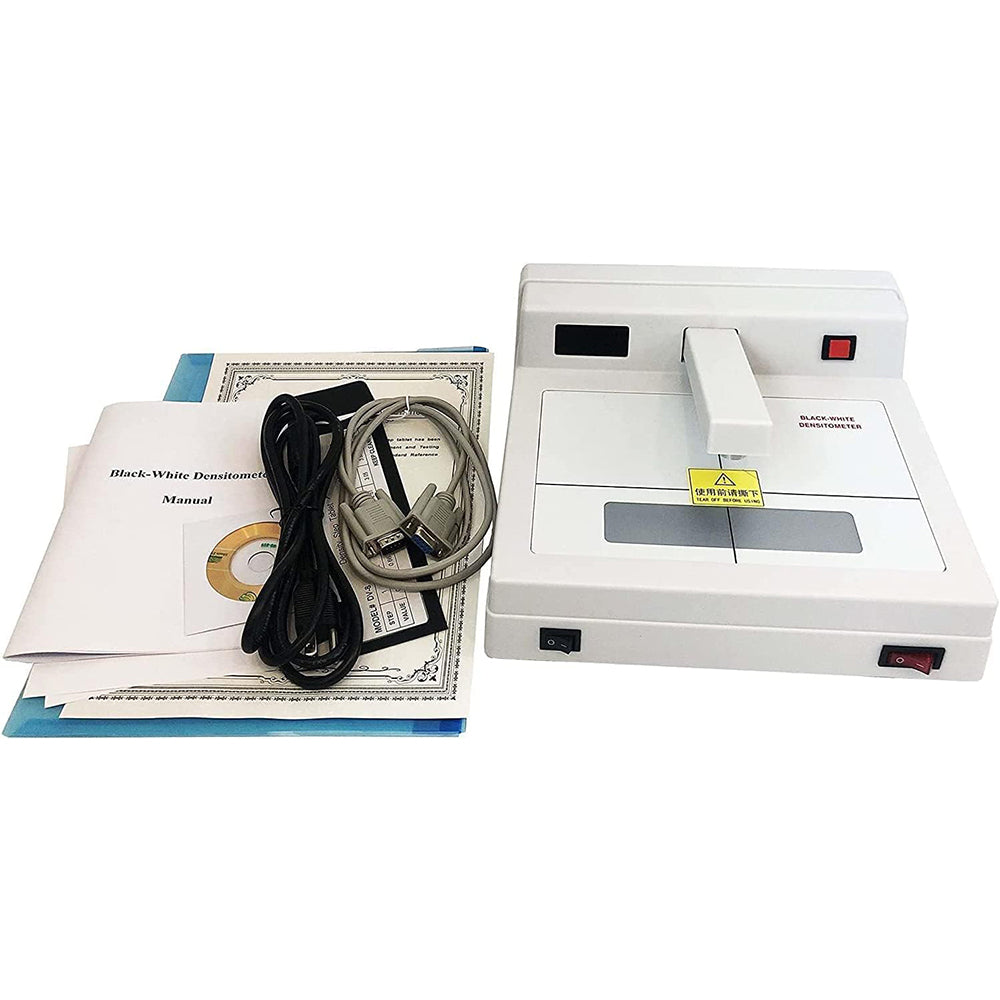

Standard Configurations
(1)Black-White Densimeter
(2)Standard Step Density Tablet
(3)Software CD
(4)Power Line
(5)Carrying Case
(6)Operating Manual
