Introduction：

High-End MultiFunctional Clamp Earth Resistance Tester, also known as clamp type earth resistance tester, single clamp earth resistance tester, loop resistance tester, lightning protection earth resistance tester, which is used for measurement of earth resistance, loop resistance, earth current and grounding fault judgment.

In the loop grounding system measurement, no need to disconnect the grounding down lead, and not request the auxiliary grounding pole, which is safe, fast and convenient to use.the clamp earth resistance tester is widely used in earth resistance and loop resistance measurement of electric power, telecommunications, meteorology, oil fields, construction and industrial electrical equipment.The long clamp is particularly suitable for flat steel grounding site.

The tester can measure ground faults that cannot be measured by traditional methods, and can apply to the site which cannot be measured by traditional methods, because the clamp earth resistance tester is measuring the comprehensive value of the grounding body resistance and the grounding lead resistance.

 High-End MultiFunctional Clamp Earth Resistance Tester has multiple display mode combinations, you can choose resistance + current, resistance + time, current + time to display on the same screen, larger measurement range, 999 sets of stored data, lower power consumption, using large-capacity lithium batteries, the supporting monitoring software has functions such as online real-time monitoring, historical query, software alarm setting, historical data reading, saving, reporting and other functions.

Features:

1. A major breakthrough in earth resistance testing technology, non-contact type measurement is safe and fast. When measuring the grounding system with loop circuit, no need to disconnect the grounding down leads, and no need to add auxiliary stake, saving time and more effective.

2. Measuring instrument manufacturing license: 2016E119-44

3. The resistance and current are displayed on the same screen, the test results are clear and obvious.

4. Have functions of audible and visible alarm, data memory, data hold. Clock function, display present test time.

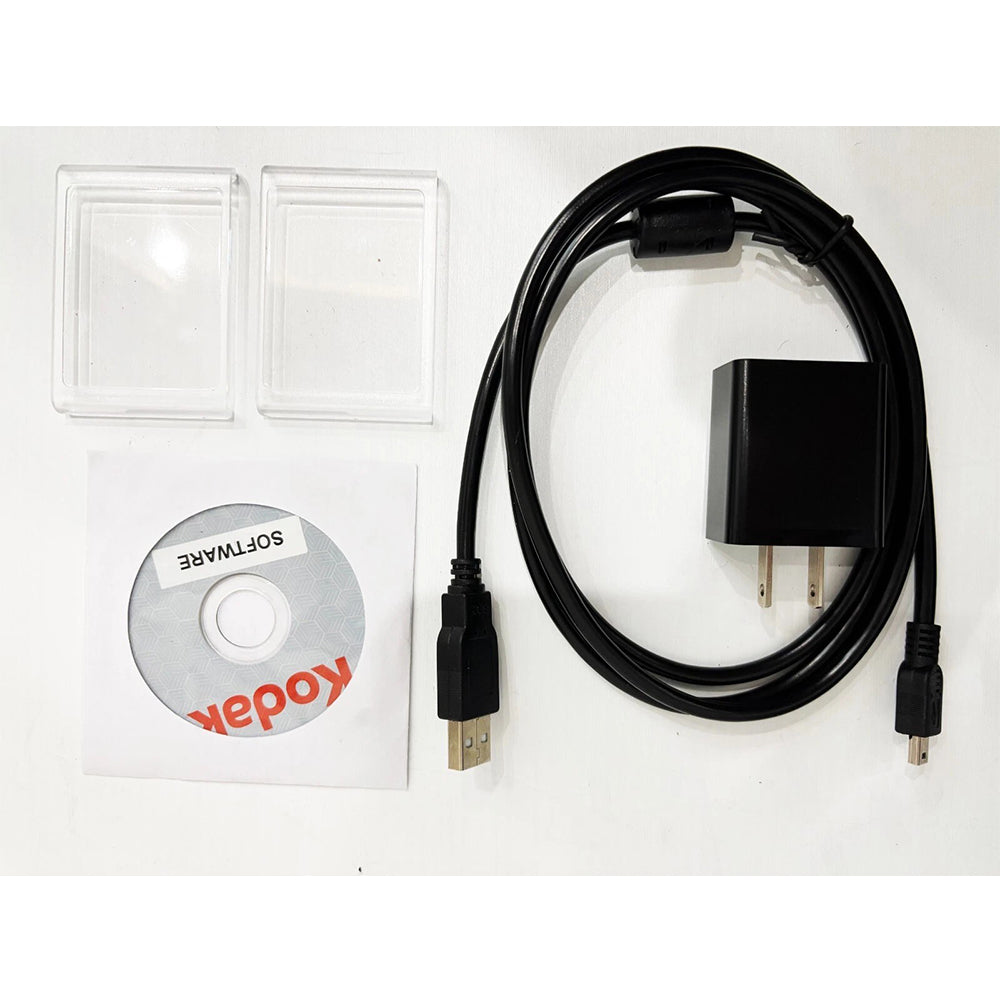

5. Equipped with USB interface, communication cable and software, the stored data can be uploaded to the computer for reading, saving and printing.

6. Equipped with rechargeable lithium battery, convenient to use.

Technical Parameters:

Power Supply    ：3.7V DC(rechargeable lithium battery 2600mAh)

LCD Displayer：  47mm×28.5mm

Resistance Measurement Range： 0.010Ω~1500Ω

Resistance Measurement Resolution：0.001Ω

Current Range：0.000mA~40.0A

Current Resolution： 0.001mA

Memory： 999 groups

Communication Interface：USB interface, software monitoring, data upload to computer, dynamic display

Self-checking time：≤1s, start up and quickly enter into test mode
Working Current：≤50mA

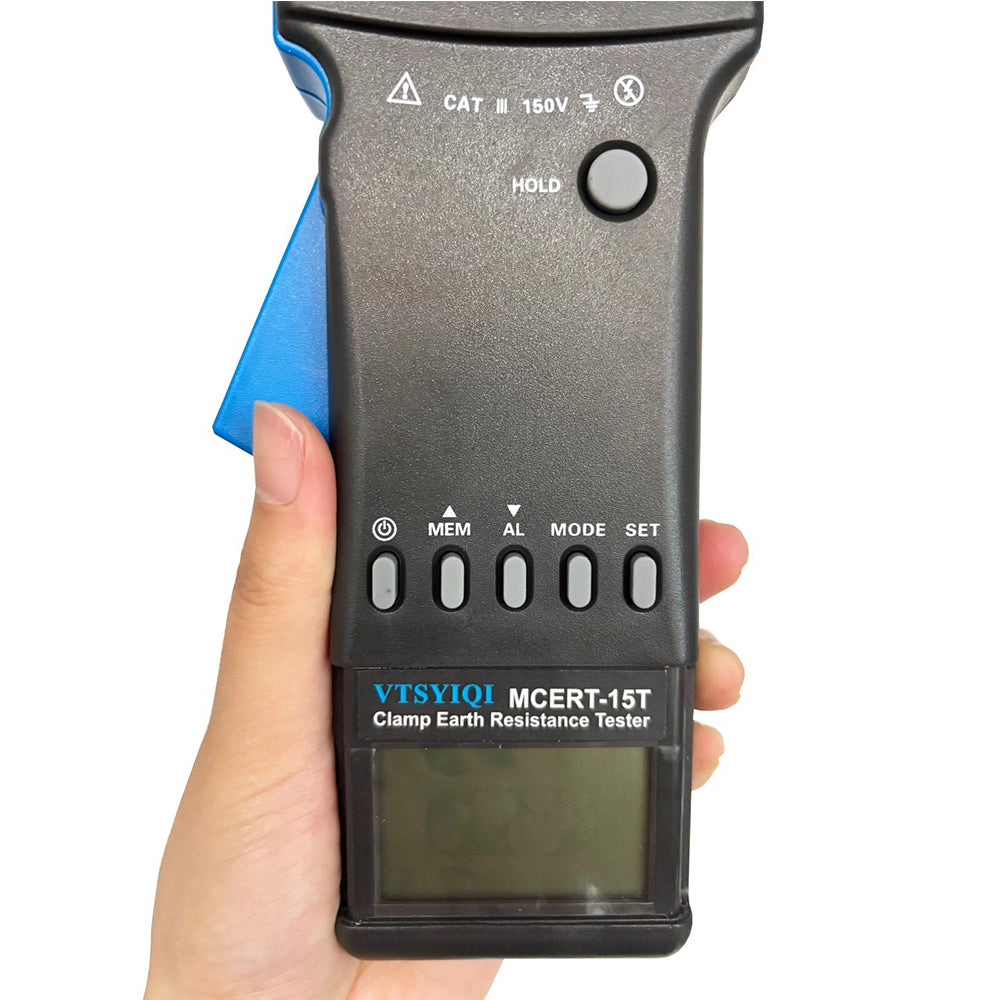

Operation Button：6 soft keys, functions switch convenient

Communication Line Length：1.5m (USB data cable)

Clock Function：Display hour and minute

Sound & Light Alarm："Du-Du-Du-" Alarm sound, press the AL Button to turn on/off ;LCD alarm flashes to indicate

Alarm Threshold Setting Range：Resistance:1~199Ω; Current:1~499mA

Automatic Shutdown：The tester flashes for 30S after 5 minutes without any operation, and then automatic shutsdown

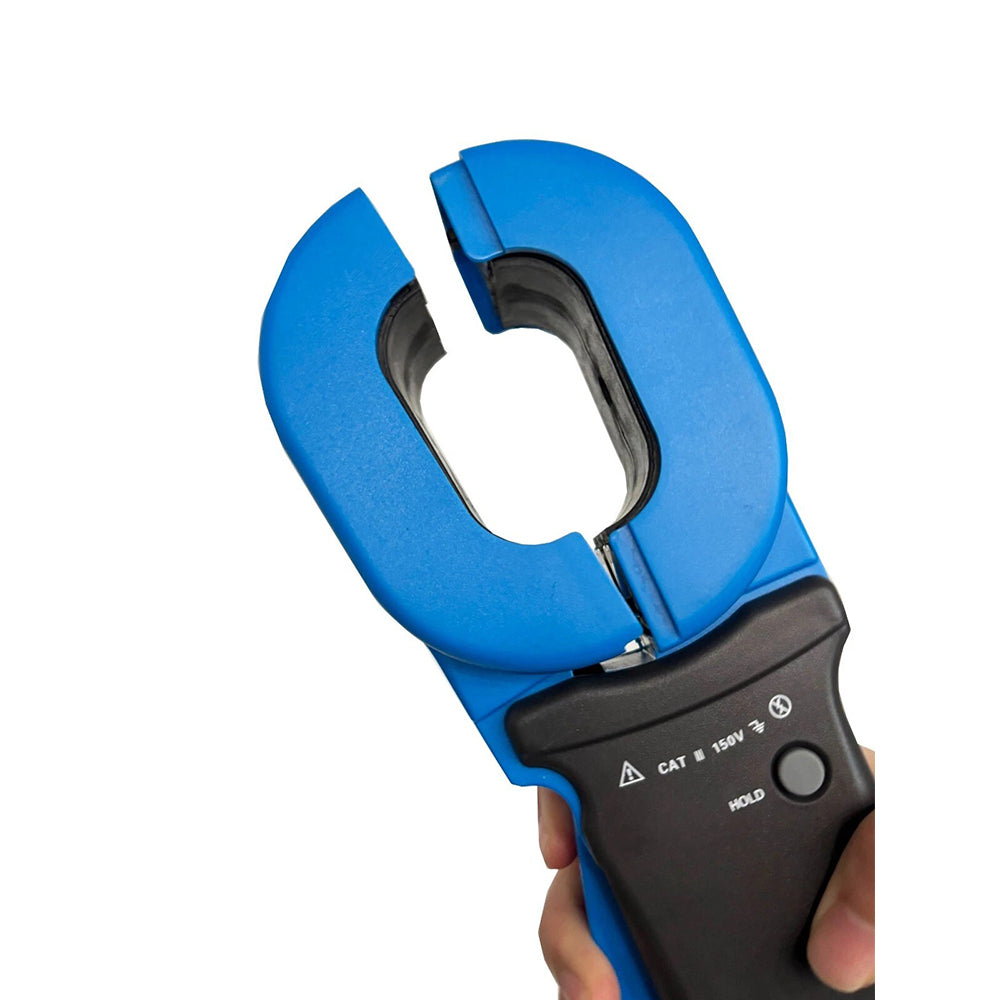

Clamp Jaw Size：65mm×32mm

Clamp Opening Size：32mm

Tester Size：295mm×98mm×66mm

Weight：About 1230g (include battery);

Total weight 2.5kg (include package)

Protection Level：Double insulation

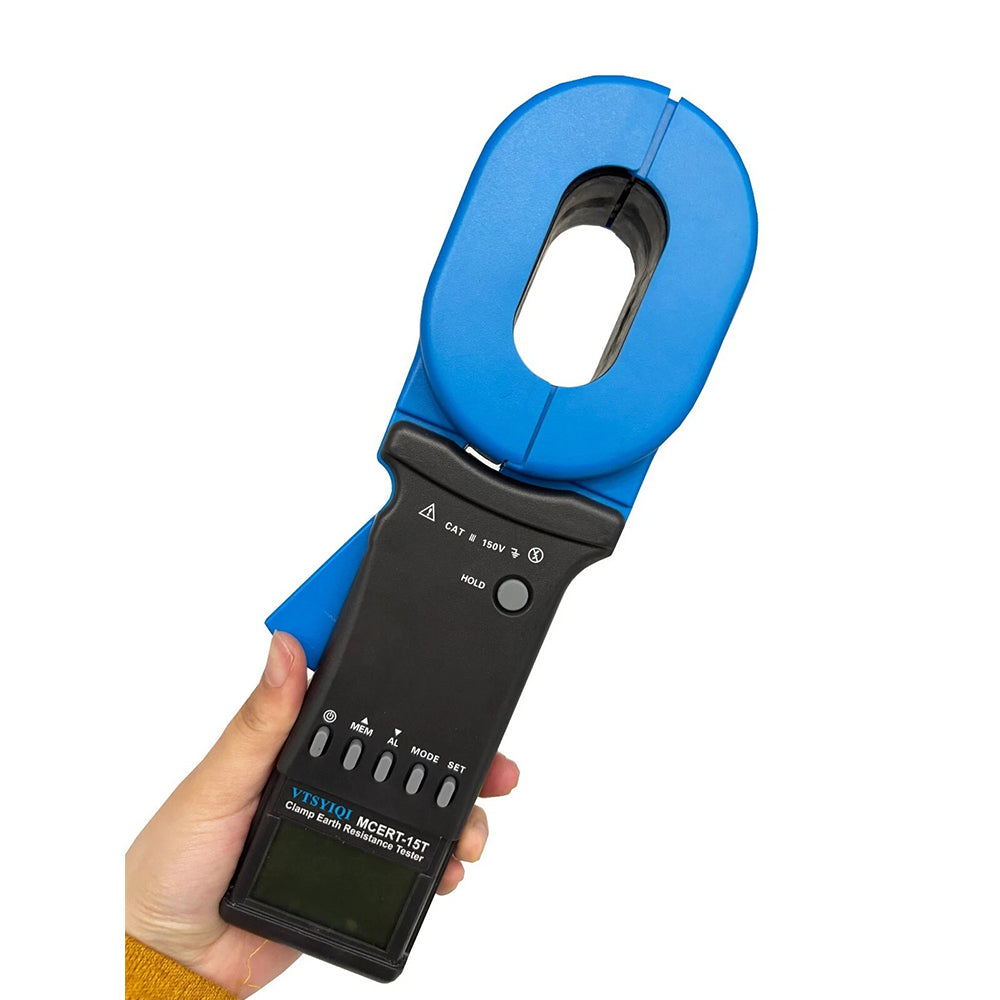

Structure Feature：Clamp type

Measurement Range Gear Shift：Fully automatic shifting

External Magnetic Field, Electric Field ：＜40A/m;＜1V/m

Single Measurement Time：0.5 second

Resistance Measurement Frequency：＞1kHz

Measured Current Frequency：50Hz/60Hz Automatic

Working Temperature & Humidity：-20℃~55℃; 10％RH~90％RH
