VTSYIQI Color Difference Analyzer Digital Spectrocolorimeter with Single Aperture Φ8mm Displayed Accuracy 0.01 Measured Reflectance Range 0-200% Measuring Time About 1s Observer Angle 2°/10°

About this item:

Measurement aperture: Φ8mm single aperture;Wavelength Range:400-700nm;Displayed Accuracy:0.01;Measured Reflectance Range:0-200%;Reflectance Resolution:0.01%

Optical Geometry:D/8(diffused illumination, 8-degree viewing angle), SCI/SCE (specular component included/specular component excluded) Mode, Comply to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7

Light Source:Combined full spectrum LED light source;Integrating Sphere Size: Φ40mm; Sensor: CMOS dual beam splitting sensor

Specular Component:SCI/SCE; Color Space: CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB,HunterLab,βxy,DIN Lab99; Color Difference Formula: ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, DINΔE99 ,ΔE(Hunter)

It is not only a colorimeter, but also a spectrocolorimeter, with excellent repeatability and the inner-instrument error. The measurement data is stable, accurate and reliable. with a comfortable and round appearance more people love it. It also has quality management software facilitate quality monitoring and data management.

Technical Advantages

Adopt D/8 optical structure and SCI/SCE mode.

Adopt full waveband balanced LED light source

CMOS dual beam splitting sensor:High speed and high sensitivity CMOS dual beam splitter sensor makes color data processing more efficient and accurate.

Contact automatic whiteboard calibration

Multiple color measurement spaces, multiple illumination source:It supports CIE LAB,XYZ,Yxy, LCh, CIE LUV,S- RGB, βxy, DIN Lab99 Color space and D65, A, C, D50, D55, D75, F1, F2(CWF) ,F3, F4 F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84), F12(TL83/U30), U35, NBF, ID50, ID65 multiple illumination source, Meet different measurement requirements.

Ergonomic design and easy measurement: The fitted palm is suitable for continuous detection, which makes you fast and easy to use. An easy to measure device for automatic measurement is added. Which is portable, fast, easy to measure and use.

Spectrocolorimeter

The spectrocolorimeter is equipped with single aperture:Φ8mm flat, widely used for plastic electronics, paint ink, textile and garment printing, printing, ceramics and other industries color difference quality control.

It is not only a colorimeter, but also a spectrocolorimeter, with excellent repeatability and the inner-instrument error. The measurement data is stable, accurate and reliable. with a comfortable and round appearance more people love it. It also has quality management software facilitate quality monitoring and data management.

Technical Specification

Optical Geometry    D/8(diffused illumination, 8-degree viewing angle), SCI/SCE (specular component included/specular component excluded) Mode, Comply to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7

Characteristic    Adopt CMOS dual beam splitting sensor; Used for color difference quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries.

Light Source    Combined full spectrum LED light source

Integrating Sphere Size    Φ40mm

Sensor    CMOS dual beam splitting sensor

Wavelength Range    400-700nm

Measuring Aperture    Single aperture：Φ8mm

Specular Component    SCI/SCE

Color Space    CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99

Color Difference Formula    ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)

Other Colorimetric Index    Spectral reflectance, WI(ASTM E313,CIE/ISO,AATCC,Hunter), YI(ASTM D1925,ASTM 313),Metamerism Index Mt,Staining Fastness, Color Fastness,Color Strength, Opacity,555 tone classification, Munsell(C/2)(Mobile APP implementation)

Observer Angle    2°/10°

Illuminant D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30),U35,NBF,ID50,ID65

Display    Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset

Measuring Time    Abou 1s

Repeatability    Chromaticity value: MAV/SCI, within ΔE*ab 0.04 (After preheating and correction,the average value of the whiteboard was measured for 30 times at an interval of 5s);Spectral reflectance: MAV/SCI, Standard deviation within 0.1% (400nm to 700nm: within 0.2%)

Inter-instrument Error    MAV/SCI, Within ΔE*ab 0.4 (Average for 12 BCRA Series II color tiles)

Displayed Accuracy    0.01

Measured Reflectance Range    0-200%

Reflectance Resolution    0.01%

Measurement Mode    Single Measurement, Average Measurement(2-99times)

Locating Method    Stabilizer position

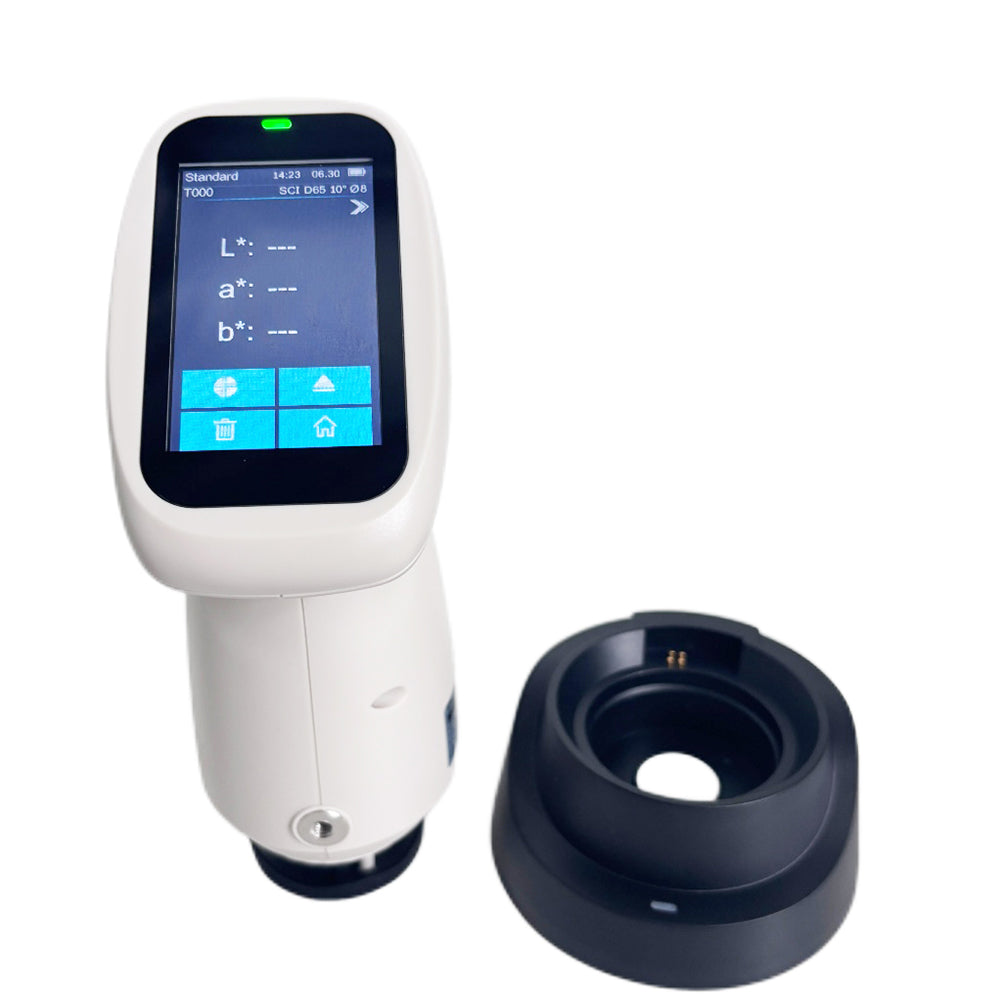

White Calibration mode    Contact type automatic calibration

Battery    Lithium battery,3.7V,5000mAh,8000 cycles in 8 hours

Illuminant Life Span    More than 1.2 million measurements over 10 years

Screen    2.8 inch TFT true color, Capacitive Touch Screen

Data Storage    Standard 500Pcs, Sample 5000Pcs(One data is able to include SCI/SCE); PC mass storage

Software support    Windows

Operating Environment    0~40℃, 0~85%RH (no condensing),Altitude < 2000m

Storage Environment    -20~50℃, 0~85%RH (no condensing)

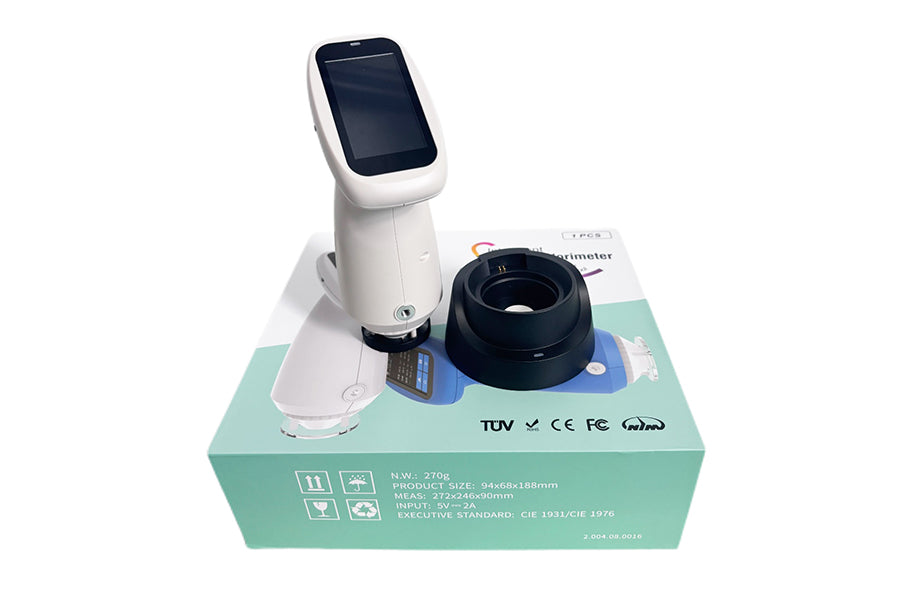

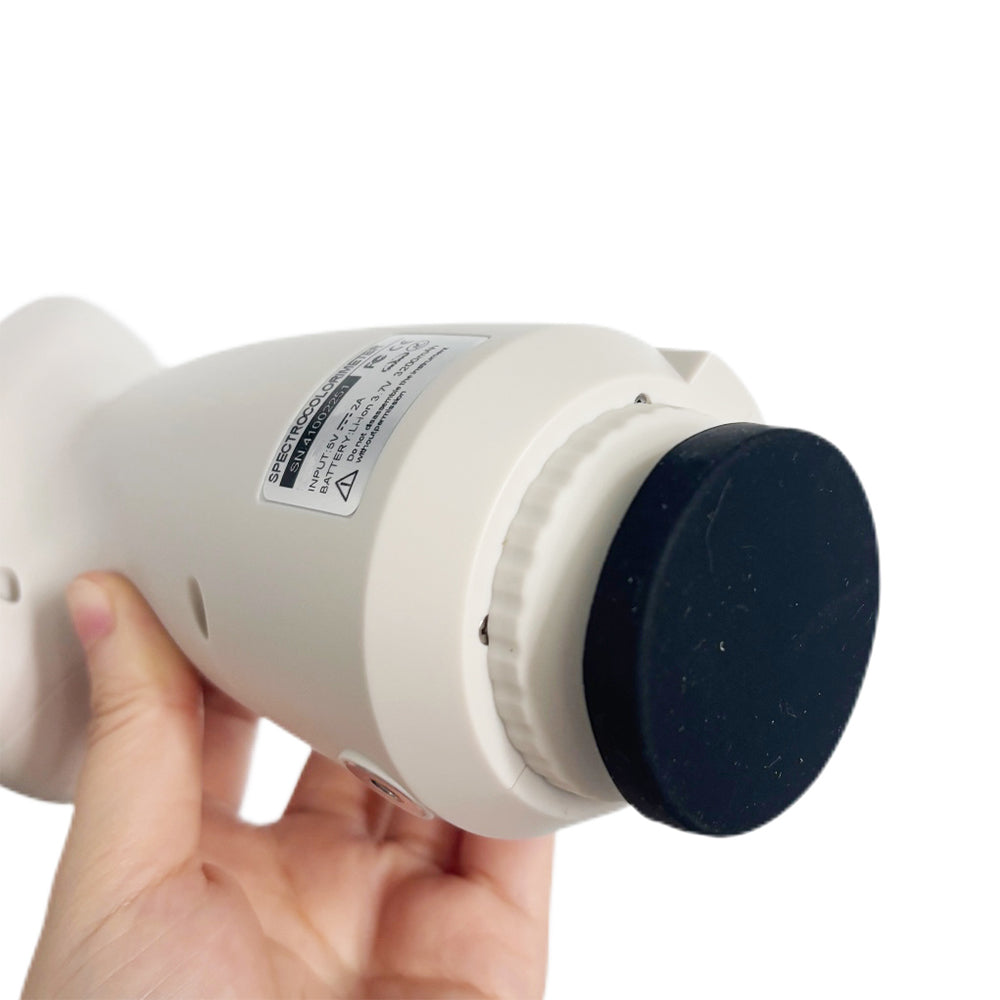

Standard Accessory    Power Adapter, USB Cable, User Guide, SQCX PC

Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, Aperture

Optional Accessory    USB Micro Printer, Powder Test Box
