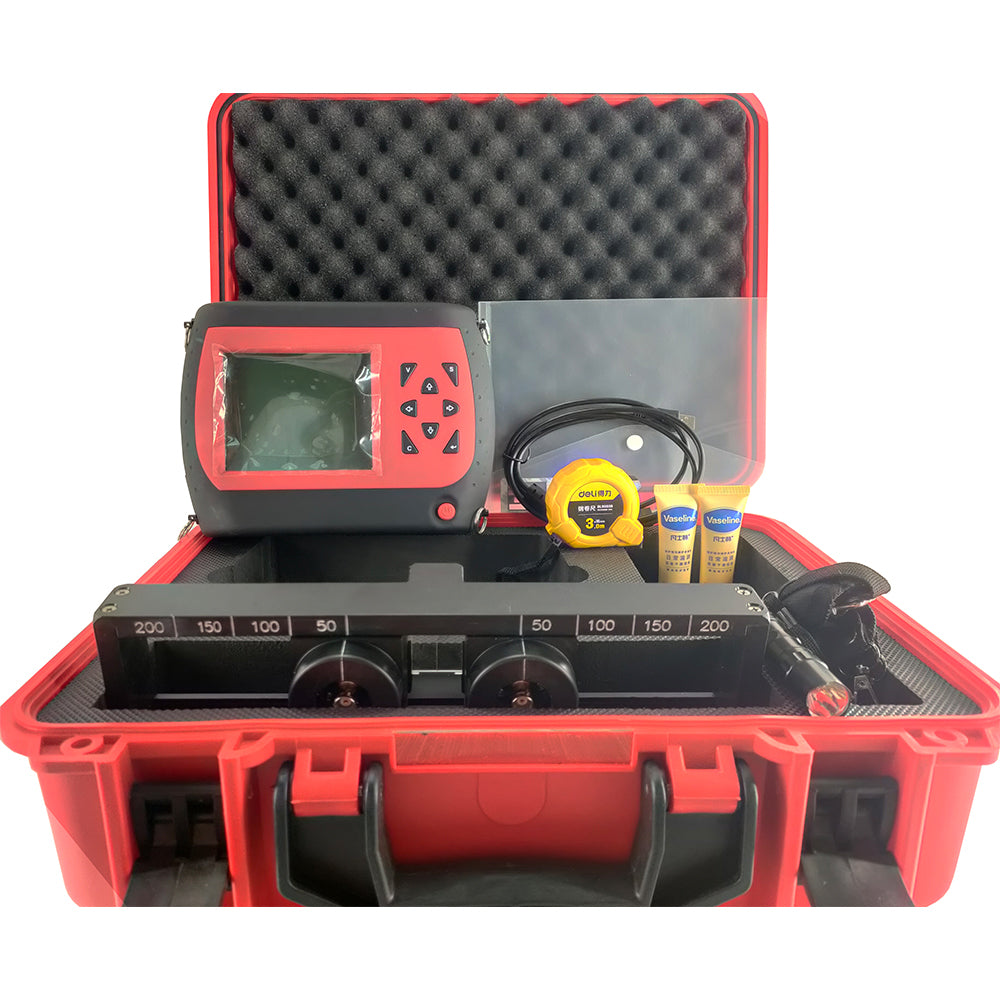

VTSYIQI Concrete Crack Depth Gauge Tester Crack Depth Meter with Maximum Correction Depth of Damage Layer 35mm Maximum Test Depth of Concrete Cracks ≤500 mm 25000 Data Storage Calibration Ruler for Construction Site Inspection

$1,61700
In stock
$1,61700

Customer Service

Post your customer service details here.

Return Policy

Post your policy conditions details here.

Product Features:

Crack sounder is specialized in concrete surface crack depth testing


Technical features:

1.Four-fold automation correction improves testing accuracy:

            Measurement without spanning the crack: automatically prompt abnormal data in the test.

            Calculation of sound speed: automatically reject the flat measurement intercept.

            Seam depth testing: automatically screen out erroneous test data.

            Calculation of seam depth: automatic correction of carbonation depth and other damage layer effects.

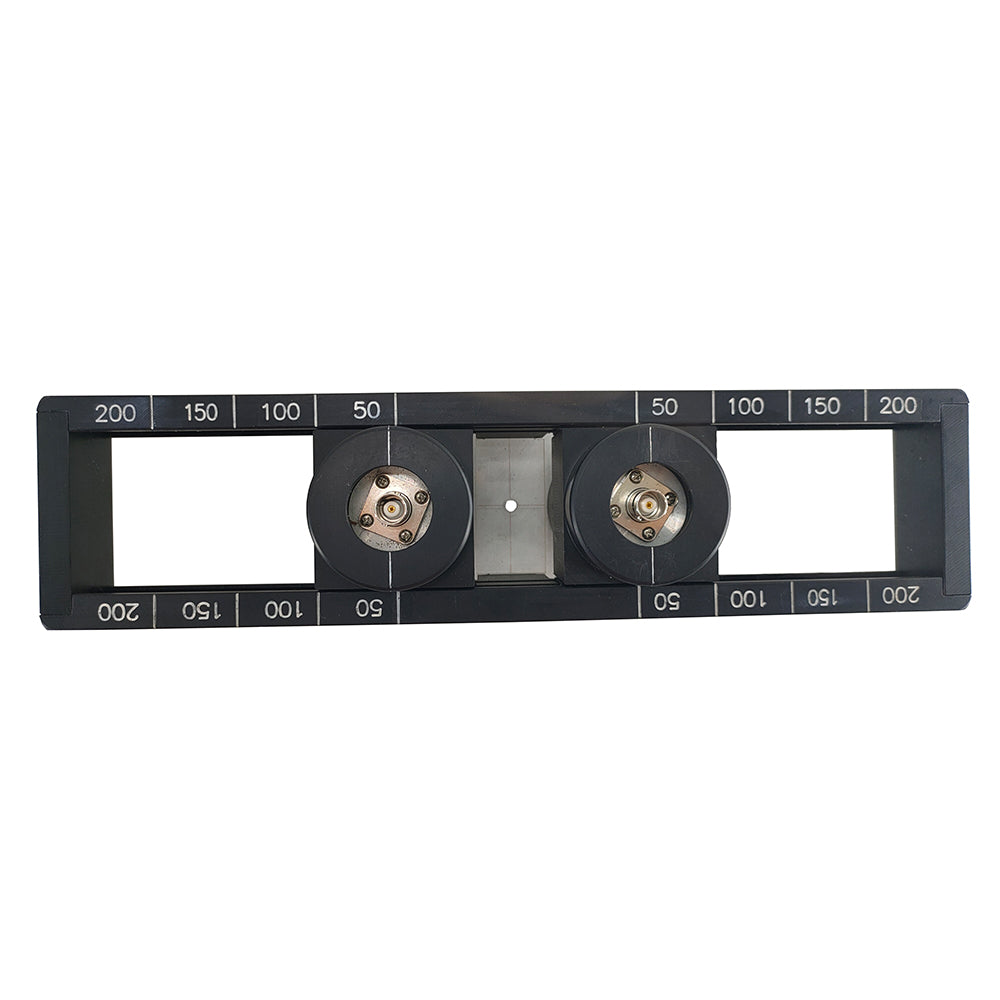

2、Specialized on-site crack depth test bracket, to ensure the accuracy of the measurement point spacing, greatly improve the

detection accuracy and save testing time.

3、More scientific testing theory improves the reliability of testing results;


Main technical indicators:

1, the maximum depth of concrete crack testing: ≤ 500 mm

2, test error: ≤ 5 mm or 5% ~ 10% of the actual depth of the seam

3、 Maximum correction depth of damage layer: 35mm

4、Number of test points without crossing the seam: 3

5、Number of test points across the seam: 2 or 3 (automatically selected by the instrument)

6, test data storage capacity: 25000 test data

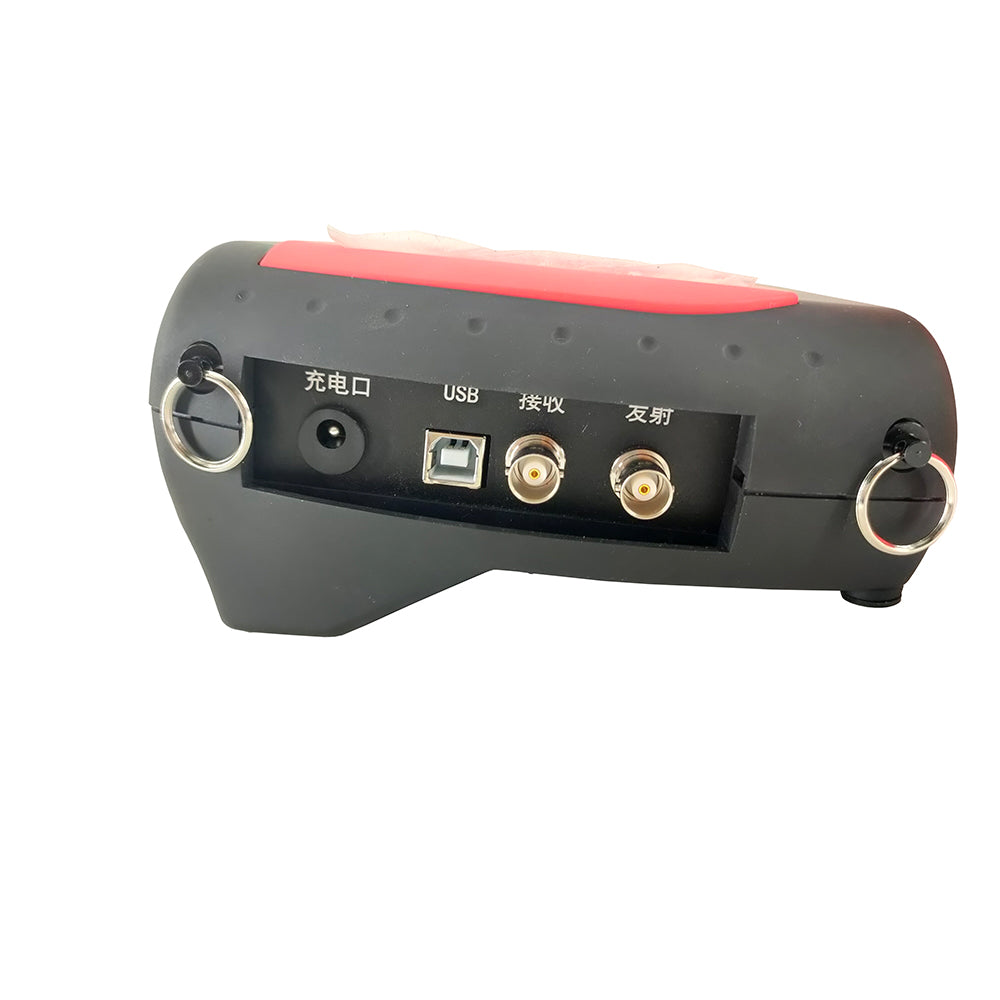

7, data transmission interface: USB

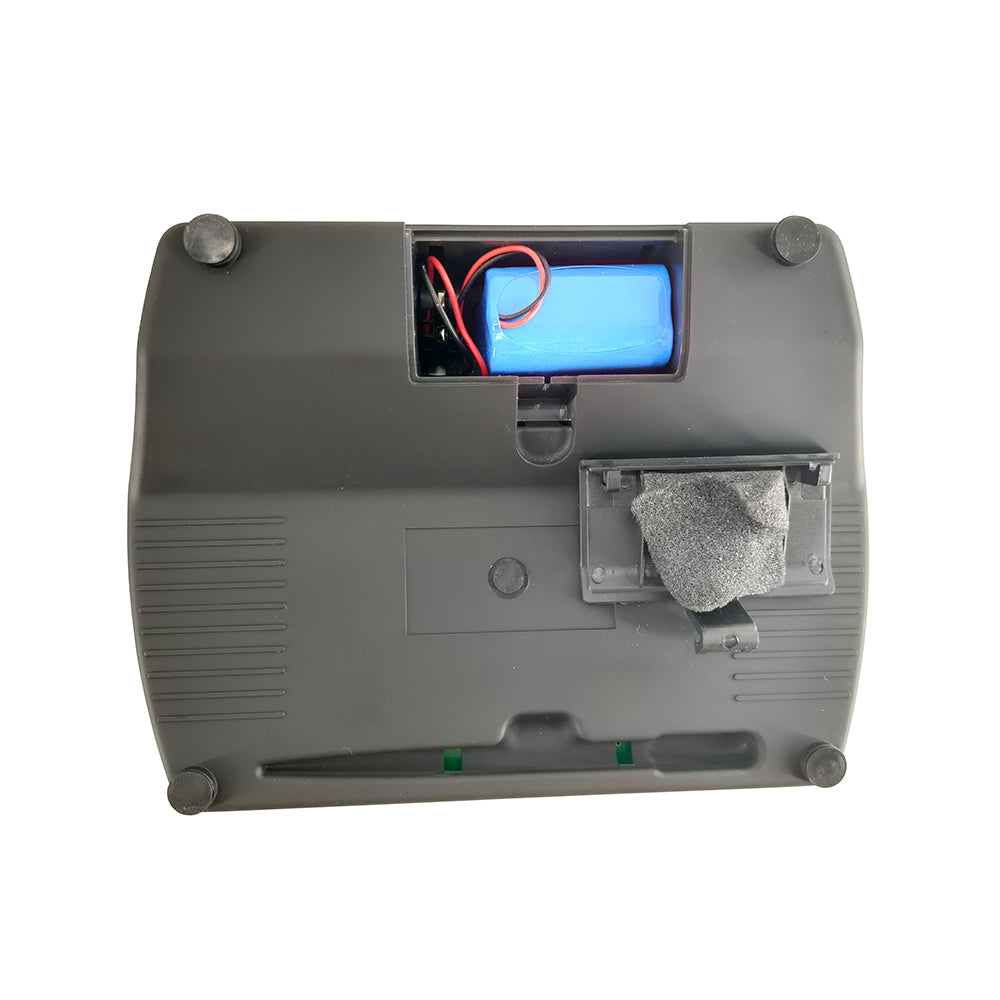

8, power supply: built-in rechargeable lithium battery, power supply time up to 50 hours

9, host volume: 220mm × 162mm × 91mm


Instrument composition:

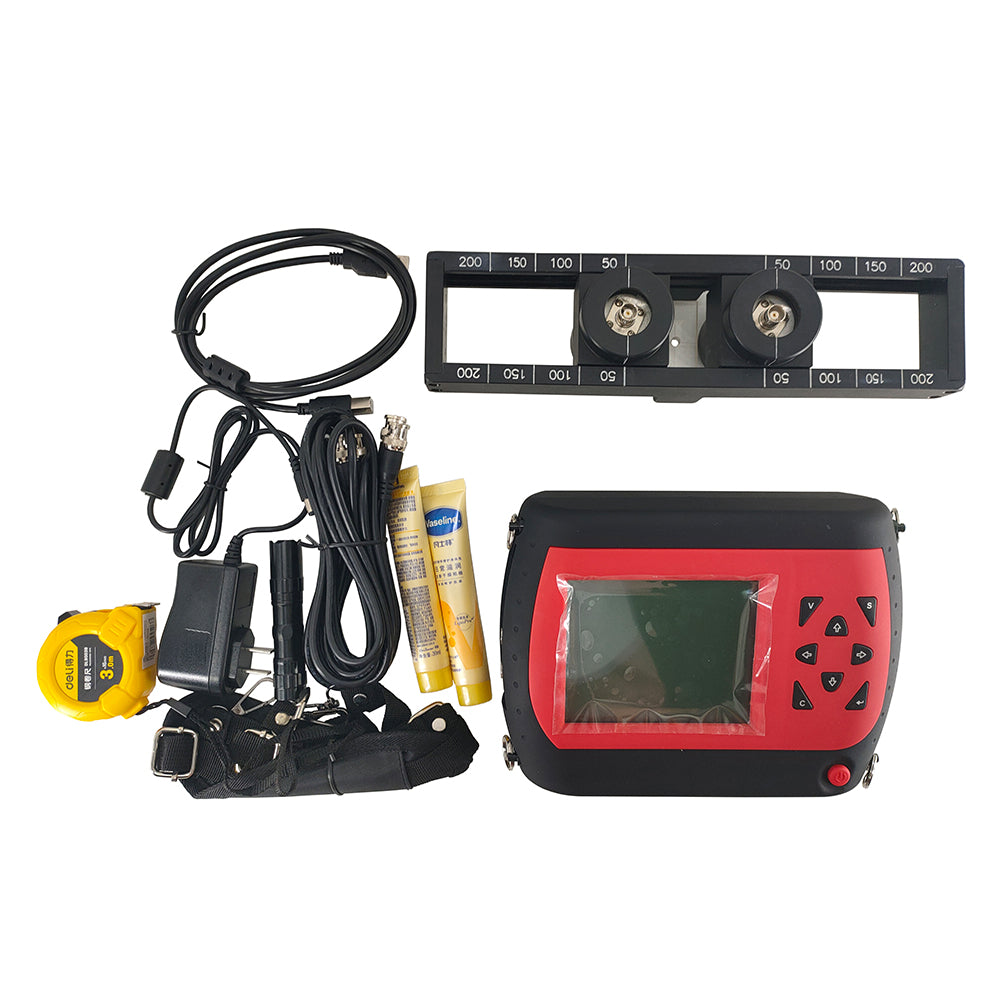

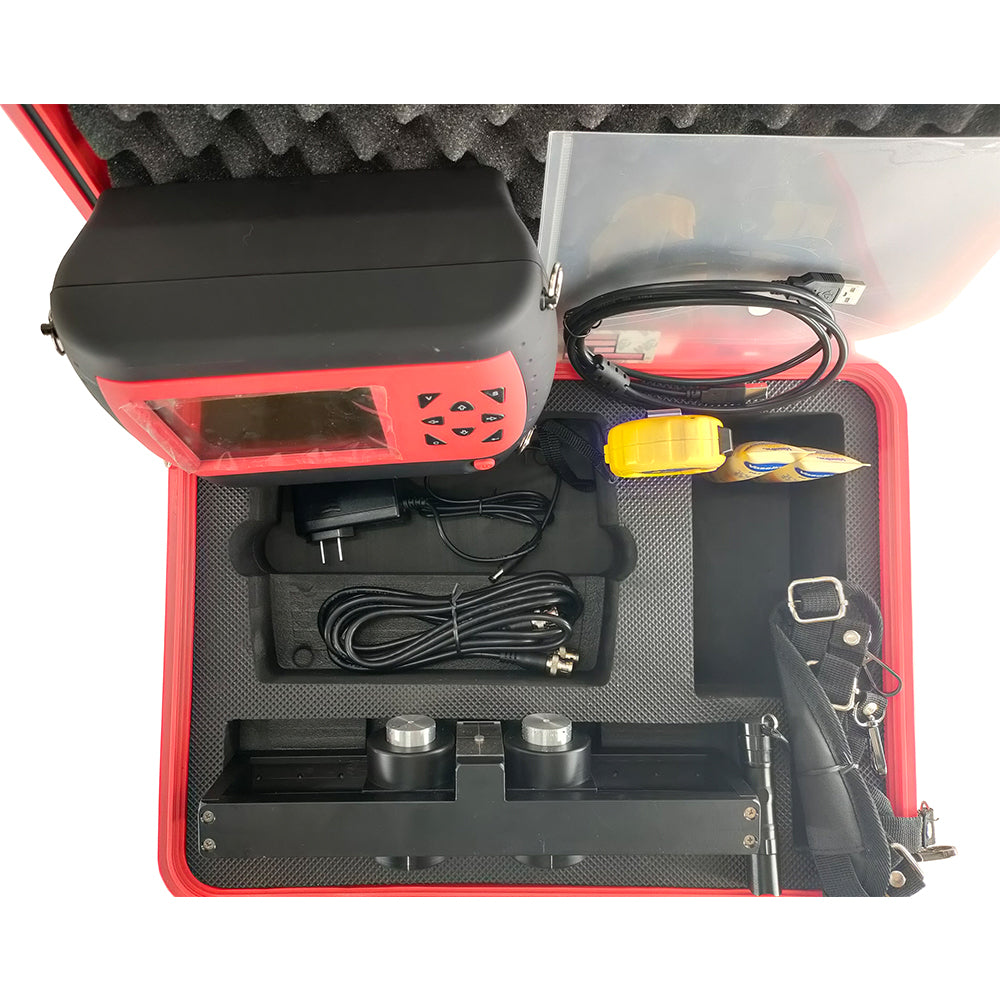

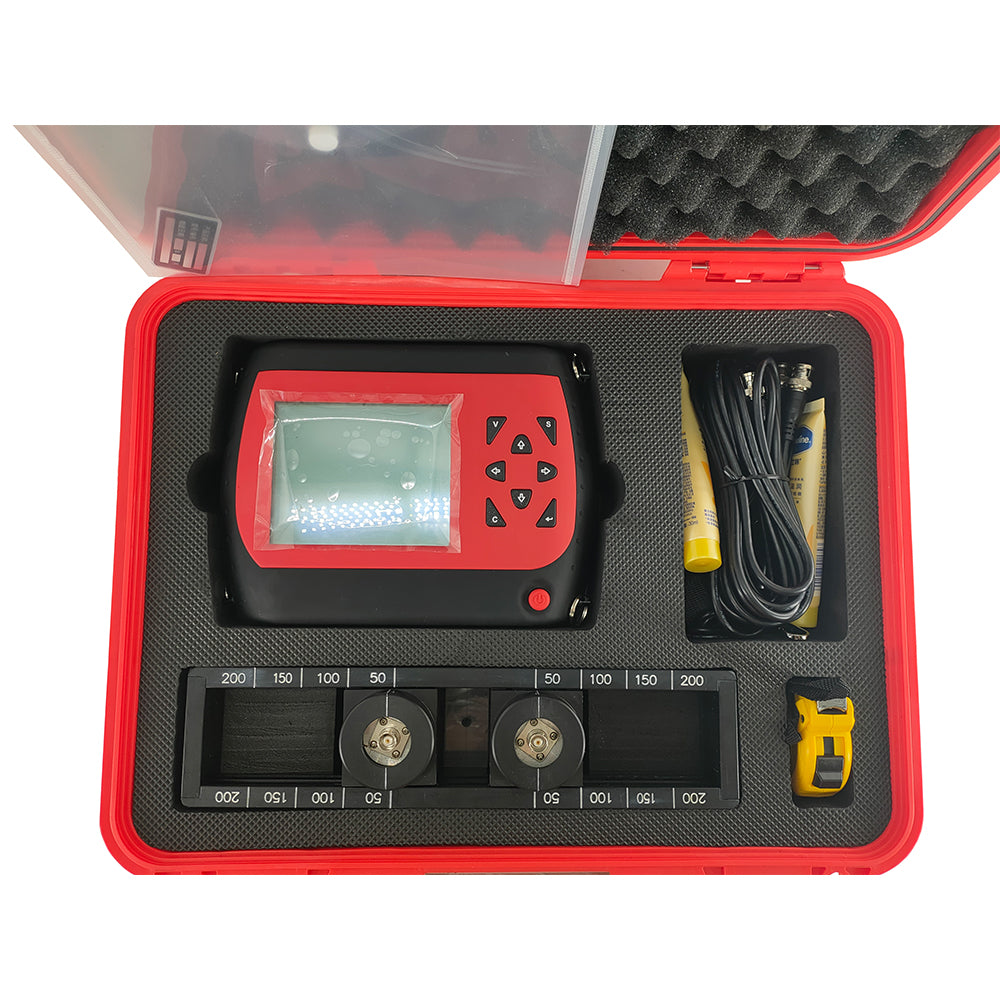

Including: host, bracket, connecting cable, plane transducer, software CD-ROM and so on.
