About this item

Usb link mode

Lens pixels: 1000x HD microscope

Photo resolution: 640x480

Measuring range: 0.01-10mm,interpreting accuracy: 0.01mm

It can conveniently detect the width of surface cracks of different materials and structures in real-time, and observe the cracking process of crack in real-time and monitor them for a long time, achieving real-time unmanned monitoring and automatic saving of crack changes.

Introduction:

It can conveniently detect the width of surface cracks of different materials and structures in real-time, and observe the cracking process of crack in real-time and monitor them for a long time, achieving real-time unmanned monitoring and automatic saving of crack changes.

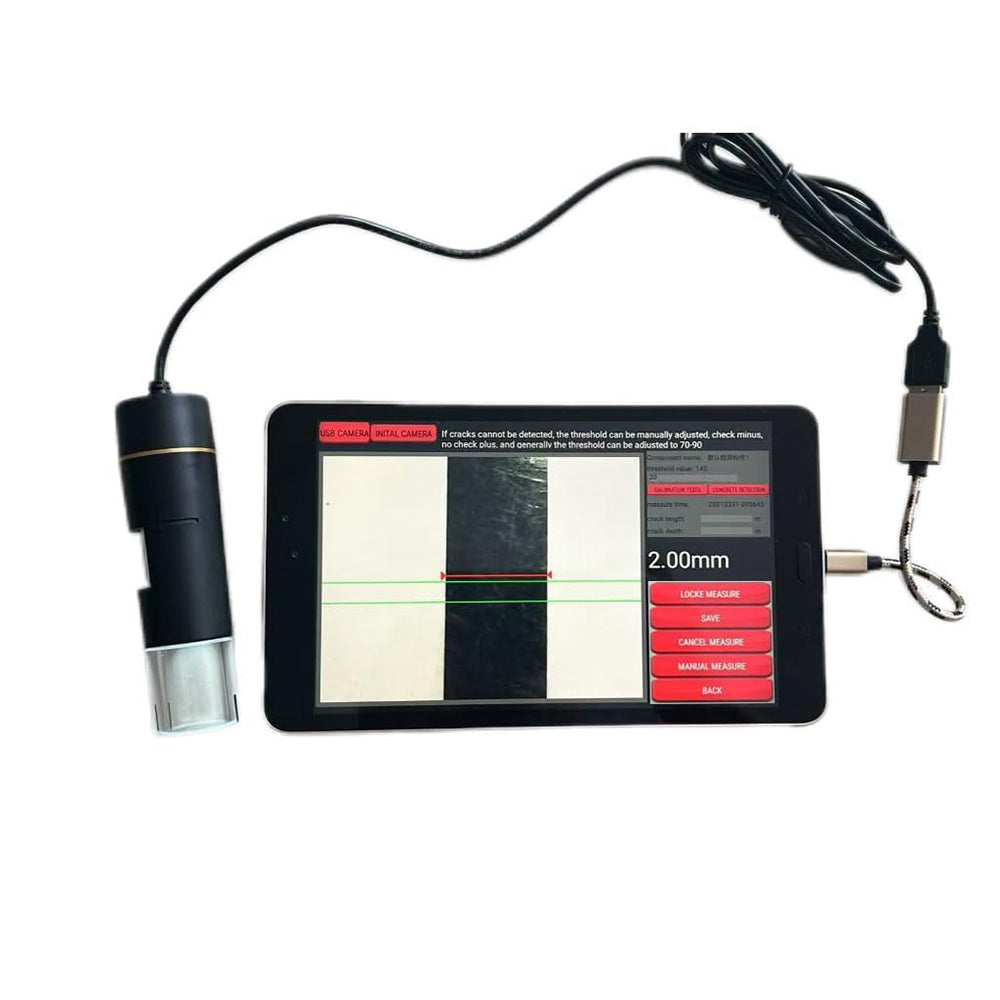

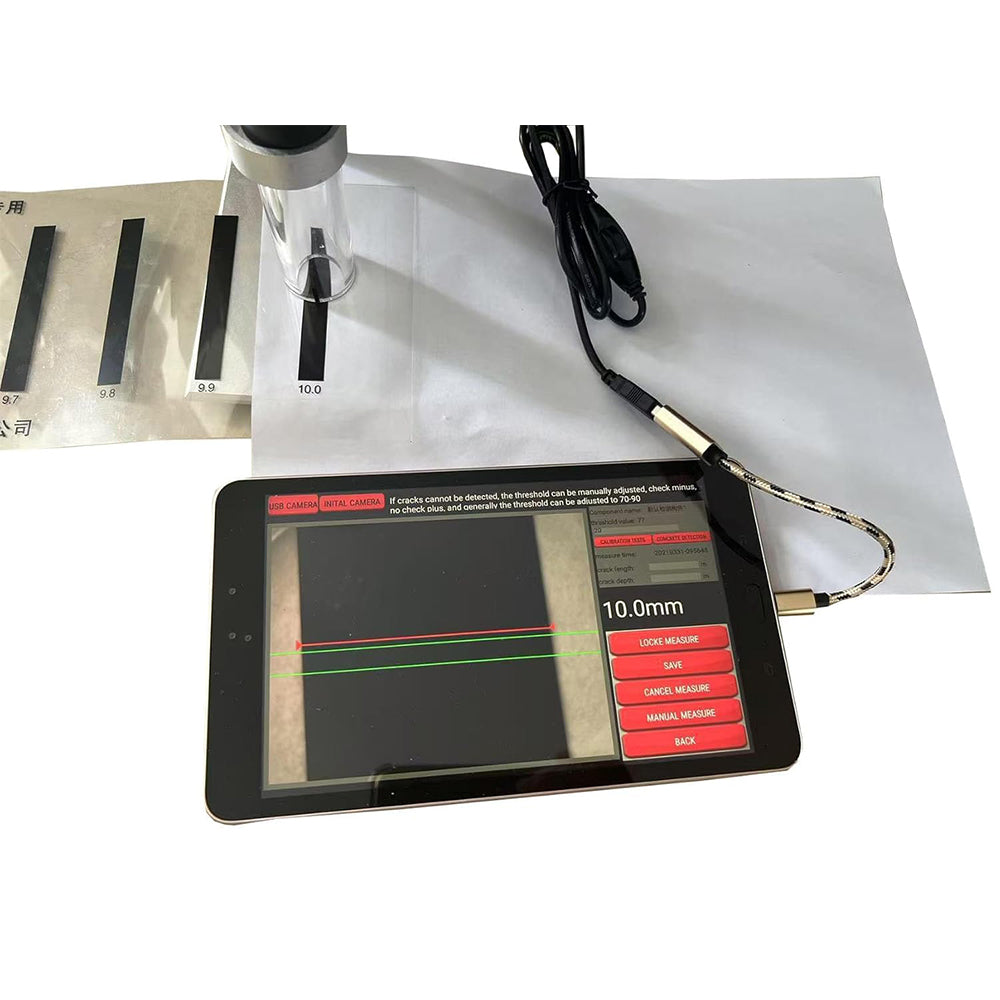

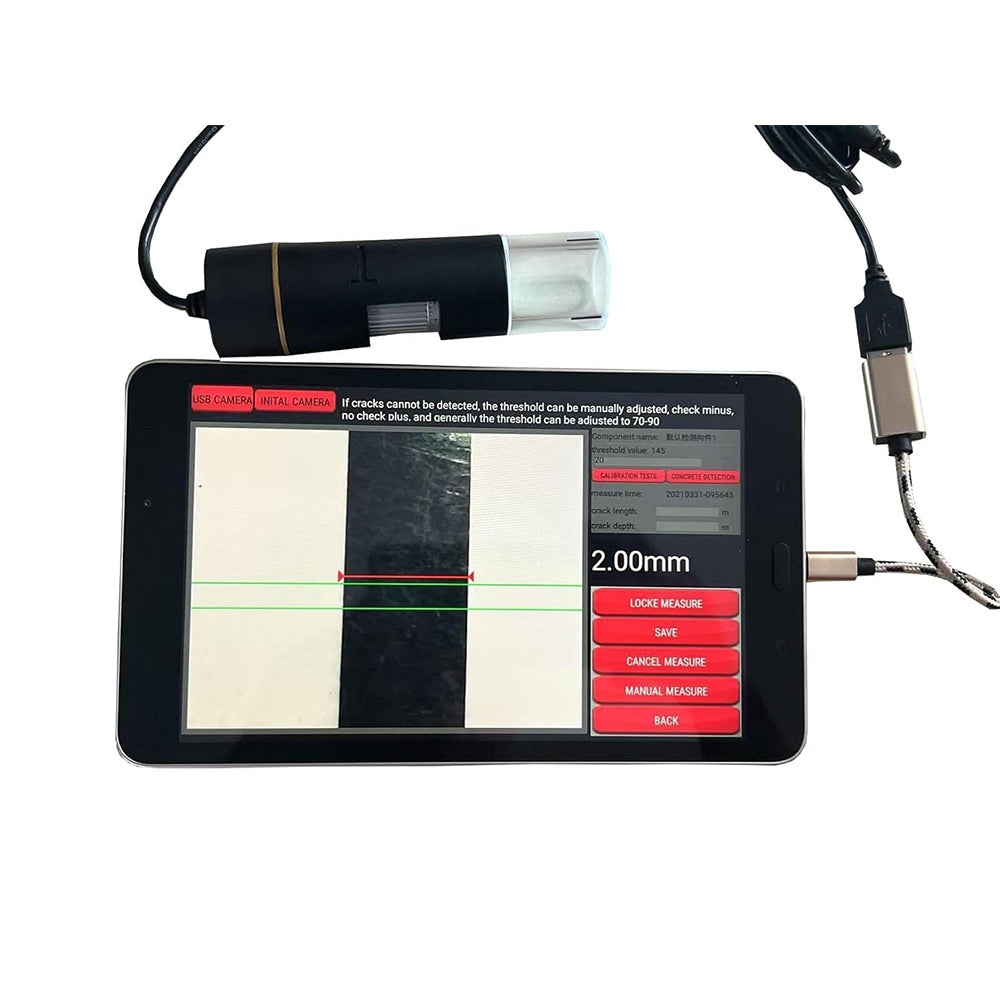

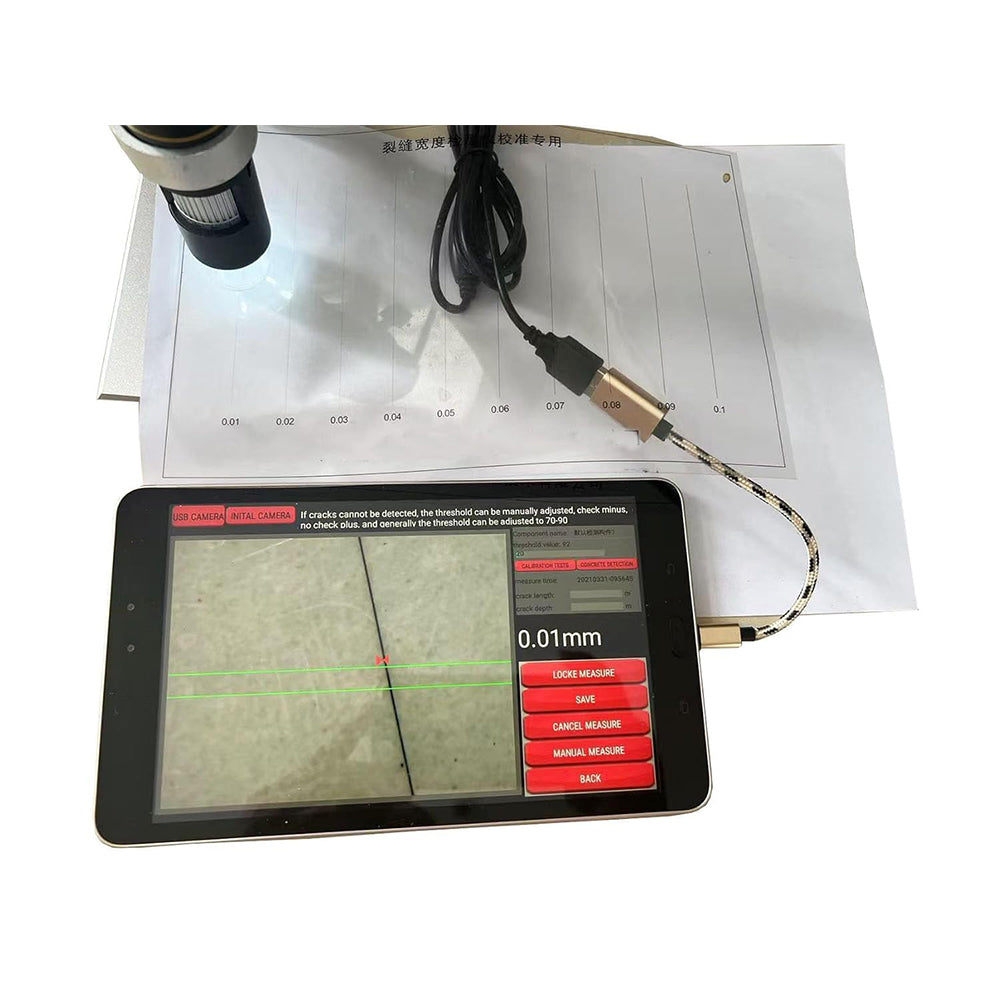

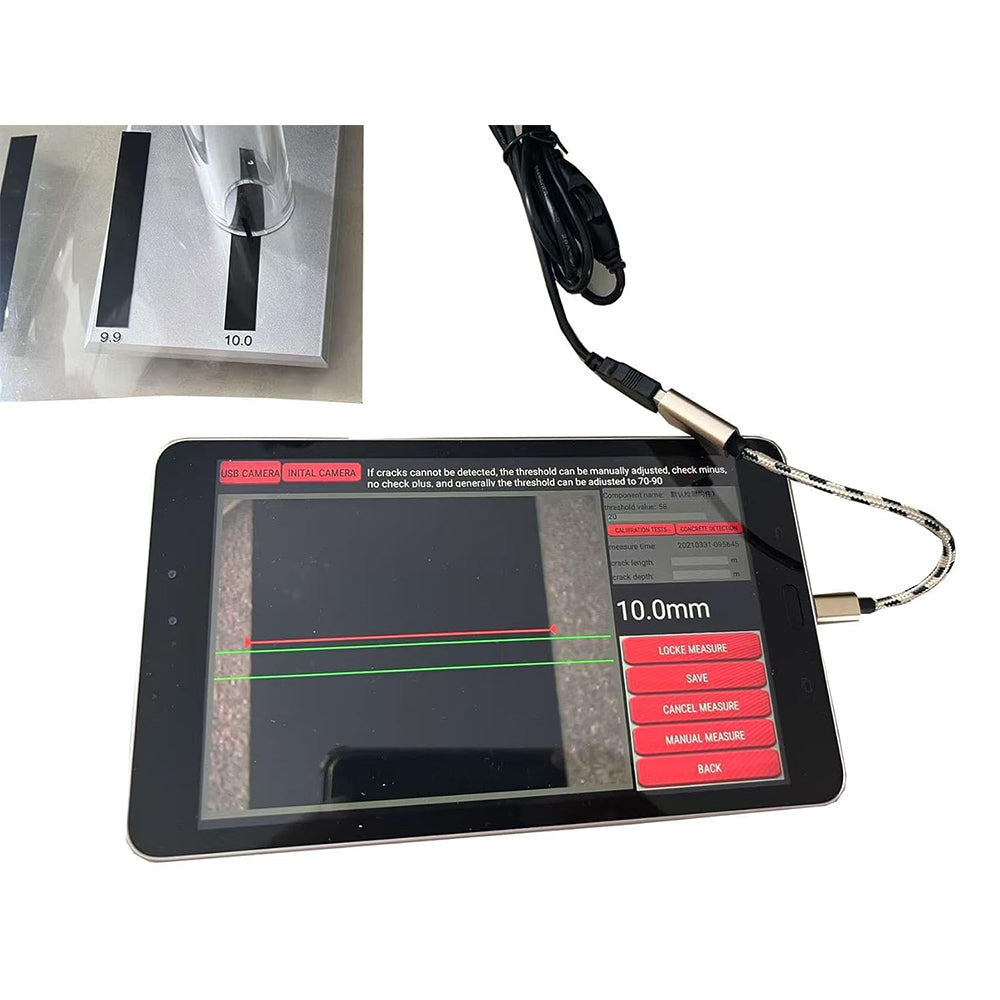

In addition to automatic interpreting, this pad-type crack width monitor can also manually judge crack width values. After on-site testing and saving crack image data, the cursor can be manually moved to define the crack boundary on the viewing interface. There is a scale displayed on the screen, displaying the crack width values. The crack image and scale can be appropriately enlarged and reduced.

Technical parameters of instrument:

Usb link mode

Lens pixels: 1000x HD microscope

Photo resolution: 640x480

Measuring range: 0.01-10mm

interpreting accuracy: 0.01mm

Estimable accuracy: 0.01mm

The amount of data saved is determined by the pad or memory capacity of mobile phone

Functional index

The camera does not require the user to match the lighting device, designed with constant light source device;

Automatic interpreting, recording the crack width of the interpreted value displayed on the screen;

Real-time image display and width interpreting;

Automatically monitor the real-time situation of cracks and automatically save real-time data of cracks;

The crack width can be interpreted manually;

Engineering information can be input and recorded on the picture;

Technical index

Detection range: 0.01 ~ 10.0mm

Interpreting accuracy: 0.01mm

Index of complete machine:

Portable

The power supply is powered by the built-in battery

Operating temperature range: -10° -40 °C
