About this item

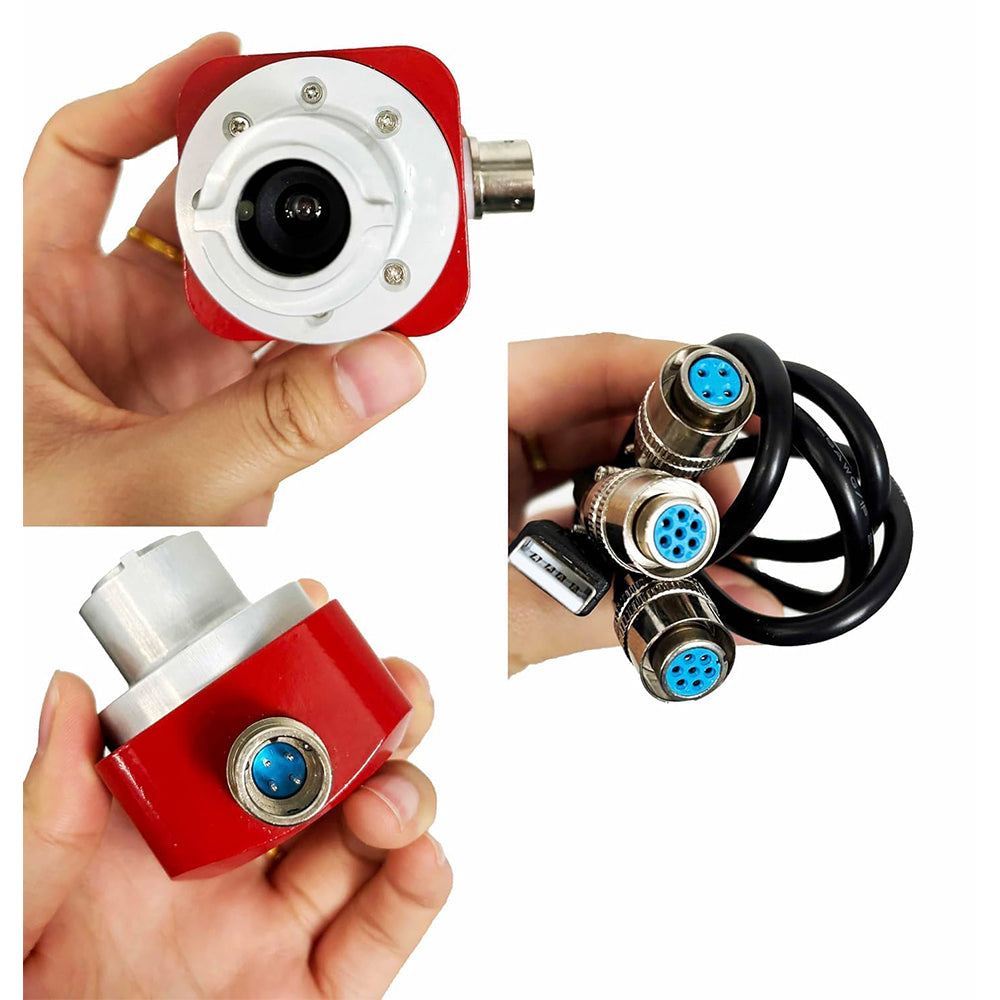

▲(1)Digital Concrete Crack Width Tester Probe (camera) comes with lighting fixtures, work around the clock, from the light changes;Handheld host of engineering plastic, light weight and beautiful, strong and durable.

▲(2)Stored photos, data can be playback viewing;The option of using a variety of magnification probe test range can reach 0-8mm.Host and the probe share a lithium battery-powered.

▲(3)An automatic interpretation of the crack width, directly to the crack width values are displayed on the screen;Automatic shooting crack photos, real-time image display.

▲(4)Simple alignment of cracks can be automatically reading, without any set up, fool operation;Crack photo as a standard BMP format, direct shoot storage to any U disk / SD card.

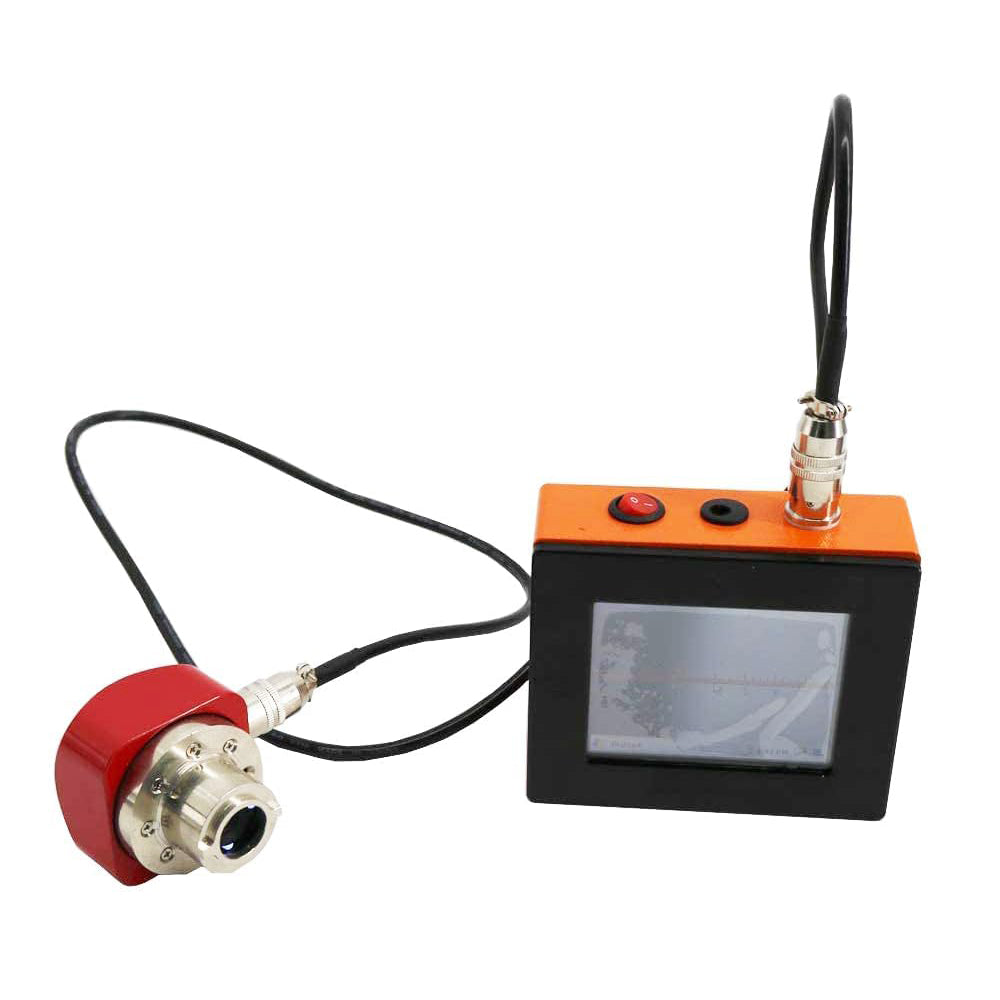

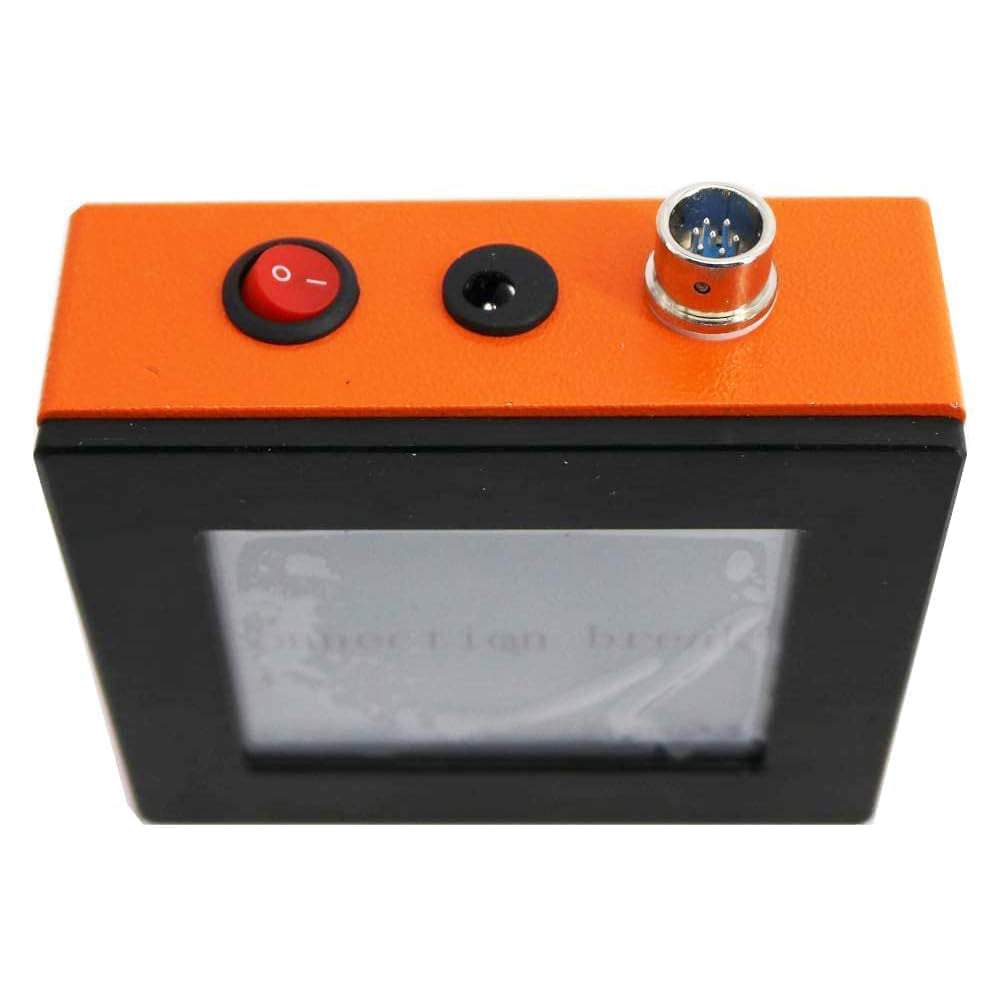

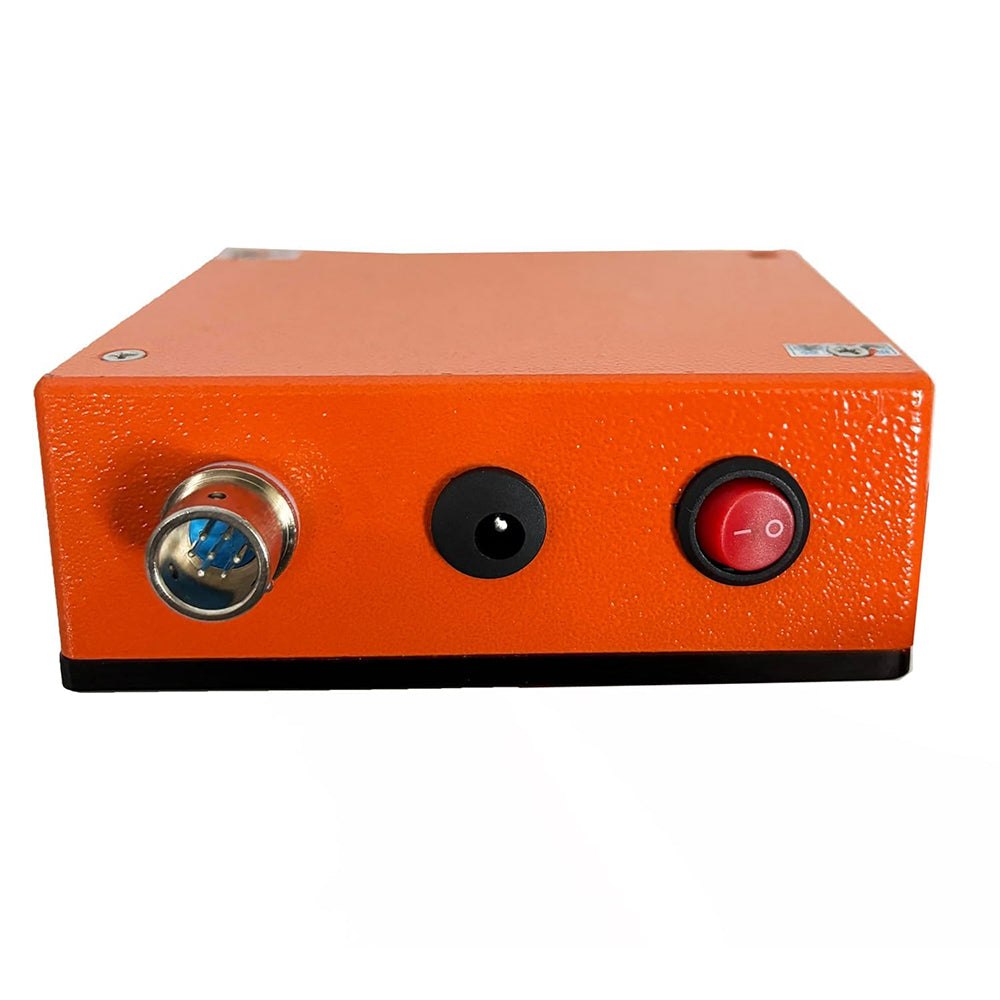

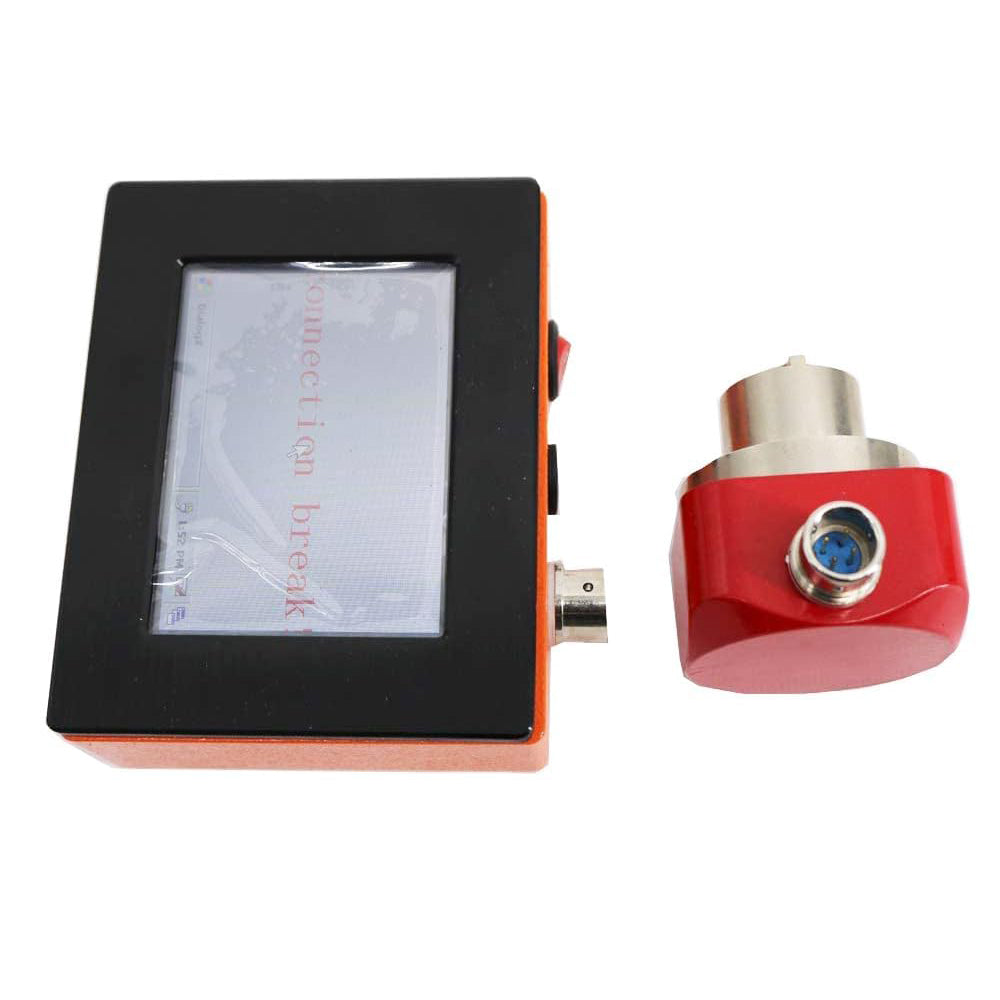

▲(5)Concrete Crack Width Gauge mainly consists of a handheld color LCD screen host, color microscopic amplification probe (with 1.5 m connection cable) constitutes a measurement program automatically scans the capture cracks and crack width values in real-time display on the screen, can also be the need to crack take pictures (cracks in the photo while preserving fracture images, the width of the data, scales, to enlarge the image information) of the factor and the crack number, crack pho

Introduction:

of quantitative detection of crack width gauge can be widely used in bridges, tunnels, buildings, concrete pavement, metal surface crack width.

Features:

1.An automatic interpretation of the crack width, directly to the crack width values are displayed on the screen;

2.Automatic shooting crack photos, real-time image display;

3.Stored photos, data can be playback viewing;

4.Probe (camera) comes with lighting fixtures, work around the clock, from the light changes;

5.Simple alignment of cracks can be automatically reading, without any set up, fool operation;

6.Crack photo as a standard BMP format, direct shoot storage to any U disk / SD card;

7.The only in the cracks in the photo while preserving fracture images, the width of the data, scales, zoom factor and the crack number (see below);

Technical Specifications

1.The maximum detection range of 0-8mm;

2.Accuracy: better than  0.01mm ;

3.Magnification: 40 times

4.40 times the probe:

1)Automatic reading of the measuring range :0.01-2 .1 mm;

2)Automatic reading accuracy: better than 0.01mm (± 0.007mm) (20 times the probe);

5.Host Interface: standard USB;

6.The storage media: can be stored for more than 3000 photos (SD Card is free to expand);

7.Image storage format: BMP format, 24 bit color / 320 * 240;

8.Power supply: lithium battery, standby time: 18 hours;

9.Probe: 48x56x58mm;

Weight: host 100 grams, 100 grams of the probe.

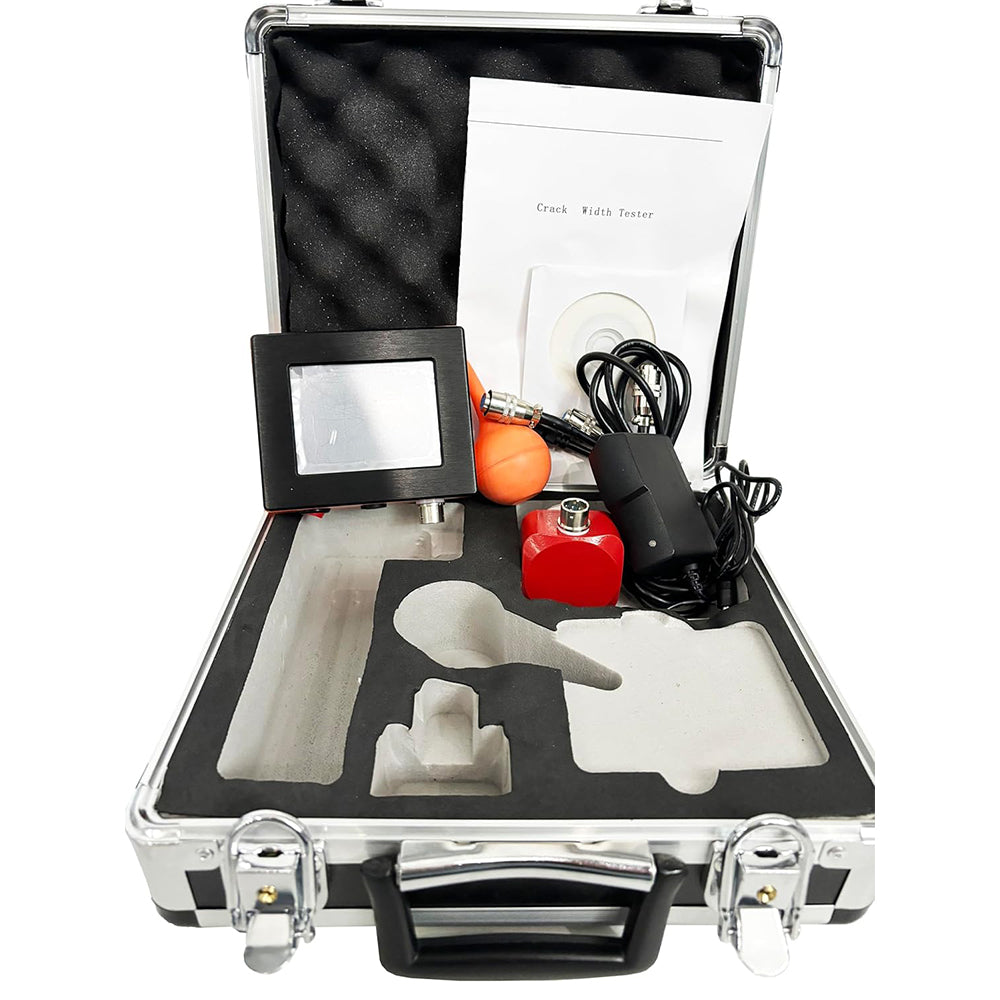

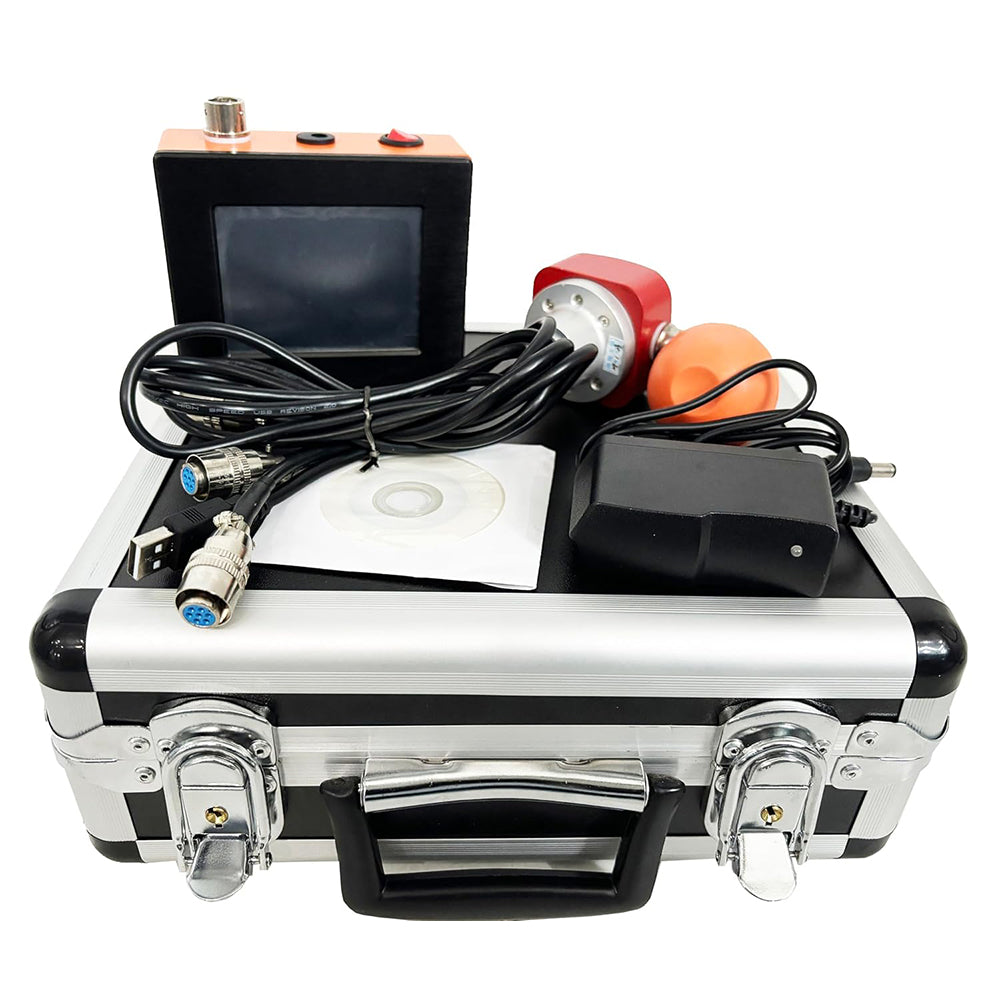

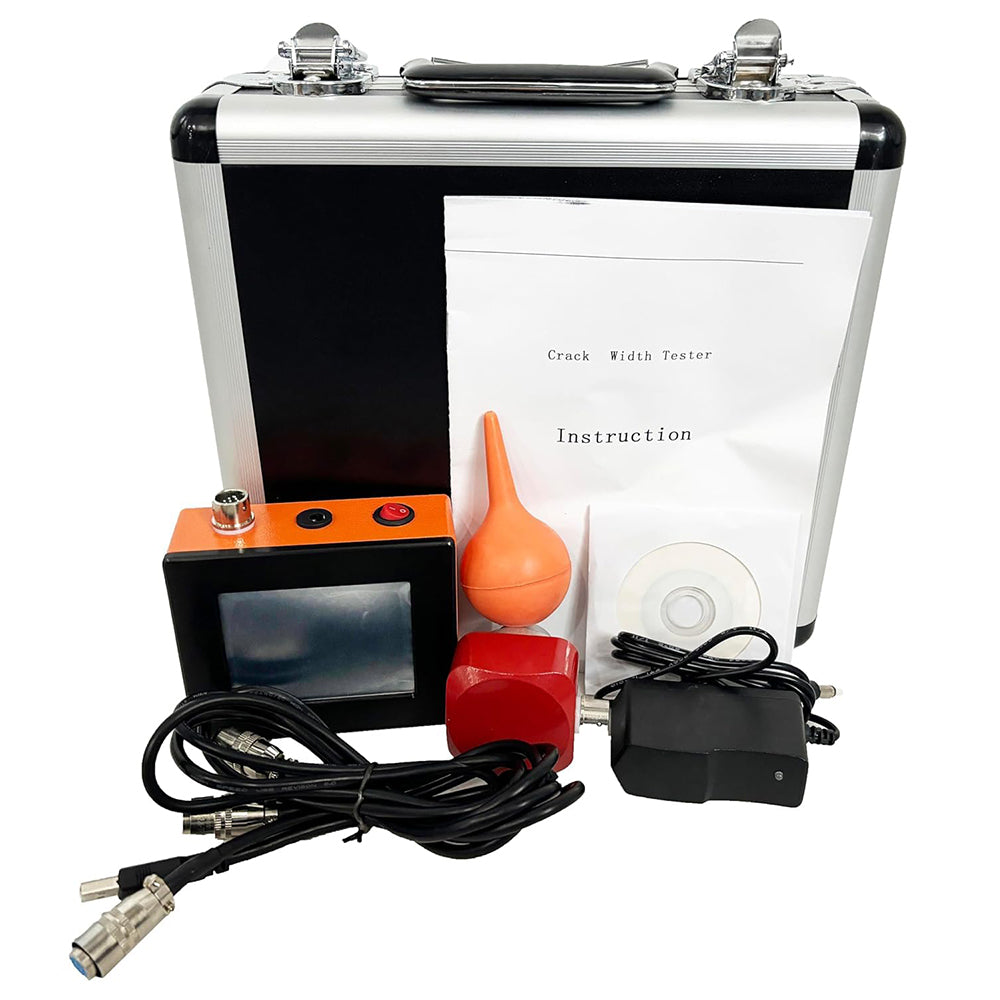

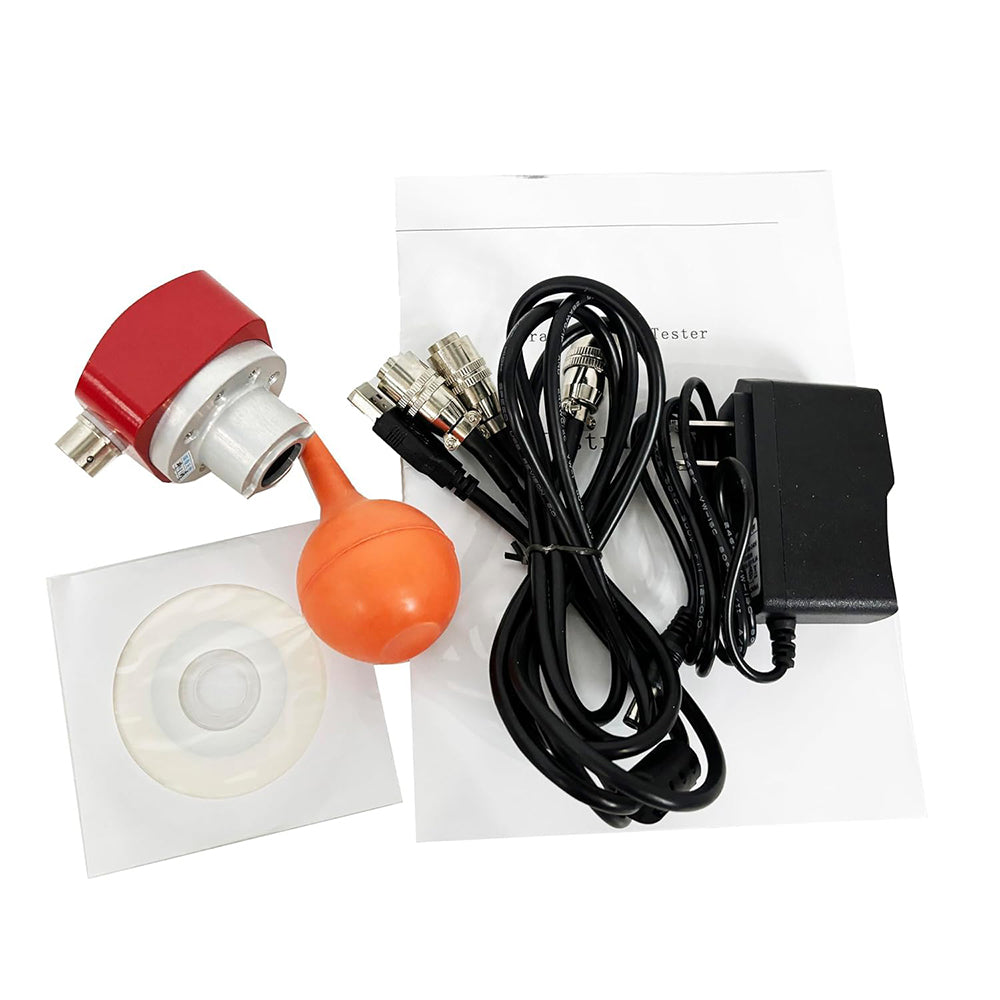

* Standard Delivery:main unit; A probe (with 1.5 m cable); A quick charger; Blowing a balloon; An aluminum carrying case; Software
