Conductivity/TDS/Salinity/Resistivity Modes:

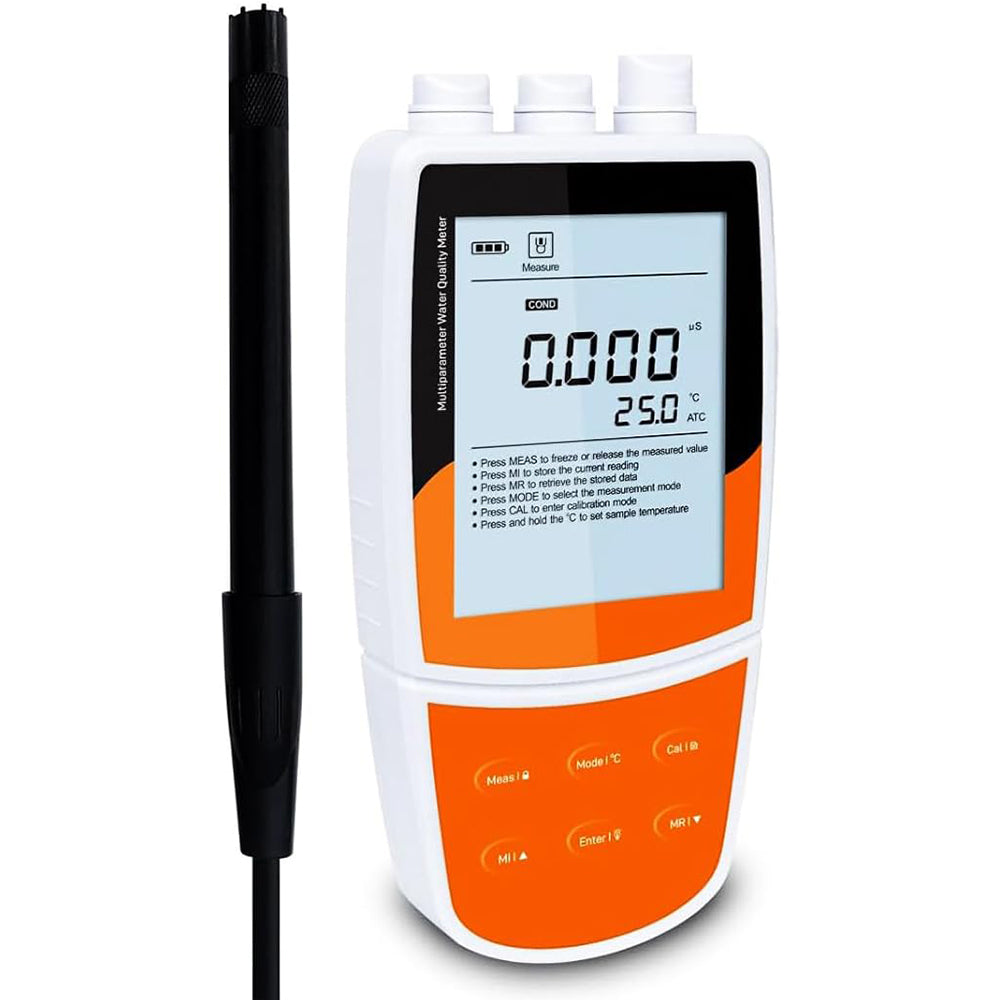

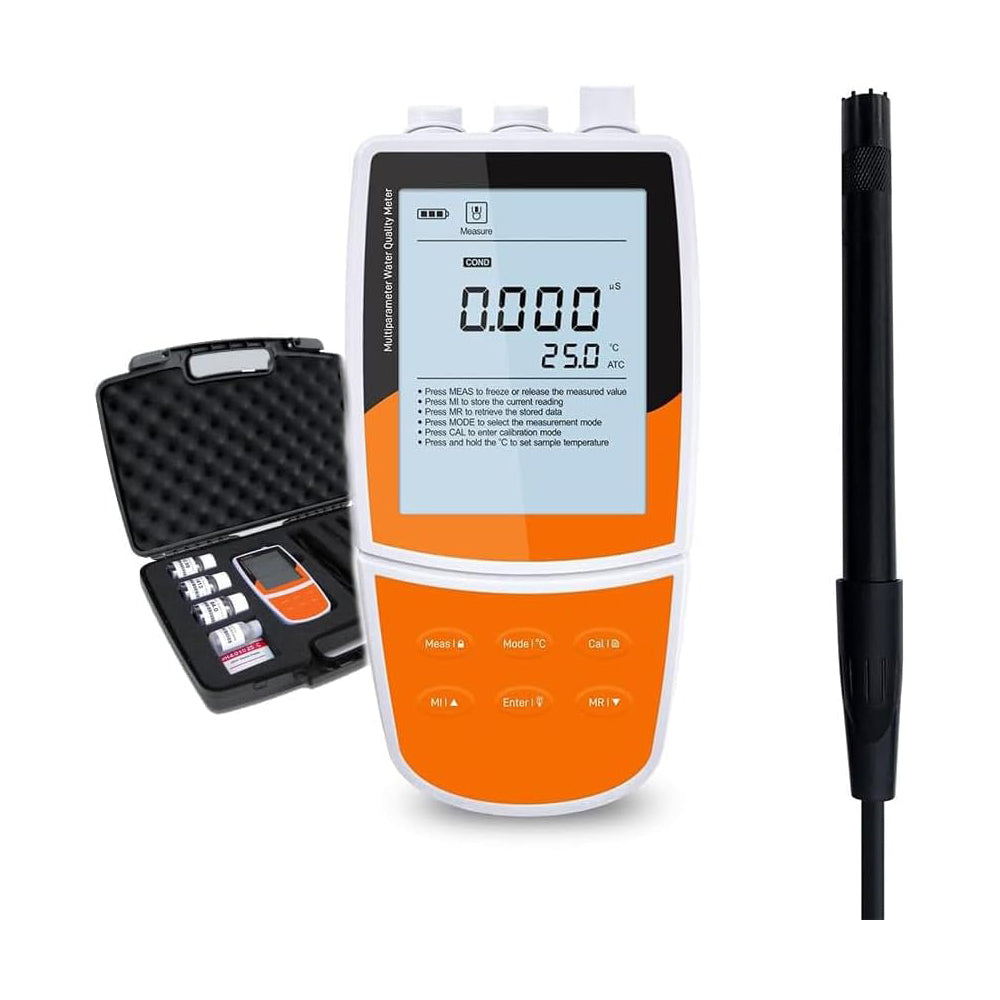

• Portable multiparameter water quality meter is equipped with a backlit LCD display.

• 1 to 5 points calibration with automatic recognition for conductivity standards.

• Selectable cell constant (K=0.1/1/10), reference temperature (20/25°C), TDS factor, linear and pure water compensations, seawater and practical salinity measurement modes.

Dissolved Oxygen Mode:

• 1 or 2 points calibration using the air-saturated water or zero oxygen solution.

• Salinity and barometric pressure compensations eliminate the measurement errors.

Other Features:

• Automatic temperature compensation ensures accurate readings over the entire range.

• Auto-read function senses and locks the measurement endpoint.

• Auto-power off effectively conserves battery life.

• Reset function automatically resumes all settings back to the factory defaults.

• Expanded memory stores or recalls up to 500 data sets.

• USB communication interface is easy to transfer data to a PC.

• Multi-mode power scheme (batteries, power adapter, USB port) ensures the smooth operation of the meter.

Conductivity

Range:0 to 20.00, 200.0, 2000 µS/cm, 20.00, 200.0 mS/cm

Resolution:0.001, 0.01, 0.1, 1, automatic

Accuracy:±0.5% F.S.

Calibration:1 to 5 points

Calibration Solutions:10 µS / 84 µS / 1413 µS / 12.88 mS / 111.8 mS

Temperature Coefficient:0.0 to 10.0%/°C

Pure Water Compensation:Yes

Reference Temperature:20 / 25°C

Cell Constant:K=0.1 / 1 / 10 / Custom

TDS

Range:0 to 10.00, 100.0, 1000 ppm, 10.00, 200.0 ppt

Resolution:0.01, 0.1, 1, automatic

Accuracy:±1% F.S.

TDS Conversion Factor:0.1 to 1.0 (default 0.5)

Salinity

Range:0.00 to 80.00 ppt / 0.00 to 42.00 psu

Resolution:0.01

Accuracy:±1% F.S.

Resistivity

Range:0.00 to 20.00 MΩ

Resolution:0.01

Accuracy:±1% F.S.

Dissolved Oxygen

Range:0.00 to 20.00 mg/L / 0.0 to 200.0 % saturation

Resolution:0.01 / 0.1, selectable

Accuracy:±0.2 mg/L / ±2.0 %

Calibration:1 or 2 points

Pressure Correction:60.0 to 112.5 kPa / 450 to 850 mmHg, manual

Salinity Correction:0.0 to 50.0 g/L, manual

Temperature

Range:0 to 105°C / 32 to 221°F

Resolution:0.1°C/°F

Accuracy:±0.5°C / ±0.9°F

Calibration: point

Calibration Range:Reading ±10°C/°F

Other Specifications

Temperature Compensation:0 to 100°C / 32 to 212°F, manual or automatic

Hold Function:Manual / Auto-read measurement endpoint

Stability Criteria:Low / High

Calibration Due Alarm: 1 to 31 days or off

Auto-Power Off:10 / 20 / 30 minutes after last key pressed

Memory:Stores up to 500 data sets

Output:USB communication interface

Connector:6-pin mini-DIN, 3.5 mm jack socket

Display Custom:LCD (80 × 60 mm)

Power Supply:3 × 1.5V AA batteries or 5V DC power adapter(not included)

Battery Life Approximately:150 hours without backlight

Environmental Conditions:0 to 50°C / 32 to 122°F, relative humidity < 80%

Dimensions:170 × 85 × 30 mm

Weight:300 g

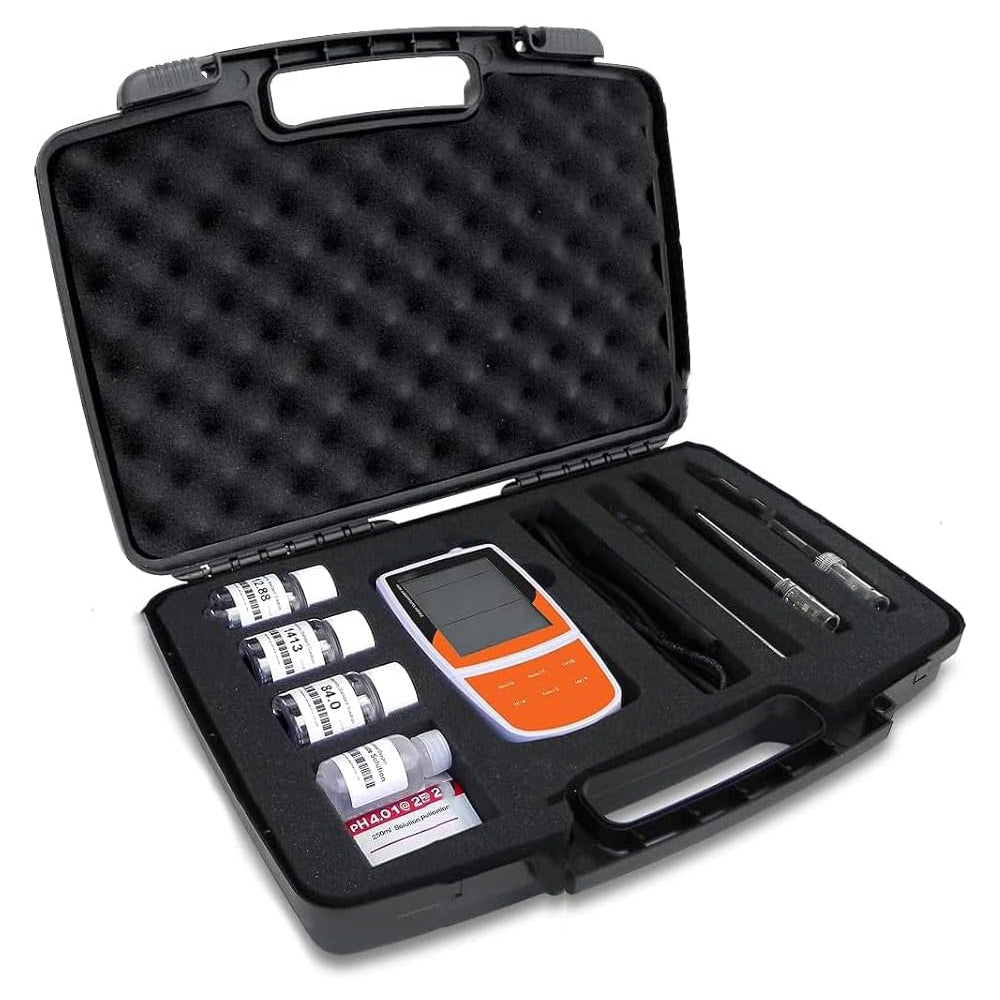

Meter Includes

K10 conductivity electrode

DO100 dissolved oxygen electrode

TP-10K temperature probe

Conductivity standard solutions 84 µS/cm, 1413 µS/cm, 12.88 mS/cm

DO electrolyte solution

DO membrane cap

Electrode clip

Carrying case
