  • VTSYIQI Continuously Adjustable LCR Meter Inductance Resistance Capacitance Tester with Testing Frequency 100Hz-100KHz Continuously Adjustable A Step of 1 Hz Accuracy 0.2%

VTSYIQI

VTSYIQI Continuously Adjustable LCR Meter Inductance Resistance Capacitance Tester with Testing Frequency 100Hz-100KHz Continuously Adjustable A Step of 1 Hz Accuracy 0.2%

$47100
In stock
$47100

Customer Service

Post your customer service details here.

Return Policy

Post your policy conditions details here.

About this item

Test frequency: 100Hz-100KHz Continuously adjustable, a step of 1 Hz； Basic accuracy: 0.20%

USB communication interface; Large capacity lithium battery power supply; Support SCPI protocol;

Supporting DC Resistance and Electrolytic Capacitance Measurement; Automatic Recognition of Component Measurement; Support screening and deviation measurement;

2.8-inch TFT display, 4-bit semi-display; Display digit: Main parameters: 5 bits, secondary parameters: 5 bits

Adjustable measuring speed, manual and automatic range; Short circuit correction with open circuit; Provide multiple test ports.

Standard configuration:1. Mini-USB cable; 2. Power adapter; 3. Short circuit bar; 4. Red and black rubber plug; 5. High capacity lithium battery; 6.Kelvin test clip

Adjustment of backlight brightness, Chinese and English are optional,USB device and automatic power-off time

Product description

This series handheld bridge features 2.8´ TFT display screen, easy key operation and USB communication. Its high capacity lithium battery ensures long run. It can measure comprehensive parameters, and supports for screening and deviation measurement, with continuously adjustable output frequency.The basic accuracy reaches 0.2%.

Main features:

¤ The highest measuring frequency is 100KHz;

¤ Supporting DC Resistance and Electrolytic Capacitance Measurement;

¤ Automatic Recognition of Component Measurement;

¤ Support screening and deviation measurement;

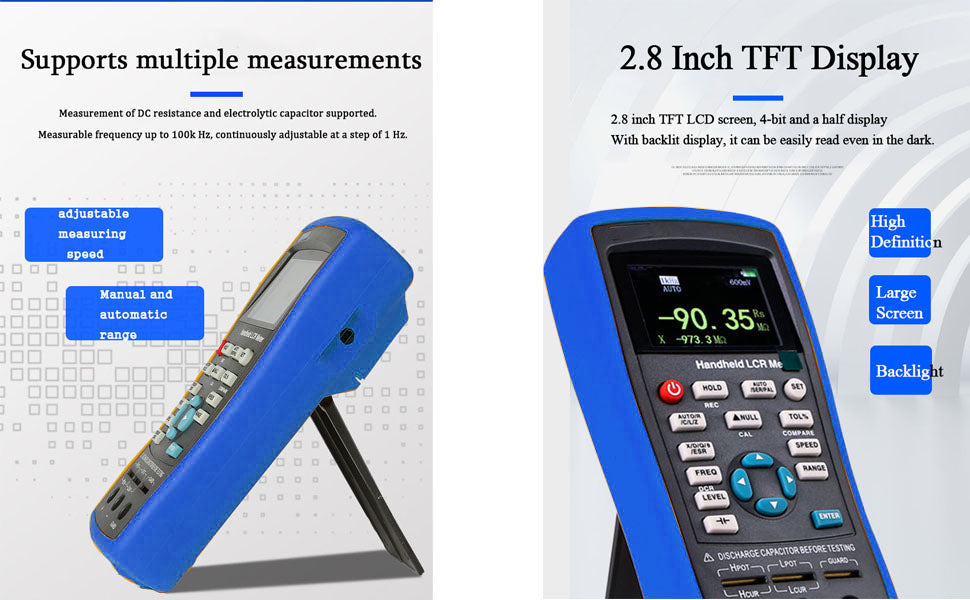

¤ 2.8-inch TFT display, 4-bit semi-display;

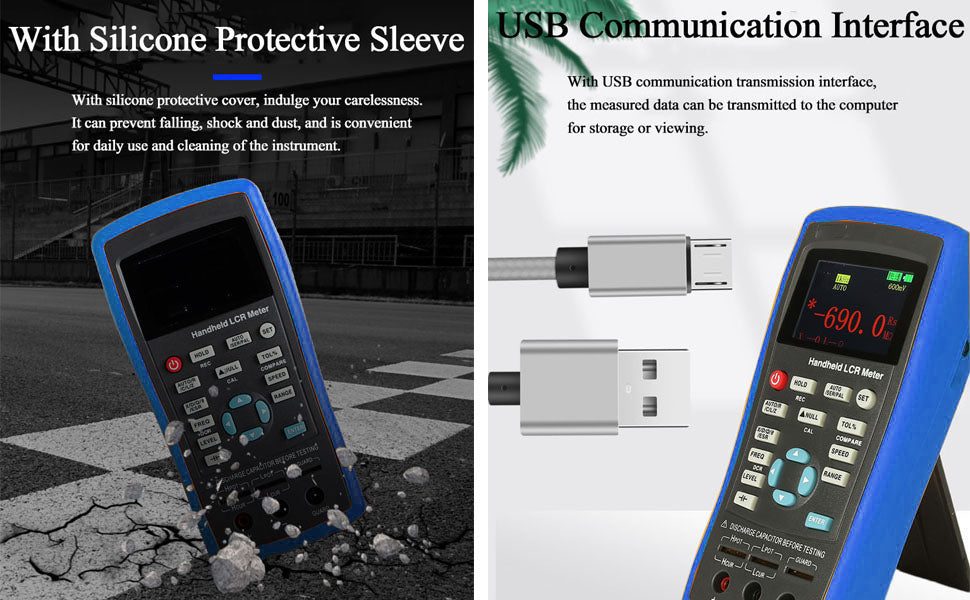

¤ USB communication interface;

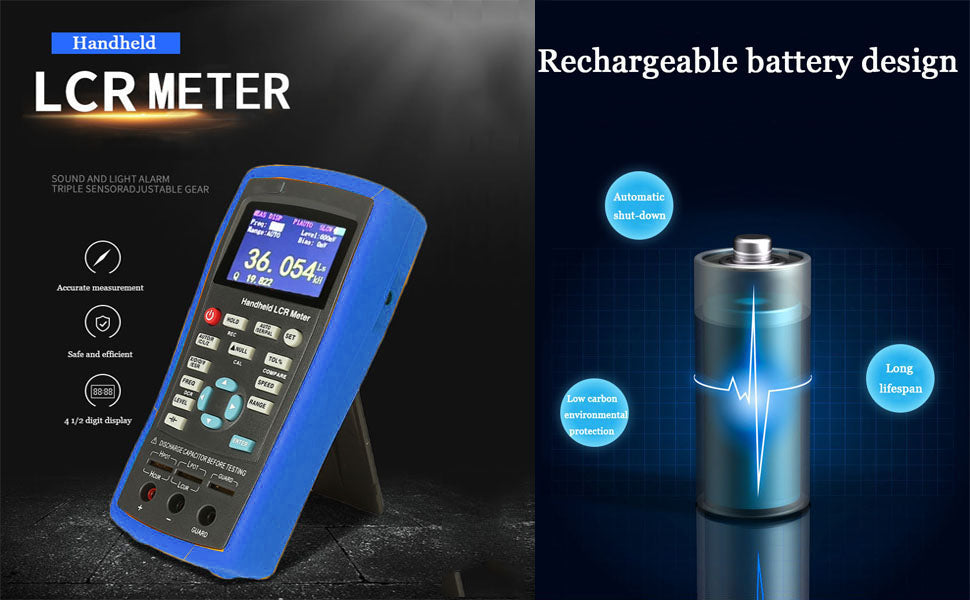

¤ Large capacity lithium battery power supply;

¤ Support SCPI protocol;

¤ Provide system settings, can configure language, buzzer, screen brightness and so on according to their own requirements;

¤ The basic measurement accuracy is 0.2%;

¤ Adjustable measuring speed, manual and automatic range;

¤ Short circuit correction with open circuit;

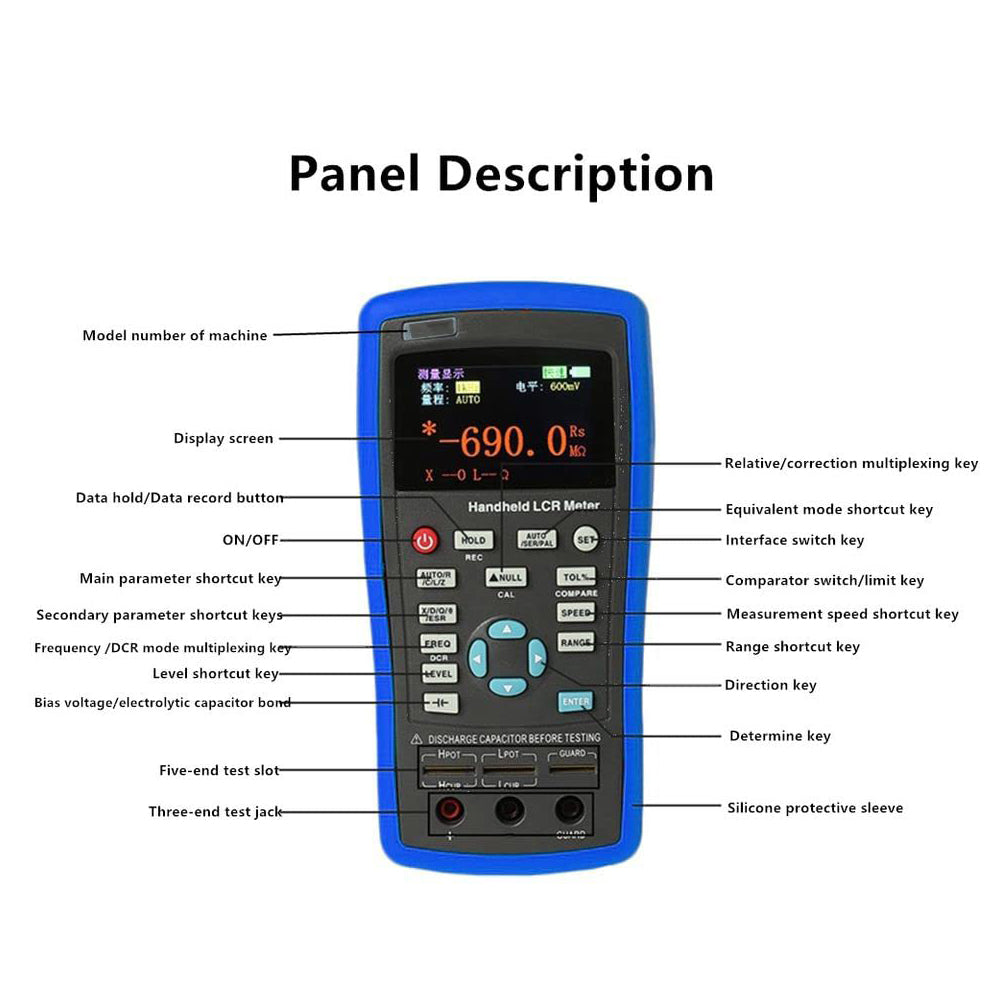

¤ Provide multiple test ports.

Main technical indexes

Test frequency:100Hz-100KHz Continuously adjustable, a step of 1 Hz

Basic accuracy:0.2%

Display:2.8” TFT LCD screen

Number of display digits:Principal parameters: 5 bits, secondary parameters: 5 bits

Measurement parameters:Principal parameters: L/C/R/Z; Secondary parameter: X/D/Q/θ/ESR

Electrolytic capacitor mode:√

DCR mode:√

Measuring range:L：0.000μH～2000H，C：0.000pF～20.000mF，R：0.0001Ω～200.00MΩ

Measurement display speed:1 time/s (slow), 2 times/s (medium), 4 time/s (fast)

Internal bias:0-500mV adjustable, at a step of 1mV.

Testing level:0-1V adjustable

Calibration function:Open circuit calibration ， short circuit calibration

Screening function:The limit range of screening can be set to 1%-50%, and the fixed points are 1%, 5%,10% and 20%.

Deviation measurement：Used for comparing and displaying deviation percentage of component and the set nominal value

Other:Adjustment of backlight brightness, Chinese and English are optional,USB device and automatic power-off time

Standard accessories:

  1. Mini-USB cable;
  2. Power adapter;
  3. Short circuit bar;
  4. Red and black rubber plug;
  5. High capacity lithium battery
  6. Kelvin test clip
