VTSYIQI Digital Colorimeter Lab Spectrophotometers Portable Spectrophotometer with Measurement Repeatability dE*ab≤0.02 Display Accuracy 0.01 Reflectivity Resolution 0.01% for Clothing Plastics Test

Introduction:

For the convenience of users in measuring samples of different sizes, the DS700E spectrophotometer supports 12 different calibers for customers to use. The stable model is: Φ11mm+Φ10mm+Φ6mm+Φ5mm+Φ3mm+Φ1*3mm, while the flexible model is: ▽ 11mm+▽ 10mm+▽ 6mm+▽ 5mm+▽ 3mm+▽ 1 * 3mm. It can be flexibly applied to various use and testing conditions.

Feature:

Measurement Structure:D/8, SCI+SCE

Measurement repeatability:dE * ab ≤ 0.02

Inter station difference:dE * ab ≤ 0.2

Display accuracy:0.01

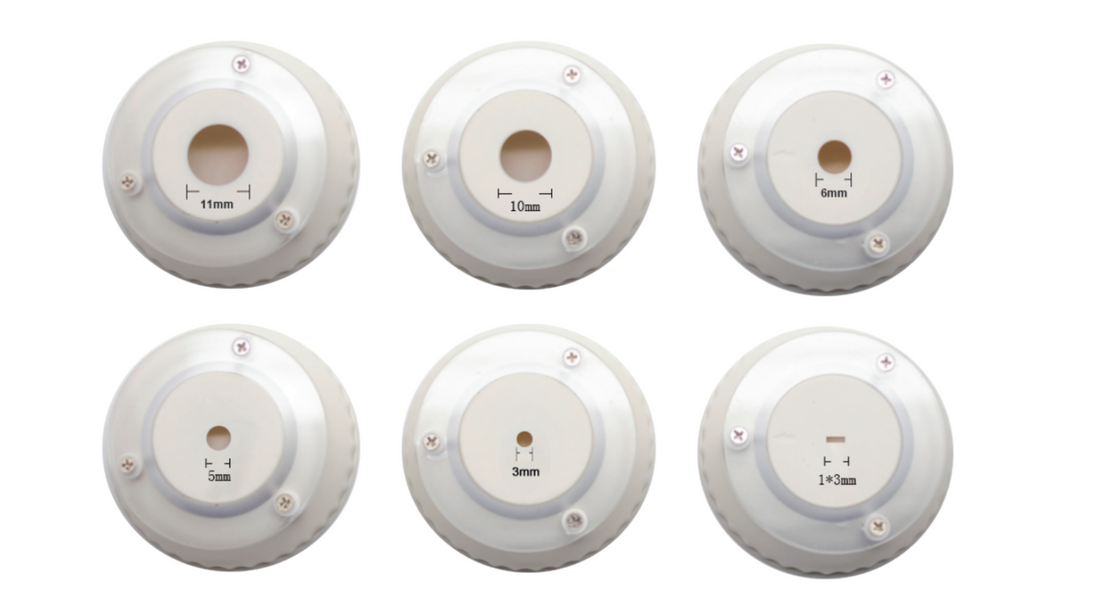

There are a total of 12 measuring calibers for stable and agile types:Φ11mm，Φ10mm，Φ6mm，Φ5mm，Φ3mm，1*3mm，▽11mm，▽10mm，▽6mm，▽5mm，▽3mm，▽1*3mm

Measurement indicators: Spectral reflectance, CIE-LCh, HunterLab, CIE-LLv, XYZ, Yxy, RGB color difference (Δ E * ab), ΔE*cmc,ΔE*94,ΔE*00)，

Whiteness (ASTM E313-00, ASTM E313-73,CIE,ISO2470/R457,AATCC,Hunter,Taube Berger Stensby)

Yellowness (ASTM D1925, ASTM E313-00, ASTM E313-73)

Blackness (My, dM), Color fastness to staining, Color fastness to changing,Tint (ASTM E313-00) color density CMYK (A, T, E, M), heterochromatic index Milm, Munsell, hiding power,Strength (dye strength, coloring power)

Light source  condition:A,B,C,D50,D55,D65,D75F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12CWF,U30,U35,DLF,NBF,TL83,TL84,
ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2

Lighting light source:full band balanced LED light source+UV

Measurement observation method:camera

Calibration:Intelligent Automatic Calibration

The software supports:Android, iOS, Windows, and WeChat mini programs

Accuracy:assurance ensures that the first level measurement is qualified

Field of view angle:2 °, 10 °

Integral sphere diameter:40mm

Complies with standard:CIE No.15, GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7

Spectral:grating

Sensor:dual row high-precision CMOS array sensor

Wavelength interval:10nm

Wavelength range:400-700nm

Reflectivity measurement range:0-200%

Reflectivity resolution:0.01%

Measurement time:1s

Interface:USB, Bluetooth

Screen:Full color screen, 3.5 inches

Battery capacity:can be continuously measured 8000 times per charge, 7.2V/3000mAh
The lifespan of the light source is 10 years and 1 million times

Language:Simplified Chinese, English

Storage instrument: 100 standard samples and 10000 samples; APP: Massive storage
