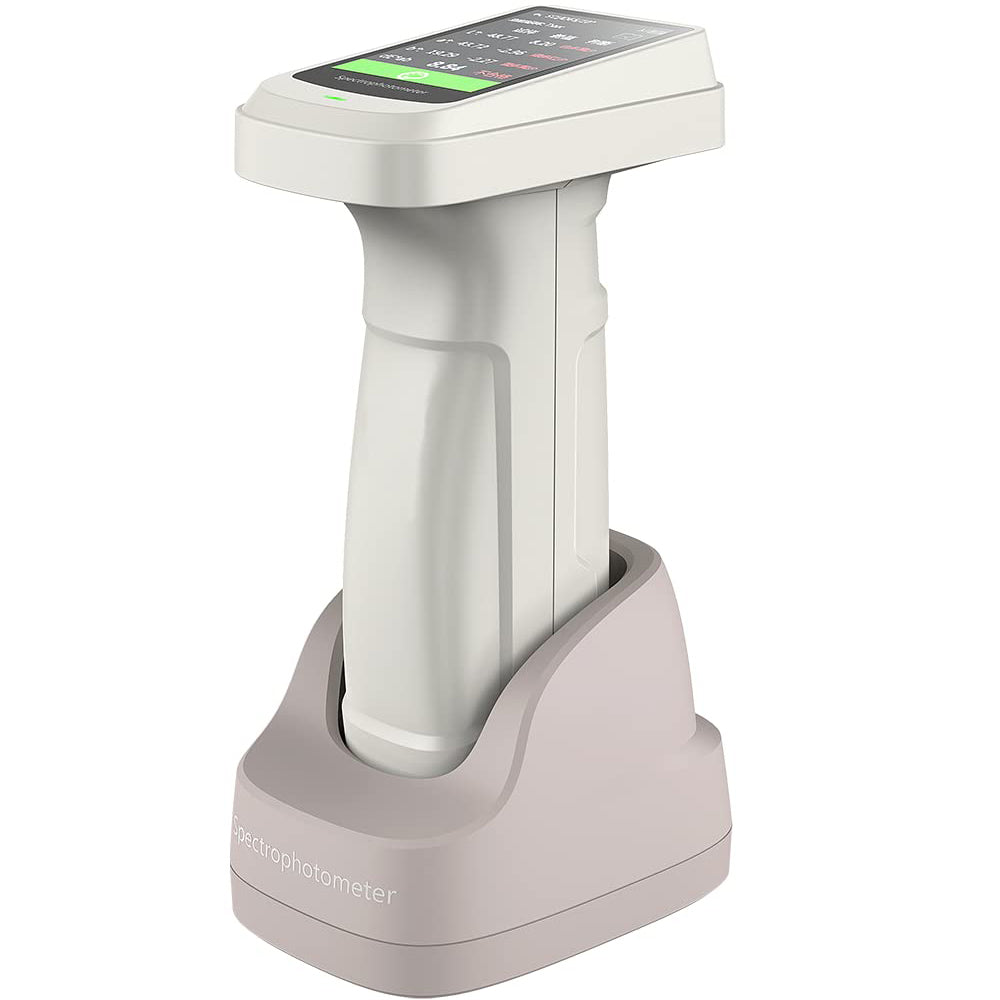

VTSYIQI Digital Spectrophotometer Color Difference Tester with Measurement Repeatability dE * ab≤0.025 MeasurementCaliber Φ11mm ▽11mm Reflectivity Resolution 0.01% for Automotive Interior Plastics

Introduction:

The spectrophotometer provides spectral reflectance, CIE-Lab，CIE-LCh，ΔE*ab， Covering power, whiteness, yellowing and other 30+measurement indicators; A. Nearly 40 evaluation light sources, including B, C, D50, D55, D65, etc., can be selected, covering almost all color measurement indicators and light source types in the industry.

Feature:

Product model: Spectrophotometer DS-700C-1

Measurement structure:45/0

Measurement repeatability:dE * ab≤0.025

Inter station difference:dE * ab≤0.25

Display accuracy:0.01

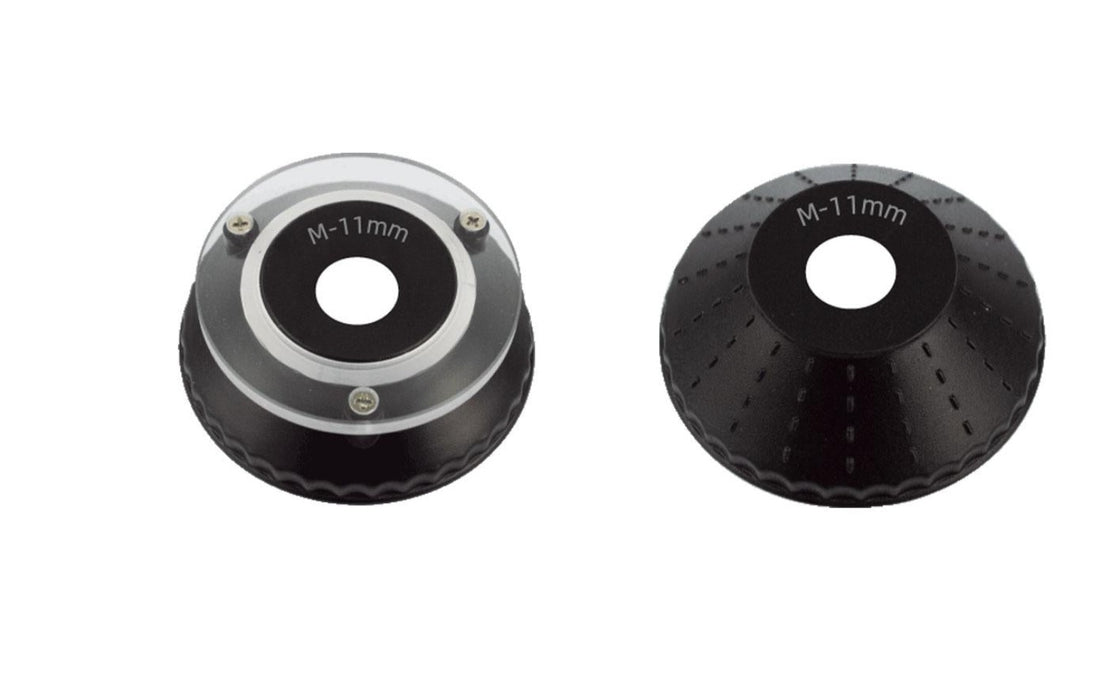

Measuring caliber: 2 types of stable and flexible: Φ 11mm, ▽ 11mm

Measurement indicators: Spectral reflectance, CIE-Lab,CIE-LCh,HunterLab,CIE-Luv,XYZ,Yxy,RGB, Color difference (Δ E * ab, ΔE*cmc,ΔE*94,ΔE*00),
Whiteness (ASTM E313-00, ASTM E313-73,CIE,ISO2470/R457,AATCC,Hunter, Taube Berger Stensby),
Yellowth (ASTM D1925, ASTM E313-00,ASTM E313-73),
Blackness (My, dM), color fastness, color fastness, Tint (ASTM E313-00),
Color density CMYK (A, T, E, M), heterochromatic index Milm, Munsell, hiding power, strength (dye intensity, coloring power)

Printing quality indicators: Color density CMYK (A, T, E, M)

Light source conditions：A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,
TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1, LED-V2

Lighting source: Full band balanced LED light source

Field of view: 2 °, 10 °

Compliant with standard: CIE No.15, GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7

Spectral splitting method: grating

Sensor: Dual column high-precision CMOS array sensor

Wavelength interval: 10nm

Wavelength range: 400-700nm

Reflectance measurement range: 0-200%

Reflectivity resolution: 0.01%

Measurement observation method: visual inspection

Calibration: Intelligent automatic calibration

Software support: Android, iOS, Windows, WeChat Mini Program

Accuracy guarantee: Ensure that the first level measurement is qualified

Measurement time: approximately 2 seconds

Interface: USB, Bluetooth

Screen: Full color screen, 3.5 inches

Battery capacity: capable of continuous measurement 8000 times on a single charge, 7.2V/3000mAh

Light source lifespan: 10 years and 1 million cycles

Language: Simplified Chinese, English

Storage: Instrument: 100 standard samples and 10000 test samples; APP: Massive storage
