Introduction:

This is a new type of crack width field testing device, providing such functions as automatic detection of crack position and width value, long-term monitoring under unmanned operation, etc., converting the traditional manual reading method for crack width measuring into convenient instrument automatic measuring method, and offering a wide range of data processing methods for crack width, which, we believe, will definitely bring great convenience for the detection of crack width.

Characteristics:

with both crack width detection and monitoring functions simultaneously: the detection function is able to complete quick automatic interpretation of the crack width on the site, and the monitoring function can automatically monitor the crack width in continuous cracking in a long period;

Real-time interpretation of crack width values: interpretation for 1 crack width takes only 150 milliseconds;

Intelligent interpretation of oblique cracks: automatic interpretation does not require the crack in the screen must be the vertical trend. For oblique cracks, the trend can be automatically identified and the real crack width perpendicular to the inclined direction can be correctly interpreted, which increase the test speed and accuracy;

Support the manual interpretation of crack width values: manually moving the cursor to define the boundary of the crack to complete the manual interpretation, and the scale is also displayed on the screen to check the reading. According to different crack widths, the crack image and the scale can also be appropriately zoomed in and zoomed out.

Data and images can be stored simultaneously with the functions of checking and deleting;

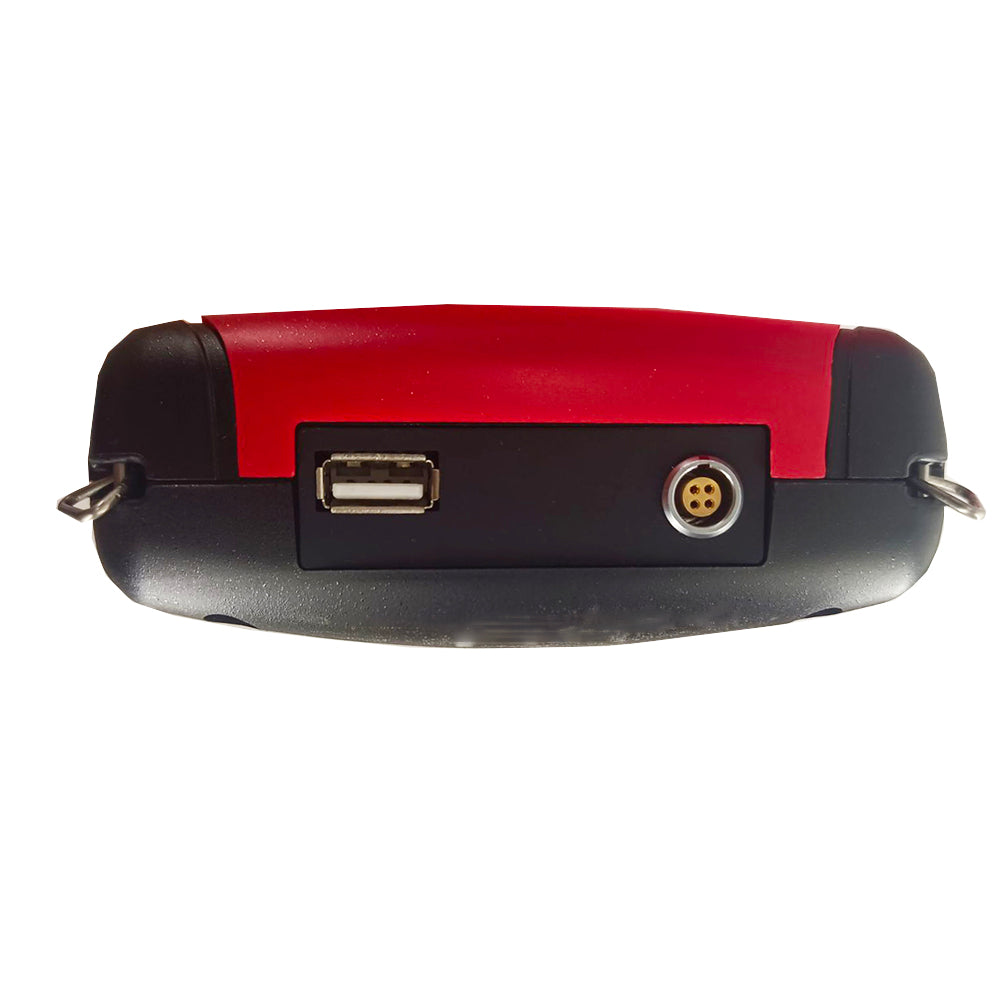

USB flash disks export data and images, using 4G USB flash disk as the standard which can be expanded;

Set the total monitoring duration and test interval when carrying out crack monitoring, and display the timing in real time. During monitoring, it can automatic sleep under power-saving mode and can be awakened at any time.

Product features:

Real-time automatic interpretation of crack width values on structural surfaces

Real-time long-term monitoring of fracture width changes

Take pictures to store pictures and data

Technical features:

At the same time, it has the function of real-time detection and long-term monitoring of crack width

Intelligent interpretation of oblique cracks

The value of crack width can be interpreted by manually selected points

Data and images are stored at the same time, and the U disk can be exported

Powerful off-machine data analysis and processing software can re-interpret crack images

Main technical indicators:

The digital directly displays the crack width value, stores the crack data picture, and monitors the change of the crack.

Crack width measurement range: 0 ~ 10mm

Measurement accuracy: 0.01mm

Estimated reading accuracy: 0.001mm

Maximum monitoring time: 31 days

Minimum monitoring interval: 1s

Magnification: digital 60 times

Storage capacity: It can store images and width data of 100,000 crack measurement points

Storage: U disk storage

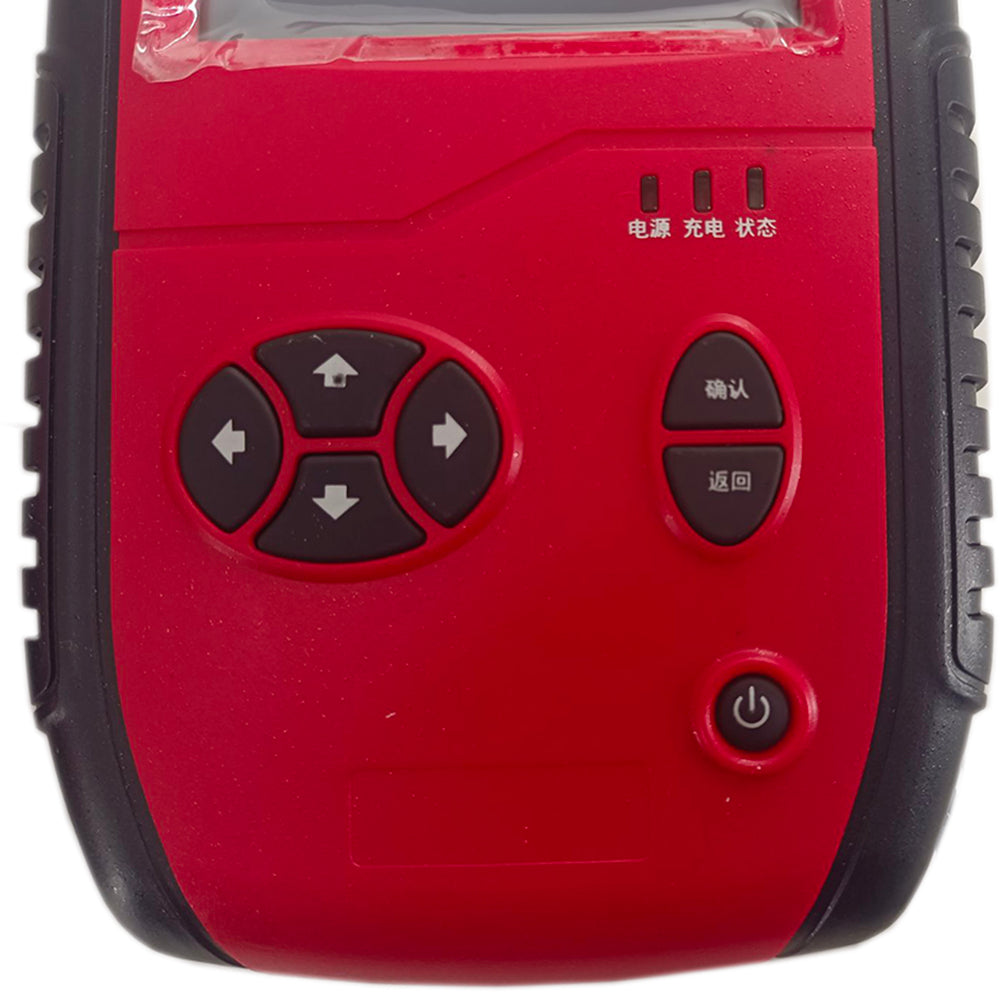

Operation mode: touch screen and button

Measurement method: It can be used to measure the crack width by hand, and it can be fixed on the surface of the measured body.

Power supply: built-in rechargeable lithium battery, can work continuously for 8 hours

Working temperature: -10℃ ~ +50℃;

Host volume: 45mm ×115mm × 190mm

Weight: 530g

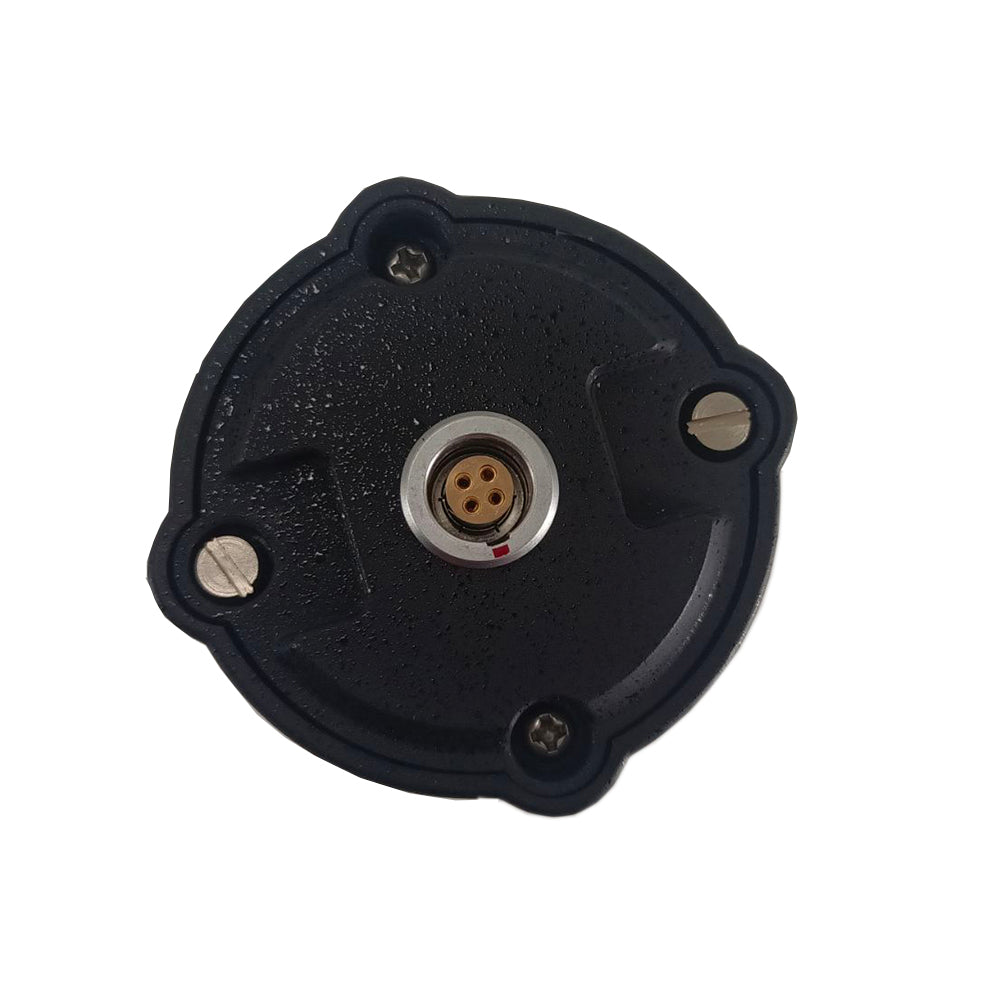

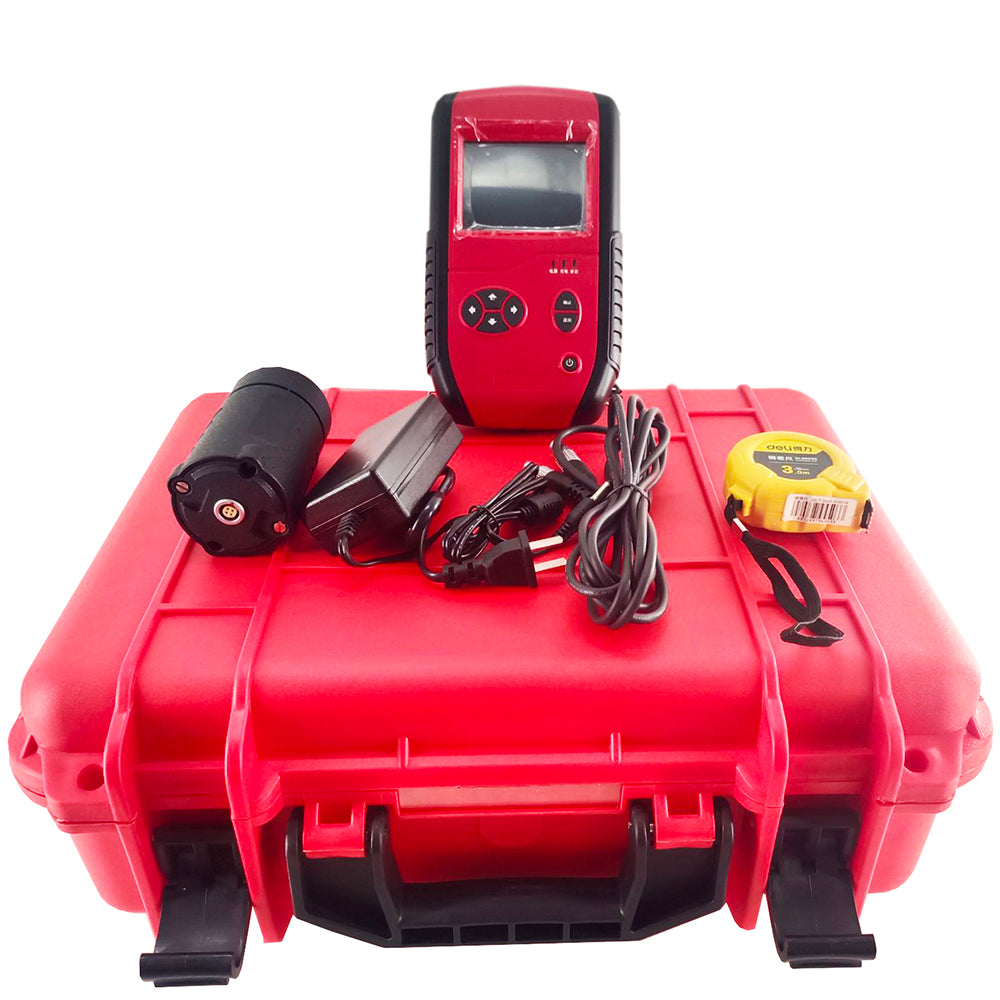

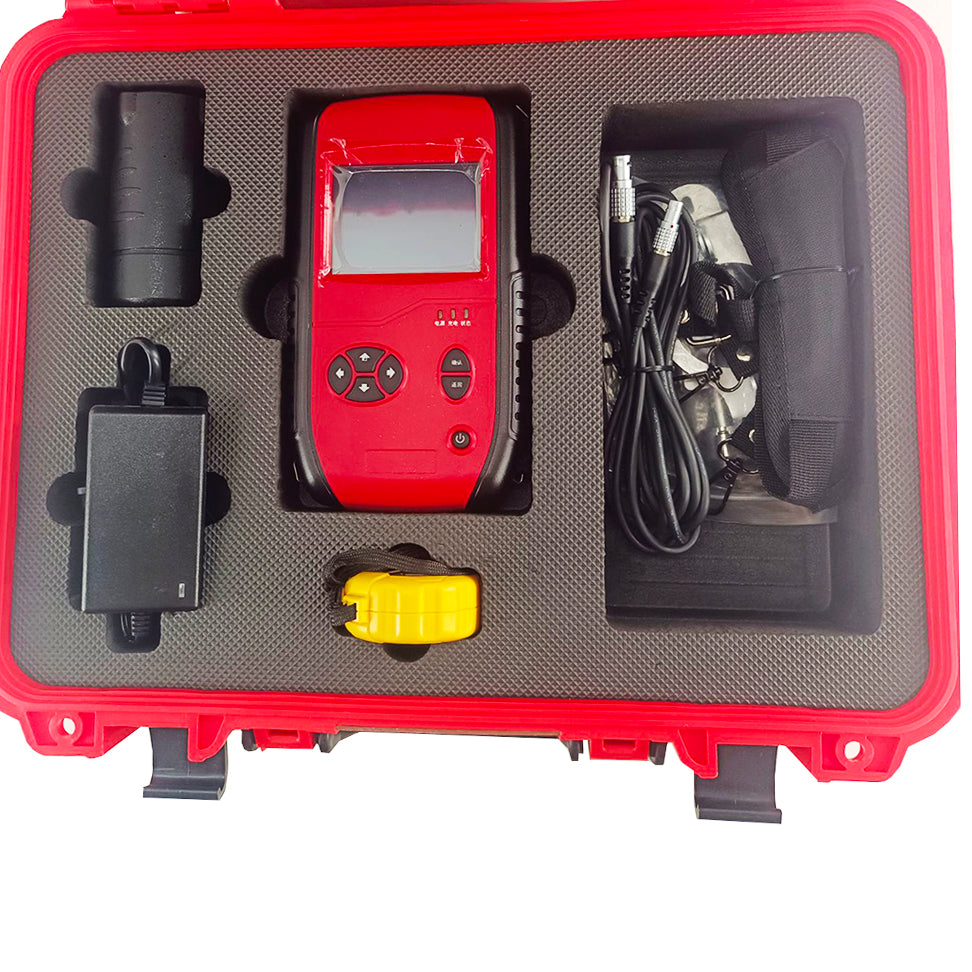

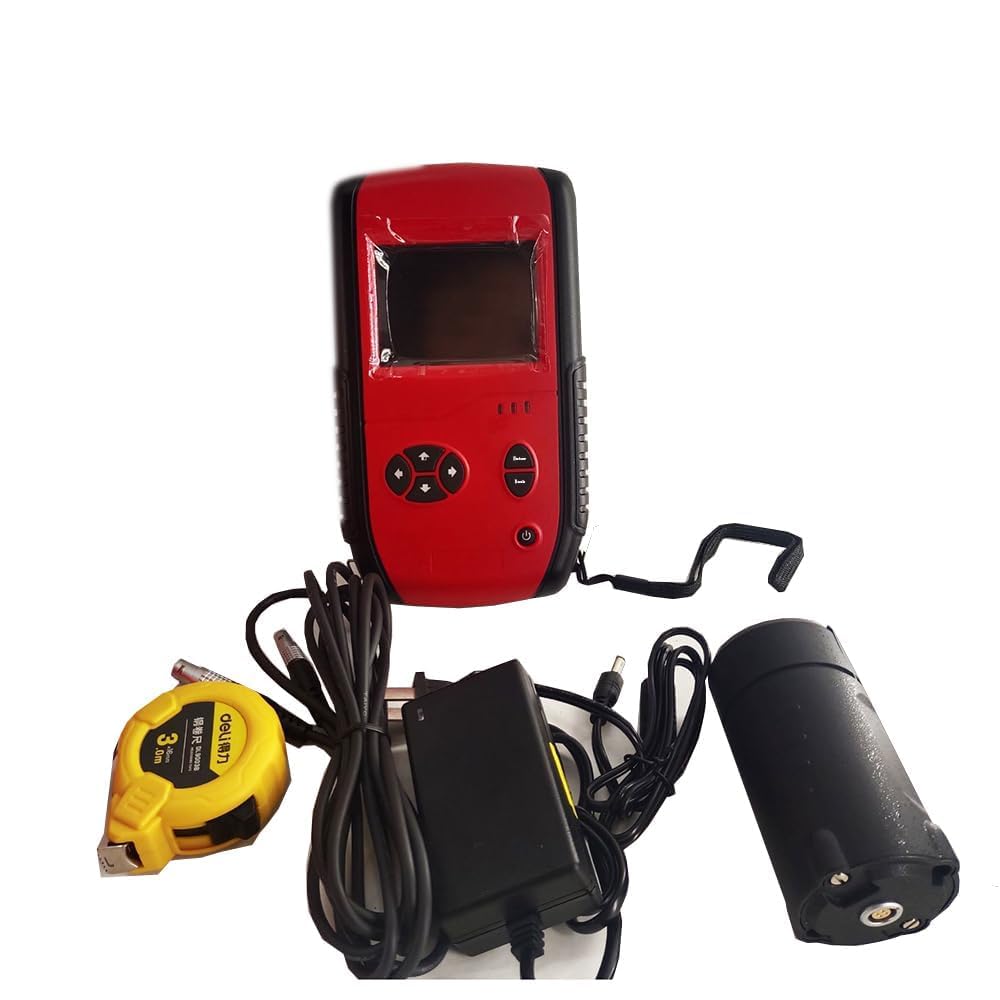

Including: host, probe, signal line, charging power supply, U disk, fixed device, etc.
