  • VTSYIQI Digital Concrete Floor Slab Thickness Gauge Concrete Floor Slab Thickness Detector with Data Storage Function Test Scope 40mm-800mm Permissible Error 40 ～ 600 mm ±1 mm 601～ 800 mm ±2 mm Can Save Test Date

VTSYIQI

VTSYIQI Digital Concrete Floor Slab Thickness Gauge Concrete Floor Slab Thickness Detector with Data Storage Function Test Scope 40mm-800mm Permissible Error 40 ～ 600 mm ±1 mm 601～ 800 mm ±2 mm Can Save Test Date

$1,67400
In stock
$1,67400

Customer Service

Post your customer service details here.

Return Policy

Post your policy conditions details here.

About this item

1.[Long test distance:]-------Test distance can up to 800mm.

2.[High precision and stability:]-------Interpreting the board thickness Intelligently can avoid man-made errors and reduce labor intensity.

3.[Fast and efficient:]-------Test 3~5 point thickness within 3 minutes.

4.[Long service life of sensor:]-------Improve the service life by paste abrasion resistance allowance on the bottom of sensor.

5.[The special clasp between extend bar and transmitting sensor can prevent its falling.]

Purpose

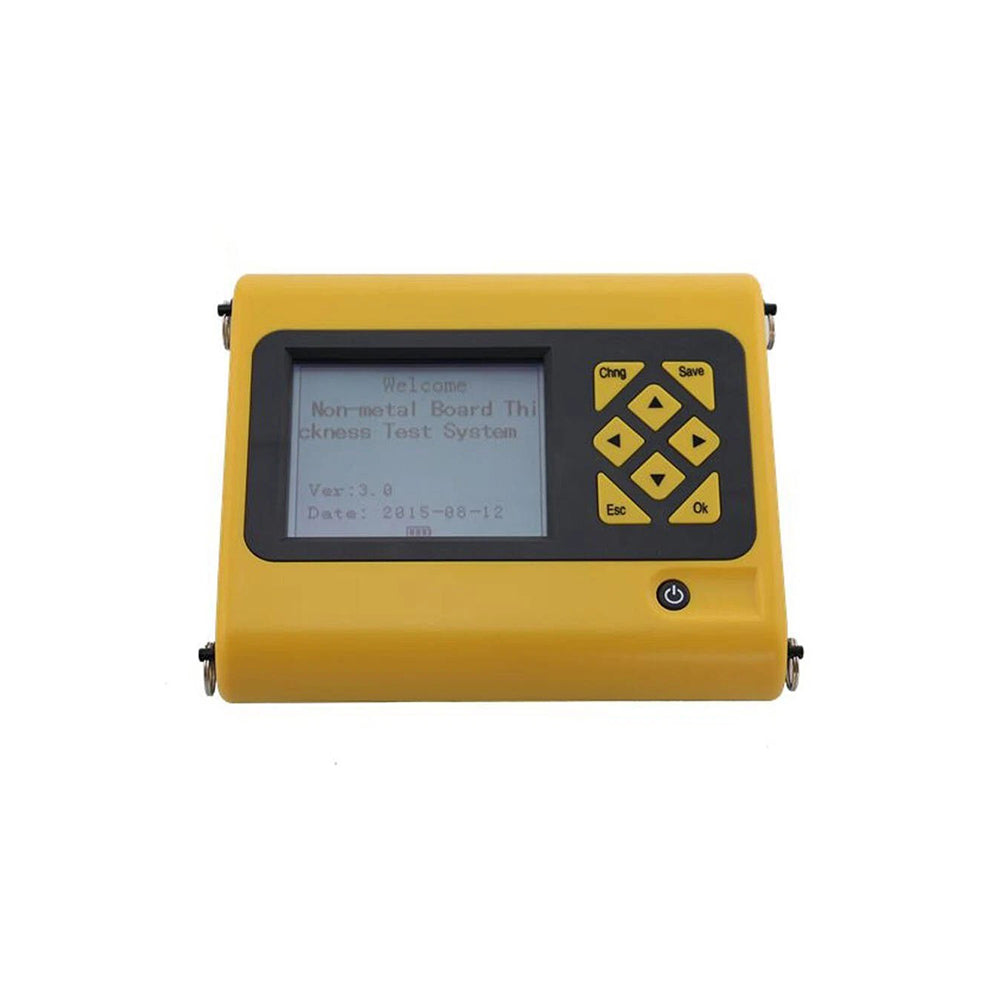

The instrument is used for nonmetallic board thickness testing such as concrete, rock, glass etc, The functions include thickness testing, data analysis, saving and transmission.It is a potable, efficient, precise and intelligent instrument.

Specification

《Based on Code for Acceptance of Constructional Quality of Concrete Structures》GB50204-2002

Performance/Features

  1. Long test distance:Test distance can up to 800mm.
  2. High precision and stability:Interpreting the board thickness Intelligently can avoid man-made errors and reduce labor intensity.
  3. Fast and efficient:Test 3~5 point thickness within 3 minutes.
  4. Long service life of sensor:Improve the service life by paste abrasion resistance allowance on the bottom of sensor.
  5. The special clasp between extend bar and transmitting sensor can prevent its falling.
  6. Can save test date:This function is convenient for laborer data management.
  7. Powerful data process and analysis software in Windows.

Technical Data/Measurement

Test scope : 40mm～800mm

Permissible error

  1. 40 ～ 600 mm ±1 mm
  2. 601～ 800 mm ±2 mm

Data storage capacity : 3.2 group data

  1. Operational environment:
  2. Temperature:-10℃～＋40℃

Dampness: <90%RH

EMI: no strong electromagnetic field

Batteries: 6 dry cells, work more than 30 hours（Battery not included in the package）

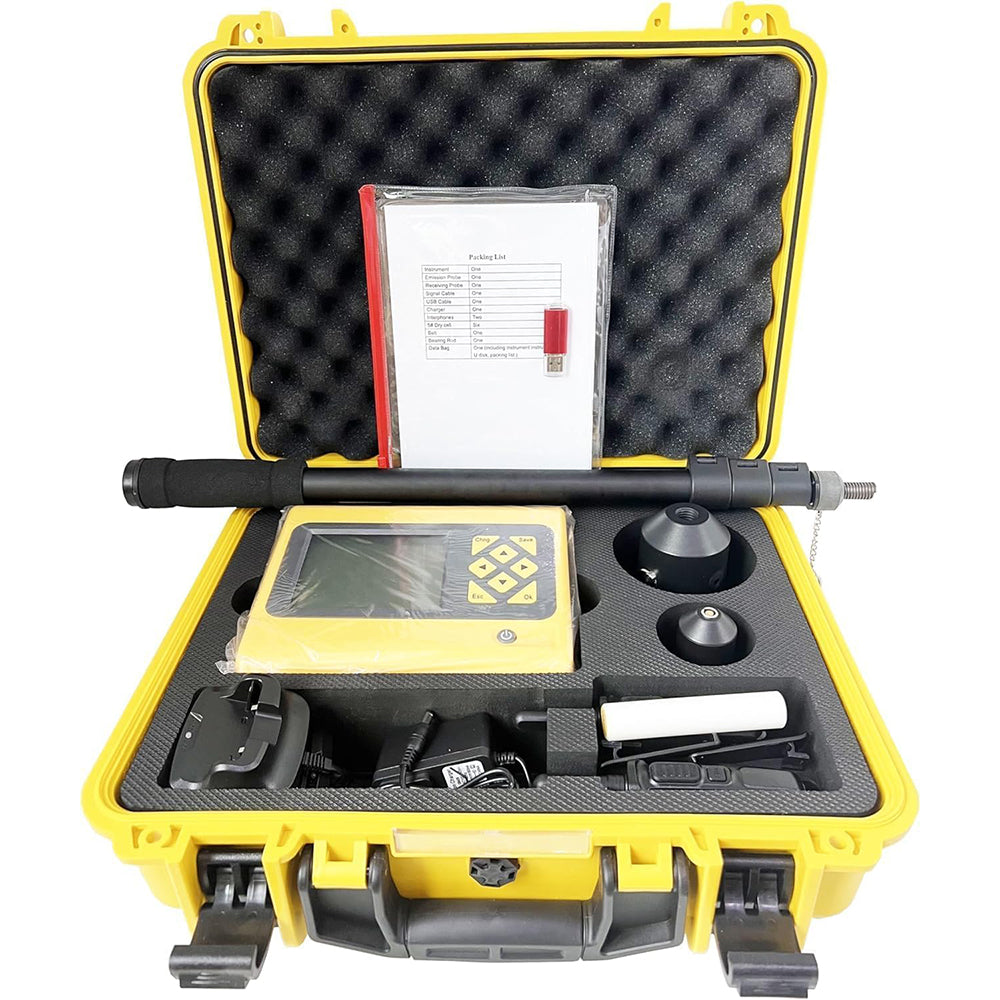

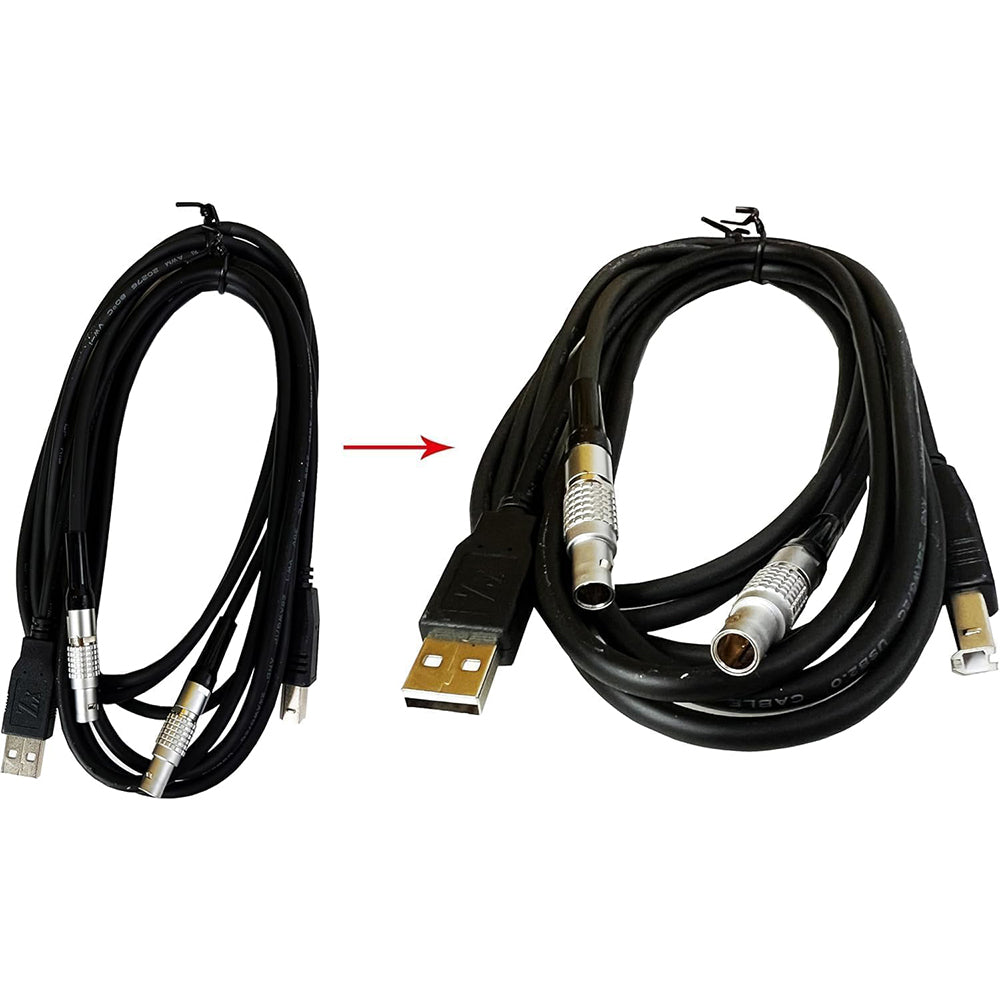

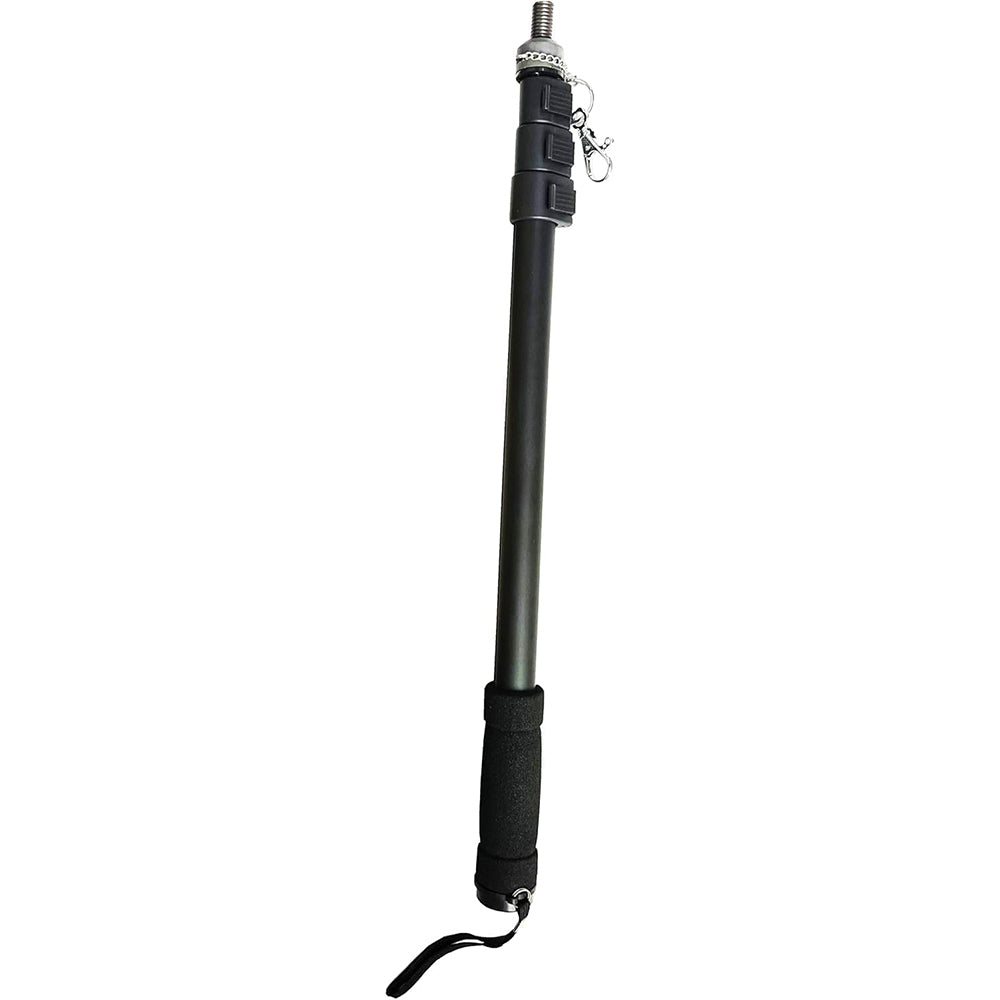

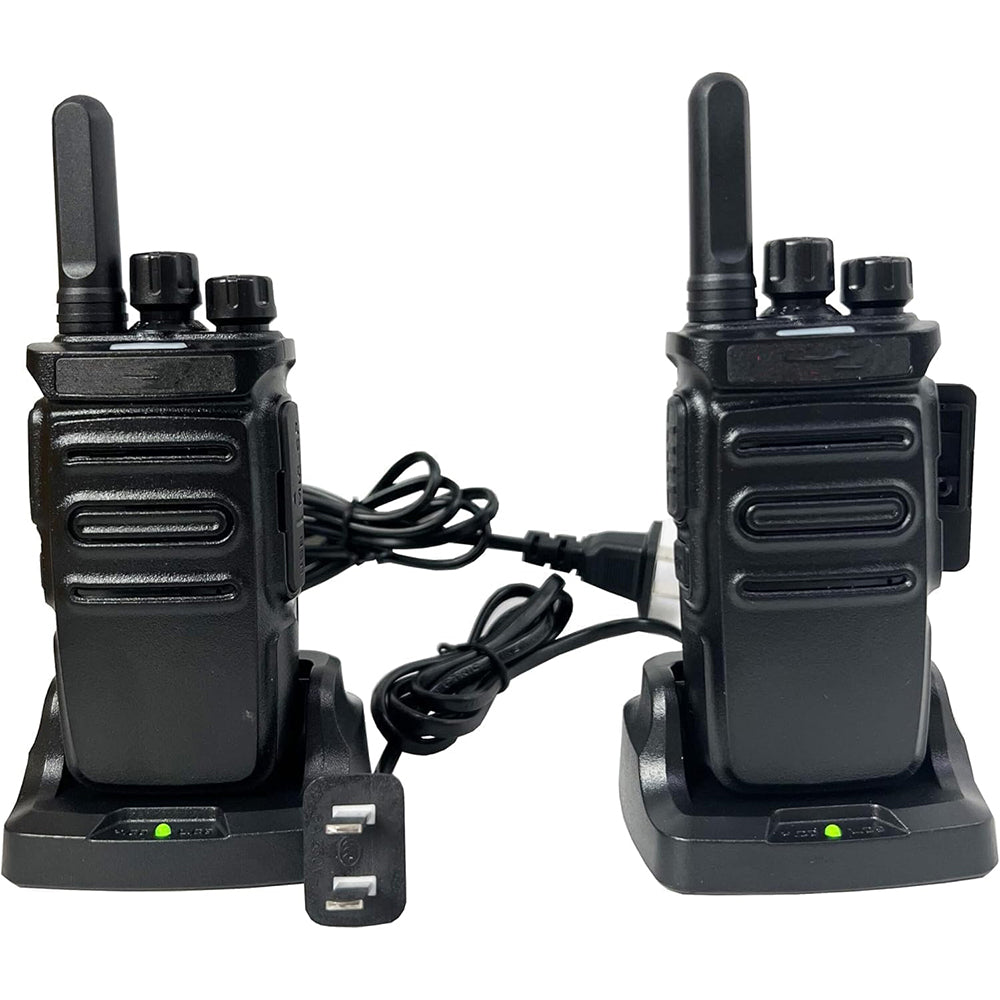

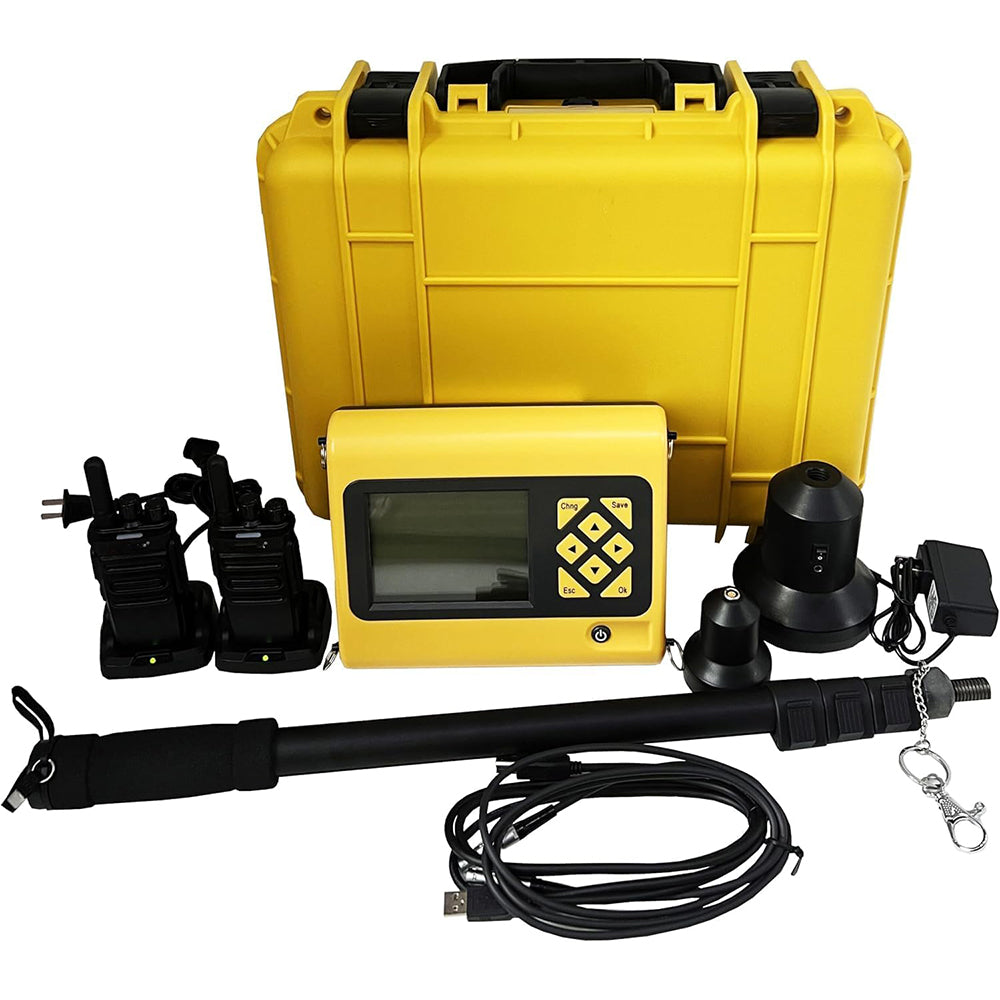

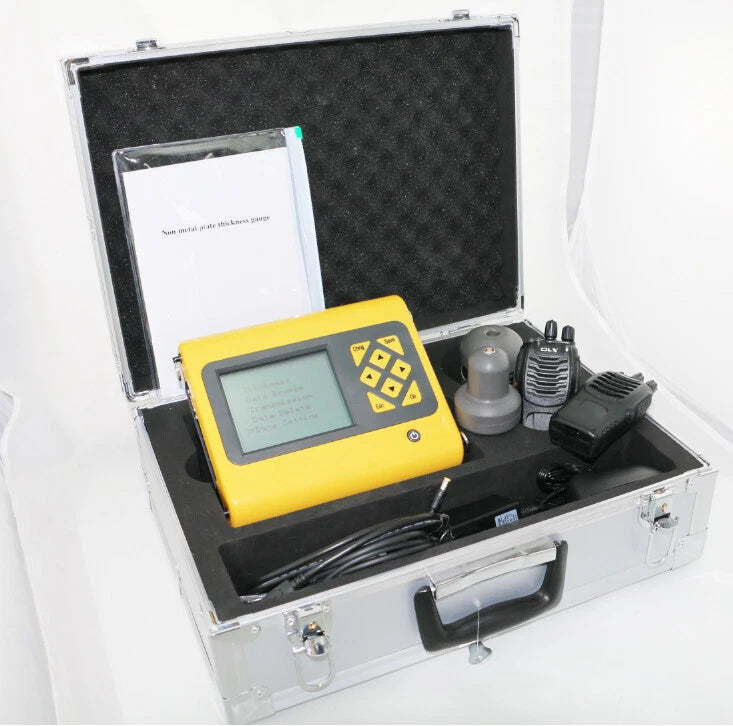

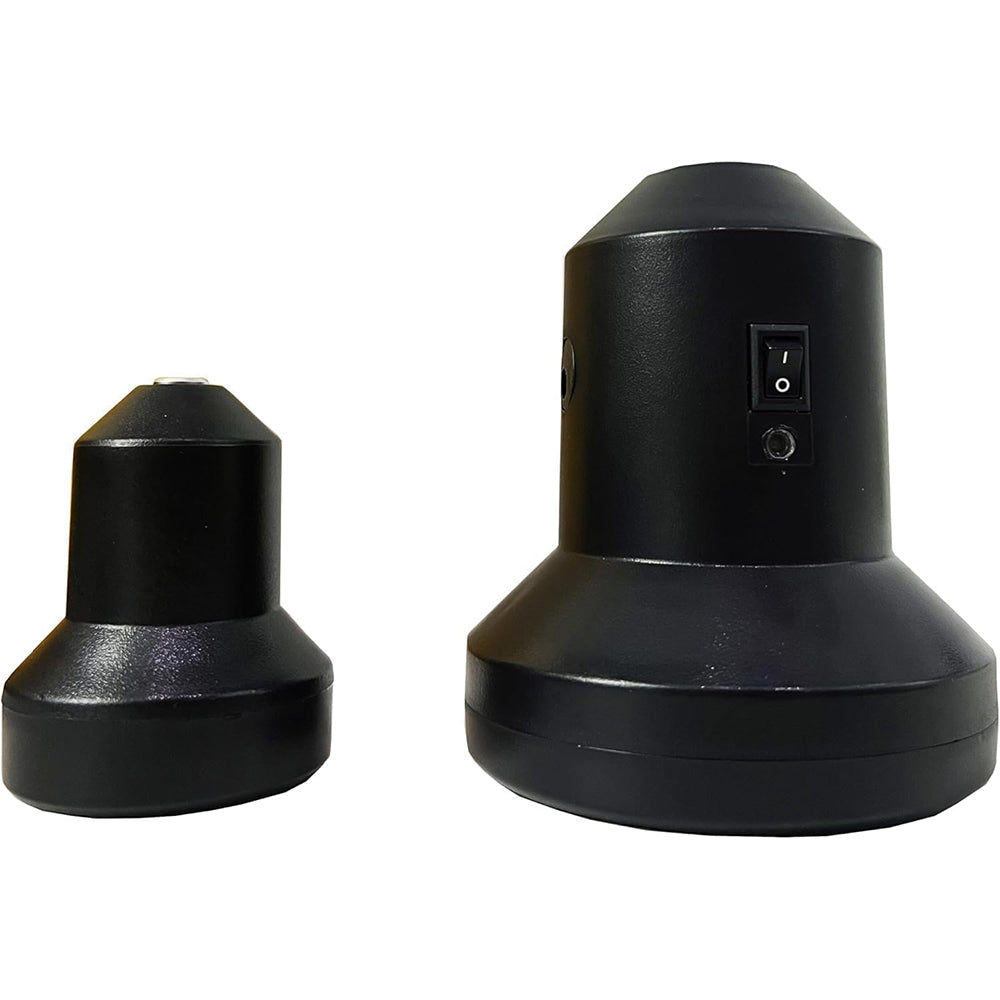

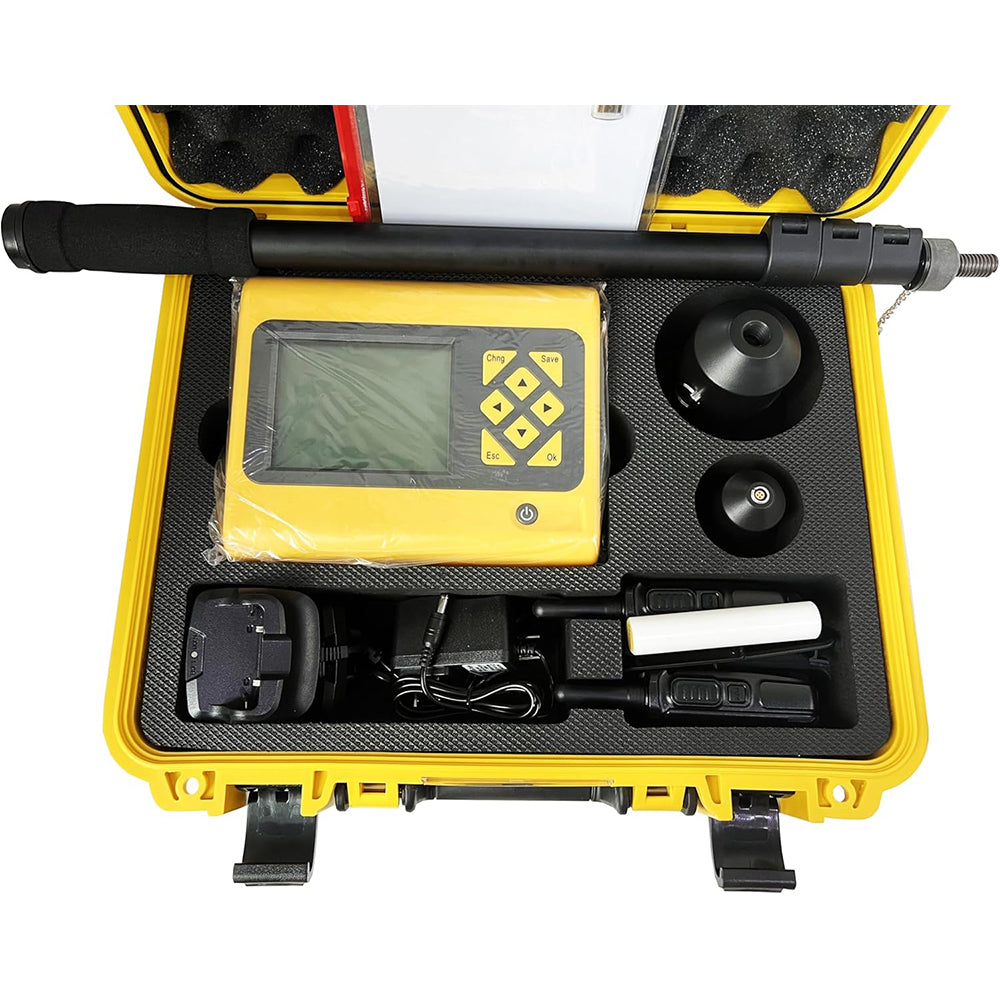

Configurations:Instrument,Sensor,Signal cable,USB cable,Wireless intercom,Extend bar,Specification and software CD-ROM,Box

Software:Powerful software in windows is convenient to data process and analysis, Real USB transmission assure transmit data to computer quickly. It also can export data to word and excel, save and print data;
