Introduction

It is a high-precision professional dew point meter. It is able to measure Ambient Temperature, Dew Point Temperature, Wet Bulb Temperature, Relative Humidity, Absolute Humidity, PPMv, Vapor Pressure, Saturated Vapor Pressure, Mixing Ratio, Specific Enthalpy. Widely used in HVAC, laboratories, precision manufacturing, modern agriculture, meteorological measurement, chemical and pharmaceutical, power industry and other gas temperature and humidity monitoring occasions.

Features

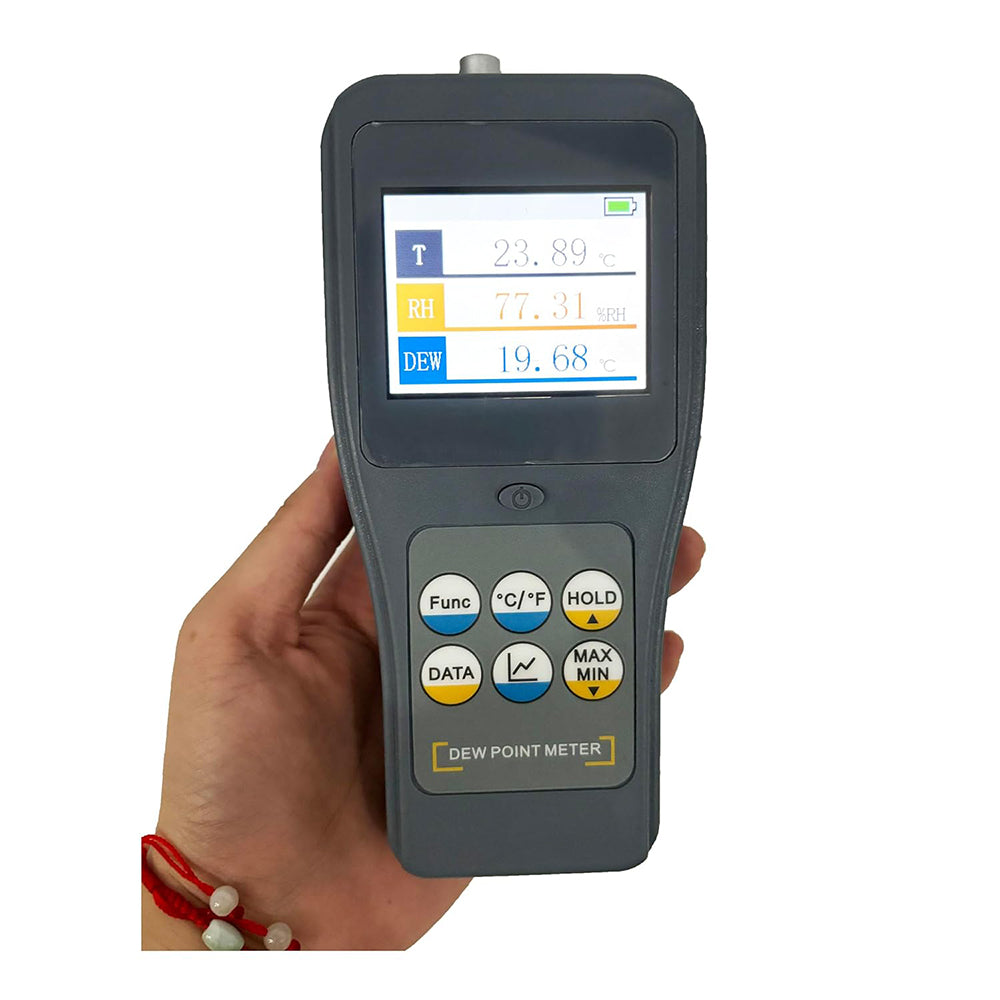

Color LCD with display. It can display multiple values at the same time.

The backlight brightness can be adjusted.

Support multi-parameter measurement of ambient temperature, dew point temperature, wet bulb temperature, relative humidity, absolute humidity, PPMv, vapor pressure, saturated vapor pressure, mixing ratio, specific enthalpy.

Temperature unit (°C/°F).

0.01 high resolution.

High accuracy.

With real-time measurement graph display function.

With data storage function (99 Groups).

With maximum, minimum function.

With data hold function.

With battery indication function.

With automatic power off function.

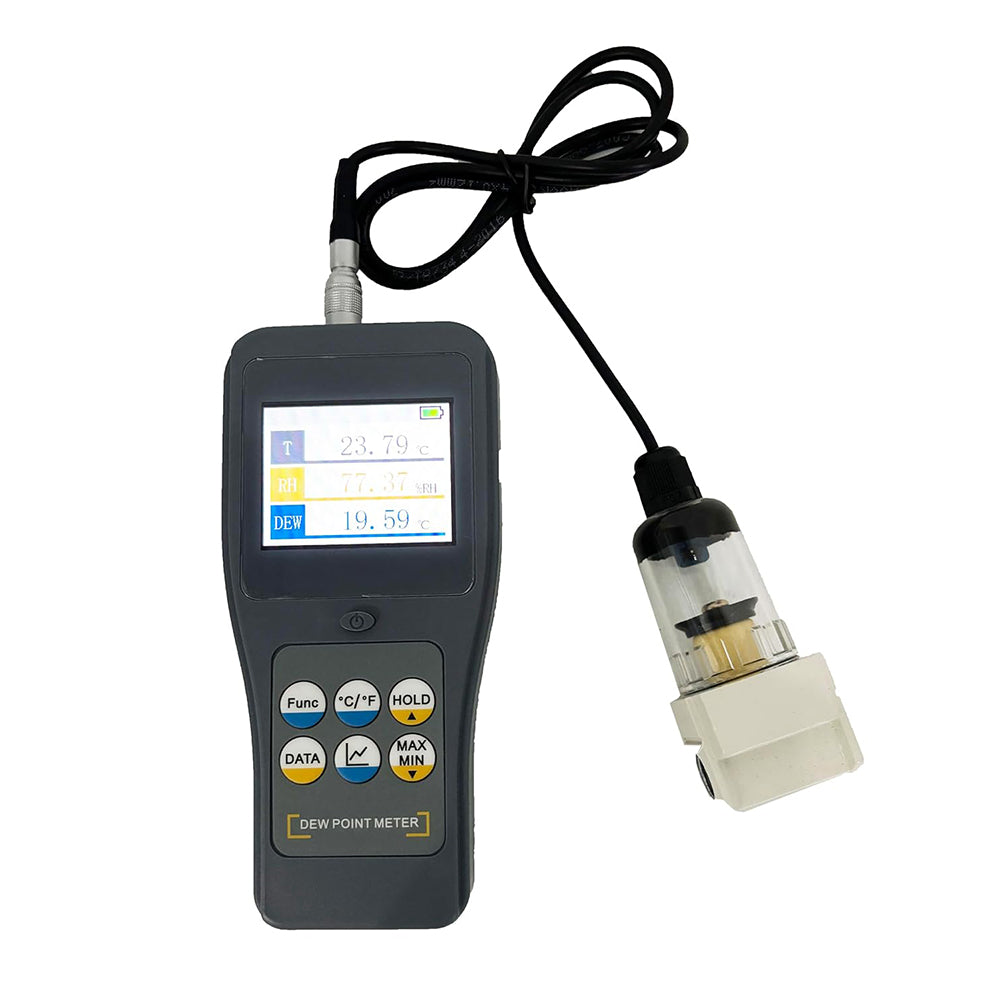

Separate sensor, suitable for a variety of occasions.

Specifications

Display:Color LCD

Test Parameters:Ambient Temperature, Relative Humidity, Dew Point Temperature, Wet Bulb Temperature, Absolute Humidity, PPMv, Saturated Vapor Pressure, Vapor Pressure, Mixing Ratio, Specific Enthalpy

Ambient Temperature

Range:-40~125°C (-40~257°F)

Accuracy:± 0.1°C (0~50°C);± 0.15°C (Other)

Resolution:0.01

Relative Humidity

Range:0~100%RH

Accuracy:± 0.7%RH (0~70%RH);± 1.5%RH (Other)

Resolution:0.01

Dew Point Temperature

Range: -45~60°C (-49~140°F)

Accuracy:± 1°C (-10~60°C);± (1.5+2%Num)°C (-30~-10°C);± 2.5°C (Other)

Resolution:0.01

Wet Bulb Temperature

1. Range:-5~60°C (23~140°F)
2. Accuracy:± 0.5°C
3. Resolution:0.01

Absolute Humidity

Range:0~300g/m³

Accuracy:± (0.2+3%Num)g/m³

Resolution:0.01

PPMv

Range:300~240000

Accuracy:± (30+7%Num)

Resolution:1

Saturated Vapor Pressure

Range:0~500hPa

Accuracy:±1%Num

Resolution:0.01

Vapor Pressure

Range:0~500hPa

Accuracy:±1%Num

Resolution:0.01

Mixing Ratio

Range:0~600g/kg

Accuracy:±2%Num

Resolution:0.01

Specific Enthalpy

Range:0~1500kJ/kg

Accuracy:±2%Num

Resolution:0.01

Temperature Unit:°C/°F

Graph Display: Ambient Temperature, Dew Point Temperature, Wet Bulb Temperature, Relative Humidity, Absolute Humidity (Can be Customized Other Parameters)

Data Memorized:99 Groups (A Total of 990 Data)

Statistical Functions: Maximum, Minimum

Auto Power Off:10 Minutes (No Operation)

Operating Conditions: Temperature：0~50°C；Humidity：0~90%RH (No Condensation)

Storage Conditions:Temperature：-10~50°C；Humidity：0~95%RH (No Condensation)

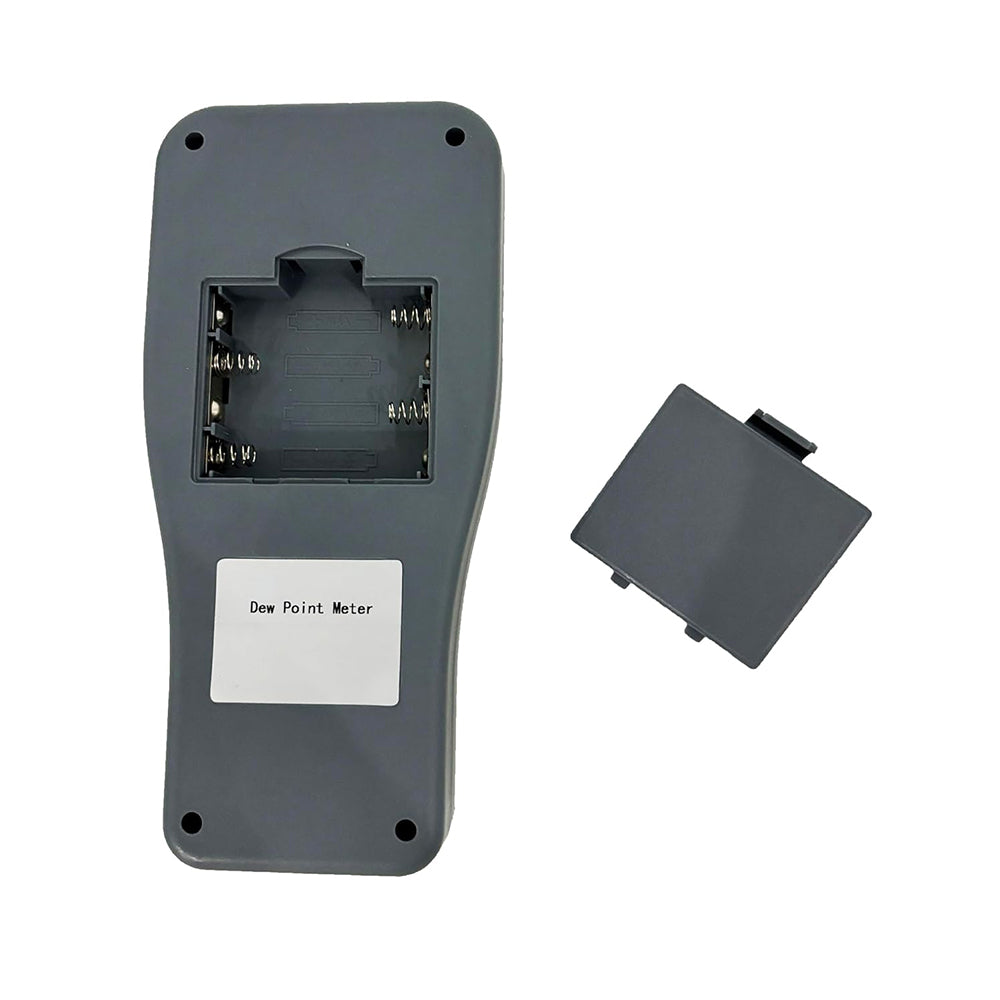

Power Supply:4 × 1.5V AAA(UM-4) Battery(Batteries are not included during the shipment)

Size:205×80×31mm

Weight:182g (Not Including Batteries)

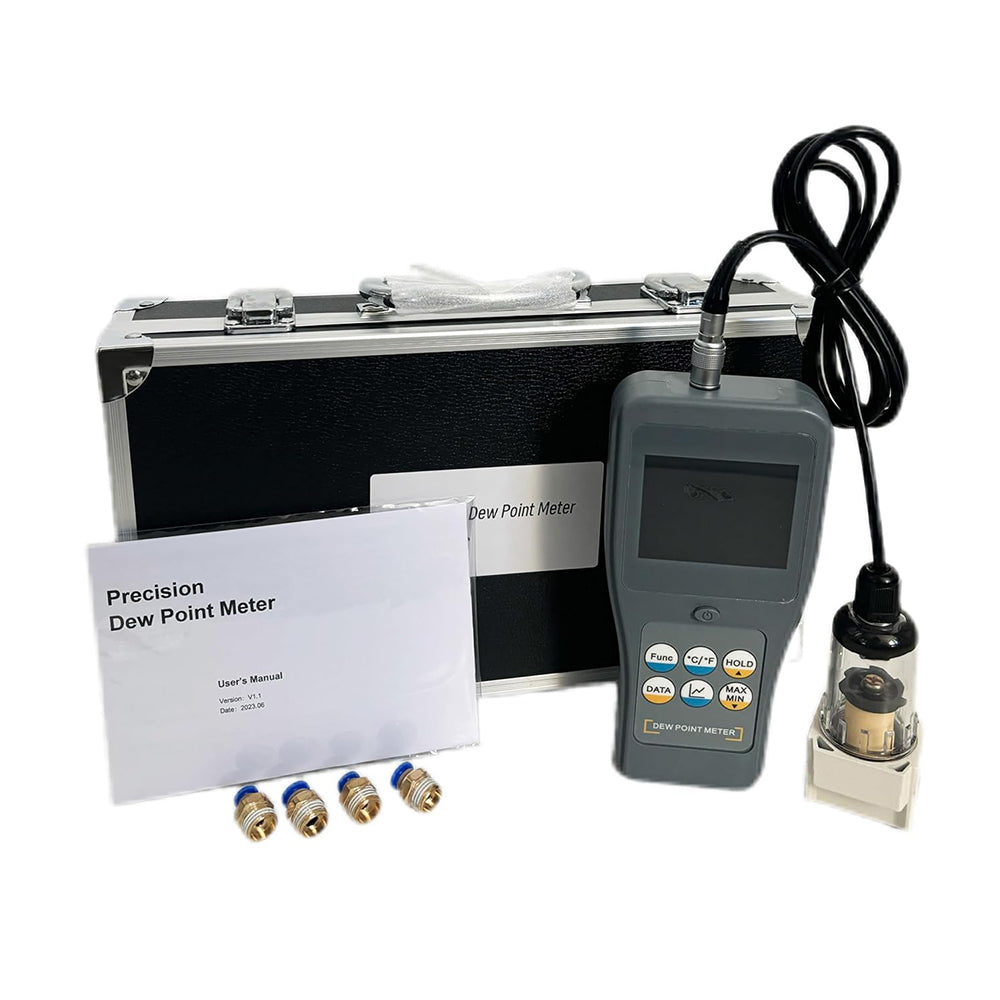

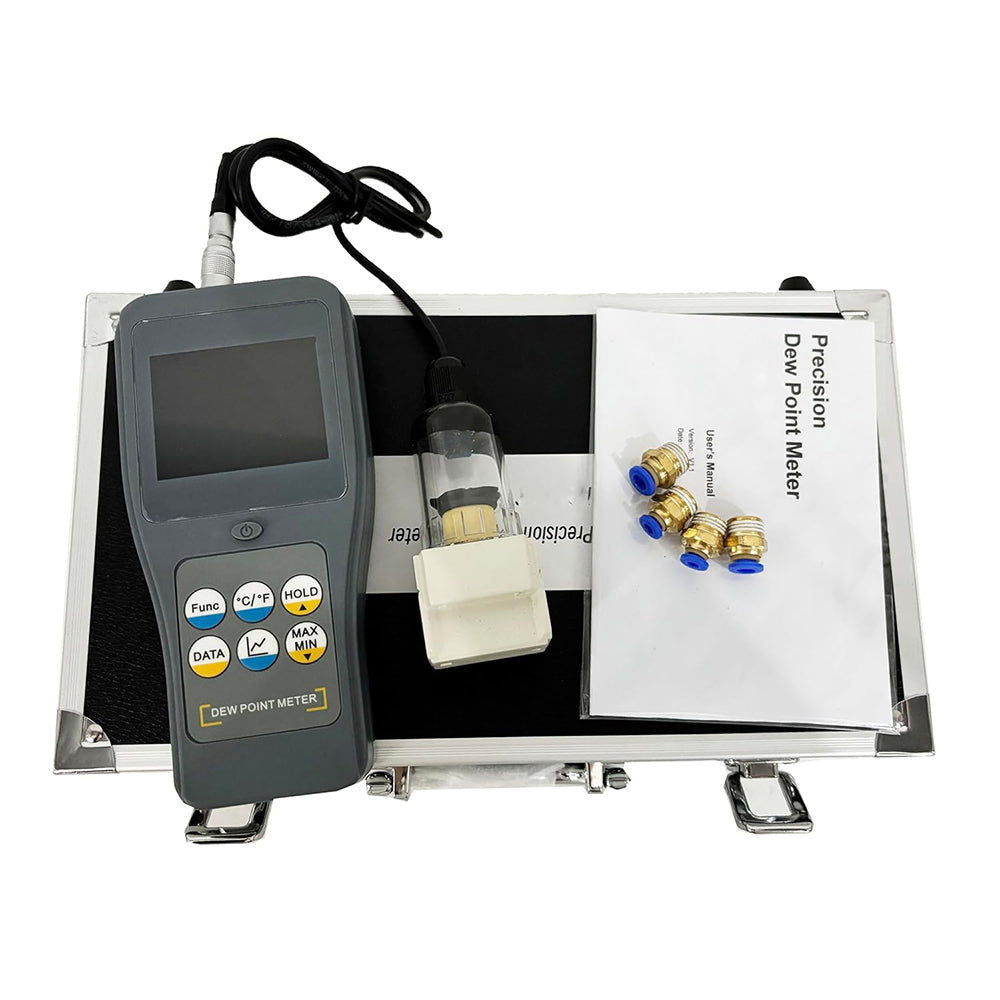

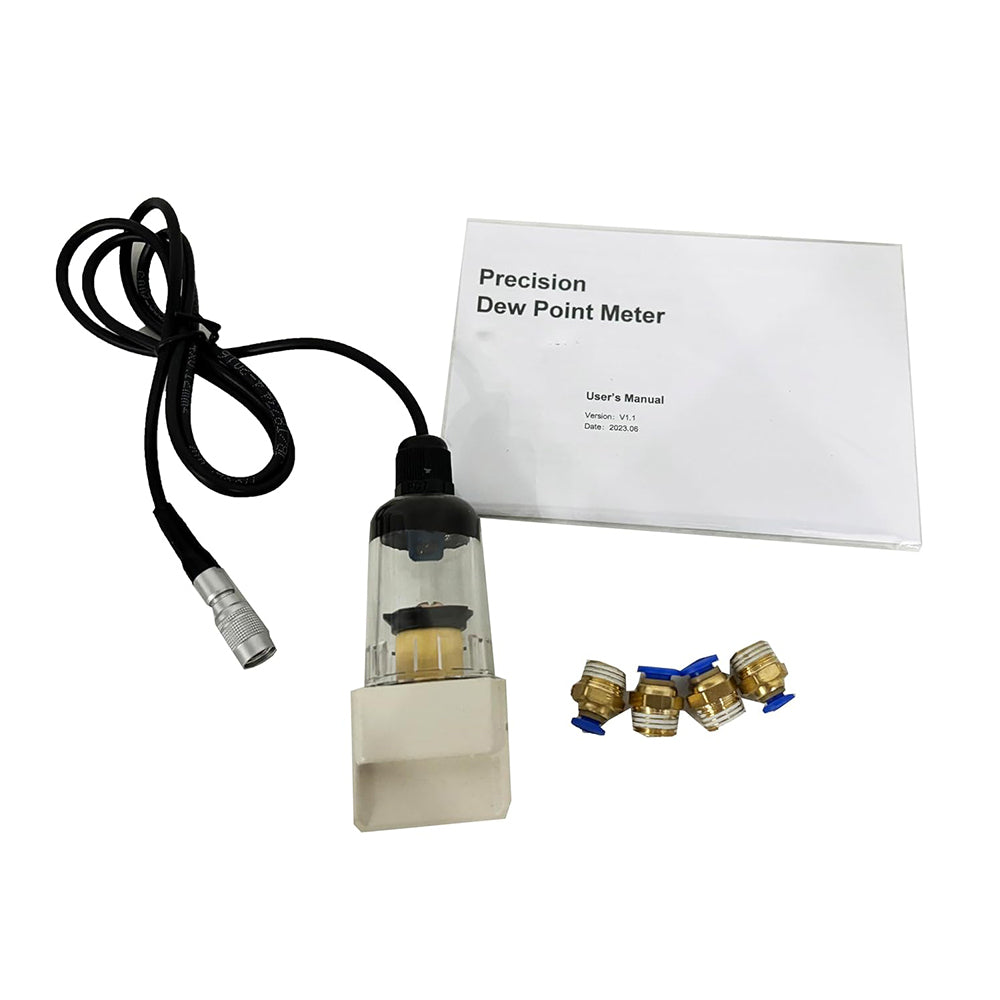

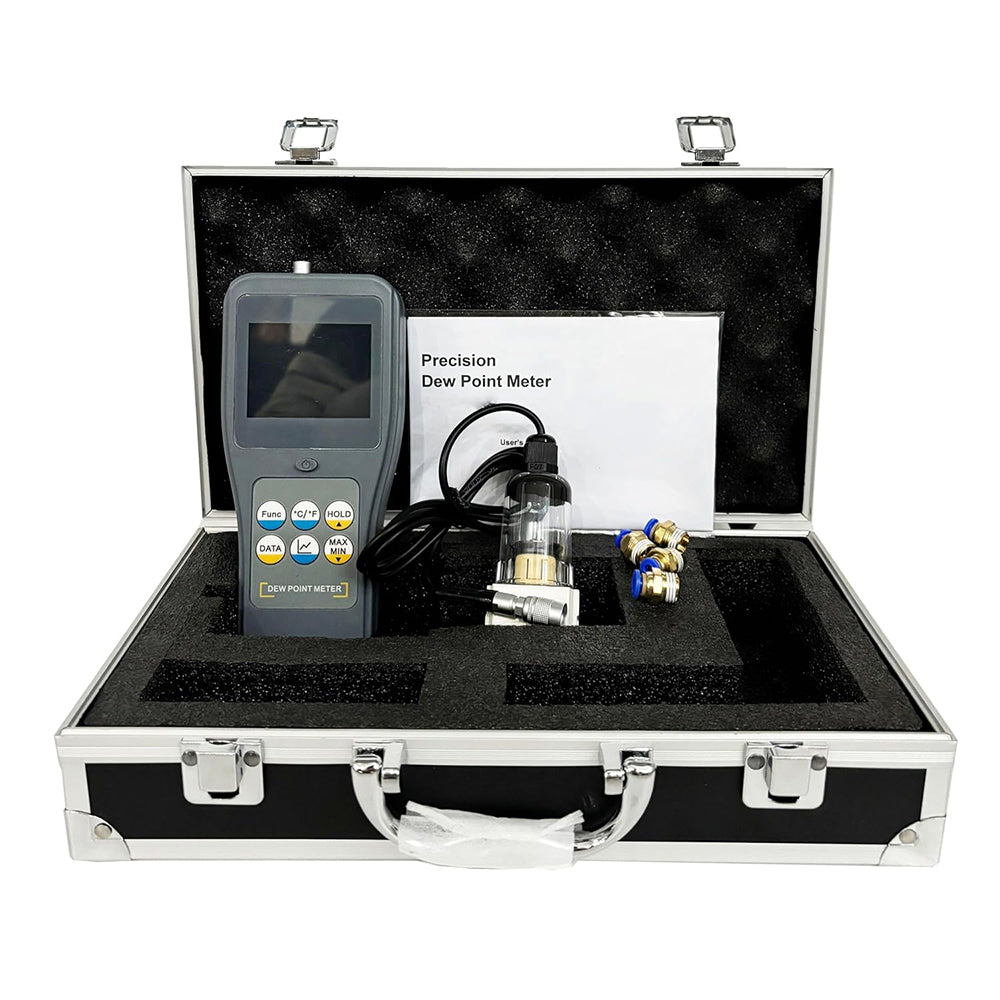

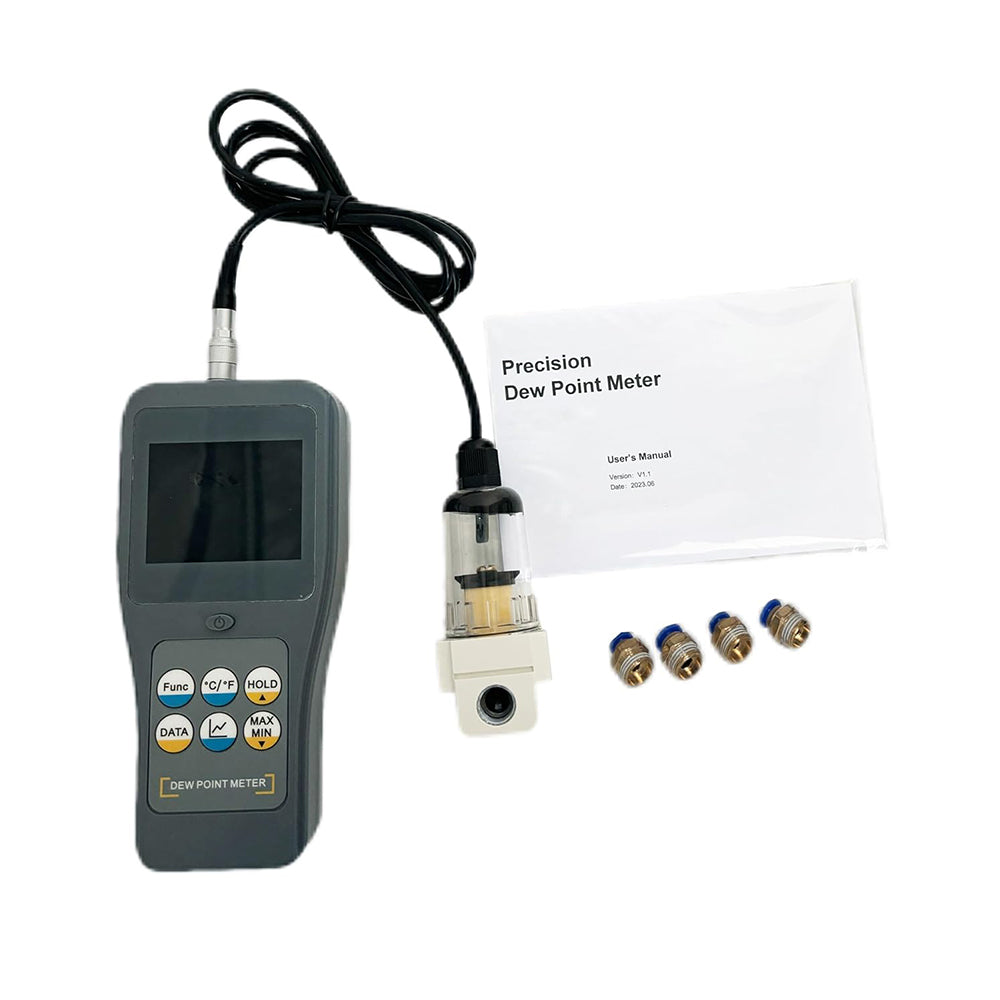

Standard Accessories:Main Unit ×1;Manual ×1;DP10 Separate Sensor ×1;Carrying Case ×1
