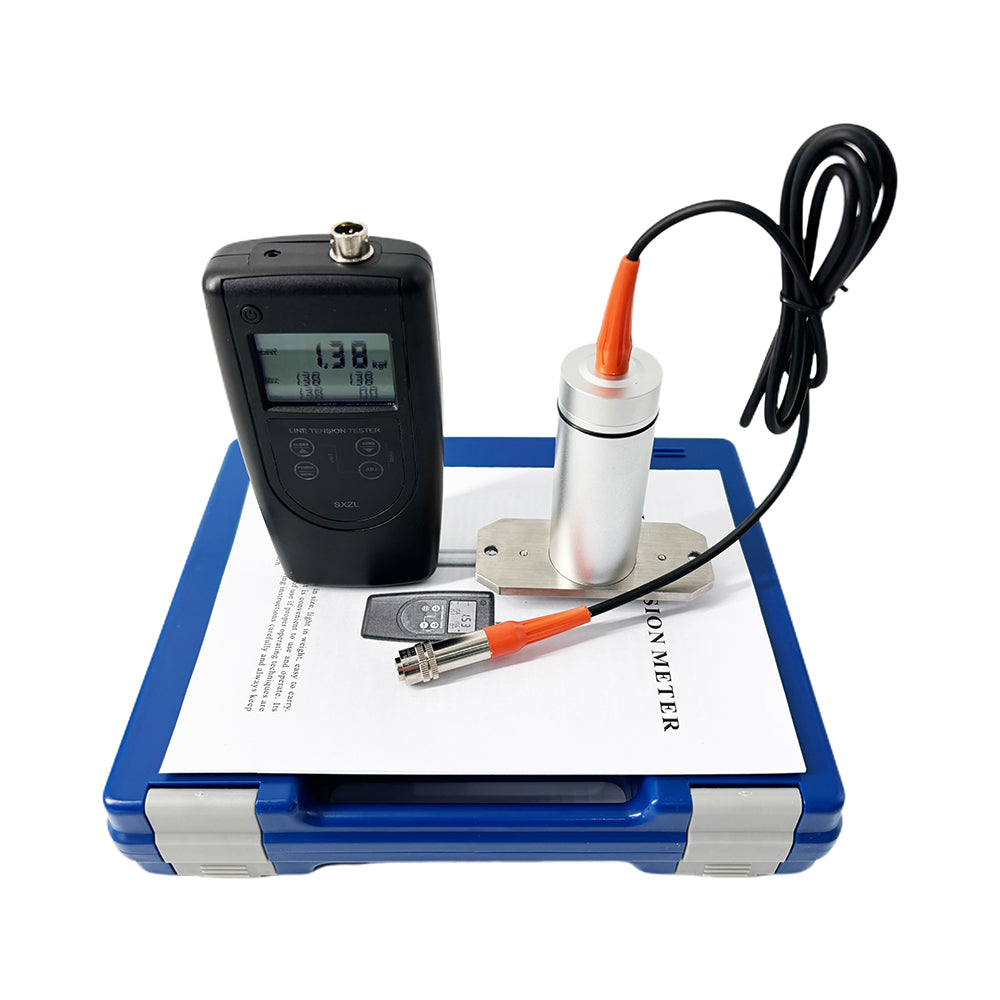

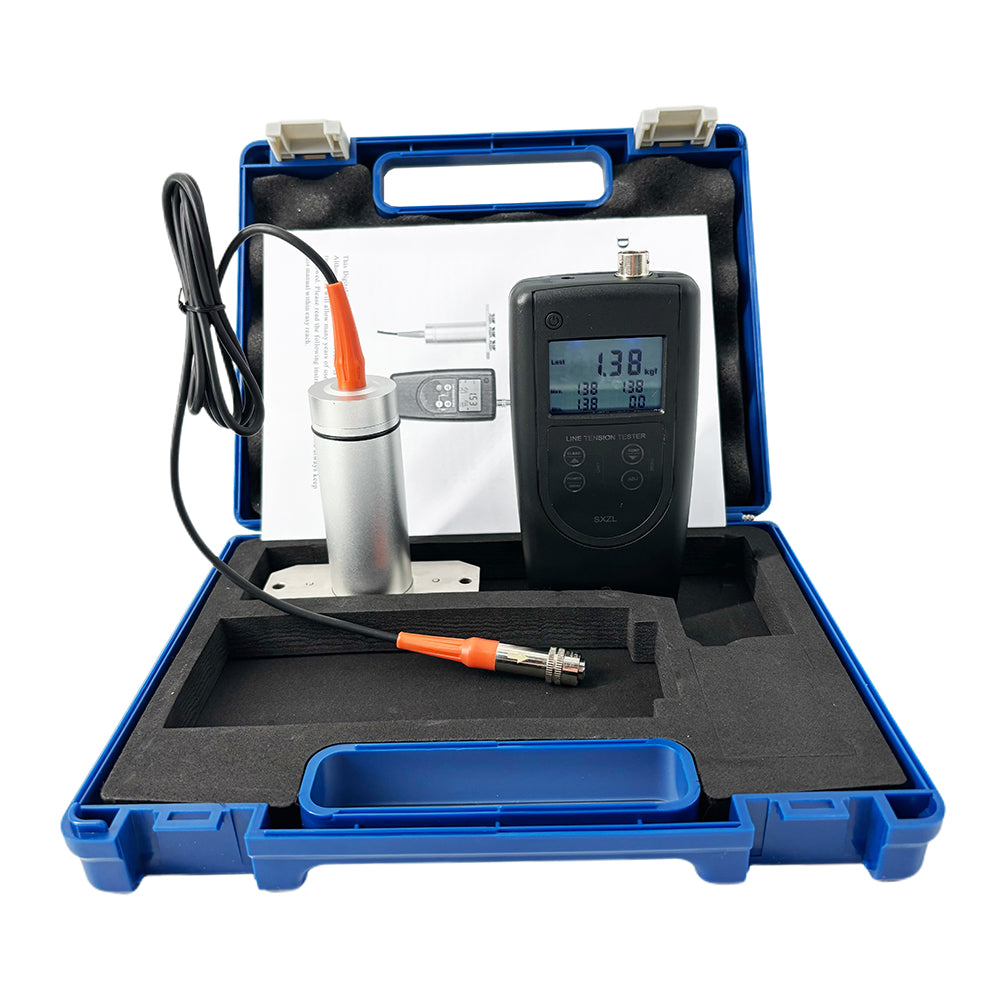

VTSYIQI Digital Line Tension Gauge Tester Meter with 4 Measurement Unit Kgf gf N Lbf Tension Range 0~2.0kgf; 0~2000gf; 0~19.6N; 0~4.4Lbf Resolution 0.001kgf; 1gf; 0.001N; 0.001Lbf for Testing Yarns Fibers Wires Optical Fibe

$57200
In stock
$57200

Introduction:

* The Digital Tension Meter is a hand-held device which accurately measures the running as well as statictensions of a wide variety of process materials including yarns, fibers, wires, optical fibe

Specifications:

* Tension Range: 0~2.0kgf; 0~2000gf; 0~19.6N; 0~4.4Lbf

* Resolution: 0.001kgf; 1gf; 0.001N; 0.001Lbf;

* Accuracy: ±1.5% or better

* Unit: Kgf , gf , N , Lbf

* Measuring Principle: Strain gauge

* Measuring Frequency: 16 msec (62.5 samples / sec)

* Sensing Roller: Deflection of Sensing Roller ( max. ) 0.2 mm

* Overload Capacity: 150 % of Full Scale

* Temperature Coefficient: Zero : less than ±0.3% FS/ °C; Span : less than ±0.01% FS/ °C

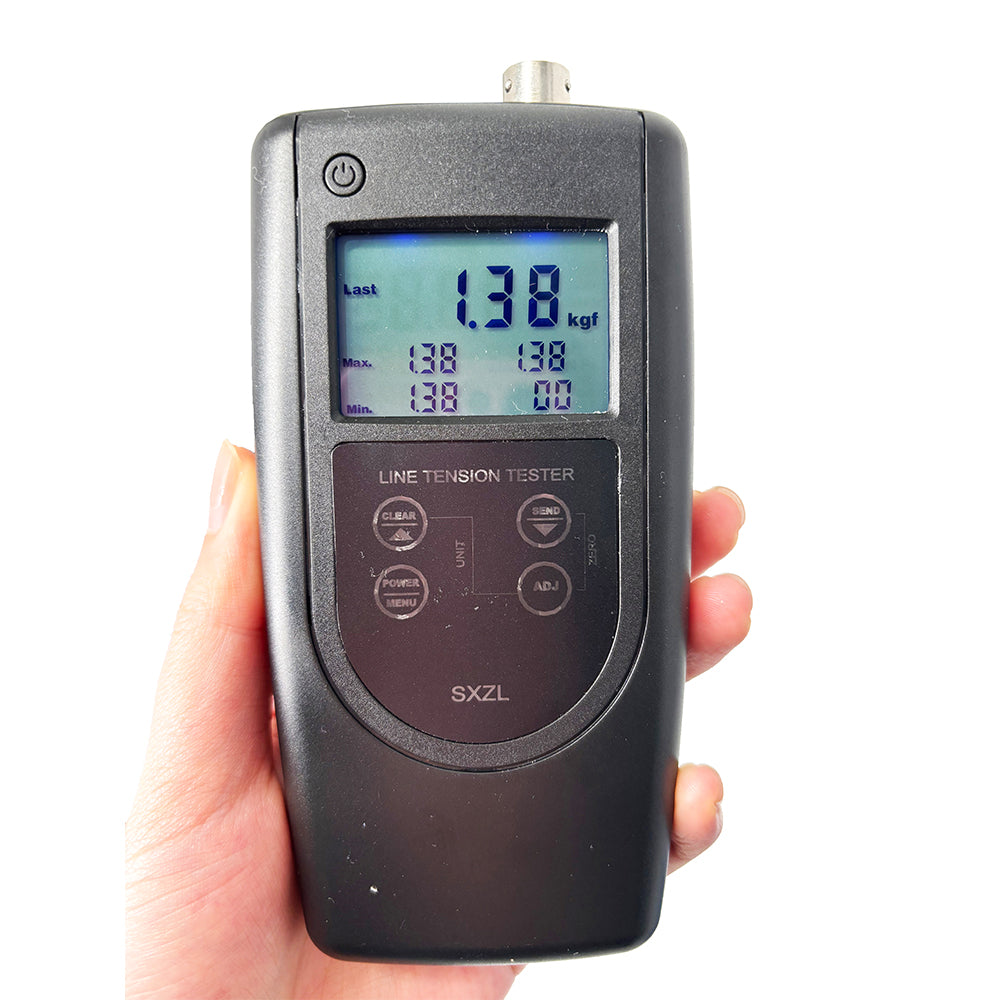

* Display: Blue Back light LCD

* Display Update Rate: 0.5 , 1.0 , 2.0 or 4.0 seconds , selectable

* Memory System: Current Value , Max. Value , Peak Value , Min Value

* Overrange Indicator: Buzzer Alarm

* Power Off: 10 Minutes Auto , Manual

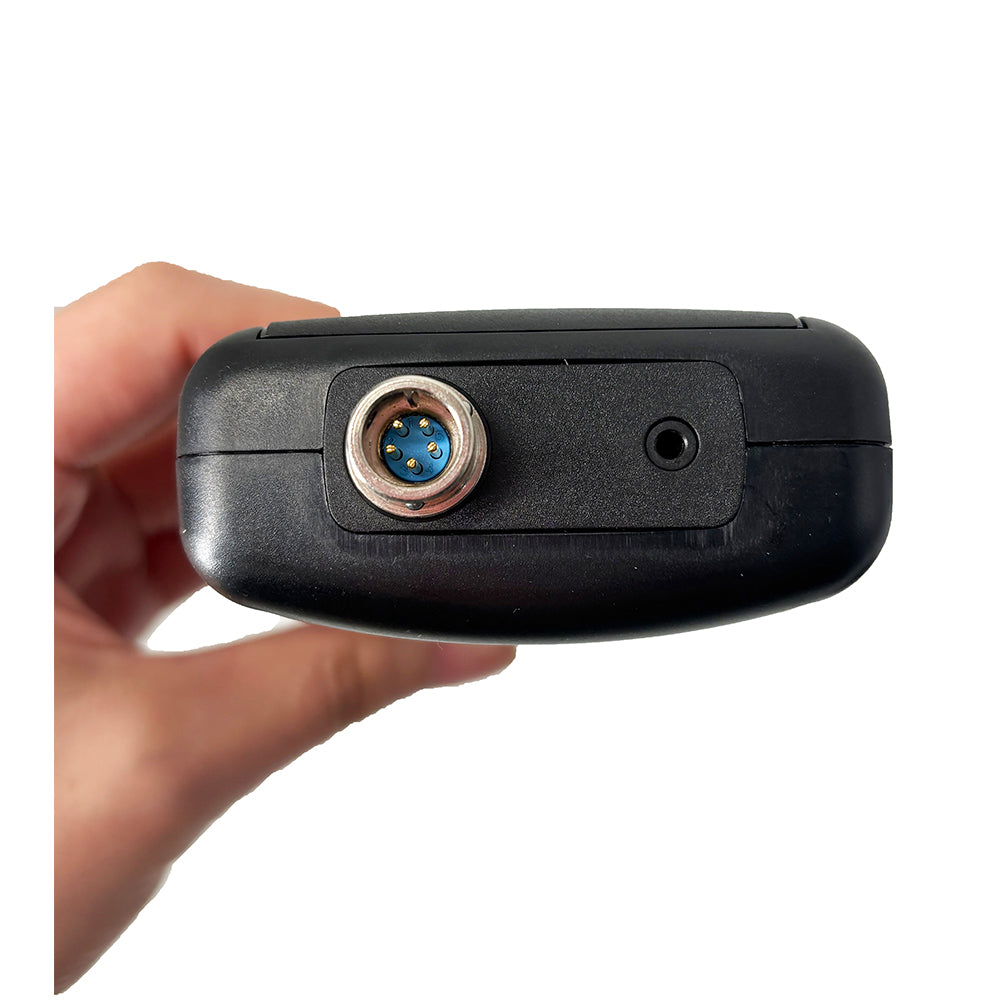

* Data Output: USB ,

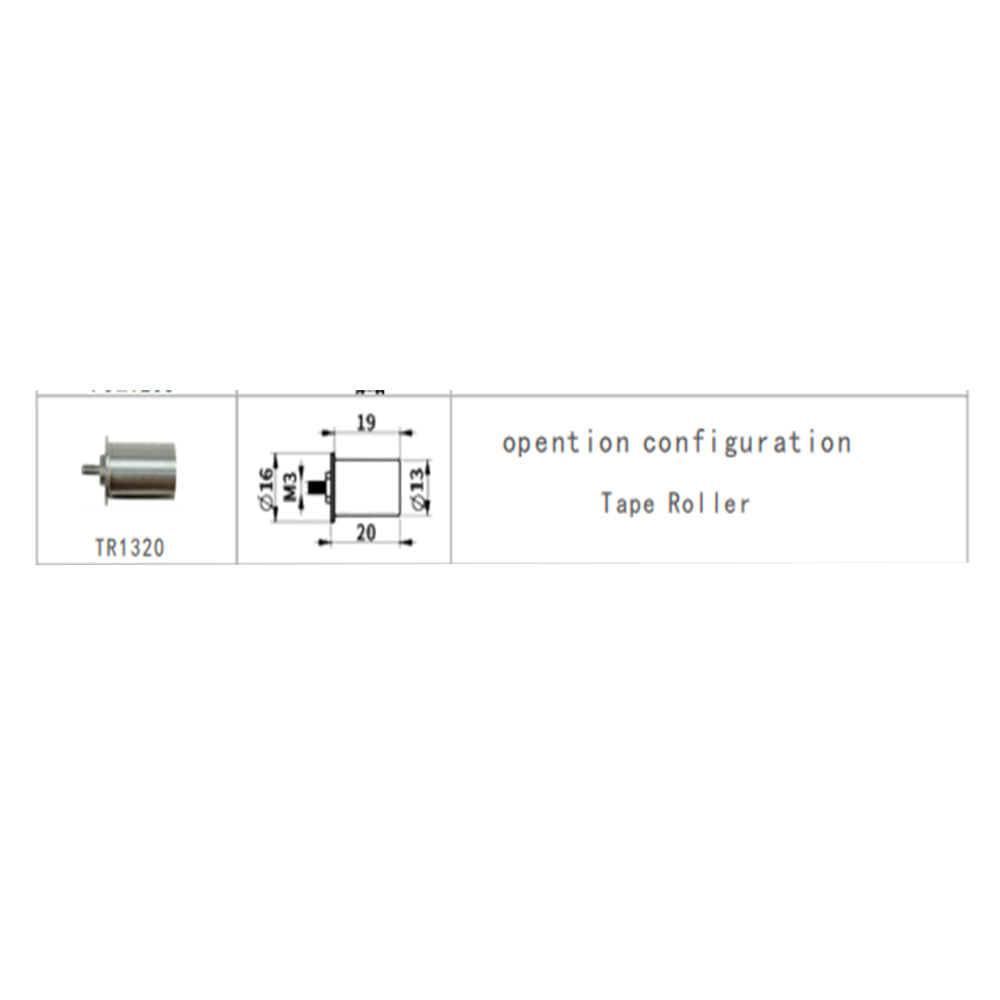

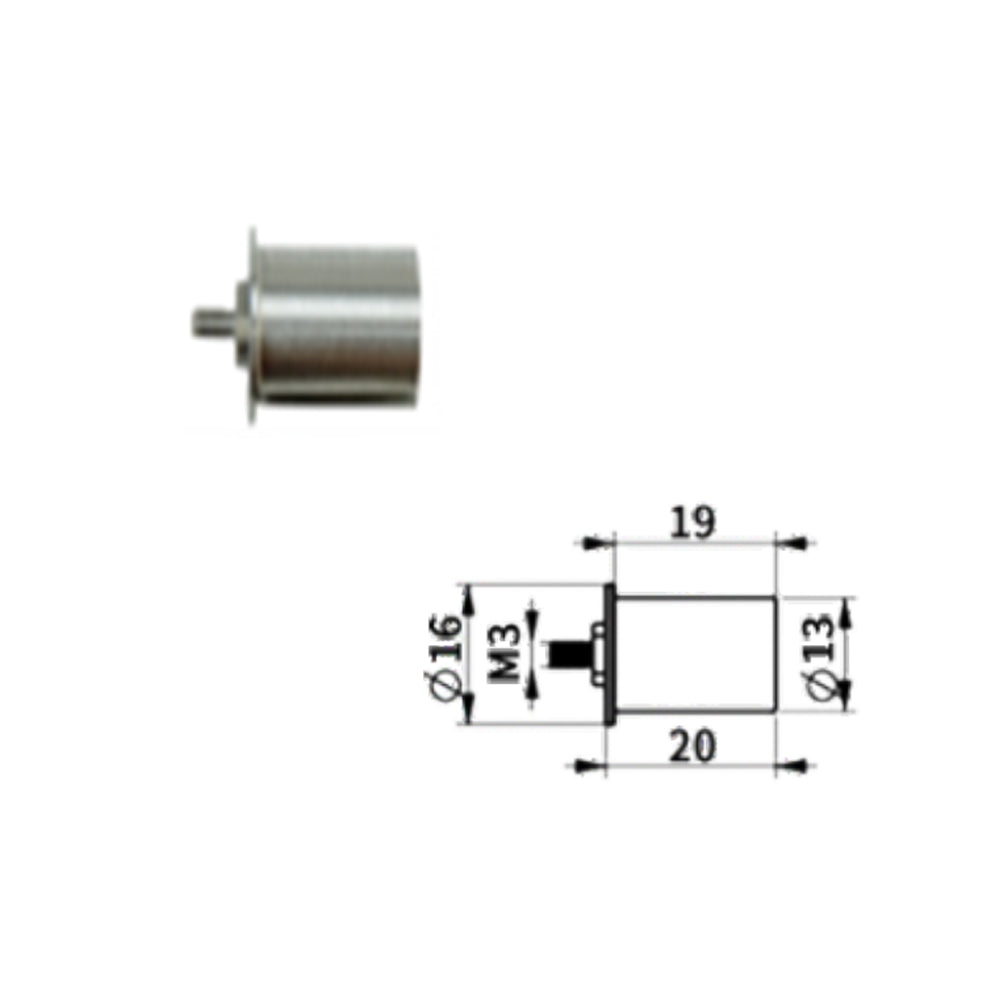

* Roller Material: Stainless Steel ( Standard ); Plastic ( Optional )

* Maximum Speed: 2000 m/min

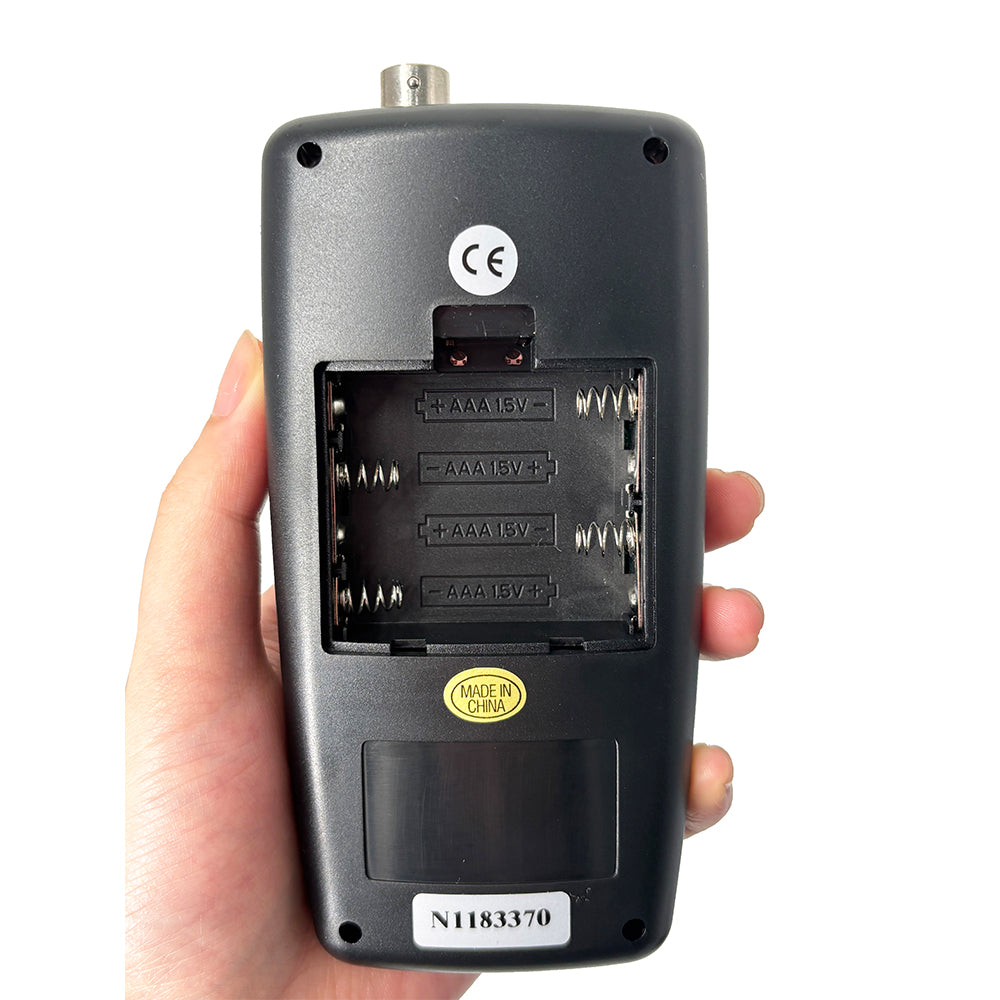

* Power Supply: 4 x 1.5 AAA( UM-4 ) Battery（Battery not included in the package）

* Operation Temperature: 0 ~ 40 C; Operation Humidity: < 80 %* Weight: 400 g

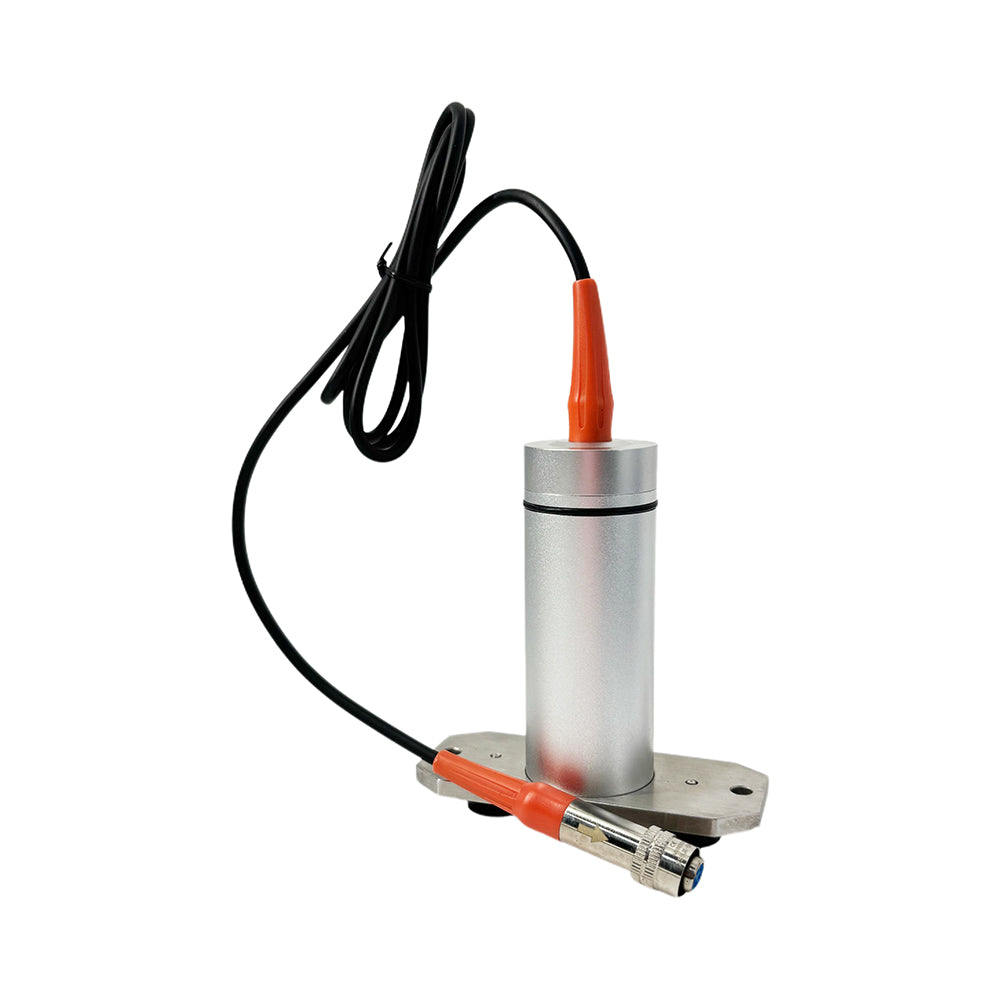

* Size: Main Unit : 149 x 70 x 30 mm; Sensor : 102 x 81 x 34 mm

* Optional Accessories: Bluetooth Output adapter.
