VTSYIQI Digital Paper Moisture Meter Digital Contact Type Paper Moisture Tester with LCD Display LED Indicator Measurement Range 0%~100% (Cd11) 0%~40% (Cd12) 0% to 50% (Cd08) 0%~18% (Cd10) Memory 240 Groups

About this item

◆ It is mainly used for moisture measurement of paper; This instrument has a variety of measurement codes for users to choose from different materials. By selecting different codes, the measurement results are more accurate.

◆ Sensor Type: Contact Type; With storage and statistical functions. Can store 240 groups of measurements.

◆ Accuracy: ±(0.5%n+1); The Statistics Available: Last value / Mean value / Max. value / Min. value / Number of Readings

◆ Digital display gives exact reading with no guessing or errors while a colour coded light (LED) indicates the moisture condition of the material. This combined presentation of moisture measurement helps the user to map the extent of problems and monitor changes in condition precisely and reliably.

◆ This instrument uses contact measurement. The moisture of the measured objects is measured by measuring the electrical conductivity between two electrodes.

Product application:

This instrument uses contact measurement. By measuring the electrical conductivity between the two measuring electrodes, the moisture of the measured object is measured.

Product features

* With automatic switch-off function.

* 240 data sets can be stored.

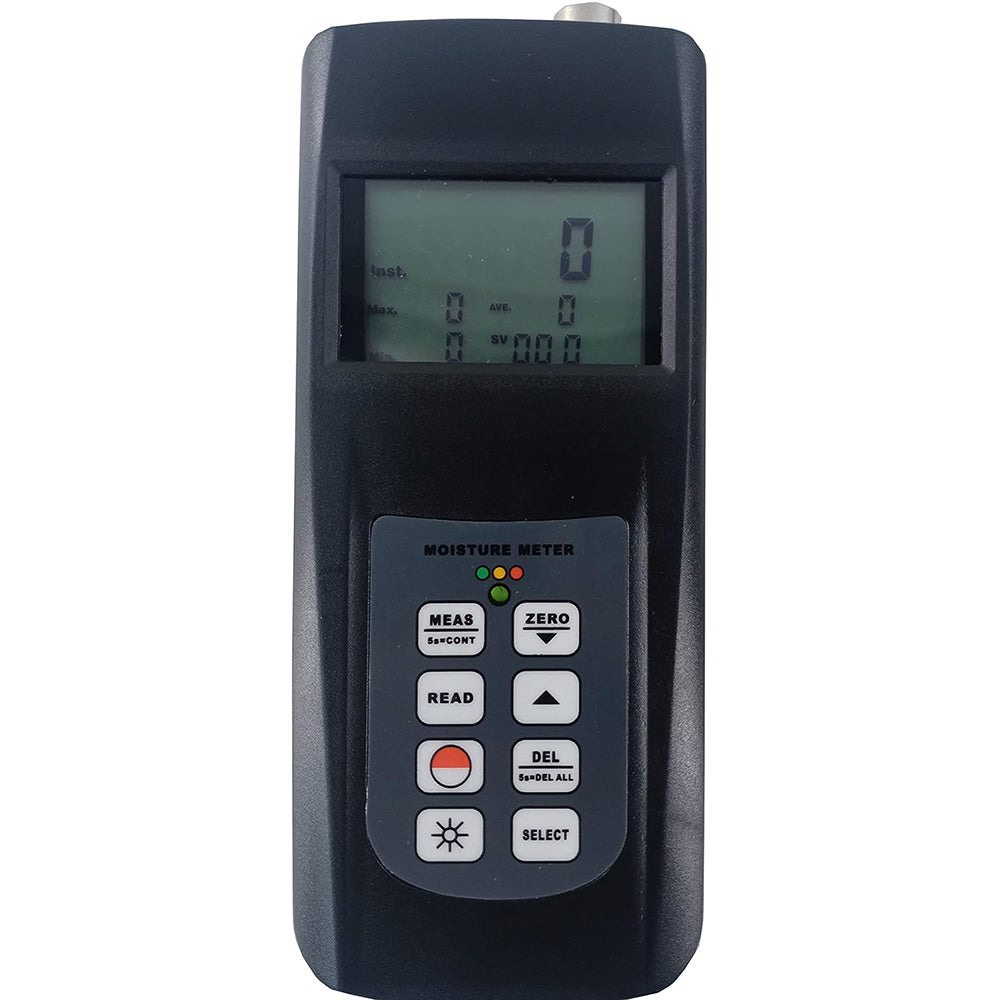

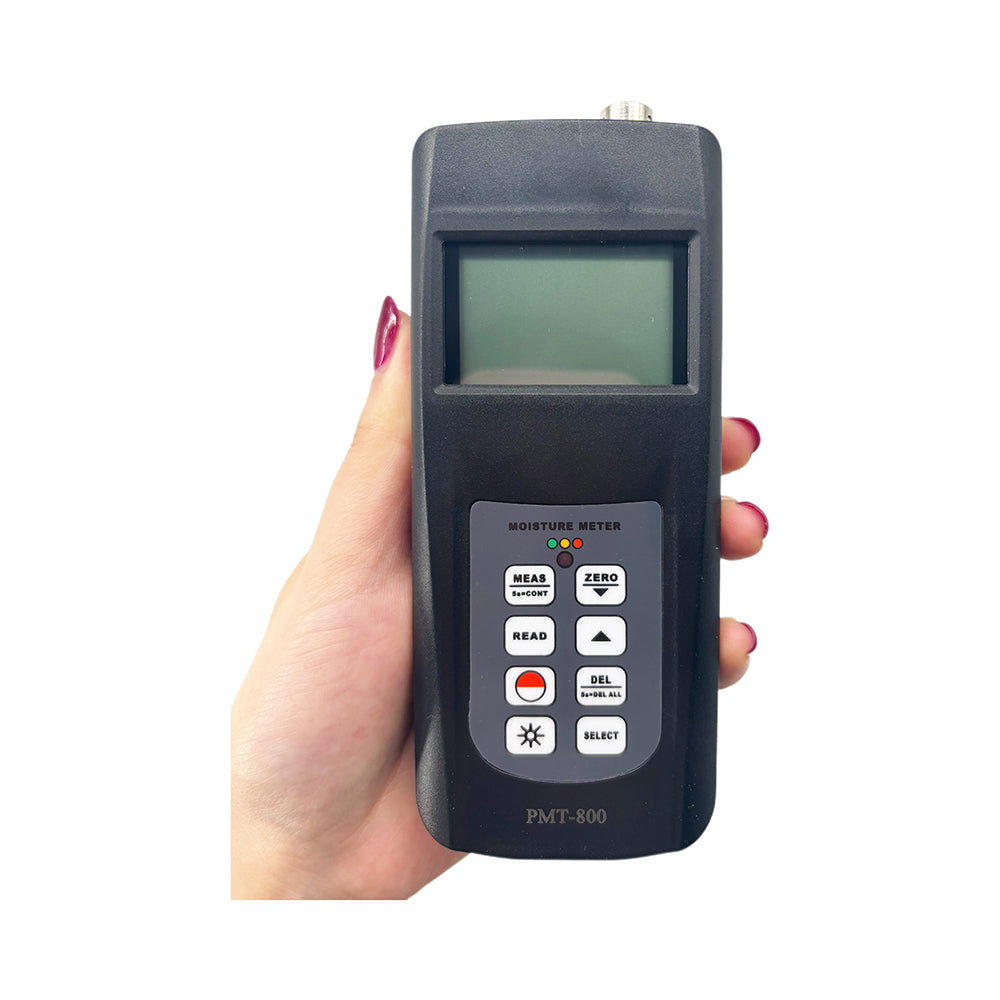

* Two types of display, digital display on LCD and status indication by LED tube.

* Communication with PC using "USB data cable output".

Technical specifications

Sensor type: Contact type

Measurement range:

0% to 50% (Cd08)

0%~18% (Cd10)

0%~100% (Cd11)

0%~40% (Cd12)

Accuracy: ±(0.5%n+1)

Resolution : 0.1%

Display: LCD display

LED Indicator:

Green light indicates safe moisture condition

Yellow light indicates critical moisture condition

Red light for moist moisture

Statistical functions: average value, max value, mac value, number of measurements and number of statistics

Memory function: 240 sets of data

Operating environment: temperature 0ºC~50ºC, humidity <90%RH

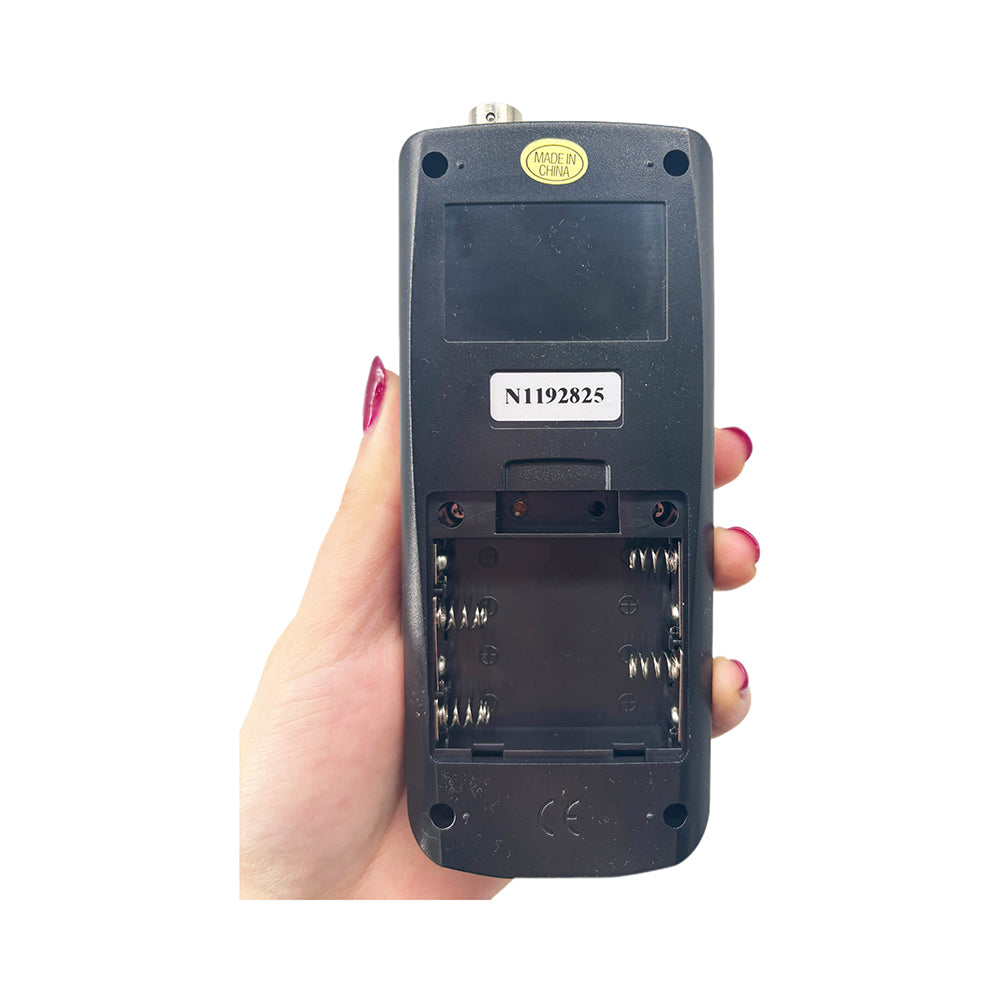

Power supply: 4 x 7 batteries (batteries not included in transit)

Dimensions

Main unit: 150x65x30mm

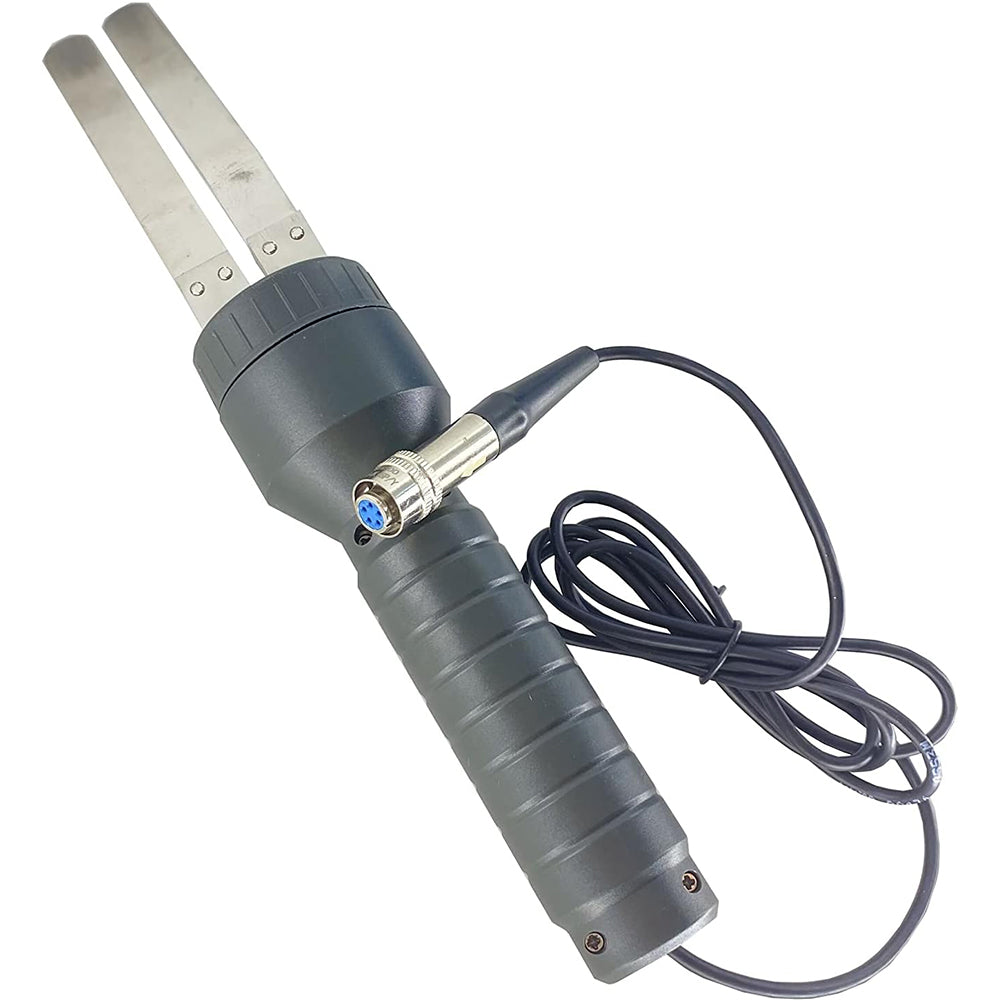

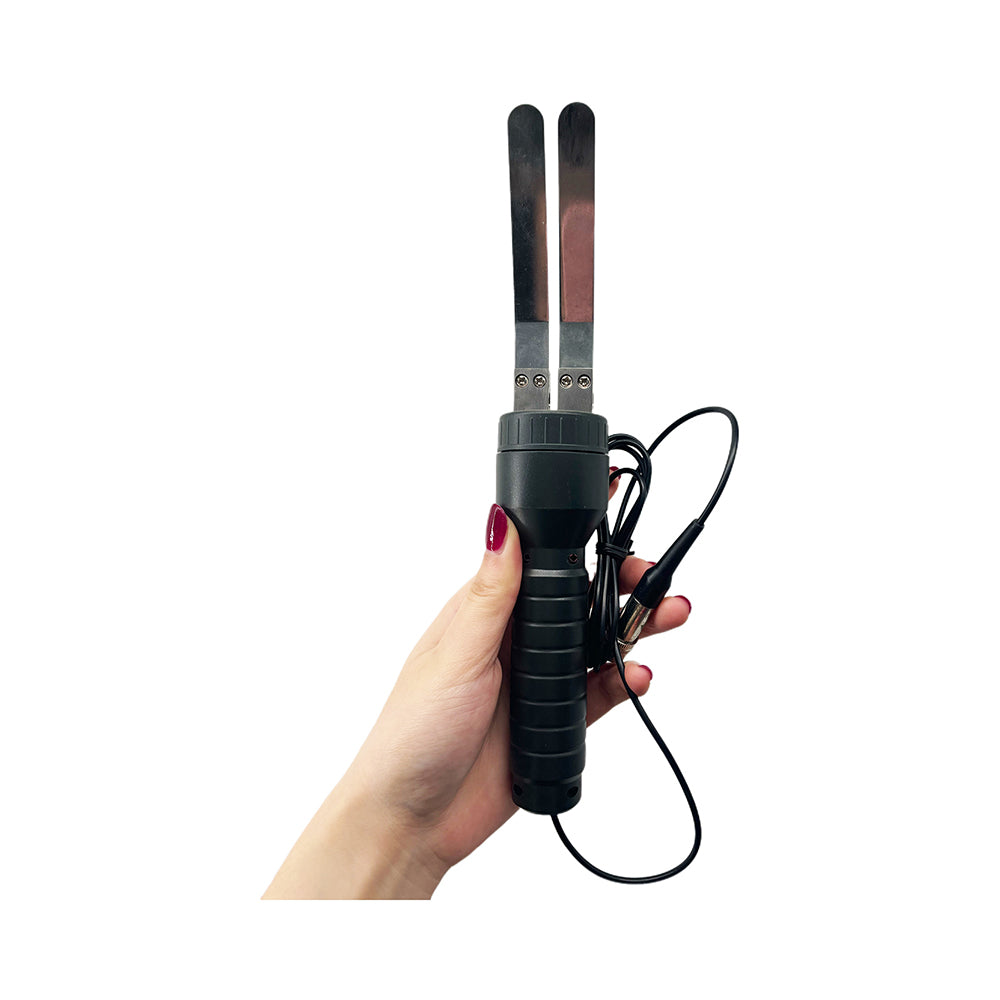

Sensor: 265mmx44mmx44mm

Measuring electrode length: 77mm

Measuring electrode cross section size: 14mmx1mm

Distance between measuring electrodes: 4mm

Weight (without battery): 295g

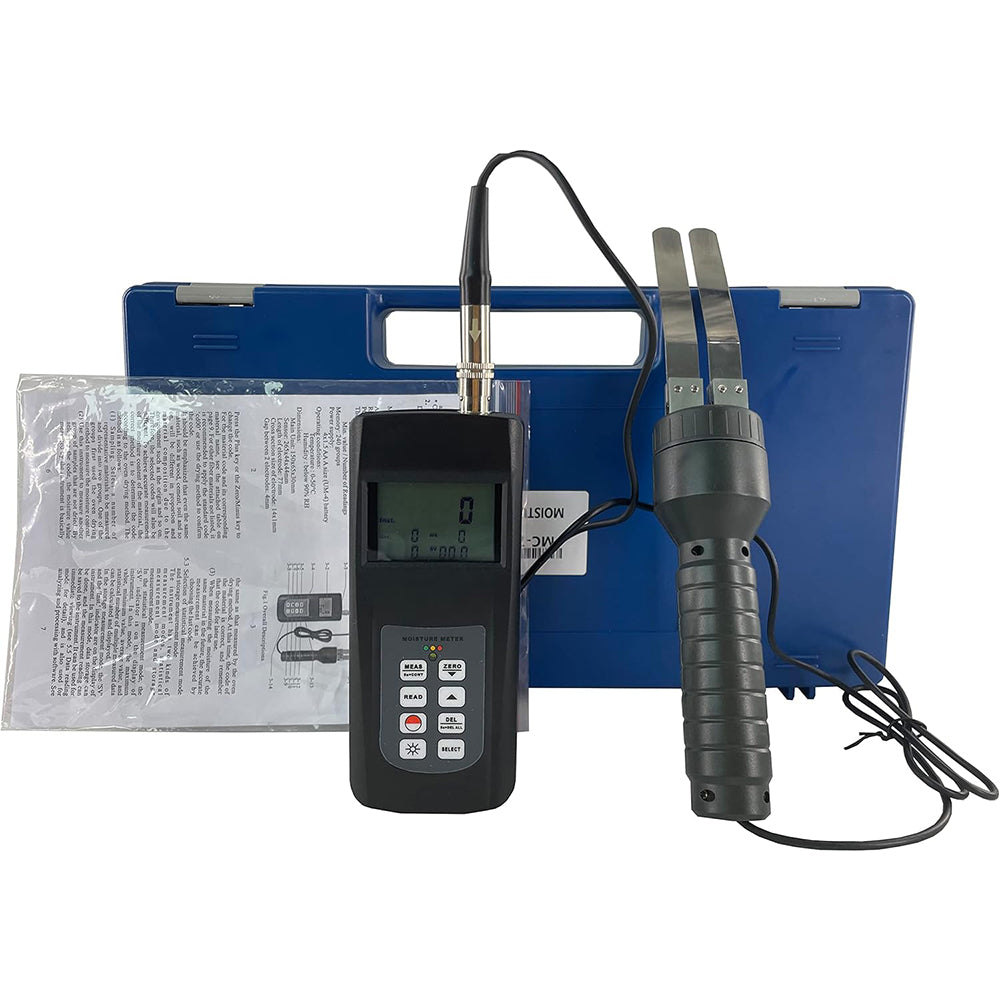

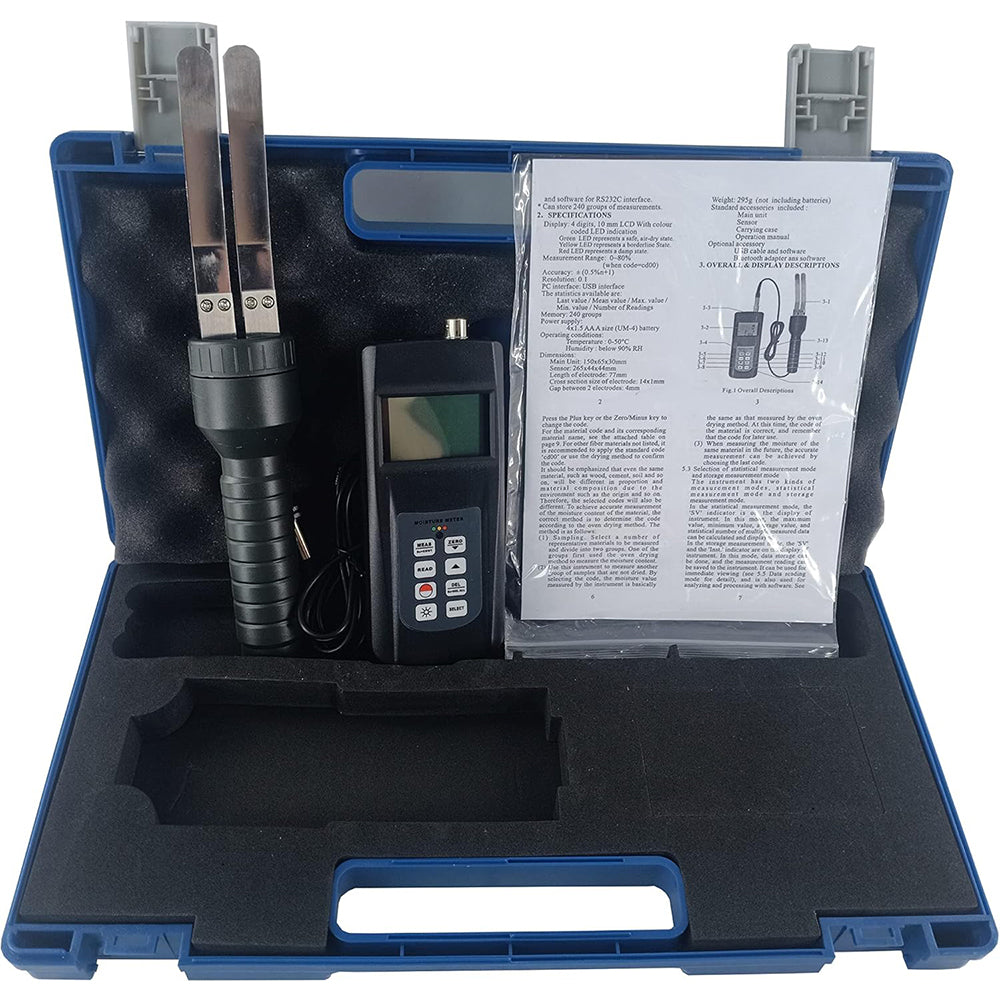

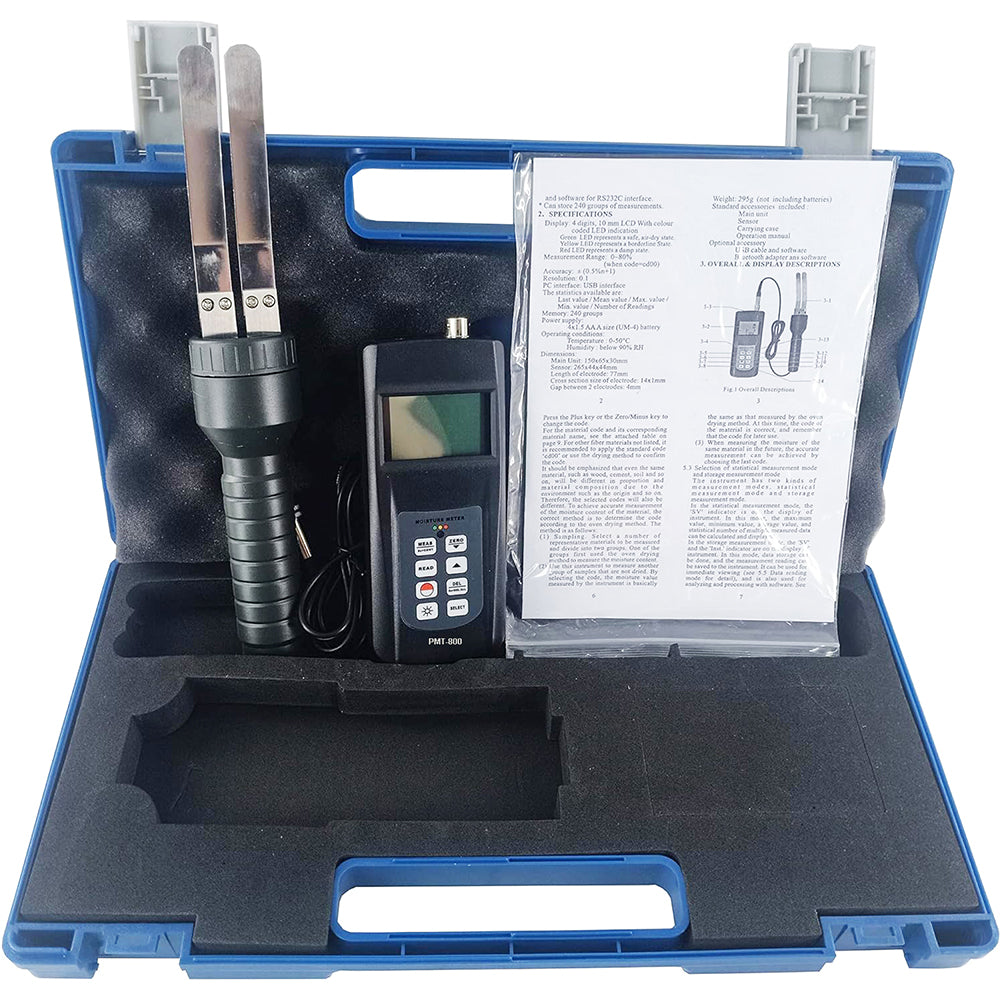

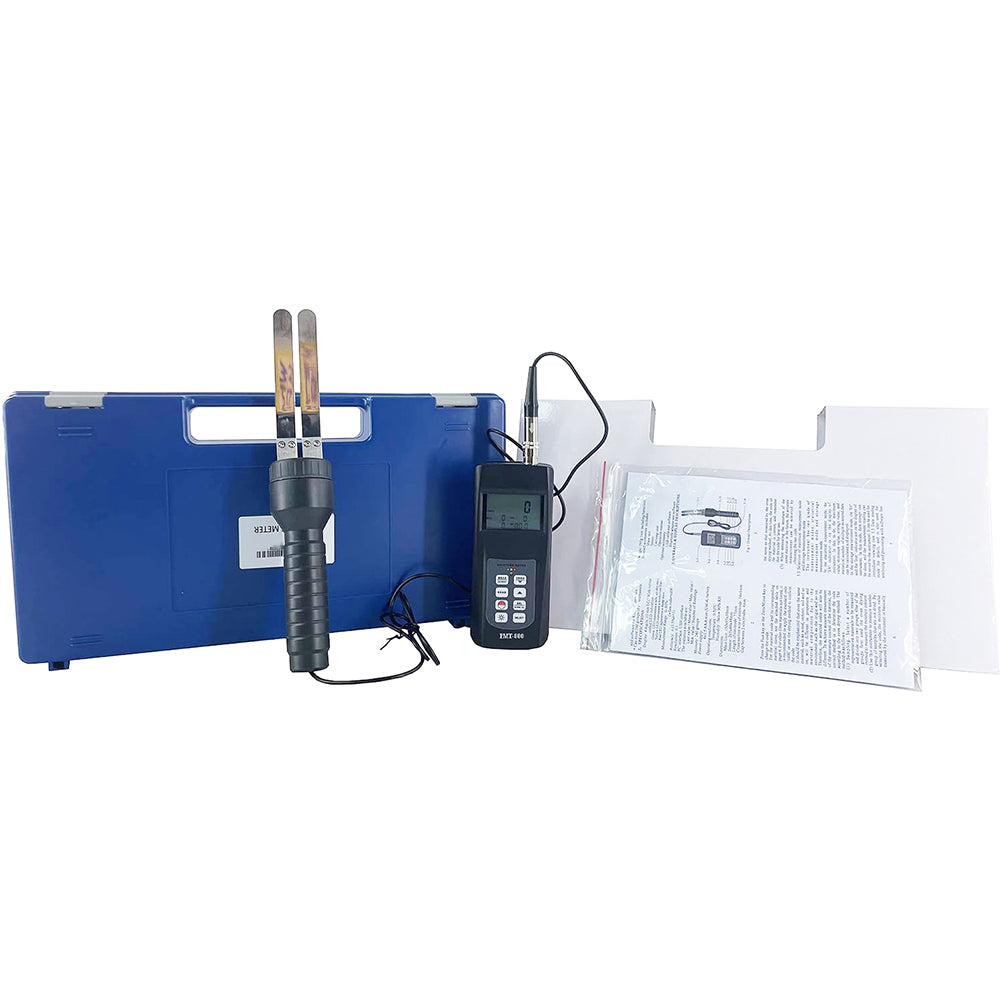

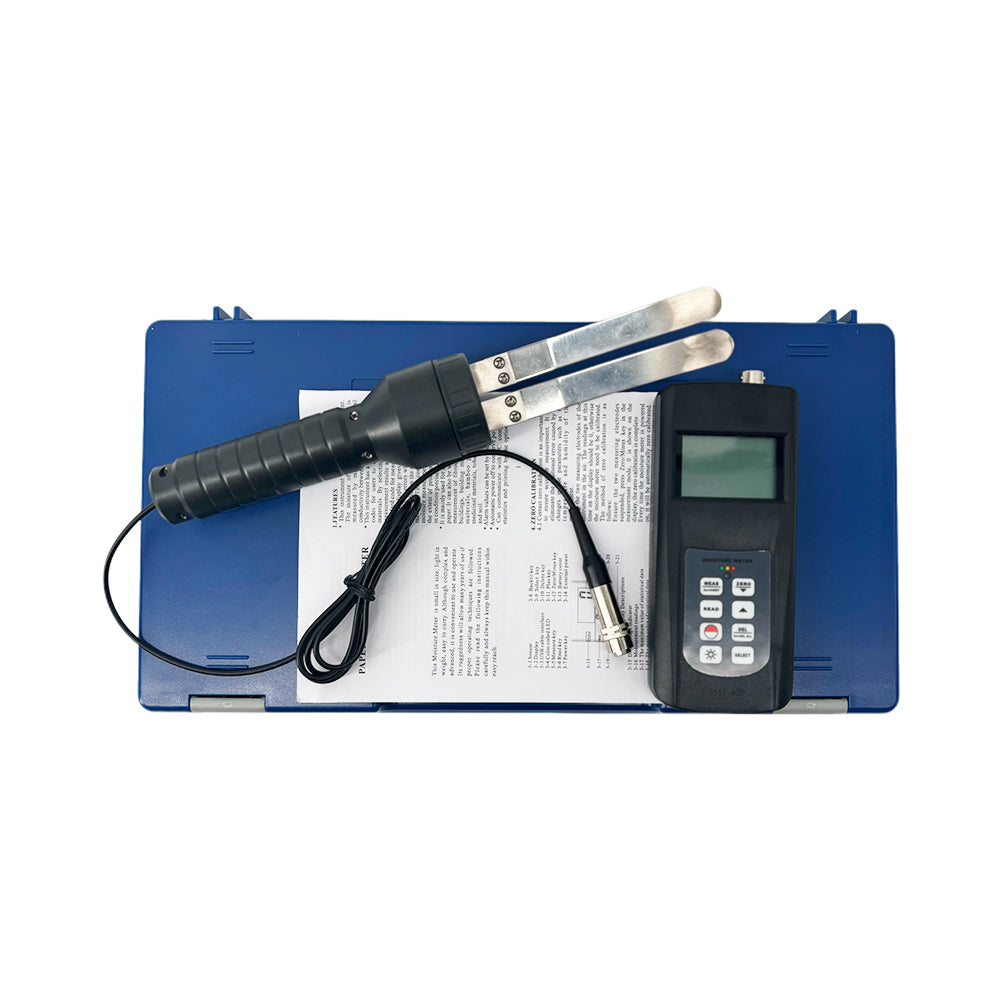

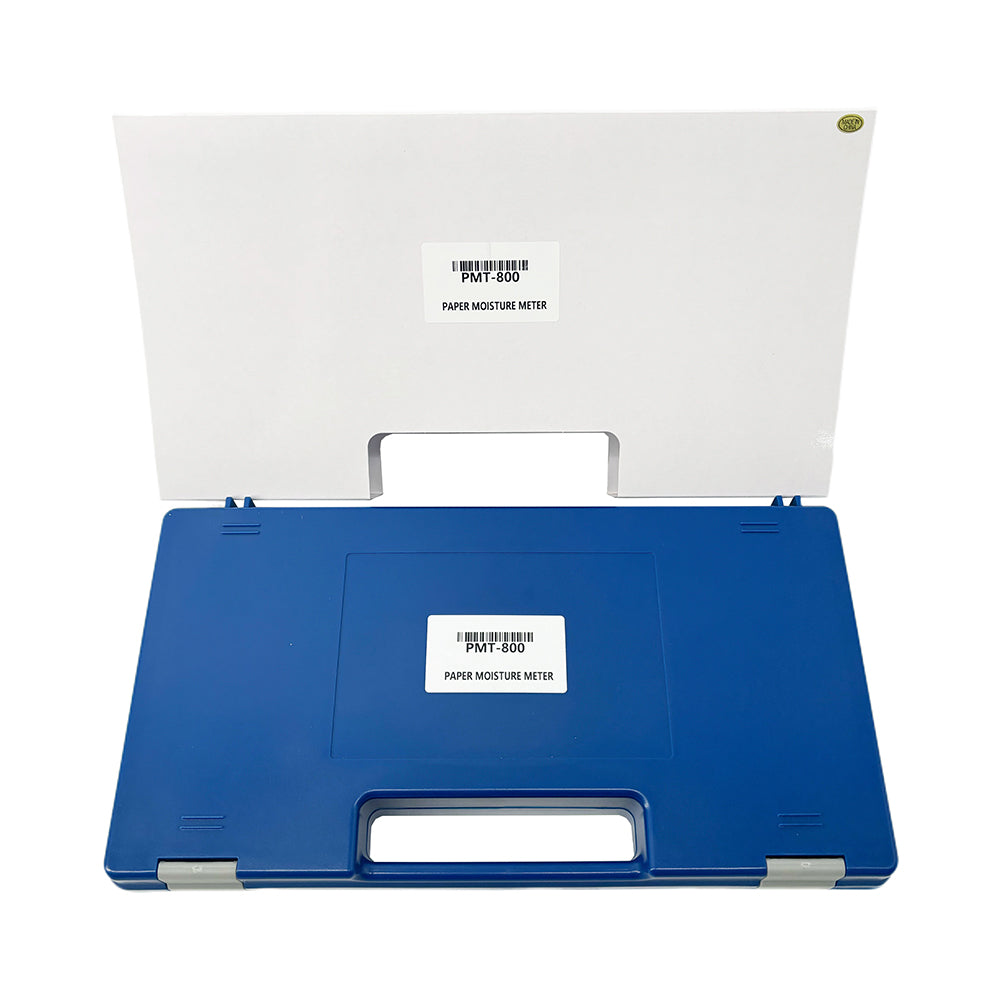

Standard equipment: main unit, sensor, carrying case (B04), operating instructions
