  • VTSYIQI Digital Portable Ultrasonic Liquid Flow Meter Flowmeter With Transducer DN25 to 100mm 0.59-3.93in

VTSYIQI

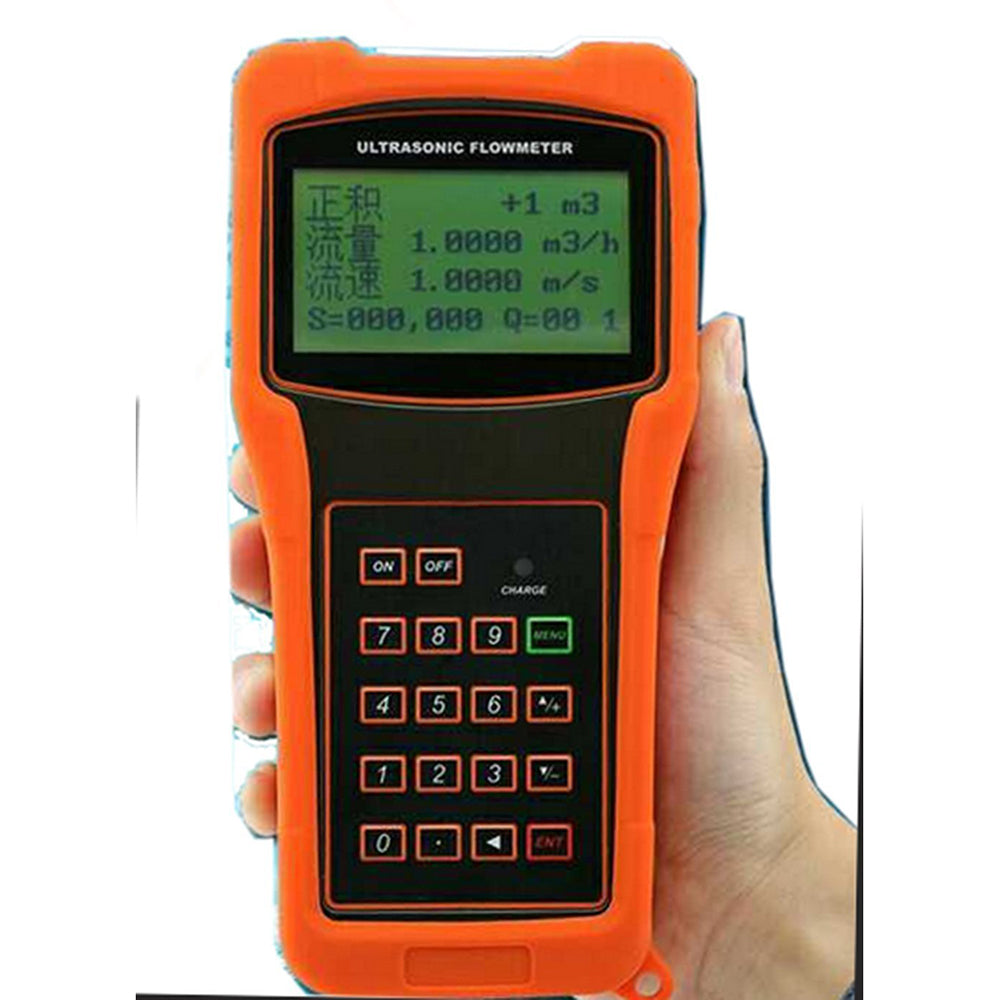

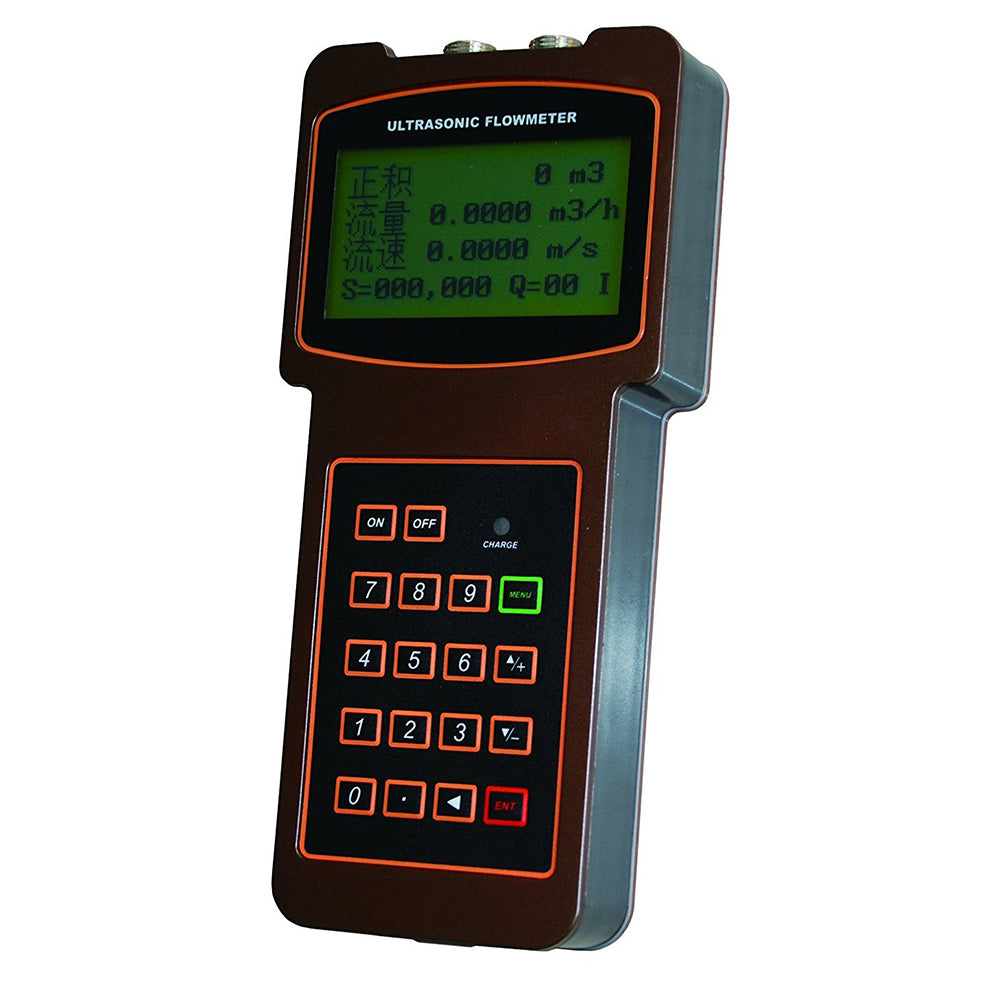

VTSYIQI Digital Portable Ultrasonic Liquid Flow Meter Flowmeter With Transducer DN25 to 100mm 0.59-3.93in

$1,04400
In stock
$1,04400

Customer Service

Post your customer service details here.

Return Policy

Post your policy conditions details here.



Since the couplant is liquid, Shipping Policy : Liquid not Included During the Shipping. It's suggest you use silica instead.

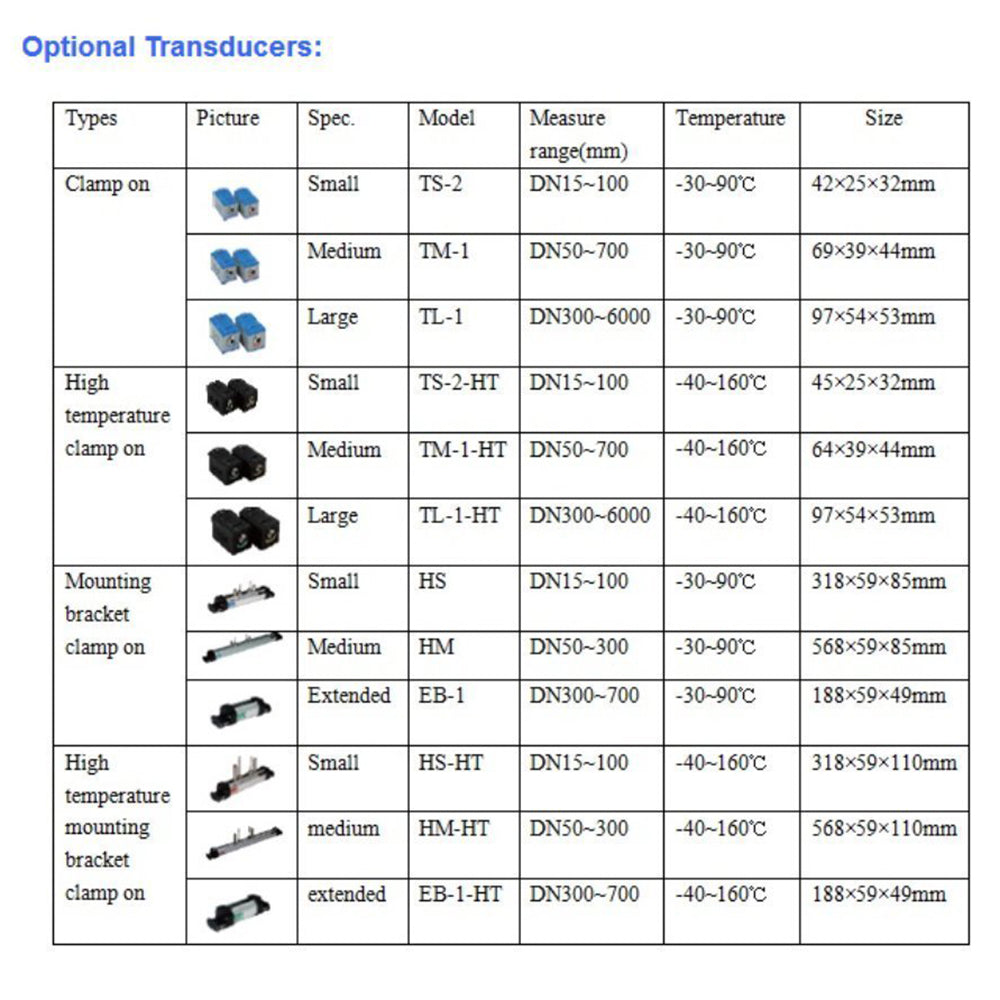

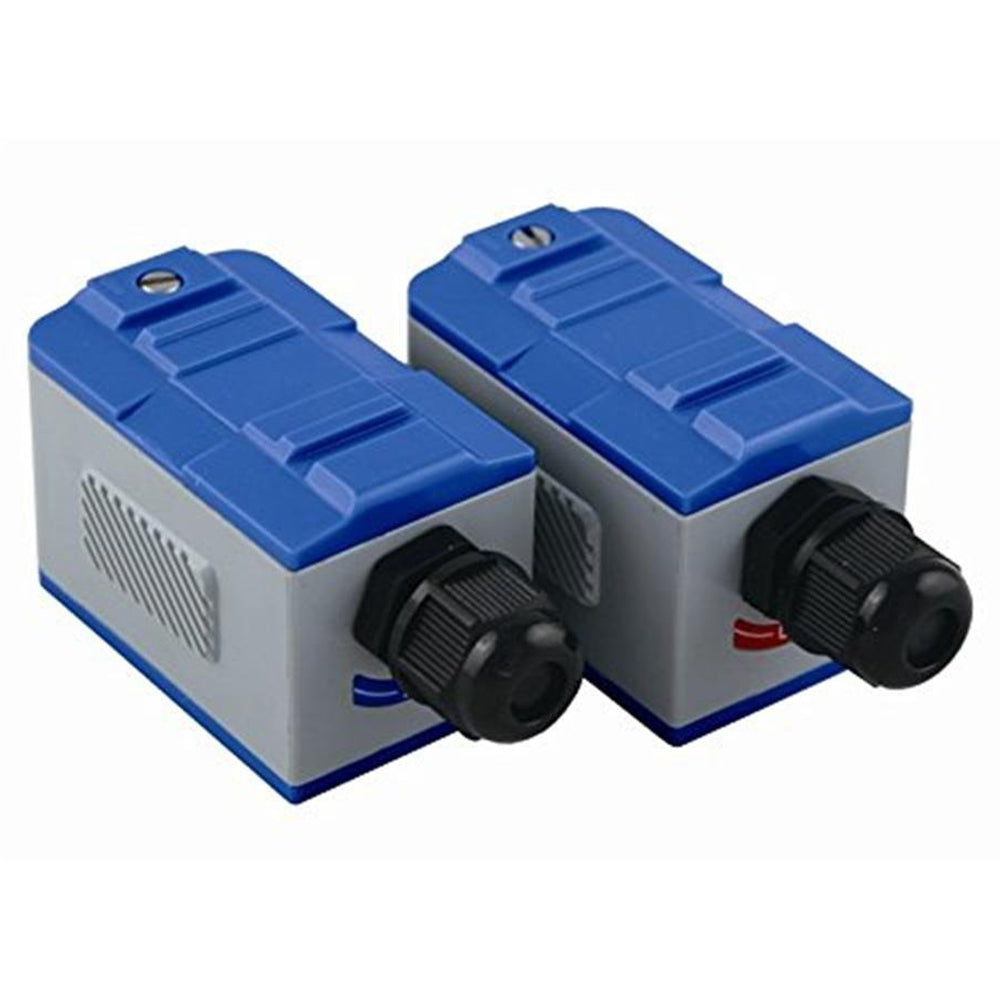

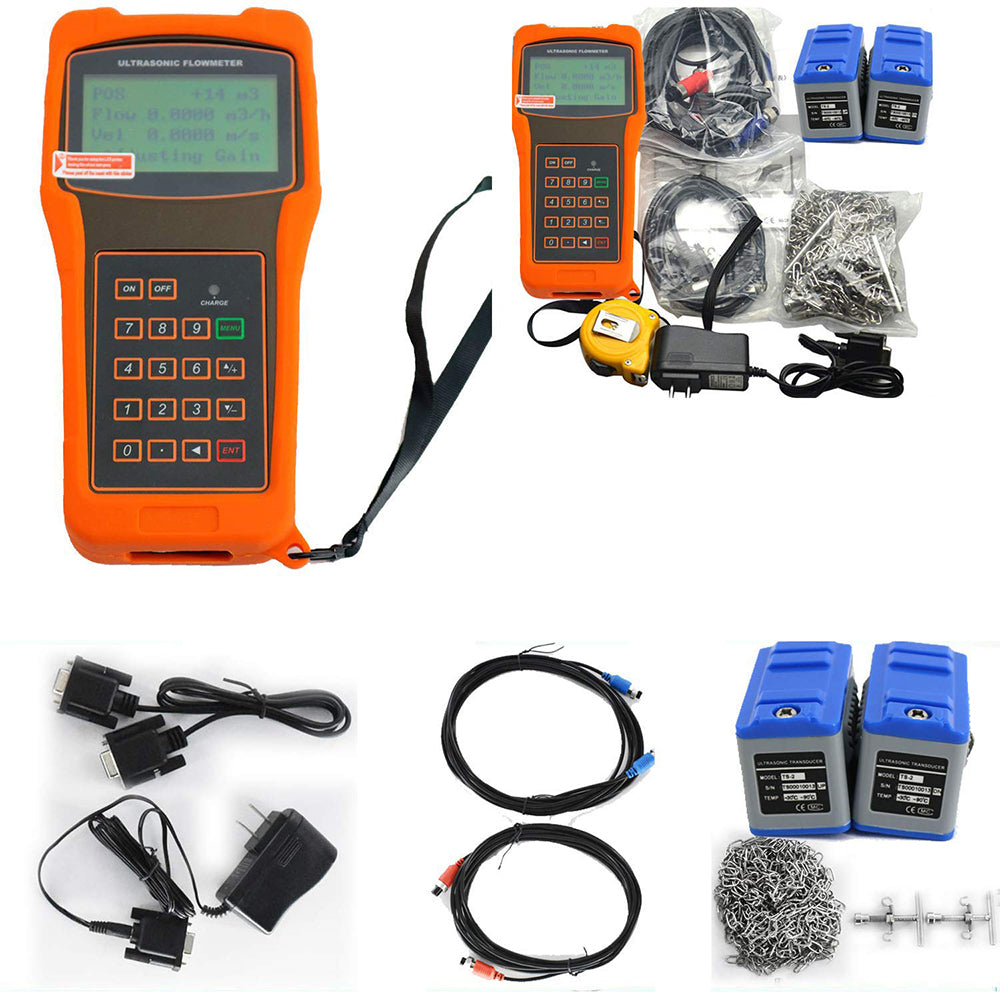

This type TUF-2000H comes with Clamp-on Standard Small Transducer TS-2 (size: 45*25*28mm) for Pipe Diameter DN25~100mm, Temperature : -30~90C

Feature:

1)High Accuracy measuring: Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy: better than ±1%

2)Non-intrusive measuring: Non-intrusive, clamp-on transducer, no pressure drop, no pipe disturbance.

3)Built-in data logger: Built-in 24K data logger, store over 2000 lines measuring data

Technical Specifications:

Main unit

Principle: transit-time ultrasonic flowmeter

Accuracy: Accuracy :over 1%-2%; Repeatability: over 0.2%

Display: 4 line x 16 character LCD with backlight

Dimension: 200*93*33cm: 390g

Operation: Support 16 key light touch keyboard and the Simulation keyboard software

Data interface: Insulate RS232 serial interface, upgrade the flew meter software by computer, support the MODBUS, etc.

Signal Output:1 way OCT output

Special Cable:

Twisted-pair cable, ;Select the RS232 communication.; Generally, the standard is 5m*2, optional 10m*2

Pipe Condition:

Pipe Material: Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed.

Pipe Diameter: DN25~100mm

Straight length pipe: Transducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump.

Measuring Medium:

Type of Liquid: Water ; Ultra-pure liquids; Solvents and other liquids

Temperature: Standard Transducer: -30--90C;

Turbidity: under 10000ppm and less bubble

Flow rate: 0--±10m/s

Flow Direction: Measuring two (plus-minis) direction of flow rate
