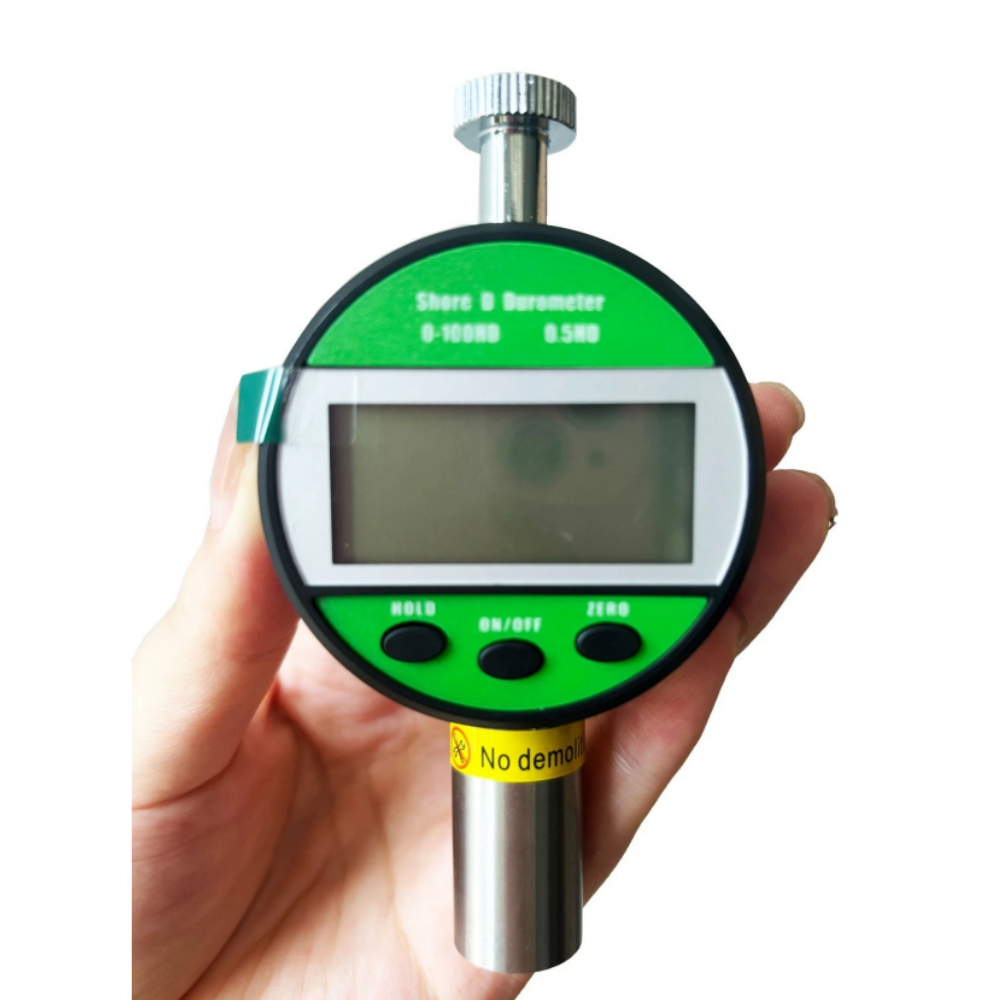

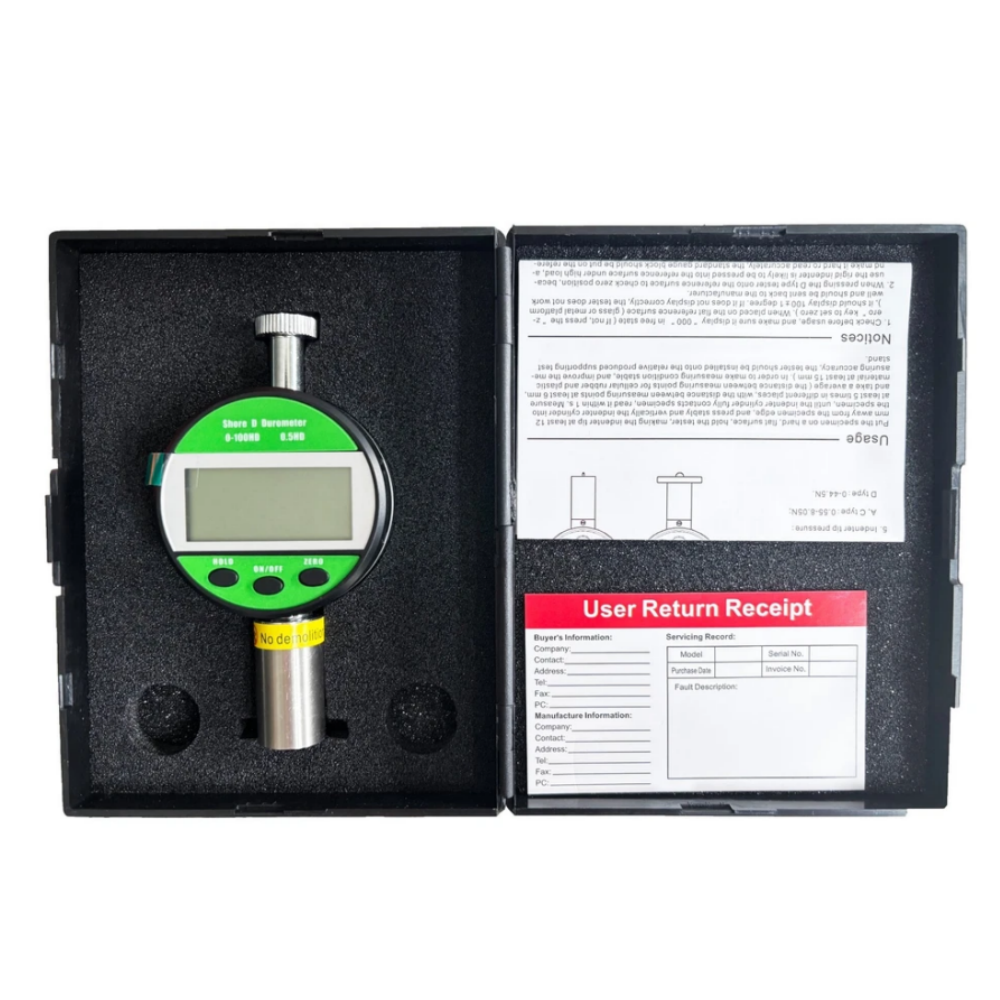

VTSYIQI Digital Shore D Hardness Tester Meter Gauge with Measuring Value 0~100HD Recommended Range of Measurement 20~90HD Needle Stroke 2.5mm Needle Head Size SR0.1mm for Rubber Plastic Glass Wax
- Regular price
- $152.00
Major performances :
▲ Type D are applicable to the testing of low and medium hardness, and high-hardness materials.
▲ This hardness gauge conforms to the regulations of GB/T531,GB2411, HG/T2489, JB6148.
Technical Specifications
▲ Measuring value: 0~100HD
▲ Recommended range of measurement: 20~90HD
▲ Size: 115*60*25mm
▲ Needle stroke: 2.5mm
▲ Needle head size: SR0.1mm
▲ Weight: ~0.13kg
Use method:
▲ When using single pointer models, one should place the sample in the solid plane, hold the hardness gauge, keep the pressure needle at a distance of at least 12 mm from the edge of the sample, smooth enough pressure in the pressure on the sample, and smoothly press on the sample to a full extent.
▲ One should press the pressure needle vertically to the sample, and until pressed to a full extent and contact the sample completely, then read the calibration value within one second.
▲ At measuring points which are at least 6 mm away from each other, measure hardness values for five times, and calculate the average value(for microporous material, the distance between the measuring points should be at least 15 mm).
▲ In order to keep the stability of conditions and improve the accuracy of determination, one should install the hardness gauge on the same type of the measuring shelf from a complete production network. When using double pointer models to do measurement, one should rotate the supporting pointer to the wax, etc.
