VTSYIQI Digital Single Axis Tesla Meter Handheld Teslameter with Axial Radial Probe are Optional Supporting Backlight Range 2mT ~ 3000 mT Accuracy 2% N/S Polarity Display for Measuring the Flux Density of DC Constant Magnetic Field and AC Magnetic Field

About this item:

Range: 2mT ~ 3000 mT; Accuracy:  2%.

Unit switch: G, mT, A/m.

Axial, radial probe are optional.

Switching AC or DC mode.

It is applied for measuring the flux density of DC constant magnetic field and AC magnetic field.

Overview

It is a portable and multifunctional magnetic field measuring instrument，equipped with a Hall sensor with high sensitivity and low drift. It is applied for measuring the flux density of DC constant magnetic field and AC magnetic field.

Features

Range: 2mT ~ 3000 mT.

Accuracy:  2%.

Switching AC or DC mode

Unit switch: G, mT, A/m.

N/S polarity display.

Relative measurement mode.

Max. hold function.

Alarm of exceeding the upper / lower limit.

Supporting backlight.

Battery remaining power display.

Axial, radial probe are optional.

USB interface.

Optional magnetic shielding cavity.

Specifications

Range 30 mT Resolution 1μT

Range 300 mT Resolution 10μT

Range 3000 mT(Calibration only covers 2.5T)  Resolution 10μT

Measuring Range 2mT～3000mT

Accuracy Class 2 DC：±2%，AC：±5%

Frequency Range DC，40Hz~500Hz

Temperature Coefficient ± 0.1% / K

Zero Drift ± 0.1 mT/h

Display Digit 5

General Specification

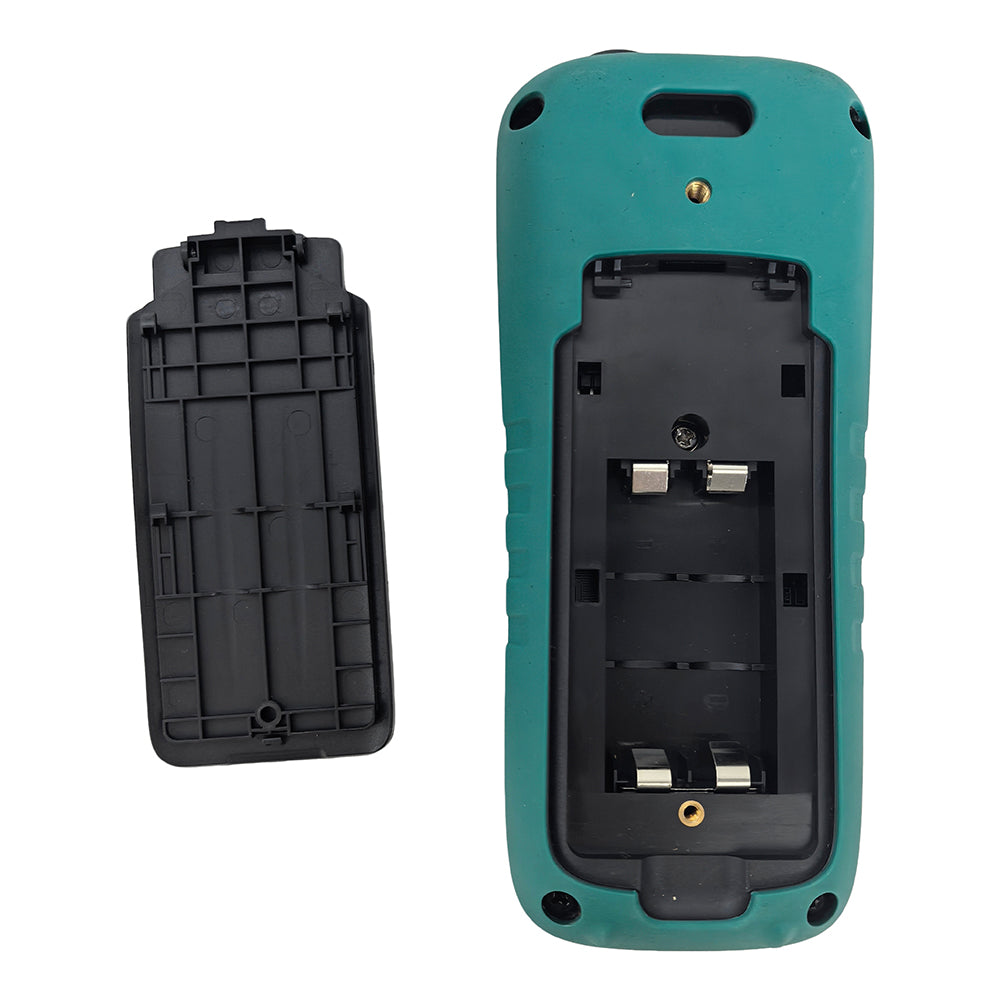

Power Supply 3 AA batteries(not included) or USB charging

Temperature Performance Operating temperature: 0~45℃;

Storage temperature: -20°C～70°C

Humidity Performance

Operating humidity: 20%～80% R·H, non-condensing

Storage humidity: <85% R·H, non-condensing

Weight About 350 g

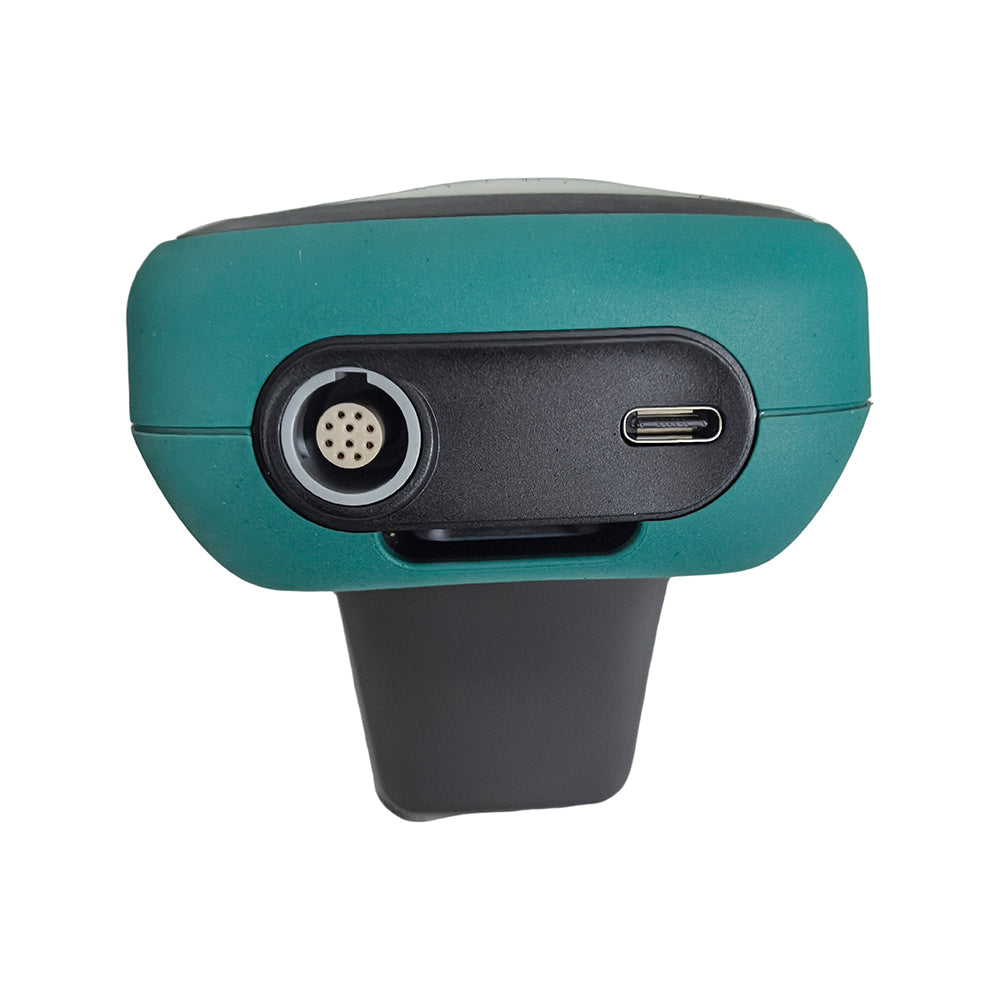

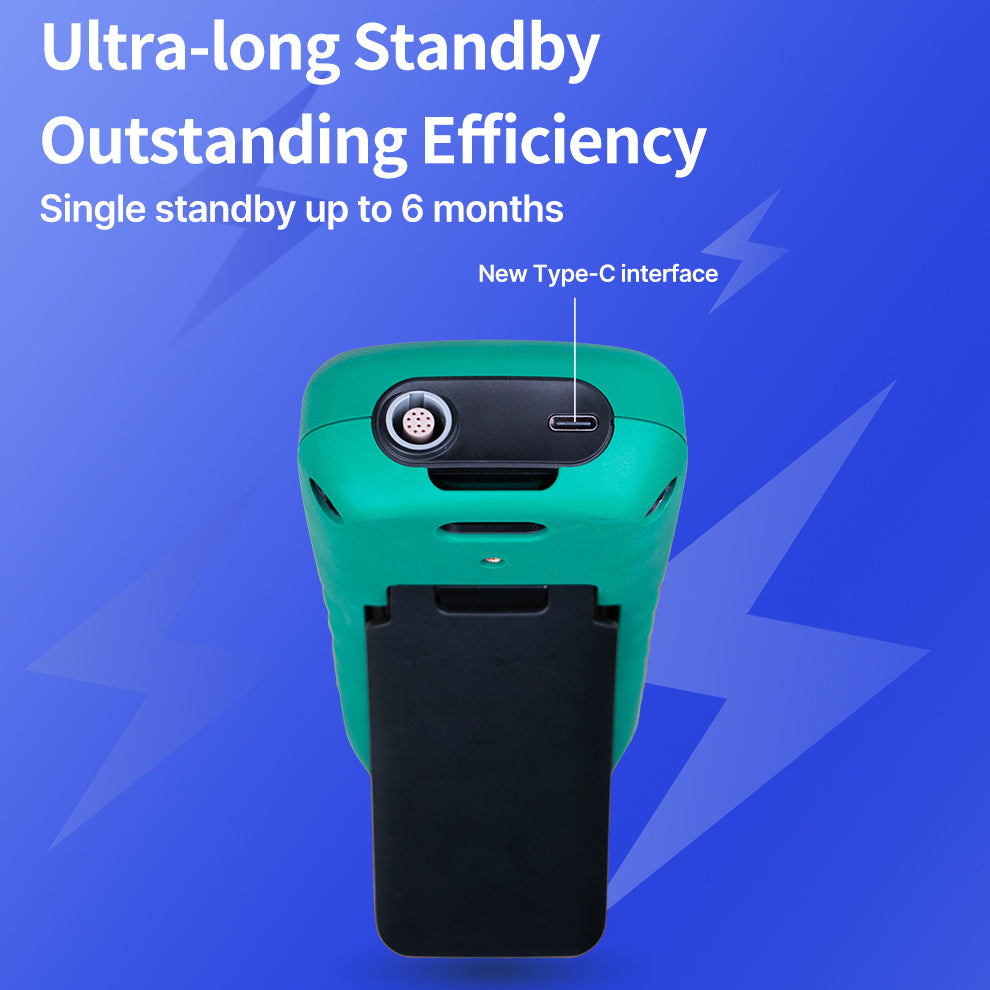

Interface Hall probe input interface, USB interface

Overall Dimensions 90mm(W) × 40 mm(D) × 165 mm(H)
