Applications:

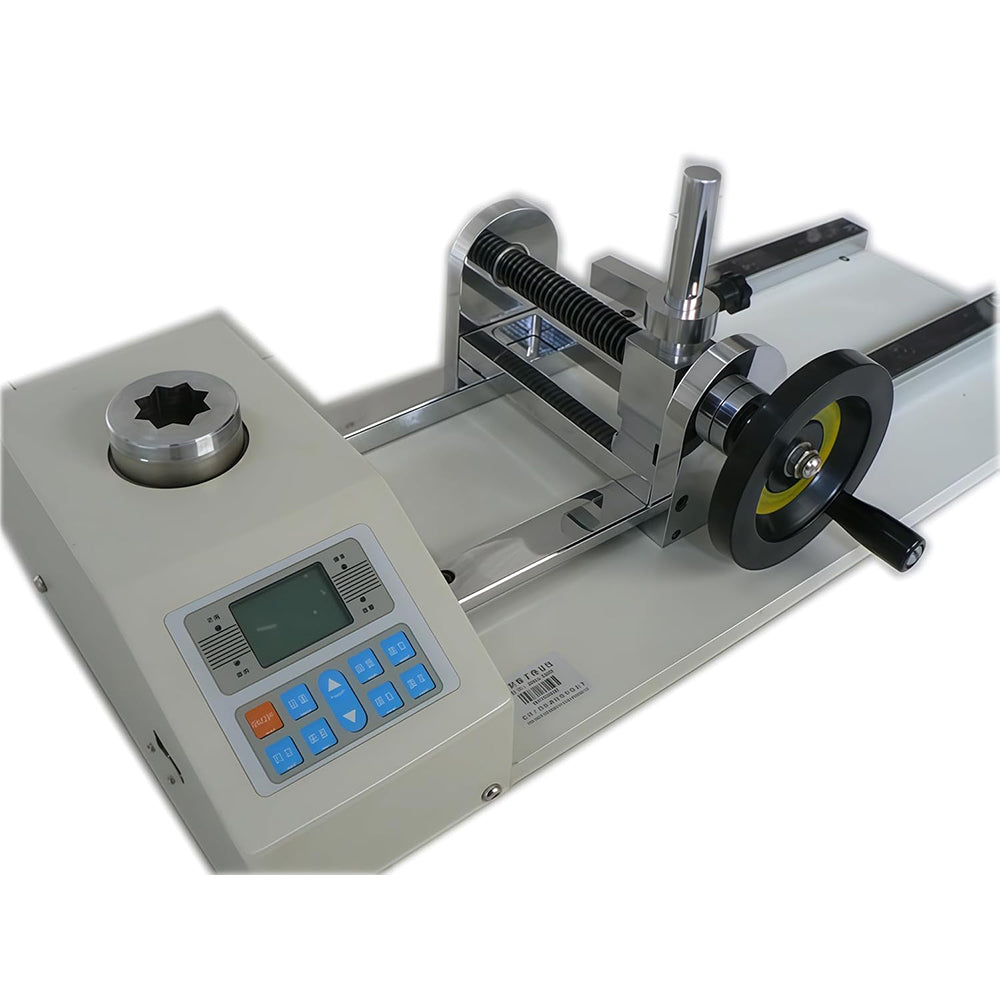

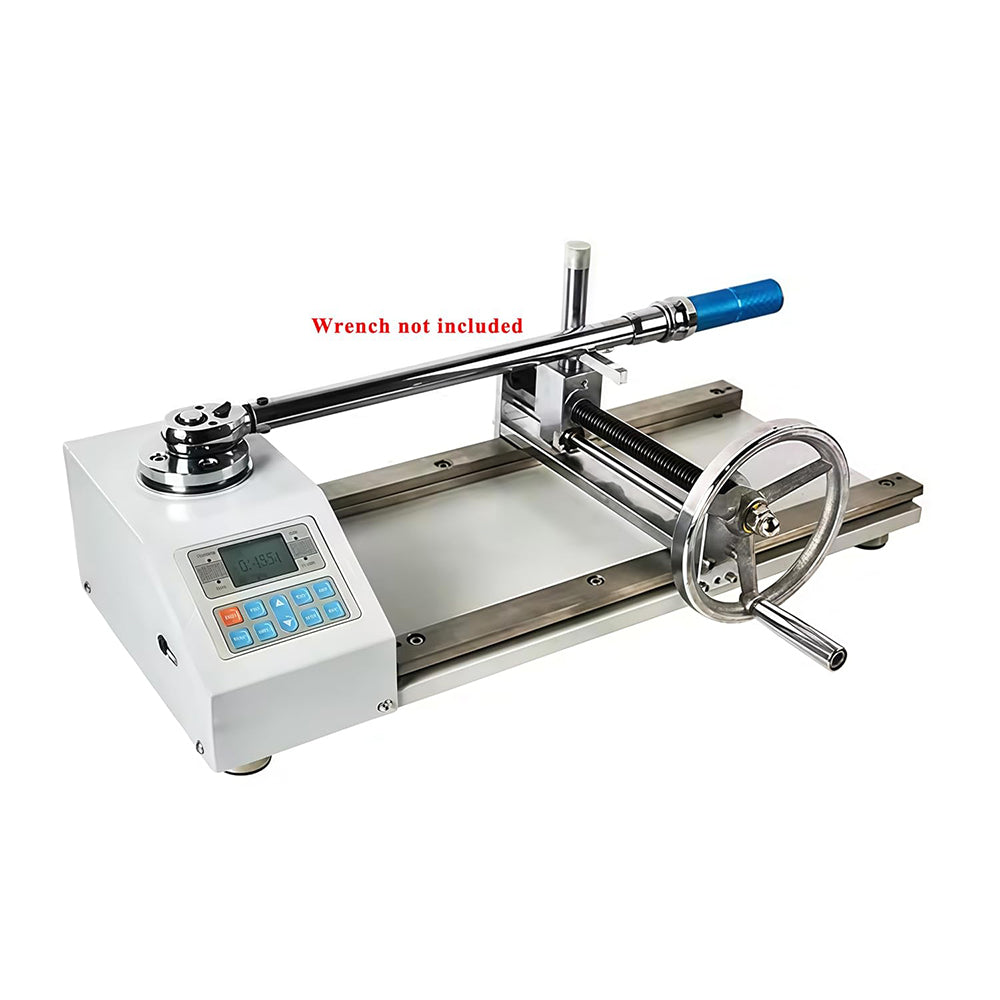

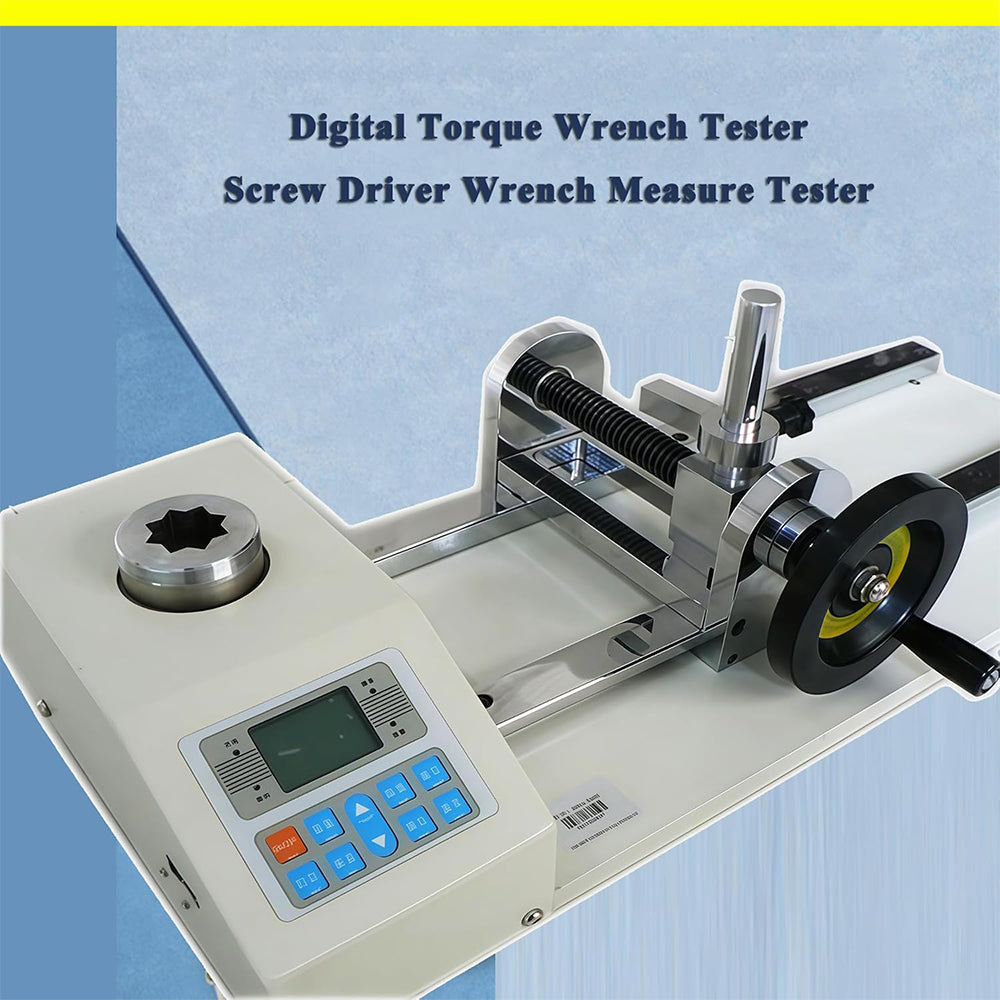

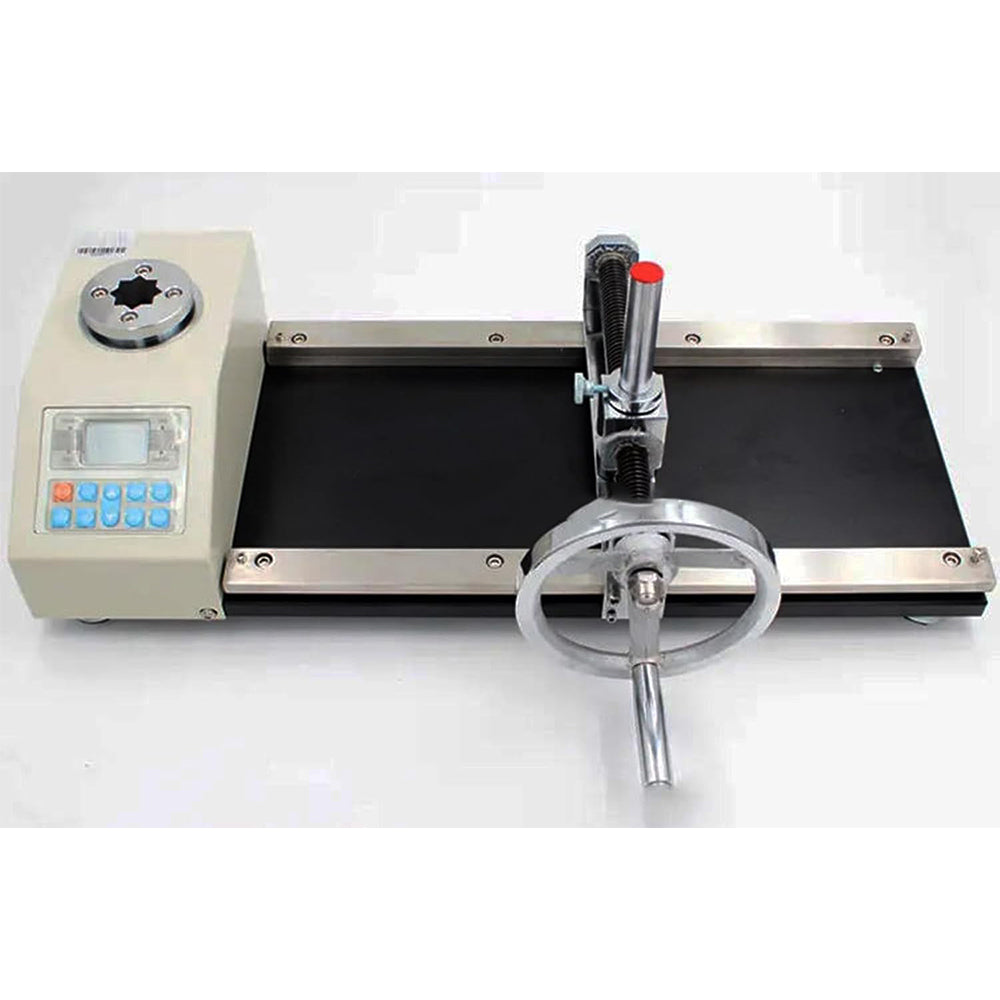

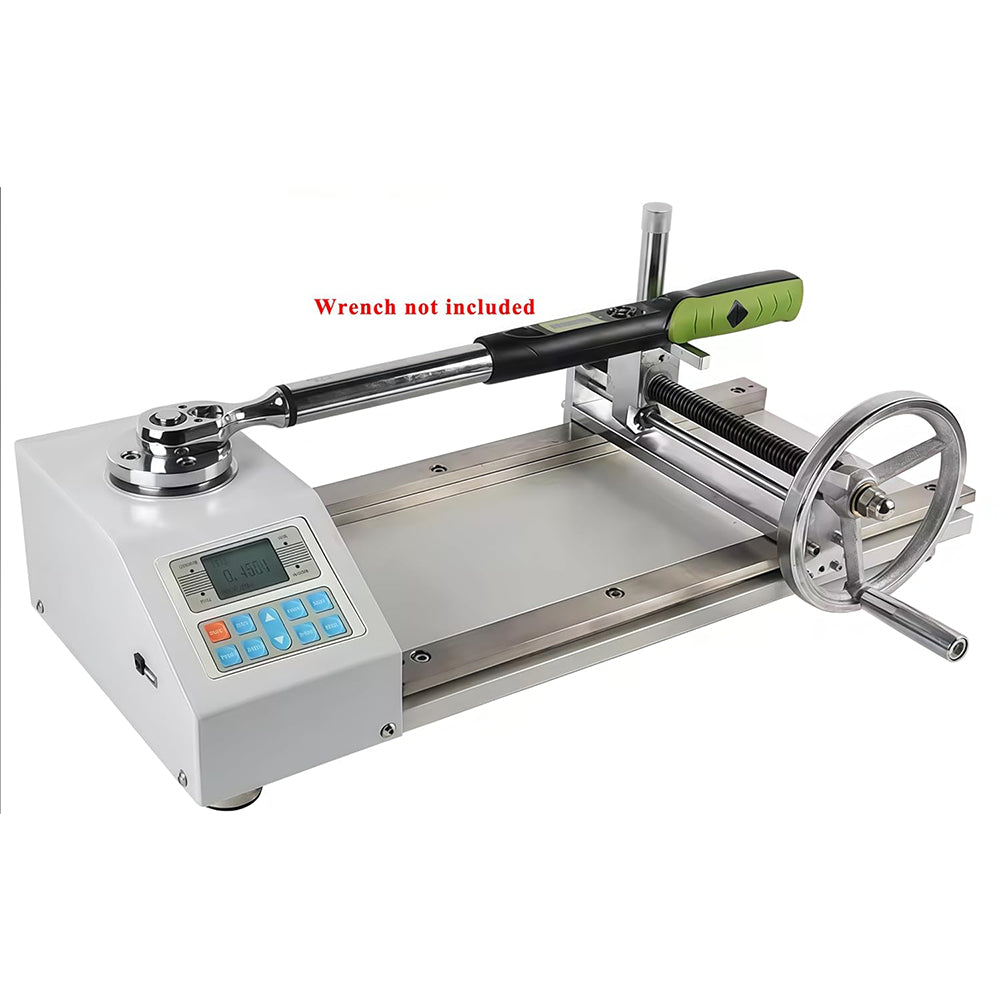

Digital Torque Wrench Tester is an intelligent multi-functional measuring instrument which is designed for testing torque wrench.

It main used in testing and calibrating various kinds of Concentration type torque wrench, digital type torque wrench, preset type torque wrench, torsion screwdriver, screwdriver and all kinds of products involving tighten force instrument.

Widely used in electrical manufacturing, mechanical manufacturing, automotive light industry and in scientific research and testing industry.

Features:

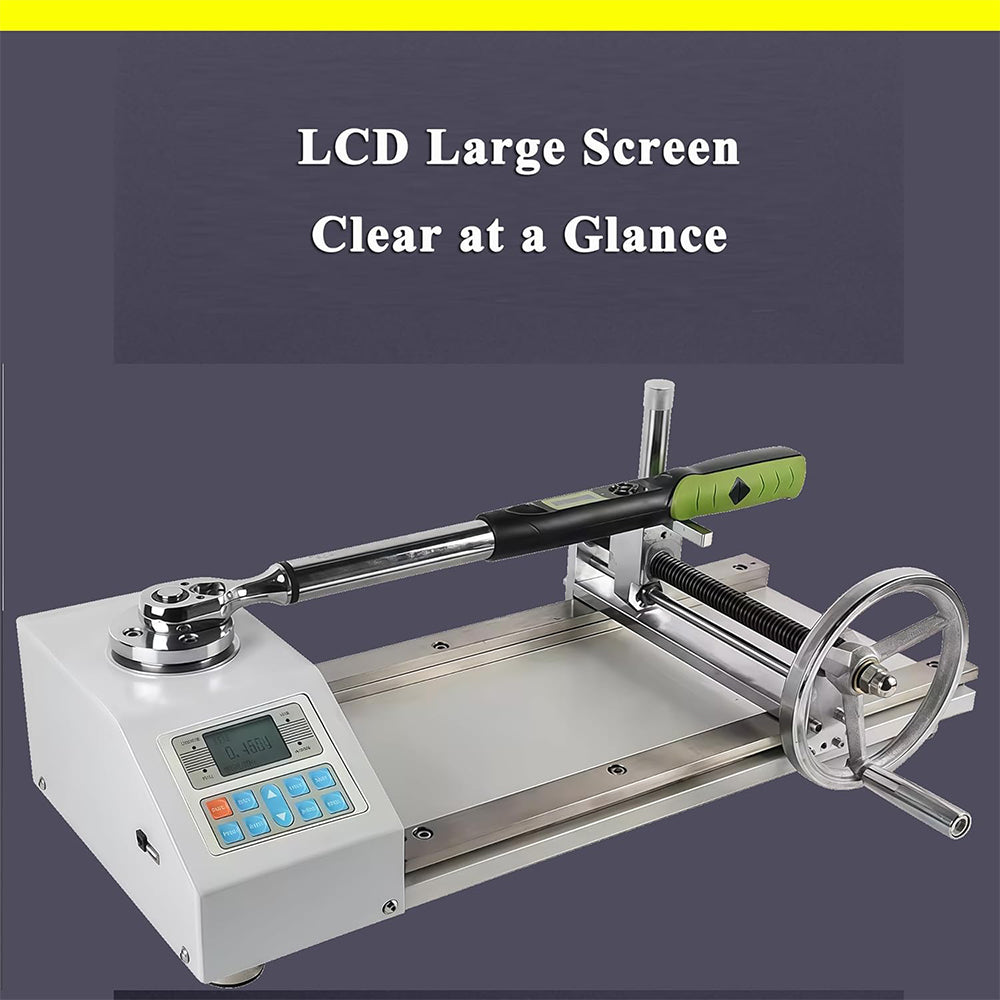

High precision, high resolution, quick sampling speed, full-screen display.

Adopting high precision torque sensor, with torque direction display.

Upper and lower limit value setting, red and green indicating lights and buzzer audible and visual alarm.

Three units can be switched each other (N·m,kgf·cm,Lb·in).

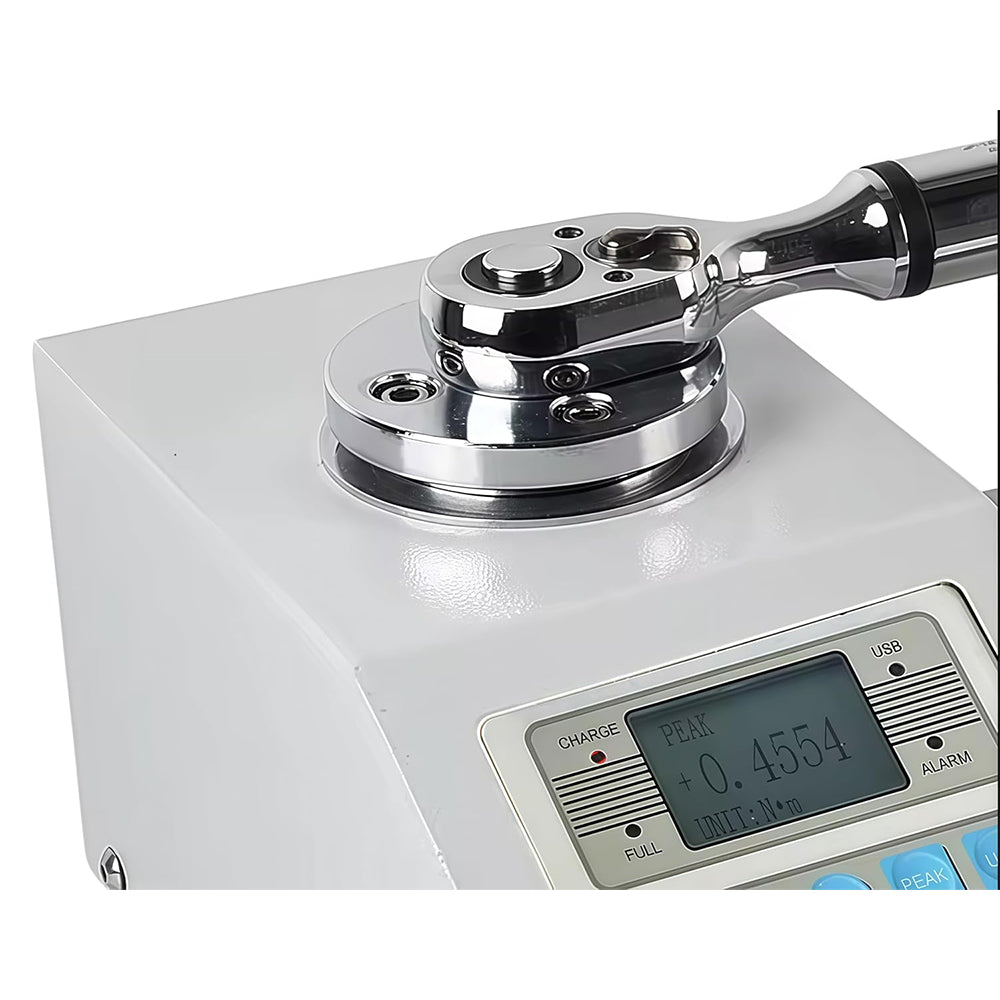

Real-time, peak, automatic peak three models of optional switch.

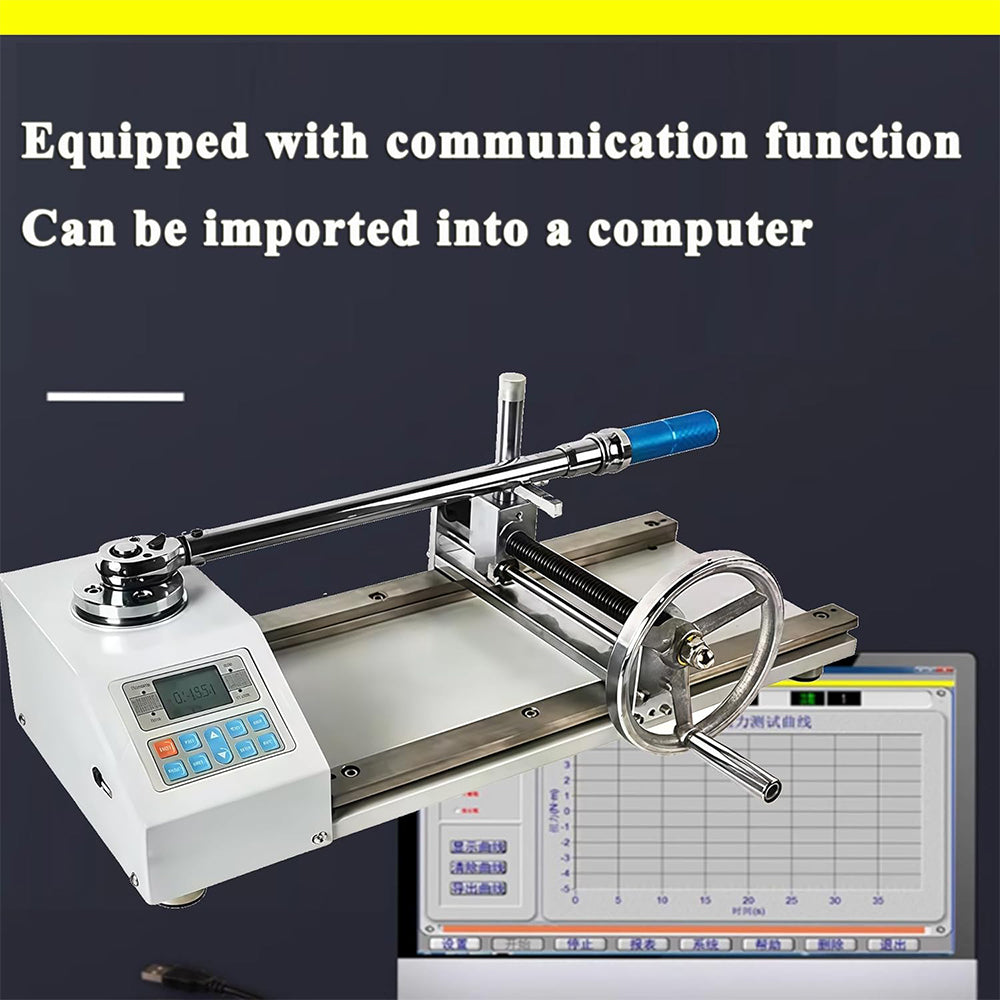

Use USB interface and PC communications, synchronous test function can connect to the computer, computer synchronous display test force graph and the detailed test process, can save, print, doing all sorts of analysis.

Peak holding, remove automatically function, remove time to set freely.

Large storage, can save 99 groups of test data.

Specification:

Measuring range/Division value：1000.0/0.1N·m 10210/1Kg·cm 88622/1Ib· in

Size：1433mm*685mm*360mm

The testing length range：150mm~1200mm

Width stroke：450mm

Height stroke：140mm

Precision：+/-1%

Peak Value Sampling Frequency：2000HZ

Power：8.4V 1.2V*7 Ni-MH Battery group

Charging Time：4~6 Hours

Continuous using time of battery ：About 10 Hours

Battery life：>/=300 times

Net Weight：25KG

Power adapter：Input:AC 100-220V 50-60HZ Output:DC 10V 300mA
