Introduction：

Digital Earth Resistance Tester, also known as earth resistance tester, grounding pile type earth resistance, grounding megger, which is used for measurement of earth resistance and earth voltage.The tester adopt with digital and micro-processing technology, and the earth resistance is measured by precision 3-wire method or 2-wire method widely used in industries such as electric power, telecommunication, meteorology, oil field, construction,lightning protection and industrial electrical equipment.

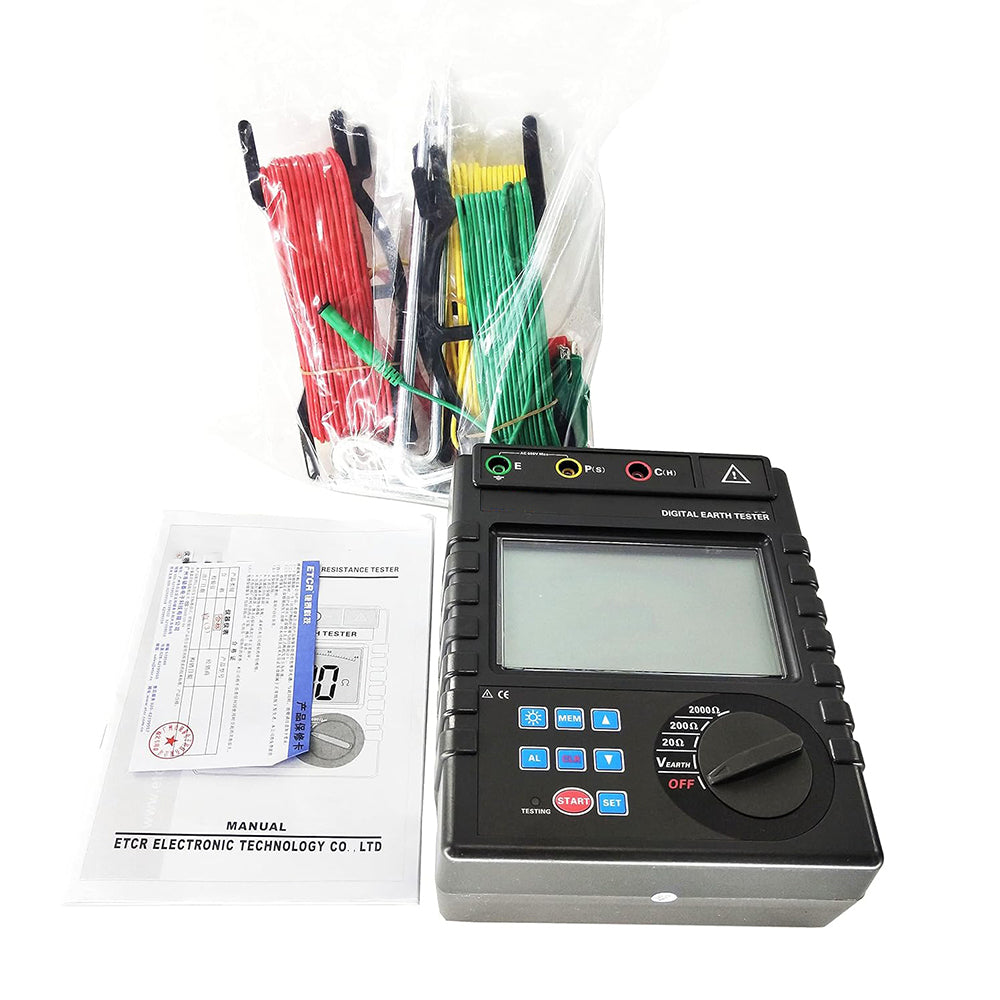

Digital Earth Resistance Tester consists of host, test line, etc. The Tester has unique line resistance verification function, which makes the measurement of low-value earth resistance in the field more accurate, and can avoid errors caused by change in line resistance caused by long-term use of the test line; can avoid errors caused by the test line not being fully inserted into the tester interface or poor contact, as well as the errors caused by the user replacing or lengthening the test line, etc. The tester adopt with large LCD display, white screen backlight, and a bar chart indication, which is clear and obvious. It stores 400 sets of data, with maximum, minimum, and average indicator, and has functions such as historical data reading and reviewing.
Features:

1.Precision 3-wire method or simple 2-wire method to measure earth resistance.

2. The tester has unique line resistance verification function, anti-interference ability and environmental adaptability, and the earth resistance measurement is more accurate.

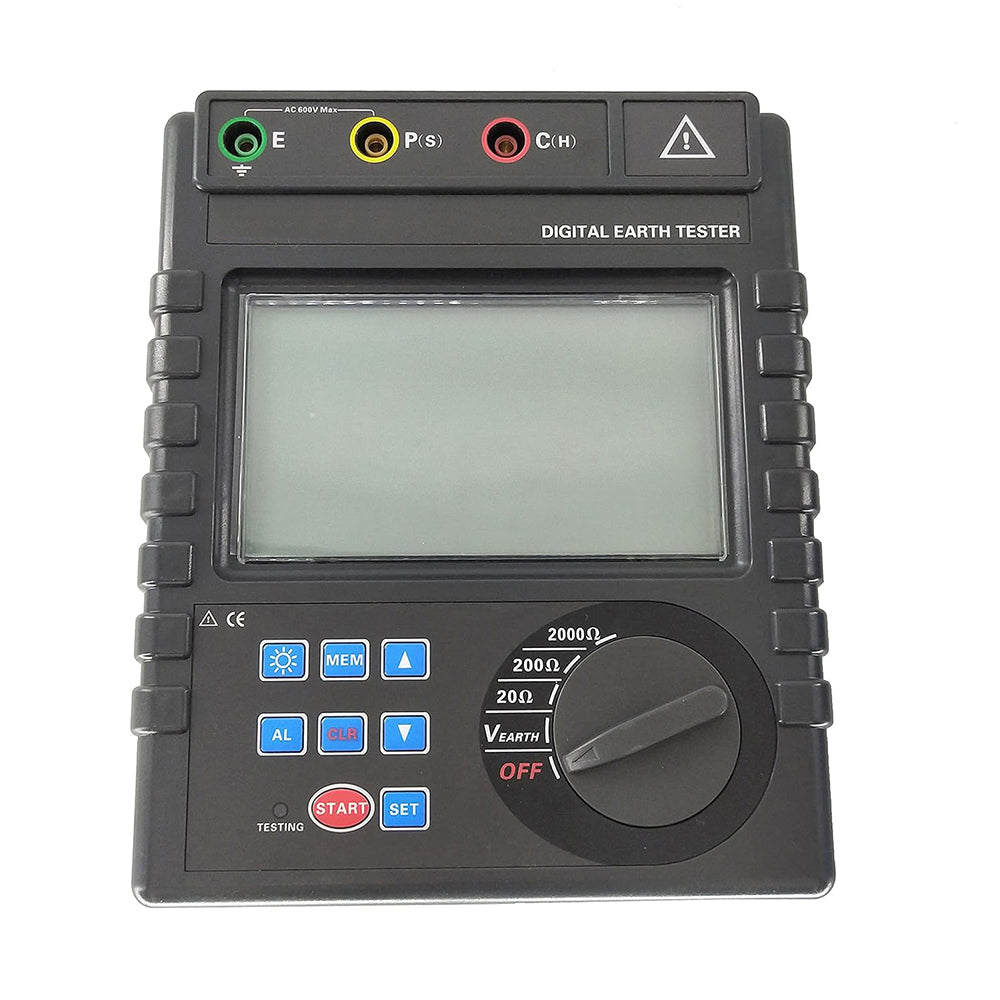

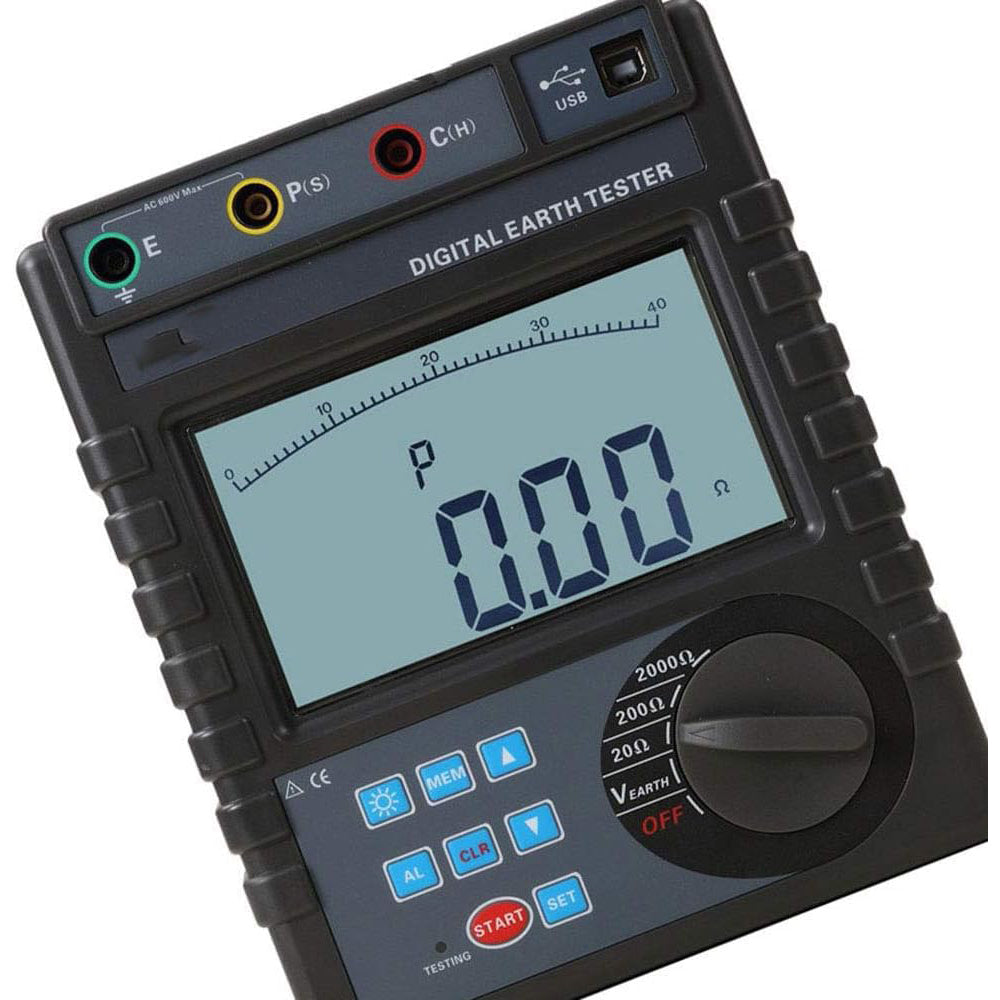

3. The host has large LCD display, white screen backlight, and bar chart indication, which is clear and obvious.

4. Alarm function, setting alarm threshold.

5. Memory, 400 sets of data storage.

Technical Parameters:

Earth Resistance Range:0.01Ω~2000Ω,Accuracy:±2%rdg±3dgt, Resolution:0.01Ω
Earth Voltage Range:0～600V AC,Accuracy:±2%rdg±3dgt,Resolution:1V

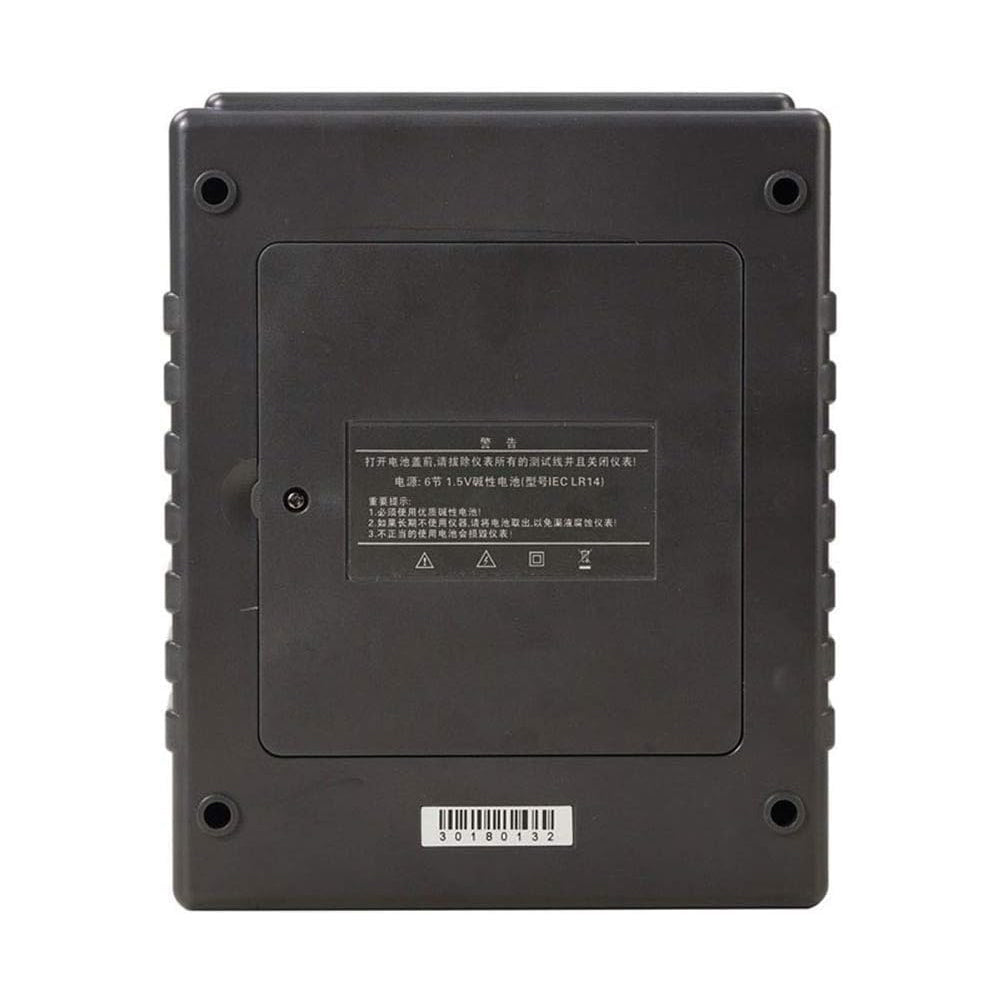

Power Supply：DC 9V (Alkaline dry battery LR14 1.5VX6 PCS )

Tester Dimension：212mm(L)X175mm(W)X85mm(H)

Weight：About 3.05kgs(include accessories)

Measurement Method：
Earth resistance: rated current change-pole method, test current 20mA Max;
Voltage to earth: average value rectification method

Test Frequency：128Hz

Test Current：>20mA(Sine wave)

Measurement Times：Over 5000 times (20Ω range measuring 10Ω, measurement one time should stop about 25 seconds and then retest)

Measurement Time：Voltage to earth: 3 times/second; Earth resistance: 5 seconds/time

Data Storage：400 groups , flashes display "FULL" symbol indicate the storage is full

Data Hold：Data hold function :"HOLD" symbol display

Data Access：Data access function: "READ" symbol display

Overflow Indication：Over range overflow function: "OL" symbol display

Line Resistance Calibration：
Avoid errors caused by the test line not fully inserted into the tester interface or poor contact or the user replaces the lengthened test line, ensure earth resistance measurement accurate

Alarm Function：The measured value exceed alarm setting value, LCD will day”    ” and alarm

Automatic Shutdown：15 minutes without any operation after starting up, the tester will shutdown automatically

Battery Voltage：While battery voltage drop to around 7.8V, low battery voltage symbol“ ” will display, and remind to replace the battery

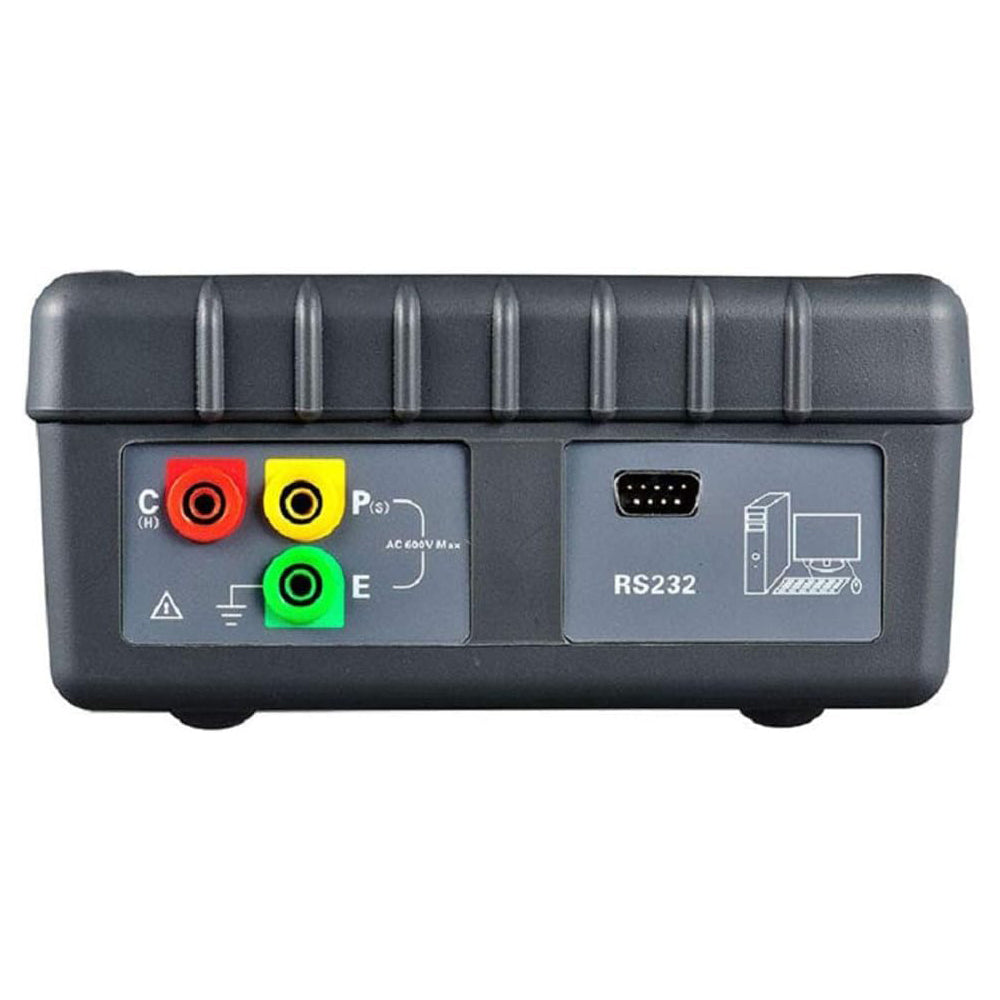

Overload Protection：Earth resistance: between each terminal of E-P,E-C, AC 280V/3 seconds

Electromagnetic Property：IEC61010-4-3,Wireless frequency electromagnetic field≤1V/m

Working Current：Backlight:25mA Max; standby: 25mA Max(Backlight off); Measurement:70mA Max(Backlight off)

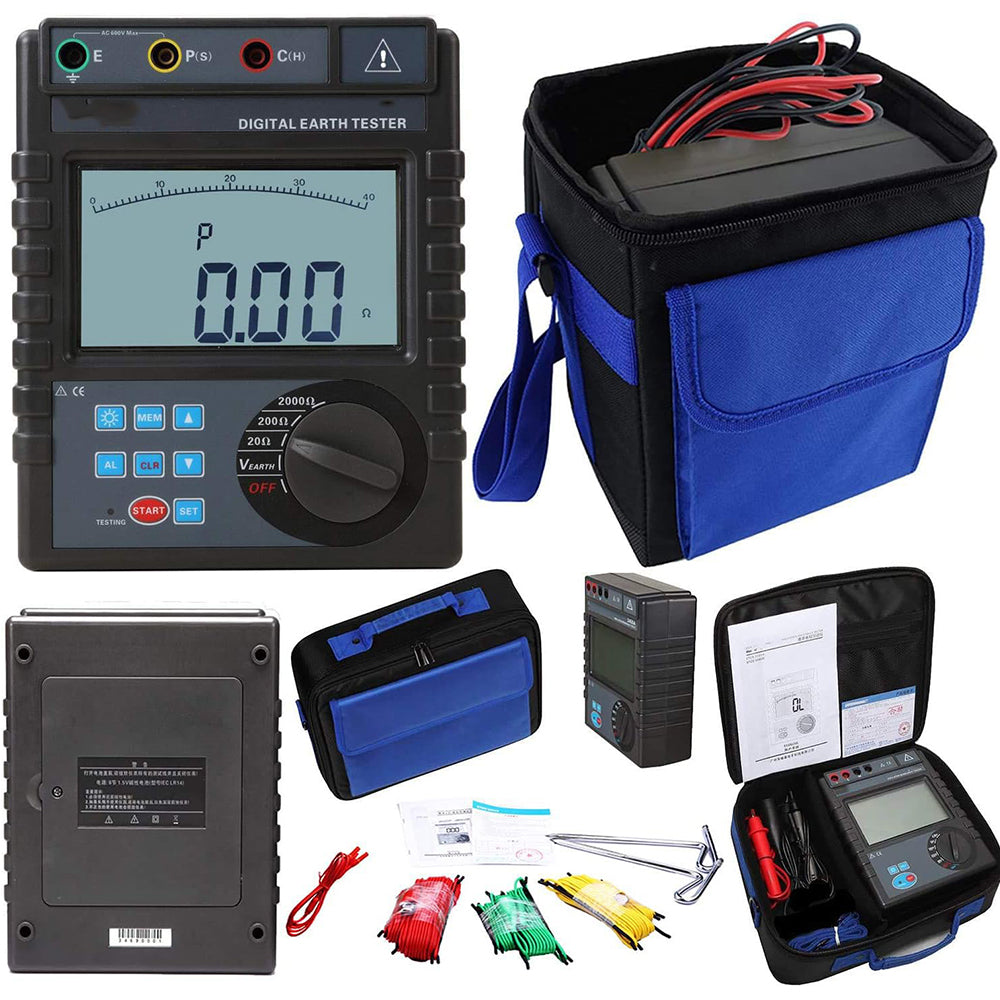

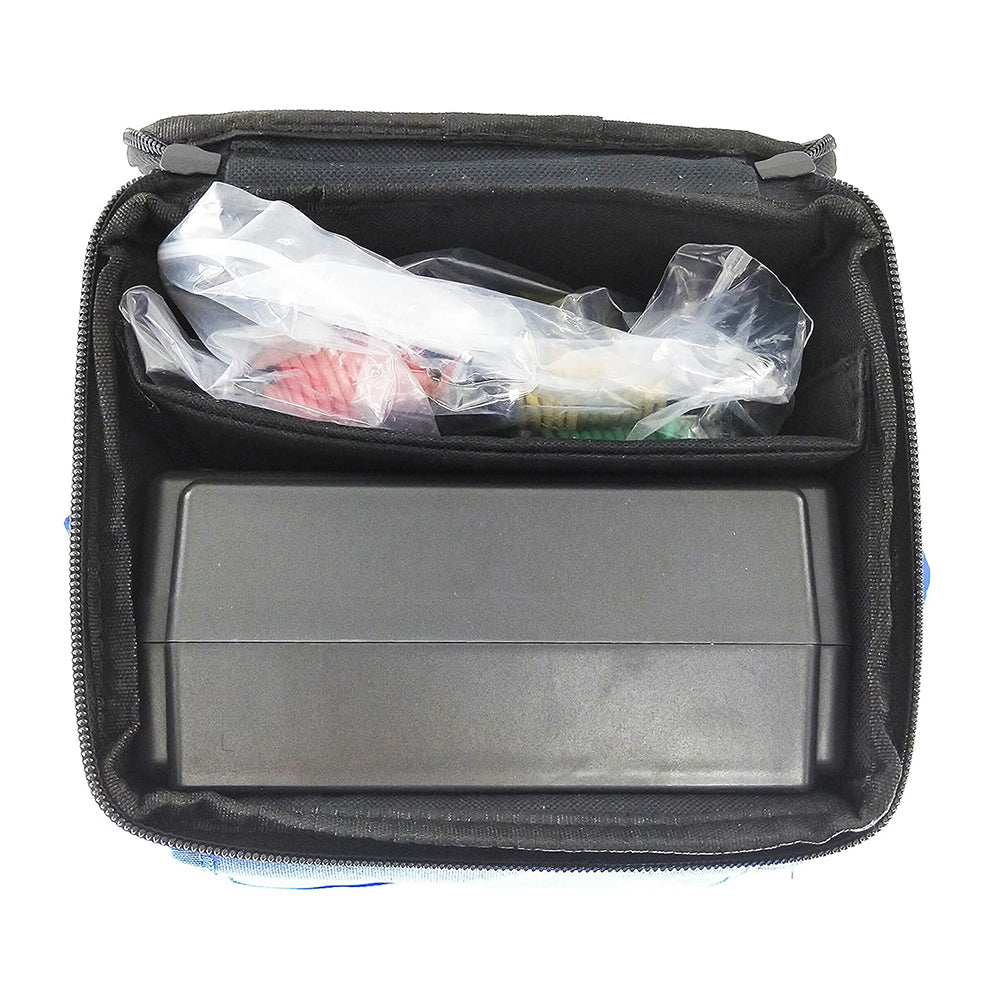

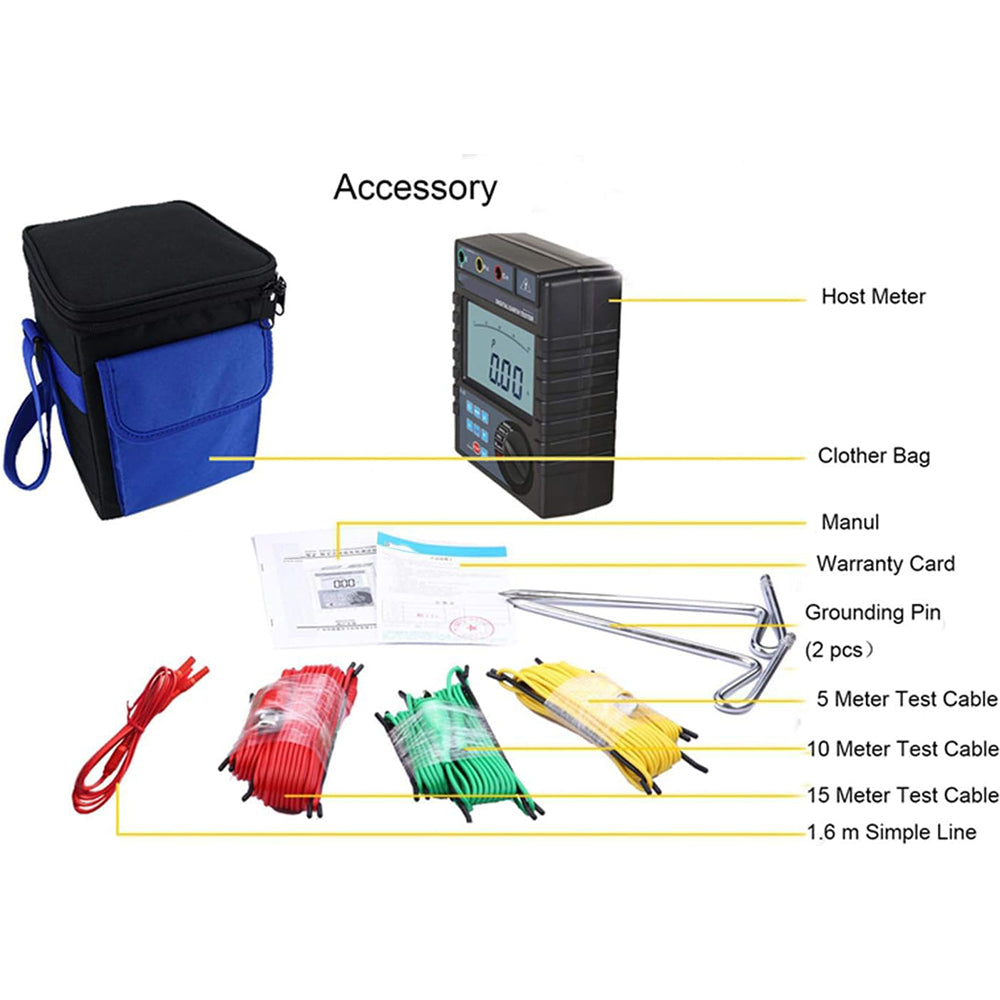

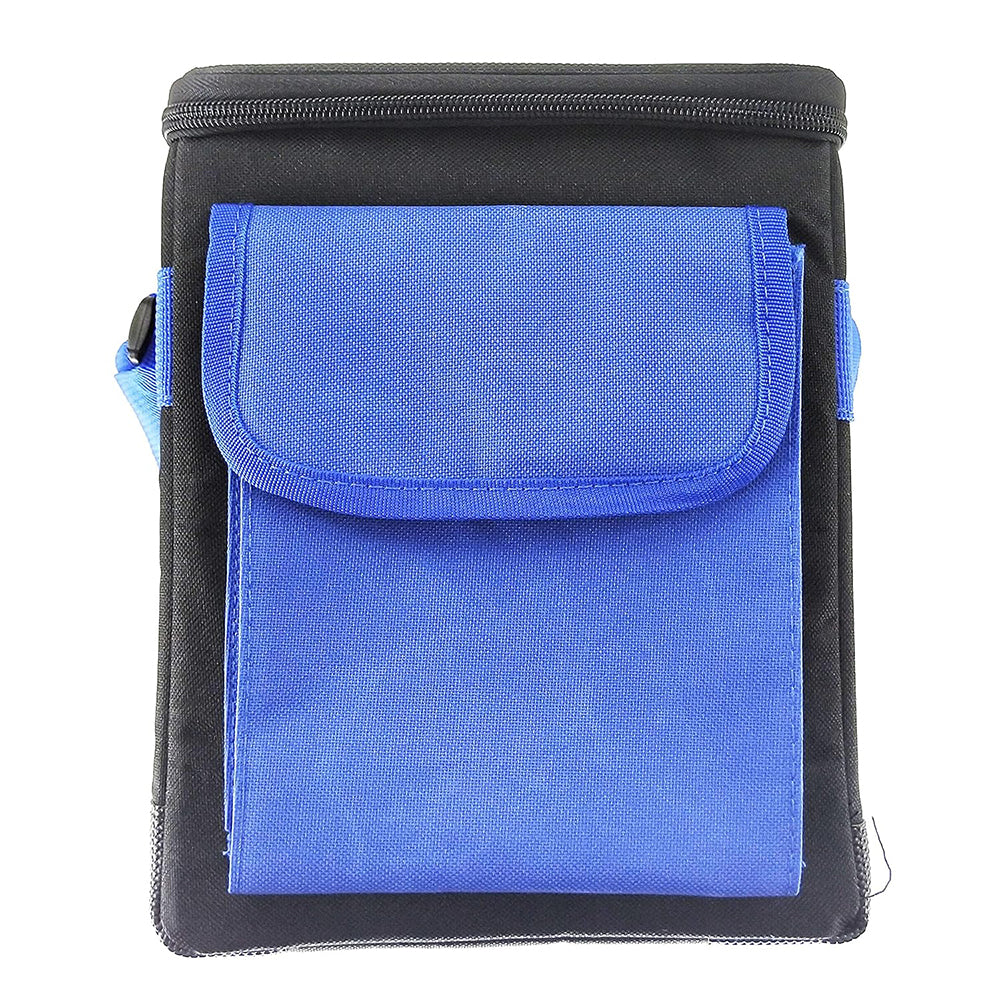

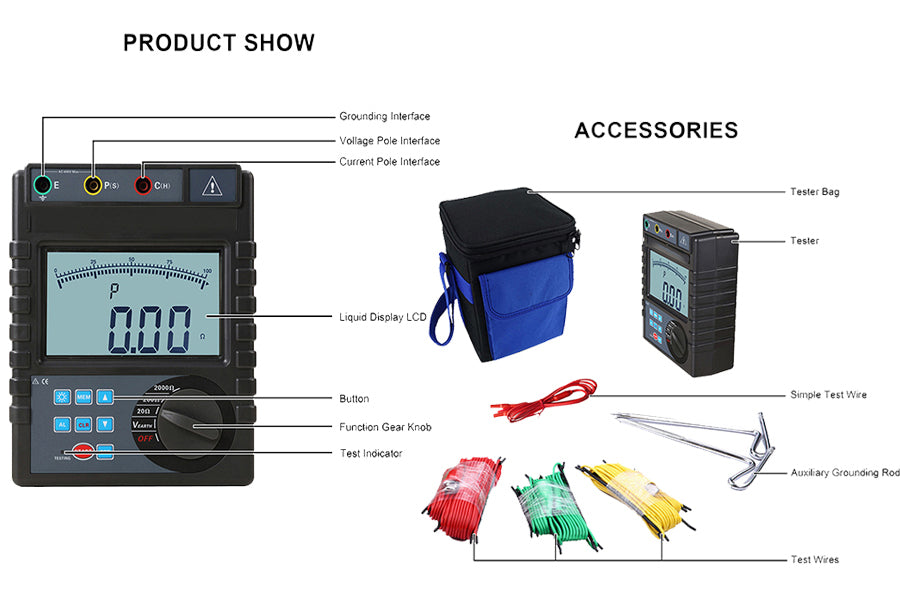

Accessories：Tester:1PC; Ground stake:2PCS; Testing line:3PCS; Simple test line:1PCS; Tool bag:1PCS; LR14 battery: 6PCS
