VTSYIQI Eight Caliber Spectrophotometer D/8 Colorimeter Color Matching Instrument with Excellent Repeatability Display Resolution 0.01 for Printing Paint Textiles

Feature:

(1)Ultra-high repeatability accuracy:dE*ab≤0.02

(2)Excellent inter-stage consistency:dE*ab≤0.25

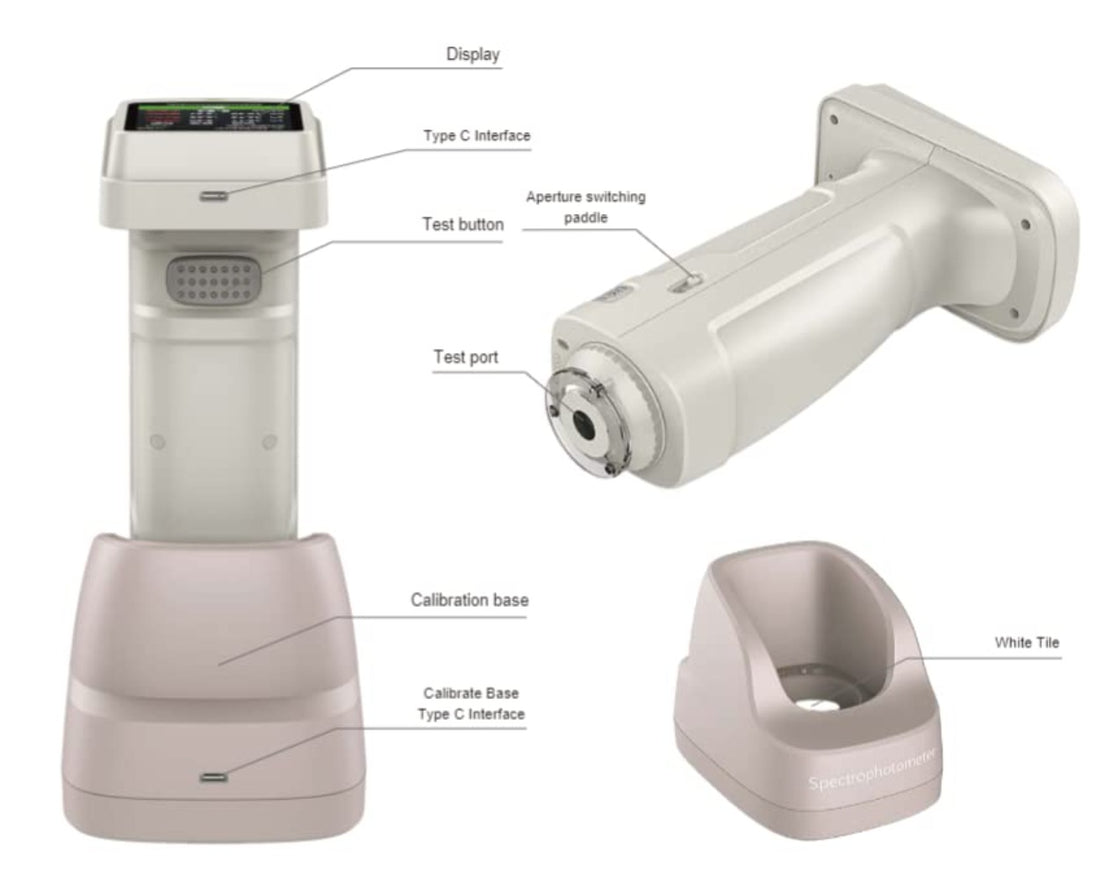

(3)The calibration base and zirconium reference with Mohs hardness of 9 are used to calibrate the instrument, which ensures the long-term stability of the instrument

(4)More than 30 measurement parameters and nearly 40 evaluation light sources are available for selection

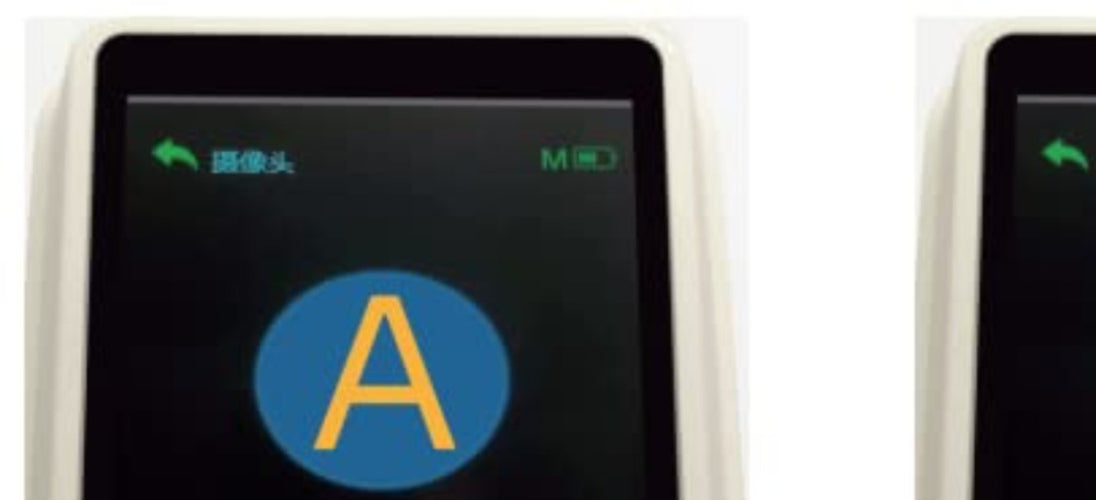

(5)Built-in high-definition camera for clear observation of the tested area

Main Feature:

Name:Spectrophotometer

Geometry*:D/8,SCI+SCE

Repeatability**:dE*ab≤0.02

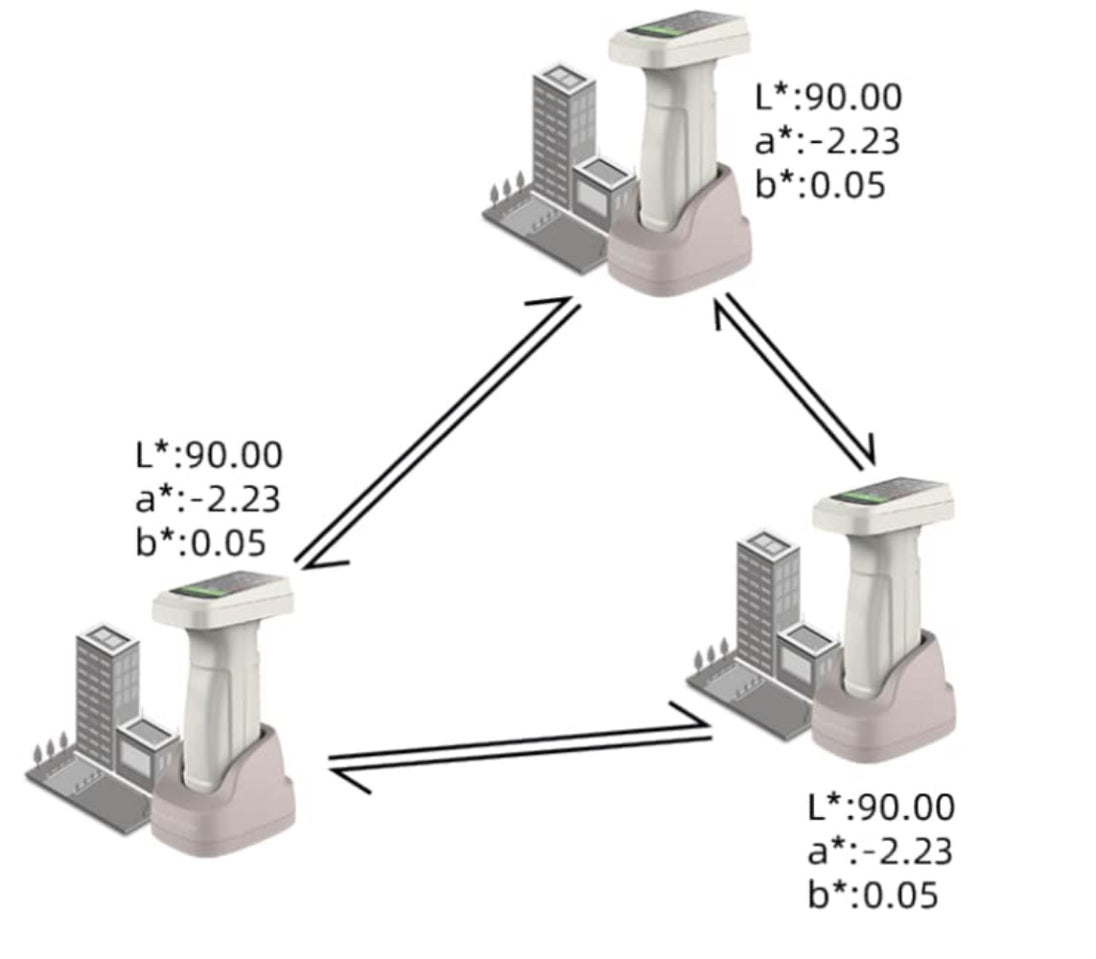

Inter-Instrument Agreement***:dE*ab≤0.25

Display Resolution:0.01

Measuring aperture:8 stable and smart:Φ11mm,Φ6mm,Φ3mm,1*3mm

▽11mm,▽6mm,▽3mm,▽1*3mm

Measurement index:Spectral reflectance,CIE-Lab,CIE-LCh,HunterLab,CIE-Luv,XYZ,Yxy,RGB,

chromatic aberration(ΔE*ab,ΔE*cmc,ΔE*94,ΔE*00),whiteness(ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger Stensby),Yellowness(ASTM D1925,ASTM E313-00,ASTM E313-73),Blackness(My,dM),Color fastness,Staining fastness,Tint(ASTM E313-00),Color densityCMYK(A,T,E,M),Metamerism indexMilm,Munsell,covering power,Force share(Color Strength)

Wavelength interval:10nm

Wavelength range:400-700nm

Reflectance Range:0-200%

Reflectivity resolution:0.01%

Measurement time:About 1 seconds

Interface:USB,Bluetooth

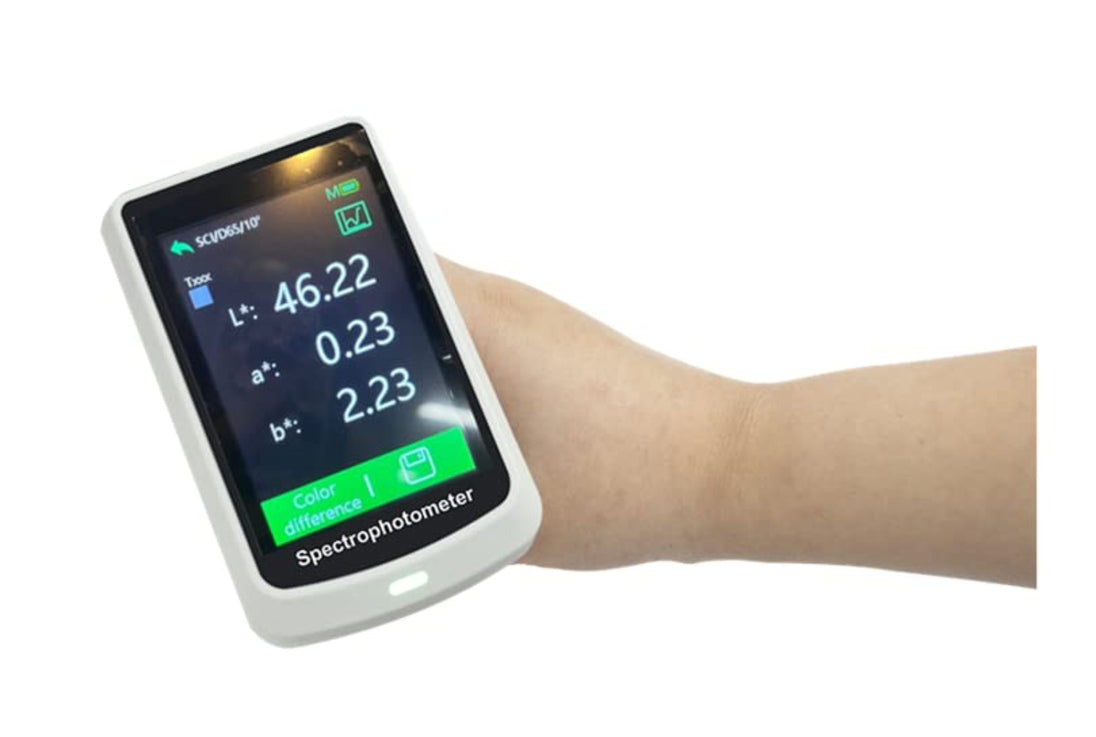

Screen:Full color screen,3.5 inches

Battery capacity:Rechargeable, 8000 times continuous tests, 7.2V/3000mAh

Light source Lifetime:10 years, 1 million tests

Language:Chinese, English

Storage:Instrument: 100 standard samples and 10000 samples; APP: mass storage

Illuminants:A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2

Light Source:Full-band balanced LED light source+UV

Measurement and observation mode:Camera

Calibration:Intelligent automatic calibration

Software support:Andriod,iOS,Windows,WeChat applet

Accuracy:Metrology Level I

Observer Angles:2°,10°

Sphere Size:40mm

Standards:CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7

Spectroscopic method:Raster

Sensor:Dual row high precision CMOS array sensor
