  • VTSYIQI Fiber Optic Talk Set Optical Fiber Tool Machine with Portable Handheld Design Wavelength(nm) 1310/1550 Emitter Type FP-LD Optical Connector FC/PC Dynamic Range(dB) ≥40 Transmission Distance(KM) ≥80

VTSYIQI

VTSYIQI Fiber Optic Talk Set Optical Fiber Tool Machine with Portable Handheld Design Wavelength(nm) 1310/1550 Emitter Type FP-LD Optical Connector FC/PC Dynamic Range(dB) ≥40 Transmission Distance(KM) ≥80

$84000
In stock
$84000

About this item

Combining functions of both a digital optical phone call and a stabilized light source.

Dual Wavelength Stabilized Light Source(1310/1550nm) with Multiple Modulation Modes(CW,270,1K,2K HZ)

Full duplex digital communication with high quality conversation connection & low background noise

Transmission Distance(KM) ≥80; Dynamic Range(dB) ≥40

The Fiber Optic Talk Sets are practical instruments designed for communication using actual optical cables during the construction, testing, emergency repairs, and maintenance of optical networks, particularly in situations where communication is difficult or conditions are harsh.

Features

Full duplex digital communication with high quality conversation connection & low background noise

Together with Optical Clip-on Coupler, enables on line communications available

Combining functions of both a digital optical phone call and a stabilized light source.

Large LCD display with backlight

Low battery power indication

Specifications:

Wavelength(nm):1310/1550

Emitter Type:FP-LD

Transmission Distance(KM):80

Dynamic Range(dB):40

Output Power(dB):-5~-7

Modulation:CW/270Hz,1KHz,2KHz

Output Stability (dB,30min,20 °C ):≤ 0.1

Power Supply:3 pcs 1.5V Alkaline Batteries/8.4V Power Supply Adaptor（not included）

Battery Operating Time:5 hours

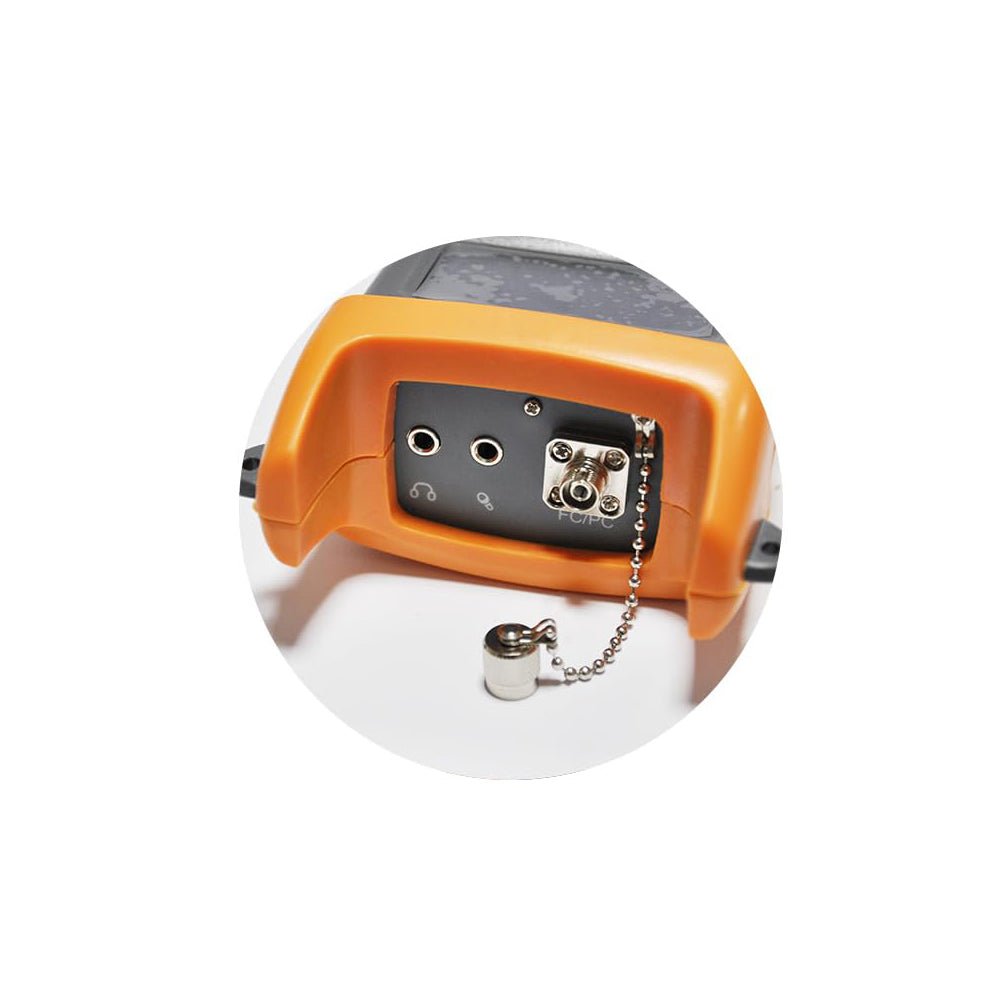

Optical Connector:FC/PC

Operating Temperature(°C):-10 ~ +60

Storage Temperature(°C):-25 ~ +70

Dimension:29*23*8.5cm

Weight:3.5kg
