Introduction:

Concrete thickness gauge is used for measuring the thickness of nonmetallic plate, especially for concrete slab thickness that cannot be measured directly.

This instrument is to measure the thickness mainly by using distribution characteristics of electromagnetic field and possesses functions of thickness measurement, data analysis, data storage & output etc.

It is a kind of intelligent thickness measuring instrument that is portable, convenient and accurate.

Main function:

Measure the nonmetallic plate thickness（e.g. concrete, rock and glass plate etc.）

Store, view and delete measured data and calculate the average value and pass rate

Upload measured data to external data processing software through serial port and USB port

Main features:

Measure the nonmetallic plate thickness automatically and accurately.Multiple measuring methods:

Voice alarm prompt, black signal indicator, thickness and signal value, which are used for accurate measurement of thickness.

The measured data can be transferred to the external data processing software through USB port for analysis and processing;

Interface of software is succinct and operation is simple.

Working principle:

Concrete thickness gauge consists of transmitting probe, receiving probe, receiving signal processing system, display system and data storage system.As shown in Figure 1-1.

The transmitting probe generates a certain frequency electromagnetic signal on one side of the non-metal plate, and the receiving probe receives the electromagnetic signal on the other side of the non-metal plate and converts it into an electrical signal, which is transmitted to the receiving signal processing system. The receiving signal processing system displays and stores the measurement results.

Main technical indicators：

The screen has an arrow to indicate the location of the transmitter probe, can realize rapid positioning.

Intelligent reading and automatic locking, digital display of the thickness value, without manual comparison;

Host probe split design, the host is not in contact with the test object during testing, to avoid damage in the test process;

Thickness measurement range: 40mm ~ 1000mm

Test accuracy (mm) : 40 ~ 400 ±1; 401～800 ±2; 801 ~ 1000 ±3

Data storage capacity: 2 million measurement data

Data transmission mode: USB

Professional data analysis software for PC, data processing and report generation can be easily completed.

Working environment requirements

Ambient temperature: -10 ℃ ~ +50 ℃, to avoid prolonged direct sun exposure

Relative humidity: ≤ 90%RH

Electromagnetic interference: no strong alternating electromagnetic fields

Power: built-in rechargeable lithium battery, power supply time up to 50 hours

Host volume: 219mm × 56mm × 139mm

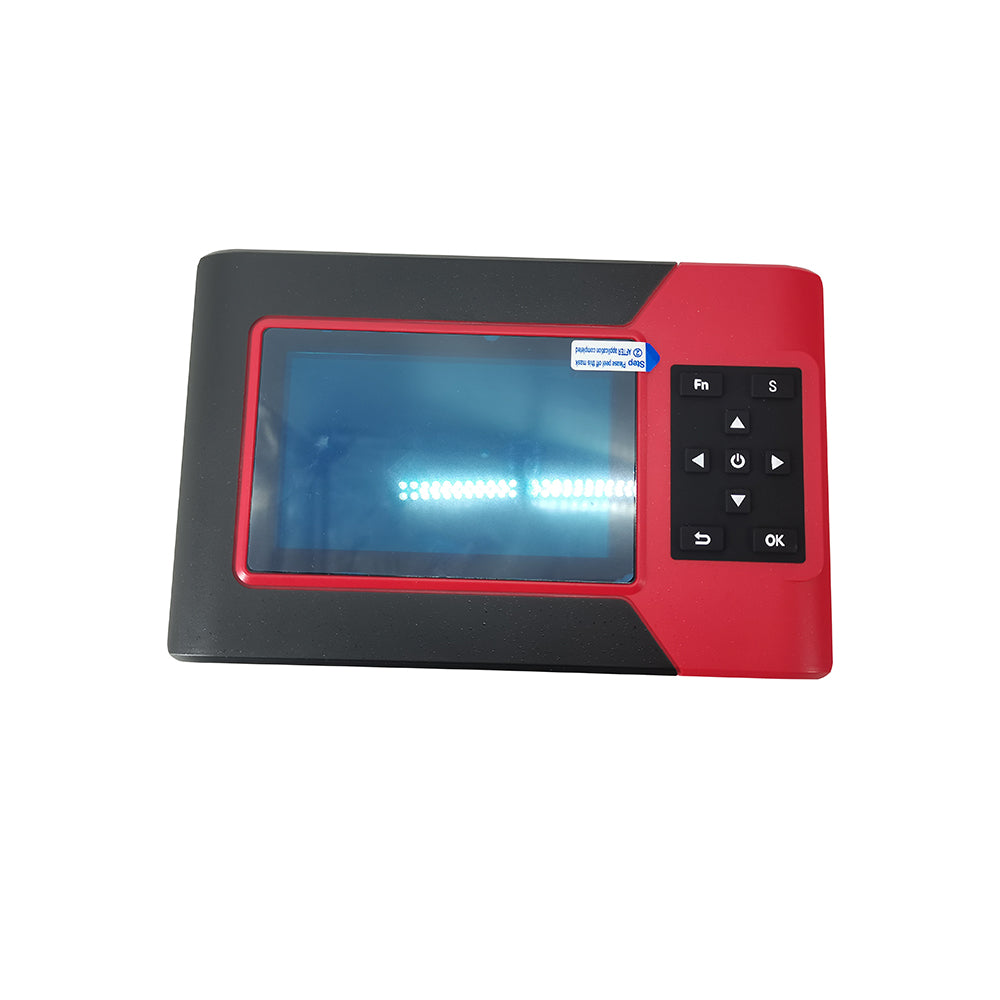

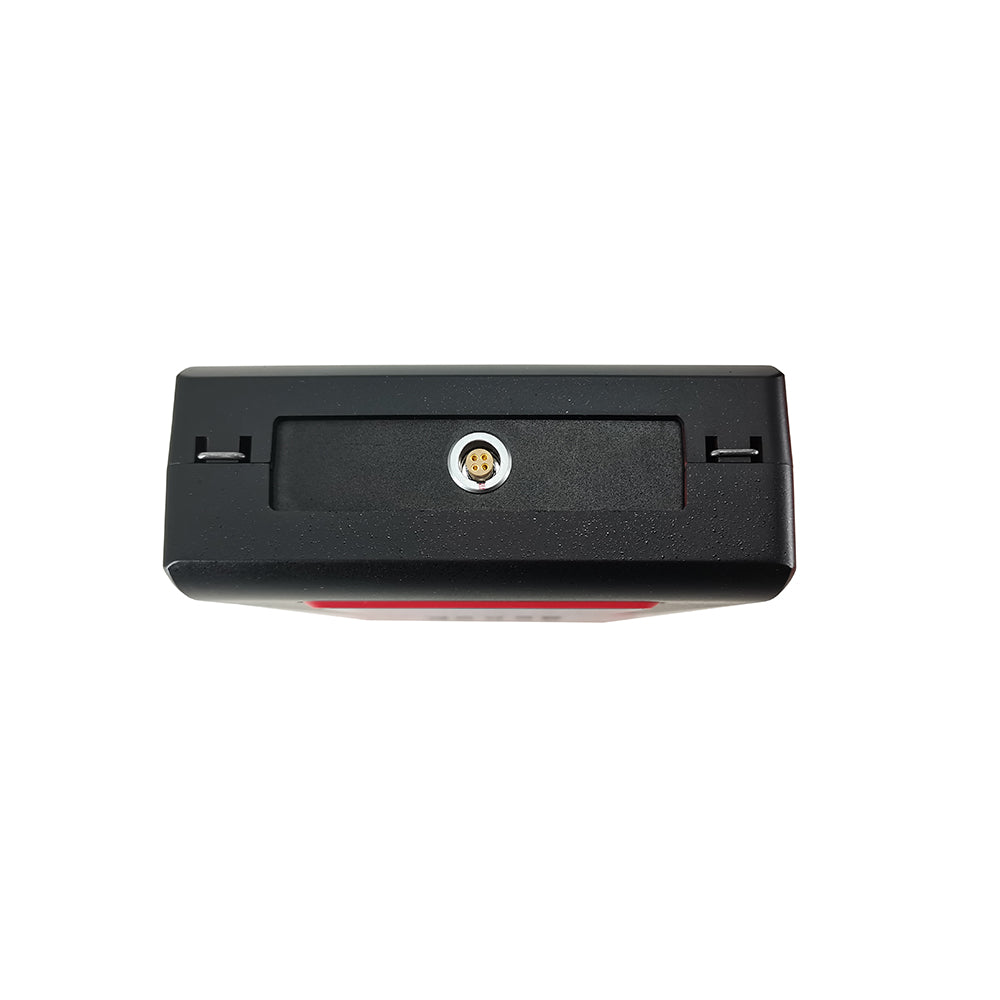

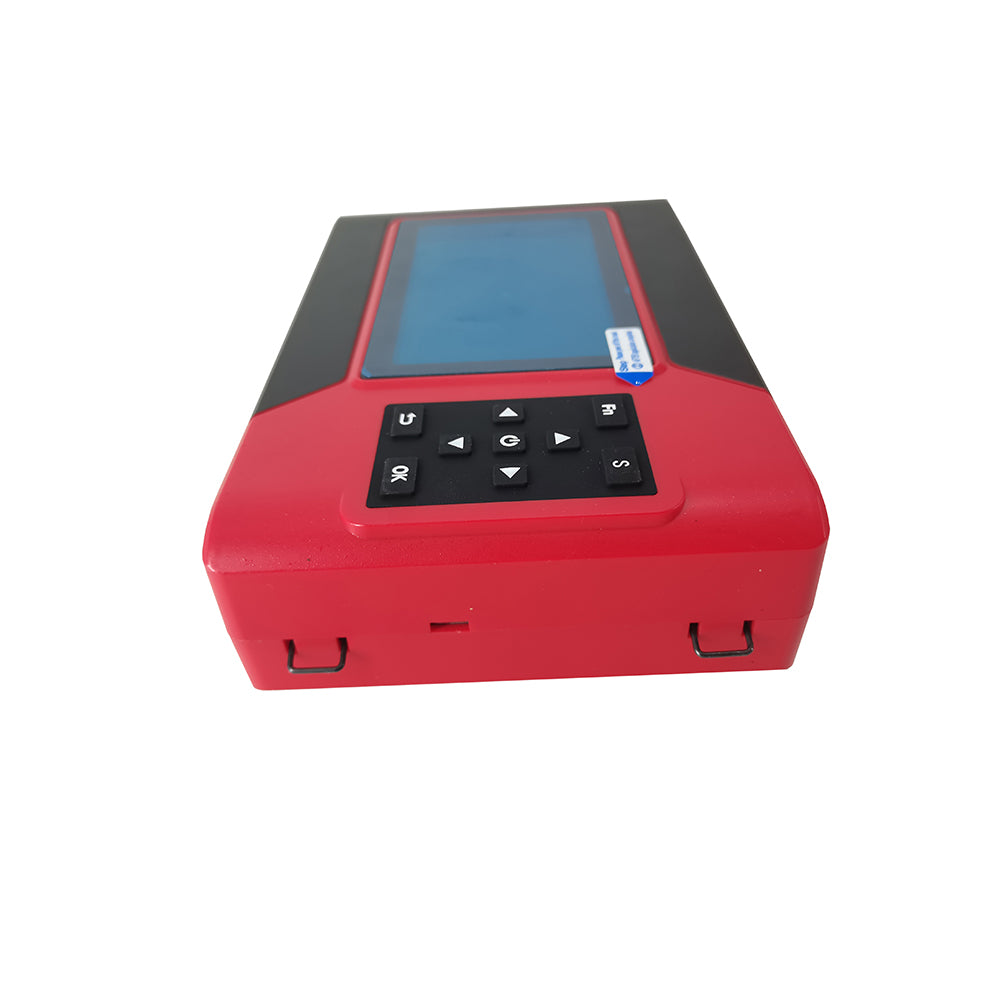

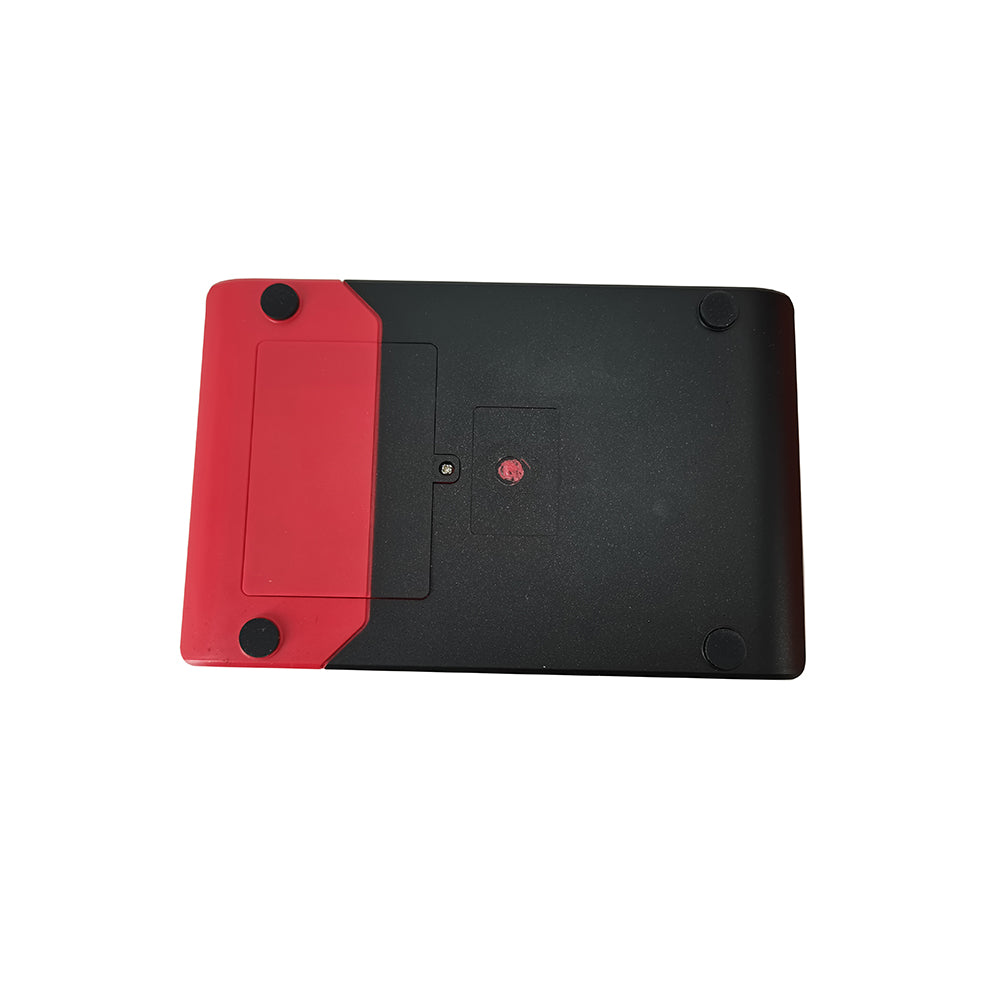

Instrument composition:

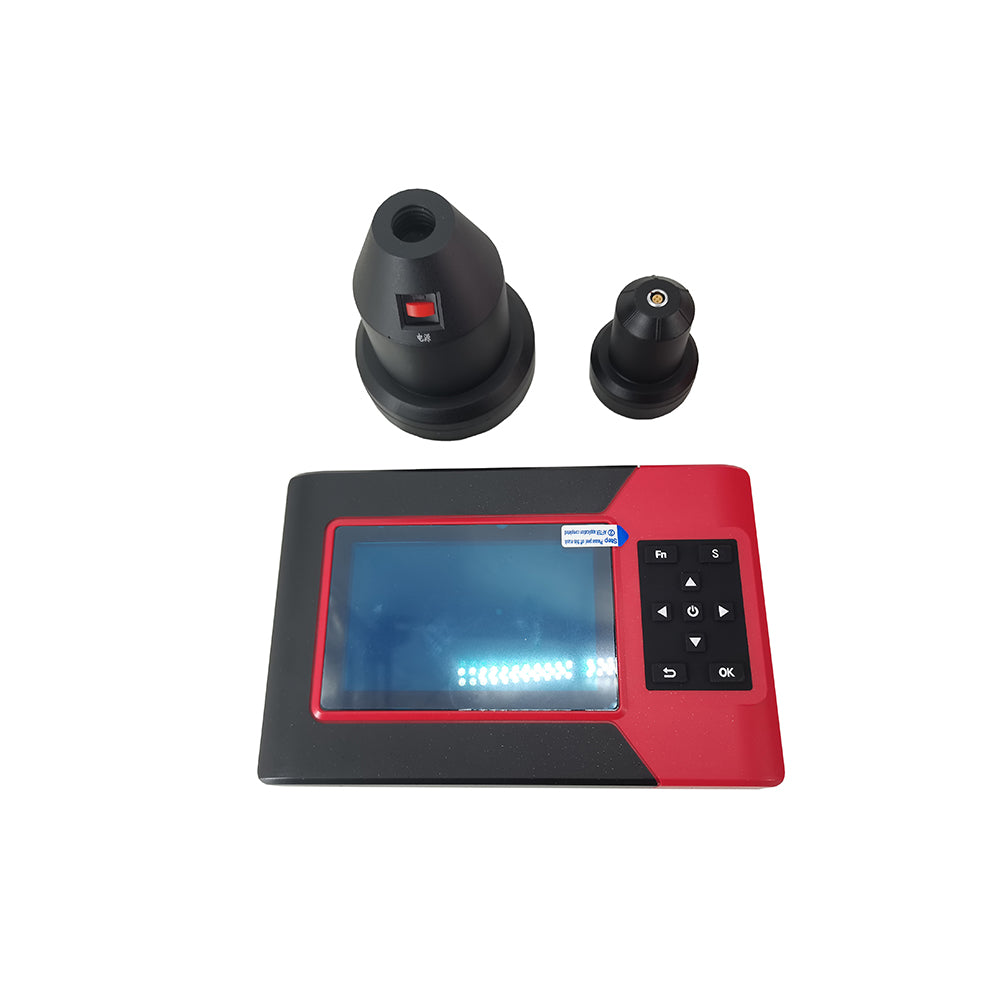

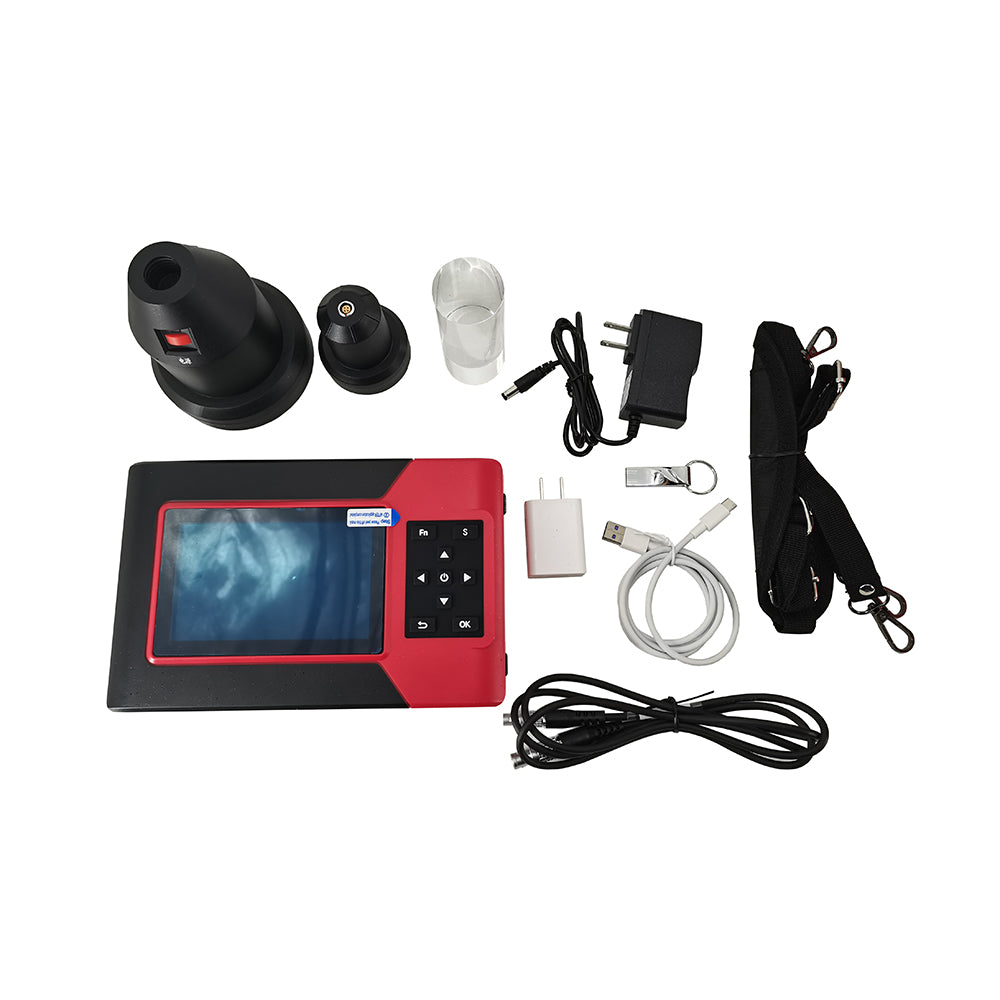

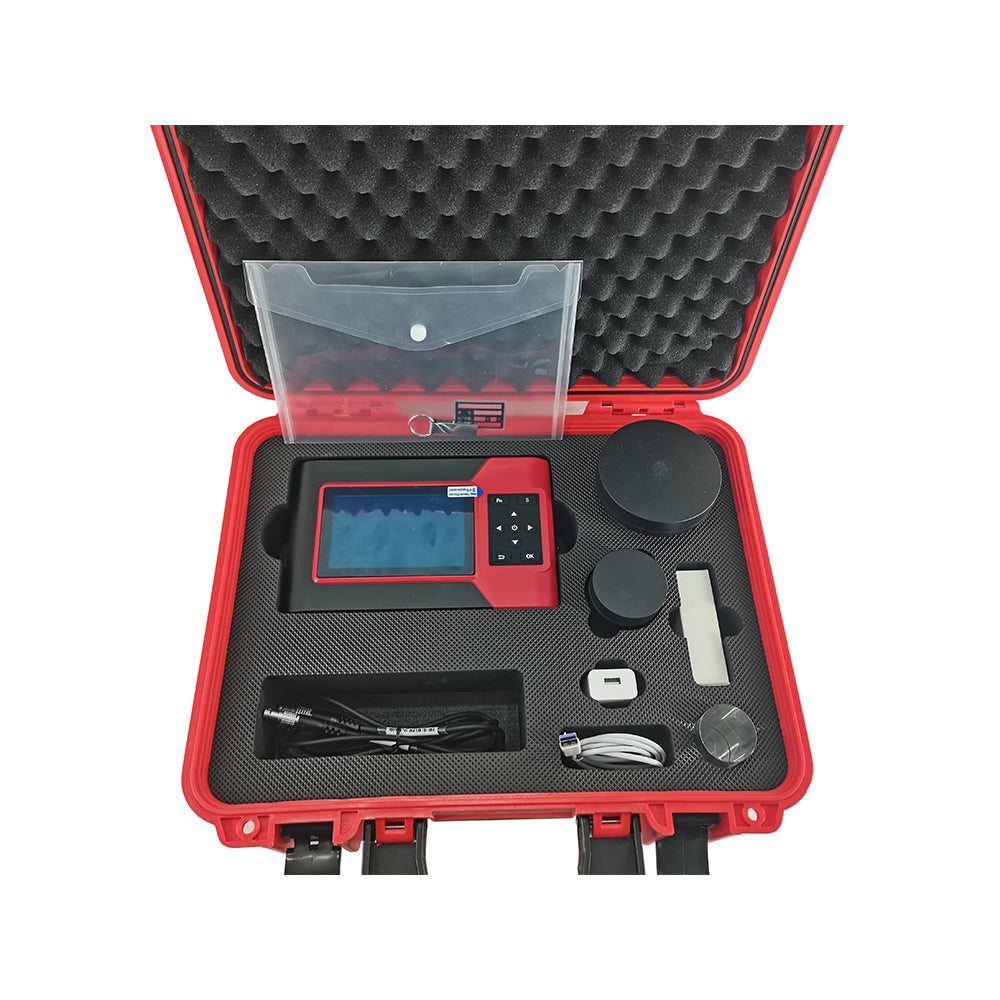

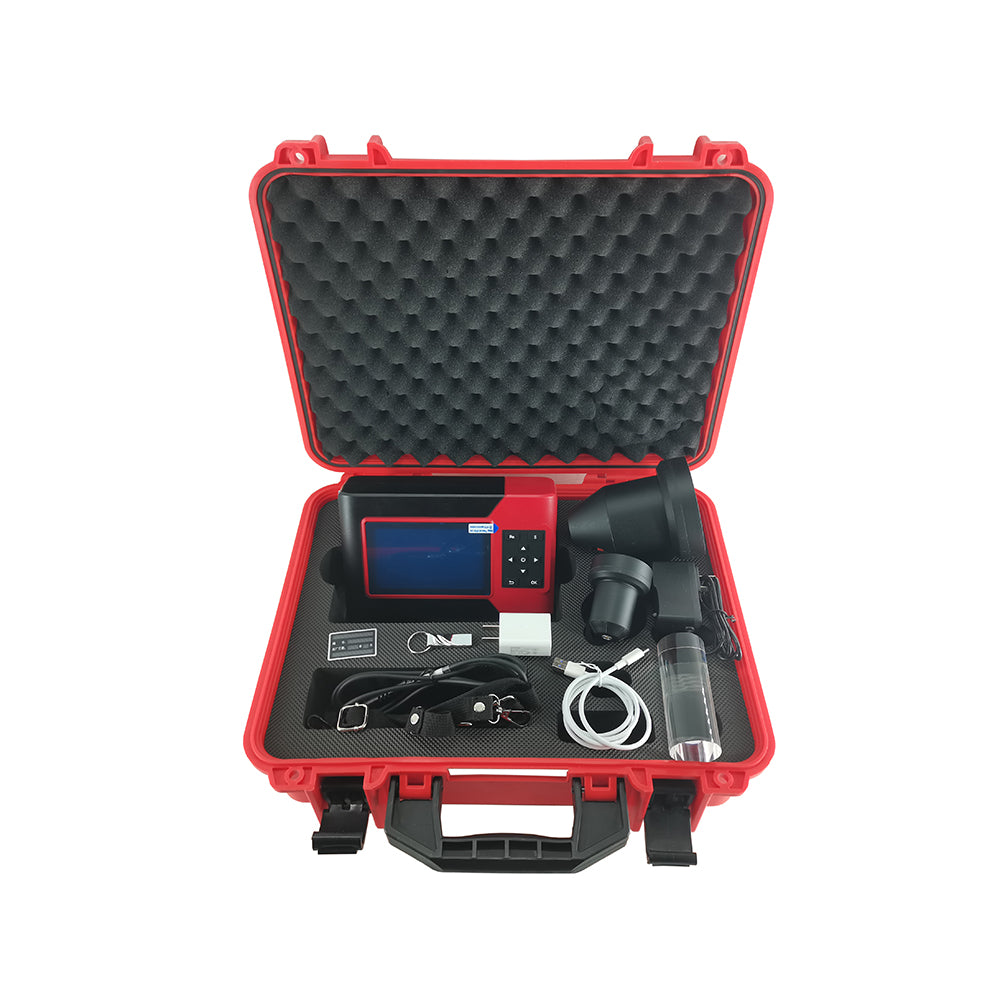

Host, transmitting probe, receiving probe, walkie-talkie, probe connecting line, data transmission line, extension pole, software CD-ROM, etc.
