About this item

◆ NLB series: Pointer indication, easy to read and high test precision.

◆ Max load: 500N/110Ib, Min load: 50N/10Ib

◆ Load graduation value: 2.5N/1.0Ib, Rod journey: 10mm

◆ N and lb, Two kind of unit dual show at the same time,don't need unit conversion

◆ The NLB series is suitable for push pull test, plug and pull test and destructive test of various products.

Introduction:

The NLB series pointer push pull meter is a small portable tension and pressure testing instrument. It is suitable for push pull test, plug and pull test and destructive test of various products.

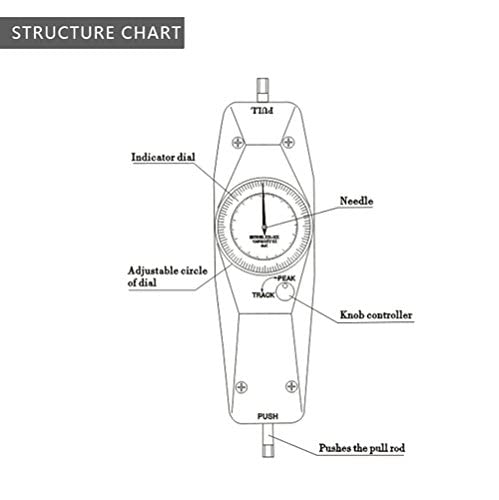

Analog Force Gauge with compact size,high accuracy,they are easy to operate and handy to carry out,and can show the unit of N and lb at the same time.The PEAK/TRACK knob of it can switch between the peak value load test and the continuous load test.

Widely applied in rubber plastic, light industry, textile, building windows and doors, compound materials, electric wire and cable, auto part, power generator, scientific research institute to do the push pull force insertion force and destructive experiment. Please reading the manual carefully before using this instrument.

Technical Specifications

Max load: 500N/110Ib

Min load: 50N/10Ib

Load graduation value: 2.5N/1.0Ib

Rod journey: 10mm

Work temperature: 20°土10℃;Carry temperature: -27℃~+70℃; Relative humidity: 15%~80%RH

Work environment: No vibrancy and no cautery

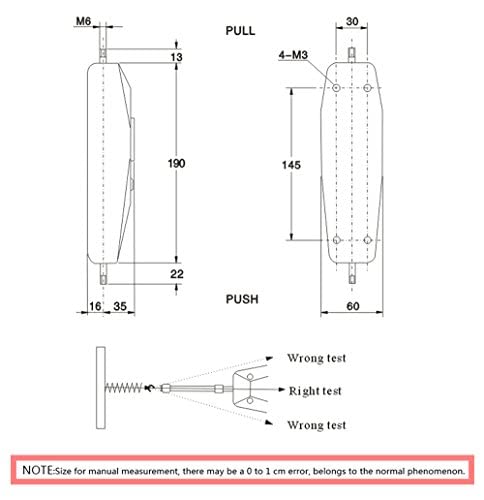

Size : 260 x 66 x 36 (mm)

NOTE:

Usually give the machine to apply the load exceeding the range of Max. test load, spring of load test machine will gradually be bad and lead to test value of load rightly. When using it, please don't overload to maintain life of the machine.
