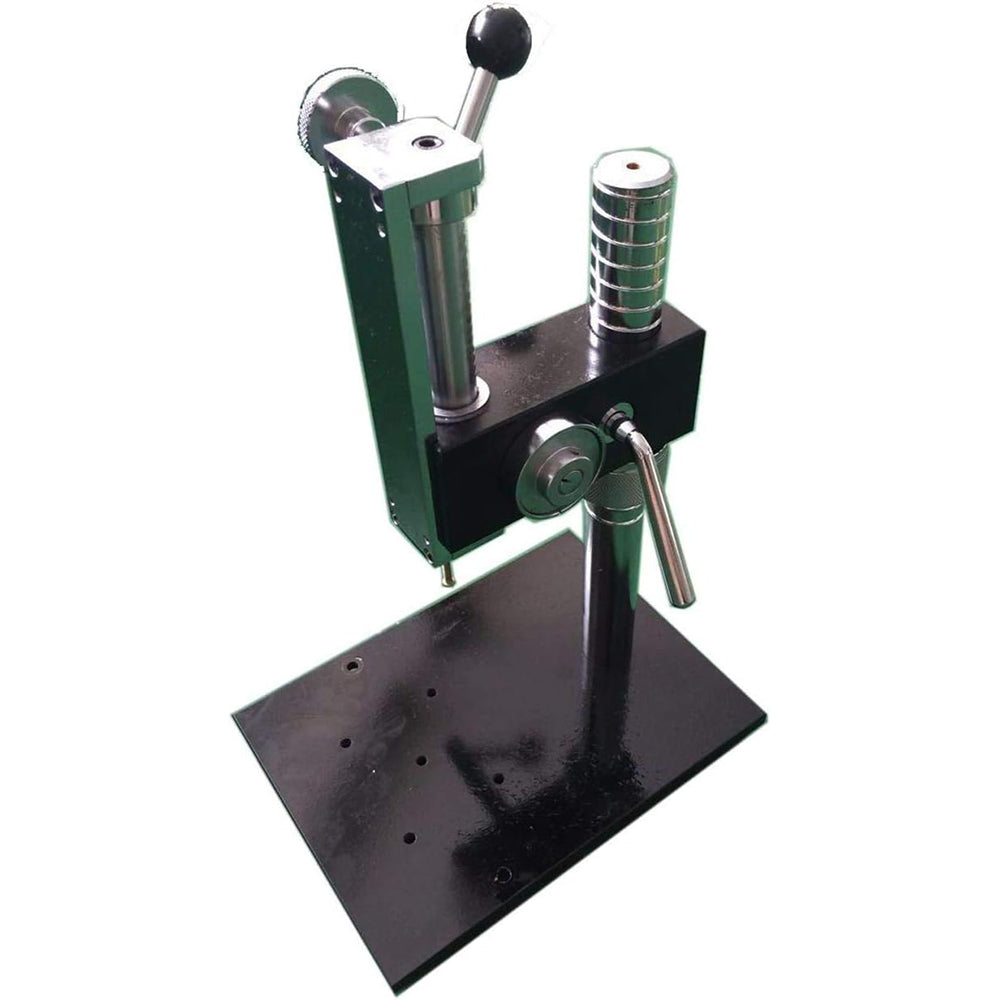

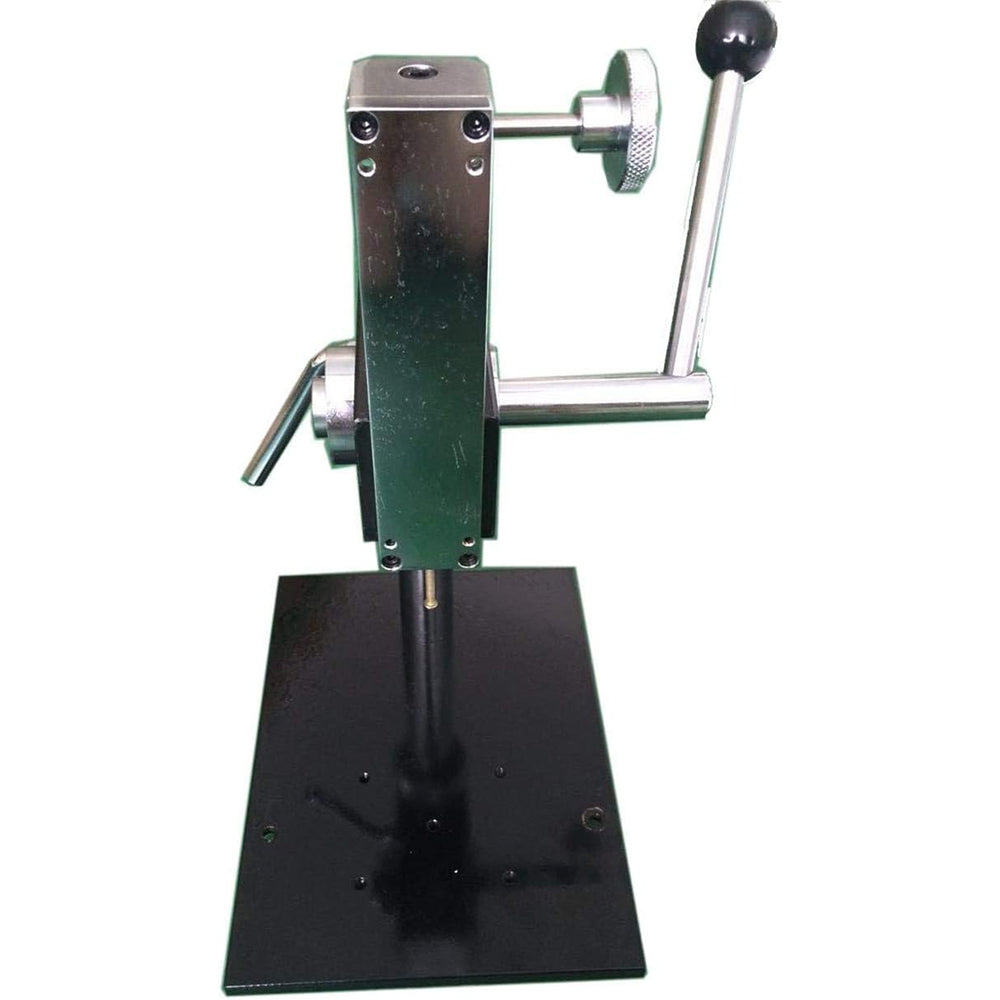

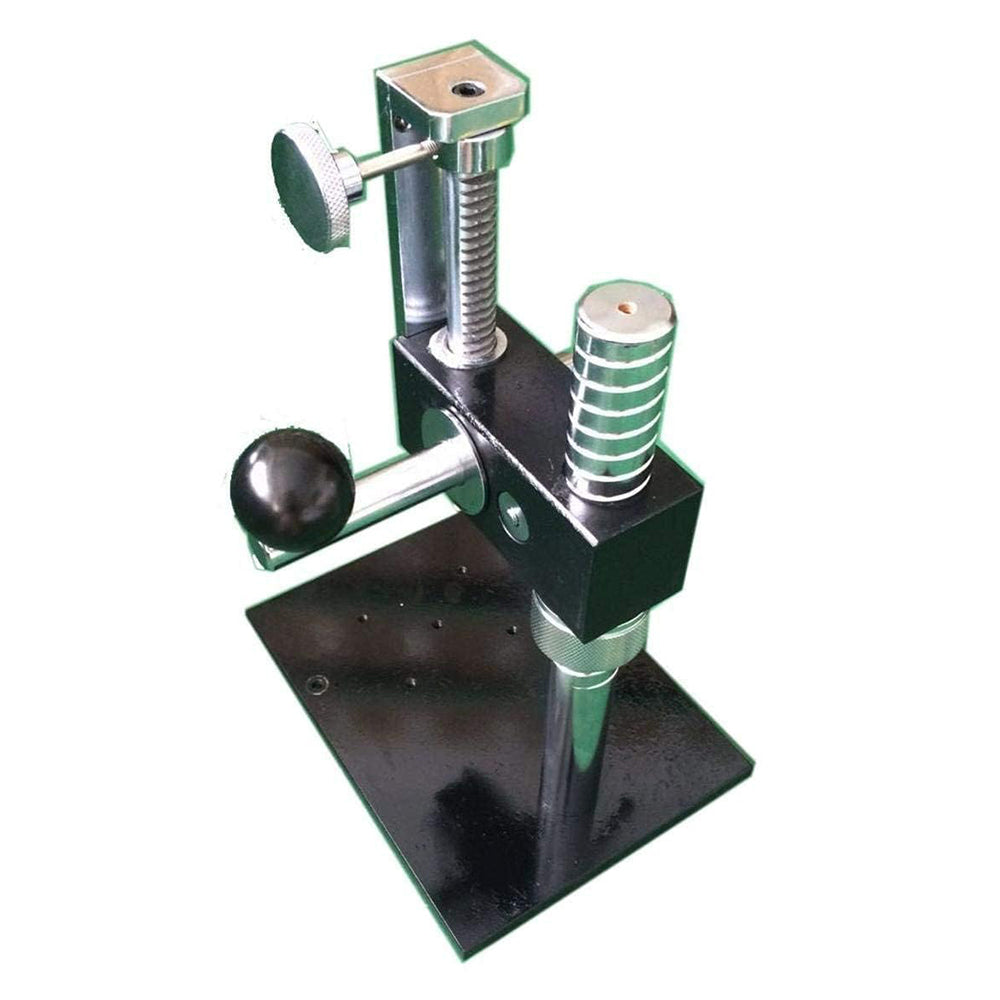

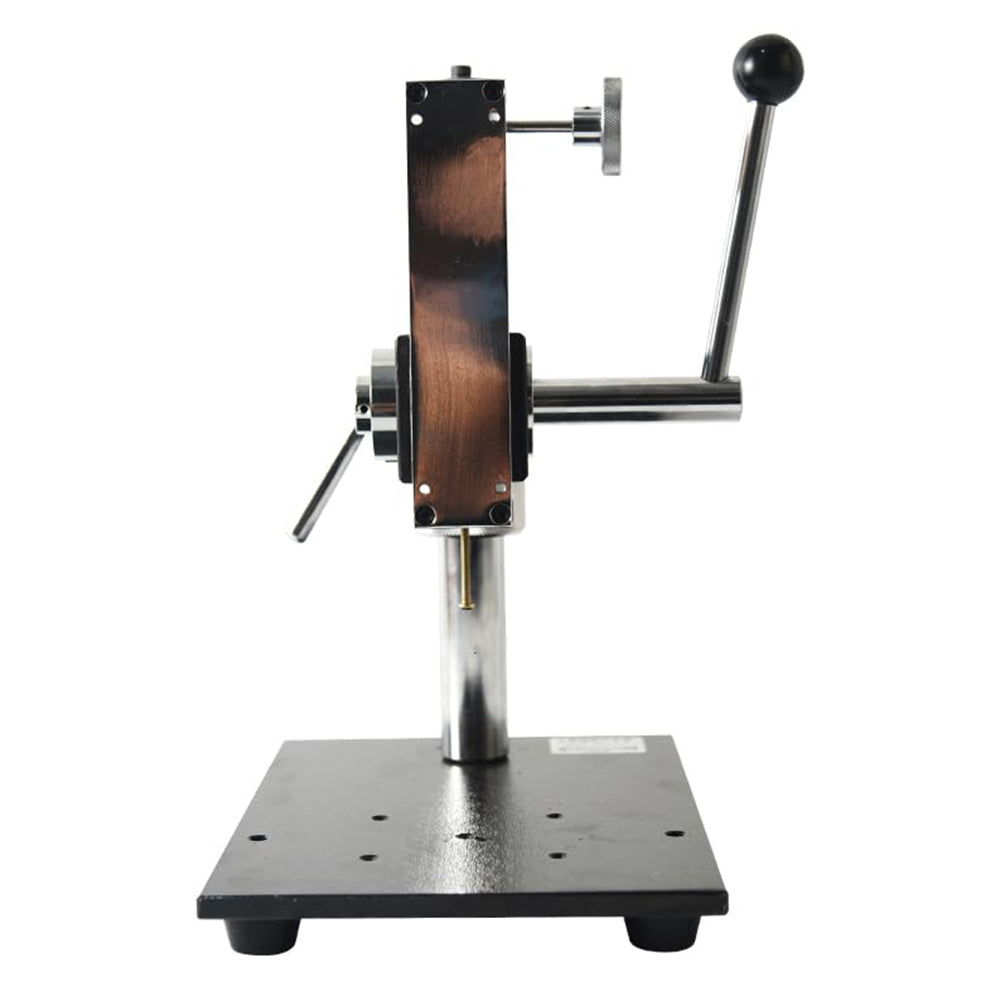

Hardness Test Stand Features:

Simple operation - hand pressure operation

Smooth operation - rack-and pinion rotating type

Install firm- solid base, large feet and heavy machine fuselage

Hardness Test Stand Specifications and Parameters:

·Stroke:90mm

·Max. Load: 500N

·Size: 255x240x505mm

·Net weight: 12kg

Introduction:

The instrument has the advantages of high accuracy, easy operation and easy carrying.

It can be used together with the special test bench to improve the measurement accuracy.(Special note: the scientific use of the measurement range of 10%~100% of the full range, the measurement department recommends not to use less than 1% of the full range part.）

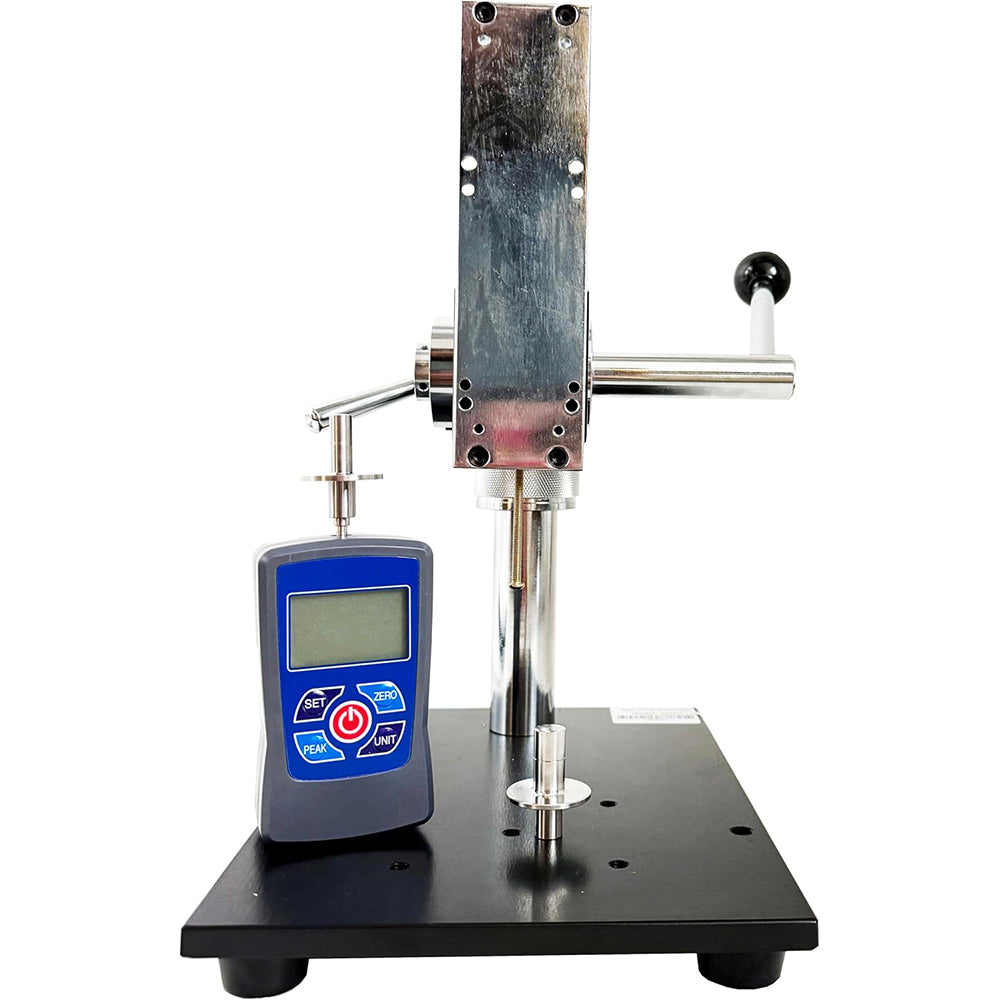

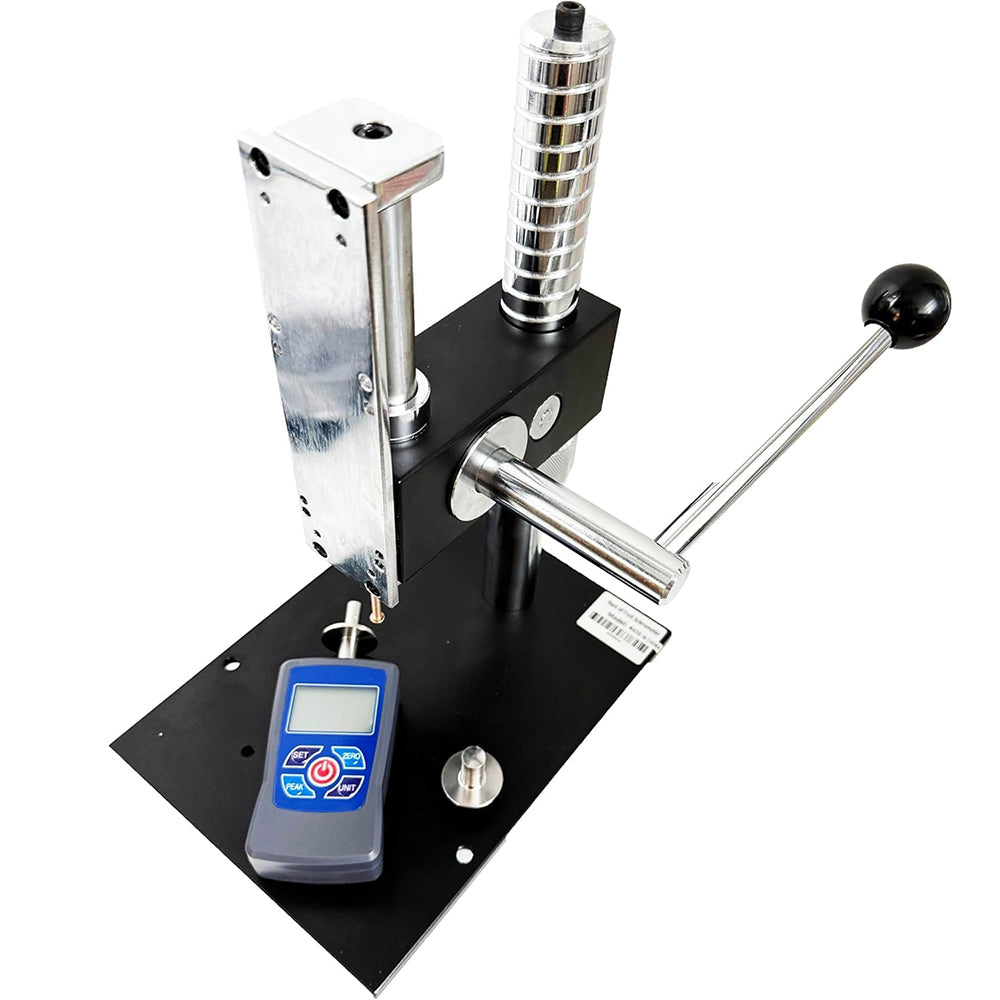

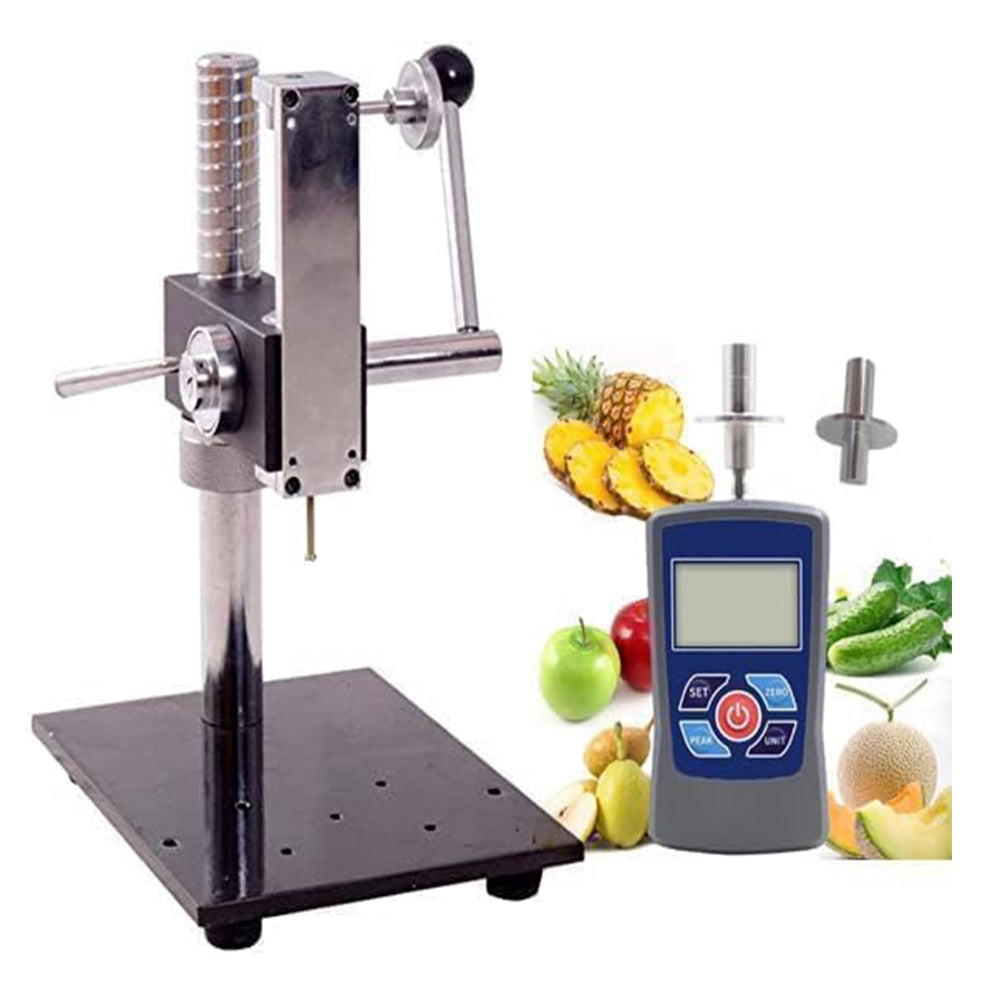

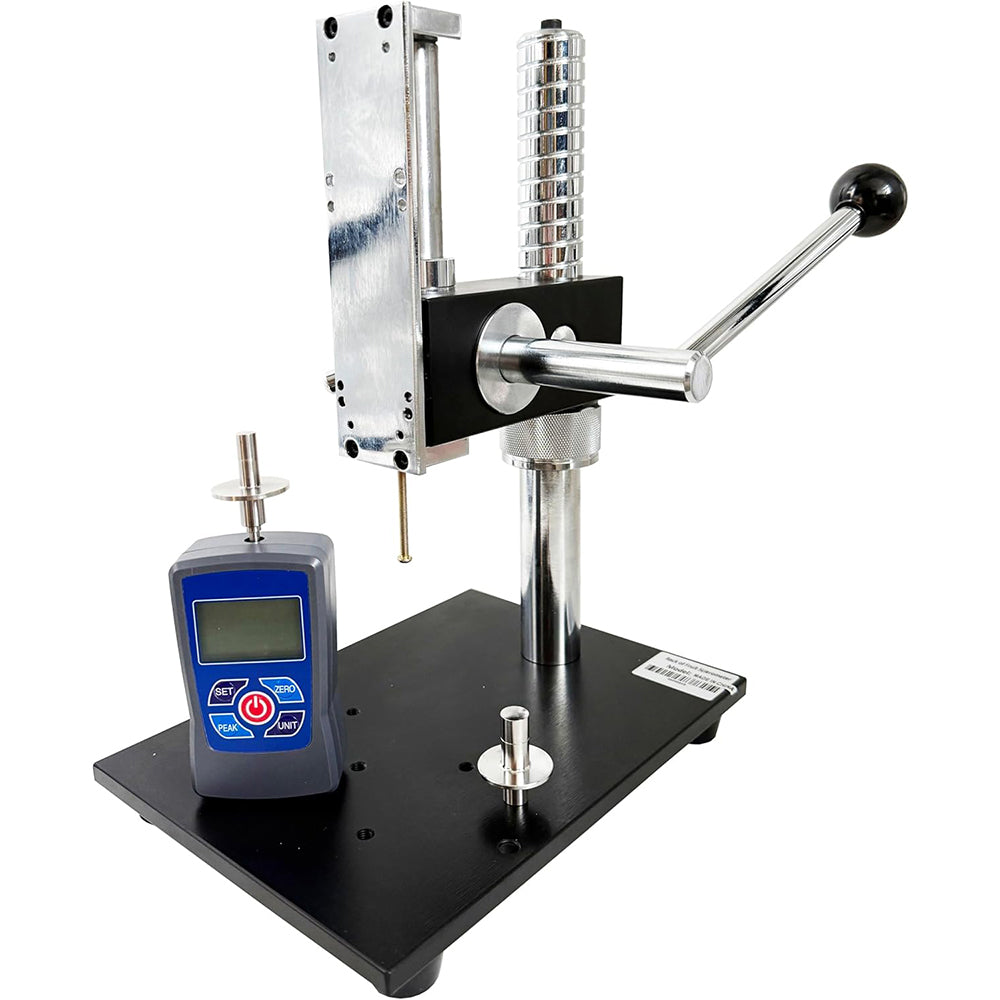

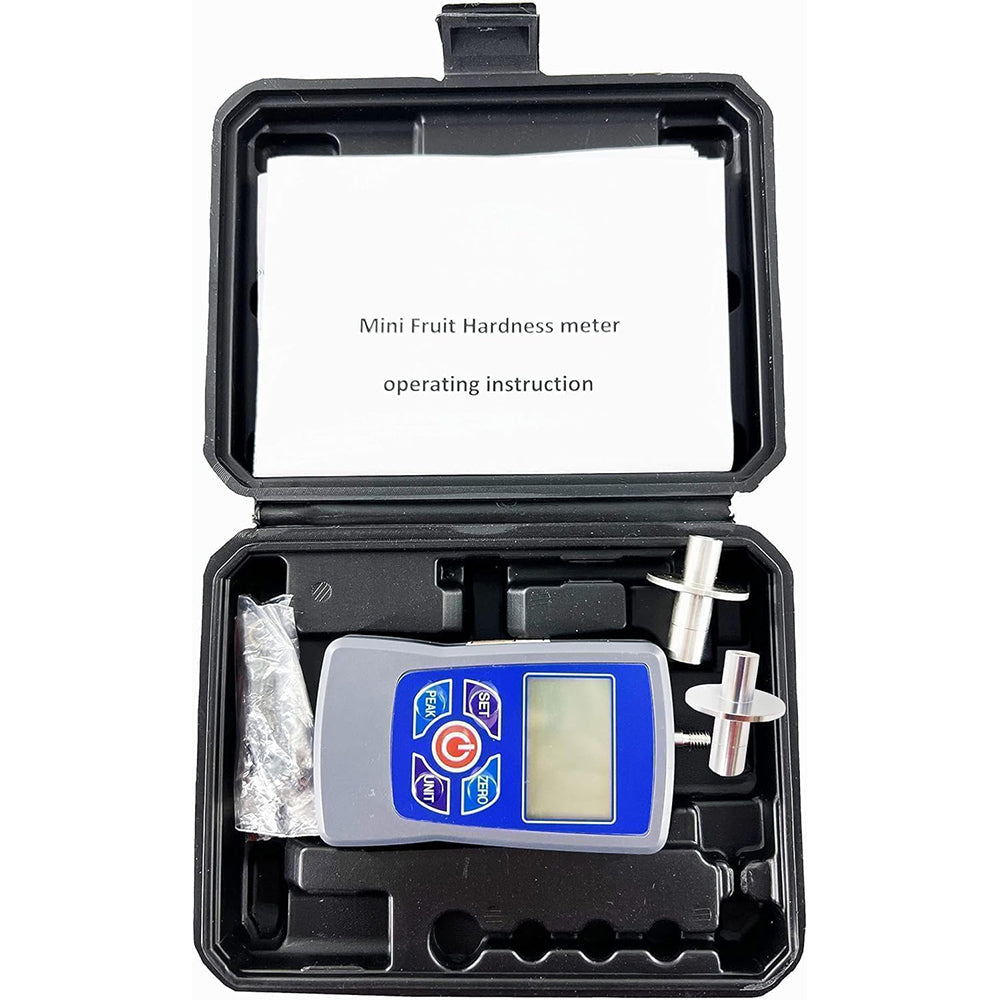

Fruit Hardness Meter Functional characteristics

High precision, high resolution.

The three measurement modes can switch freely (real-time, peak, first peak value).

Standard fruit hardness units in Kgf/cm2 are shown.

The upper and lower limits can be set for statistical analysis, and the buzzer can be set beyond the limit for the alarm.

Automatic shutdown function: can set automatic shutdown time, automatic shutdown without operation to achieve power saving effect.

Power supply: 2*1.5V dry batteries.(Batteries are not included during the shipment.)

Automatic backlight and buzzer alarm function.

Fruit Hardness Tester Specification

Range：0.2～15 Kgf/cm2 (×10^5 Pa) 0.4～30Kgf/cm2 (×10^5 Pa)

Pressure Head:2

Pressure head diameter： 1# ： Φ11.1mm, 2# ： Φ7.9mm

Load division value：0.01Kgf/cm2

Accuracy：±2％(10% to 100% of the full range)

Insertion depth of indenter：10mm

Power supply：2 Dry Battery # 7 (1.5V)(Batteries are not included during the shipment.)

Working temperature：5℃～35℃

Transportation temperature：-10℃～60℃

Relative humidity ：15％～80％RH

Net weight：About 0.4Kg

Contour：124×60×31(mm)
