  • VTSYIQI Fruit Hardness Tester and Test Stand with USB Data Cable and Software Measurement Range 0.2~5.0kgf/cm² Pressing Depth 10mm Tip Diameter 3.5mm for Small Fruit Soft Fruit

VTSYIQI

VTSYIQI Fruit Hardness Tester and Test Stand with USB Data Cable and Software Measurement Range 0.2~5.0kgf/cm² Pressing Depth 10mm Tip Diameter 3.5mm for Small Fruit Soft Fruit

$80800
In stock
$80800

Customer Service

Post your customer service details here.

Return Policy

Post your policy conditions details here.

About this item：

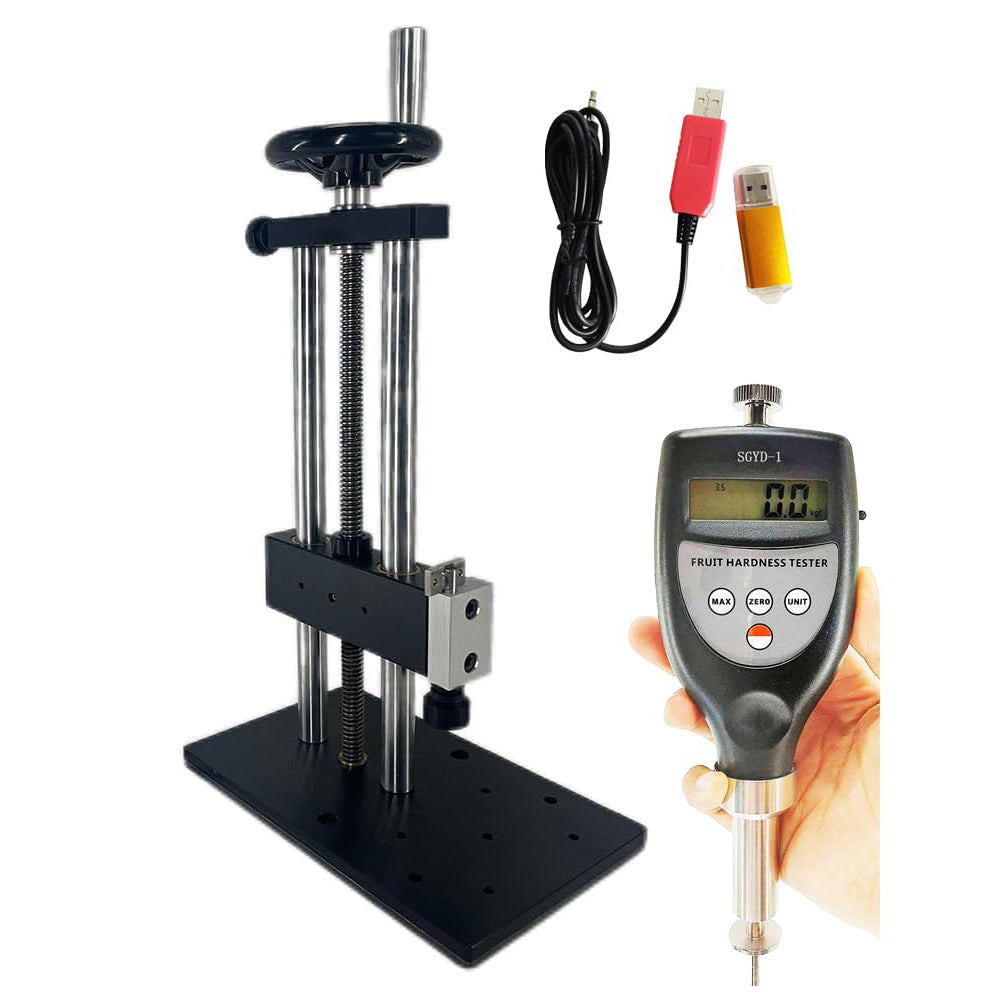

◆Delivery includes Fruit Digital Hardness Tester and Hardness Test Stand.

◆The standard package Provide USB data output to connect with PC.

◆Fruit Sclerometer Tester is suitable for Small fruit, Soft Fruit: Peach, Banana, Apricot, Plum, Melon, Citrus, Persimmon

◆Digital display with back light gives exact and clearly reading although you stay at the somber conditions.

◆Fruit Sclerometer Tester is small in size, light in weight ,easy to carry out for fieldwork if needed.

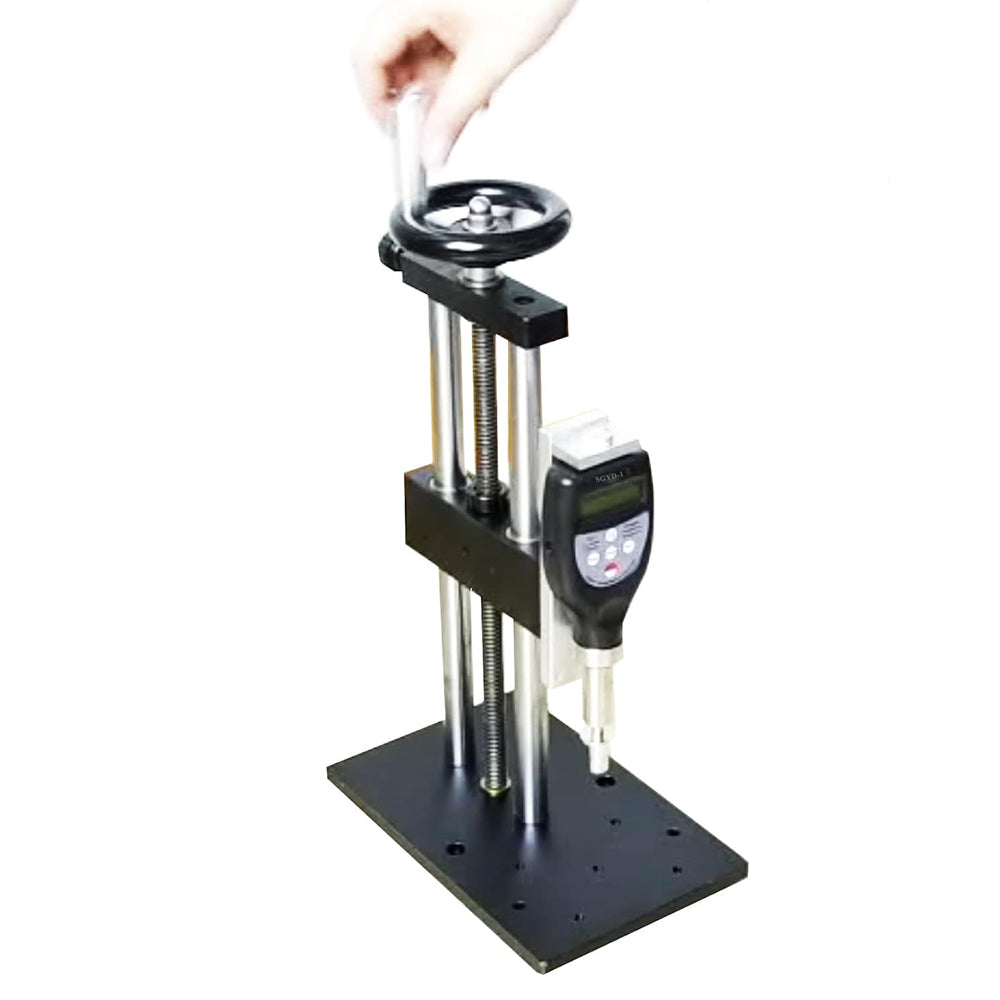

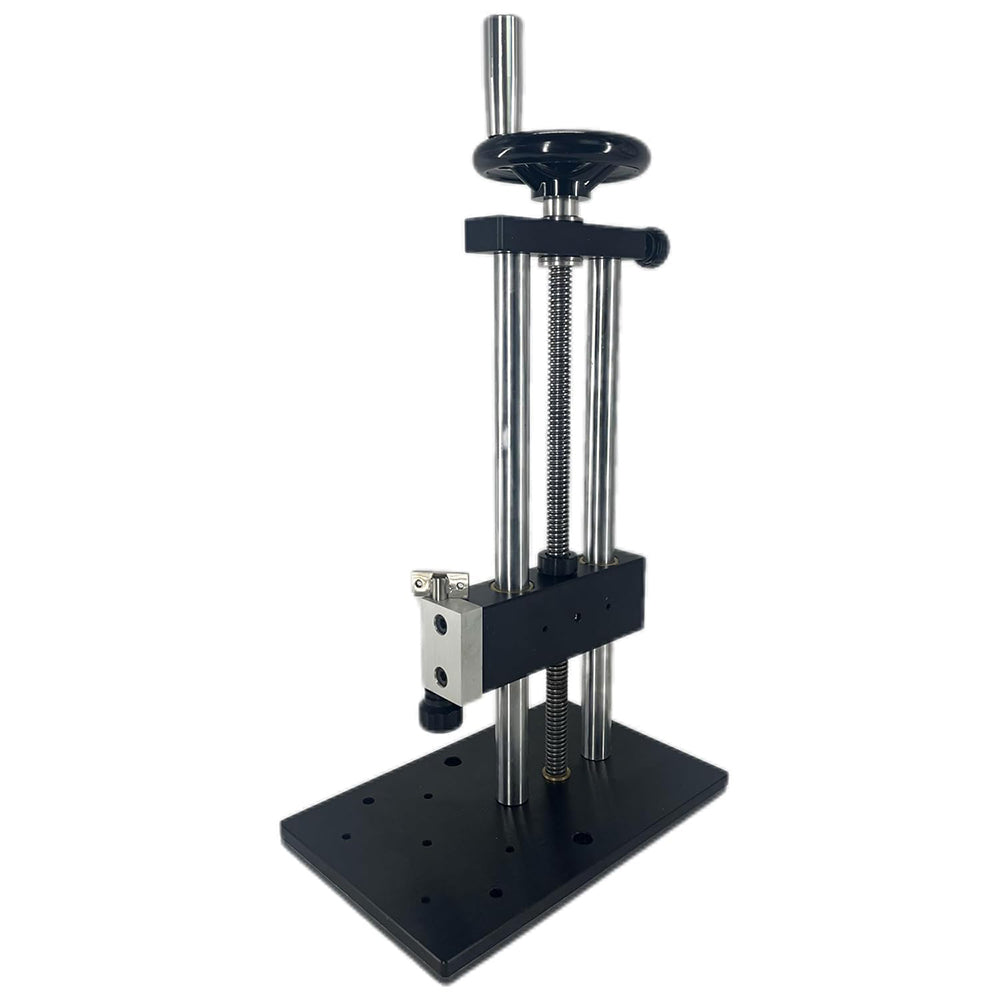

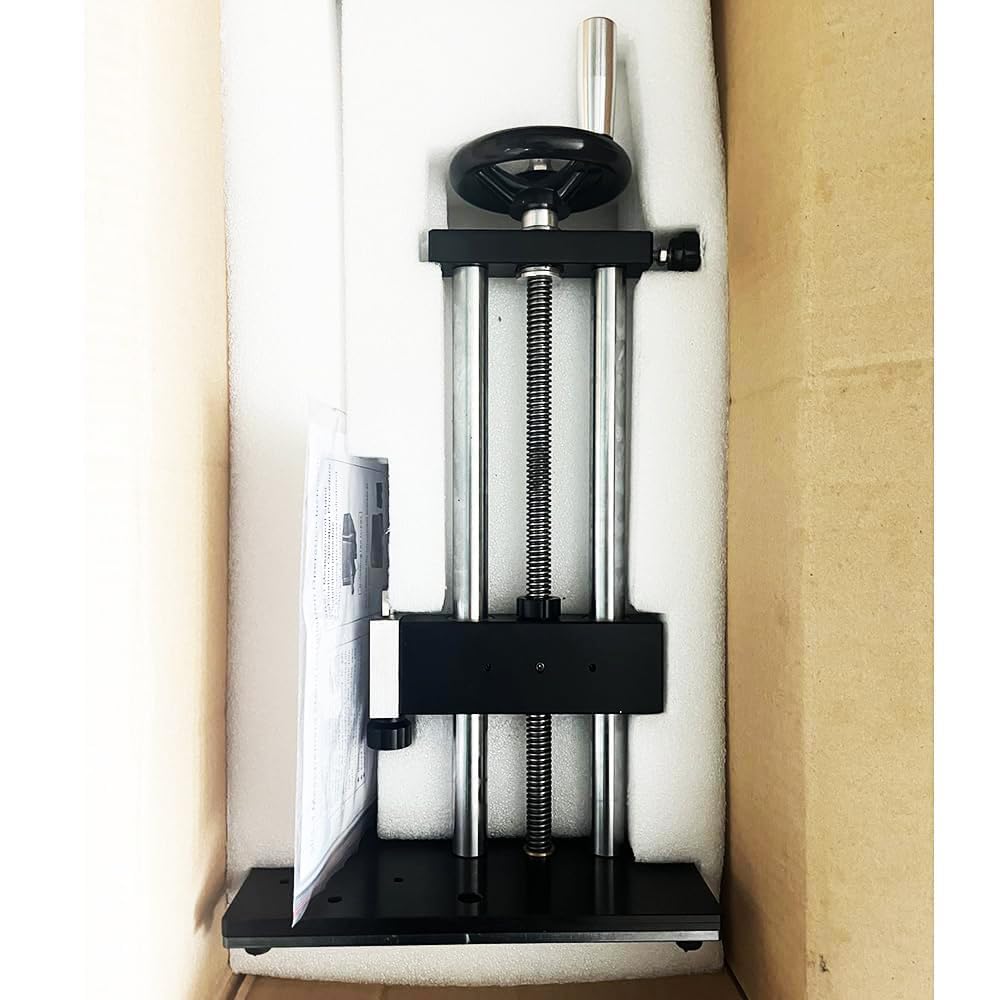

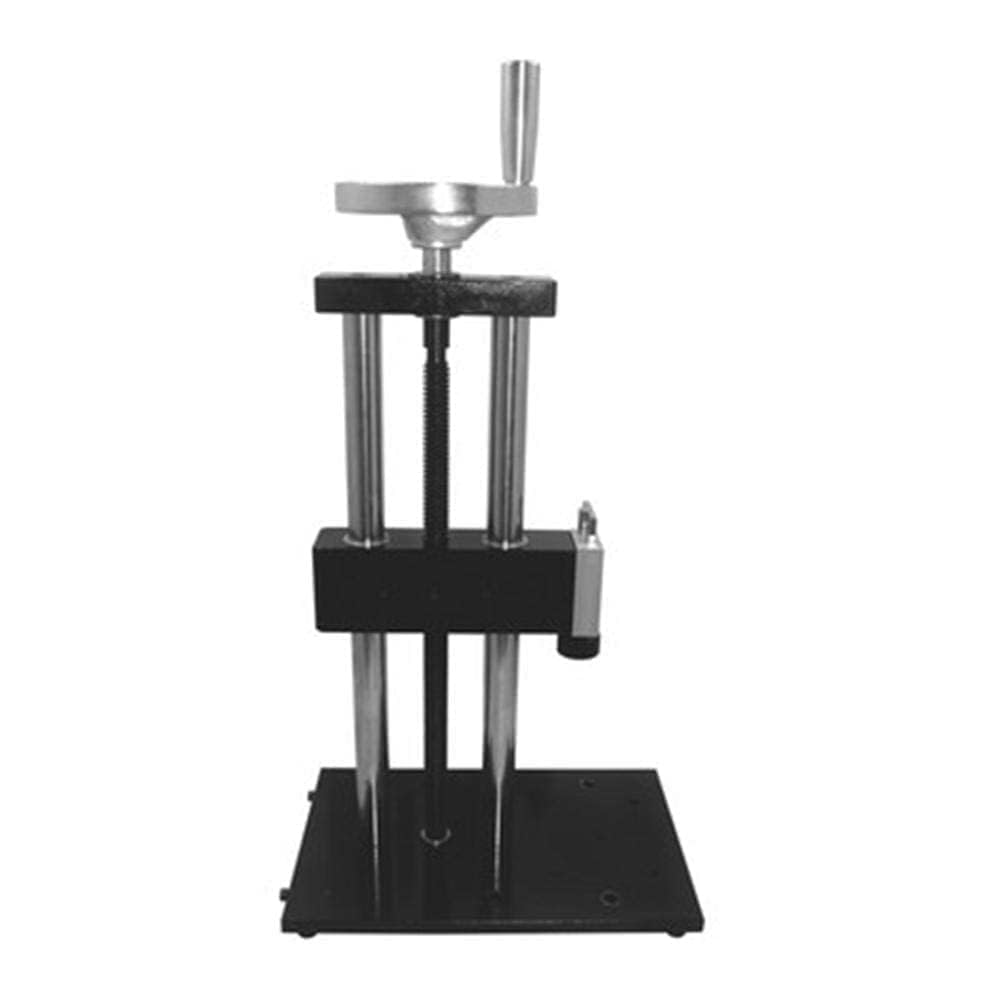

Test Stand Applications:

Measurement Stand, primarily for use with measuring instruments, according to the different shape and height of the workpiece, the instrument can not be measured directly to get accurate data, it needs to be mounted on the measurement stand, and then turn high, low to let the pointer in the zero scale, thus greatly to improve the accuracy of measurement.

Test Stand Specifications:

Dimensions:154x240x467mm

Distance:150 mm

Rated Load:500N

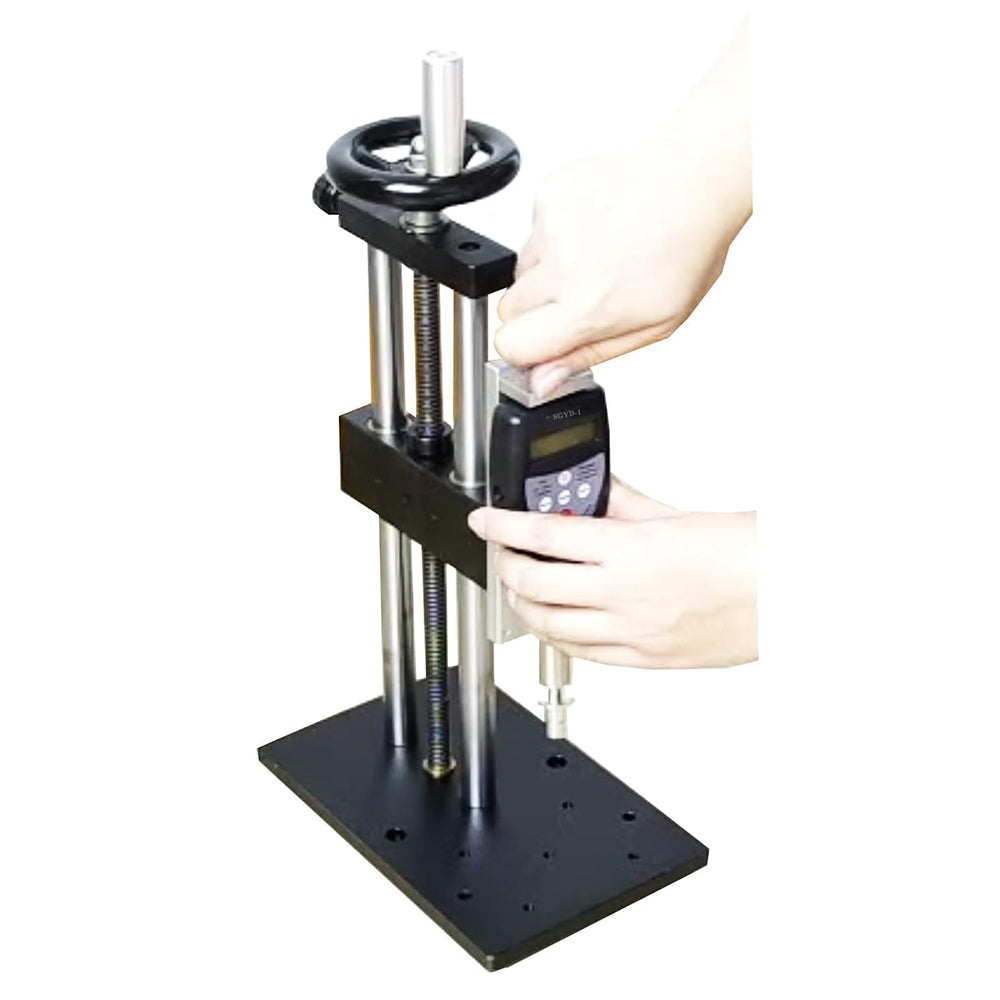

Test Stand Installation Procedure:

Unloading the screws in adjustment bracket with a screwdriver, remove the adjustment bracket, mounted the instrument on the measurement stand(use two previously removed screws).

Test Stand Operation Procedure:

Press the power button to boot, by adjusting the measuring bracket so that the sensor contact with the measured object, the stylus cursor position (refer to manual component description) should be instructed in "0" point (or upper and lower frame) position. After adjustment, the measurement can be taken in 2 seconds when the instrument is stable.

Test Stand Notice:

Instrumentation and measurement stand should be fixed, to prevent loosening,shaking, cause measurement error.

After adjustment, the measurement can be taken when the instrument is stable in 2 seconds, ensure the accuracy of measurement. (the stylus will shake when adjusting position)

Note that the package included USB Data Cable with Software

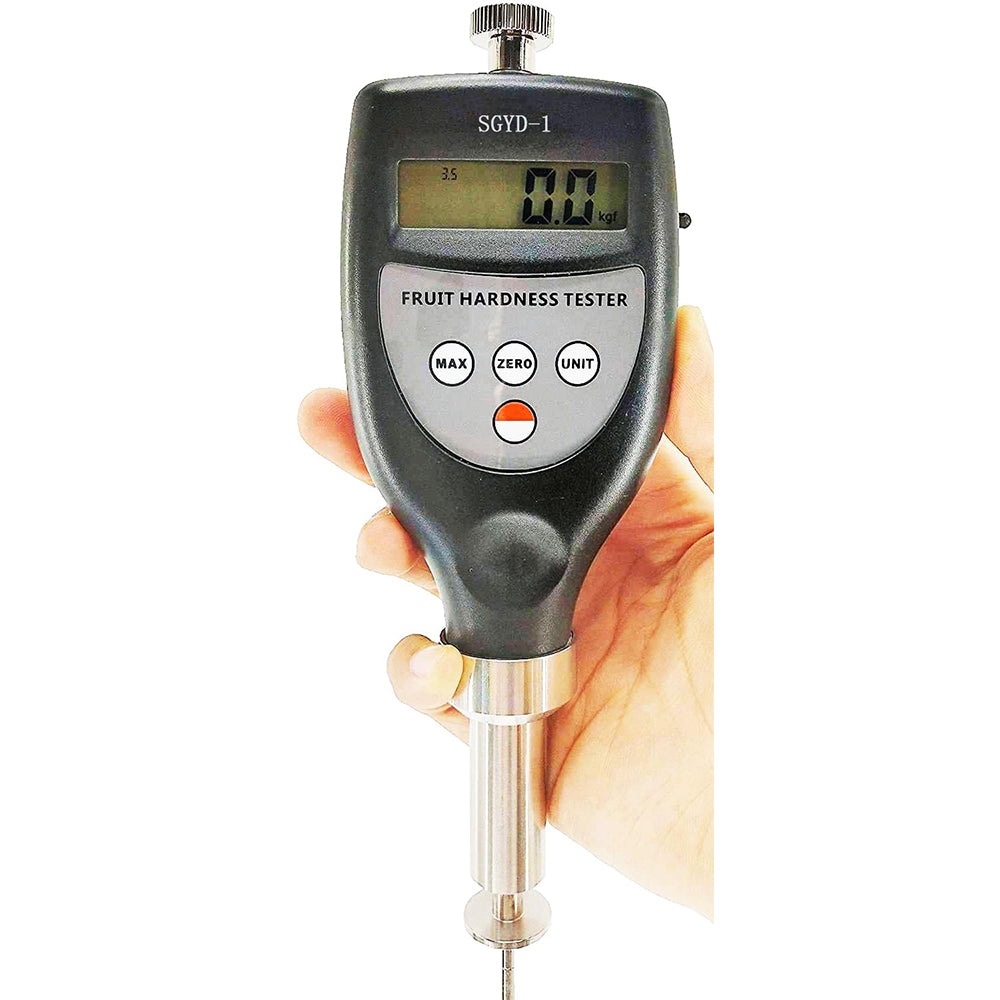

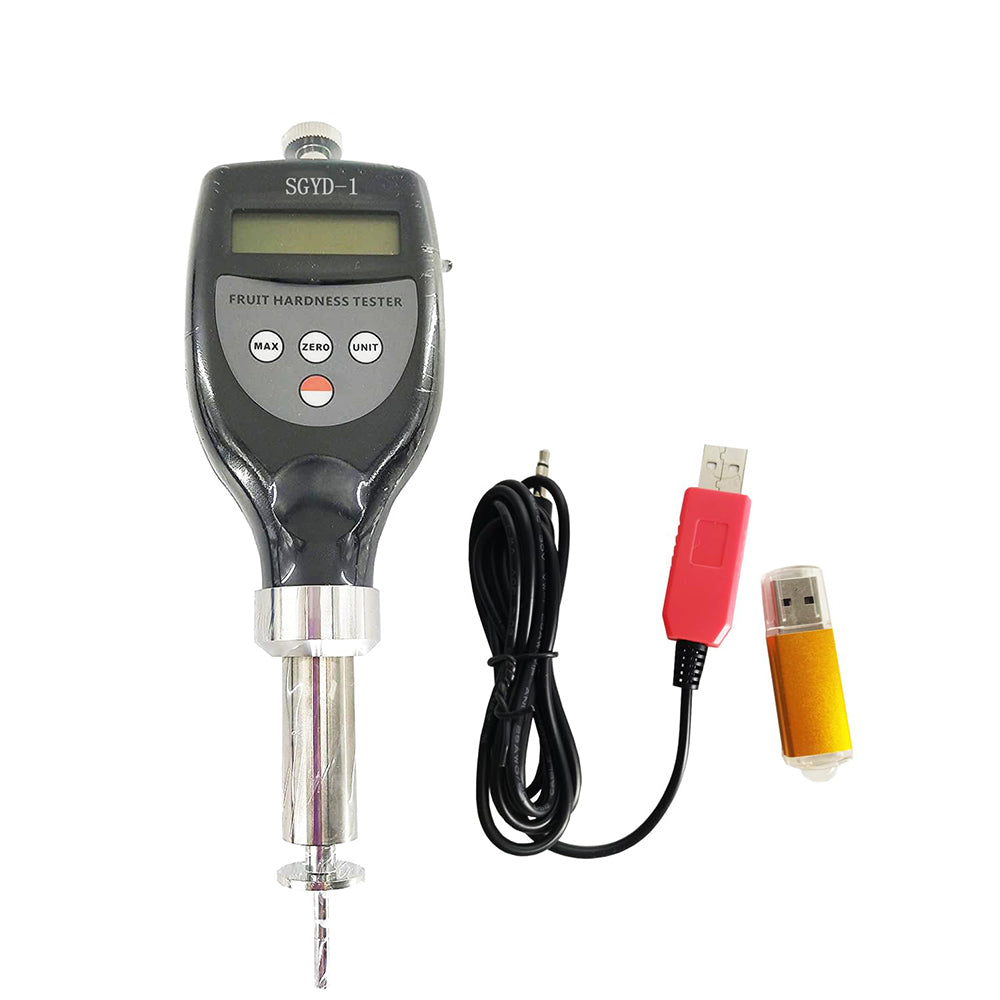

Fruit Hardness Tester Introduction:

The Fruit Hardness Tester is a handheld compact penetrometer for fruit and some vegetable hardness testing.

SGYD-1 is suitable for Small fruit, Soft Fruit: Peach, Banana, Apricot, Plum, Melon, Citrus, Persimmon

Fruit Classifications:

Small Fruit: Strawberry, Cherry, Grape, Berry

Soft Fruit: Peach, Banana, Apricot, Plum, Melon, Citrus, Persimmon

Fruit Hardness Tester Features:

SGYD series is an indispensable tool for growers.

By measuring force required to plunge into fruit pulp, inferring ripeness, SGYD assists in determining the picking time or monitoring softening during storage.

With Max. Hold, Unit Converse Functions.

Fruit Hardness Tester Technical Specifications:

Unit: kgf(kgf/cm²),lbf(lbf/cm²) ,N(N/cm²), Pa

Tip Diameter: 3.5mm

Range: 0.2~5.0 kgf/cm²

Resolution: 0.01/0.1/1

Accuracy: ±(1%H+0.1)kgf/cm²

Pressing Depth: 10mm

Operating Conditions: Temperature:0~45ºC, Humidity:<90%RH

Power Supply: 2X1.5V AAA Size(UM-4)Battery（Battery Not Included In the Package）

Dimensions: 204x62x33mm (8.0x2.4x1.3 inch)

Weight: 230g

Standard Accessories:Main Unit, 3.5mm Tip, Wrist Strap,USB Data Cable with Software, Test Stand,Carrying Case(B04, Operation Manual
