VTSYIQI

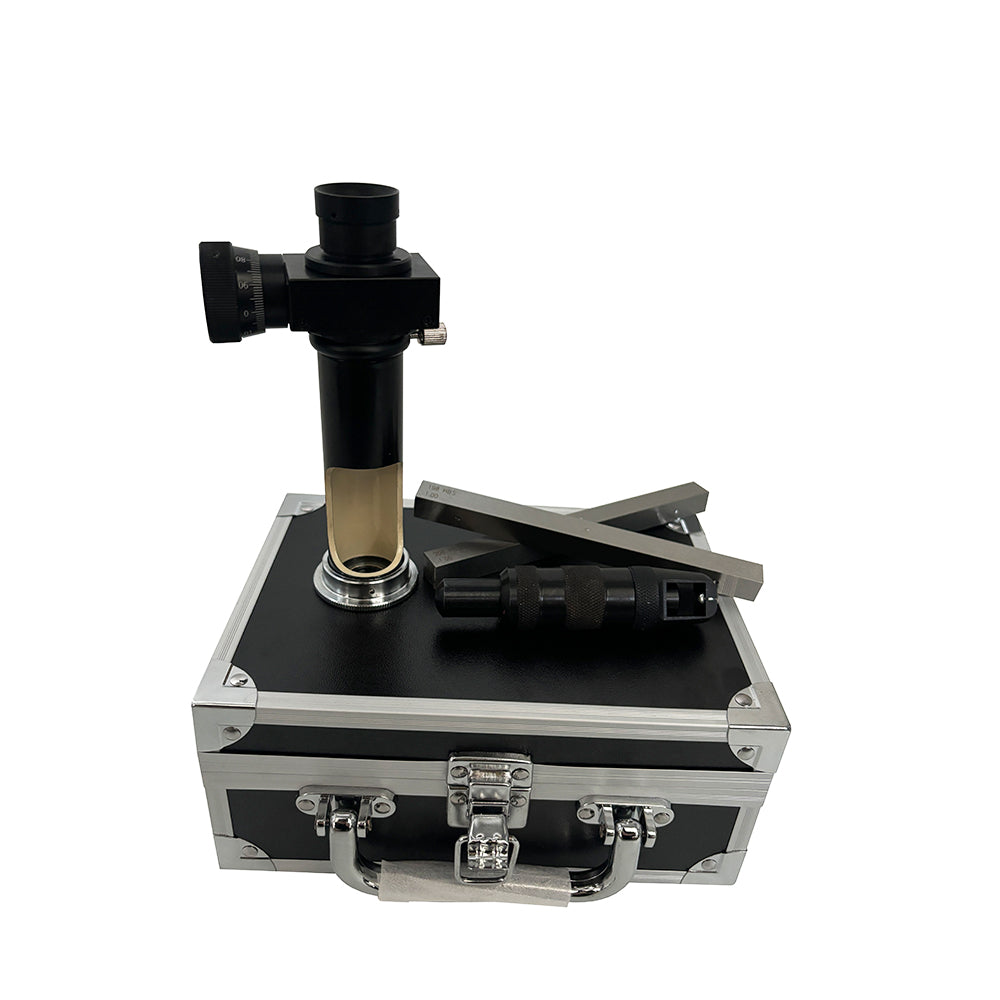

VTSYIQI Hammer Hitting Type Brinell Hardness Tester with Measuring Range < 450 HBS 20X Readout Microscope and 2pcs Hammer-Hitting Type Brinell Standardized Blocks JJG 411 Standard
- Regular price
- $269.00
About this item
Measuring range: < 450 HBS
Diameter of steel ball: Dia10mm
It can determine the black metal, non-ferrous metal Brinell hardness value and tensile strength of steel. Especially suitable for work site on large parts for Brinell hardness measurement.
This hardness tester is suitable for testers in workshops and material warehouses due to its simple construction, ease of use and portability.
Introduction
●This machine is small in size, easy to carry, hammering ratio to Brinell measurement, high testing efficiency. Accuracy in line with JJG411. can determine the black metal, non-ferrous metal Brinell hardness value and tensile strength of steel. Especially suitable for work site on large parts for Brinell hardness measurement.
Specifications
●Measuring range: <450 HBS
●Diameter of steel ball: Dia10mm
●Dimensions: Dia25 x 110mm
●Weight: approx. 0.5kg
●Size : Φ25*110mm
●Weight: 1.5kg

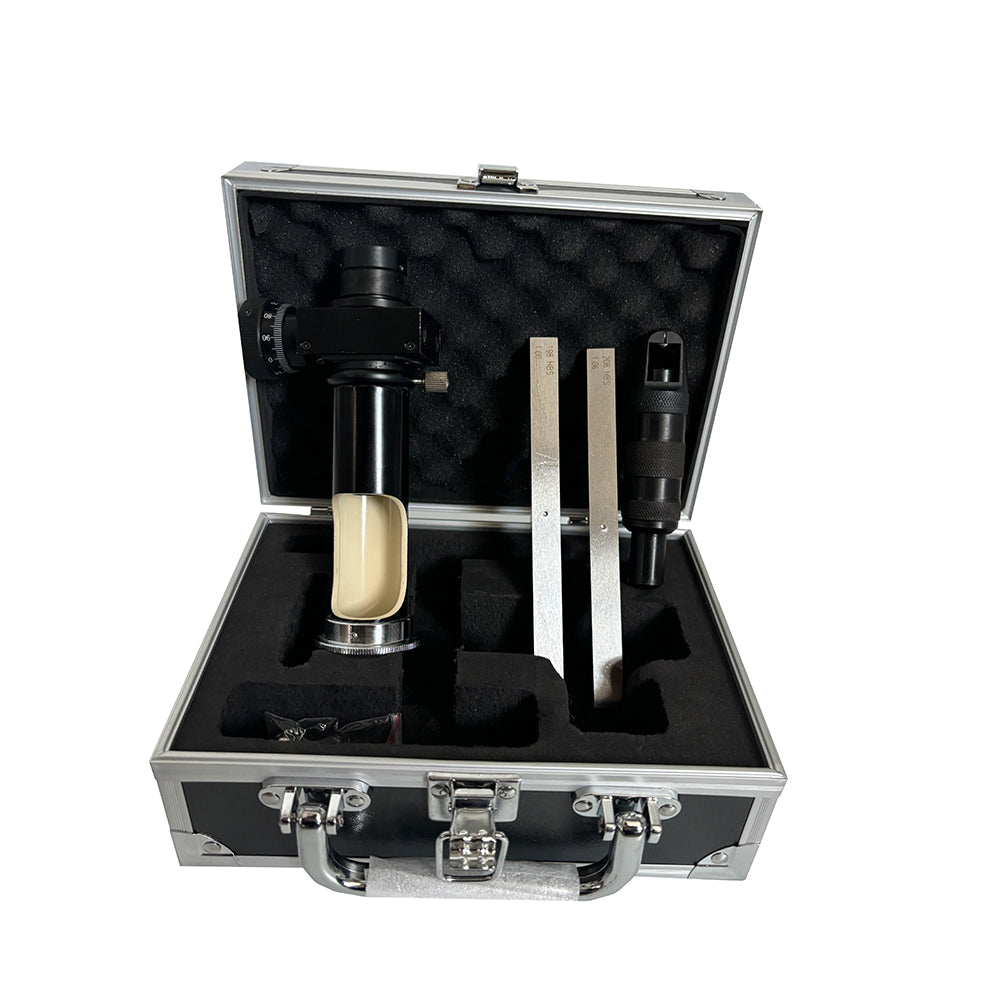

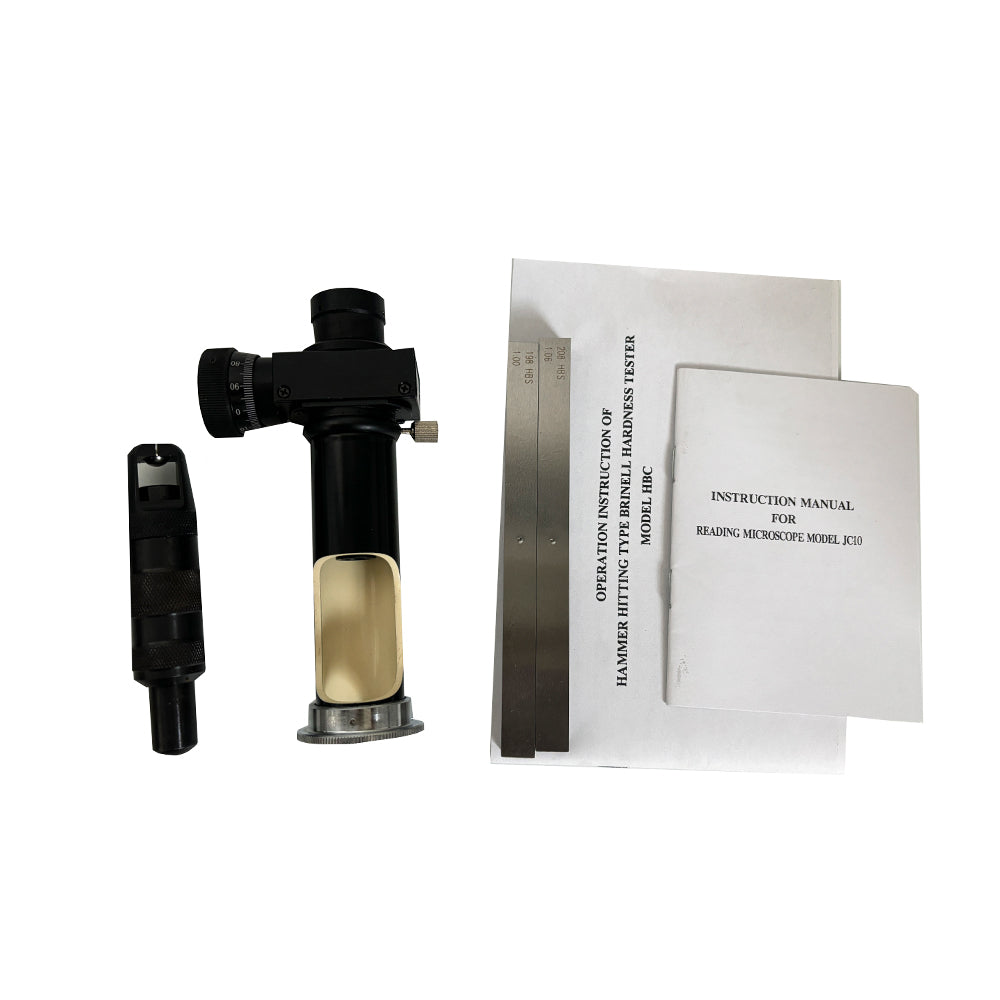

Standard accessories
●Hammer-hitting type Brinell standardized block: 2 pcs.

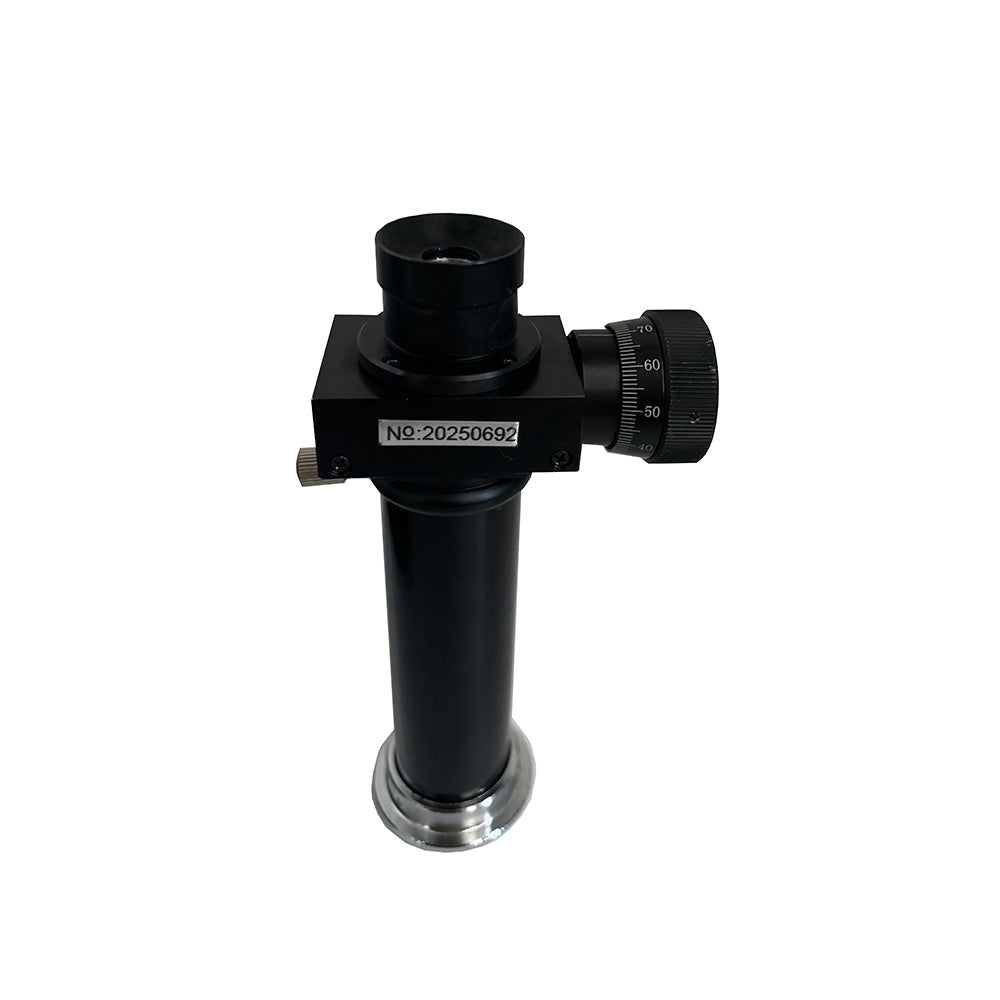

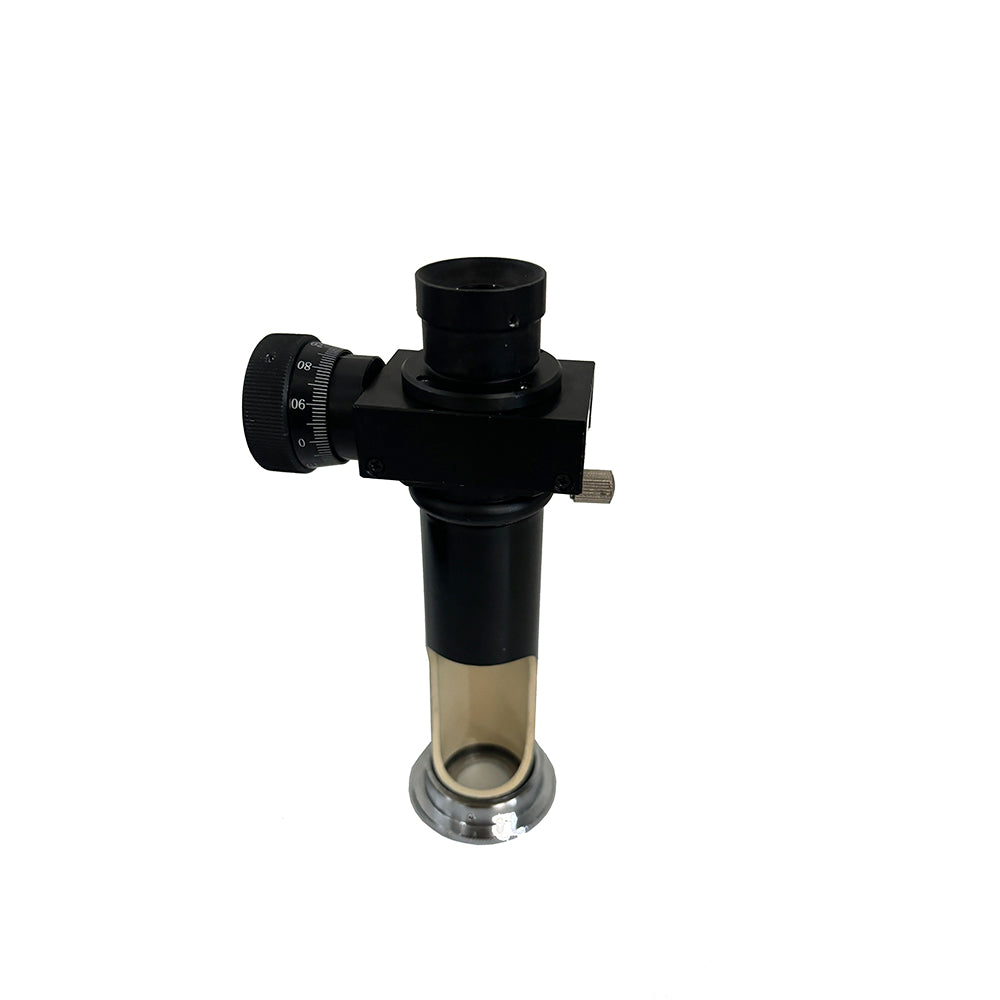

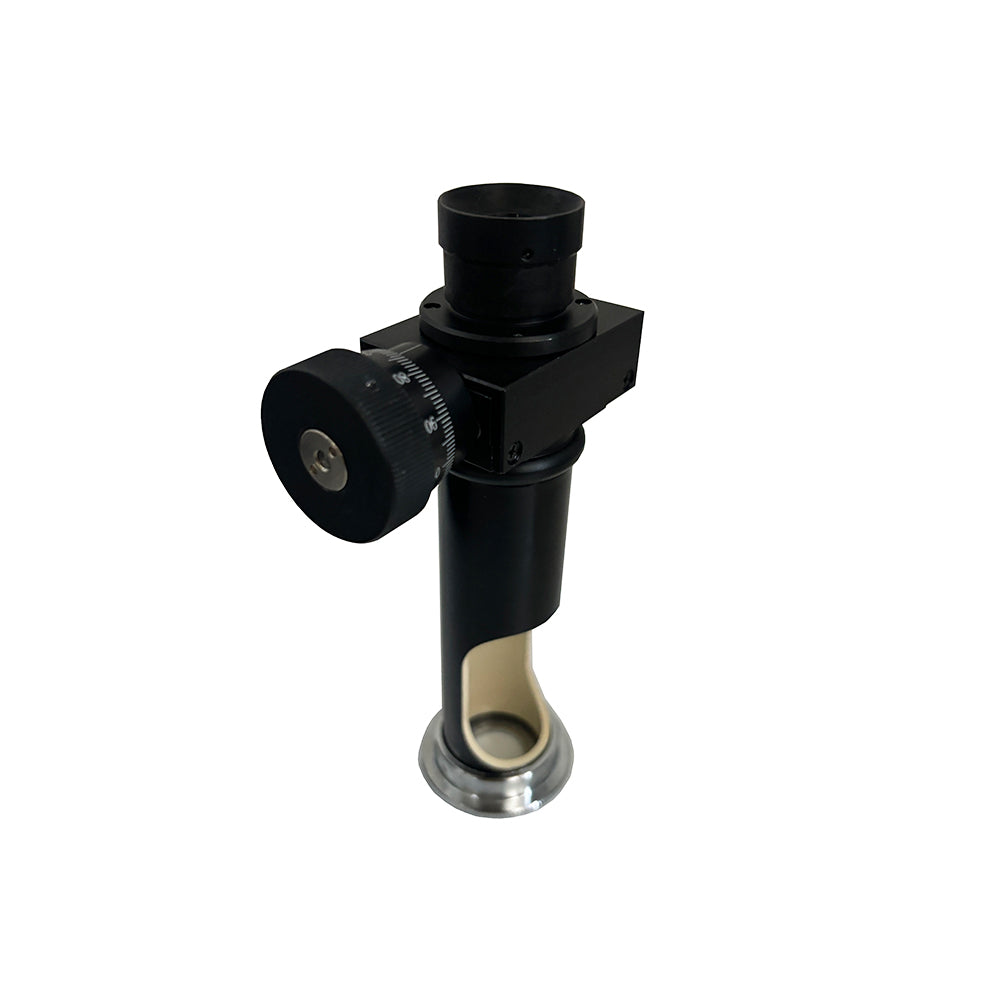

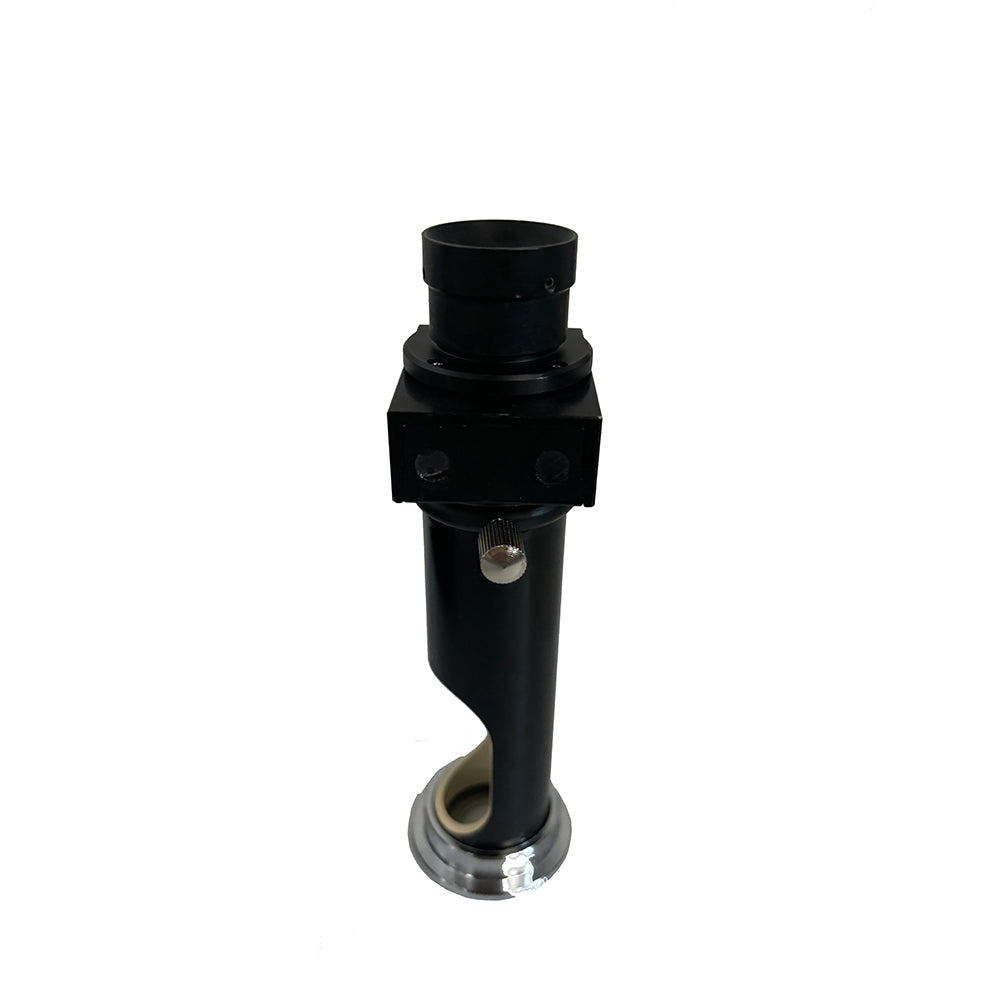

●20X Readout microscope: 1 pc.
