VTSYIQI Handheld Colorimeters Digital Color Meter Colorimeter Measurement with Display accuracy 0.01 Measurement Caliber Φ11mm Φ6mm ▽11mm ▽6mm Wavelength range  400 to 700nm for Painting Coating Textile Color Test

Introduction:

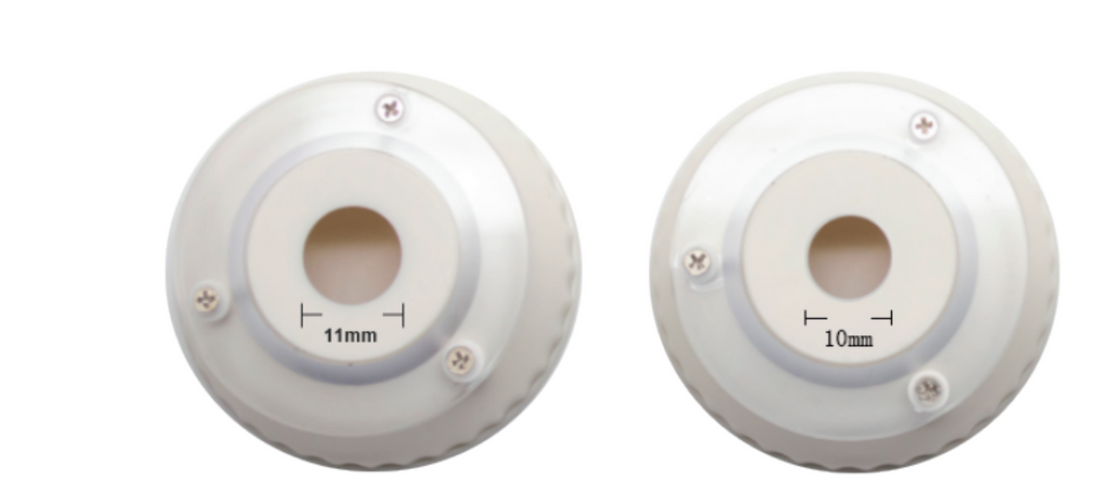

In order to facilitate users in measuring samples of different sizes, the DS700A spectrophotometer supports four calibers for customers to use. The stable type is Φ 11mm+Φ 6mm, and the flexible type is ▽ 11mm+▽ 6mm, which can be flexibly applied to various usage and testing conditions.

Feature:

Product model: Spectrophotometer DS-700A

Measurement Structure:D/8, SCI+SCE

Measurement repeatability:dE * ab ≤ 0.025

Inter station difference:dE * ab ≤ 0.25

Display accuracy:0.01

There are a total of 4 measuring calibers for stable and flexible types: diameter 11mm, diameter 6mm, ▽ 11mm, ▽ 6mm

Measurement indicators:Spectral reflectance, CIE Lab, CIE LCh, HunterLab, CIE Luv, XYZ, Yxy, RGB color difference (Δ E * ab, Δ E * cmc,
ΔE*94,ΔE*00)， Whiteness (ASTM E313-00, ASTM E313-73,CIE,ISO2470/R457,AATCC,Hunter,Taube
Berger Stensby)， Yellowth (ASTM D1925, ASTM E313-00, ASTM E313-73) Blackness (My, dM),
Stain fastness, color fastness, Tint (ASTM E313-00) color density CMYK (A, T, E, M), heterochromatic index Milm,
Munsell, covering power, strength (dye strength, coloring power)

Light source conditions:A,B,C,D50,D55,D65,D75F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2

Light source for illumination:Full band balanced LED

Measurement observation method: visual inspection

Calibration:Intelligent Automatic Calibration

The software supports:Android, iOS, Windows, and WeChat mini programs

Accuracy:assurance ensures that the first level measurement is qualified

Field of view angle:2 °, 10 °

Integral sphere diameter:40mm

Complies with standard:CIE No.15, GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,
ASTM E1164,DIN5033 Teil7

Sensor:array sensor

Wavelength interval:10nm

Wavelength range:400-700nm

Reflectivity measurement range:0-200%

Reflectivity resolution:0.01%

Measurement time:2s

Interface:USB, Bluetooth

Screen:Full color screen, 3.5 inches

Battery capacity:can be continuously measured 8000 times per charge, 7.2V/3000mAh

The lifespan of the light source:10 years and 1 million times

Language:Simplified Chinese, English

Storage instrument: 100 standard samples and 10000 samples; APP: Massive storage
