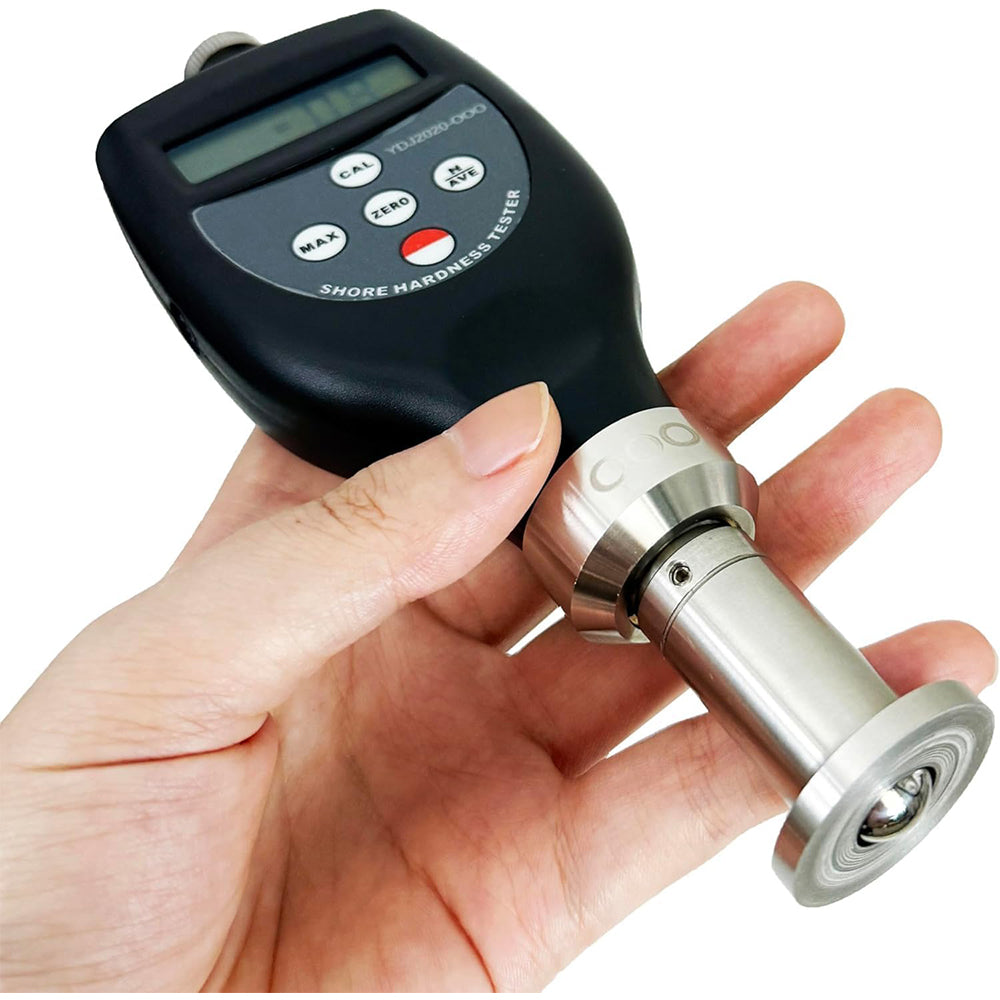

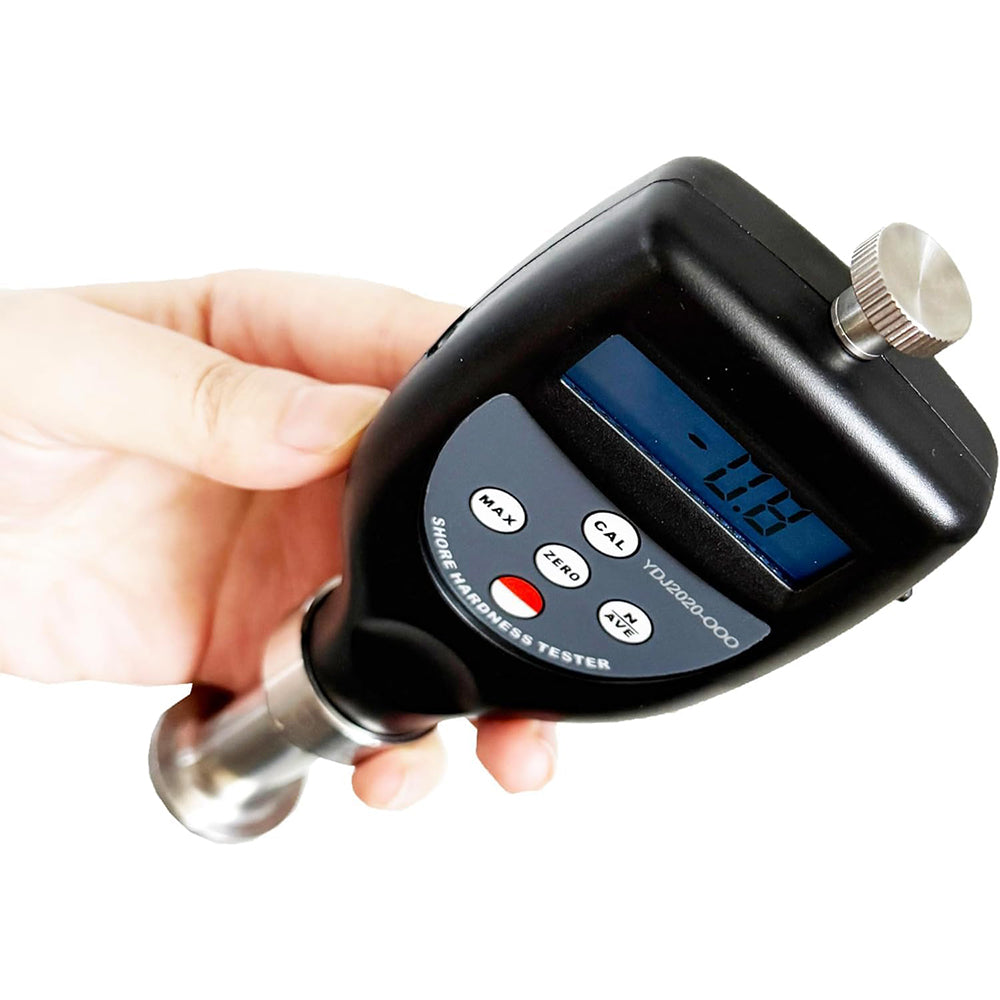

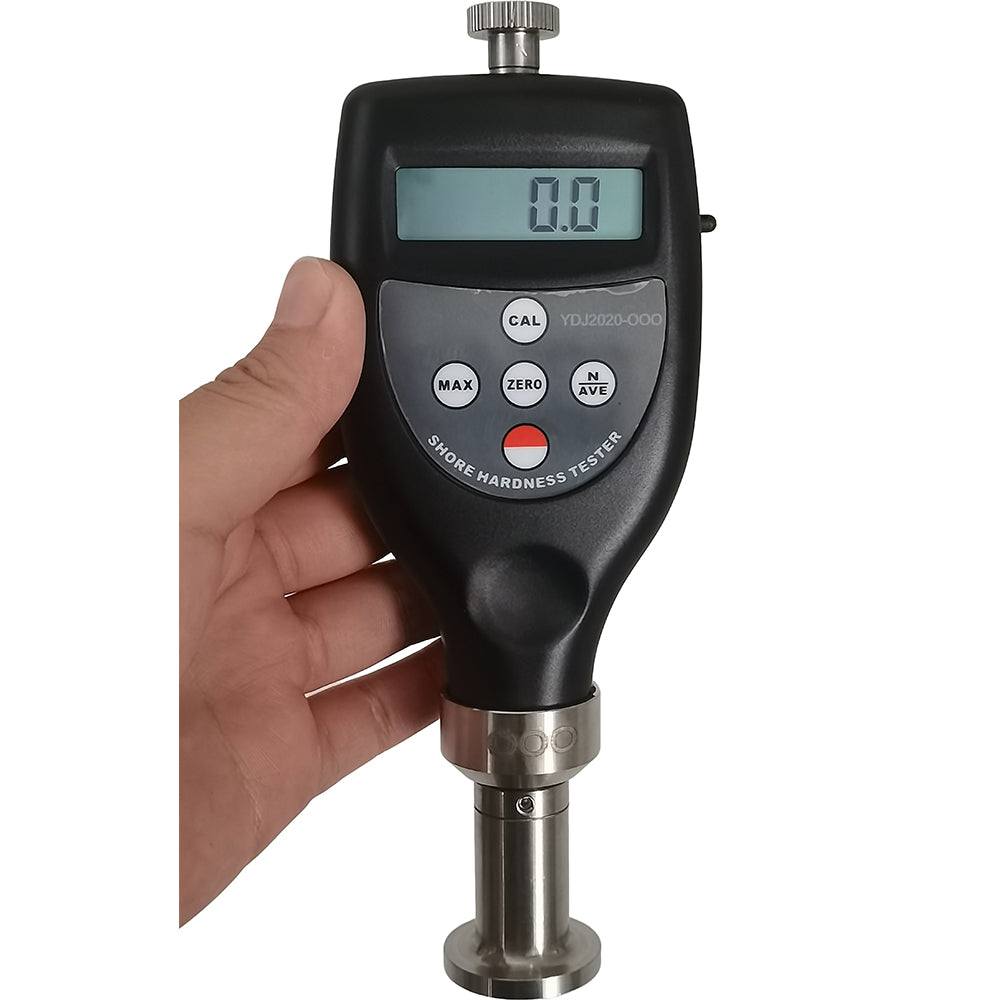

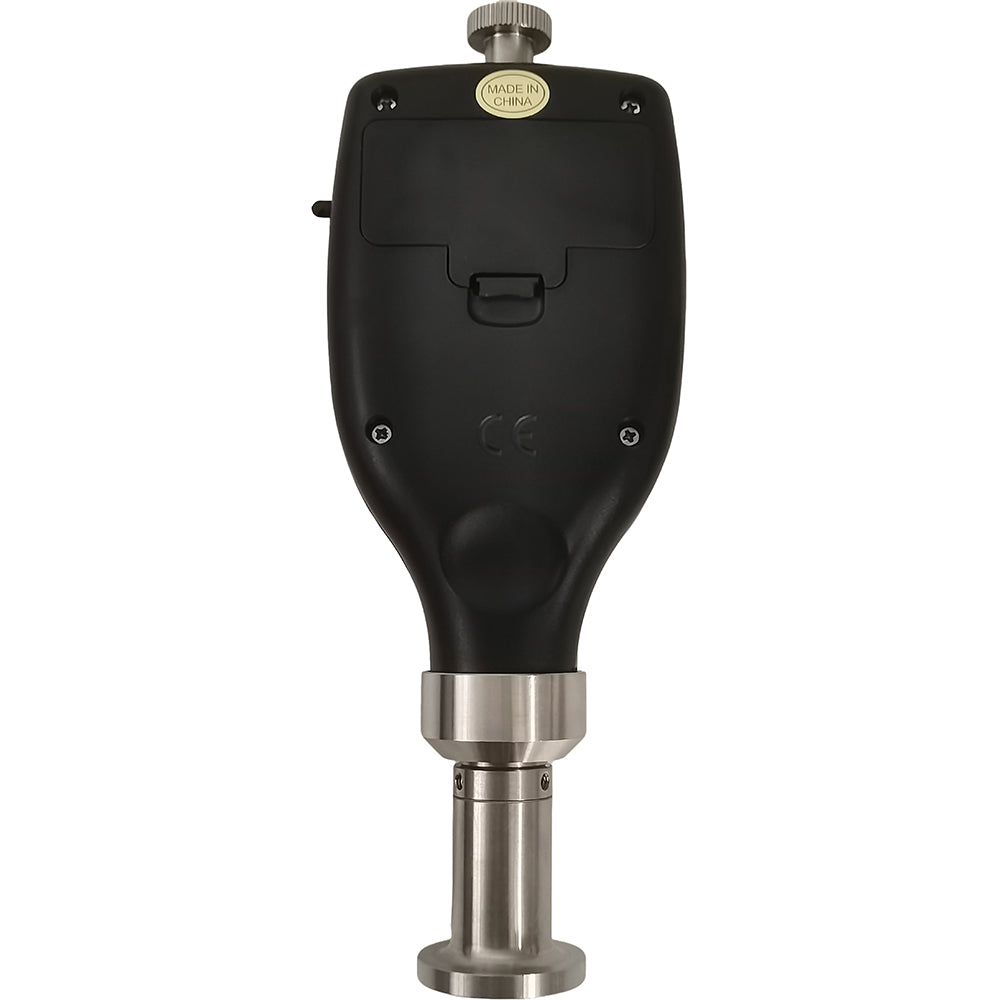

About this item

Used to determine the indentation hardness of materials ranging from cellular products to rigid plastics.

It meets standards of DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215.

With average calculate function.

Peak value deposit function.

Tested Materials:Sponge- and Cellular Rubber, Foam Rubber, Silicone, Gel-like Materials etc.

Introduction

Used to determine the indentation hardness of materials ranging from cellular products to rigid plastics.

Feature:

It meets standards of DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215

With average calculate function

Peak value deposit function

Under-voltage alarm function

Use USB data output to connect with PC.(Optional Accessories)

Provide Bluetooth data output choice.(Optional Accessories)

Specification:

Indenter:R6.35 Spherical Radius

Hardness Value:Below 20 OO

Tested Materials:Sponge- and Cellular Rubber, Foam Rubber, Silicone, Gel-like Materials

Parameters:Tested Result/Mean Value/Max.Value

Unit:HOOO

Range:0HOOO~100HOOO

Measurement Range:10HOOO~90HOOO

Accuracy:≤±1H

Resolution:0.1H

Battery Indicator:Low Battery Indicator

Auto Switch Off:√

Operating:Temperature:0ºC~50ºC;Humidity:<80%RH

Power Supply:4x1.5V AAA(UM-4)Battery(Batteries are not included during the shipment)

Dimensions:162mmx65mmx28 mm

Weight:170g

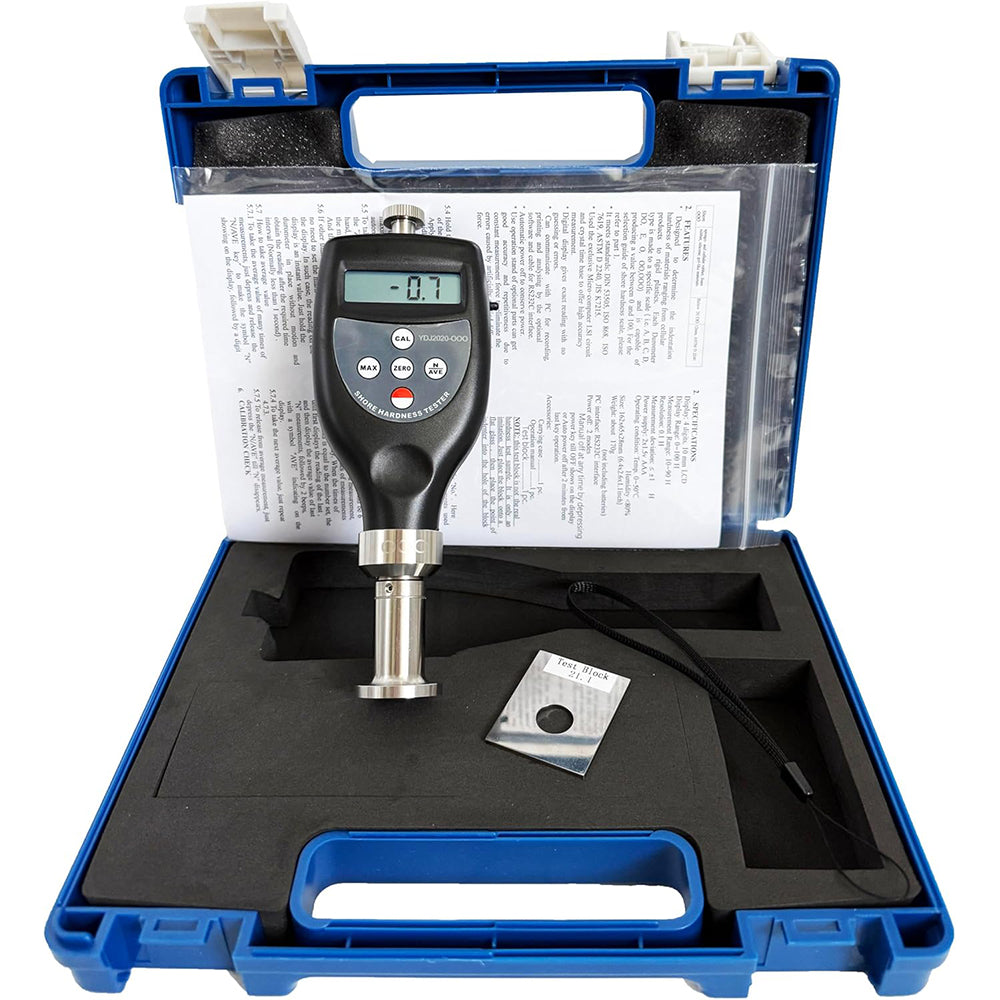

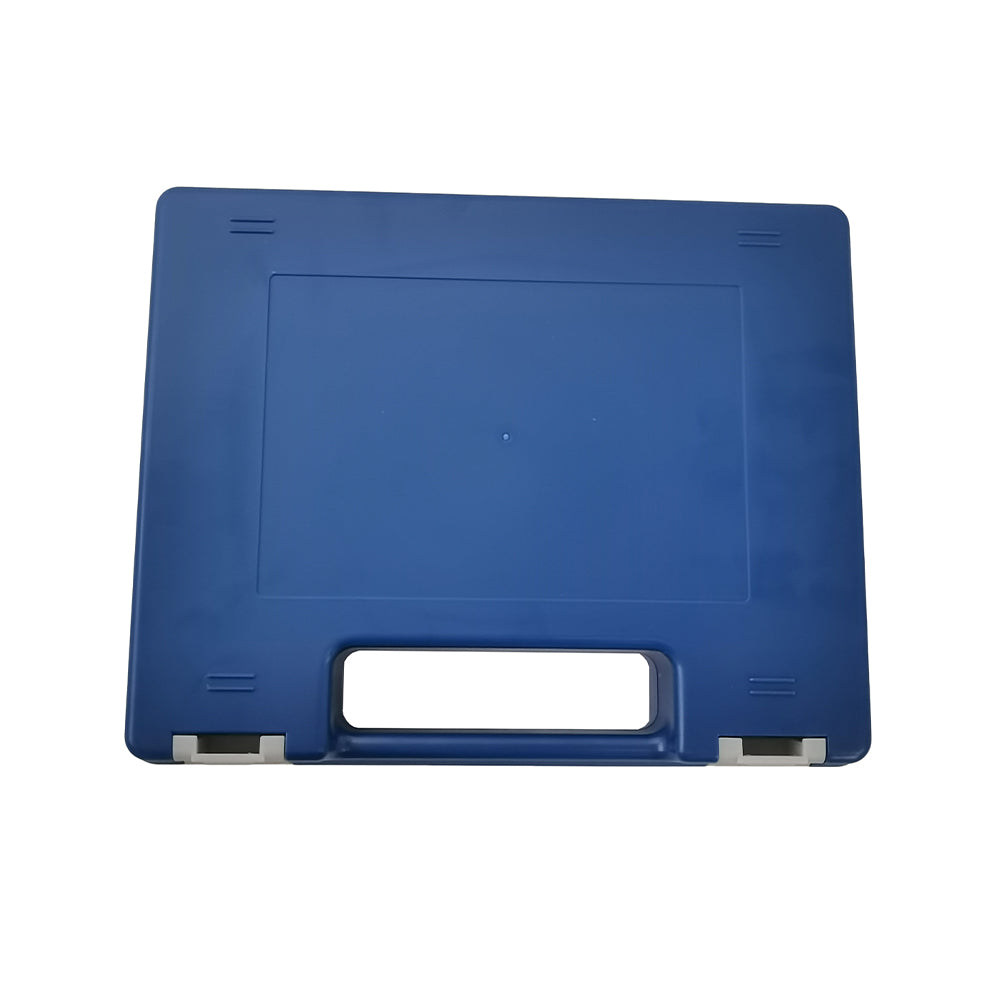

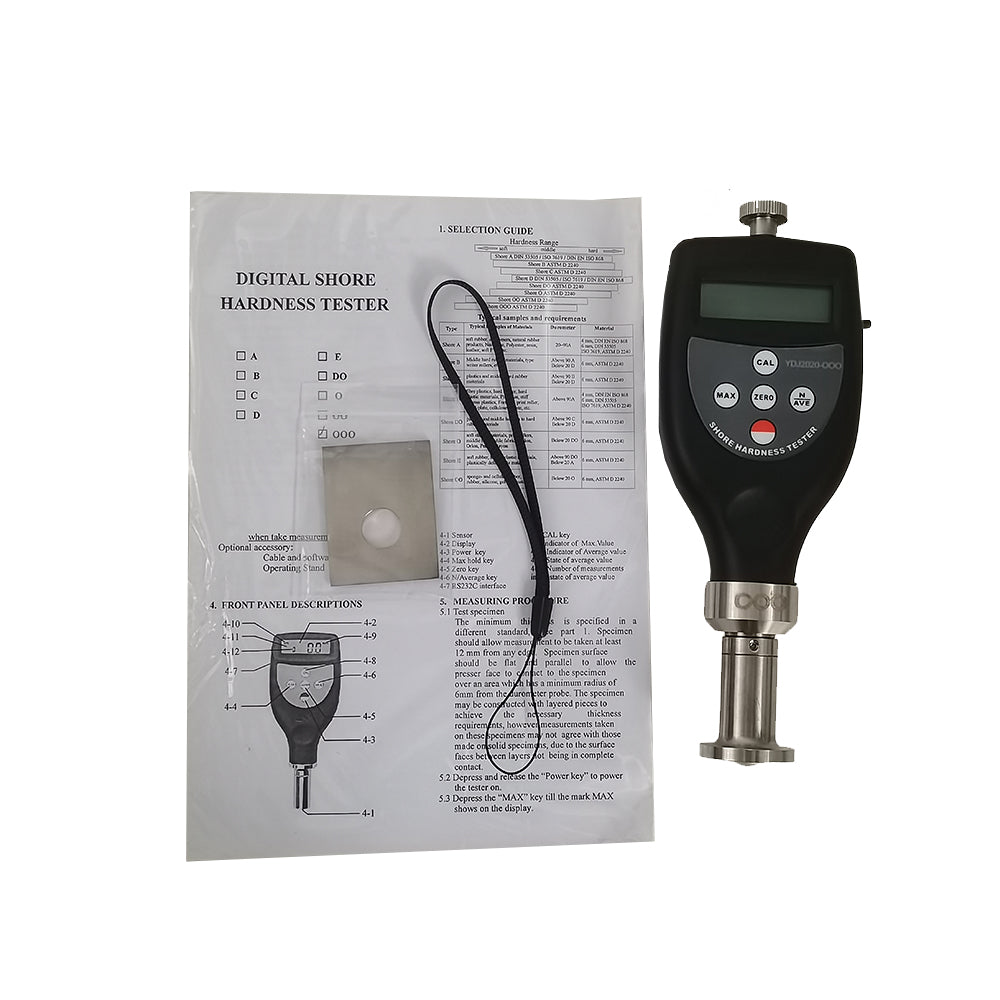

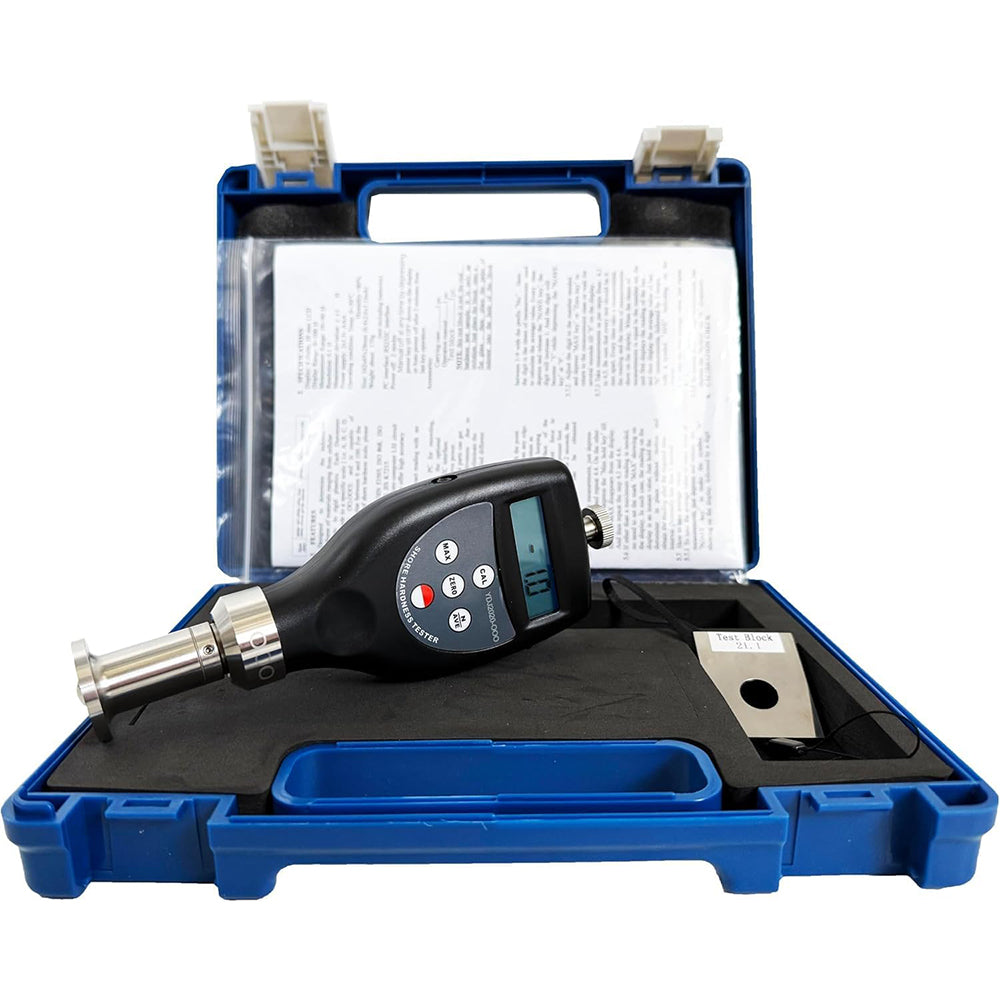

Standard Accessories:Main Unit,Pin Length Teat Block,Carrying Case(B04),Operation Manual

Optional Accessories:Shore Hardness Tester Measurement Stand,Rubber Hardness Test Block(A/D Type),USB Data Cable with Software,Bluetooth Data Adapter with Software
