VTSYIQI Handheld Spectrocolorreader Touch Screen Spectrophotometer Color Tester for Paint Ink Textile Ceramics with Measurement Aperture 4mm Capacitive Touch Screen Display Mass Storage

Feature:

1. Adopt full-band balanced LED light source The full-band balanced LED light source ensures sufficient spectral distribution in the visible light range, avoids the lack of spectrum of white LEDs in a specific band, and ensures the measurement speed of the instrument and the accuracy of the measurement results.

2. Silicon photodiode array (double 32 array) sensor The dual-32 array sensor with larger area has strong light but not saturate, higher sensitivity of low light and wider spectral response range, which ensures the measurement speed, accuracy, stability and consistency of the instrument. Mastering the core technology and fully compatible with international standards.

3. Grating Spectrophotometric technology Using grating spectrophotometric technology, it has higher resolution and makes color measurement more accurate.

4. Place the base safely to ensure that the whiteboard is not dirty.

5. Professional whiteboard, a promise that will never change color forever.

Optical geometry:

D/8 (diffuse illumination, 8° direction reception)

SCI measurement

Comply with standard CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7

Characteristics : Customized single measurement aperture for accurate color difference control in plastic and electronic, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries

Integrating sphere size : Φ40mm

Light source : Combined full-spectrum LED light source

Spectroscopic method : Planar grating

Sensor : Silicon photodiode arrays (dual row 32 groups)

Wavelength range : 400~700nm

Wavelength interval : 10nm

Semiband Bandwidth : 10nm

Measurement range :

L:0~120

Reflectivity: the instrument can test the reflectivity at 3 specific wavelengths specified by the user (default 440nm, 550nm, 600nm), APP can realize the full-band wavelength display

Measurement aperture : Single aperture: Φ4mm ( Φ8mm optional)

Focusing method : Fixed Focus

Specular component : SCI

Color space : CIE LAB,XYZ,Yxy,LCh

Color difference formula : ΔE*ab,ΔE*00

Other colorimetric indexs : Multiple colorimetric indexs are realized through APP

Observer angle : 10°

Illuminant : D65,A,F2(CWF)

Displayed data : Reflectivity(at 3 specific wavelengths specified by the user)chromaticity value, color difference value/graph, pass/fail result, color simulation, color offset

Display Accuracy : 0.01

Measurement time : Approx. 1.5s

Repeatability : Chromaticity value: MAV/SCI, ΔE*ab within 0.04 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)

Inter-instrument error : MAV/SCI, within ΔE*ab 0.35(Average for 12 BCRA Series II color tiles)

Measurement method : Single measurement, average measurement (2~99 times)

Locating method : Stabilizer locating

Size : LxWxH=81X71X214mm

Weight : About 460g

Battery power : Lithium battery, 6000 times in 8 hours

Illuminant life span : 5 years, more than 3 million times measurements

Display : TFT true color 3.5inch, capacitive touch screen

Data port : USB, Bluetooth 5.0

Data storage : 500 standard samples, 1,0000 samples , APP mass storage

Language : Simplified Chinese, English, Traditional Chinese

Operating temperature range : 0~40℃, 0~85%RH (no condensation), altitude< 2000m

Storage temperature range : -20~50℃, 0~85%RH (no condensation)

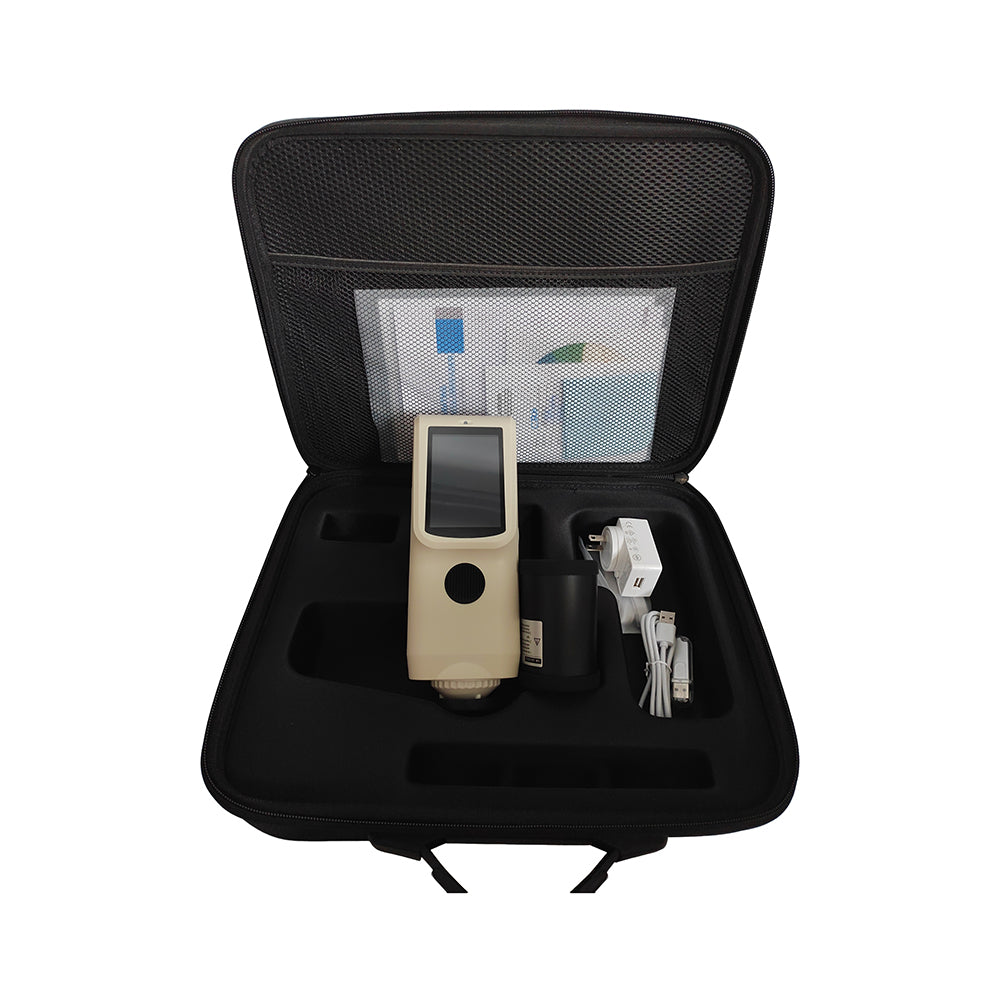

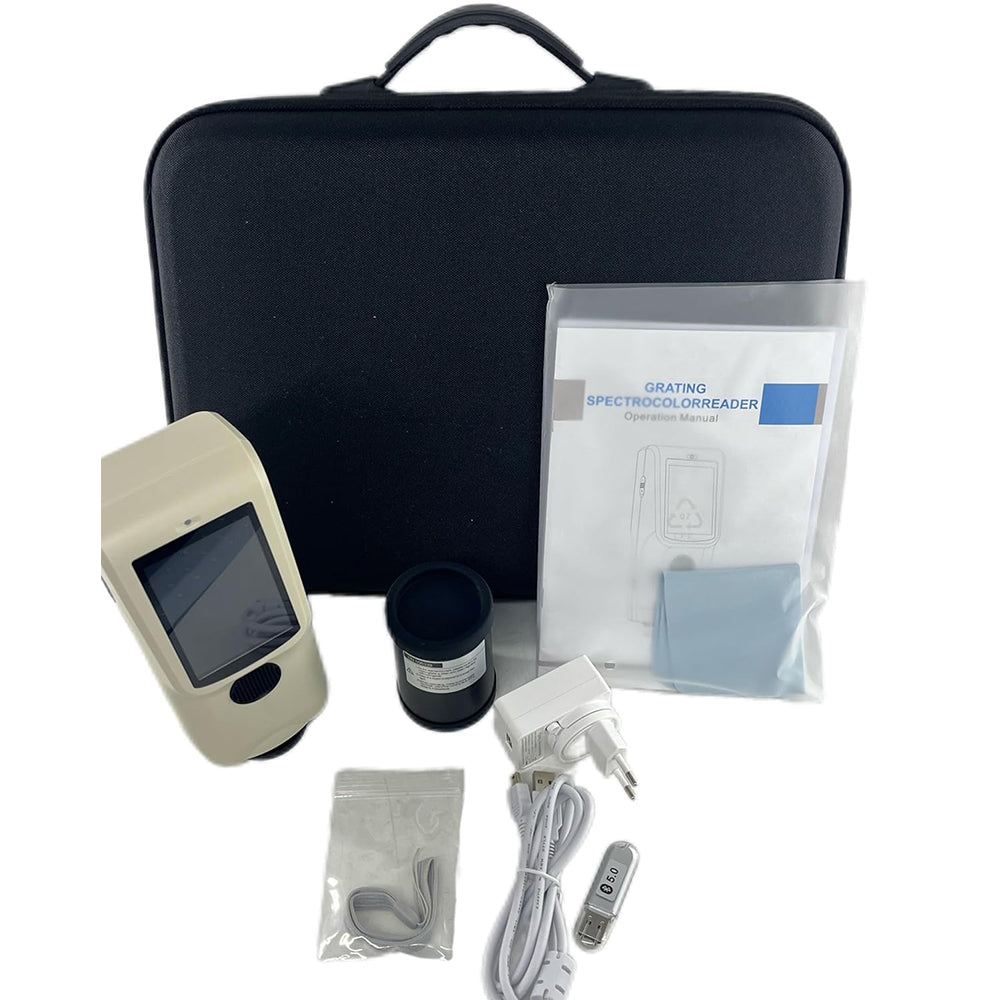

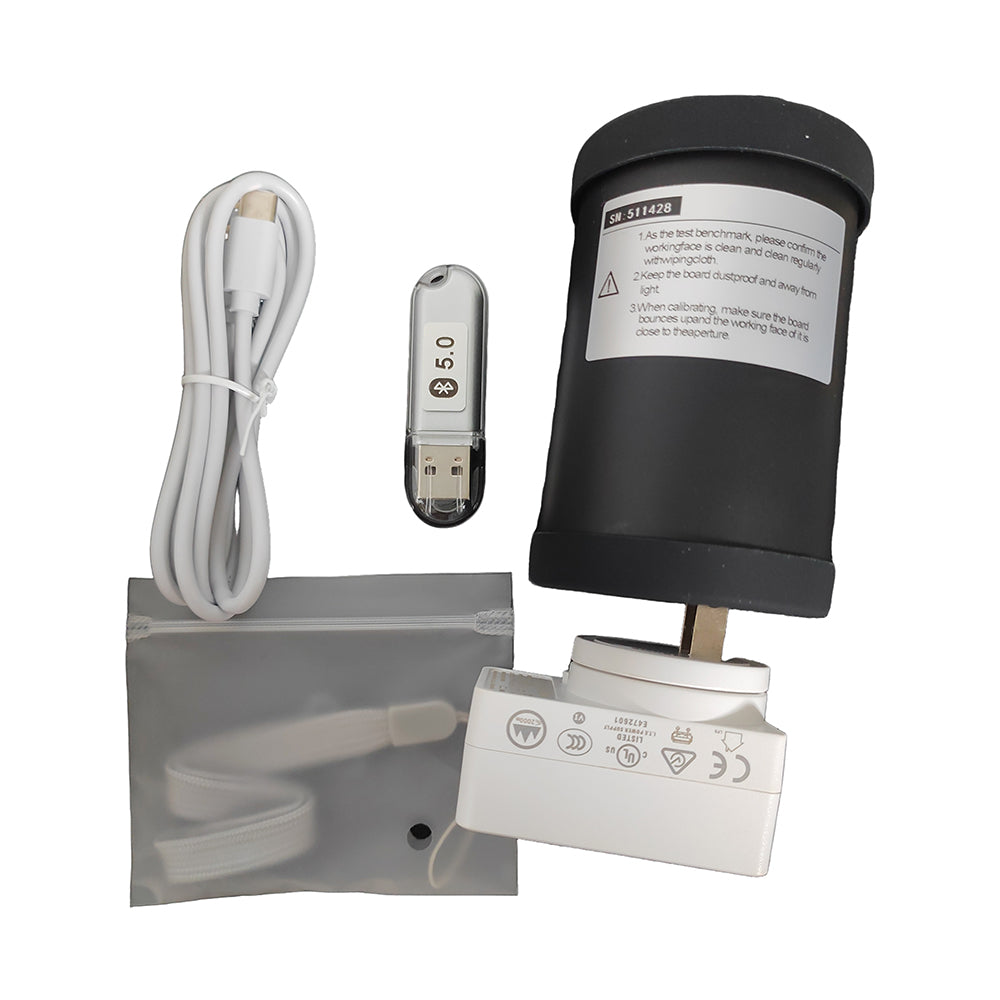

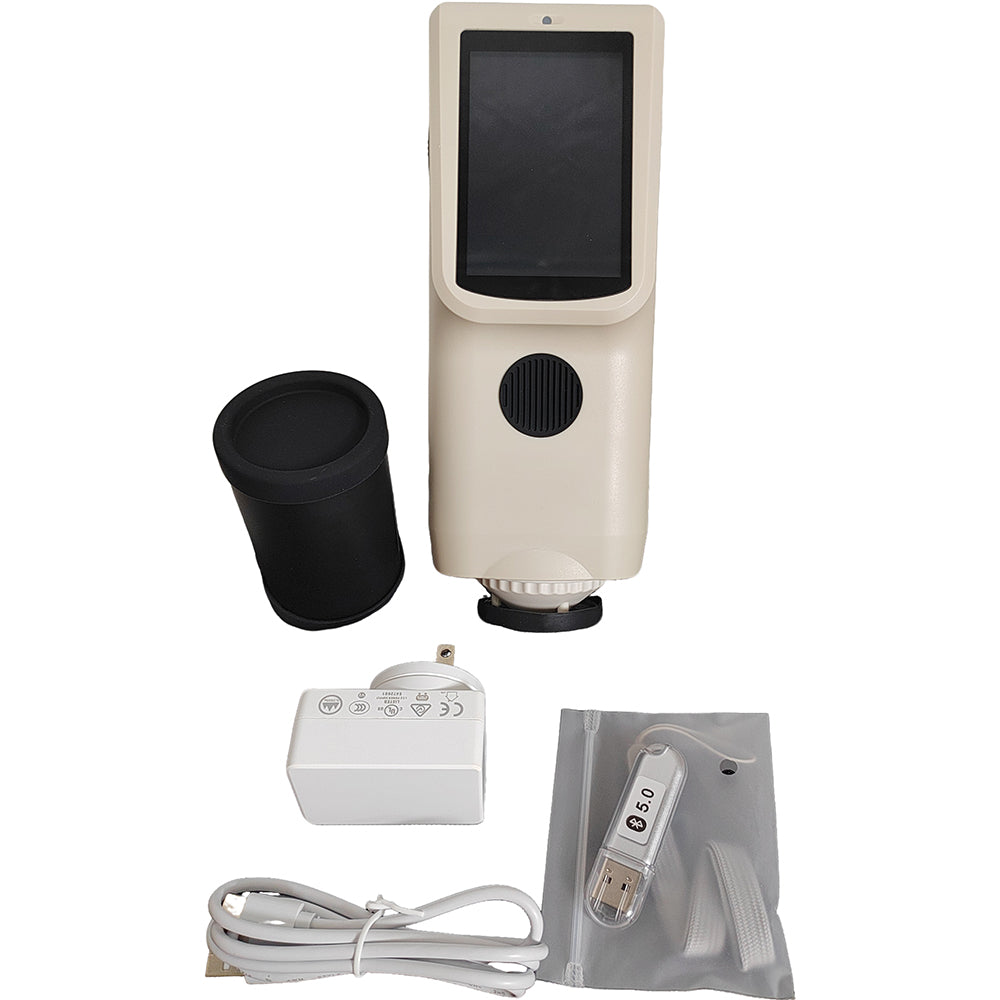

Standard Accessories : Power adapter, data cable, manual, SQCX quality management software (official website download), black and white calibration box, protective cover, wrist strap, single aperture: Ø8mm (optional Ø4mm) platform aperture, MOBCCS APP (official website download)

Optional Accessories : USB micro printer, powder test box, Bluetooth micro printer,holder base

Notes. : Technical parameters are for reference only, subject to the actual sales of products
