  • VTSYIQI Handheld Spectrophotometer Color Meter Tester with 26 Illuminants d/8 SCI Bluetooth IPS True Color Screen Caliber Φ8mm Φ11mm Data Storage Function

VTSYIQI

VTSYIQI Handheld Spectrophotometer Color Meter Tester with 26 Illuminants d/8 SCI Bluetooth IPS True Color Screen Caliber Φ8mm Φ11mm Data Storage Function

$1,96800
In stock
$1,96800

Customer Service

Post your customer service details here.

Return Policy

Post your policy conditions details here.

Description:

1. 20 kinds of color indexes and 26 kinds of illuminants---Spectrophotometer VTS-600 supports 26 kinds of illuminants such as D65/D50,etc. It can get the value of reflectance, CIE-Lab,CIE-LCh, whiteness, yellowness, opacity, color strength and other color indexes.

2. Excellent inter-instrument Agreement---inter-instrument agreement ＜0.3 which ensures test results consistency of multiple devices.

3. Auto calibration---The revolutionary auto calibration technology allows the instrument to achieve automatic calibration, which greatly improves the user experience.

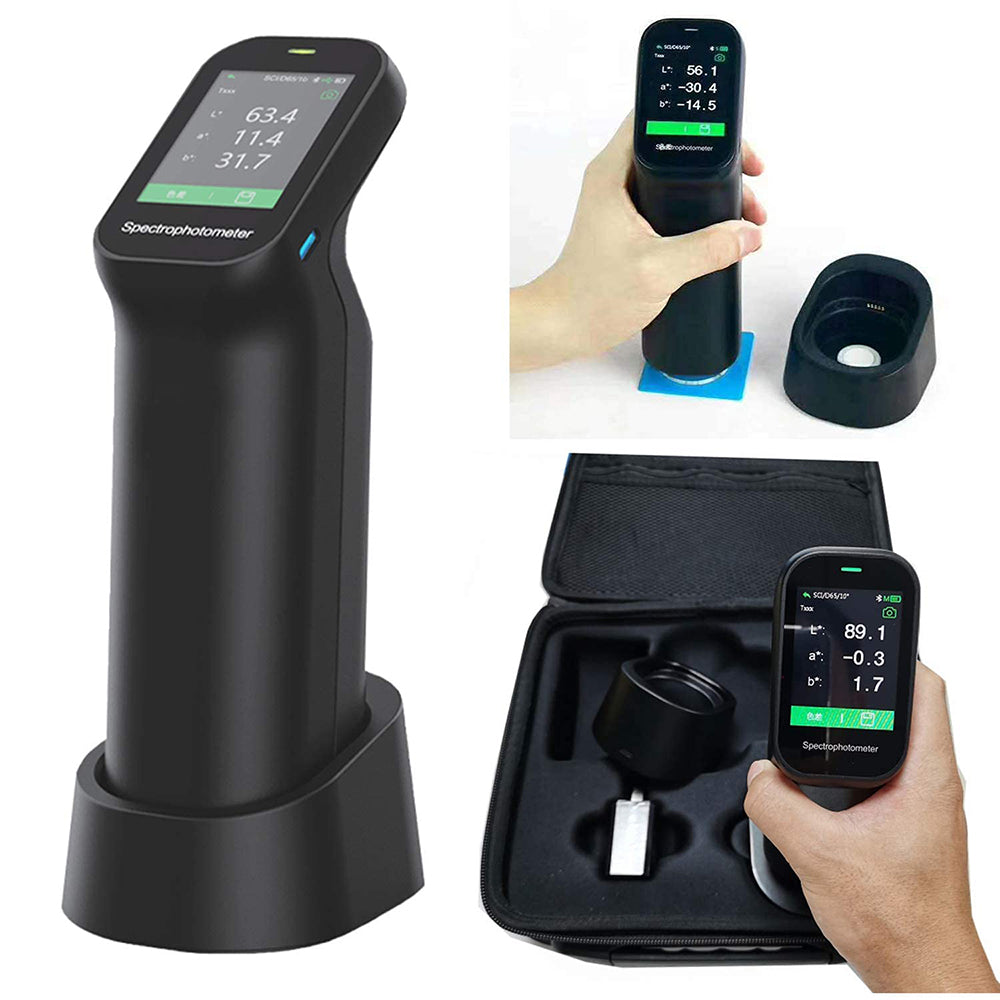

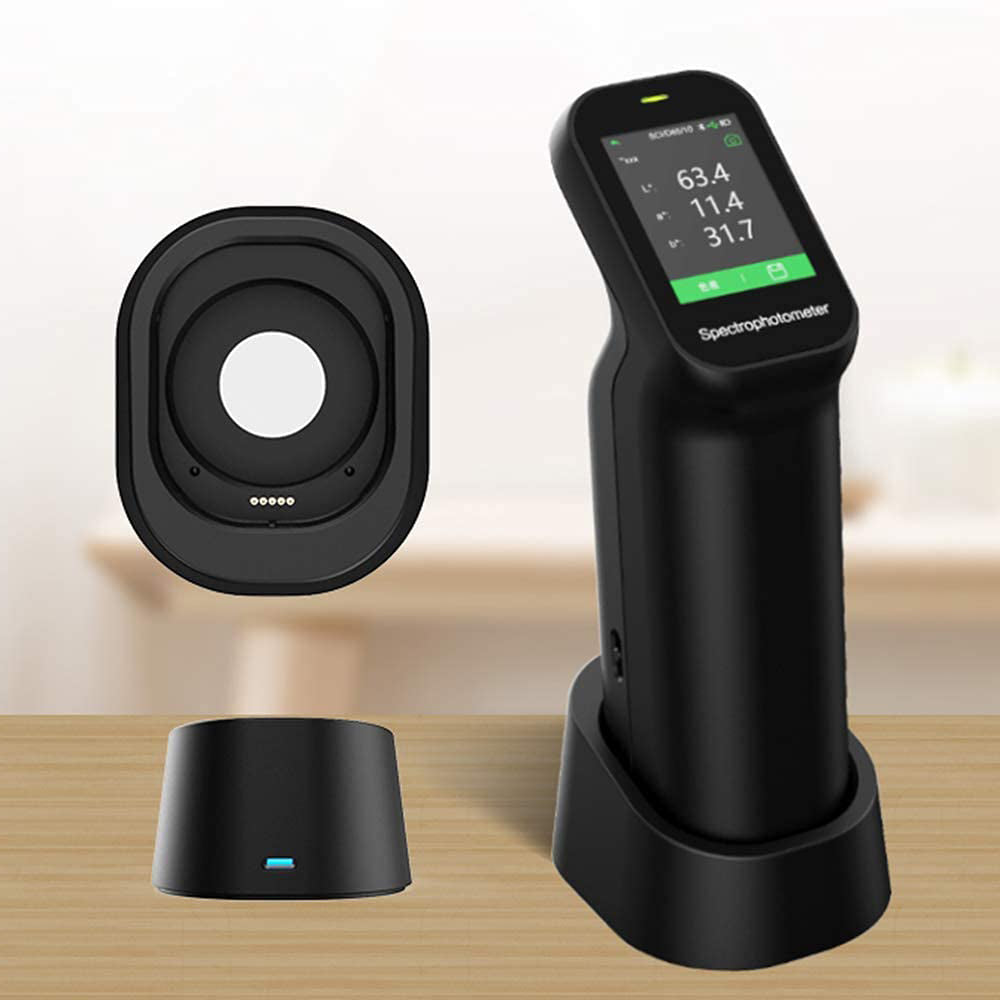

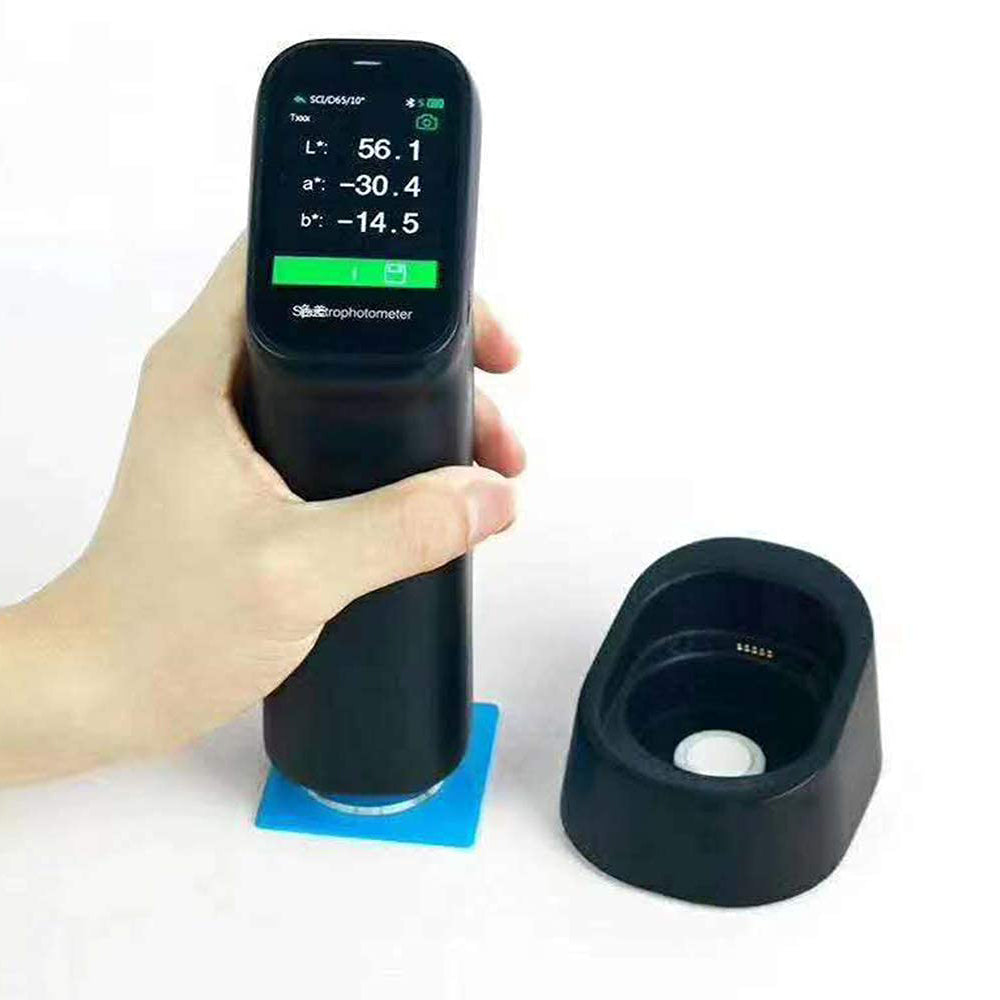

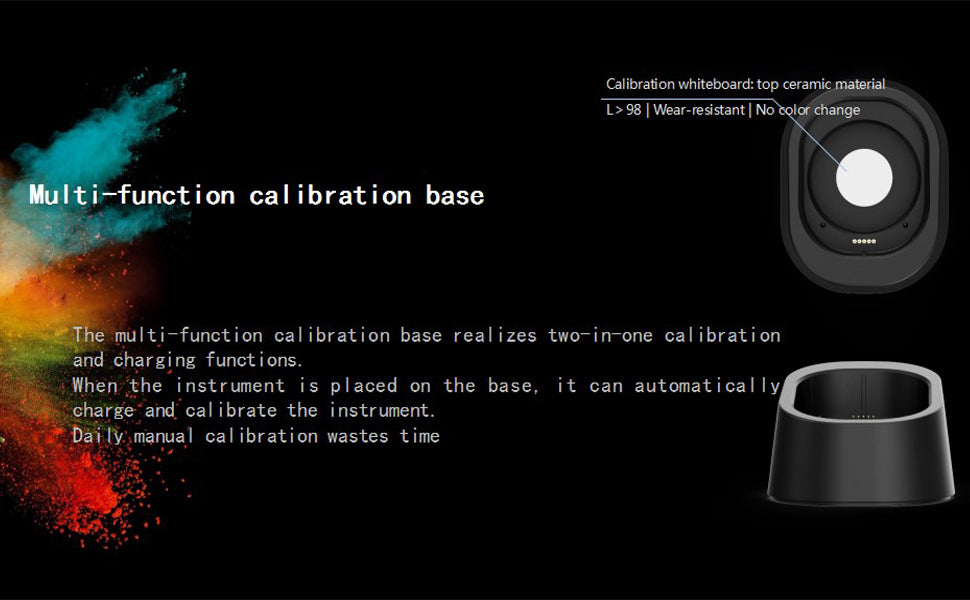

4. Multi-function calibration base---The multi-function calibration base keeps the white tile being protected, combining calibration and charging functions in one. When instrument is placed on the base, it will be automatically charged and calibrated. It saves a lot of time for the user to charge and calibration the device.

5. Connect to the mobile device App to expand more functions---Connect to APP to find the similar color from different color swatches. Personal color database can also be established in the cloud and samples saved in cloud can be set into target for color different test. From APP, we can also obtain instrument data or download data to the instrument.

Handheld Spectrophotometer Color Meter Tester with 26 Illuminants d/8 SCI Bluetooth IPS True Color Screen Caliber Φ8mm Φ11mm Data Storage Function

Description:

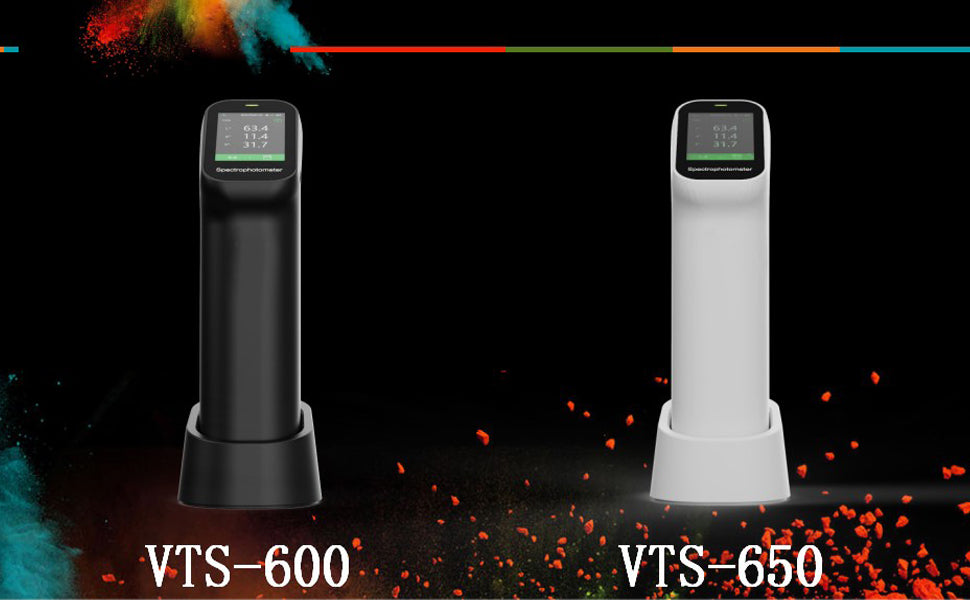

Portable spectrophotometer VTS-600 is with the powerful performance configuration which makes color measurement more professional. Excellent inter-instrument agreement ensures consistency of the measurement data of multiple devices; Wireless connection with Android or IOS devices via Bluetooth. It greatly expands the application boundary of color spectrophotometer; automatic calibration, magnetic seat charging, touch screen operation... it will fully upgrade the user experience.

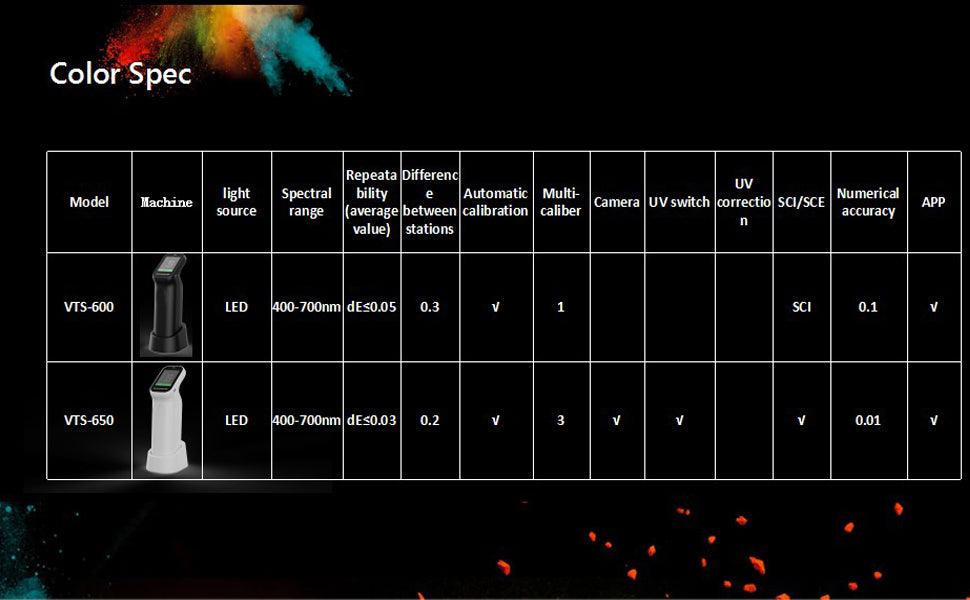

Specification:

Model : Spectrophotometer VTS-600

Geometry : D/8 (diffused illumination,8° viewing), Specular Component Included（SCI）

Light Source : LED(Full band balanced LED)

Color Spaces and Indices :

Reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE Luv, XYZ, Yxy, RGB, Color difference(ΔE*ab, ΔE*cmc, ΔE*94,ΔE*00),WI(ASTM E313-00,ASTM E313-

73,CIE/ISO, AATCC, Hunter, Taube Berger Stensby), YI(ASTM D1925,ASTM E313-00,ASTM E313-73), Blackness

(My,dM）,Color Fastness, Tint,(ASTM E313-00),Color Density CMYK(A,T,E,M), Milm, Munsell, Opacity, Color strength

Illuminants : A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84

Observer Angles : 2°,10°

Sensor : 256 pixel CMOS sensor

Calibration : Auto

Wavelength Interval : 10nm

Wavelength Range : 400-700nm

Sphere Size : 40mm

Reflectance Range : 0-200%

Reflectance Resolution : 0.01%

Repeatability :

Chromaticity value:

Max. :dE*ab< 0.1 Average :dE*ab< 0.05

Standard deviation within ΔE*ab 0.03 (when a white tile is measured 30 times at 5-seconds interval)

Reflectance:

Standard deviation < 0.1%

Illumination Area/Aperture : MAV:Φ8mm/Φ11mm

Inter-instrument agreement :

ΔE*ab＜0.3

(BCRA Series Ⅱ, average measurement of 12 tiles，MAV/SCI）

Test Time : About 2s

Storage : APP mass storage

Battery : Rechargeable, 8000 times continuous tests, 3.7V/3000mAh

Screen : IPS Full Color Screen,2.4 inches

Interface : USB，Bluetooth

Lamp Lifetime : 10 years, 1 million tests

Language : Chinese and English

Software : Android, IOS, Windows

Camera : without

Pass Metrology : Yes, metrology level I

Instrument Size : L x W x H (77.8mm x 53.2mm x 185.7mm)

Weight : About 300g

Packing Weight and Size : 1.5kgs 32x17x29cm

Packing List:

Main Instrument

Operating Manual

Power Cable

Charger base
