VTSYIQI Hardness Test Stand with Shore C Durometer Hardness Tester Meter with Dial Value 0 to 100HC Resolution 1 HC Pressure Head Size SR 2.5 mm Recommended Range of Measurements 10 to 90 HC

$40400
In stock
$40400

About this item

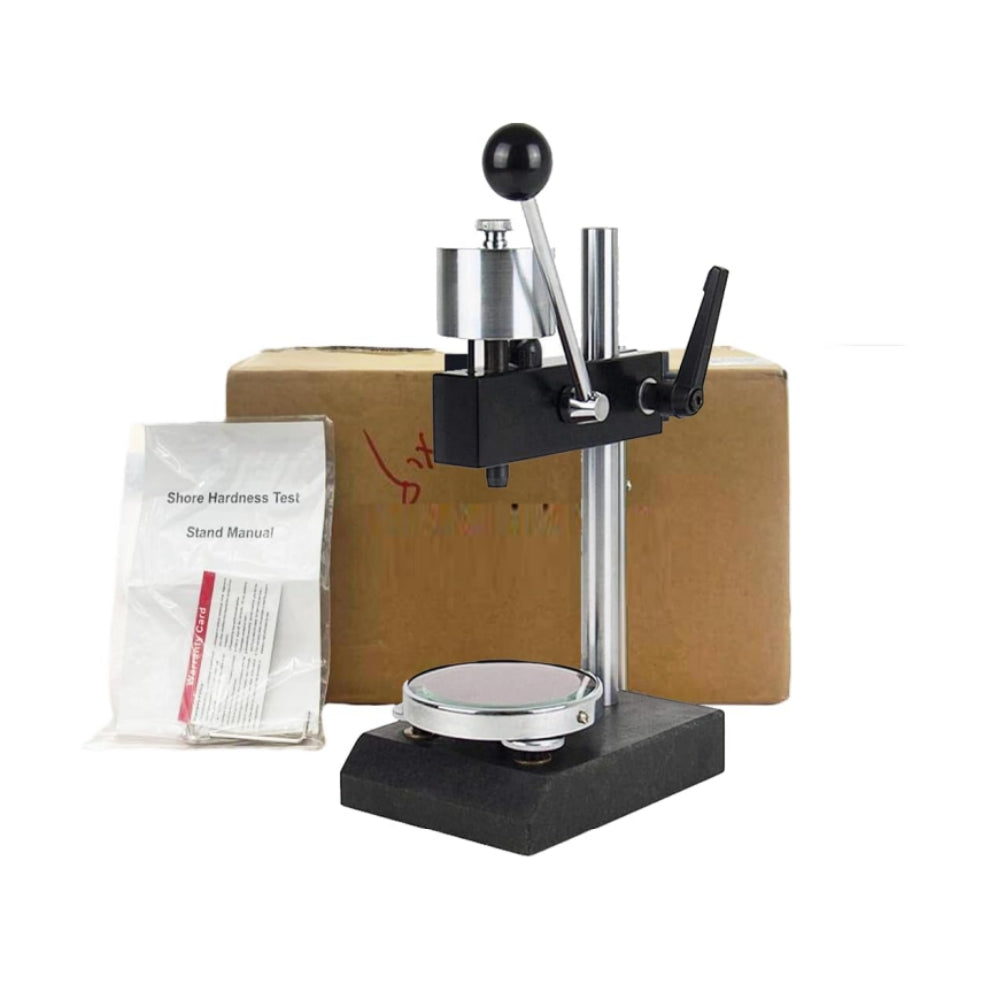

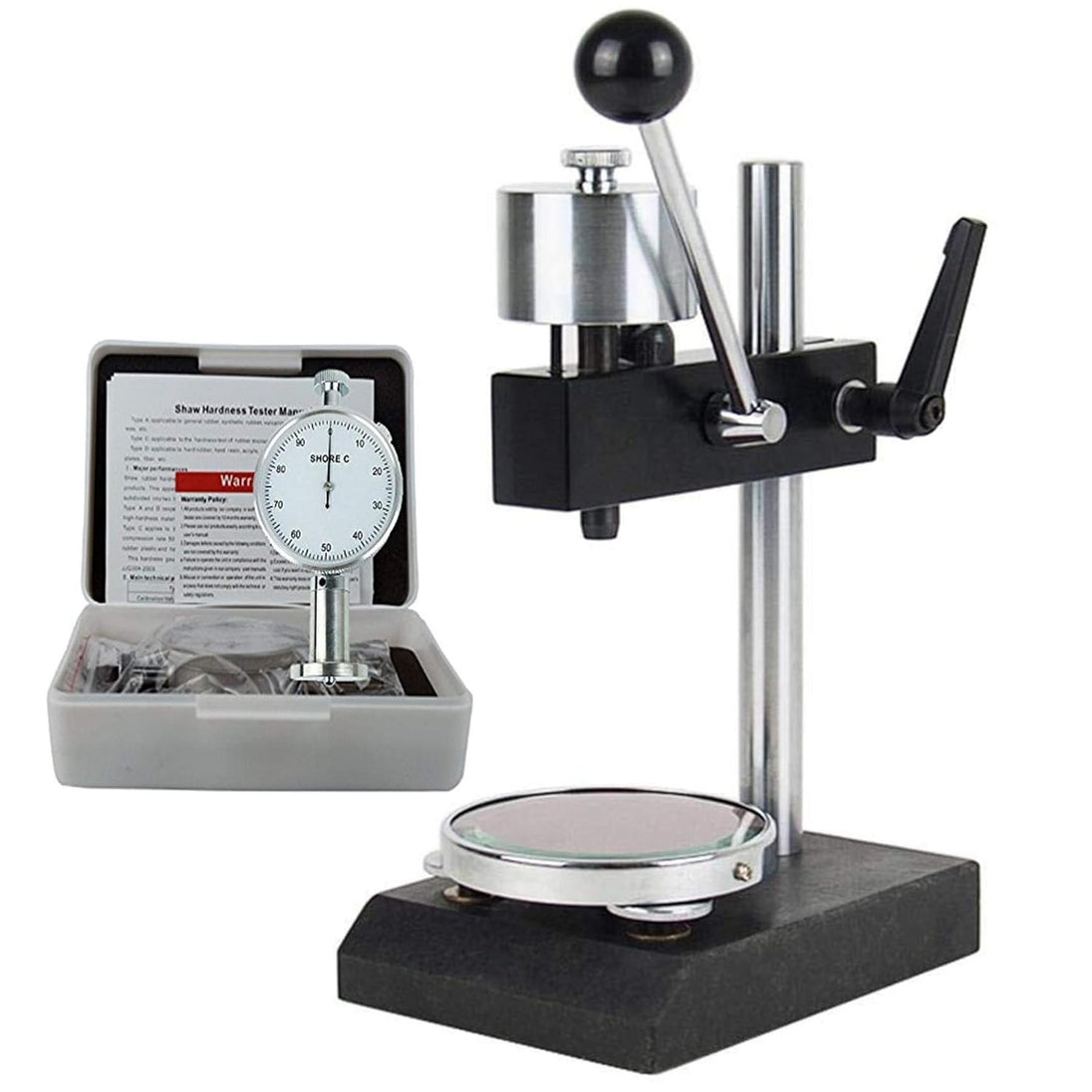

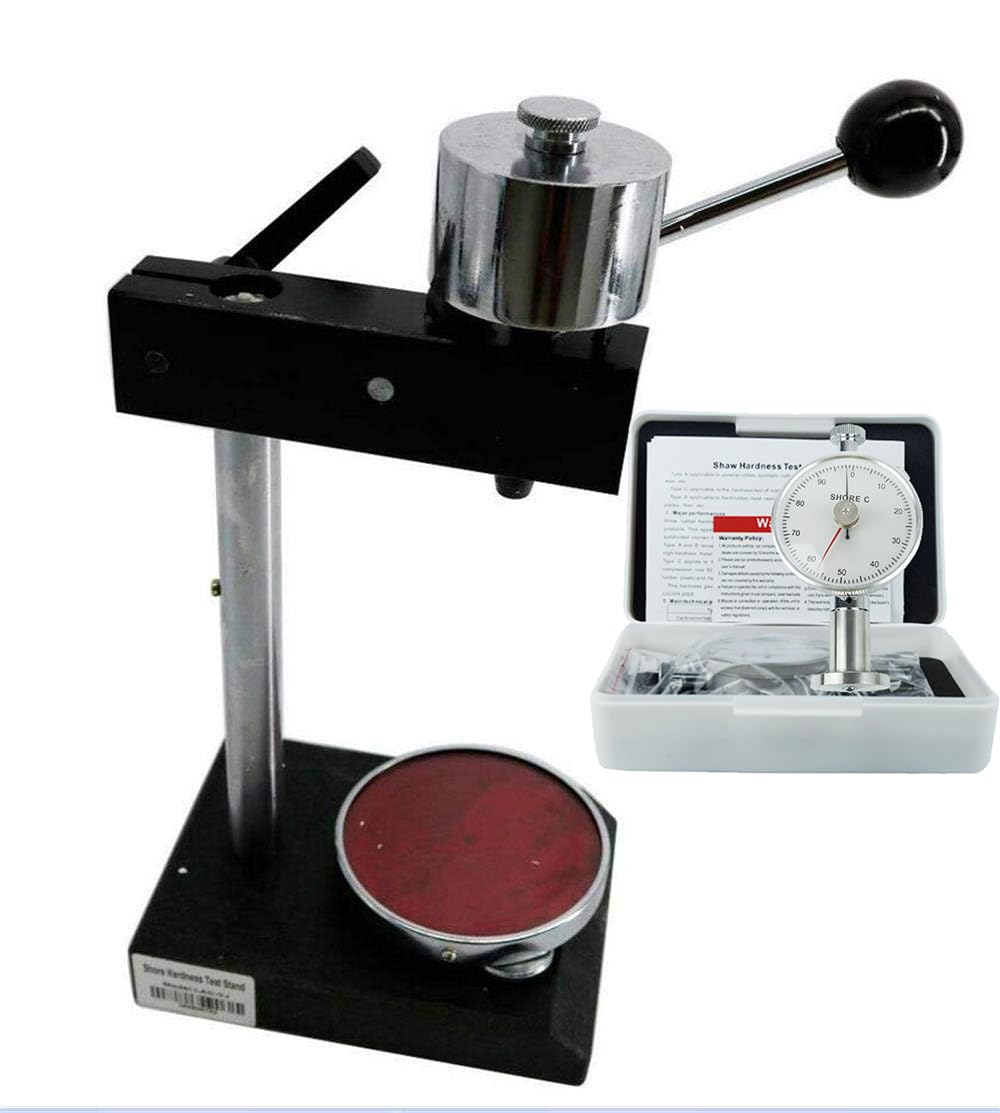

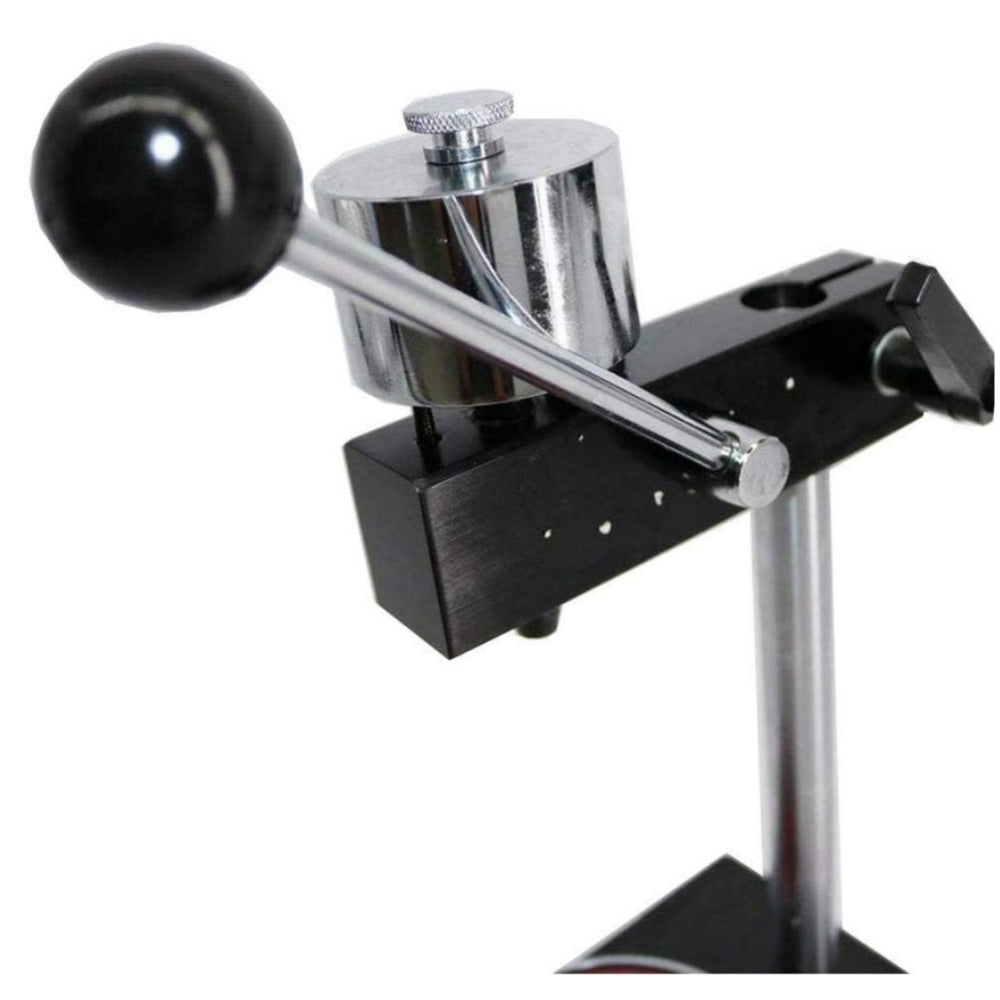

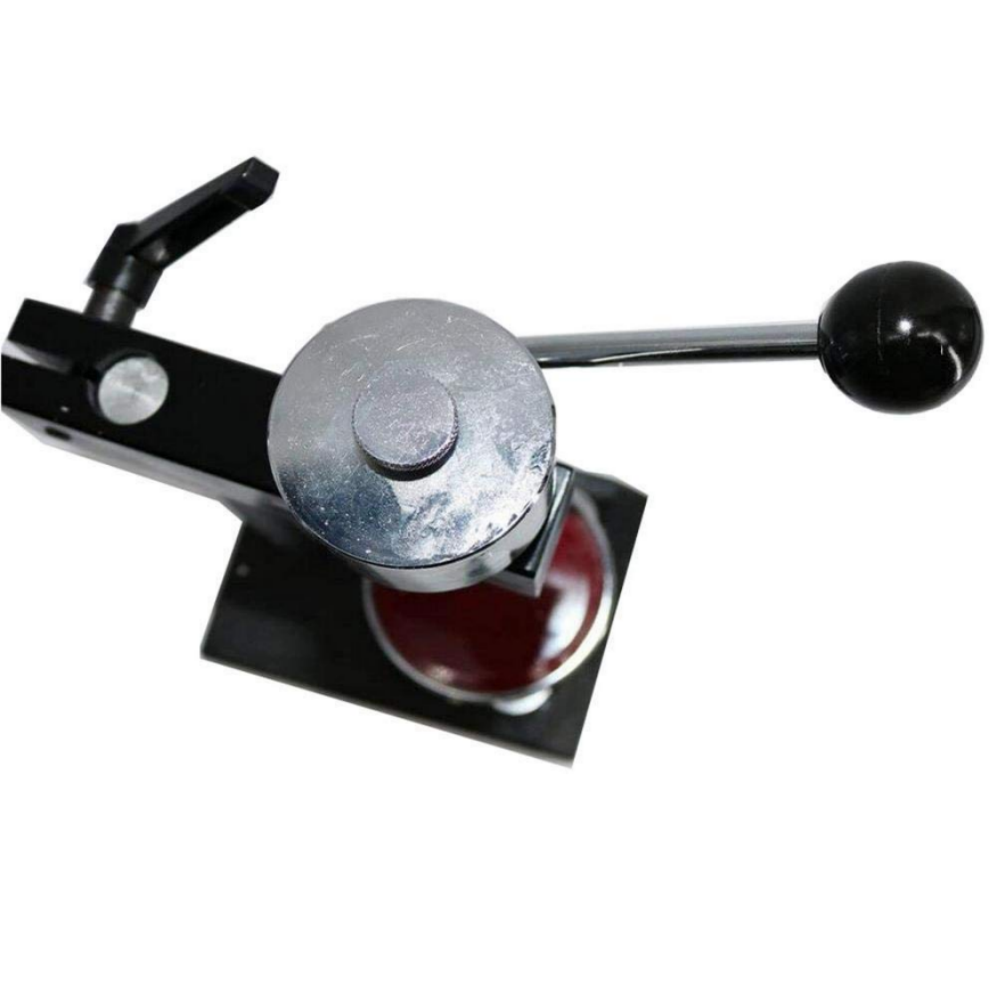

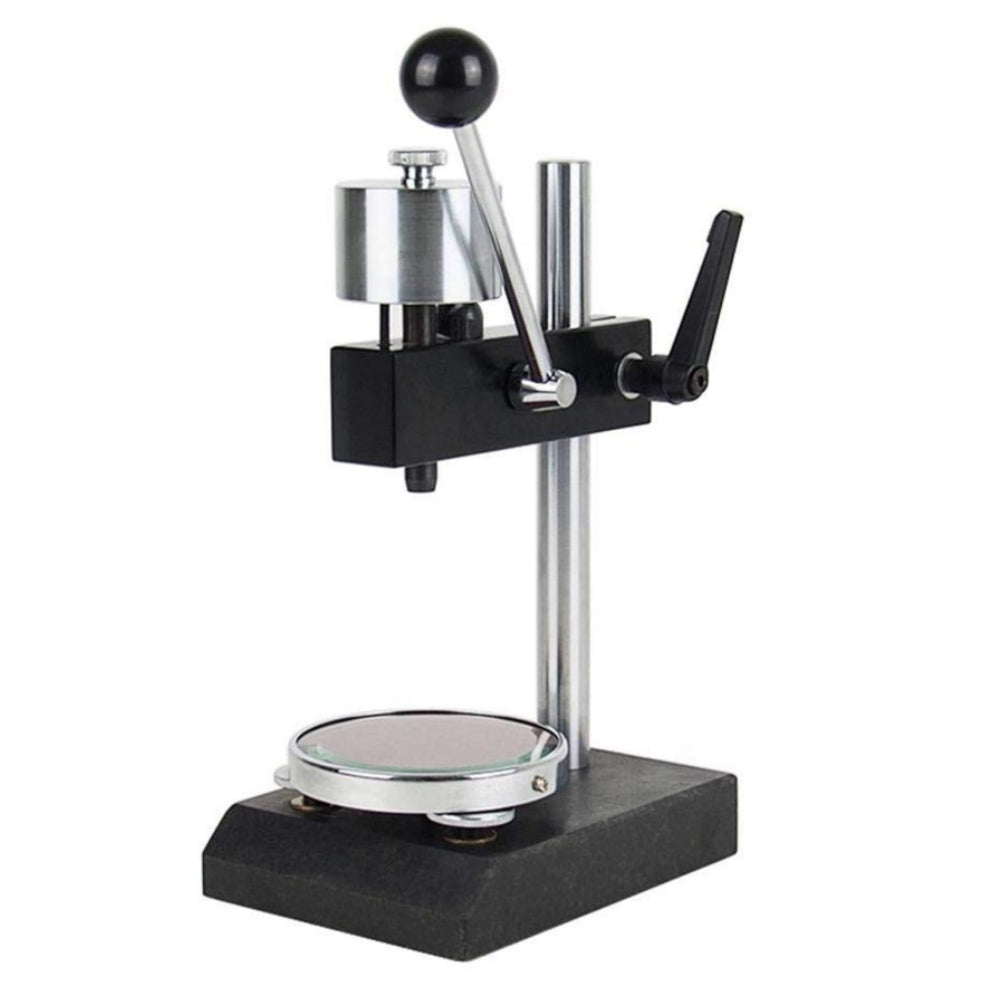

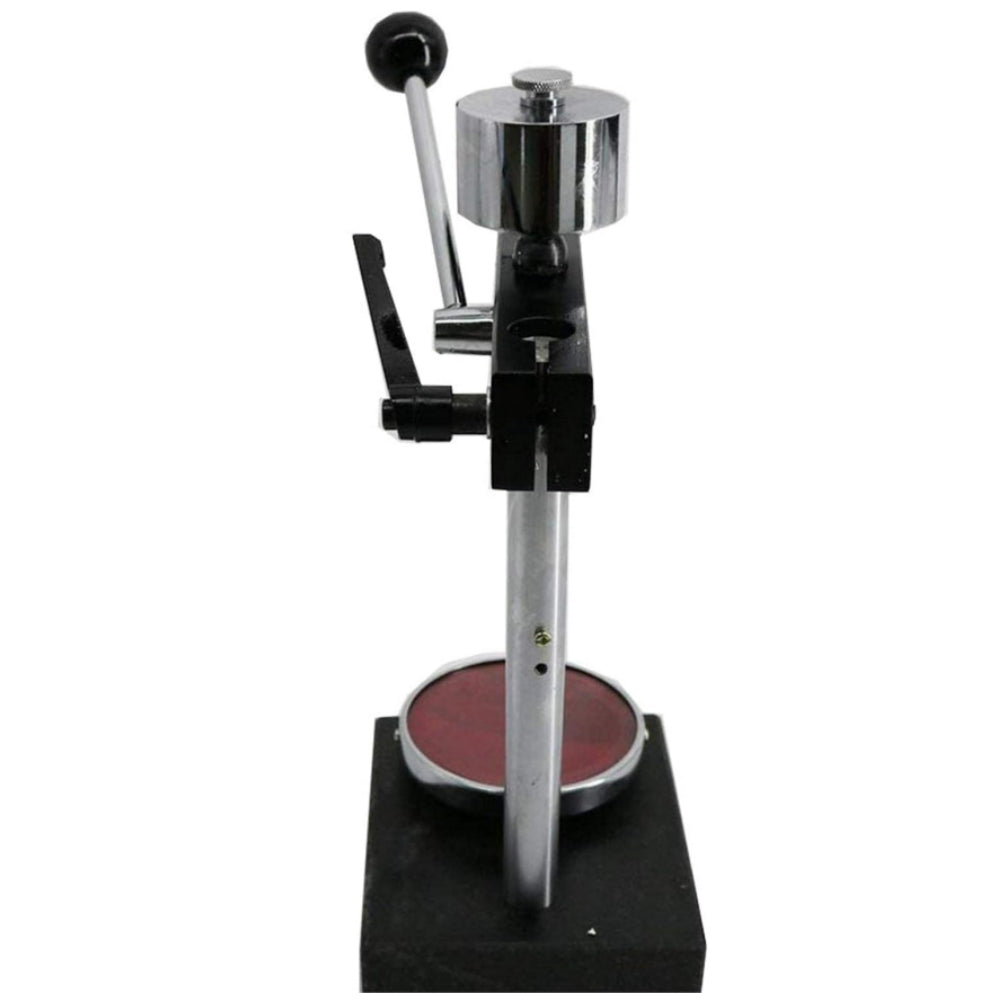

Test stand is a developed new generation of Shore hardness test,This mode is more scientific, more compact structure, reasonable, so that the stability and accuracy of the test further improved.

Shore Hardness Test Stand is especially for Shore C Hardness Tester

 Needle indicates, Single Needle,easy to read, high accuracy.Dial value: 0-100HC; Recommended range of measurement: 10-90HC; Pressure Needle stroke: 2.5 mm ;

The use of high hardness metal platform instead of the traditional glass platform, effectively avoids the disadvantages of fragile glass platform

◆ Type C: applicable to the hardness test of rubber microporous material. The product meets the requirements of HG/T2489 and other relevant standards.

Test Stand Features

Test stand is a developed new generation of Shore hardness test, the test principle is more scientific, more compact structure, reasonable, so that the stability and accuracy of the test further improved.

And the use of high hardness metal platform instead of the traditional glass platform, effectively avoids the disadvantages of fragile glass platform;users no longer need to be equipped with special hardness blocks to make the test more economical and convenient .

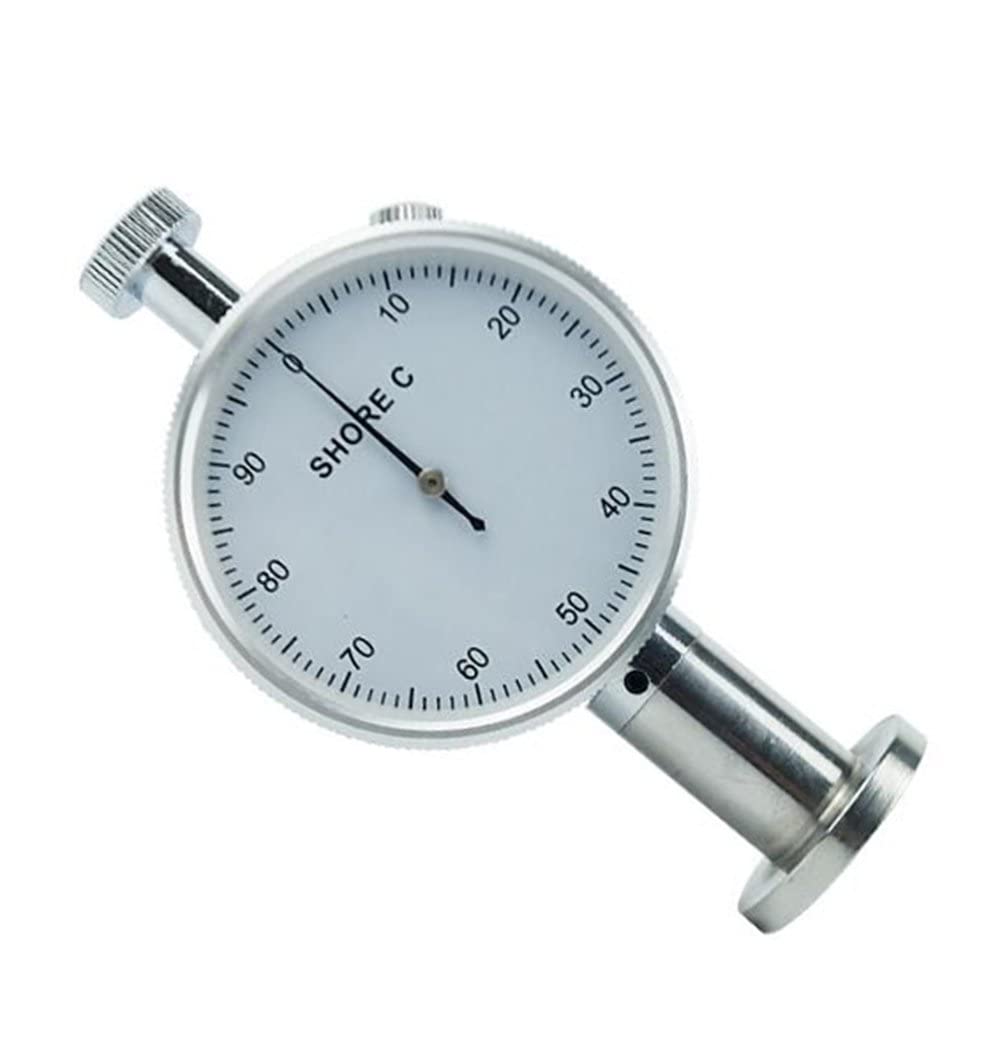

Description of Single Needle Shore C hardness tester

Function:

hardness tester is used in measuring the hardness of oak model micro porous material which includes vesicant when the compression ratio is 50%, the stress above 0.5kg/cm2. It also can be used in other similar hardness materials.
The product meets the requirements of HG/T2489 and other relevant standards.

Features

* It is not necessary to observe the value in real time according to the change of the measuring angle. As long as the measurement is done, the driven pointer is directly positioned on the numerical scale of the measurement to be read conveniently, and the error caused by the change of the observation angle is eliminated.

*Type C: applicable to the hardness test of rubber microporous material.

* Needle indicates, easy to read, high accuracy.

* Handhold design, carry conveniently,

Technical Specifications

* Dial value: 0-100HC

* Recommended range of measurement: 10-90HC

* Pressure Needle stroke: 2.5 mm

* Needlepoint size: SR 2.5 mm

* Size: 115 x 60 x 25mm

* Weight: 0.16 kg
