VTSYIQI

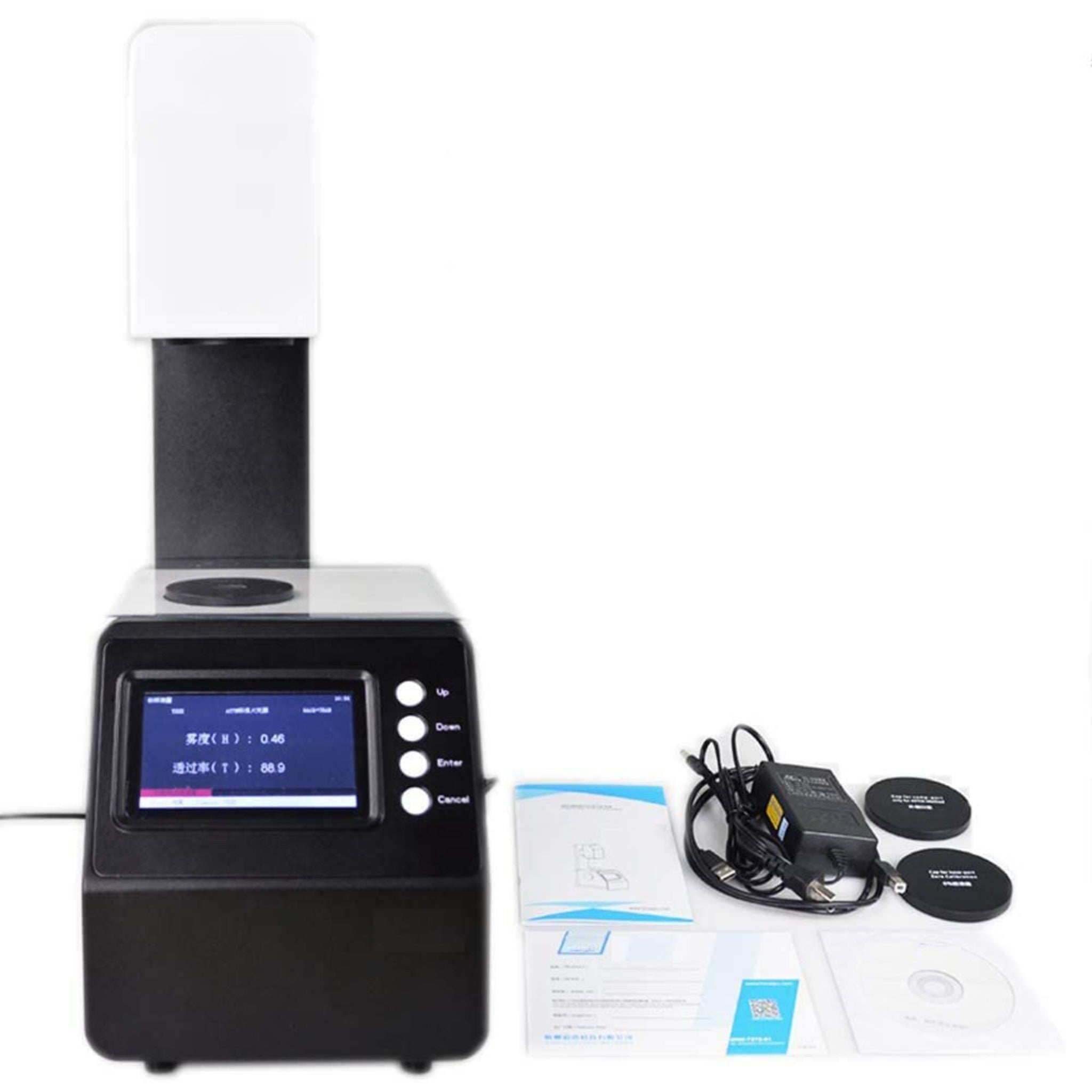

VTSYIQI Haze Meter Hazemeter Light Transmission Meter Benchtop Analyzer with Range 0 to 100% for Plastics Films Glass LCD Panels
- Regular price
- $2,045.00
VTSYIQI Haze Meter Hazemeter Light Transmission Meter Benchtop Analyzer with Range 0 to 100% for Plastics Films Glass LCD Panels
Description:
One-stop measurement solution for haze and transmittance of transparent translucent materials such as plastics, films, glass, LCD panels, and touch screens.
Specification:
Light source : CIE-A, CIE-C, CIE-D65
Standards of compliance : ASTM D1003/D1044, ISO13468/ISO14782, JIS K 7105, JIS K 7361, JIS K 7136, GB/T 2410-08
Measurement parameters: haze (HAZE), transmittance (T)
Spectral response : CIE spectral function Y/V(λ)
Optical path structure : 0/d
Lighting and sample aperture size: 21mm
Range: 0-100%
Haze resolution: 0.01 unit
Transmission resolution: 0.01 unit
Haze repeatability ：haze value ≥10%, repeatability ≤0.1%
Transmittance repeatability: ≤0.1 unit
Sample size : thickness ≤150mm
Store data: 20000 values
Interface : USB interface
Power : DC24V
Operating temperature : +10 – 40 °C (+50 – 104 °F)
Storage temperature : 0 – 50 °C (+32 – 122 °F)
Volume : Length X Width X Height: 310mmX215mmX540mm
Optional accessories : Haze standard, measuring fixture
