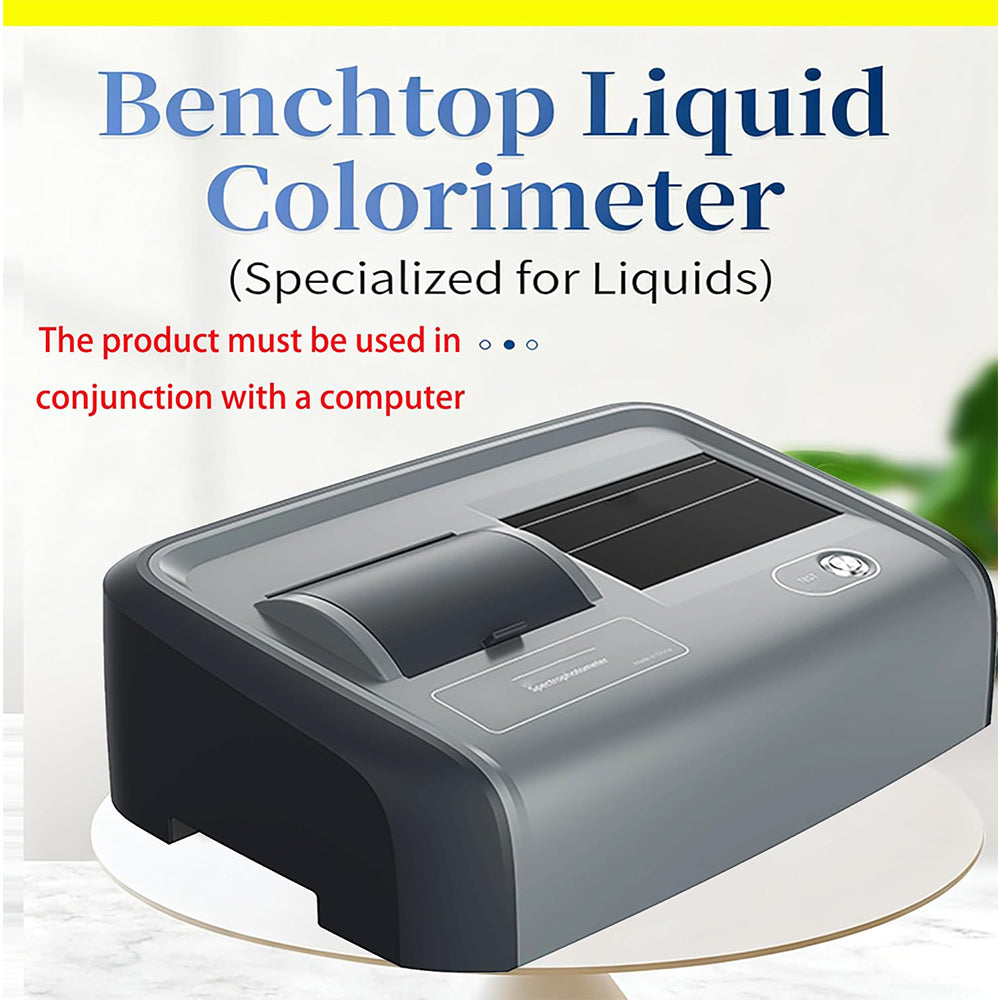

NOTE: This product must be used in conjunction with a computer, not on its own !!!

NOTE: This model does not have a display screen and requires connection to computer software for measurement control !!!

Introduction:

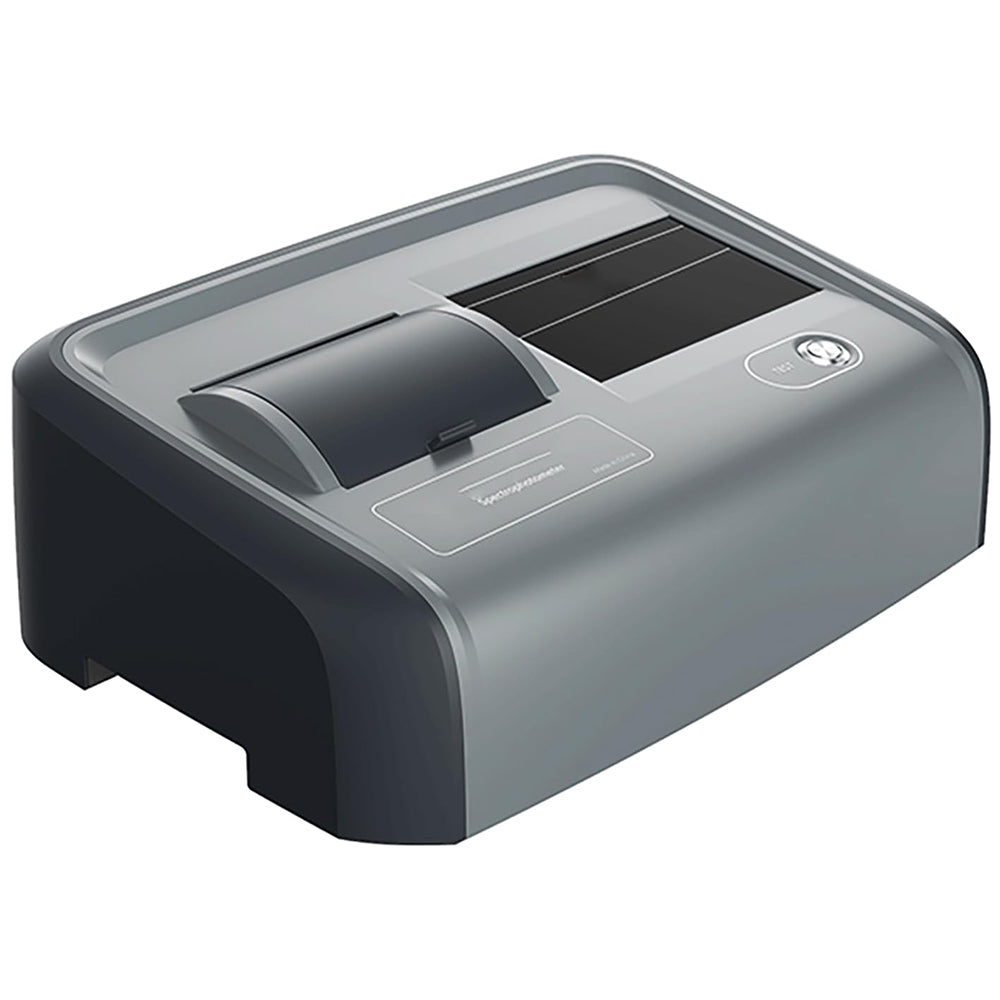

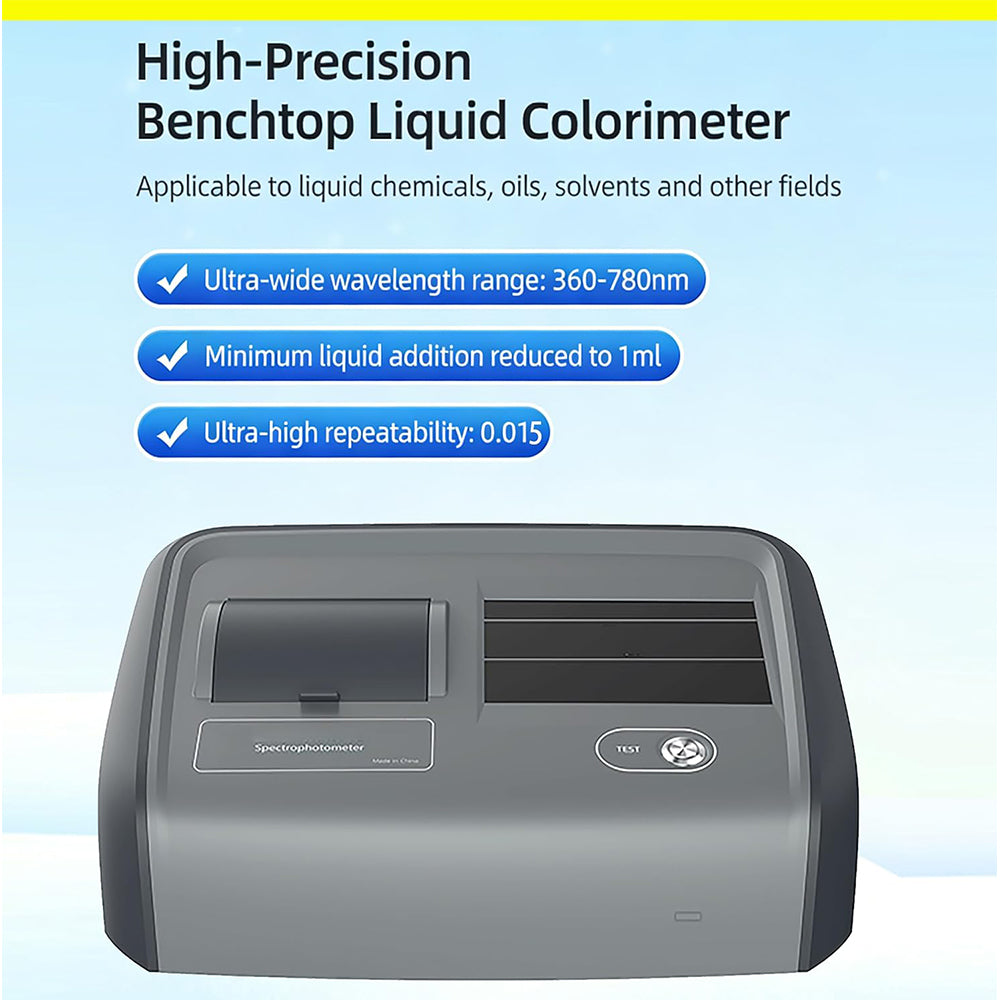

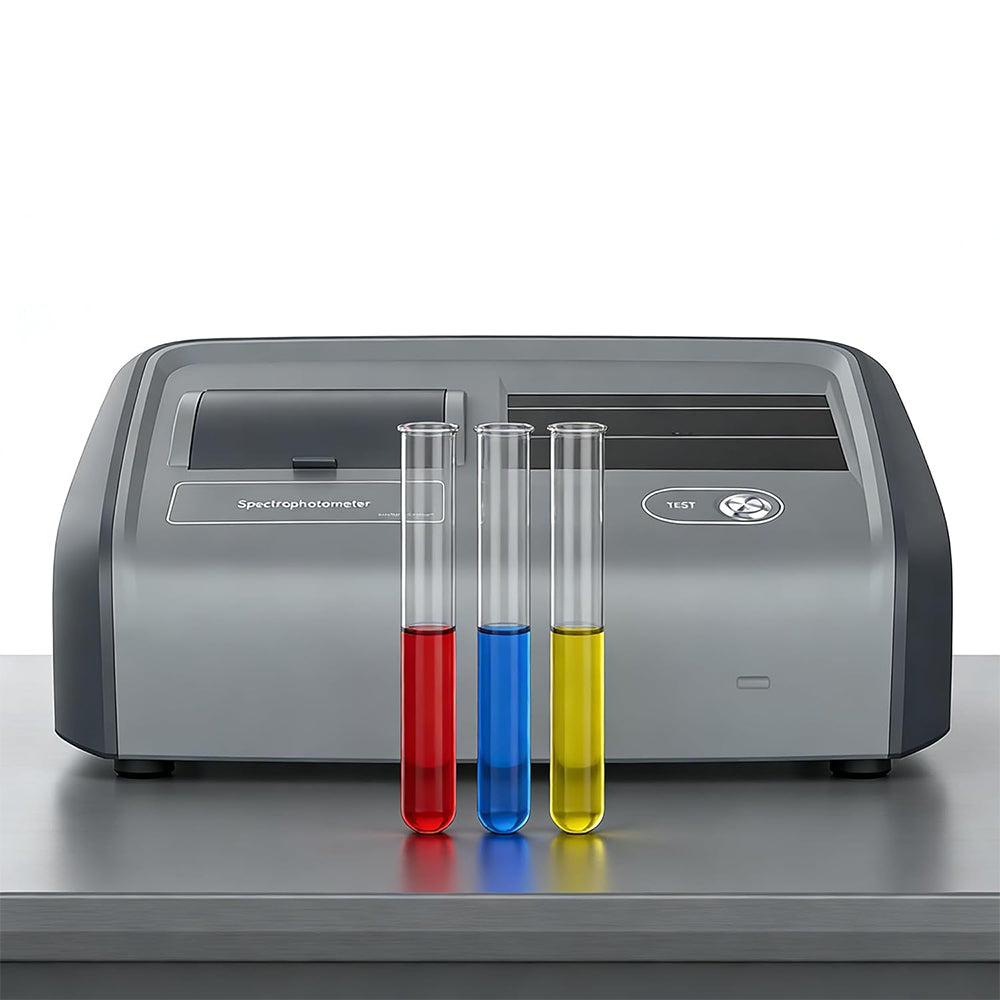

Desktop liquid colorimeter, a high-precision desktop colorimeter specially designed for liquid chromaticity. exceed

Over 30 kinds of chromaticity indexes, including Platinum Cobalt Index, Gardner, Cyberport, China, the United States, European Pharmacopoeia standards, etc.

Intelligent zero calibration is adopted to ensure the accurate measurement of △E*ab≤0.01.

The minimum liquid addition is reduced to 1ml, and 10mm and 50mm cuvettes are standard, and 33mm and 100mm cuvettes are optional.

The measurement speed is fast, and a single measurement takes only 1.5 seconds; The instrument can store more than 100,000 pieces of data.

Features:

1. Ultra-wide wavelength range of 360-780nm

The measuring wavelength range of the instrument is 360-780nm, which is higher than the spectral range of human eyes and expands the measuring range.

2. More than 30 chromaticity indexes.

The instrument is equipped with the latest indicators such as platinum and cobalt, Gardner, Saybolt, China Pharmacopoeia, American Pharmacopoeia, European Pharmacopoeia, etc. The products are suitable for liquid chemicals, coatings, medicines, cosmetics, petroleum, industrial oil and other fields.

3. Adopt intelligent zero calibration technology to ensure the data stability of 0.015.

Using intelligent zero calibration technology, even in the case of environmental changes, the measurement results remain stable to repeatability of 0.015.

4. The minimum liquid addition is reduced to 1ml.

Adopt more precise optical design, accurately control the light transmission direction, reduce the minimum liquid addition to 1ml, which is 34% lower than the previous generation, and save expensive samples for customers.

Compatible with spectrophotometer cuvettes, users do not need to buy or customize cuvettes.

5. Provide powerful ColorExpert computer data management software.

You can save data to the cloud, and the data follows the account to prevent loss. It supports PC-side exporting or printing data test reports.

Specification

Measurement condition : d/0(,0)(:CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7,JIS Z8722 Condition c,GB/T 3555,ASTM D156,GB/T 6540,ASTM D1500,ASTM D1209,ASTM

D5386,ASTM D6045,ASTM D6166,ASTM D1502)

Stand-alone operation : /

Integrating sphere : Φ40mm,Avian-D Fully diffuse surface coating

Lighting source : CLEDs(Full band balanced Led light source)

Inductor : Dual optical sensor array sensor

Wavelength range : 360-780nm

Wavelength interval : 10nm

Half-band width : 5nm

Measuring range : 0~200%

Resolution : 0.0001

Observer Angle : 2°/10°

Observation light source : A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V4

Display : Pharmacopoeia color number, transmission map/data, sample chromaticity value, color difference value/map, pass/fail result, color deviation, color simulation, historical data color simulation, manual input of standard sample, test report

Measuring time : ≤1.5s

Measuring optical path : Standard: 10mm glass cuvette, 50mm glass cuvette (optional 33mm and 100mm glass cuvette)

Color space : CIE Lab,LCh,CIE Luv,XYZ,Yxy,Transmissivity,Hunter Lн, ан, bн Munsell,MI,CMYK

Other indicators : Pharmacopoeia (Chinese Pharmacopoeia, European Pharmacopoeia, American Pharmacopoeia),WI(ASTM E313-20,ASTM E313-73,CIE,ISO2470/R457,Hunter,Taube Berger Stensby),YI(ASTM D1925,ASTM E313-20,ASTM E313-73),Tint(ASTM E313-20),Allochromic index Milm,APHA,Hazen,Pt-Co(Platinum-cobalt index),Gardner(Gardner index),Iron cobalt index,Saybolt(Seibert index),ASTM Color,EBC(Beer color),ICUMSA Color(Sugar chroma)

Repeatability : Transmittance: standard deviation ≤0.08%

Colorimetric value: ΔE*ab≤0.015 standard deviation, maximum ≤0.04

Color difference formula : ΔE*ab < 0.25

Specific function :  Intelligent zero calibration

Storage data  : More than 100,000 data

Software support  : ColorExpert,Color QC2

 * After calibration, measure the standard deviation and * * value of air 30 times at intervals of 5s.
