Features

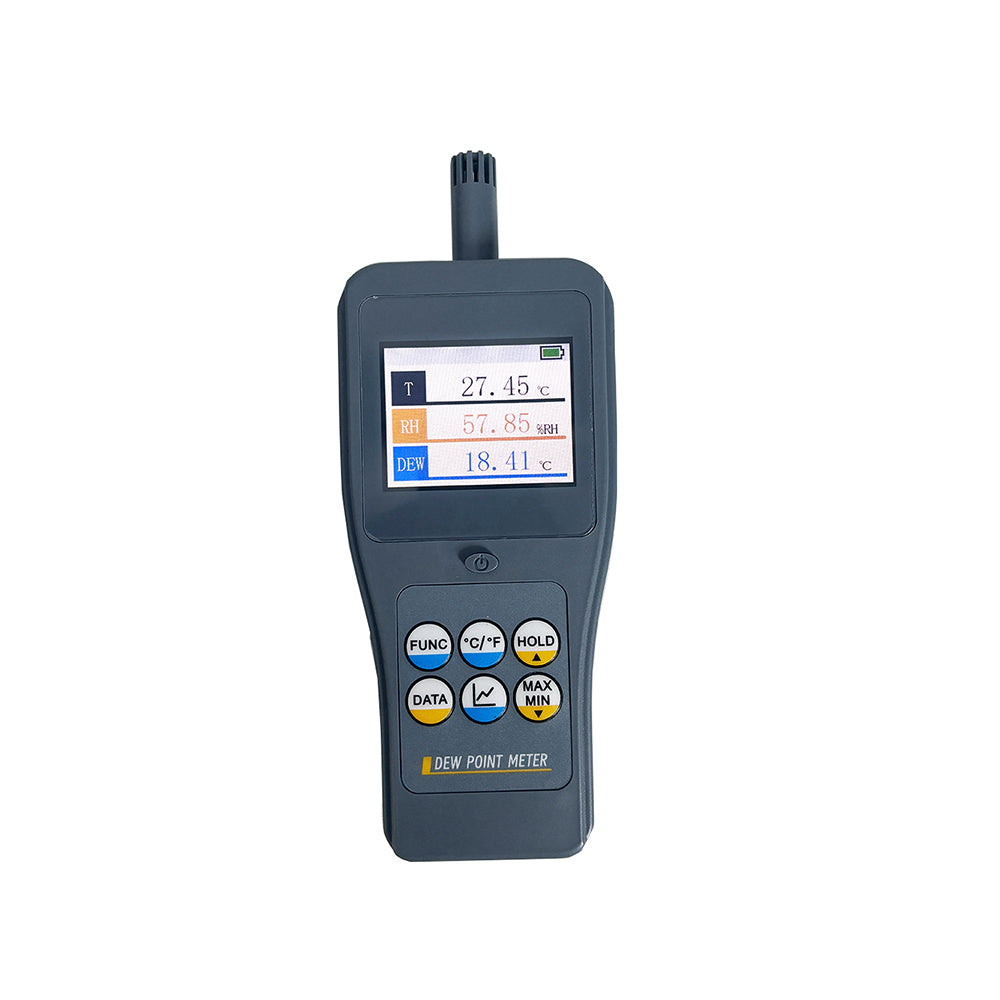

Color LCD with display. It can display multiple values at the same time.

The backlight brightness can be adjusted.

Support multi-parameter measurement of ambient temperature, dew point temperature, wet bulb temperature, relative humidity, absolute humidity, PPMv.

Temperature unit (°C/°F).

Resolution: 0.01

With real-time measurement graph display function.

With data storage function (99 Groups).

With maximum, minimum function.

With data hold function.

With battery indication function.

With automatic power off function.

specifications

Display: LCD

Test Parameters: ambient temperature, dew point temperature, wet bulb temperature, relative humidity, absolute humidity, PPMv.

Ambient Temperature

1. Range: -30~120°C (-22~248°F)
2. Accuracy：

± 0.15°C (0~50°C)

± 0.2°C (Other)

3. Resolution: 0.01 (<100)

0.1 (Other)

Relative Humidity

1. Range: 0~100%RH
2. Accuracy：

± 1%RH (0~80%RH)

± 1.5%RH (Other)

3. Resolution: 0.01

Dew Point Temperature

1. Range: -30~60°C (-22~140°F)
2. Accuracy:

±1.5°C (-10~60°C)

±(2+2%Num)°C (Other)

3. Resolution：

0.01 (<100)

0.1 (Other)

Wet Bulb Temperature

1. Range: 0~60°C (32~140°F)
2. Accuracy: ±0.7°C
3. Resolution：0.01

Absolute Humidity

1. Range：0~300g/m³
2. Accuracy：±(0.5+5%Num)g/m³
3. Resolution: 0.01

PPMv

1. Range：300~240000
2. Accuracy：±(50+8%Num)
3. Resolution：1

Temperature Unit：°C/°F

Graph Display:Dew Point Temperature (Can be Customized Other Parameters)

Storage: 99 Groups (A Total of 594 Data)

Statistical Functions：Maximum, Minimum

Automatic Power Off：10 Minutes (No Operation)

Operating Conditions：Temperature：0~50°C；Humidity：0~90%RH (No Condensation)

Storage Conditions：Temperature：-10~50°C；Humidity：0~95%RH (No Condensation)

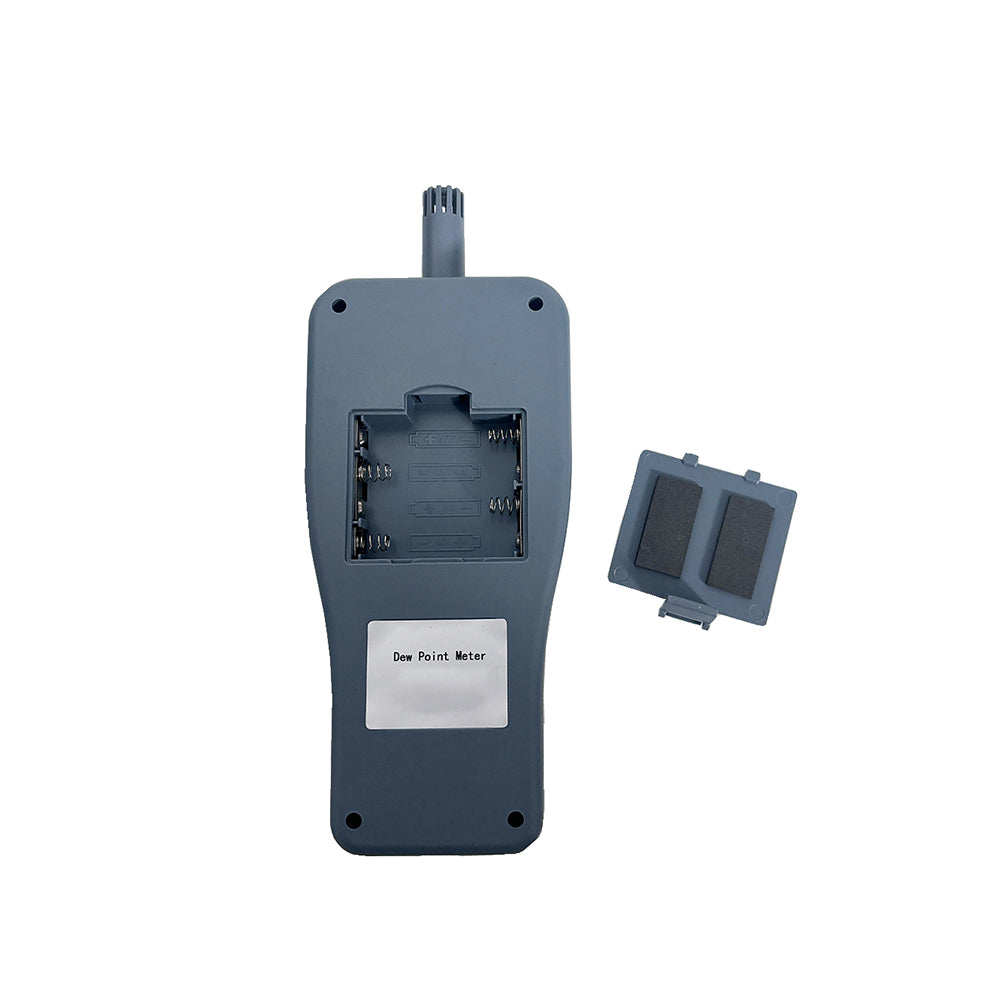

Power Supply：4 × 1.5V AAA(UM-4) Battery

Size：205×80×31mm

Weight ：182g (Not Including Batteries)

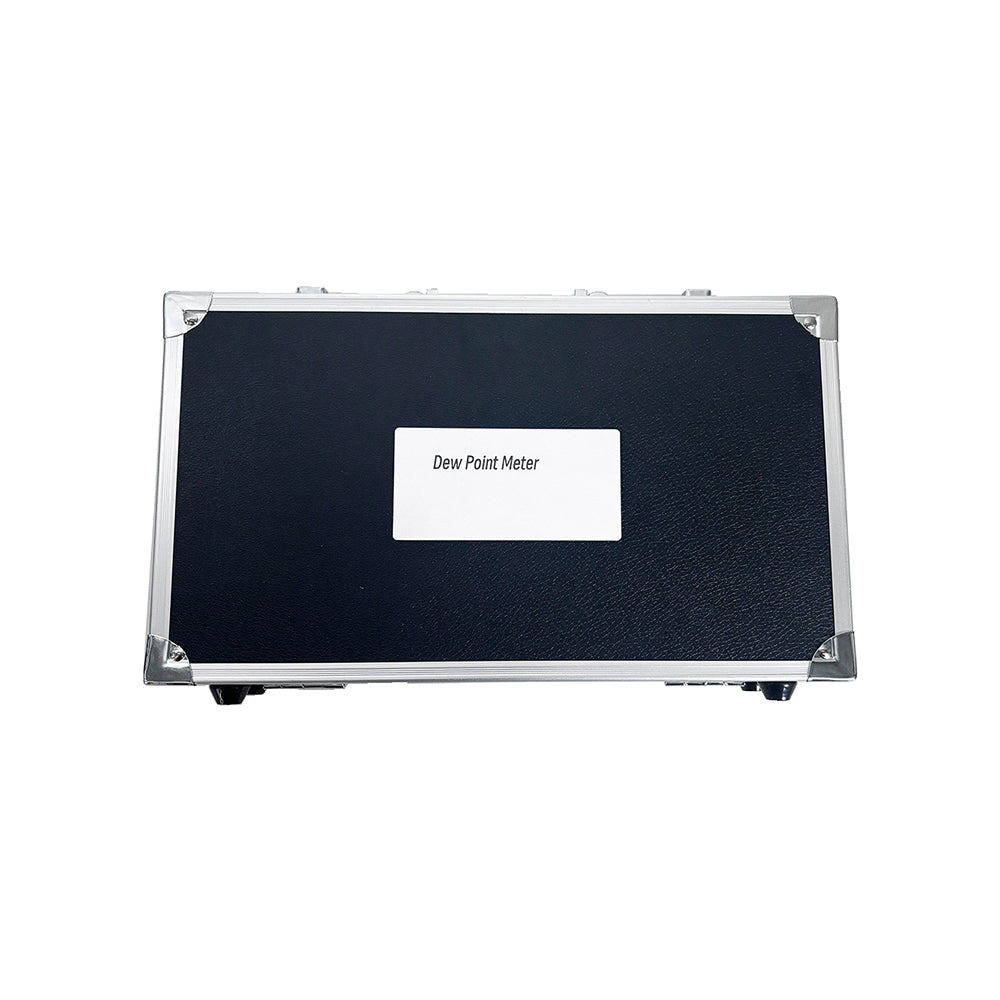

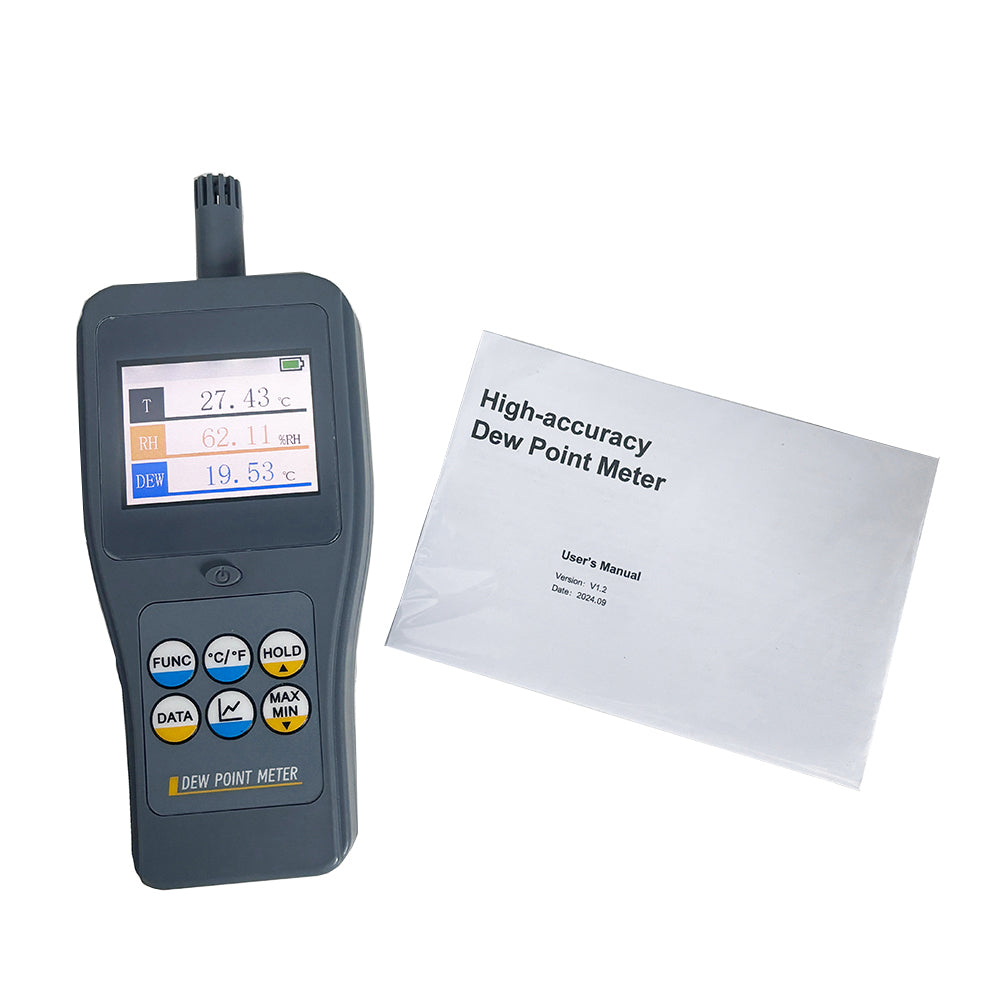

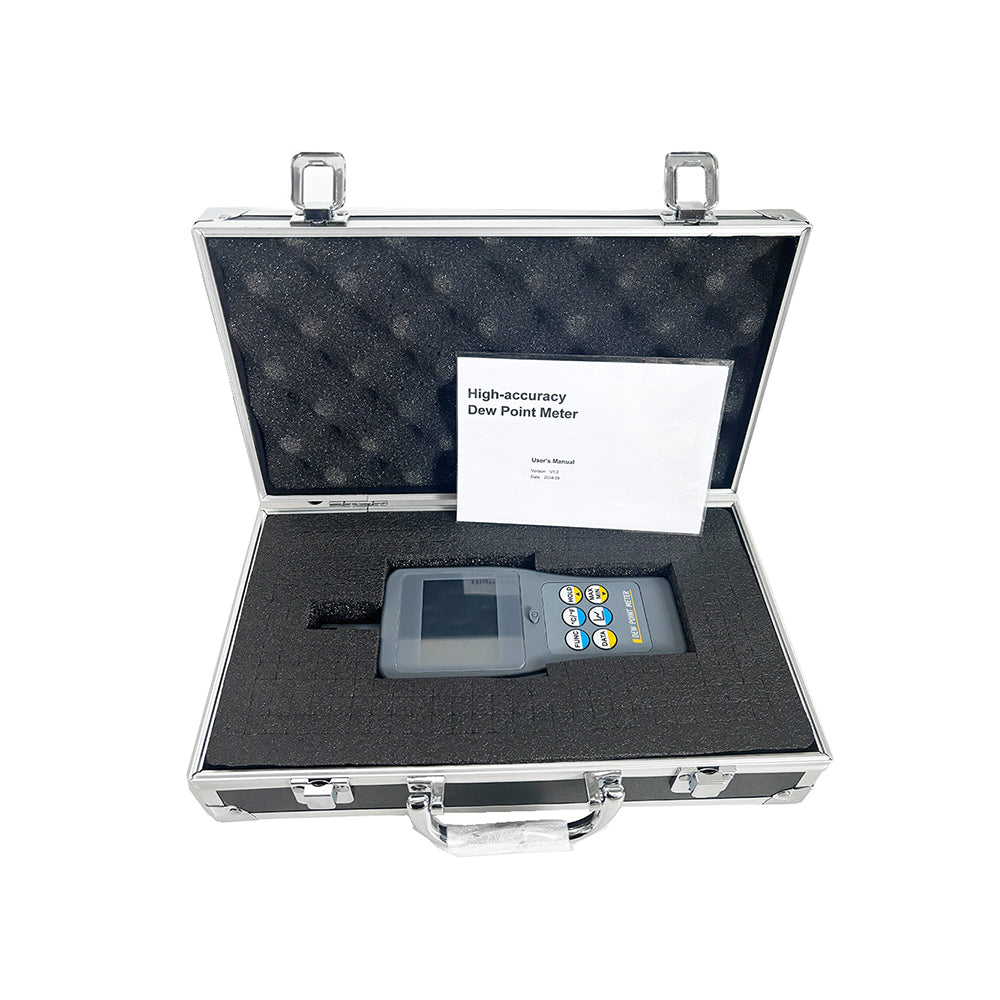

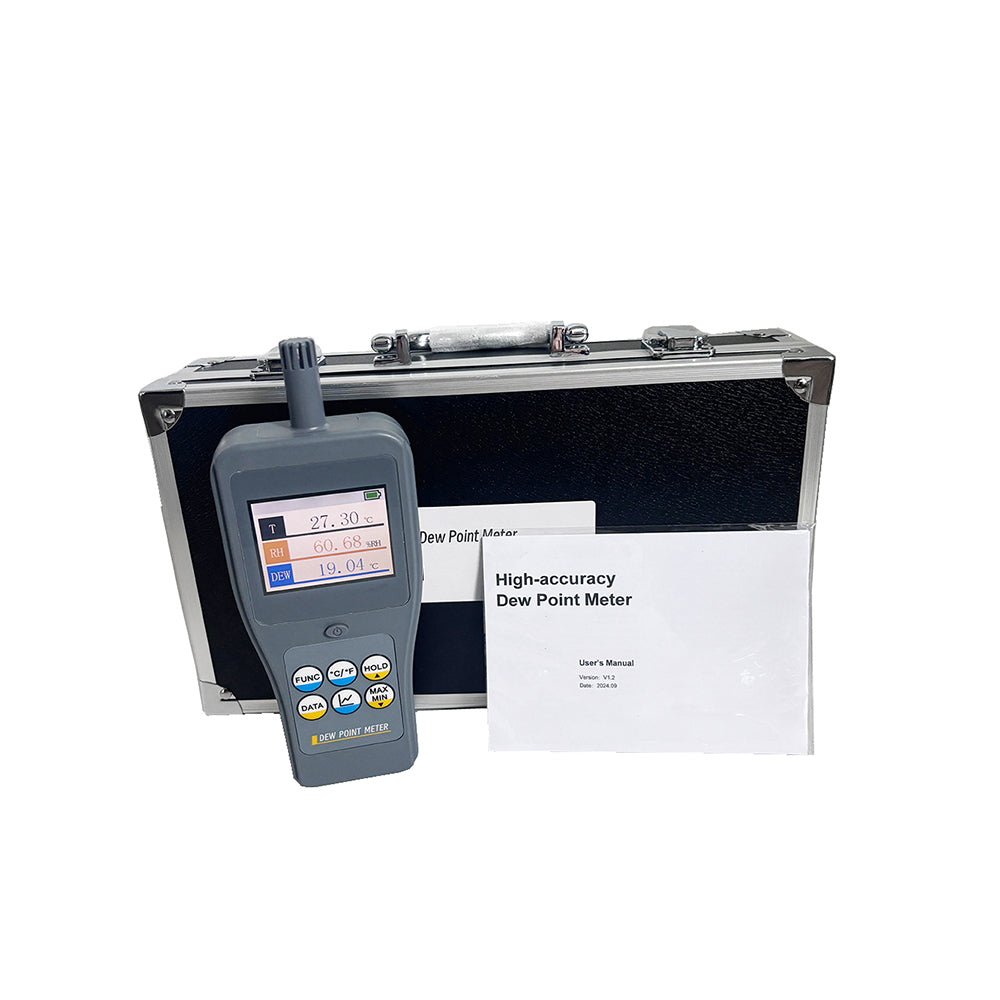

Standard Accessories：Main Unit ×1;  Manual ×1; Carrying Case ×1
