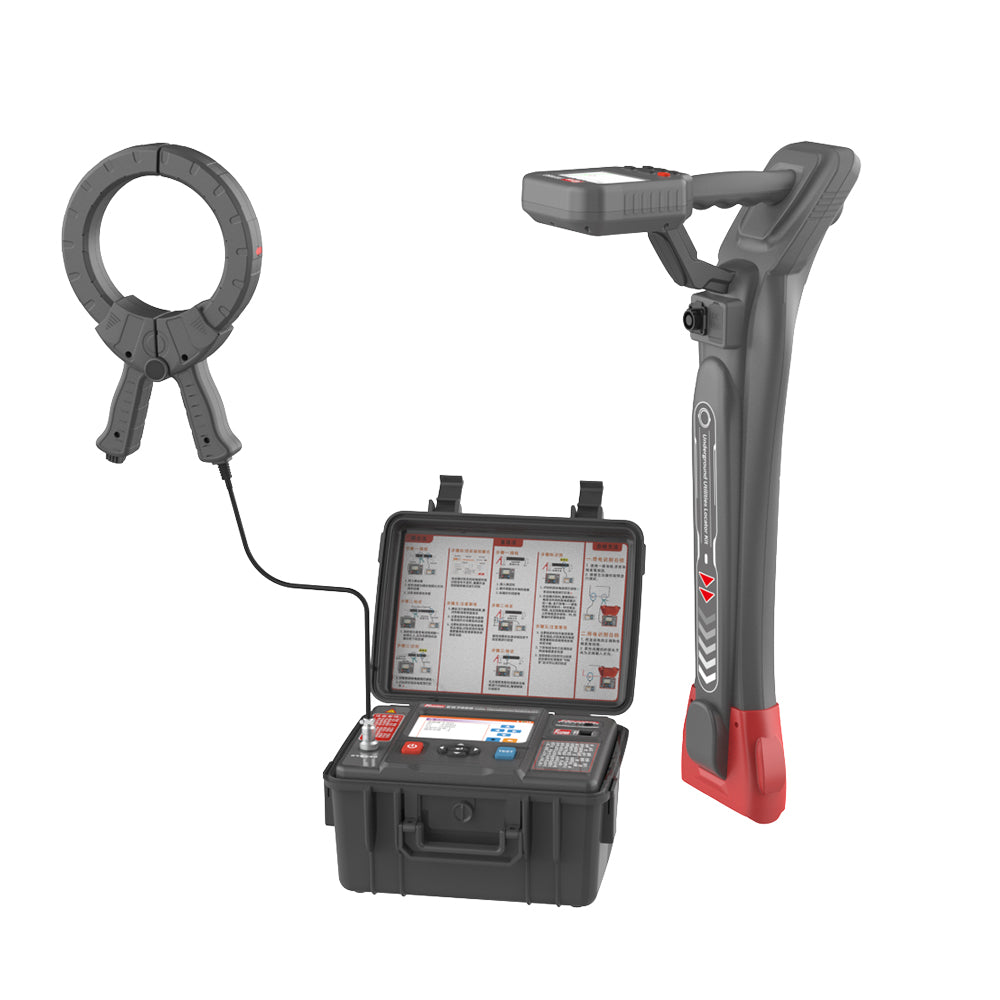

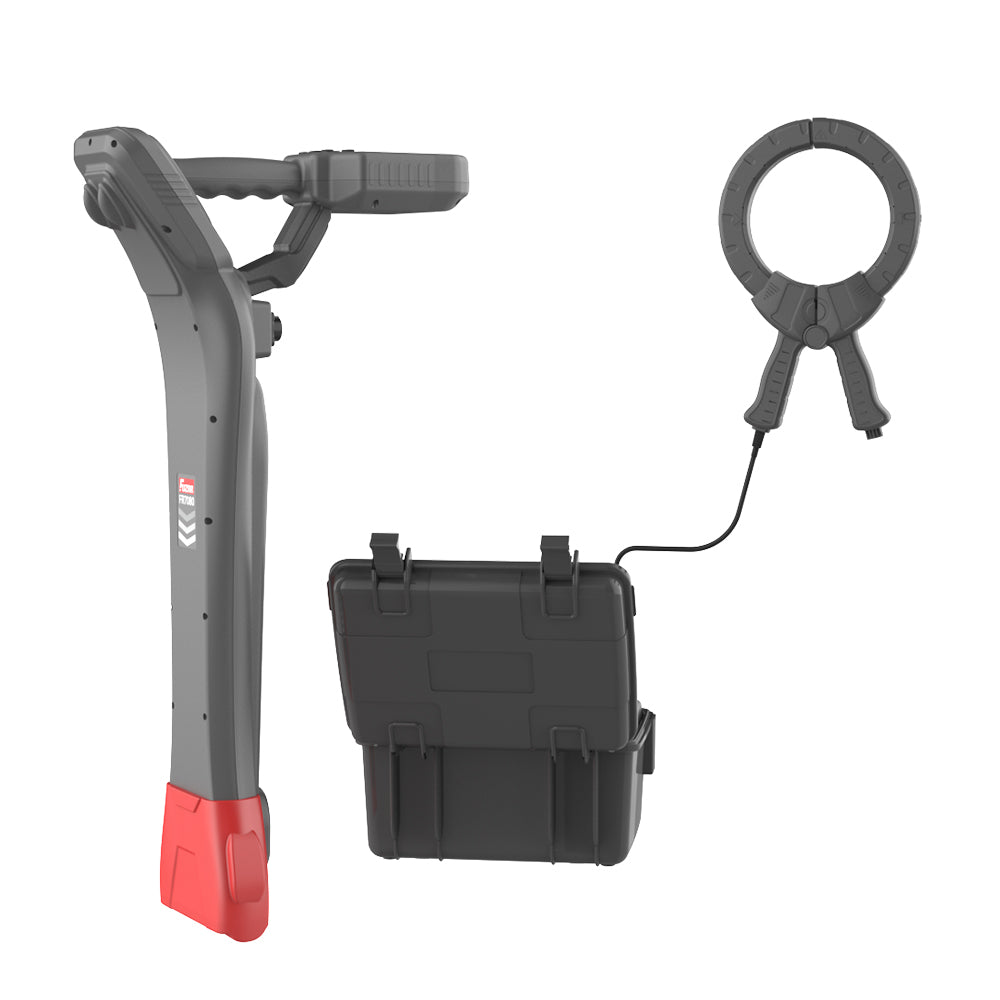

VTSYIQI Intelligent Utility Detector Utility Locator Path Locator with Measurement Depth 0-20m Withstand Voltage AC2000V/rms for Cable Identification of Power Cable Area

VTSYIQI Intelligent Utility Detector Utility Locator Path Locator with Measurement Depth 0-20m Withstand Voltage AC2000V/rms for Cable Identification of Power Cable Area

Regular price $3,589.00 USD
Regular price Sale price $3,589.00 USD
Sale Sold out
Shipping calculated at checkout.

VTSYIQI Intelligent Utility Detector Utility LocatorPath Locator with Measurement Depth 0-20m Withstand Voltage AC2000V/rms for Cable Identification of Power Cable Area

Introduction:

1.Multiple detection modes: classical positioning mode, wire cruise mode, signal distortion measurement mode;

2.Classic positioning mode: compass, direction and signal amplitude display, visually display the left and right direction of the pipeline。

3.Lead cruise mode: 360 omnidirectional pipeline path indication, continuous display of depth, current, and pipeline relative position. The interface is simple and intuitive, and it can be operated without experience

4.Signal distortion measurement mode: the peak and trough wave form should be displayed at the same time. In the field without distortion, the peak and valley value position should be consistent, and the field shape should be symmetrical relative to the centrol line.

5.Current direction determination (partial frequency), can be calibration current direction, eliminate adjacent line interference, to prevent tracking errors.

6.Full digital high-precision sampling processing: stable and reliable, ultra-high sensitivity, extremely narrow reception frequency band, strong anti-interference ability, can fully inhibit the power frequency and harmonic interference of adjacent running cables and pipelines.

7.Multiple detection frequencies: 13 active detection frequencies and 2 passive detection frequencies.

8.Transmitter a variety of signal output: direct output, caliper coupling, induction method.

9.Transmitter digital amplifier power output, automatic impedance matching, automatic protection.

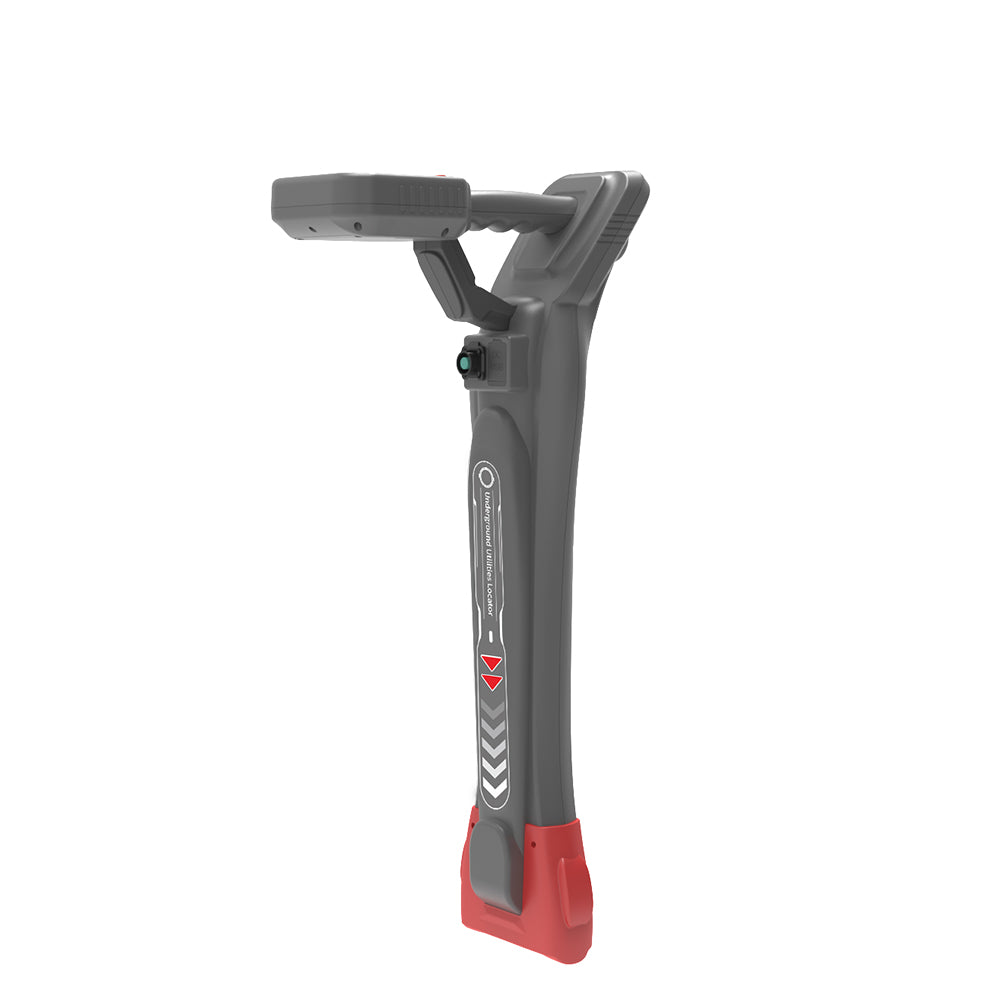

Receiver specifications:


Function:Utility detector(cable position tracking, direction display, depth measurement, current measurement), cable identification, A-frame fault detection (optional function)

Power:8.4V large capacity rechargeable lithium battery

Input mode:Built-in receiving coil, flexible caliper, A-frame (optional function)

Receive frequency:Active detection frequency:250Hz、577Hz、640Hz、1.28kHz、2.56kHz、3.20kHz、4.09kHz、8.19kHz、10.2kHz、33kHz、66kHz、82kHz、197kHz

Power frequency passive detection frequency:50Hz、60Hz

RF passive detection frequency band: the central frequency is divided into33kHz、66kHz、82kHz、197kHz

Utility detector modes:Wide peak method, narrow peak method, sound valley method

Utility detector display modes:Classic positioning mode, wire cruise mode, signal distortion measurement mode


Utility detection Scope of detection:

Direct connection method: generally can reach the cable length of 0~20 kilometers, mainly determined by the grounding resistance, cable resistance and cable buried depth
Coupling method: generally can reach the length of the cable 0~10 kilometers, mainly determined by the grounding resistance, cable resistance and cable buried depth
Induction method: suitable for cables with buried depth less than 2m

Depth and current:Display the cable depth and current value in real time

Measurement depth:0-20m

Deep precision:Flat position precision accuracy: Central axis position of the target cable or pipeline:± 5% (buried depth in 0-3m) -10% (buried depth in 3m-20m)

Positive and wrong prompt: Excluding the interference of adjacent cables, in the measurement of adjacent cables, the measurement of the adjacent cables can be distinguished according to the different signal strength and the measured current phase of the adjacent cables. In the process of tracking the cables, the phase dial and pointer can be observed to distinguish the measured cables and the adjacent cables

Sound instructions:FM tone with signal intensity

Capacity of resisting disturbance:Very narrow receiving frequency band and unique digital processing method can fully suppress the power frequency and harmonic interference of adjacent operating cables and pipelines


 Interference distance:

When using the coupling method and the induction method, the transmitter will produce interference in close distance. The distance of interference is related to the transmitting power and frequency. The greater the power, the higher the frequency, the stronger the interference.The minimum distance of the receiver free from the transmitter interference often needs to be determined by test:

Utility detection: 5m away, 20m away as no interference

Cable identification: the coupling method beyond 2~5m can be confirmed as no interference

Cable identification:

Identification mode: flexible caliper intelligent identification;

Number of calibrable cables: 1~20;

Calibration value: the current percentage of the received signal and the transmitted signal between 75% and 135% of the calibration value is one of the conditions for successful identification;

Directionality: the transmitter clamp, receiver clamp must be in the same direction as the loading signal, which is one of the conditions for successful identification

Cable identification Range of detection:

Direct connection method: can identify the signal with a circuit resistance of 0 Ω ~ 8 kΩ (generally, the length of the cable can reach 0~20 km, mainly determined by the grounding resistance and cable resistance)

Coupling method: can identify the signal with circuit resistance of 0 Ω ~ 1 kΩ; (generally the cable length is 0~6 km, mainly determined by the grounding resistance and cable resistance)

Display:4.3 LCD color screen LCD (highlight screen), visible in the sun

Touchscreen:Yes

Size:350mm(length)×155mm(width)×700mm(high)

Weight:Around 2kg

Connection interface:Type-C USB Interface, air socket

Coil inner diameter:φ200mm(A larger caliber can be customized as needed)

Working temperature and humidity:-10℃~40℃;below 80%Rh

Store temperature and humidity:-10℃~50℃;≤95%RH, No knot dew

Withstand voltage:AC2000V/rms(Before the front and rear ends of the shell)

Suitable for safety regulations:IEC61010-1 CAT Ⅲ 600V,IEC61010-031,IEC61326,Pollution grade 2

Transmitter specifications:

Function:Multiple frequency signal transmission modes

Power:10.8V Large-capacity rechargeable lithium battery

Output method:Direct connection method, caliper coupling method, induction method

Output frequency:250Hz、577Hz,640Hz,1.28kHz,2.56kHz,3.20kHz,4.09kHz,8.19kHz,10.2kHz,33kHz,66kHz,82kHz,197kHz

Output mode:Automatic identification, according to different accessories

Output power:15W max,The 9 gear adjustable

Impedance:Automatic real-time impedance matching and protection function

Direct output voltage:150Vpp max

Circuit protection:With overload and short-circuit protection

Display:5寸LCD Color screen LCD

Touch screen:Yes

Instrument size:320mm(length)×275mm(width)×145mm(high)

Weight:Transmitter about 3.85kg; The transmitter clamp is about 1.18kg

Charger:DC 11.1V 3A

Dimensions of transmitter clamp:Length, width and thickness 297mm×194mm×39mm

Launch clamp inner diameter:φ125mm

Length of transmitter clamp:3m

P-wire:Red test line 3m, black test line 3m

Connection interface:USB interface, DC interface, aviation socket

Resist compression:The transmitter adopts an integrated special tool box type design, and the box body can withstand the pressure of about 200kg

Withstand voltage: AC 3700V/rms(Before the top surface and bottom surface of the instrument box)

Electromagnetic characteristics:IEC61326(EMC)

Suitable for safety regulations:IEC61010-1(CAT Ⅲ 300V、CAT IV 150V、Pollution grade 2)
