(1)Laser two-dimensional scanning: Two bunches of lasers to do outer diameter measurement of non-contact ,non-damage from the different angle, it can effectively eliminate error caused by work vibration;

(2)DSP data processing technique: The sampling speed is quick ,precision is high and the performance is stable;

(3)The reaction control integration module with PID constitute the online outer diameter closed loop observation and control system (e.g.: diameter of the object measured is slight big or small, transmission rate is big or small), which can change the transmission rate to control the outer diameter be tested through adjusting the power supply with PID. It’s easy to operate, user can setup a boundary numerical value, main engine will give an alarm automatically while the test result exceeds th

(4)Applications : Laser Diameter Instrument is special suitable for real-time measurement of the production field, and widely used in the test of round wire materials such as communication cables, optical cables, co-axial cables and power cables, and the test of various kinds of other round work piece diameters.

(5)If you have any questions about the Non-contact Laser Diameter Gauge, please free feel to contact us.

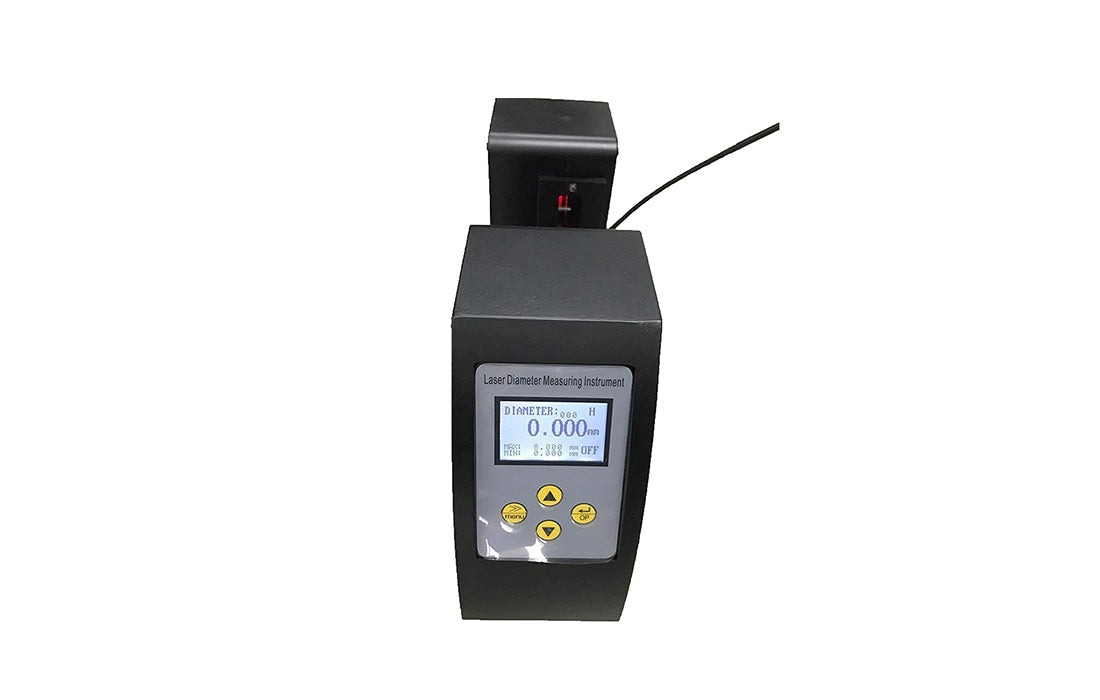

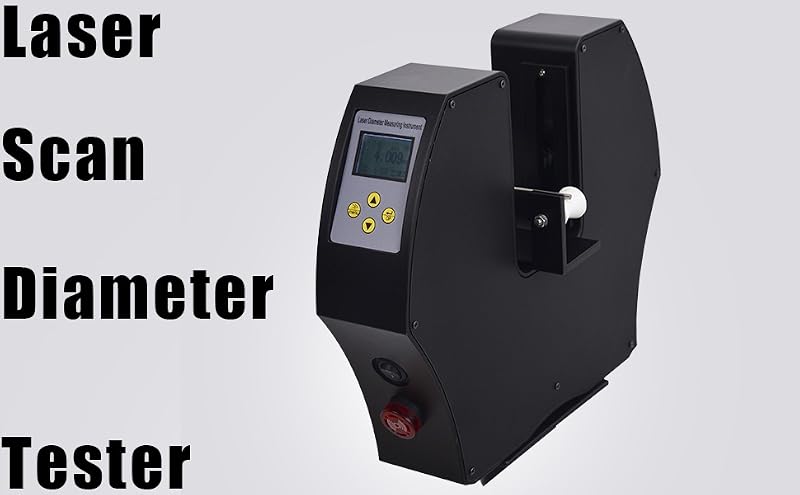

Introduction:

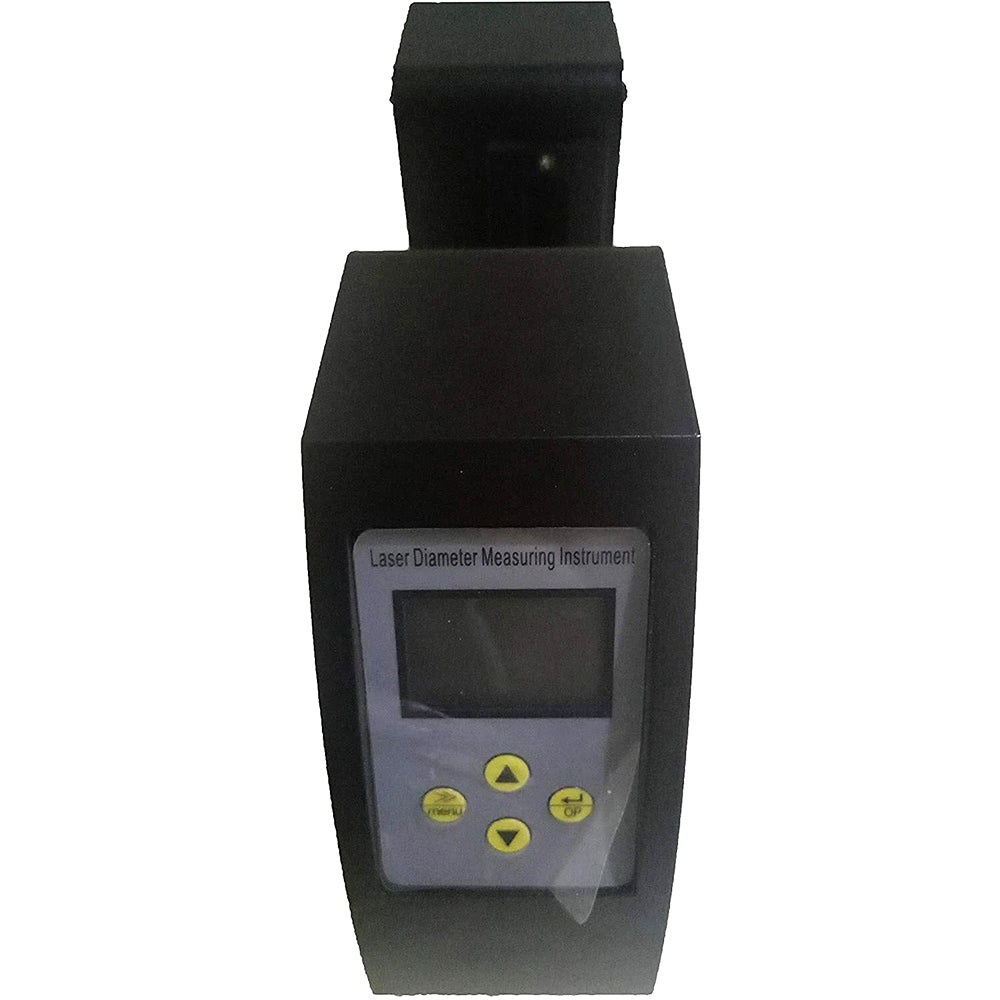

This Laser Diameter Instrument is a high accuracy one without contacting designed on the basis of the laser scan measuring principle.

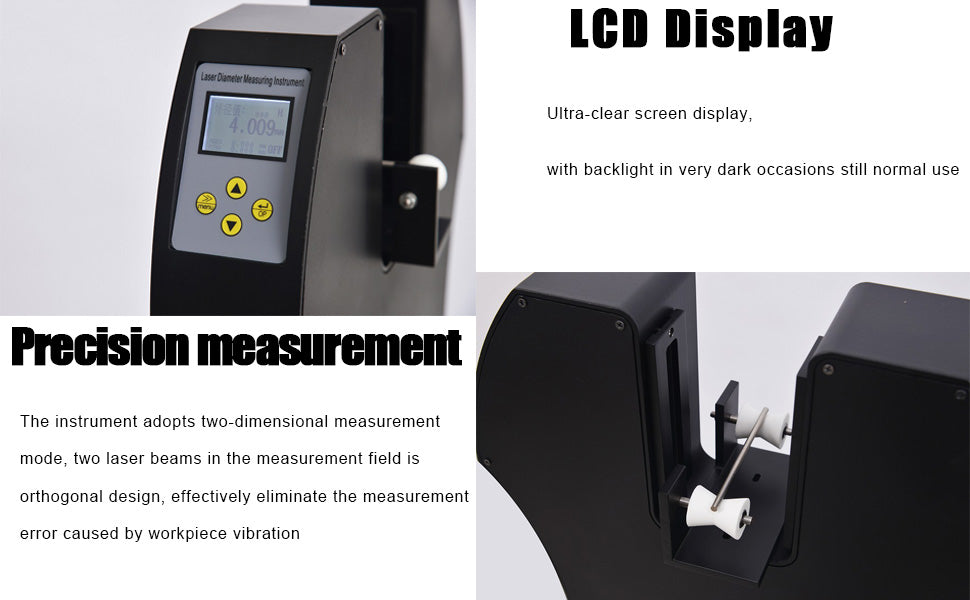

The 2-dimension measuring mode is applied to the instrument, and the 2-way laser beam is in the positive cross design in the measuring field, thus effectively eliminating testing errors caused by work piece shocks.

It is special suitable for real-time measurement of the production field, and widely used in the test of round wire materials such as communication cables, optical cables, co-axial cables and power cables, and the test of various kinds of other round work piece diameters.

Features:

1.Laser two-dimensional scanning: Two bunches of lasers to do outer diameter measurement of non-contact ,non-damage from the different angle, it can effectively eliminate error caused by work vibration;

2.DSP data processing technique: The sampling speed is quick ,precision is high and the performance is stable;

3.The reaction control integration module with PID constitute the online outer diameter closed loop observation and control system (e.g.: diameter of the object measured is slight big or small

Applications:

The Laser Diameter Instrument is a high accuracy one without contacting designed on the basis of the laser scan measuring principle.

Technical specifications:

Measuring range: 0.2-30mm

Sensitivity: 1um

Measuring accuracy: ±2um

Ambient temperature: 4-40℃

Ambient humidity: <85% without condensed dew

Power consumption of instrument: less than 50W

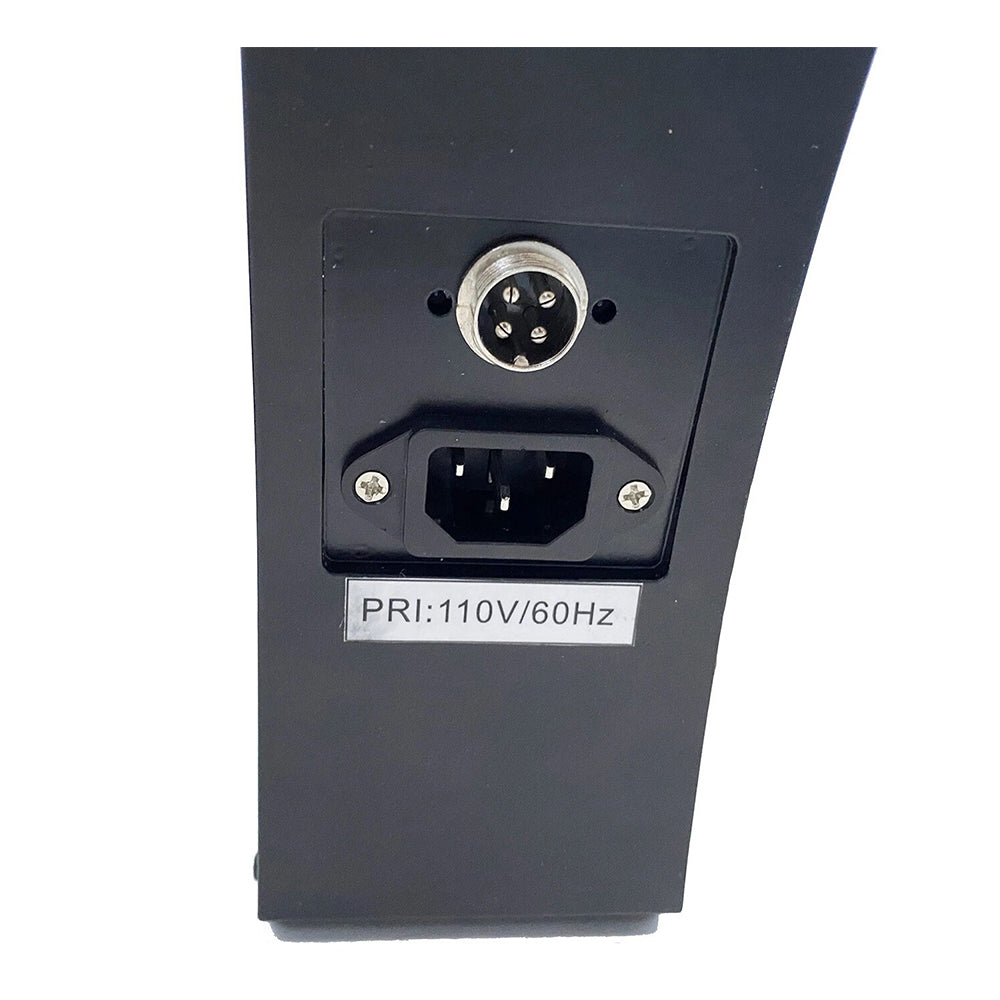

Operating voltage: AC100V-120V OR 220V-240V 50HZ±10%

Scanning rate: greater than 50m/c

Dimension : 7.6*29*36.6(cm)

Weight:8.5kg

Colour: Black

Standard delivery:

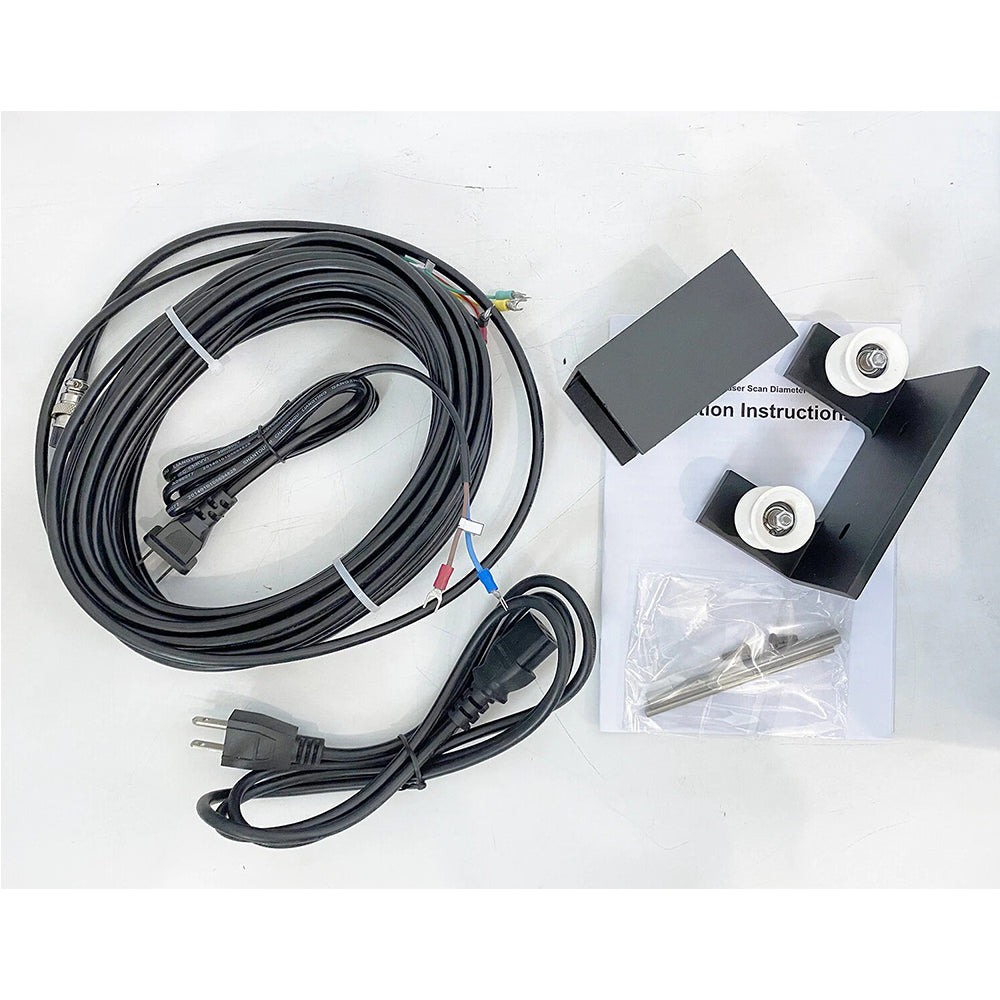

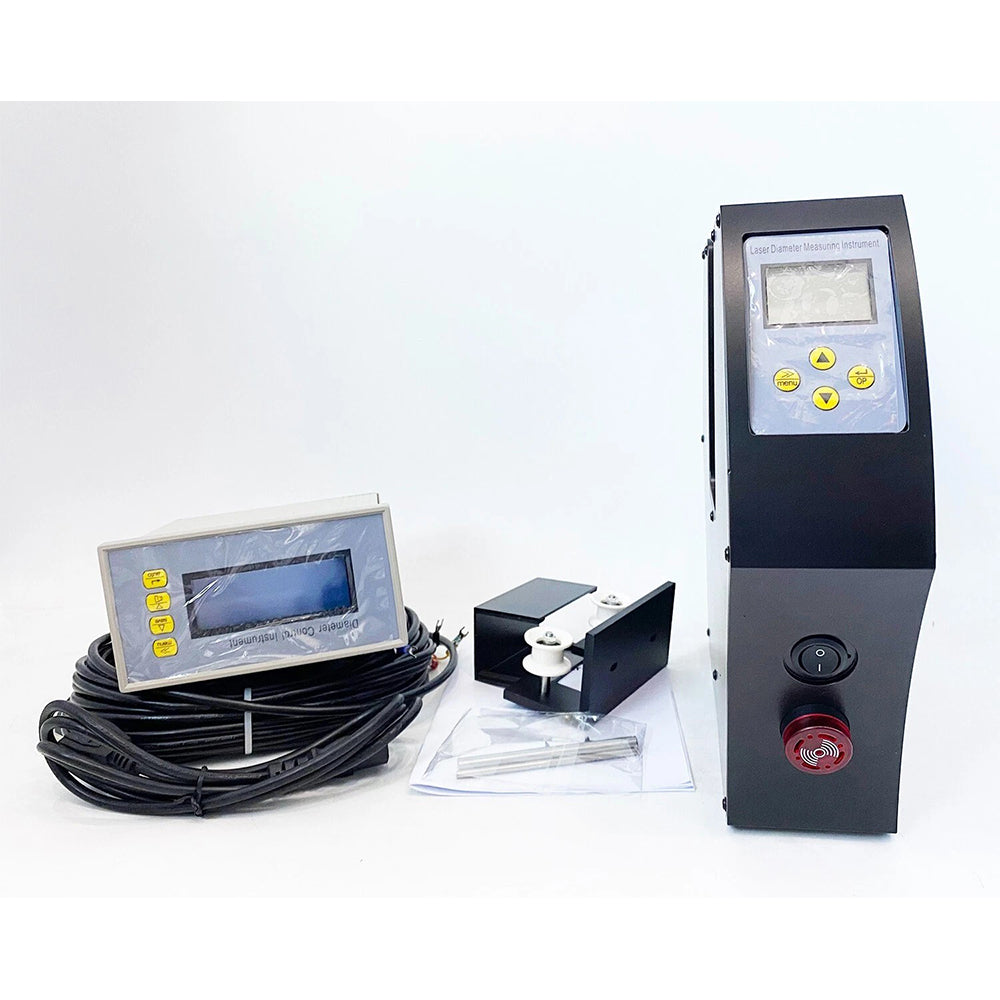

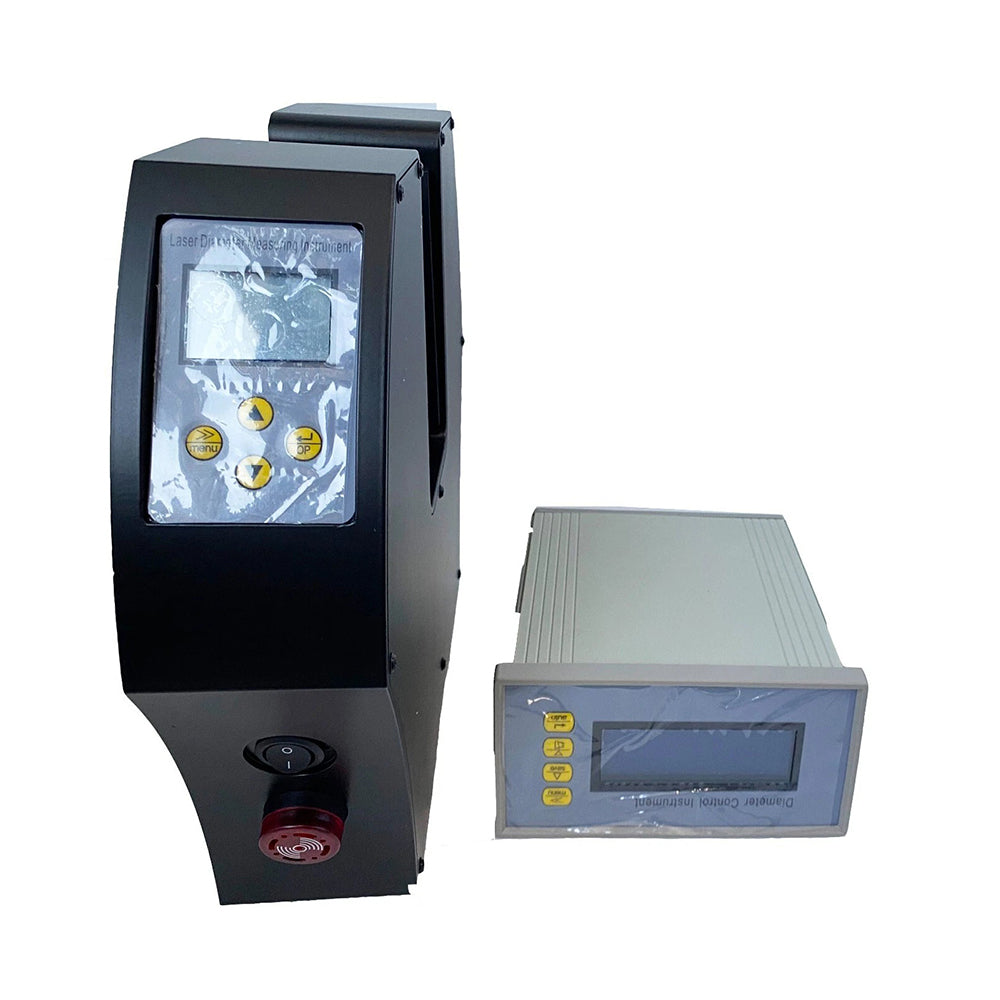

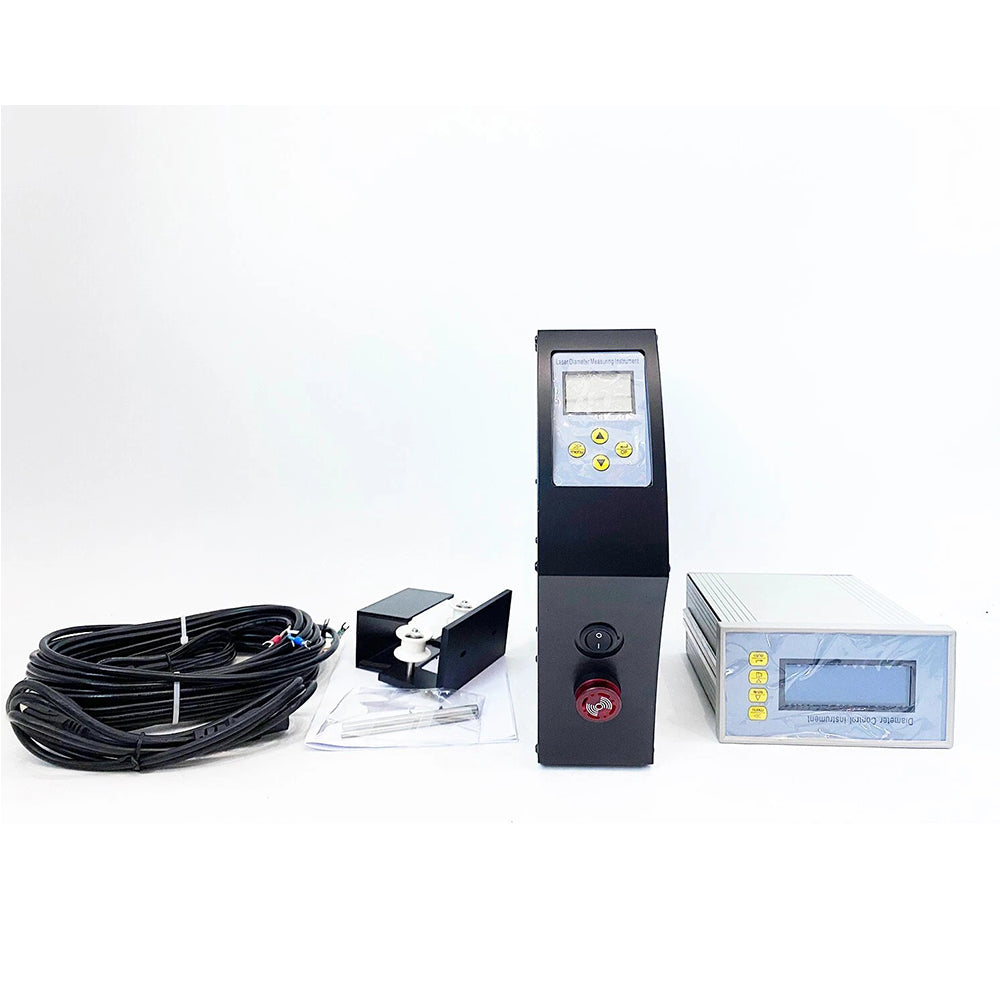

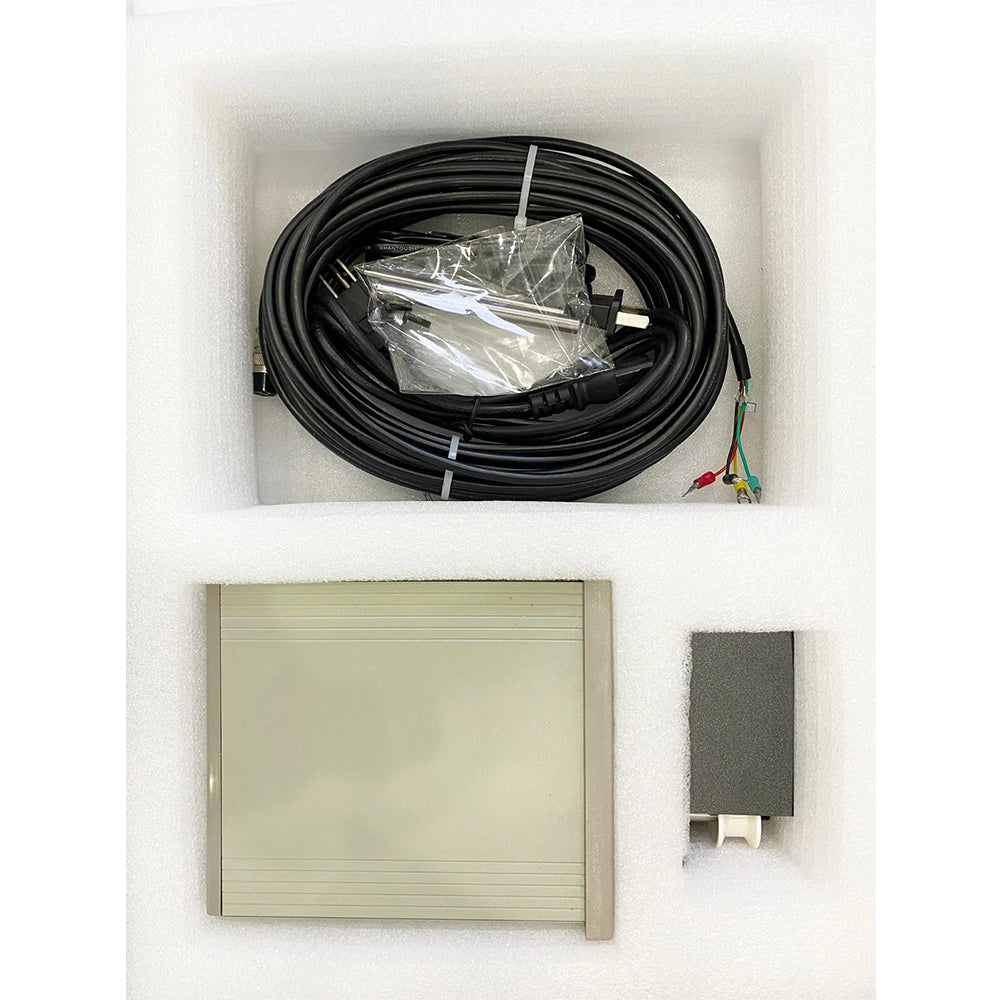

1. Main unit*1pc
2. Manual*.1pc

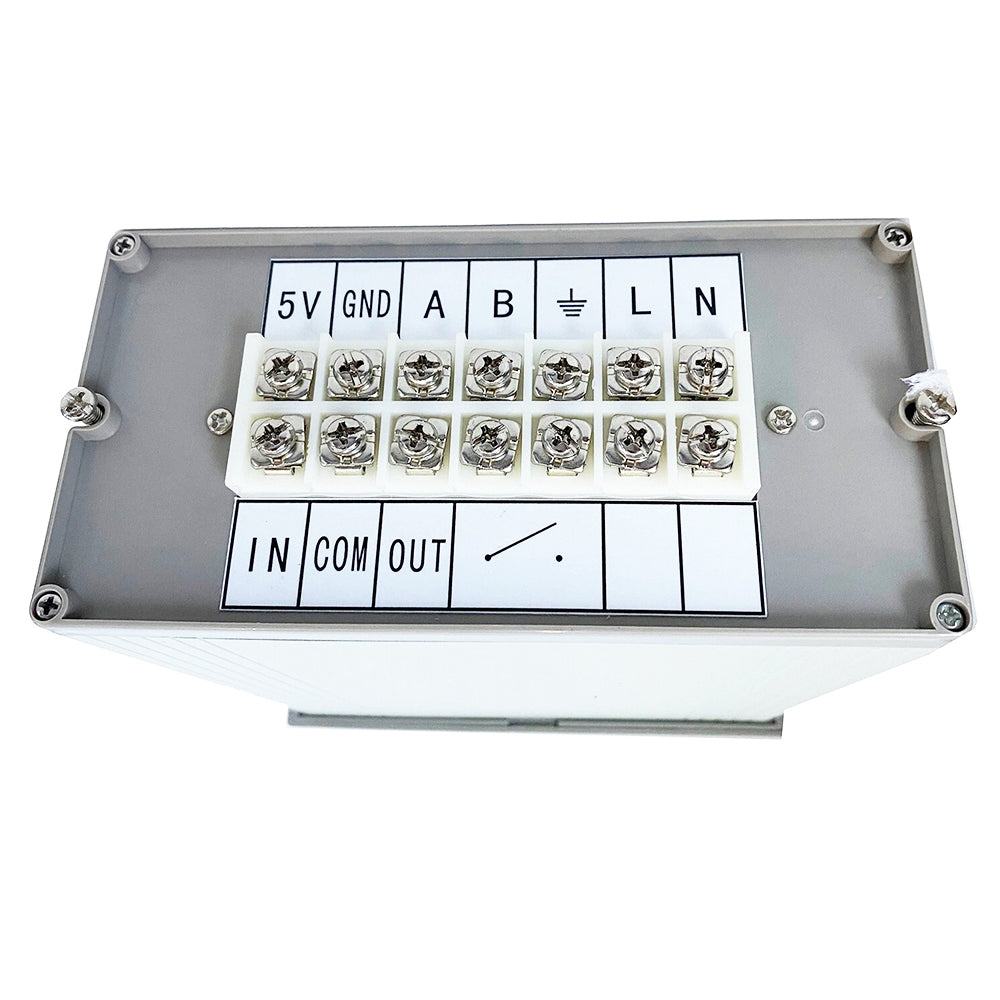

3. the serial communication cable*10m

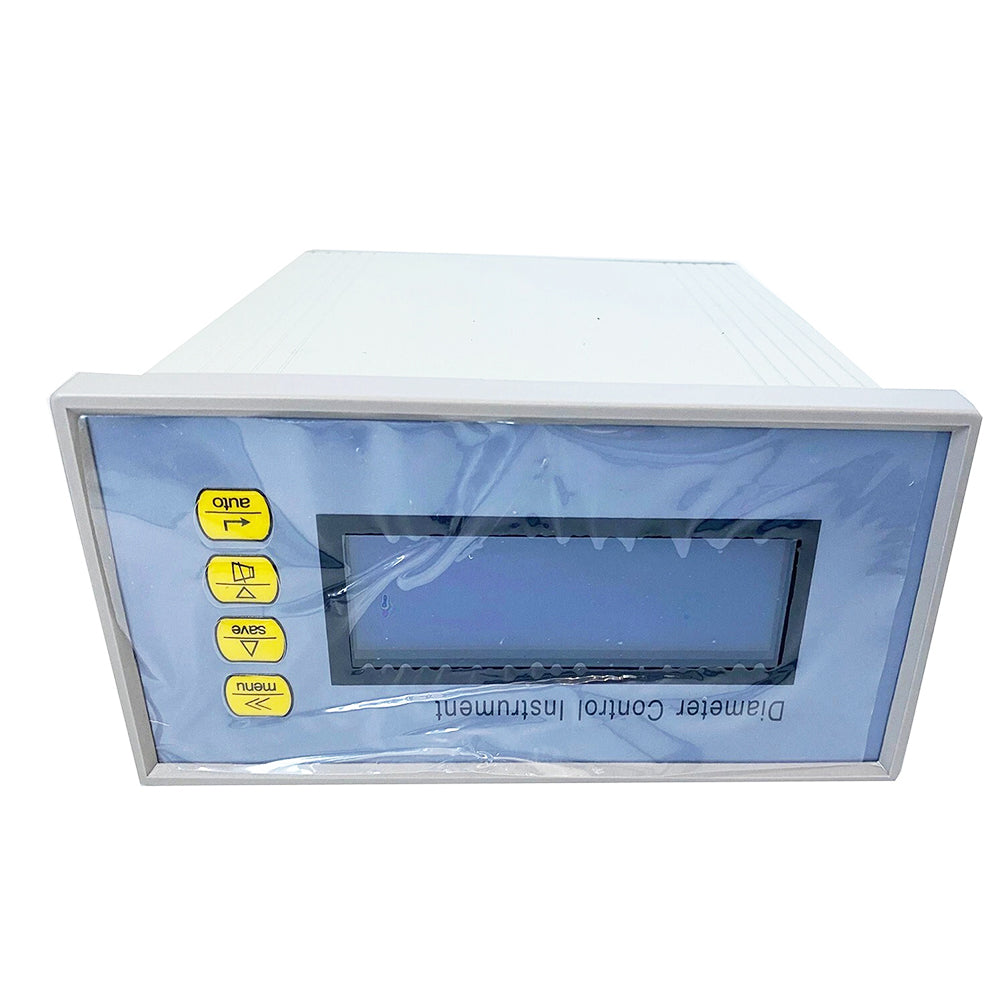

4. display control box*1pc
