VTSYIQI

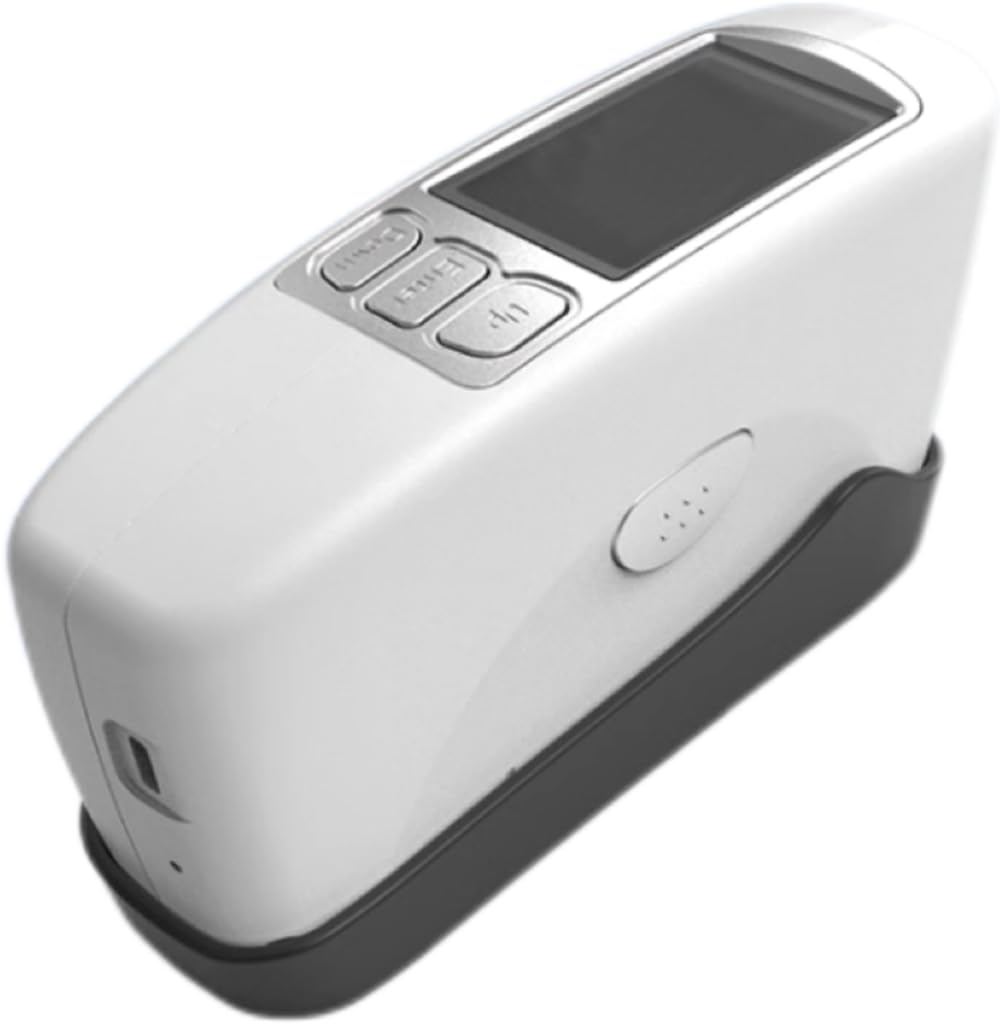

VTSYIQI Micro Hole Glossmeter Small Aperture Gloss Meter with Range 0-200GU Spot 2 * 3mm 2.4inch Full Color Display for Flat or Curved Products Larger Than 2 * 4mm

Regular price: $572.⁰⁰

In stock

Regular price: $572.⁰⁰

Quantity

Customer Service

Post your customer service details here.

Return Policy

Post your policy conditions details here.

VTSYIQI

VTSYIQI Micro Hole Glossmeter Small Aperture Gloss Meter with Range 0-200GU Spot 2 * 3mm 2.4inch Full Color Display for Flat or Curved Products Larger Than 2 * 4mm

Regular price: $572.⁰⁰

Description

Reviews

Frequently Asked Questions

About this item

Li-ion battery charging, saving users the cost of use, while guaranteeing a long life of 100,000 times

Single machine can store 5000 pieces of data, to solve the problem of user data storage

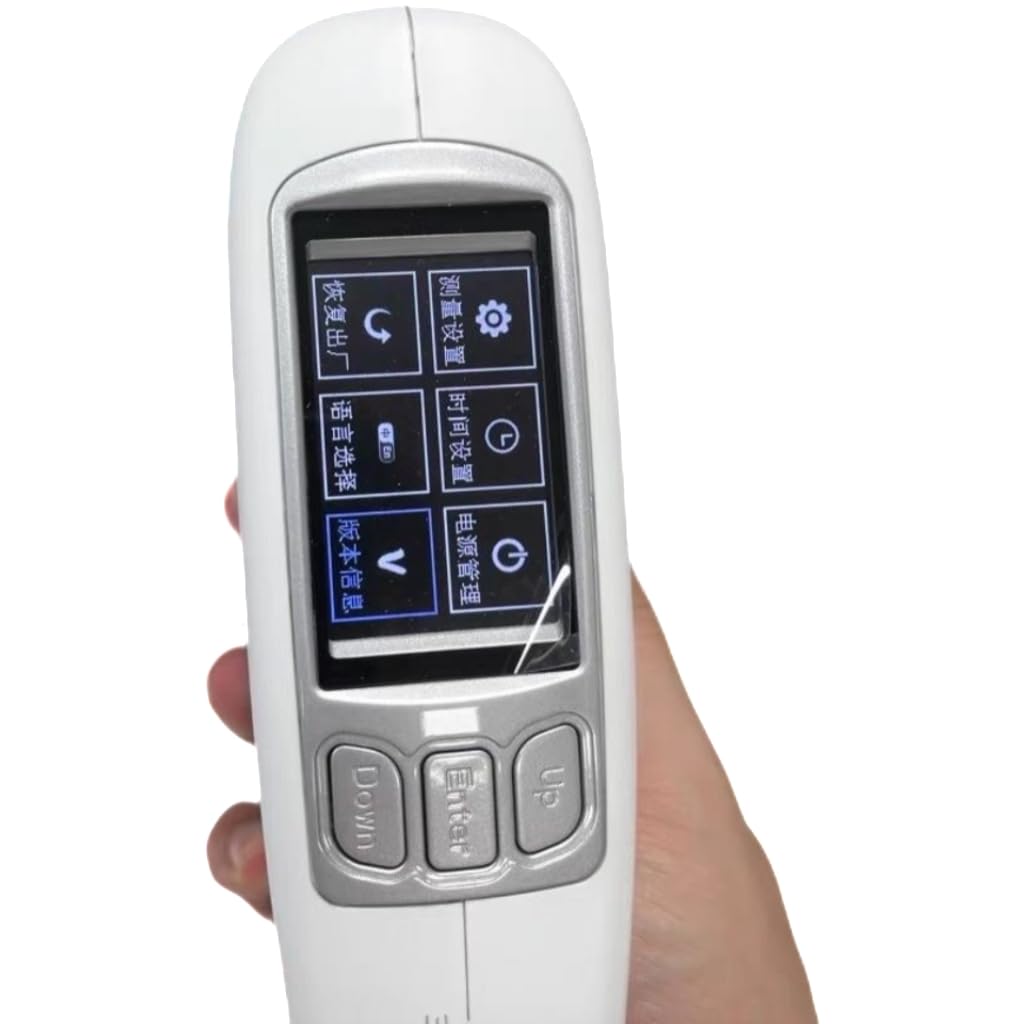

Adopting 320*240 color screen, the data display is clear at a glance

Standard QC software, data can be stored in the computer terminal, export reports

Adopts universal Type-C interface to reduce users' purchasing cost

Meet the requirements of JJG 696-2015 gloss meter, more accurate data

Technical Parameters

Measuring angle: 60°

Measuring spot(mm): 60°:2*3

Measuring range: 60°:0-200GU

Graduated value:0-100:0.1GU;>100:1GU

Measurement repeatability: 0-100GU:0.2GU; 100-200GU:0.2%GU

Measurement mode: simple mode and statistical mode

Measurement accuracy: meet the requirements of JJG 696-2015 gloss meter

Measuring time: less than 1s

Data storage ：5000 items

Volume : 165*51*77mm (L*W*H)

Weight: about 400g

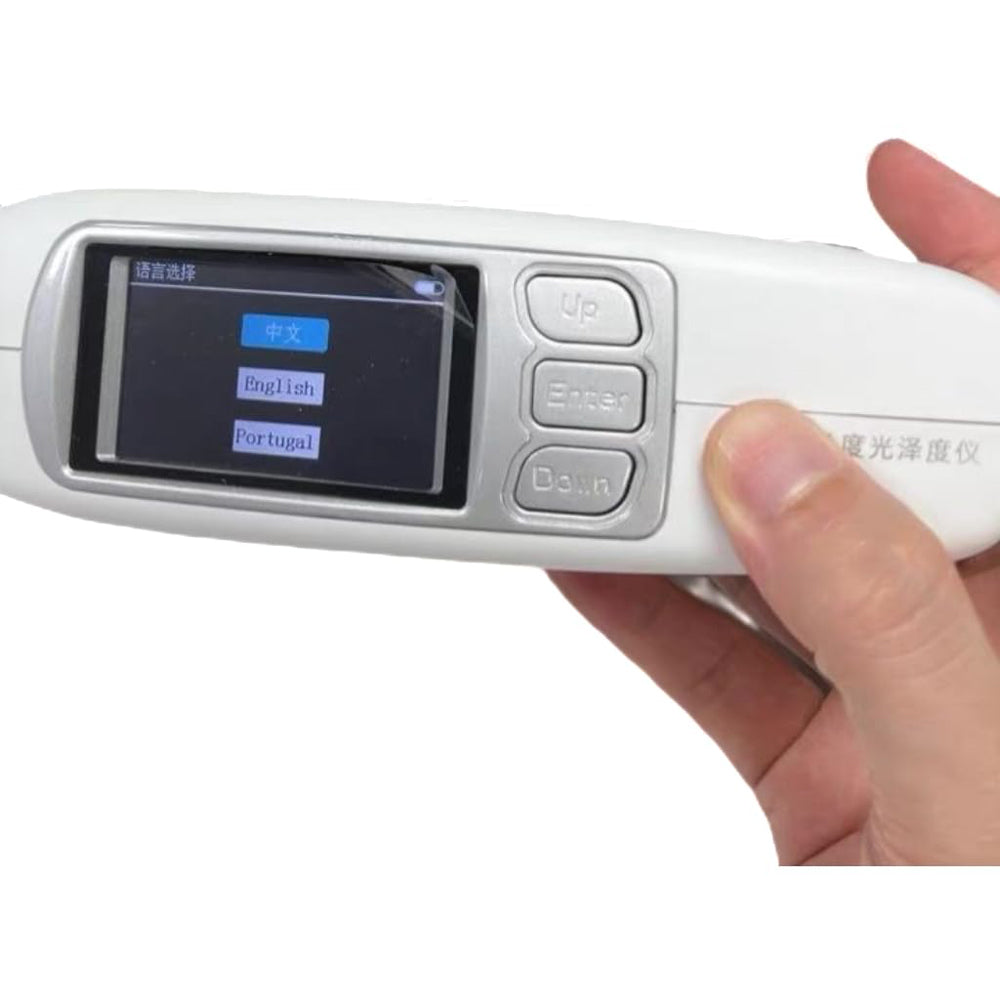

Language: Simplified Chinese, English

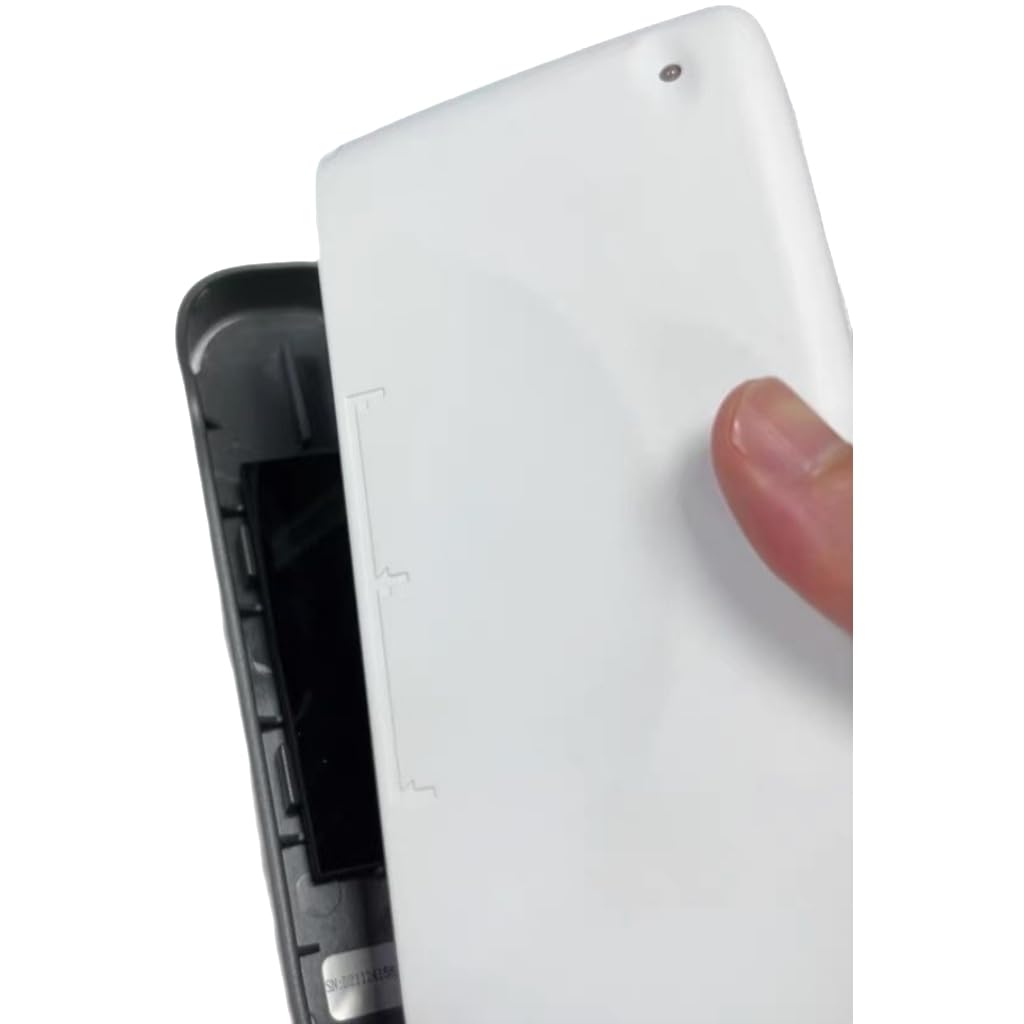

Battery: 3000mAh lithium battery

Endurance : 100000 times with full charge

Interface : Type-C

Screen size ： 2.4 inch (resolution 320 * 240)

PC Software: Support

Operating temperature : 0-40℃

Humidity: less than 85%, no condensation

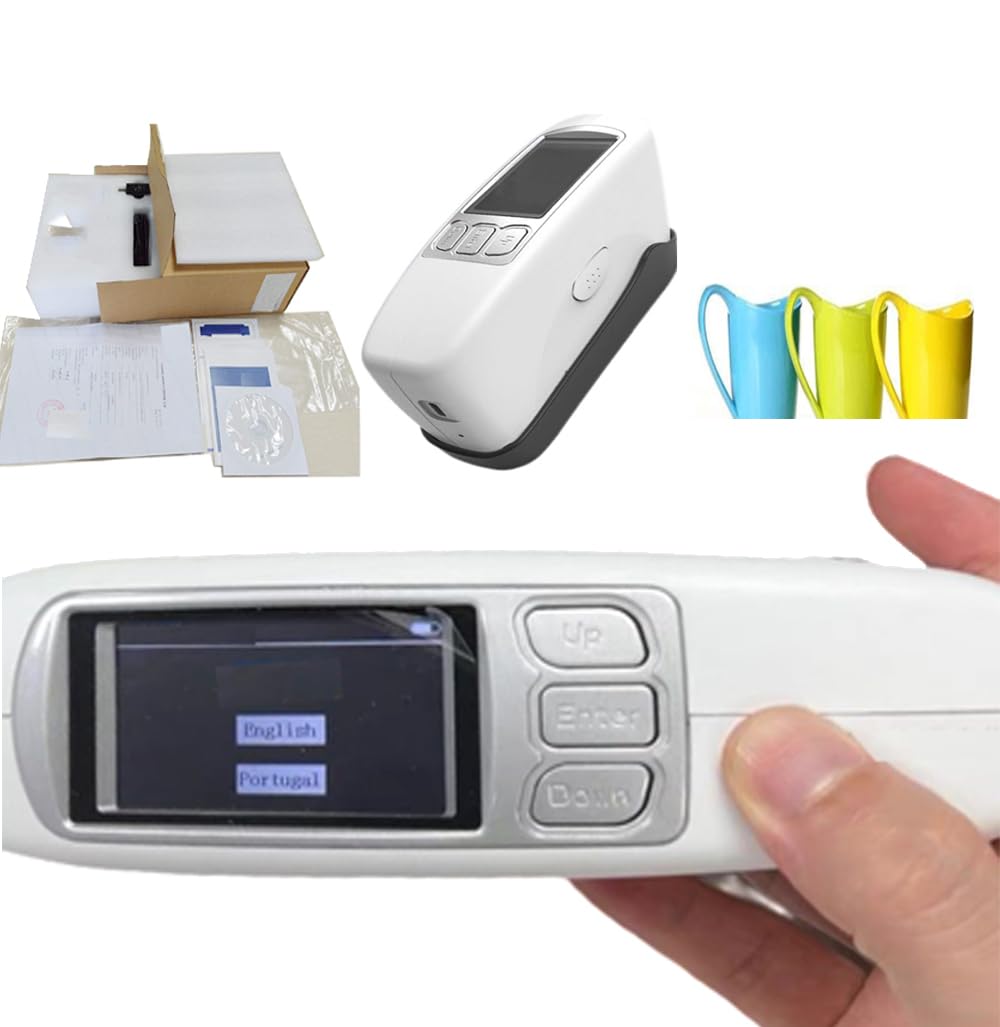

Accessories: 5V/2A charging head, data cable, manual, U disk (host computer software)

Calibration standard board, third-party calibration certificate

Usage : Paint and ink, coating, electroplating, plastic, electronics, hardware and other fields.
