OVERVIEW

Multi-channel temperature meter is a new upgraded with ARM micro processor. multi-channel sampling and parallel test, can sampling, alarm and communication transmission to 16 channels simultaneously. compatibility various kinds of temperature sensors, fast response, data stable and with Break even detection function.

The temperature test resolution 0.1 ℃.

It support K/N/E/J/T/R//S/B thermocouples. test temperature -200℃ to 1800℃.

It with RS-232 & USB interface, data collection,alalysis and printing by connection PLC.

The instrument is equipped with RS-232 interface and USB interface as standard, and provides free communication. Data collection, analysis and printing can be easily realized through PC software.

It uses a sturdy and anti-vibration shell, which can work in harsh environments. Fully isolated digital and analog signals, ## (can be live test (isolation voltage 230Vrms, 330VDC)) ##, safe and reliable.

It comes standard with U disk interface and supports real-time data storage.

FEATURES

Scan speed: Fast/Med/Slow

Cold Junction Compensation

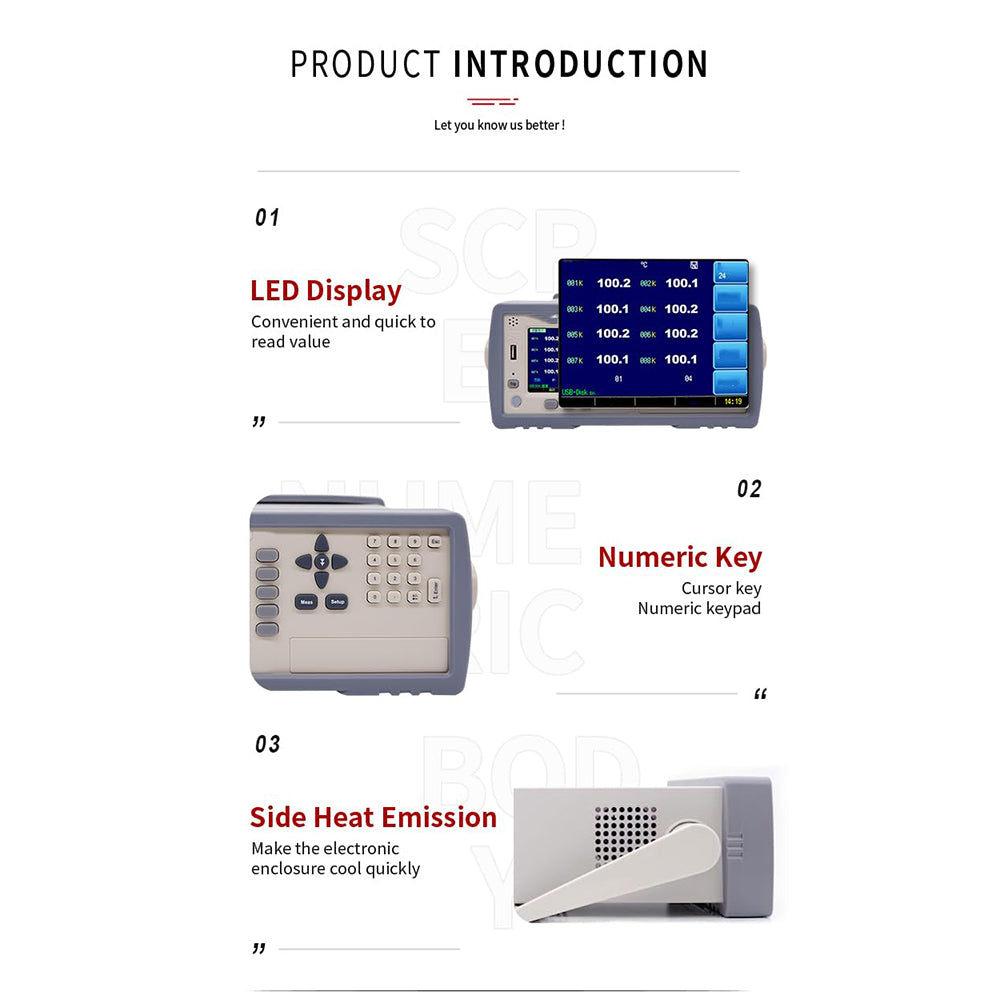

TFT True Color LCD Display.

Interface: RS232C and USB Slaver Interface

USB-Disk Interface

Automatic detection of burnout

Specified channel scan

Data acquisition software

SPECIFICATIONS

Graduation:Thermocouple:J/K/T/E/S/N/B/R

Accuracy: 0.2%+1℃

Range: -200℃~1800℃ (variation depend on graduation)

Resolution: 0.1℃

Channels: 16 channels;

Speed: fast: 500ms/channel, slow: 1s/channel

Correction: Error correction for each channel

Comparator: high & low beep function for each channel

Interface: RS232C, U-disc, USB

Software: data acquisition software

Cold Junction: Accuracy: 0.5℃

Other Functions: TFT-LCD True color display, broken thermocouple check function

Power Supply: V: 85VAC～260VAC Fre：50Hz/60Hz Power：10VA

Dimension & Weight: 216x88x300mm weight：3kg

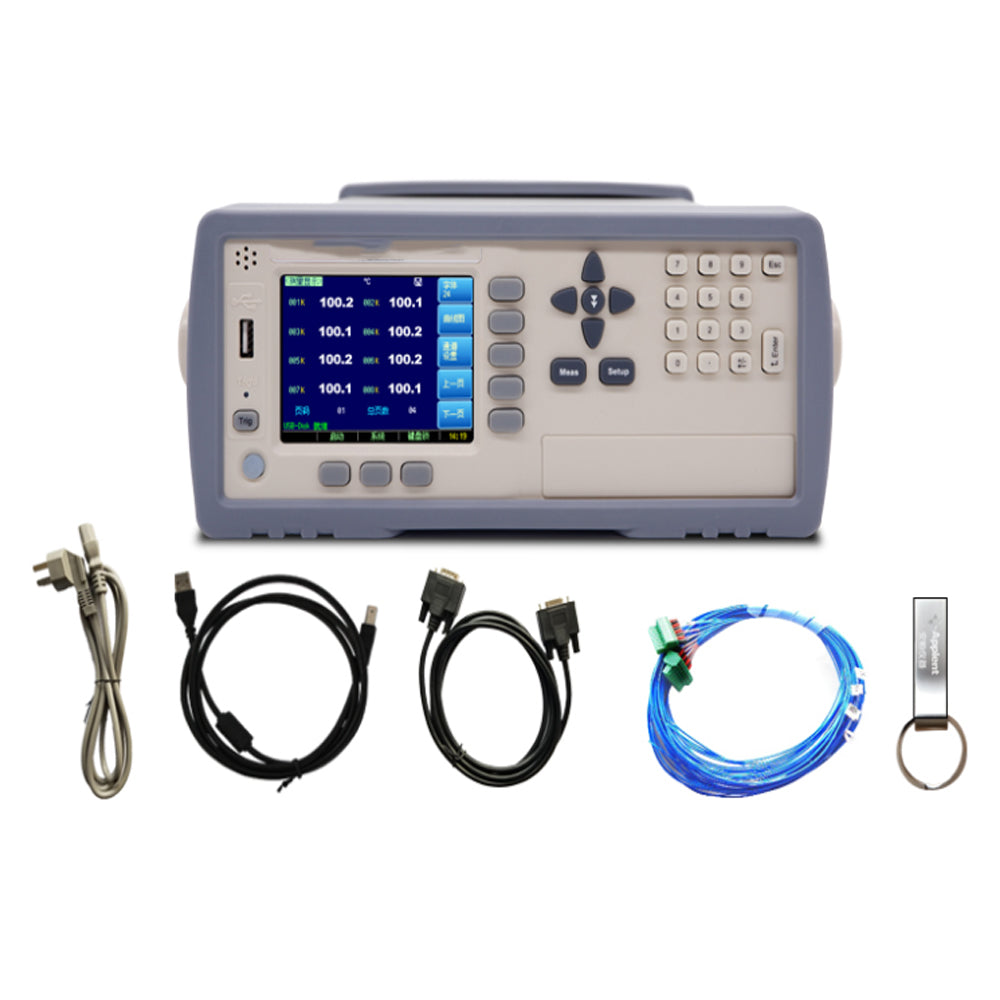

Accessories: K thermocouple 16 channels (2 meters/ channel)

APPLICATIONS

Suitable for multi-point temperature testing by manufacturers and quality inspection departments in home appliances, motors, electric heating appliances, thermostats, transformers, ovens, thermal protectors, power supplies, lighting, electricity, LEDs and other industries
