VTSYIQI Multi Mode Ultrasonic Thickness Gauge Meter Tester with Probe HT5 0.025 to 23.62inch 0.65 to 600mm P-E 3 to 30mm E-E Through Paint and Coatings

About this item

★ It has the function of probe zero calibration and two point calibration, and can correct the system error automatically

★ The remaining battery indicating function can display the remaining battery power in real time

★ With automatic sleep, automatic shutdown and power-saving functions

★ Two thickness testing modes, Pluse- Echo mode and Echo-Echo mode.

★ Compact, portable, high reliability, suitable for harsh operating environment, anti vibration, impact and electromagnetic interference

Product Description

The product can read Through Paint Coatings

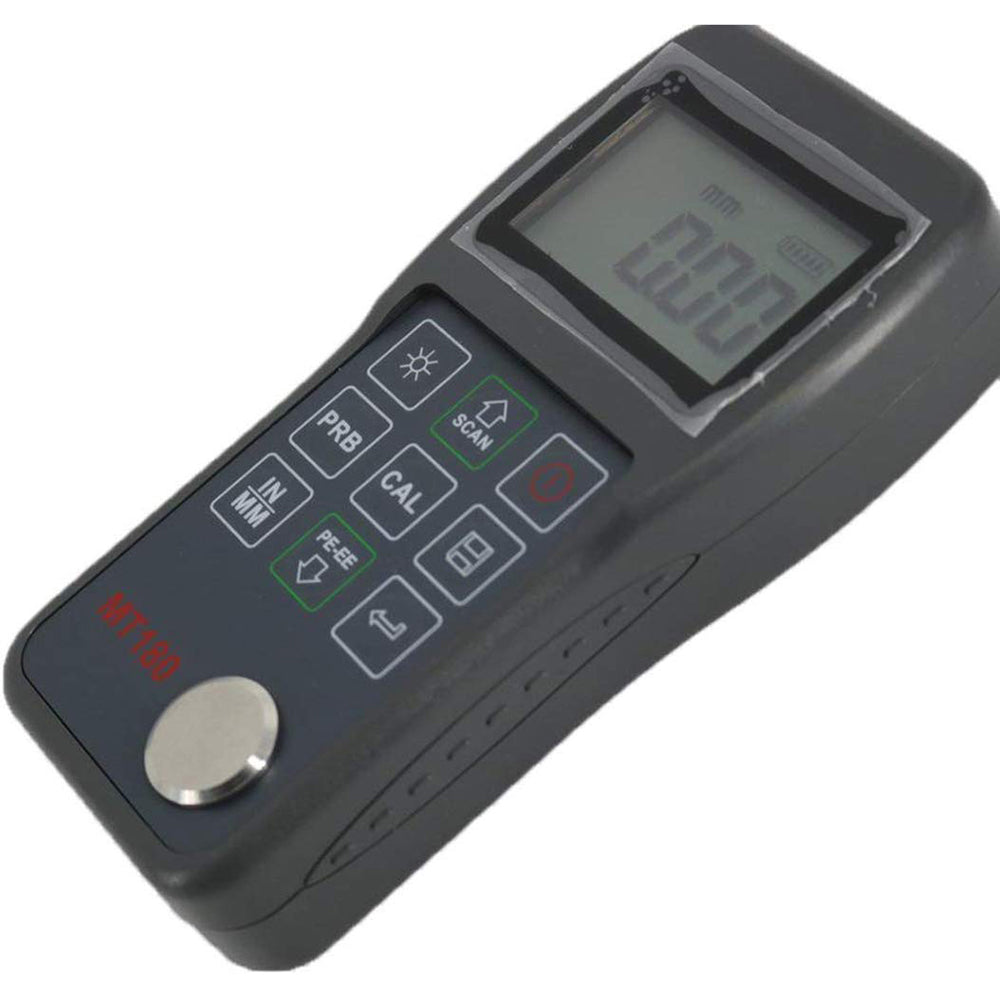

The model is a multi-mode ultrasonic thickness gauge. Based on the same operating principles as SONAR, the instrument is capable of measuring the thickness of various materials with accuracy as high as 0.1/0.01 millimeters. The Multi-mode feature of the gauge allows the user to toggle between puluse-echo mode (flow and pit detection), and echo-echo mode ( eliminate paint or coating thickness )

Function & application

Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials. Transducer models are available for special application, including for coarse grain material and high temperature applications.

Technical Specifications

Measuring Range : 0.65-600mm( P-E), 3-30mm (E-E)

Working Frequency : (2.5-7）MHZ

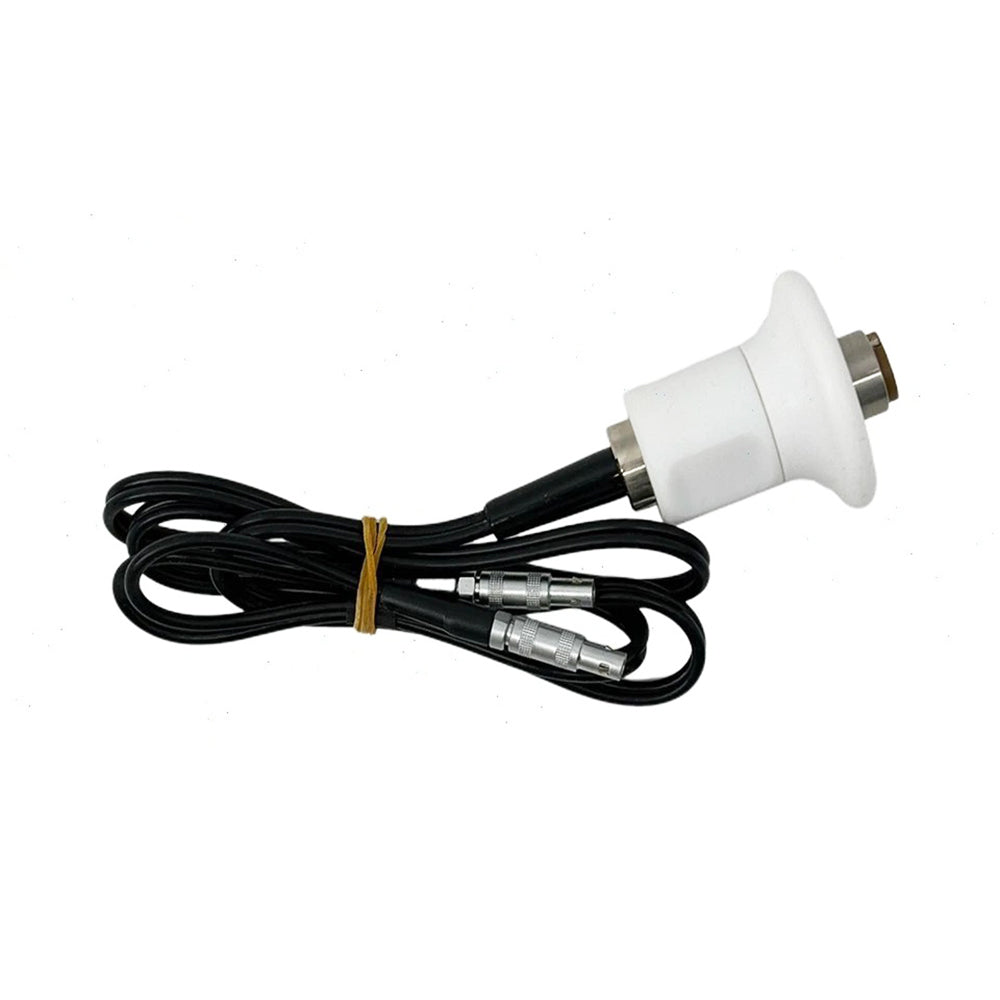

Probe Diameter : Probe HT5 is12MM

Probe N05 is10MM、Probe P5EE is 10mm,、Probe N07 is 6MM、Probe N02 is12MM（Optional accessories）

Min. Pipe Diameter : Φ15mm×2.0mm

Resolution : 0.1/0.01mm

Accuracy : ±（0.5%Thickness+0.01）mm

Display : 4.5 digits LCD with EL backlight

Single /Scan Mode : Seven measurements readings per second in single point mode, and sixteen per second in Scan Mode

Probe Calibration : Zero Calibration, Two-Point Calibration

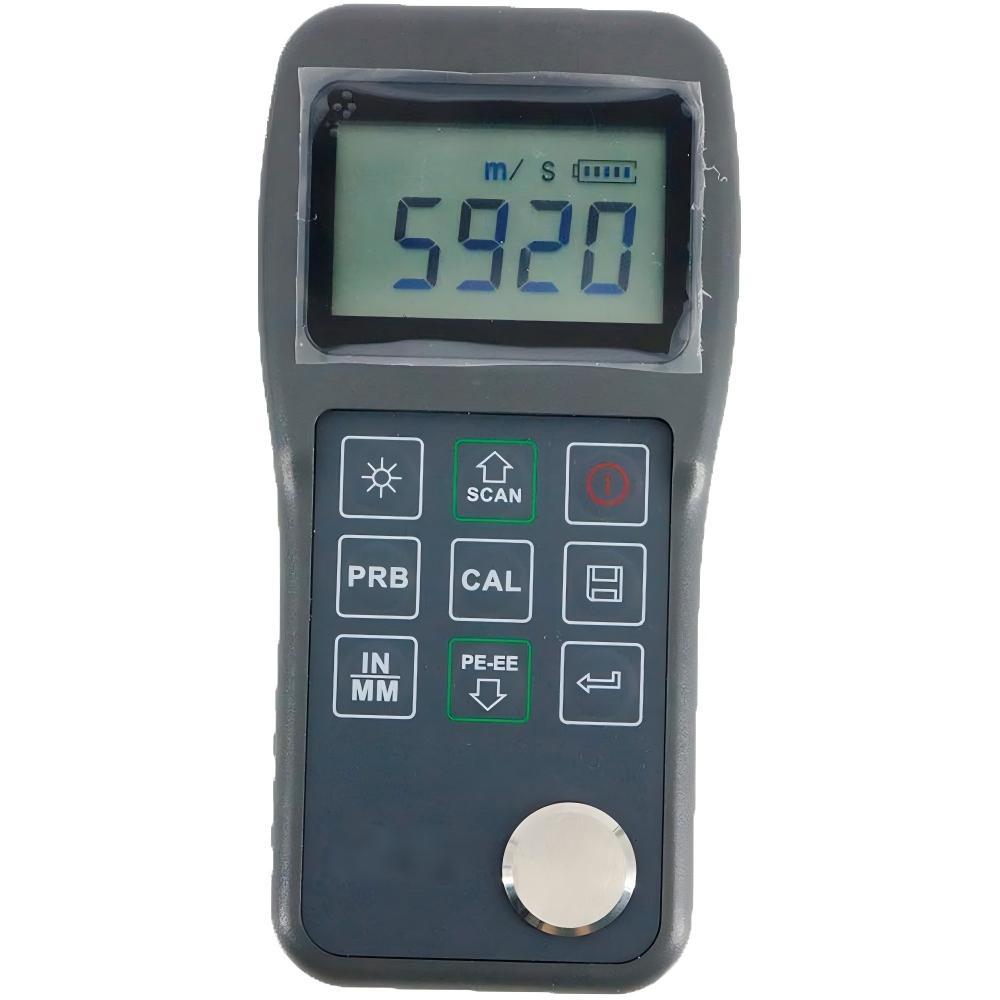

Velocity Range : 1000-9999m/s

Unit : Metric/Imperial unit selectable

Language : English

Memory : up to 20 files (up to 99 values for each file) of stored values

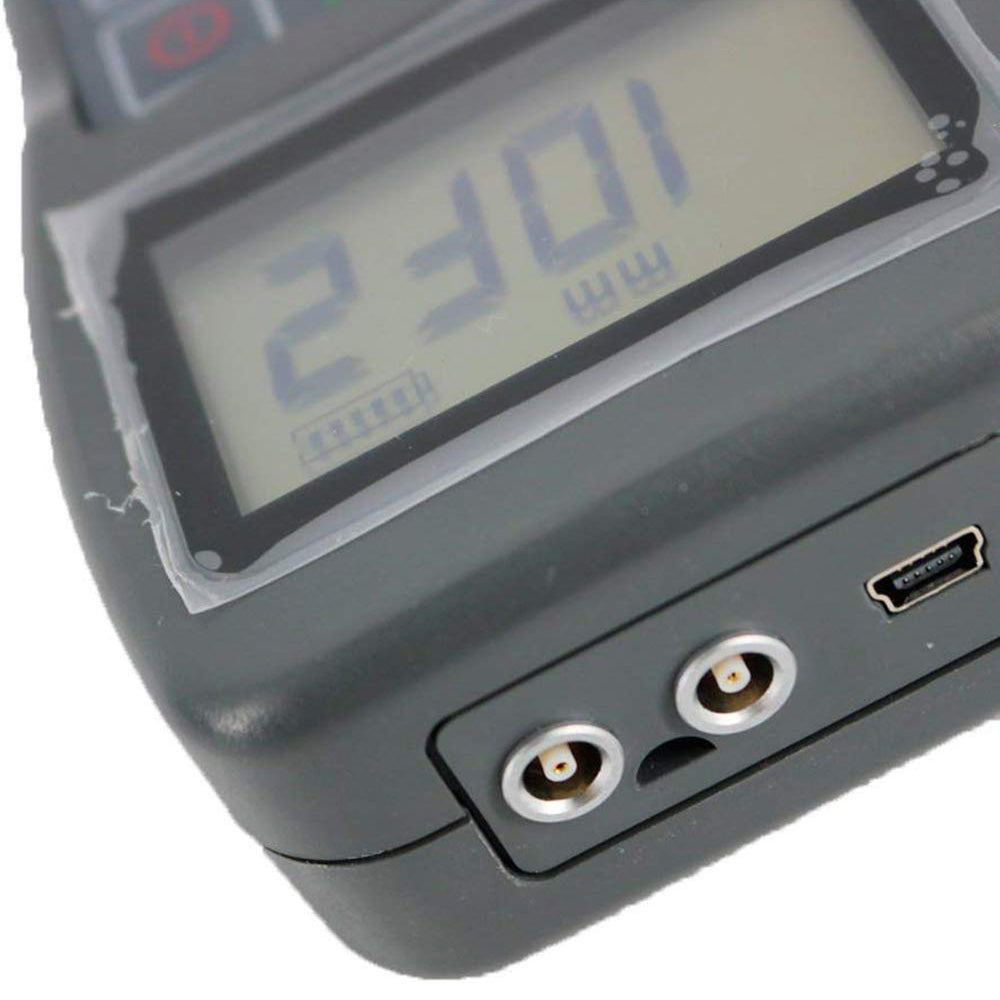

Communication Port : USB

Data Printing : Yes

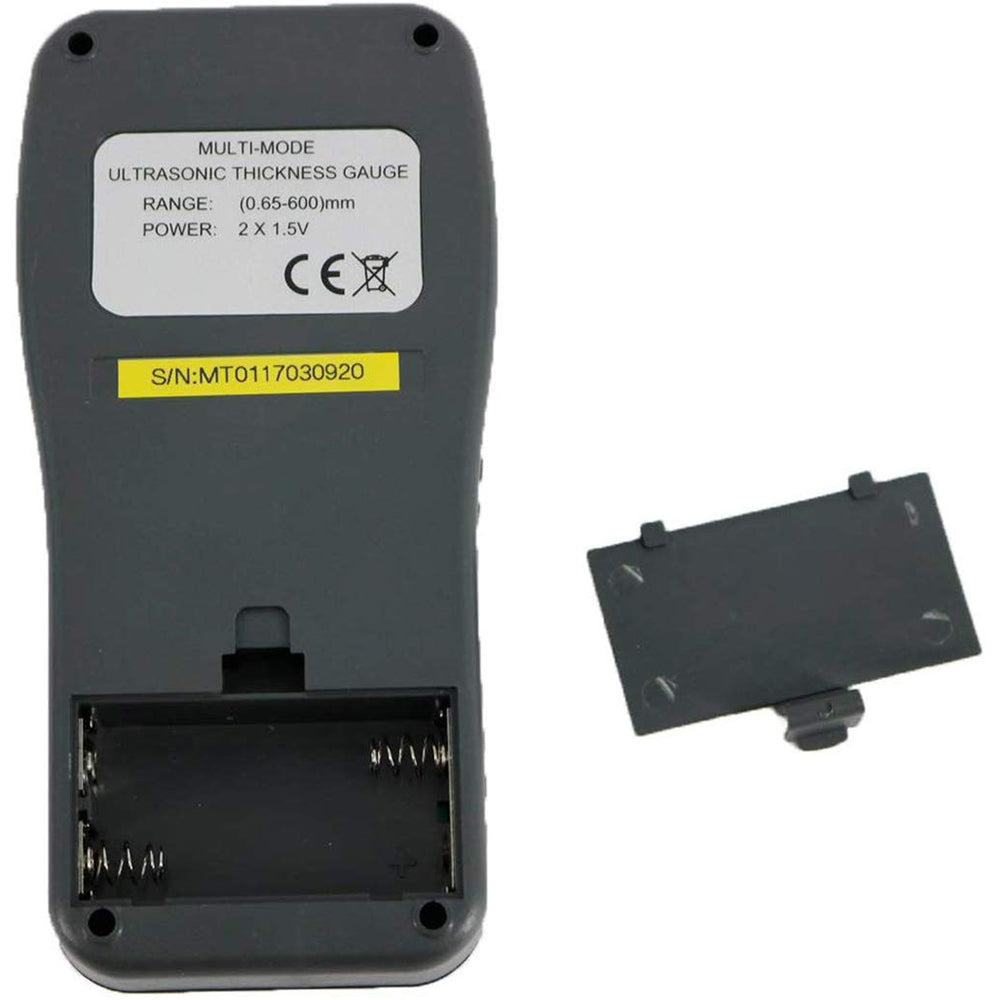

Power supply : Two “AA” size, 1.5 Volt alkaline batteries(NOT INCLUDED)

Lower Power Comsumption : Yes

Working Hours : 100h (EL backlight off).

Operating Temperature : -20℃-+60℃

Relative Huminity : ≤90％

Appearance : ABS Plastic

Outline : 150mm×74mm×32 mm

Gross Weight : 1.5 KG

PC Datapro Software : Yes

Speech Function : No

Working Conditions

*Operating Temperature: －20℃～＋50℃

*Storage Temperature：-30℃～＋70℃

*Relative Humidity ≤90％

*The surrounding environment should avoid of vibration, strong magnetic field, corrosive medium and heavy dust.

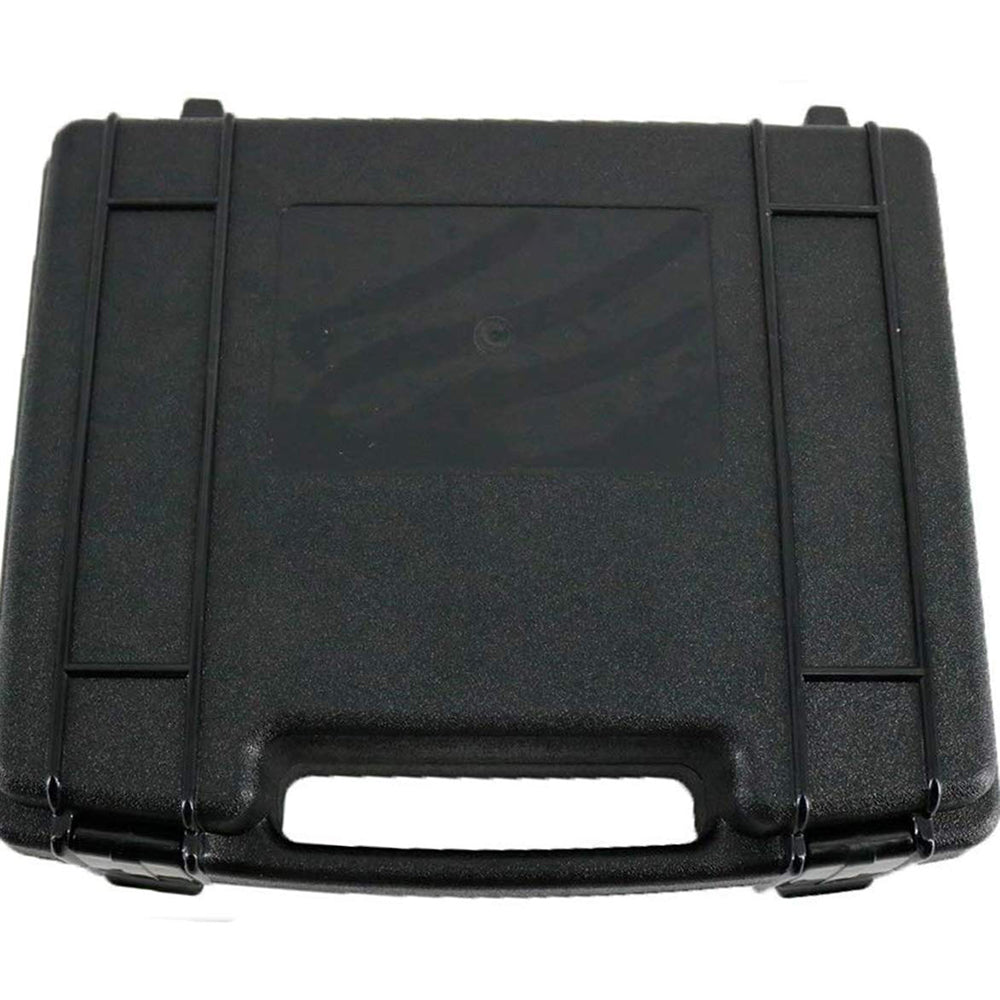

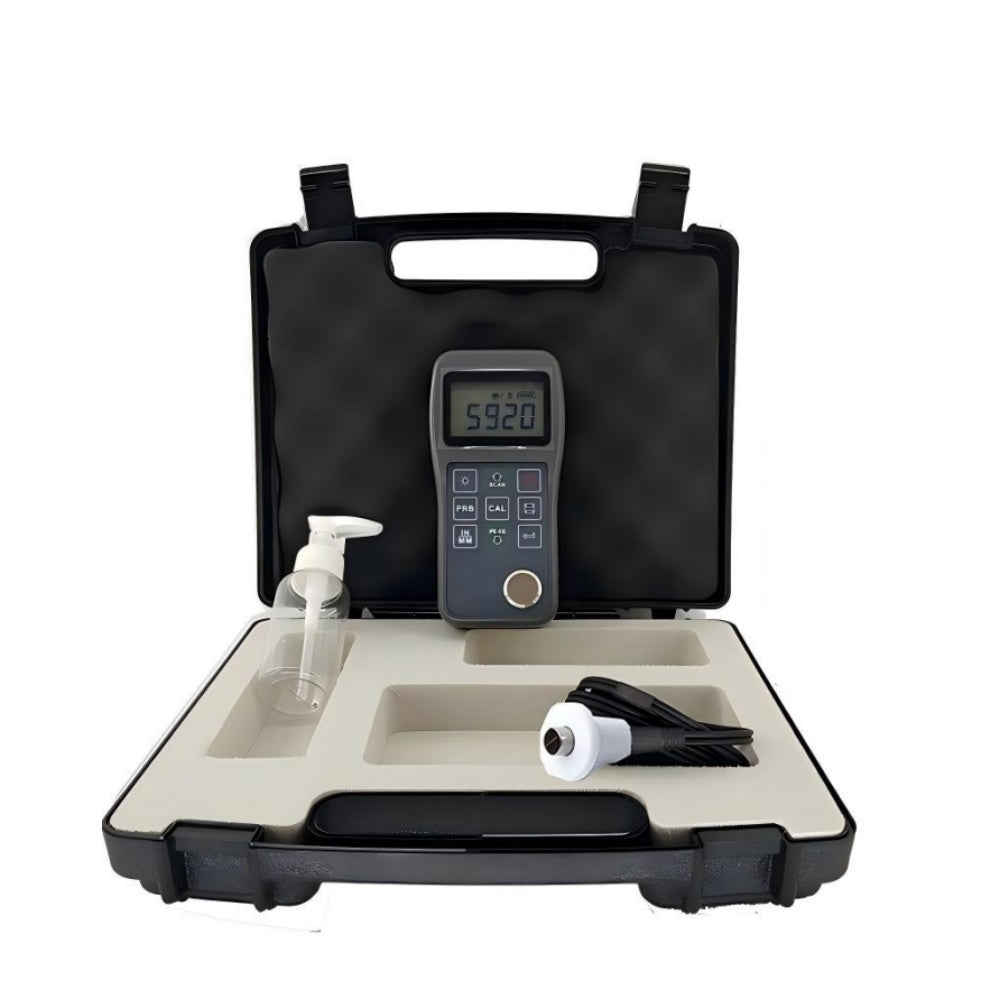

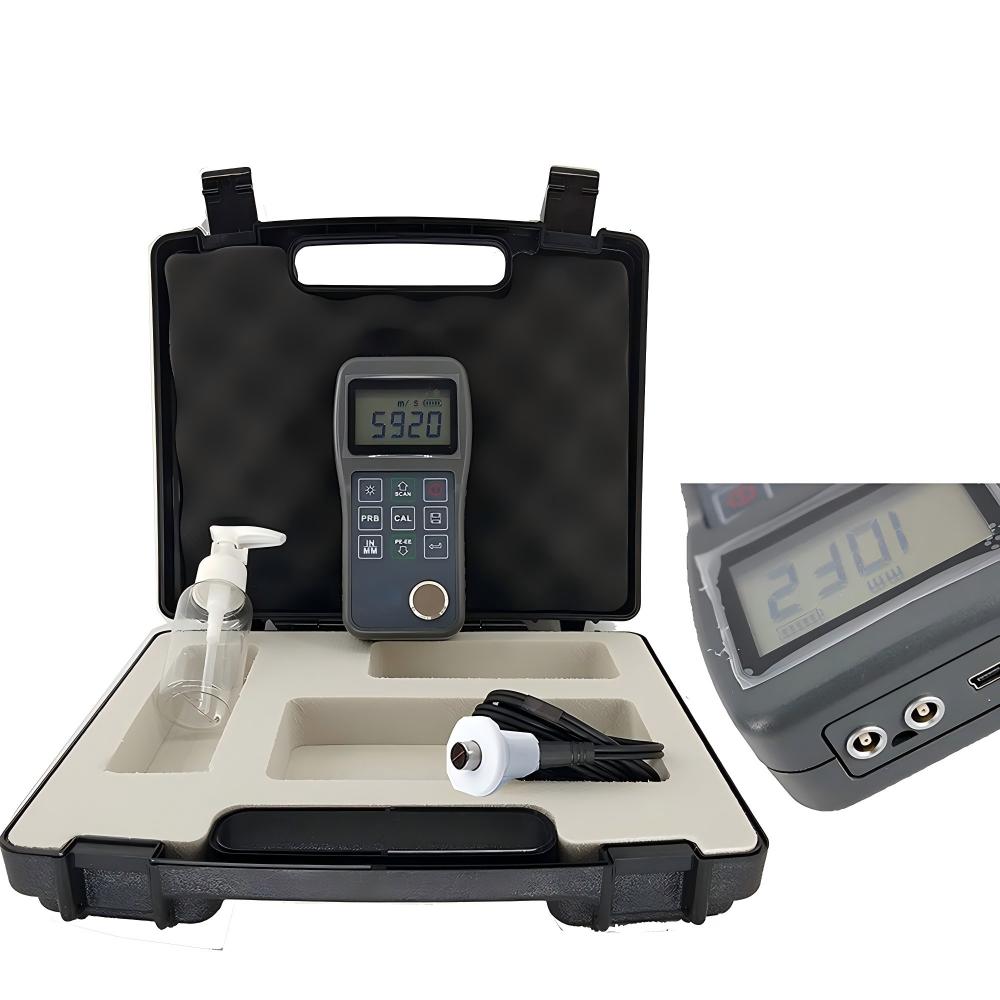

*Standard Accessories : Host, High temperature probe HT5, ABS instrument case, Attached files
